Dodge000730 FBS 1-7/8 PS60Para-Flex Spacer Coupling Flange Hub – PS60, 1-7/8 in Finished Straight Keyed Bore

Condition: New – Open box
Condition Note: Made In USA, New Old Stock, Keyed Bore, w/ Hardware

Availability:

4 in stock

Para-Flex PS60 spacer coupling flange hub, 1-7/8 in finished straight keyed bore, hardware included, for tire-style elastomeric element couplings.

List Price

$49.99

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPN000730 FBS 1-7/8 PS60
GTIN782475811328
ModelPS60FBS 1-7/8

Technical Specifications

TypeFlexible Coupling Shaft Hub
Base Number000730
Industry TermsPara-Flex hub, spacer coupling hub, tire coupling flange, elastomeric coupling flange, PS60 flange
Application TypesPump drives, fan drives, conveyor drives, spacer coupling installations requiring drop-out access
Bore Shaft Size1-7/8 in
Mpn Variants000730FBS, 000730, PS60FBS 1-7/8, PS-60-FBS, PS60
Manufacturer StatusCurrent Dodge Industrial product family
Compatible With ReplacesDodge PX60 Para-Flex flexible element; Dodge PS60 spacer coupling assemblies
SeriesPara-Flex Spacer (PS)
Bore TypeFinished Straight Bore, Keyed
Part Number000730 FBS 1-7/8 PS60
Seller Part Number: BP3#0TJLHR

Product Description

What this part is:

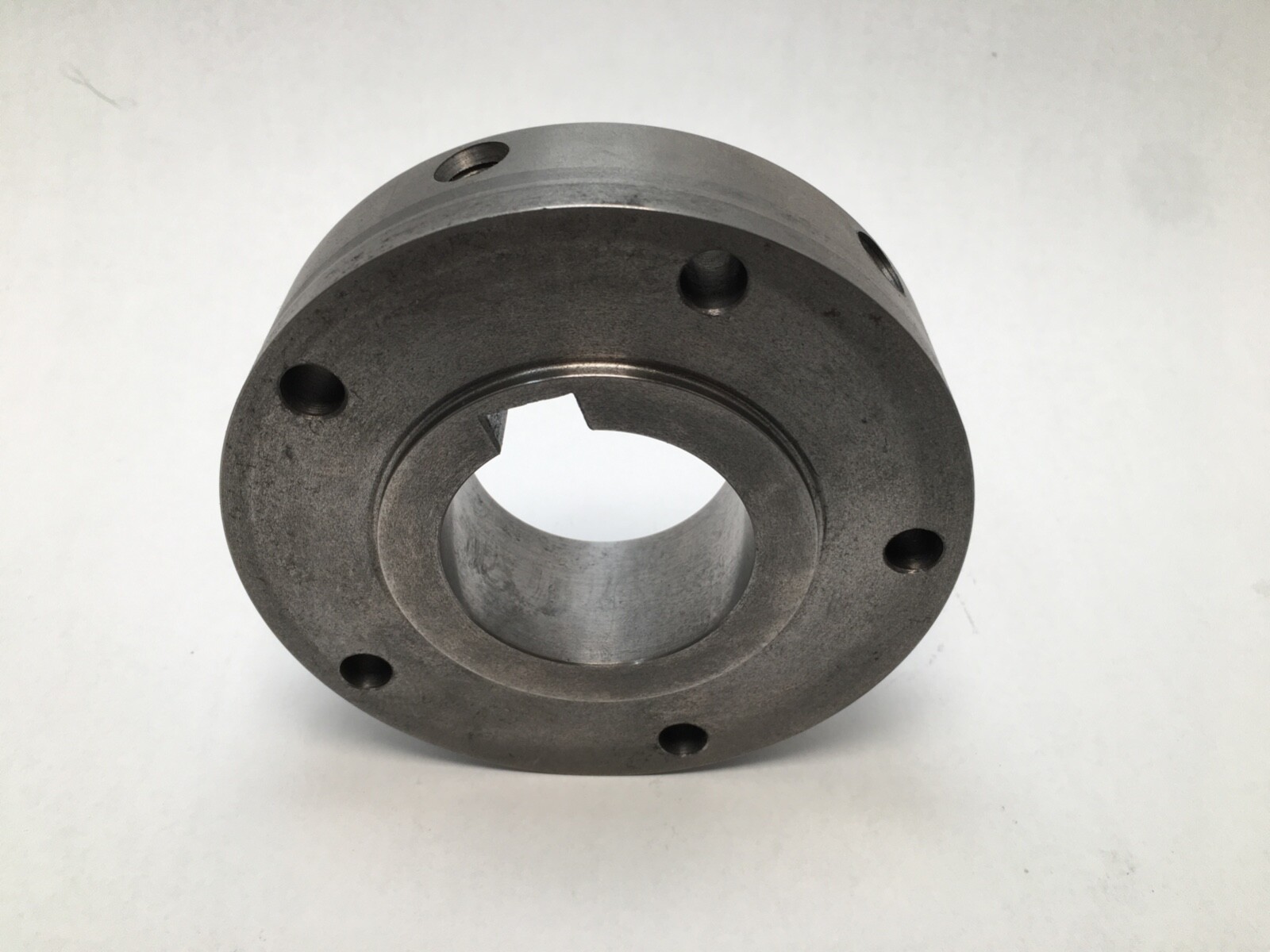

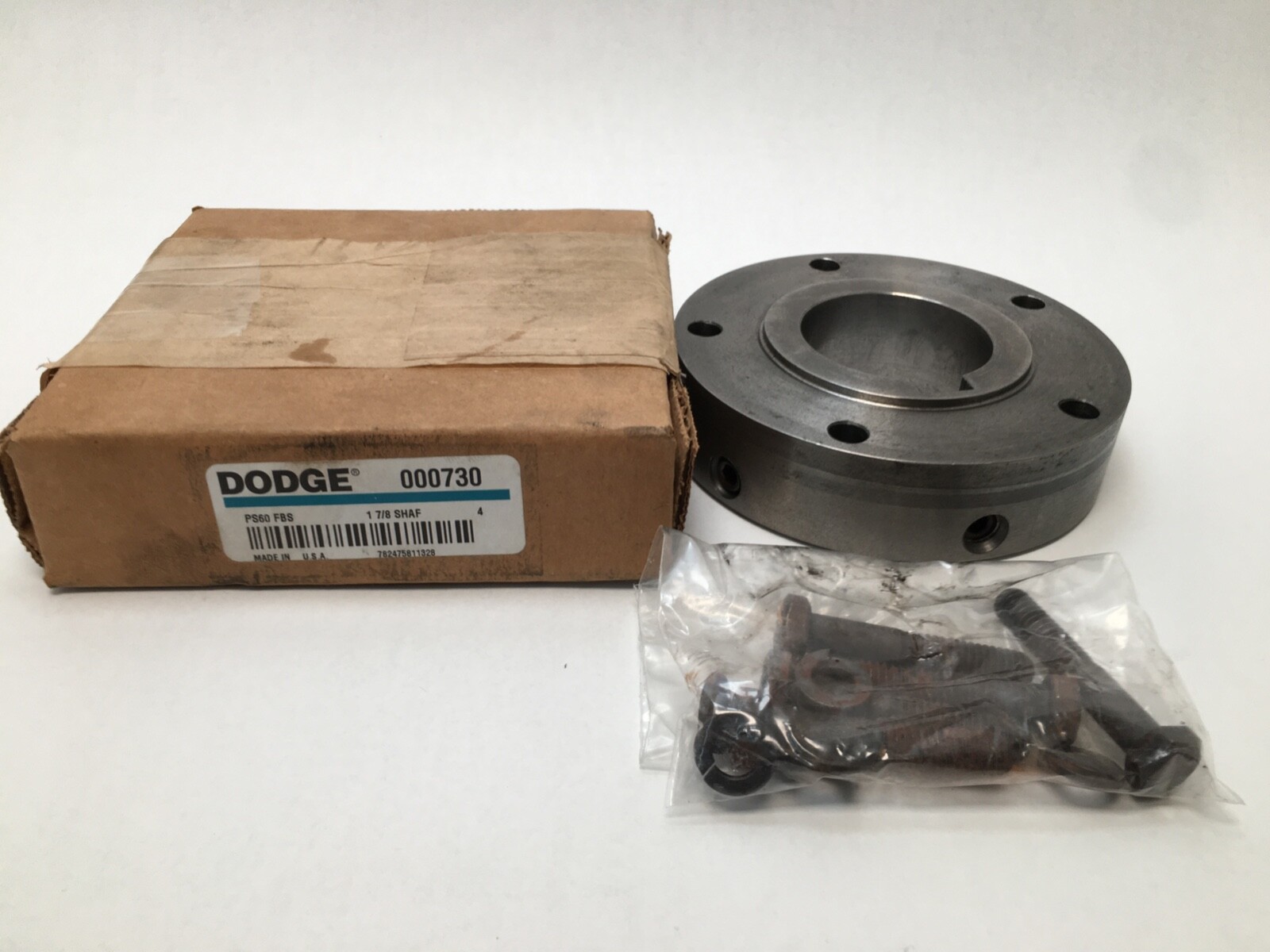

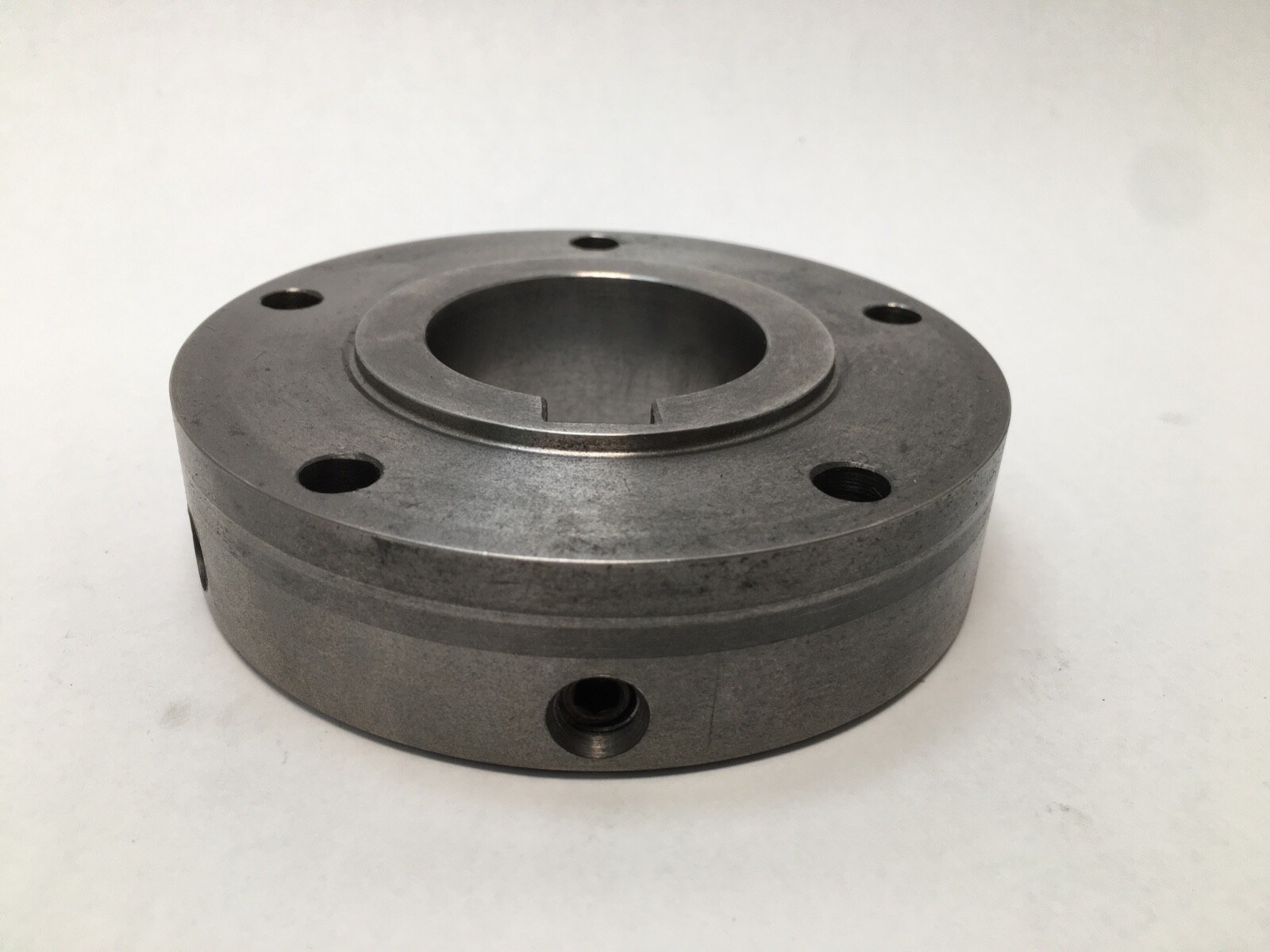

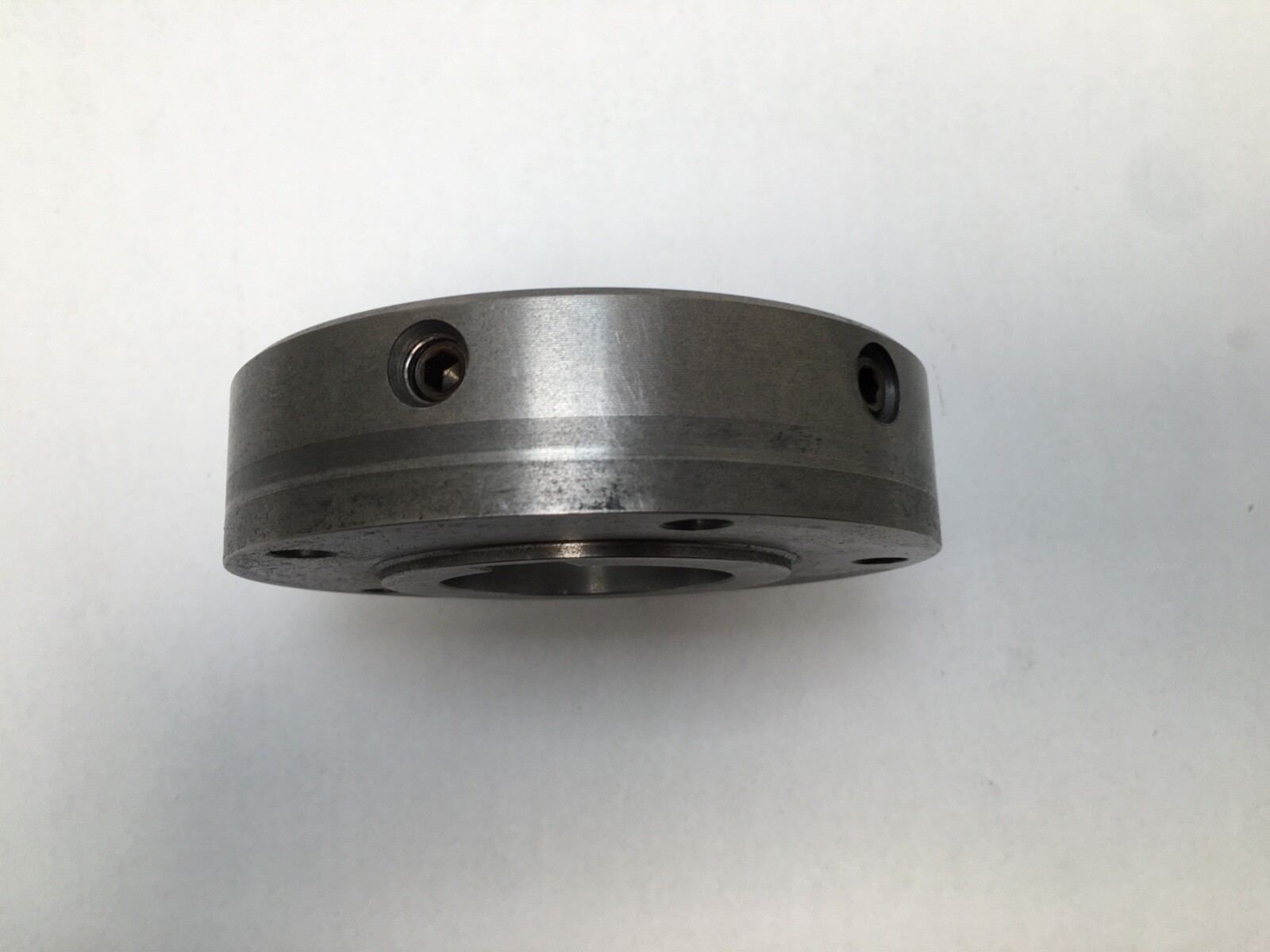

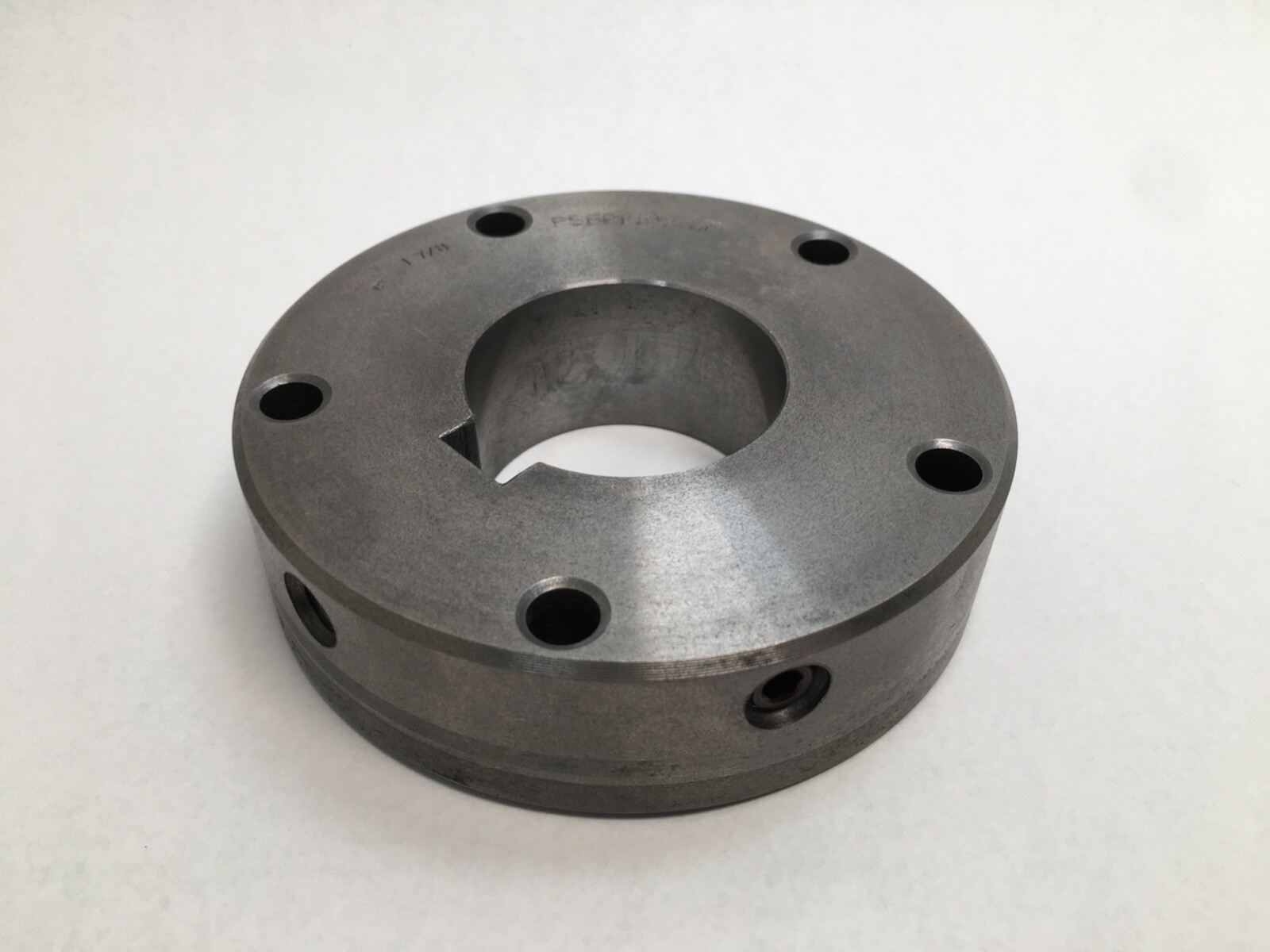

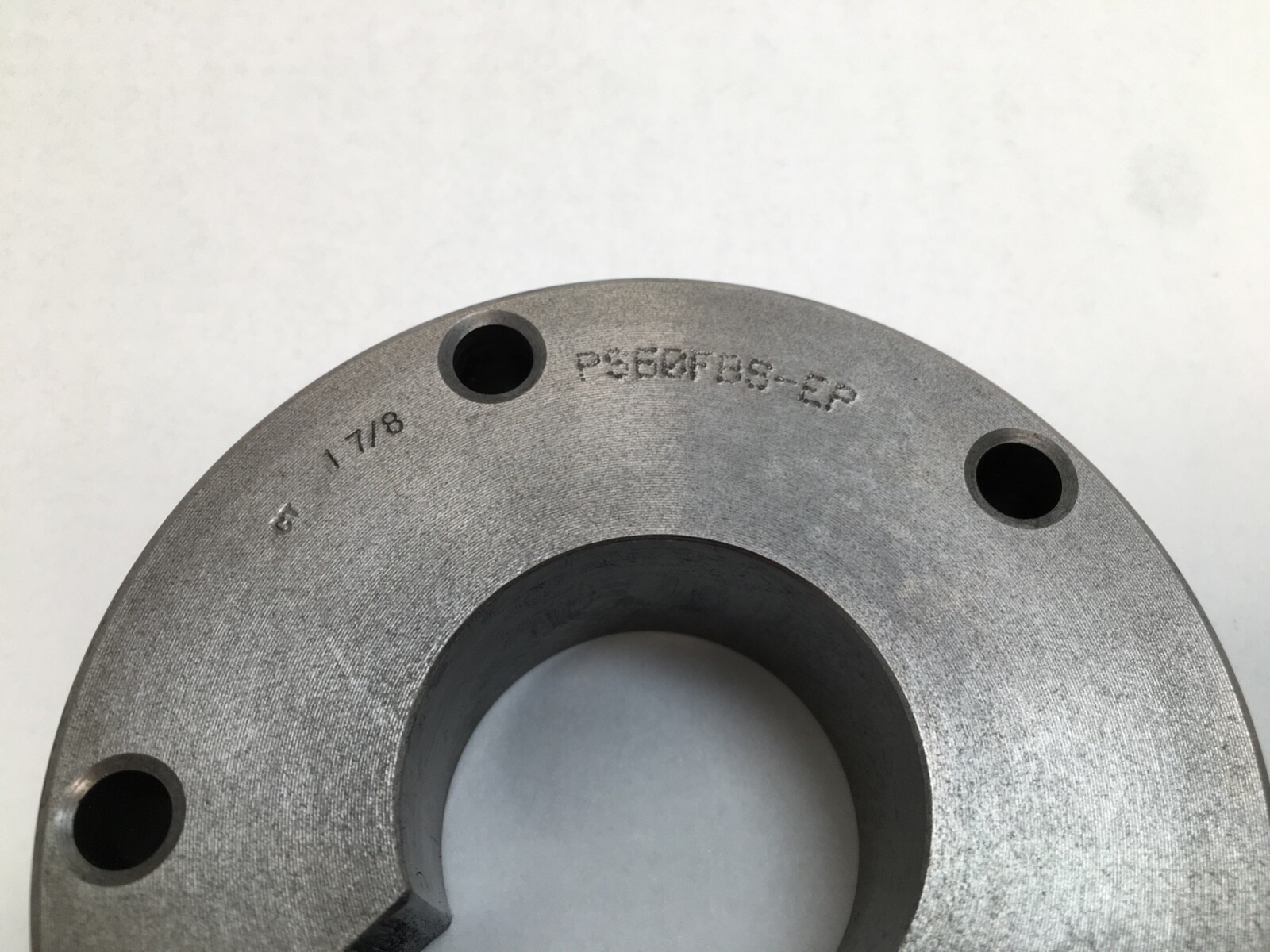

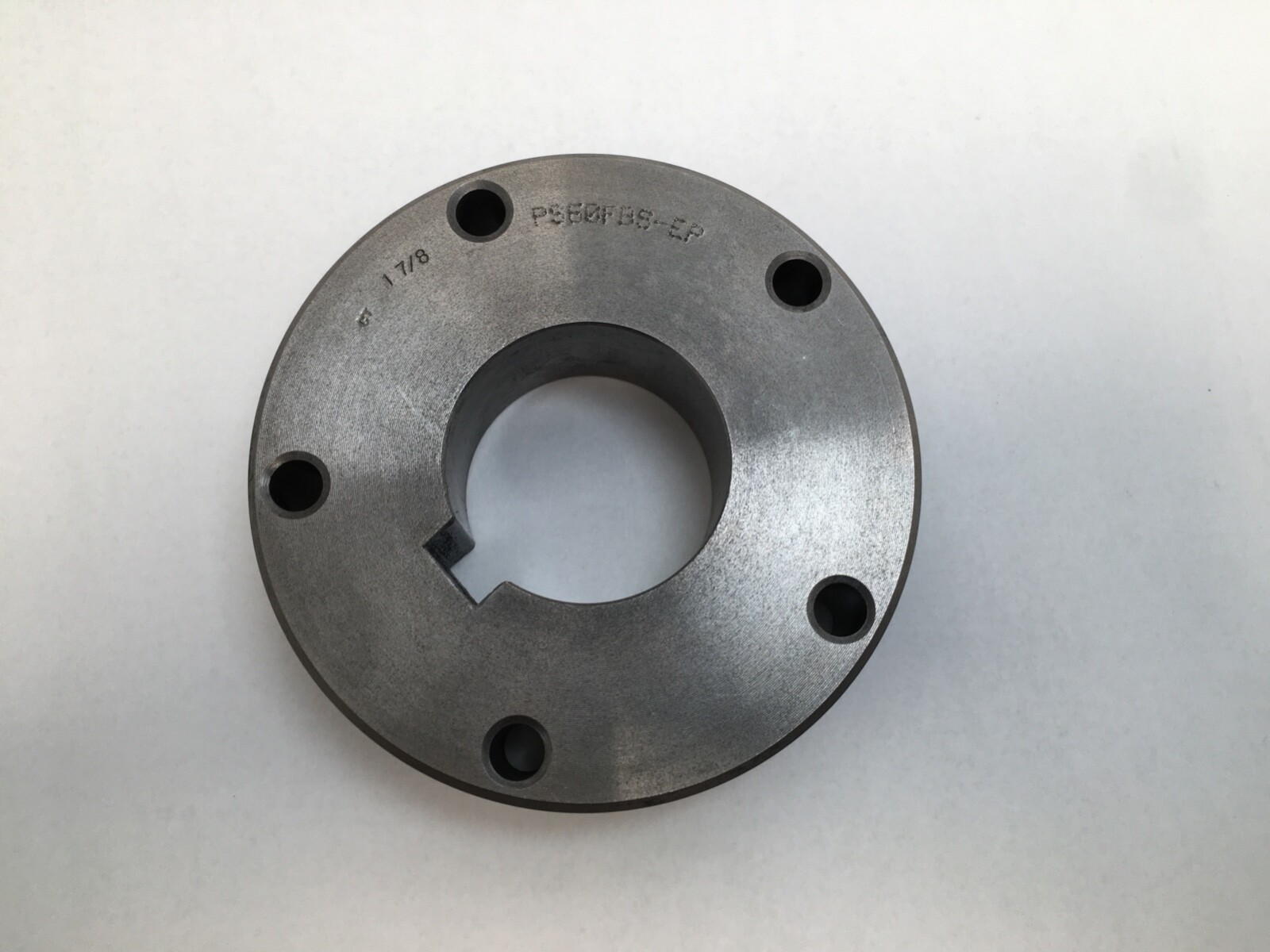

Dodge Para-Flex PS60 spacer coupling flange hub, catalog number 000730. Finished straight keyed bore, 1-7/8 in. One flange hub supplied with its mounting hardware. Unit Quantity: 1 Pc.

Decoding the designation:

PS — Para-Flex Spacer coupling series, sizes PS40 through PS200.

60 — coupling size.

FBS — finished straight bore flange, machined to a nominal shaft size rather than taking a QD or Taper-Lock bushing.

1-7/8 — the bore, in inches.

000730 — the Dodge catalog number for this bore in this size.

Specifications:

Catalog Number: 000730. Bore: 1-7/8 in. Bore Type: Finished Straight Bore (FBS), keyed. Coupling Size: PS60. Coupling Family: Para-Flex Spacer. Design Units: Inch. Clamp Ring Screw Torque: 240 lb-in. Hub Screw Torque: 180 lb-in. Angular Misalignment Tolerance: 1/64 in across four measurements 90° apart. Parallel Offset Tolerance: 1/32 in. Axial Movement Capability: up to 5/16 in. GTIN: 782475811328. Country of Origin: United States. Manufactured by Dodge Industrial, Simpsonville, South Carolina.

Dimensions and mounting:

Overall Dimensions: 1-7/8 x 4-29/64 x 1-7/32 in. Bore: 1-7/8 in, finished straight, keyed. A complete PS60 coupling is built from two hubs, the flexible element, the clamp rings and the clamp ring screws.

Compatibility and replacement:

Matching flexible element for this size: Dodge PX60 Para-Flex. Compatible with Dodge PS60 spacer coupling assemblies. Dodge Para-Flex elastomeric couplings are manufactured under ATEX directive 2014/34/EU and assessed against EN ISO 80079-36:2016 and EN ISO 80079-37:2016. ATEX Categories: I M2 and II 2 G D. Markings: Ex h I Mb, Ex h IIC T5 Gb, Ex h IIIC T100C Db. Ambient Temperature Range: −30 to +50 °C. Certificate: SIRA 04ATEX9358. Design Surface Temperature: below 100 °C. Part Number: 000730 FBS 1-7/8 PS60. MPN Variants: 000730FBS, 000730, PS60FBS 1-7/8, PS-60-FBS, PS60.

Frequently asked questions:

What bore does the Dodge 000730 PS60 hub have?

1-7/8 in, finished straight bore, keyed (FBS).

What does FBS mean in 000730 FBS?

FBS is finished straight bore flange, machined to a nominal shaft size rather than taking a QD or Taper-Lock bushing.

Which flexible element matches the Dodge PS60 hub?

The Dodge PX60 Para-Flex flexible element.
