Dodge000574Spacer Coupling Shaft Hub — 1-7/8 in Finished Bore, 3.81 in OD, 1.41 in Length Through Bore, 900 in-lb, 4,500 rpm

Name: Dodge 000574 Spacer Coupling Shaft Hub — 1-7/8 in Finished Bore, 3.81 in OD, 1.41 in Length Through Bore, 900 in-lb, 4,500 rpm
Brand: Dodge
SKU: AP6B4#KNPTJT
Price: 52.84 USD
Availability: InStock

Condition: New – Open box

Availability:

1 in stock

Categories: Power Transmission, Couplings

Dodge Para-Flex PS50FBX spacer shaft hub, 1-7/8 in finished bore with keyway, 3.81 in OD, 1.41 in length through bore. Rated 900 in-lb, 4,500 rpm max.

Same day shipment

List Price

$52.84

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Dodge
MPN	000574
Model	PS50FBX 1-7/8

Technical Specifications

Type	Flexible Coupling Shaft Hub
Base Number	PS50FBX
Industry Terms	Para-Flex spacer hub, spacer coupling hub, tire coupling hub, elastomeric coupling hub, drop-out spacer coupling hub, straight bore coupling hub
Common Misspellings	Paraflex, Para Flex, PS-50, PS 50 FBX, 00574, Dodge Baldor
Application Types	Pump drives, fan and blower drives, motor-to-gearbox spacer couplings, conveyor drives
Bore Width	1.41 in (1-13/32 in)
Bore Shaft Size	1-7/8 in (47.63 mm)
Locking Method	Keyed finished bore, clearance fit
Mpn Variants	000574, PS50FBX 1-7/8, PS50FBX1-7/8, PS50 FBX 1-7/8, 000574/FBX 1-7/8 PS50, 000574 FBX 1-7/8 PS50
Compatible With Replaces	Dodge Para-Flex PS50 spacer center assemblies; Dodge Para-Flex PS50 spacer couplings
Item Weight	1.45 kg (3.20 lb)
Limiting Speed	4,500 rpm
Harmonization Code	8483.60

Seller Part Number: AP6B4#KNPTJT

Product Description

What this part is:

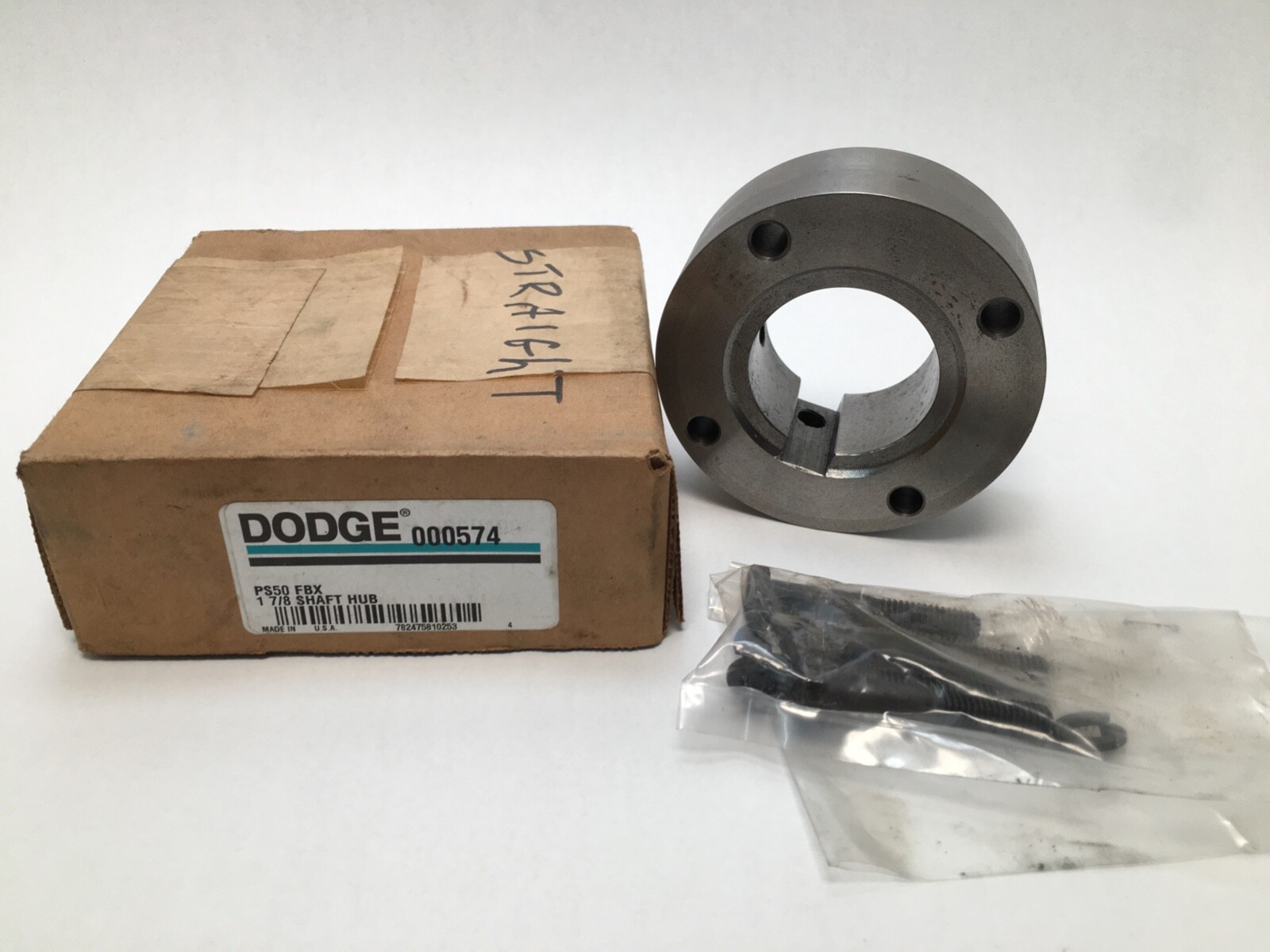

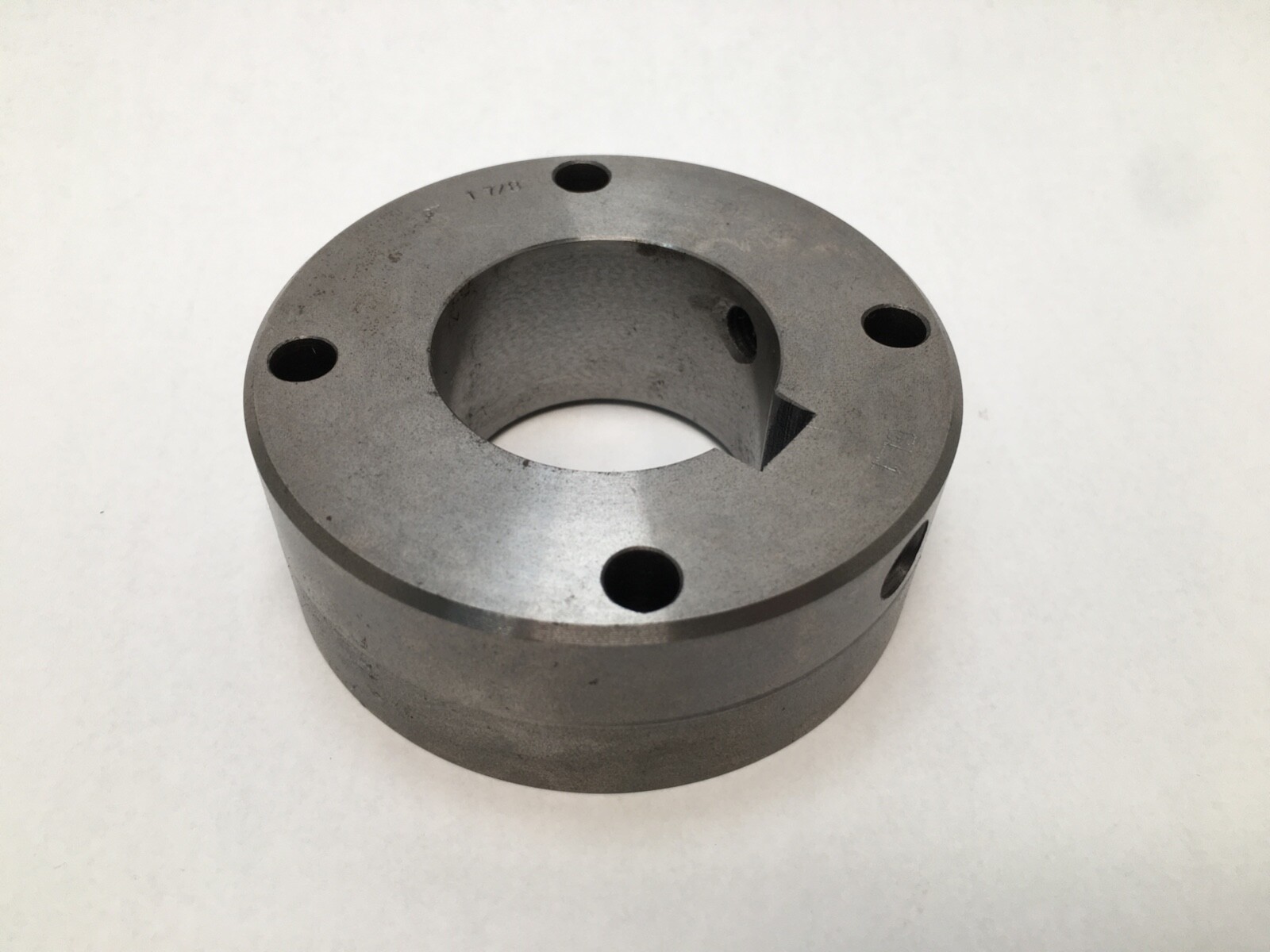

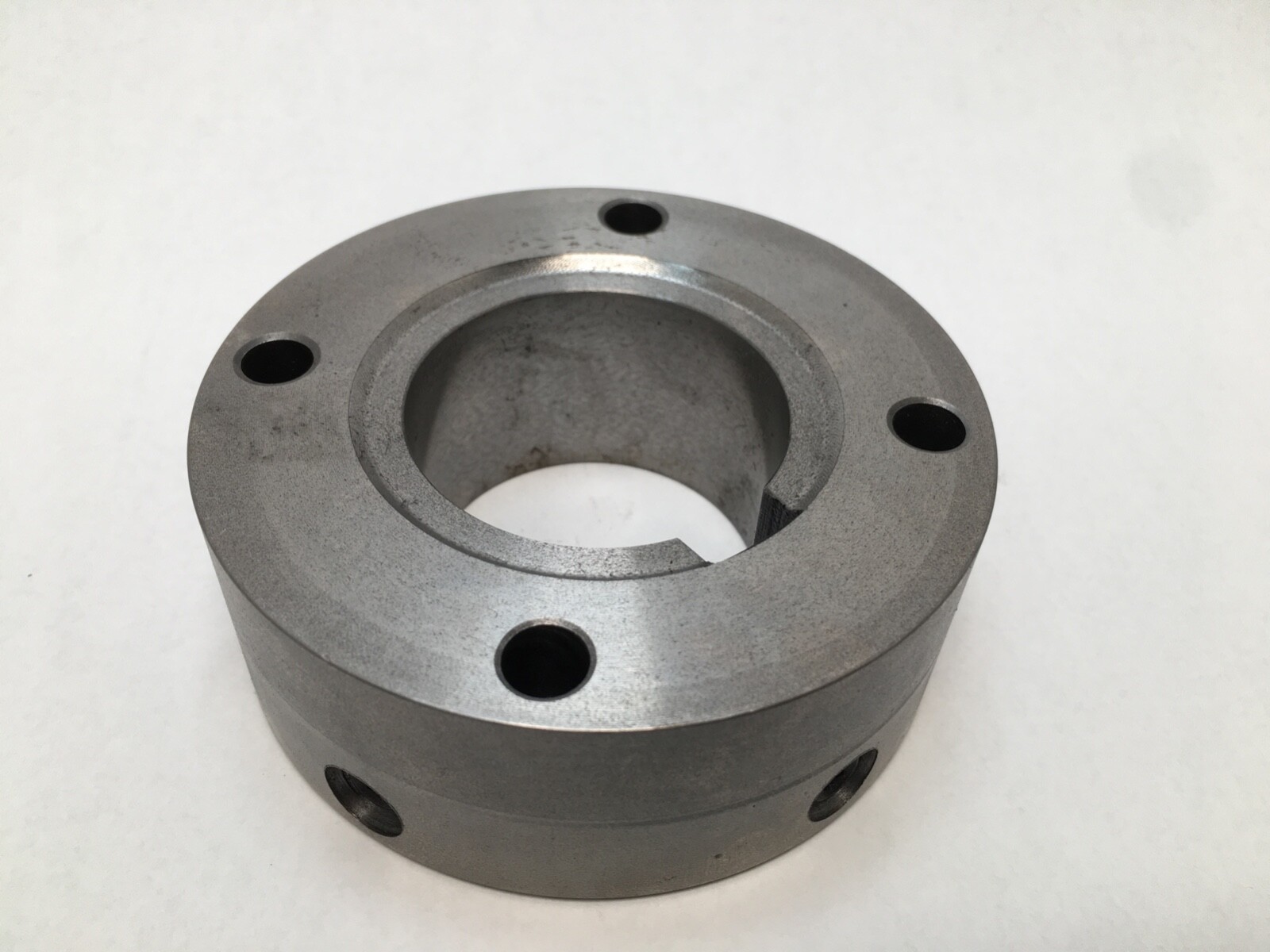

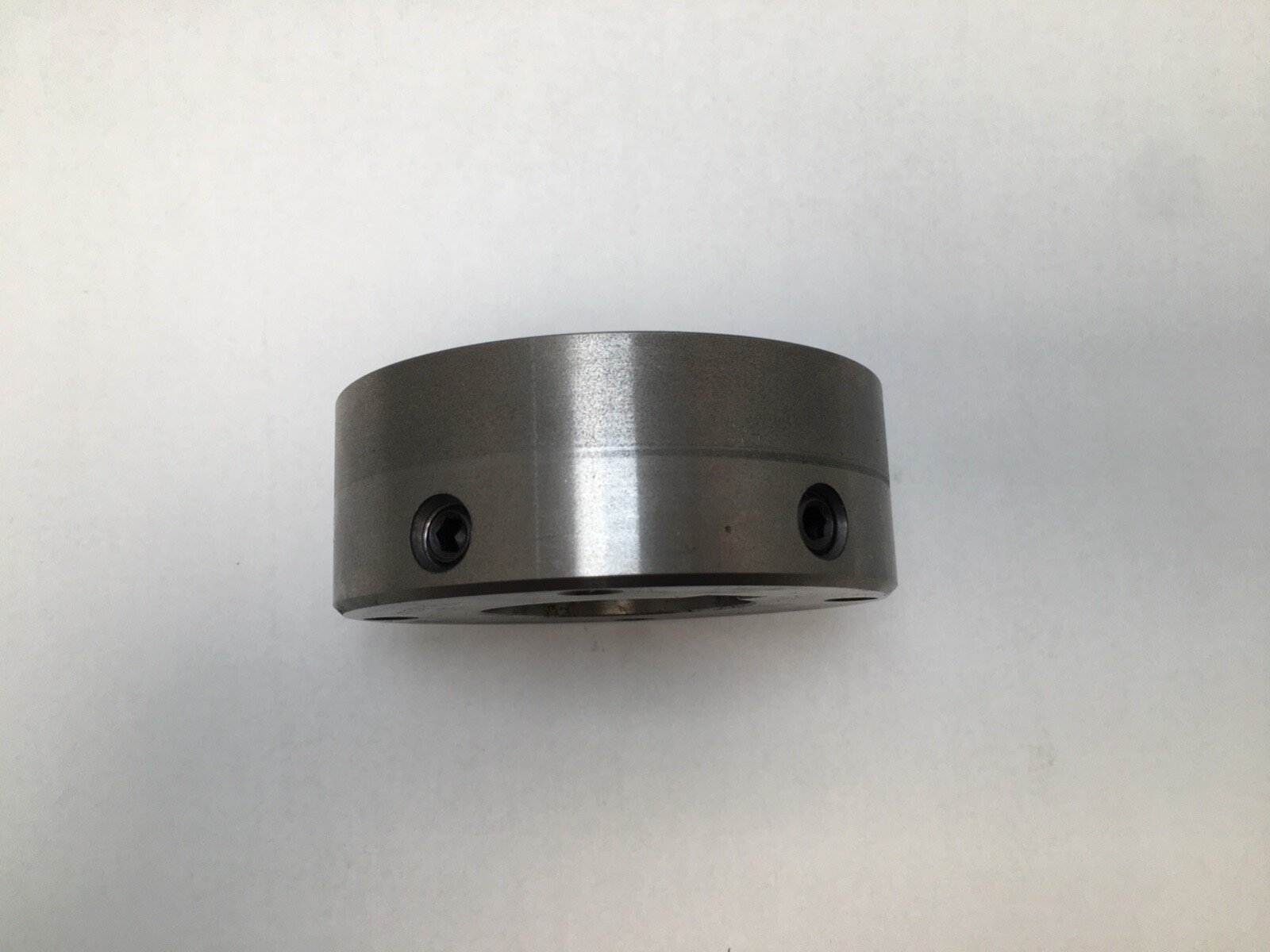

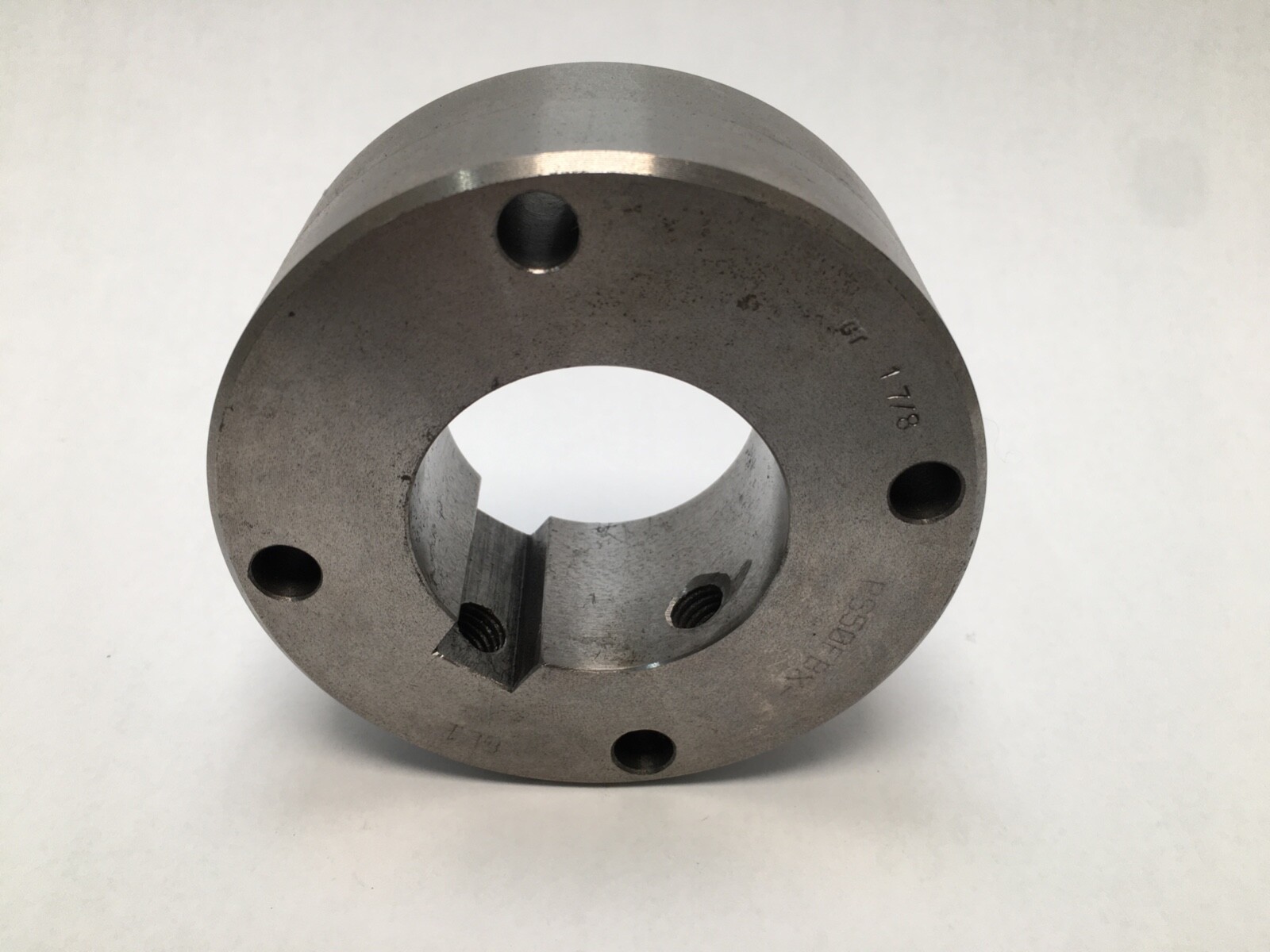

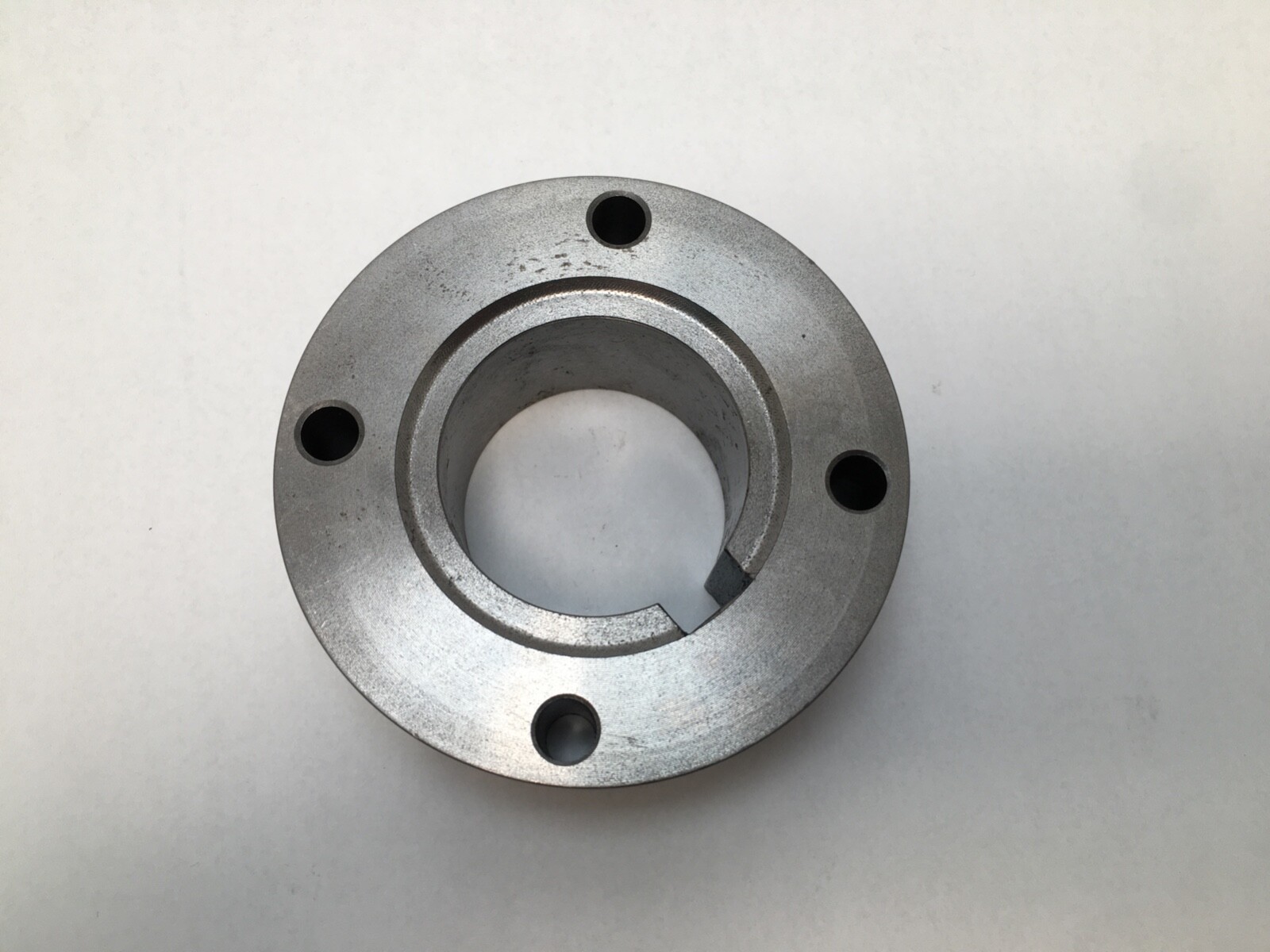

Dodge 000574 is a PS50FBX Para-Flex spacer shaft hub with a finished 1-7/8 in straight bore. One shaft hub with keyed bore and hardware. Product Type: Spacer coupling shaft hub, straight bore. Coupling Size: PS50. Unit Quantity: 1 Pc.

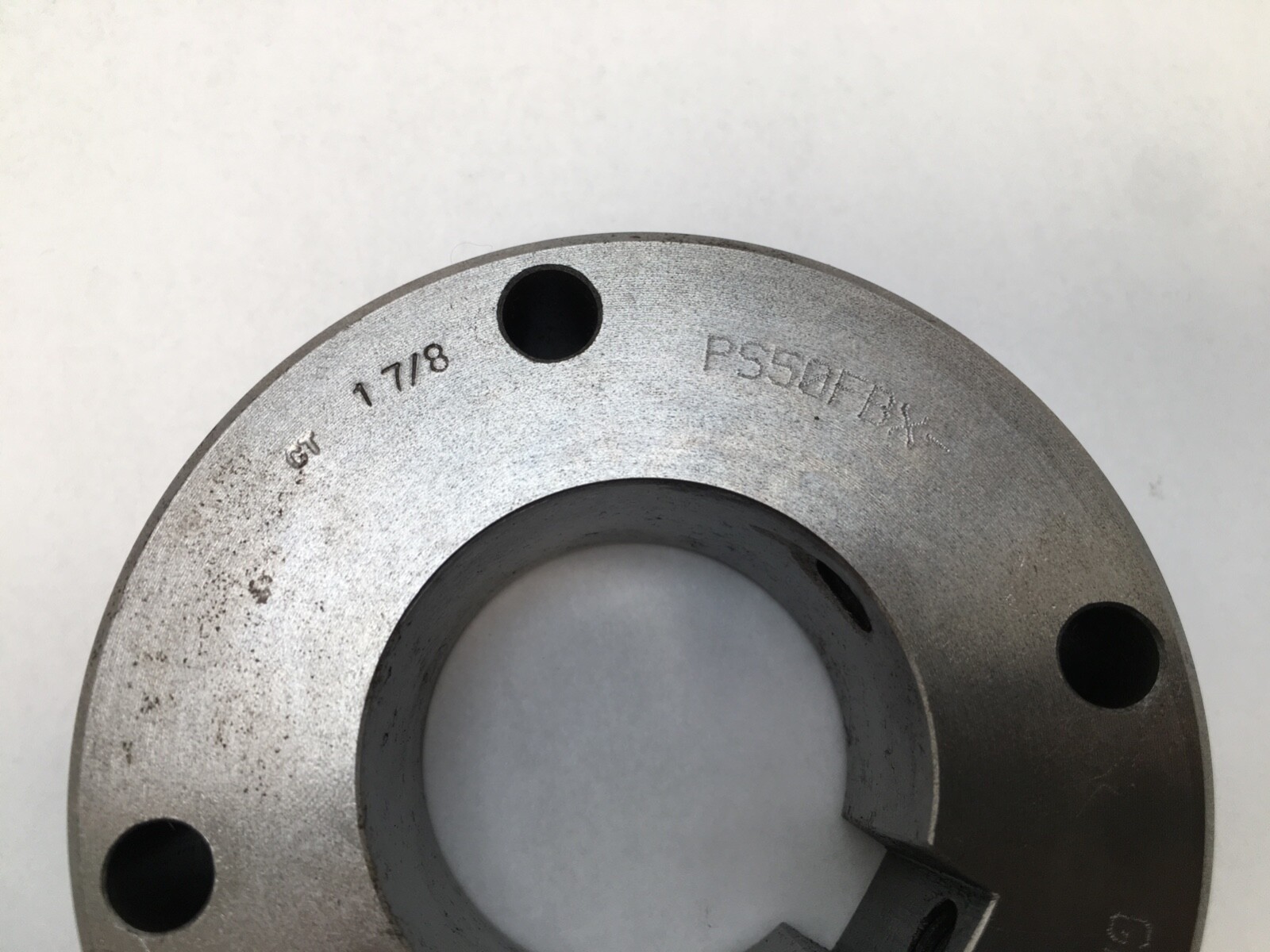

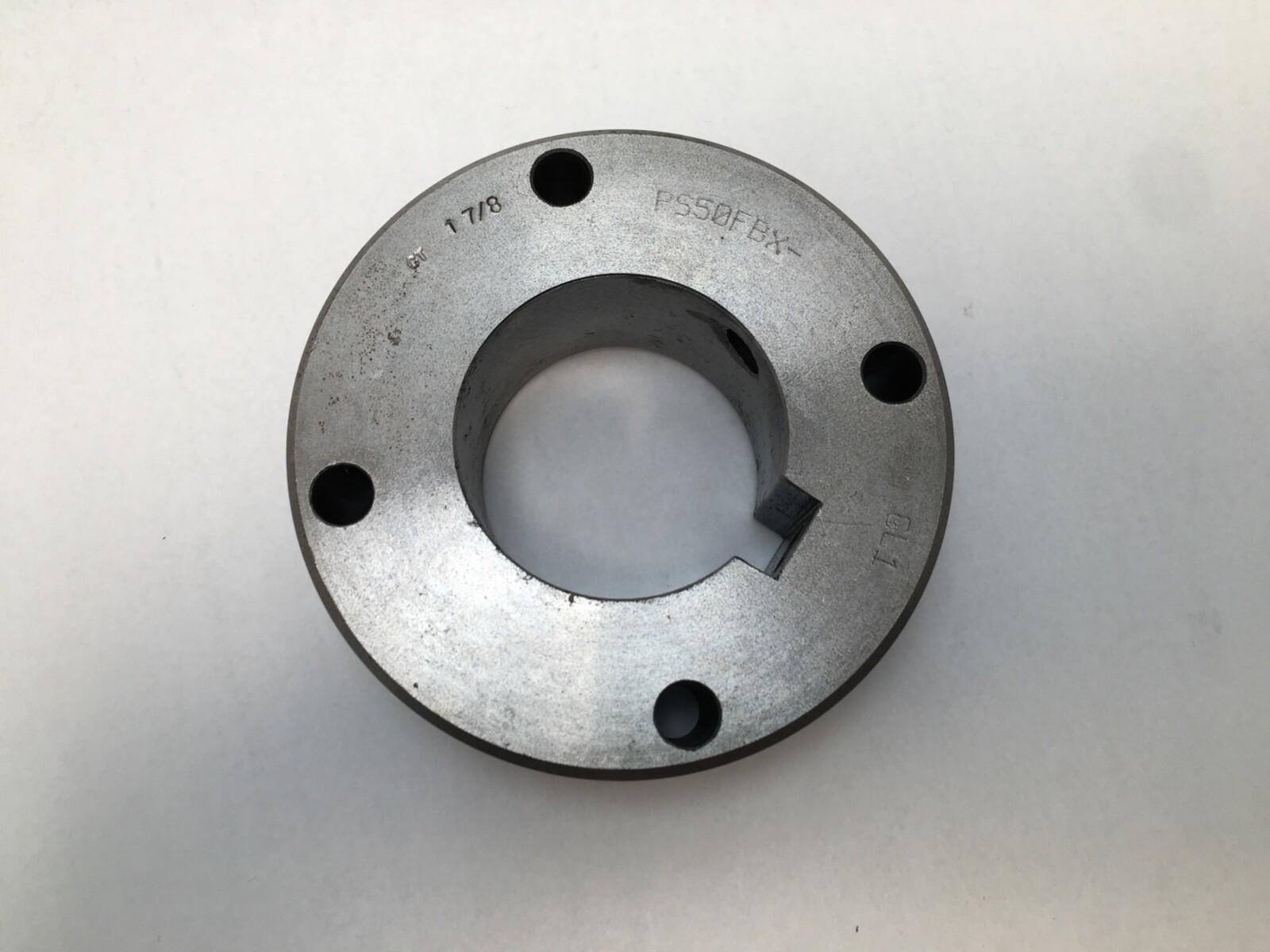

Decoding the designation:

000574 — Dodge catalogue part number for this exact hub and bore.

PS50 — Para-Flex spacer coupling, size 50.

FBX — straight-bore (finished bore) spacer shaft hub.

1-7/8 — bore diameter in inches, the largest bore offered on the PS50FBX hub.

Specifications:

Bore / Shaft Size: 1-7/8 in (47.63 mm). PS50FBX Bore Range: 5/8 in to 1-7/8 in. Locking Method: Keyed finished bore, clearance fit. Rated Torque: 900 in-lb. Power Rating: 1.43 hp per 100 rpm. Maximum Speed: 4,500 rpm. Item Weight: 1.45 kg (3.20 lb) at maximum bore. Inertia: 0.05 lb-ft2. Harmonization Code: 8483.60. Base Number: PS50FBX.

Dimensions and mounting:

Hub Outside Diameter: 3.81 in (3-13/16 in). Length Through Bore: 1.41 in (1-13/32 in). Center Assembly Removal Clearance: 2.25 in. A complete PS50 spacer coupling uses two shaft hubs and one PS50 spacer center assembly.

Compatibility and replacement:

Dodge Para-Flex PS50 spacer center assemblies, catalogued in between-shaft-end lengths from 2.88 in to 7.33 in. Other PS50 hubs in the range: PS50TL Taper-Lock hub 011620 (1210 bushing) and PS50FBX finished bores from 5/8 in (000704) up to this 1-7/8 in hub. MPN Variants: 000574, PS50FBX 1-7/8, PS50FBX1-7/8, PS50 FBX 1-7/8, 000574/FBX 1-7/8 PS50, 000574 FBX 1-7/8 PS50.
