NKK B-13AP subminiature toggle switch: SPDT, on-off-on, straight PCB terminals, 0.4 VA rating, washable sealed B series. Ten switches, open box surplus.
List Price
$68.08
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NKK Switches |
|---|---|
| MPN | B-13AP |
| Model | B13AP |
| Condition | New – Open box |
|---|---|
| Item Width | 6 |
| Item Height | 6 |
| Item Length | 9 |
| Operation Method | On-Off-On |
| Mpn Variants | B-13AP, B13AP, 633-B13AP, 633B13AP, NKK-633-B13AP, B-13 0.4VA |
| Ip Rating | IP67 |
| Mounting Type | PCB through hole |

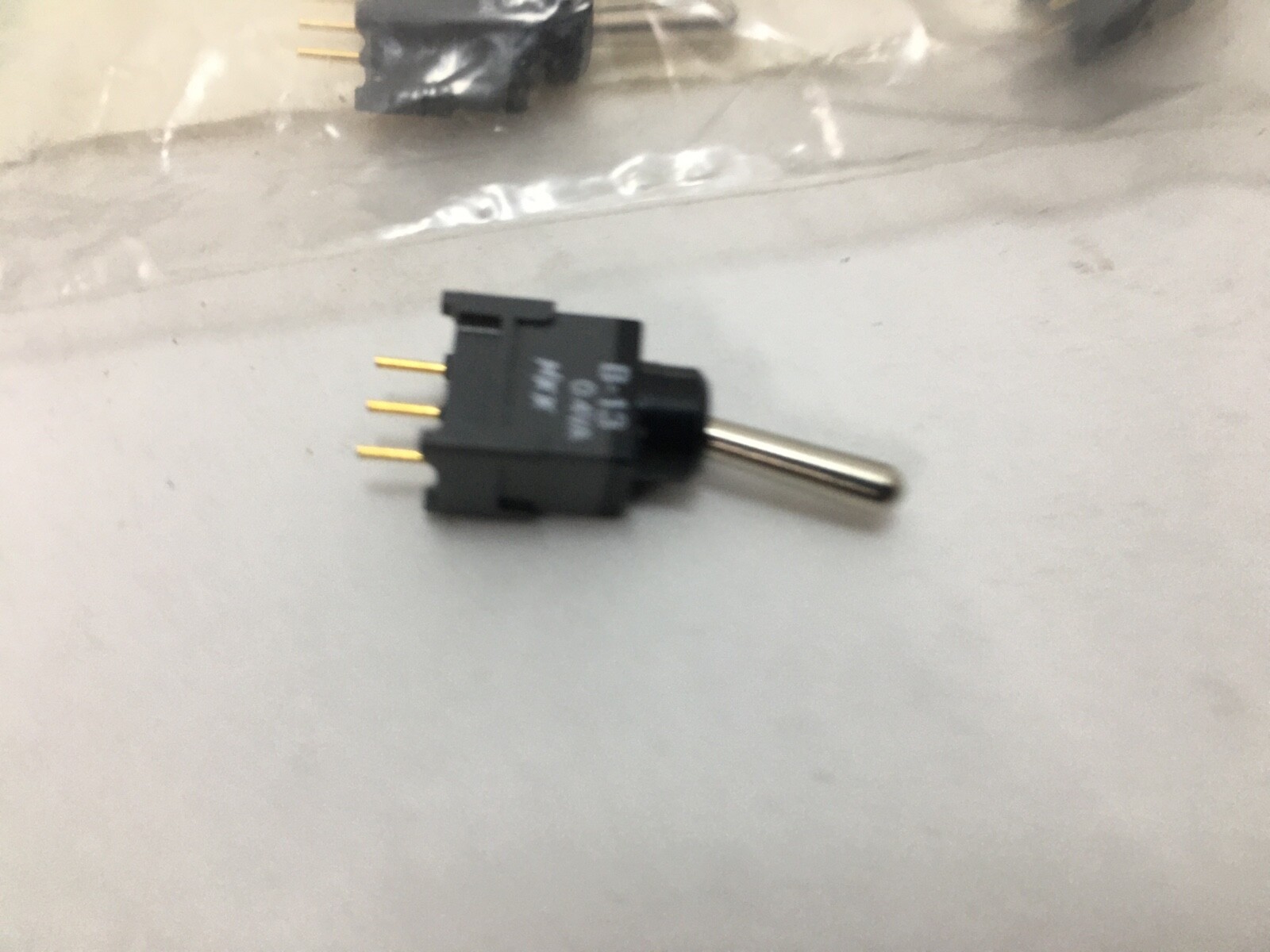

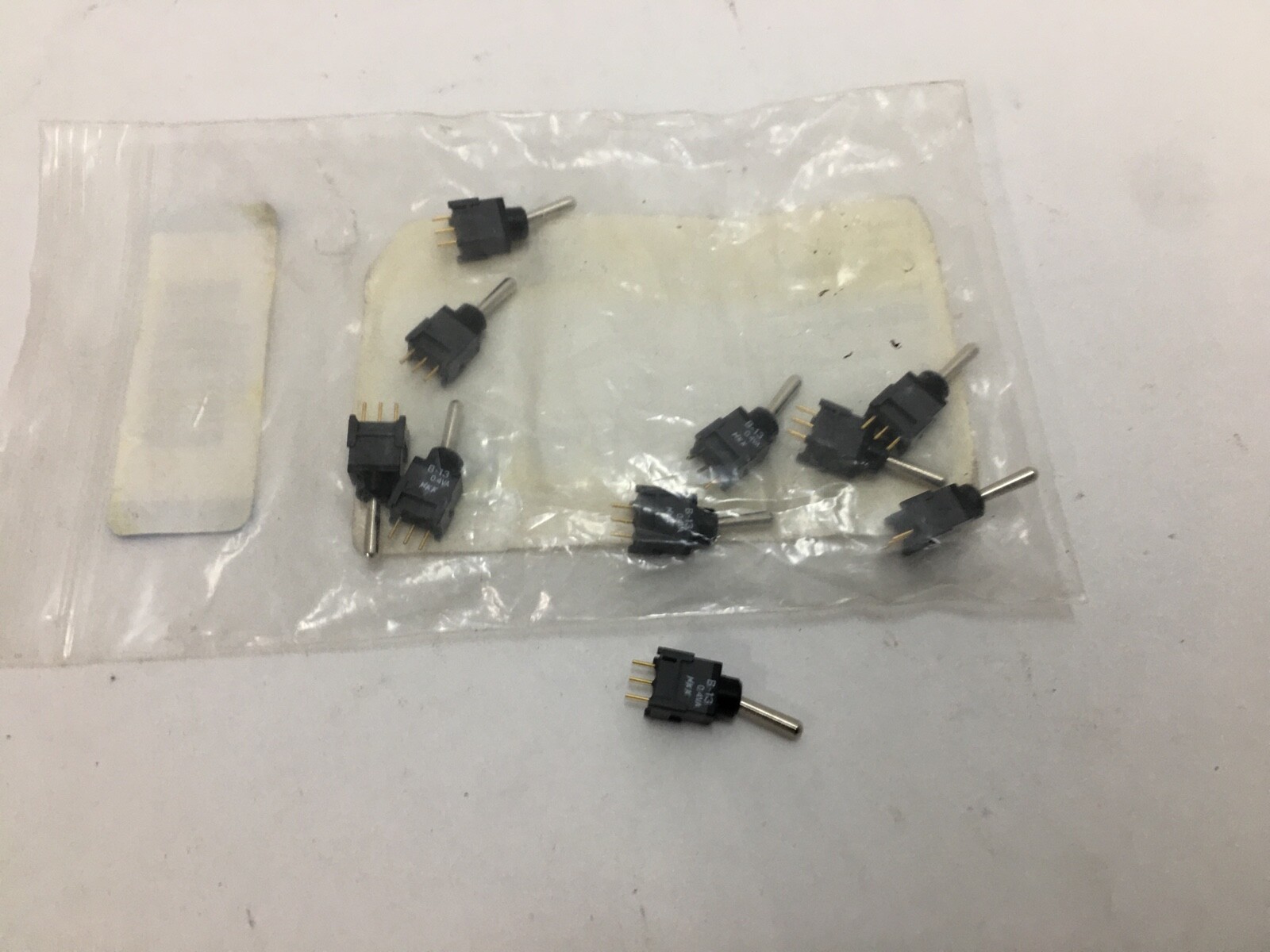

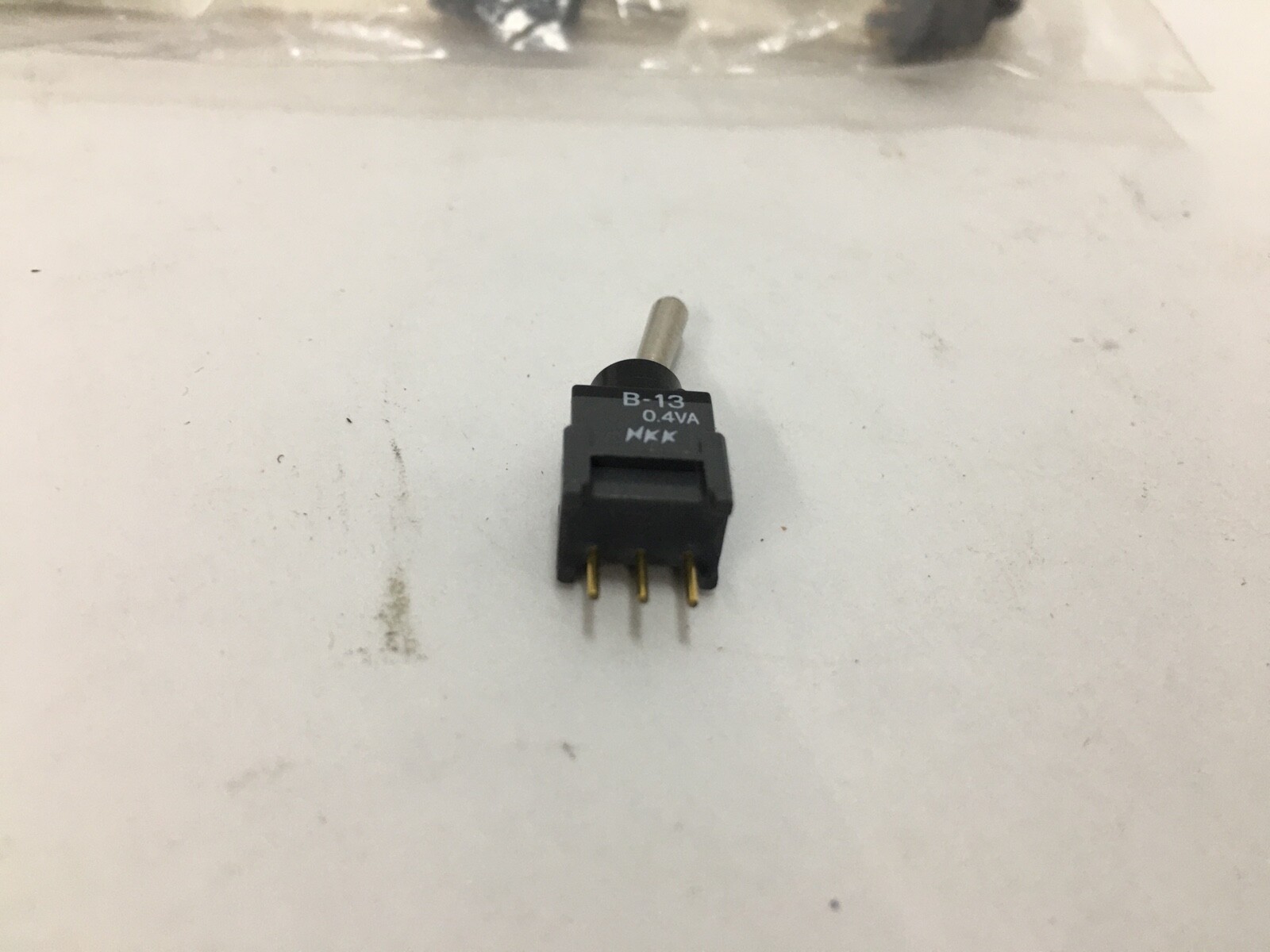

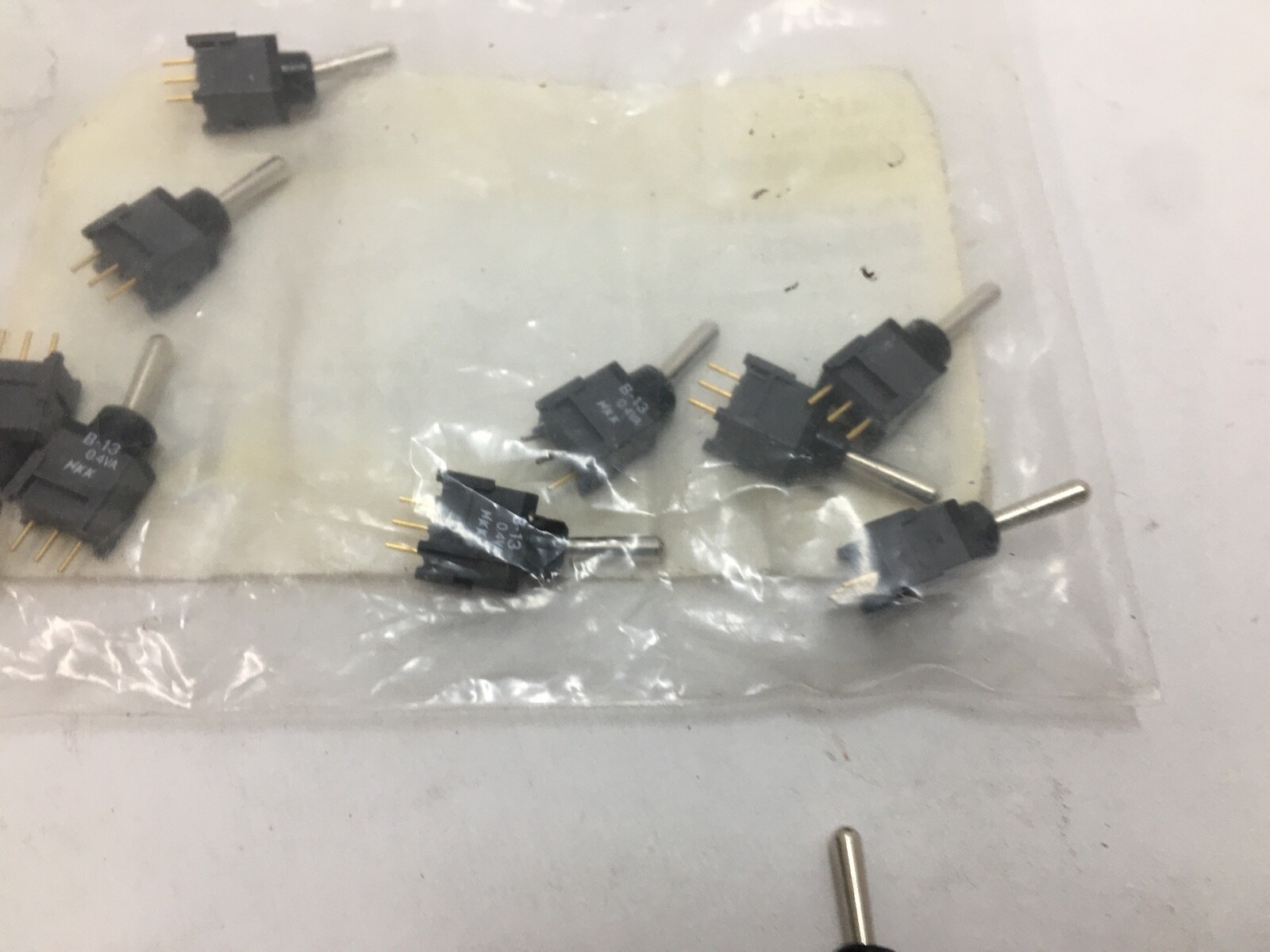

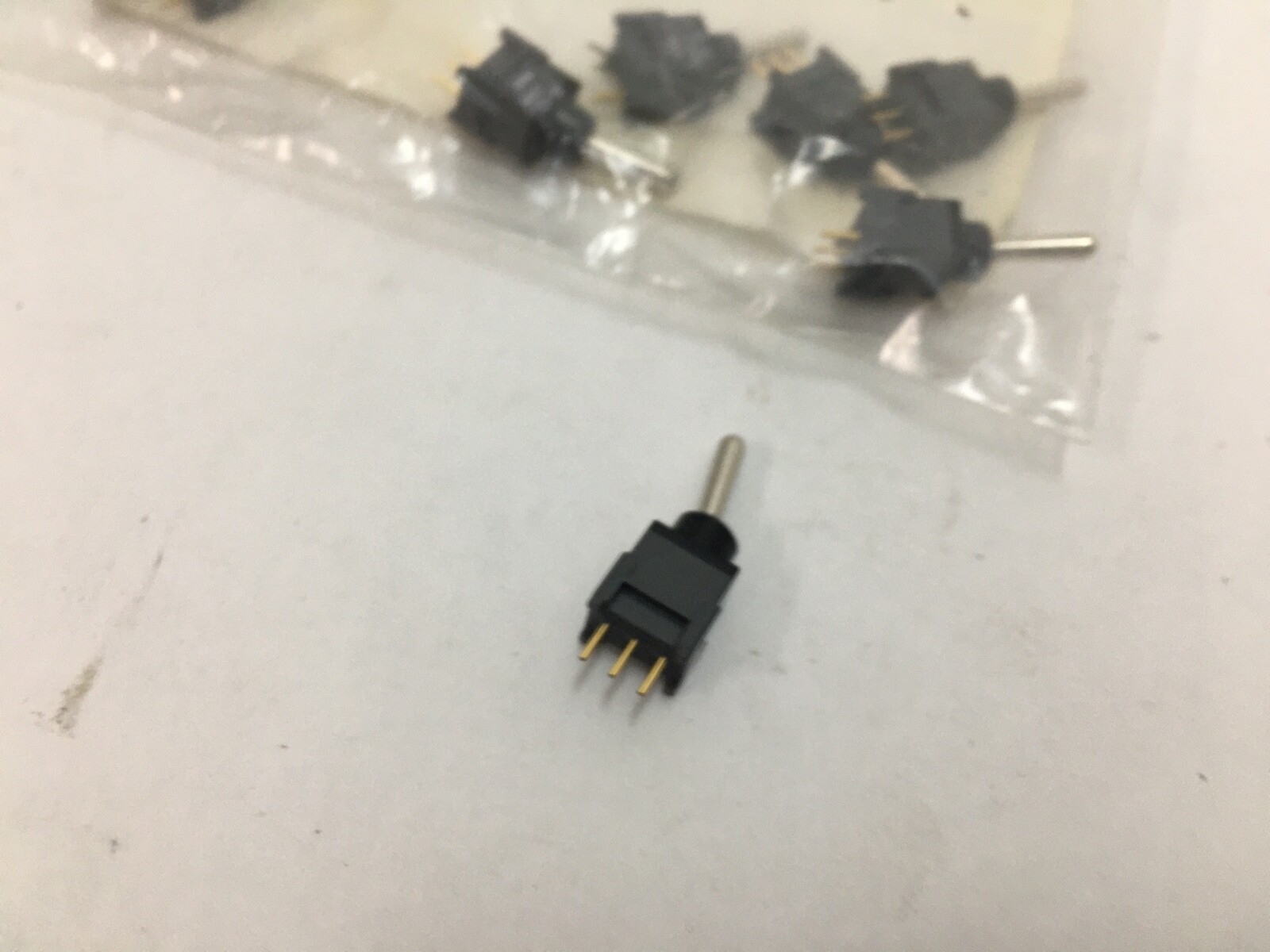

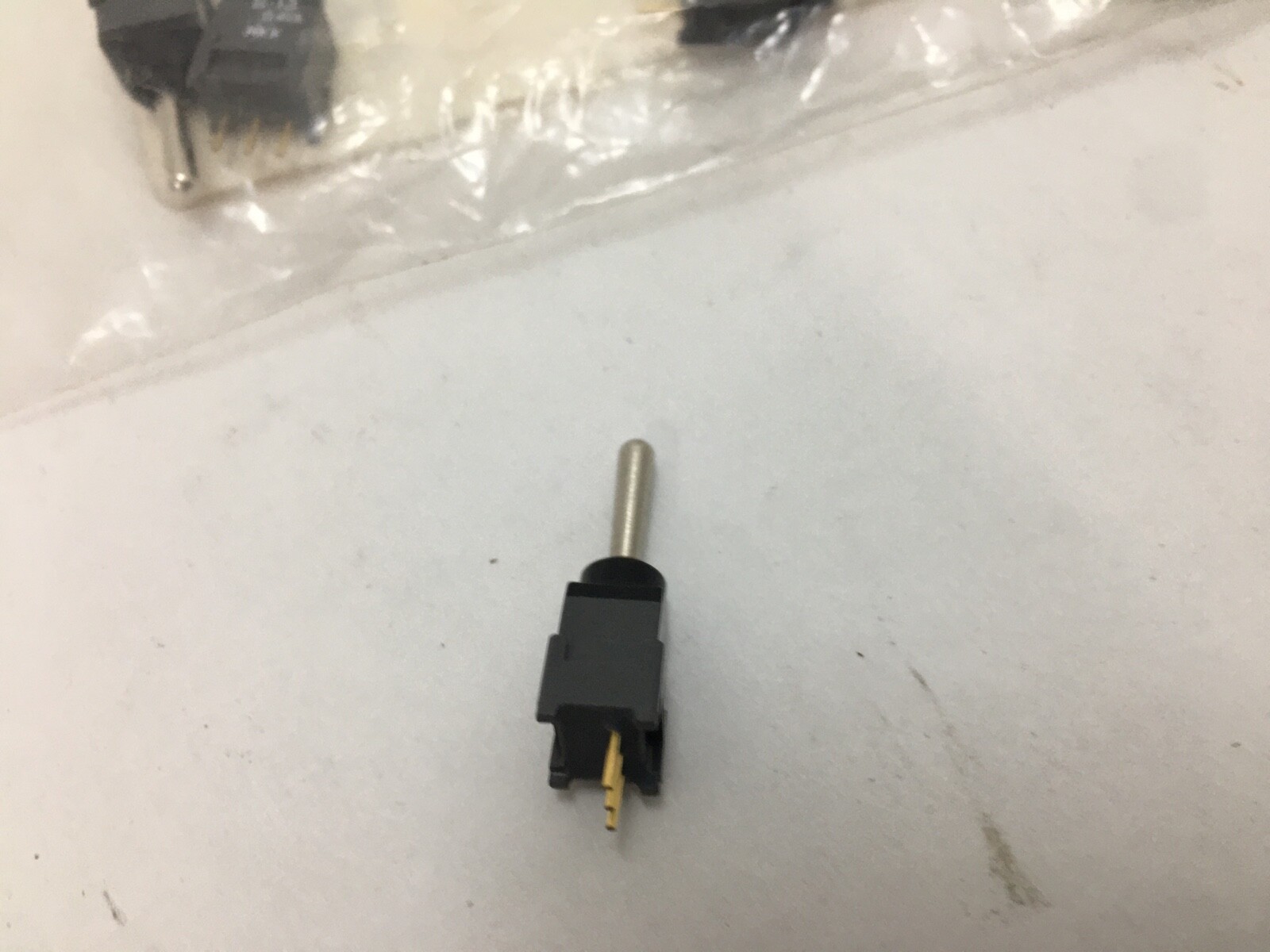

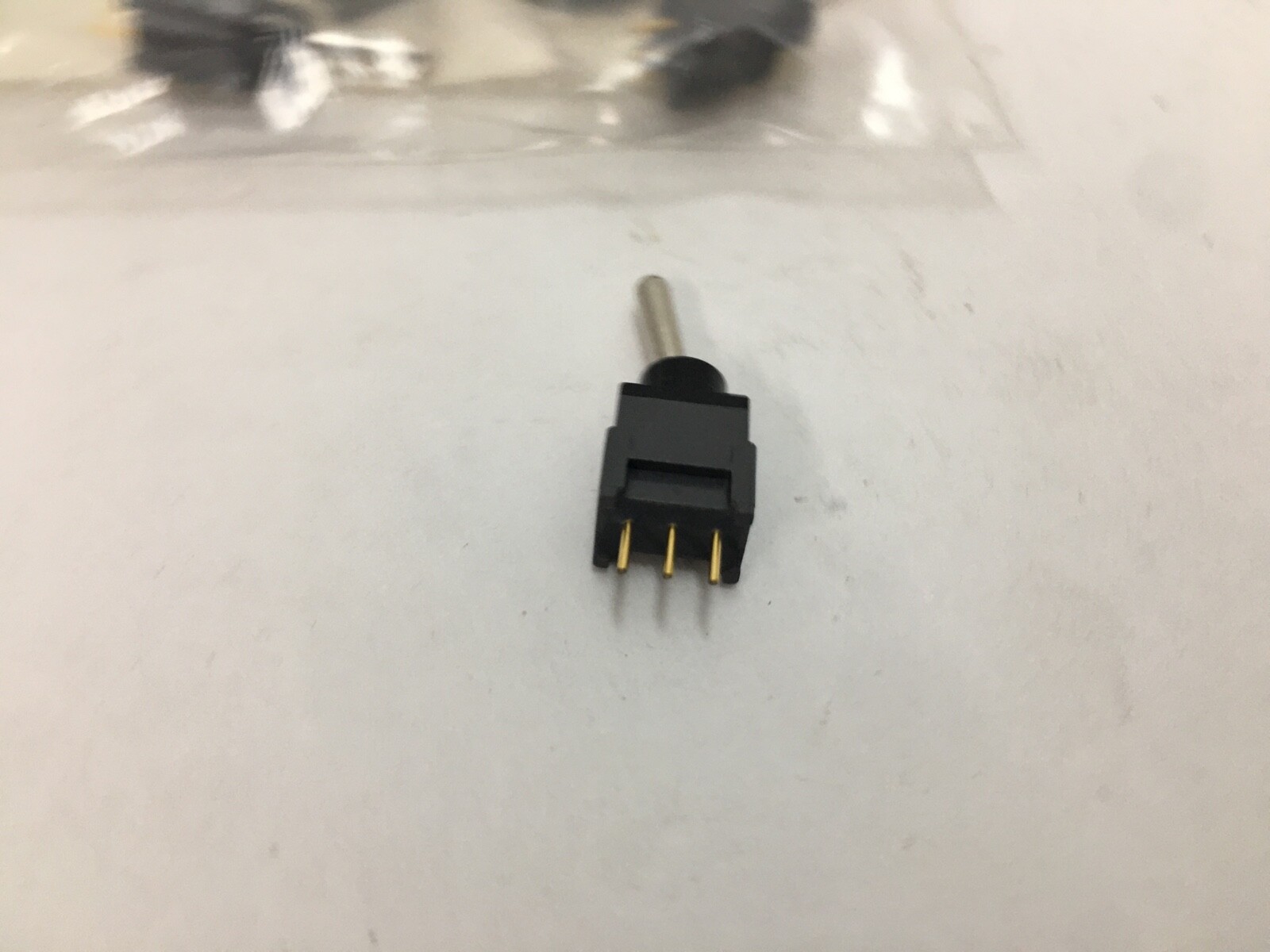

NKK Switches B-13AP is a subminiature toggle switch from the NKK B series: single pole, double throw, with an on-off-on action and through-hole PCB terminals. This listing is ten switches.
B — NKK B series washable subminiature toggle, sealed construction with anti-static bushing and support bracket.
13 — SPDT circuit with on-off-on positions.
0.4VA — low-level contact rating marked on the carton.
Switch Type: Toggle. Contact Configuration: SPDT. Switch Operation: On-Off-On. Mount Type: PCB. Terminal Type: Through hole. Contact Rating: 0.4 VA. Actuator Length: 10 mm. Actuator Material: Brass. IP Rating: IP67. Operating Temperature: -30 °C to 85 °C. Mechanical Life: 100,000 operations. Approvals: UL, CSA, CE, RoHS. Unit Quantity: 10 Pcs.
Length: 35.67 mm. Height: 23.3 mm. Width: 11.2 mm. Terminal pitch 2.54 mm. The sealed body is washable after PCB soldering, and the anti-static bushing and bracket allow the board to be grounded.
Direct replacement for NKK B13AP and B-13AP positions. The 633 prefix on the carton is a marking carried with the part number.
What switching action does the B-13AP have?
SPDT, on-off-on.
How is it mounted?
Through-hole on a printed circuit board.
How many switches are included?
Ten.
