Martin 10S P/B Quadra-Flex type S coupling flange, size 10, plain reborable bore 1-1/8 to 3-1/8 in, 4.38 in hub, cast iron, 3,600 rpm maximum speed.
List Price
$59.64
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Martin |
|---|---|
| MPN | 10S P/B |
| GTIN | 697950275208 |
| Model | 10SPB |
| ID | 1-1/8 in |
| Condition | New |
|---|---|
| Industry Terms | sleeve coupling flange, jaw-free elastomeric coupling hub, Quadraflex, reborable coupling hub |
| Common Misspellings | Martin Quadraflex 10S, Quadra Flex 10SPB, 10 S P/B |
| Max Rpm | 3,600 rpm |
| Mpn Variants | 10S P/B, 10S-P/B, 10SPB, 10S PB, 10-S PB |
| Compatible With Replaces | Size 10 Quadra-Flex sleeves and flanges |
| Material | Cast Iron |
| Series | Quadra-Flex |
| Type | Coupling Flange |
| Bore Type | Plain bore, reborable |

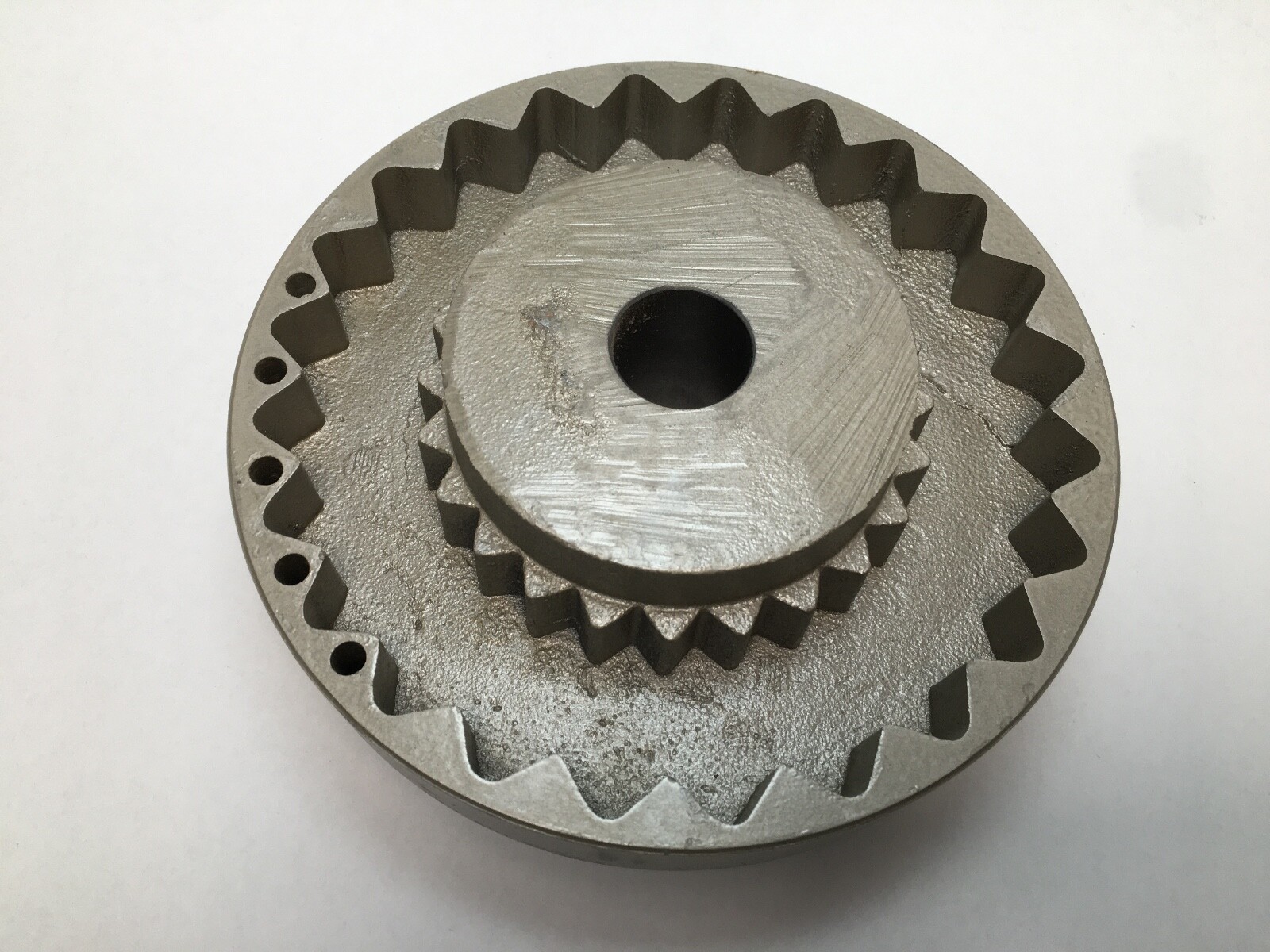

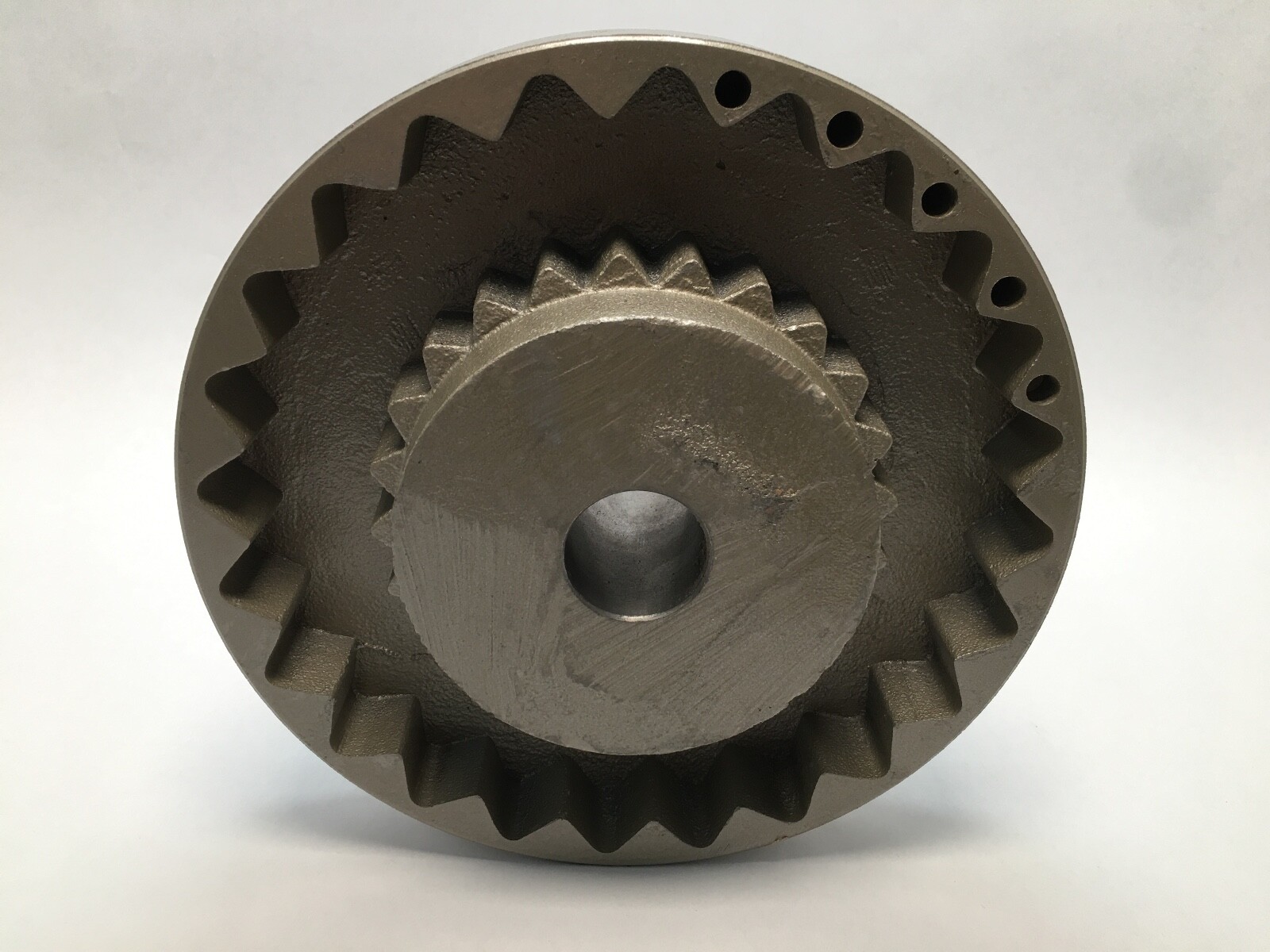

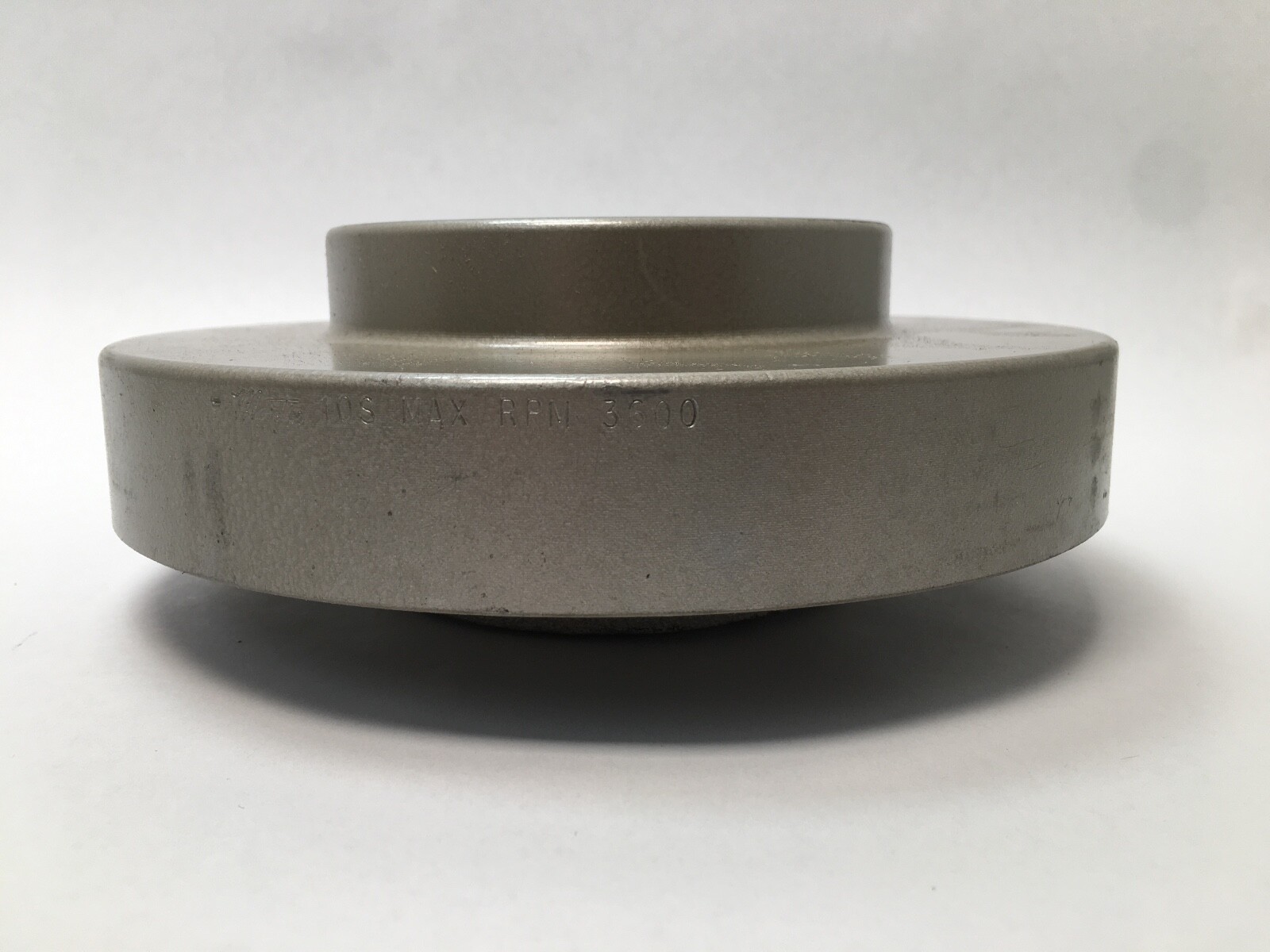

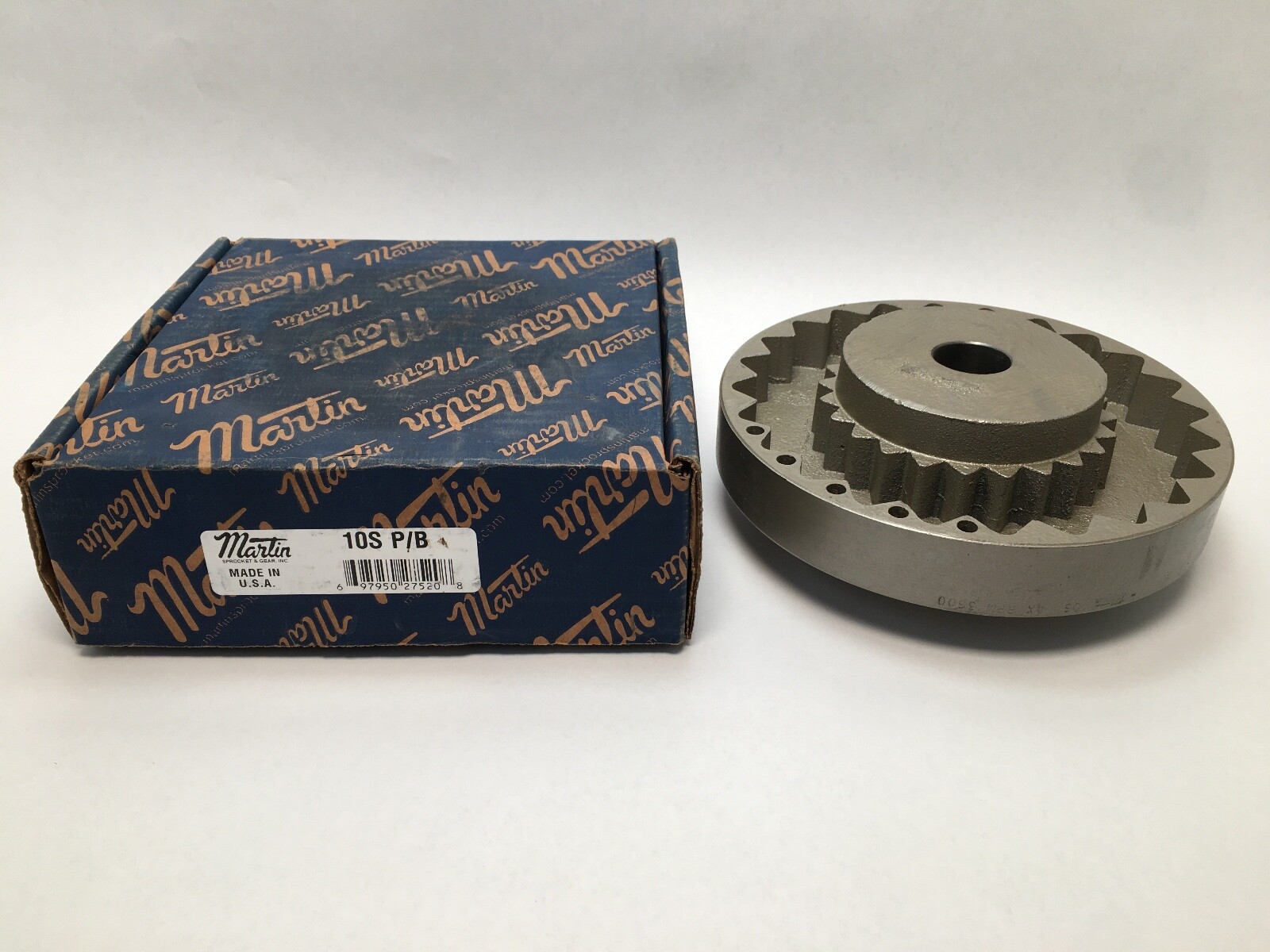

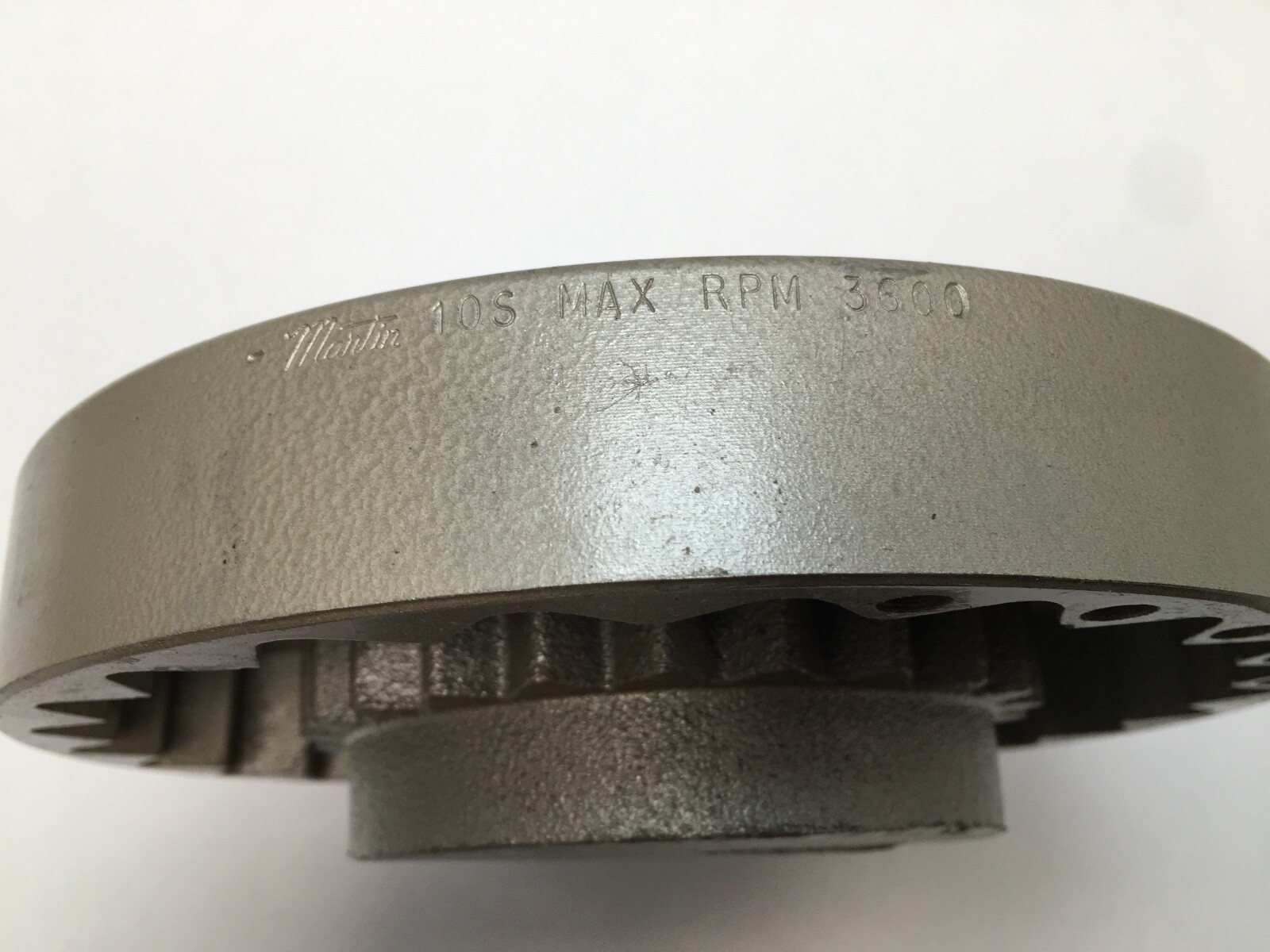

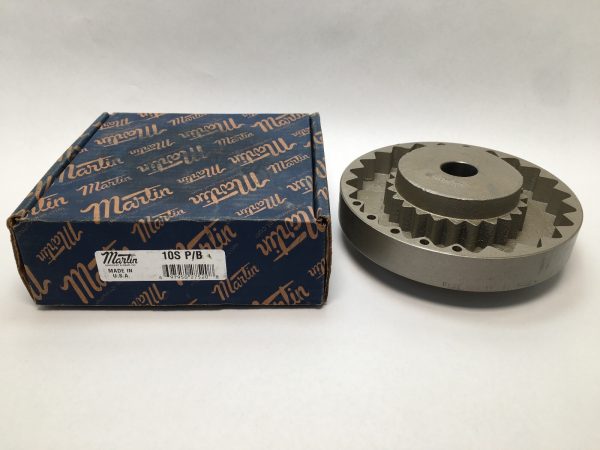

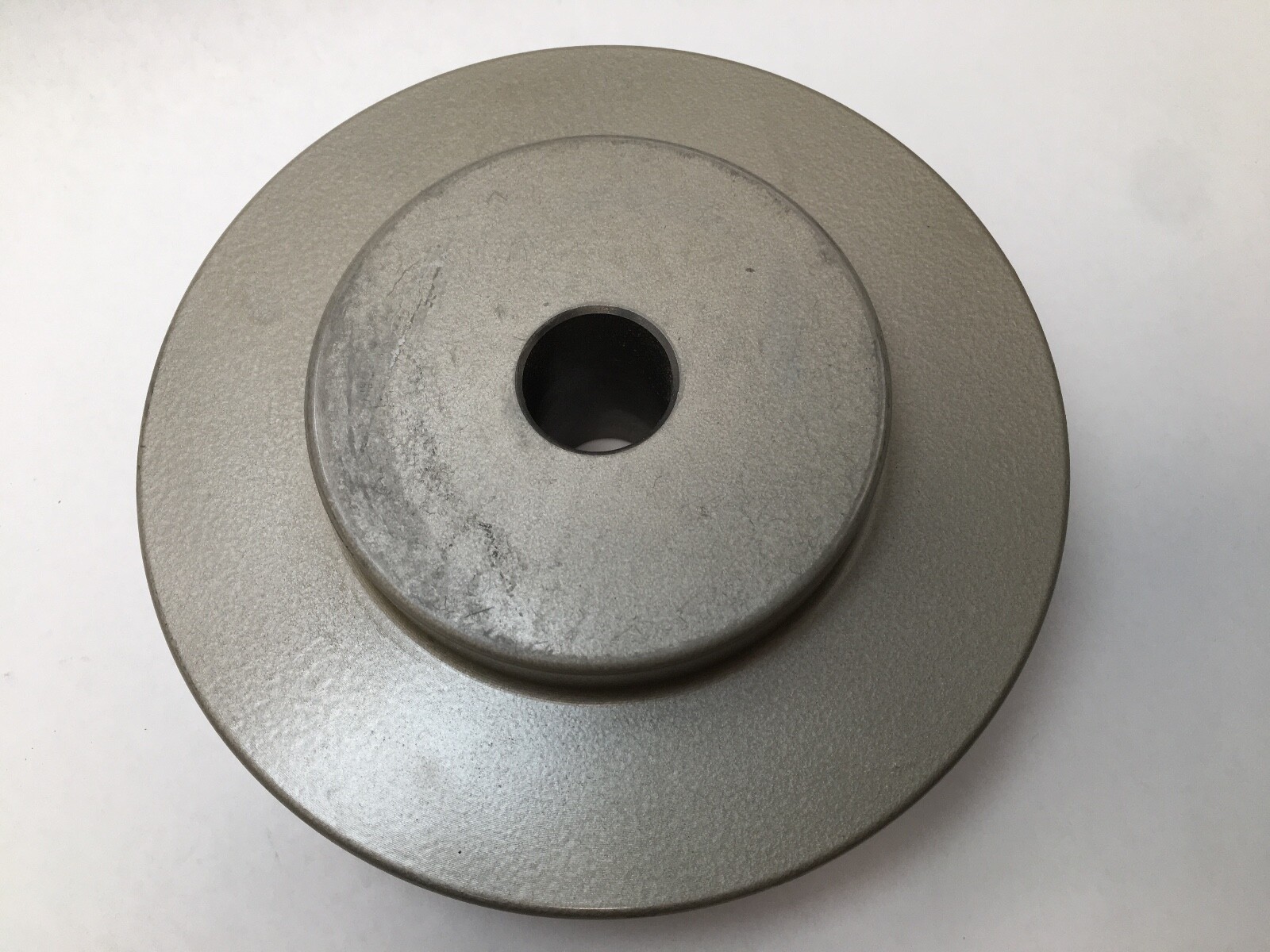

The Martin 10S P/B is a Quadra-Flex type S coupling flange for a size 10 elastomeric sleeve coupling, supplied with a plain (pilot) bore for reboring to the shaft size. Two flanges and a Quadra-Flex sleeve make a complete coupling.
10 — Quadra-Flex coupling size 10.
S — type S flange, straight bore.
P/B — plain bore, reborable.
Coupling Size: 10. Flange Type: Type S, reborable. Bore: Plain bore, 1-1/8 in as supplied. Bore Range: 1-1/8 to 3-1/8 in. Hub Diameter: 4.38 in. Hub Length: 0.81 in. Length Through Bore: 2.719 in. Material: Cast iron. Maximum Speed: 3,600 rpm.
Replaces Martin 10S P/B, 10S-P/B and 10SPB. Pairs with a second size 10 Quadra-Flex flange and a size 10 Quadra-Flex sleeve (EPDM, neoprene or Hytrel). GTIN: 697950275208.
What bore sizes can the Martin 10S P/B be rebored to?
1-1/8 in up to 3-1/8 in.
What is the maximum speed of the 10S coupling flange?
3,600 rpm.
What does P/B mean on the Martin 10S P/B?
P/B means plain bore, a pilot bore supplied for machining to the required shaft size.
