Parker80-CTBHMIRBS19MC-70.00-M-1100Tie Rod Hydraulic Cylinder ISO 6020/2, 80 mm Bore, 70 mm Stroke, 210 bar, Double Acting

Product Description

What this part is

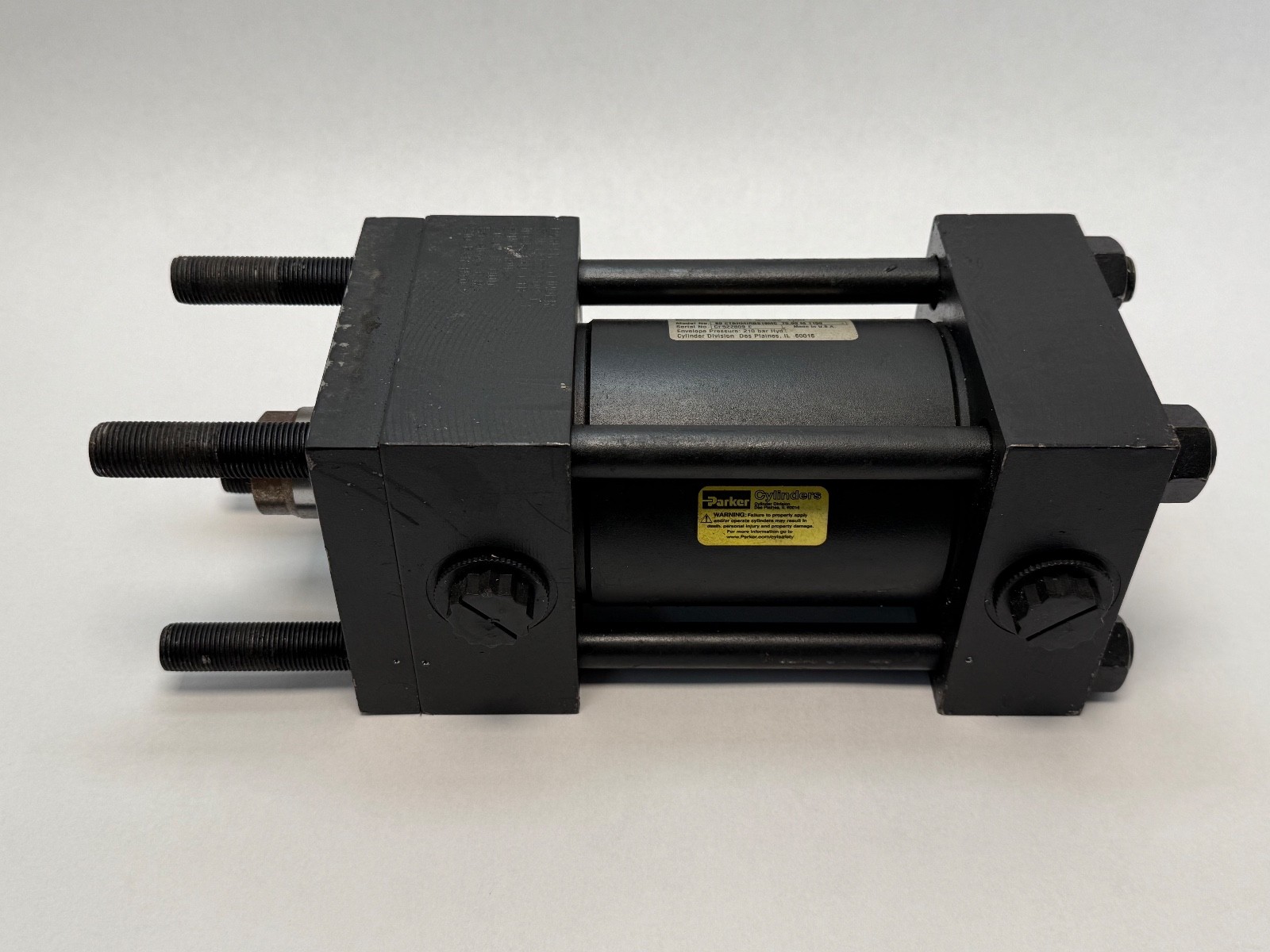

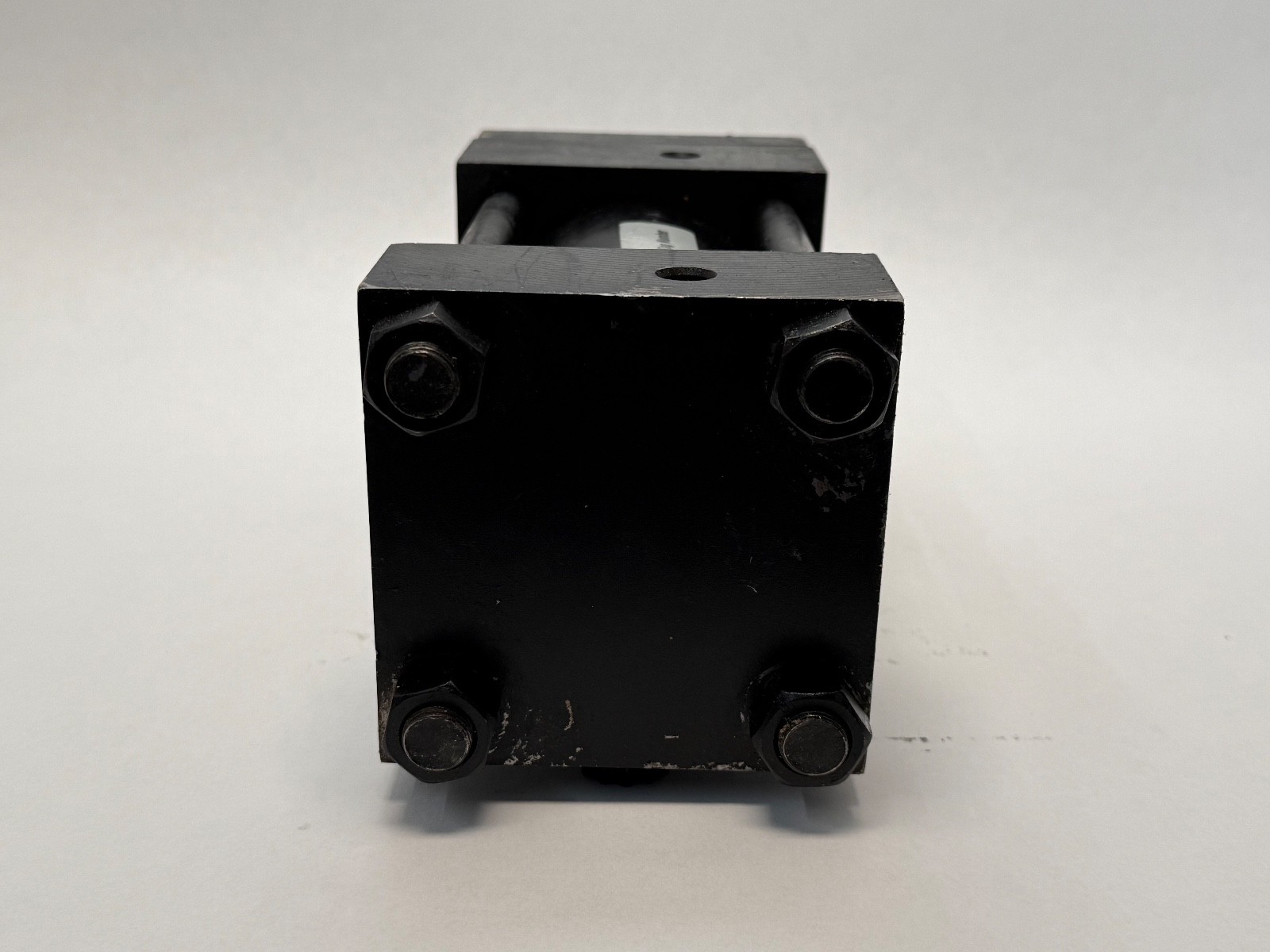

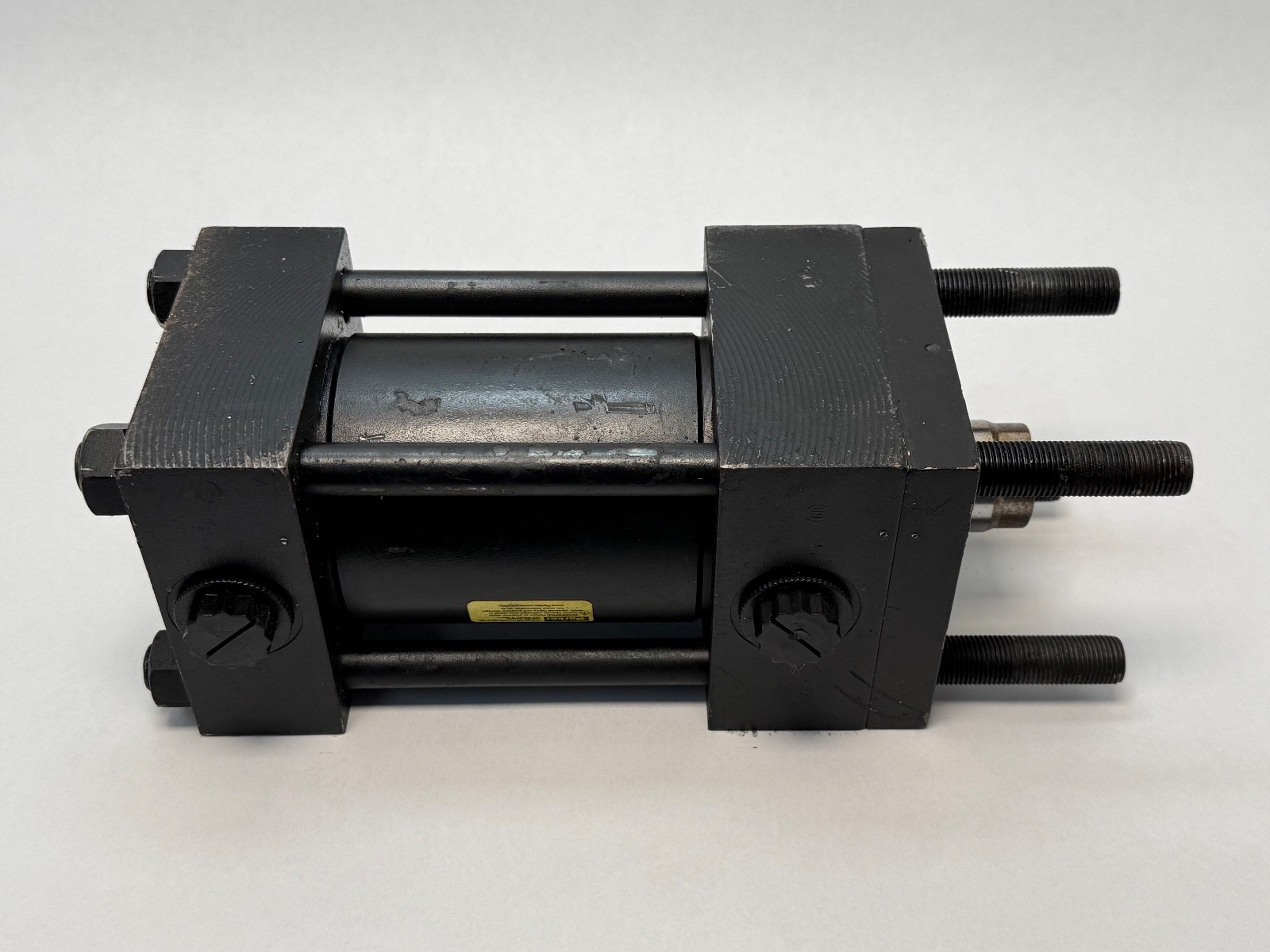

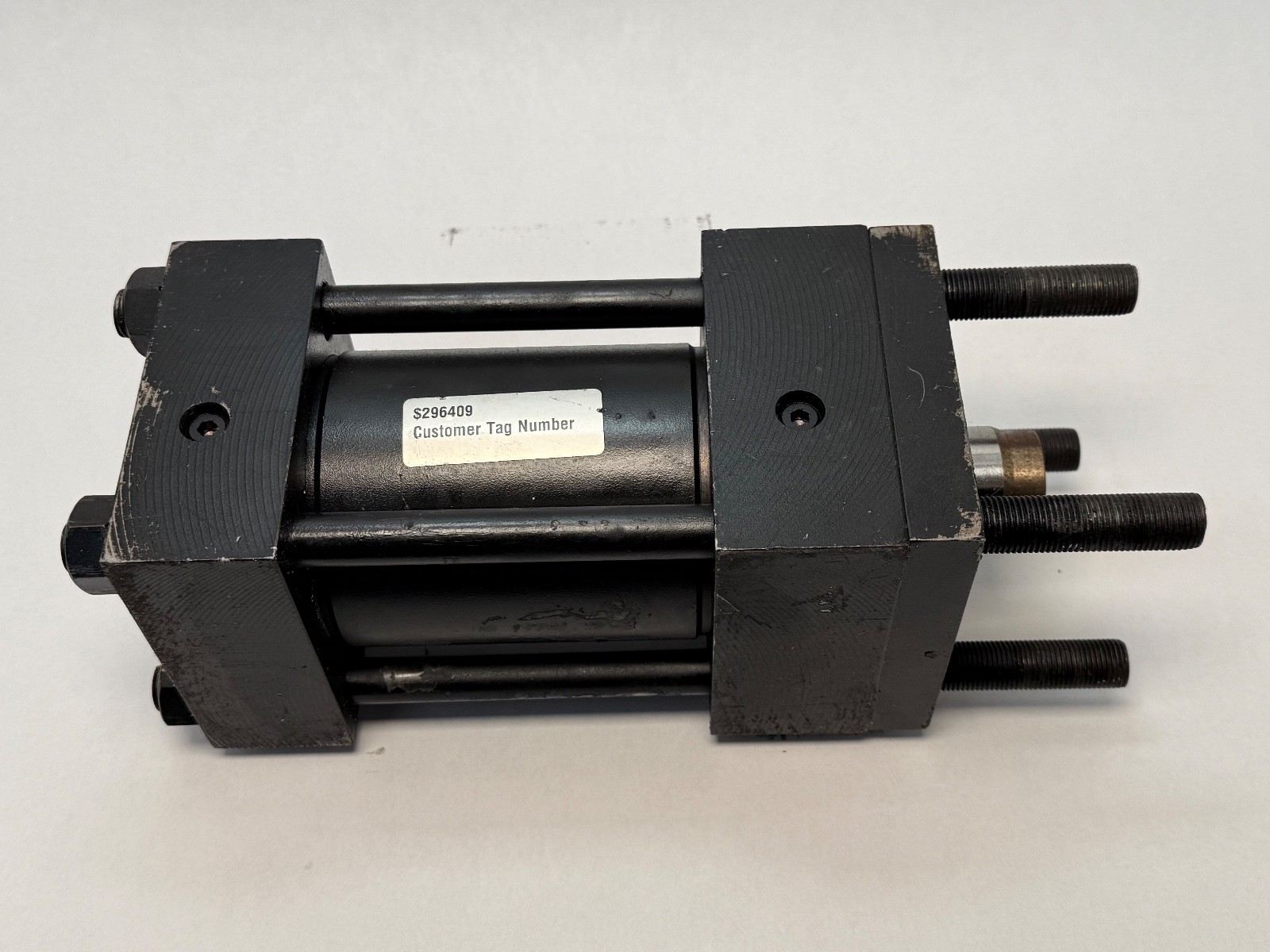

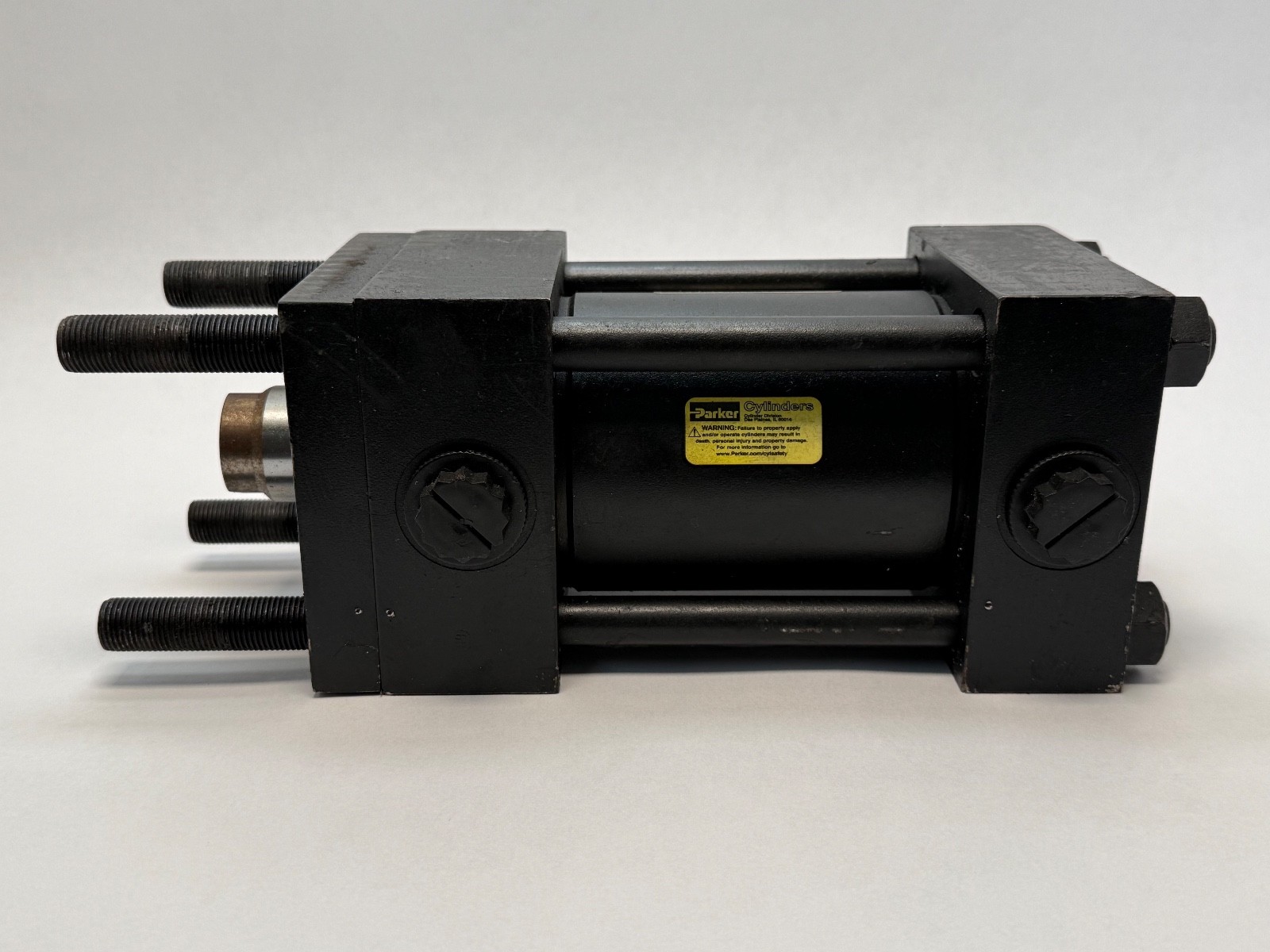

Parker 80-CTBHMIRBS19MC-70.00-M-1100 hydraulic cylinder from Series HMI. Series HMI is Parker’s metric heavy duty industrial tie rod hydraulic cylinder line, with four tie rods clamping the head and cap against a honed steel barrel. Manufacturer: Parker. Part Number: 80-CTBHMIRBS19MC-70.00-M-1100. Series: HMI. Bore: 80 mm. Stroke: 70 mm. Nominal Working Pressure: 210 bar. Actuation: double acting. Construction: tie rod. Standard: ISO 6020/2. Medium: hydraulic fluid.

Decoding the designation

80 — 80 mm bore, the leading figure in every Parker metric cylinder model number.

HMI — Series HMI, Parker’s metric heavy duty industrial tie rod hydraulic cylinder range to ISO 6020/2.

70.00 — 70 mm stroke.

M — metric design units.

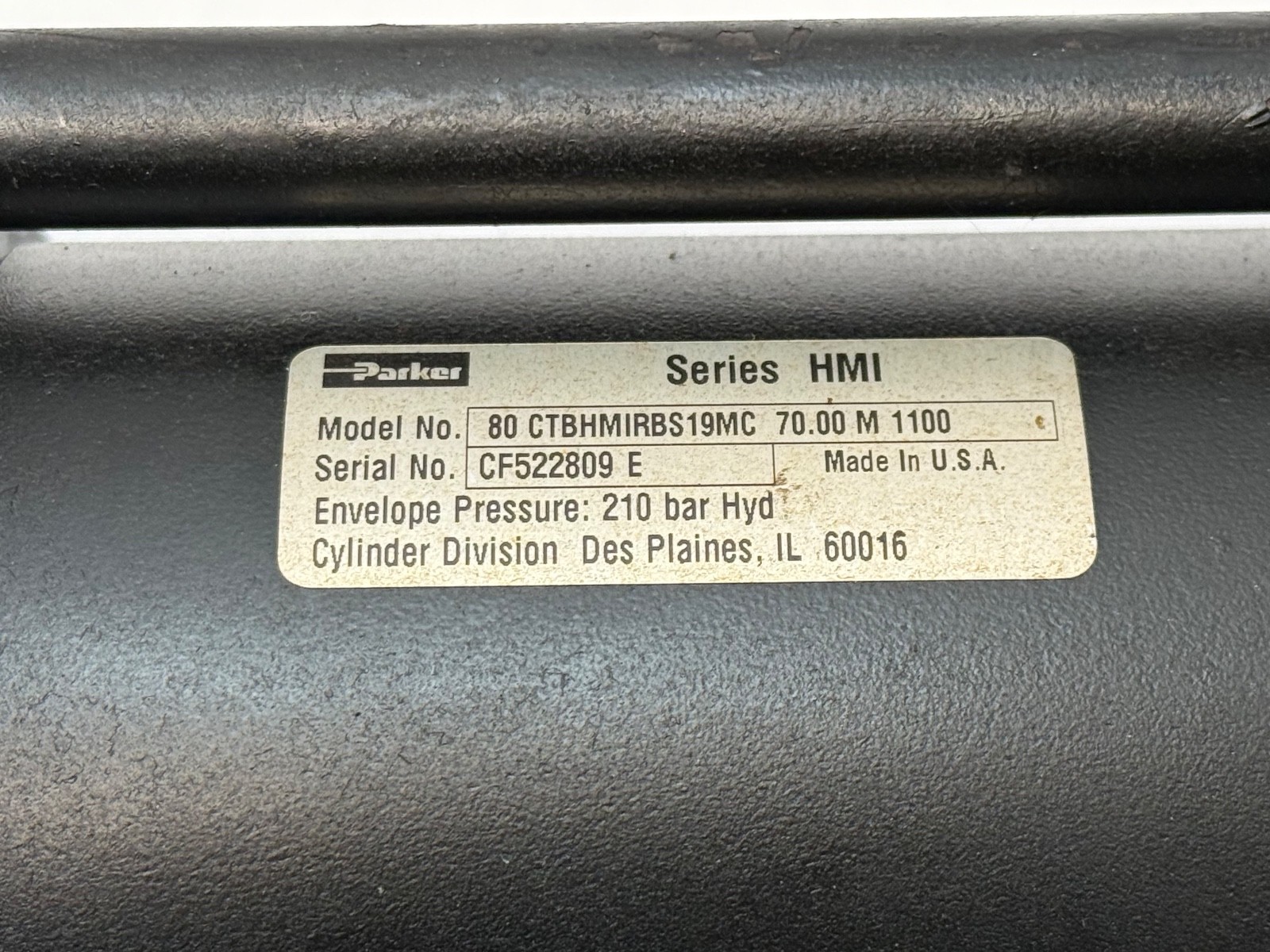

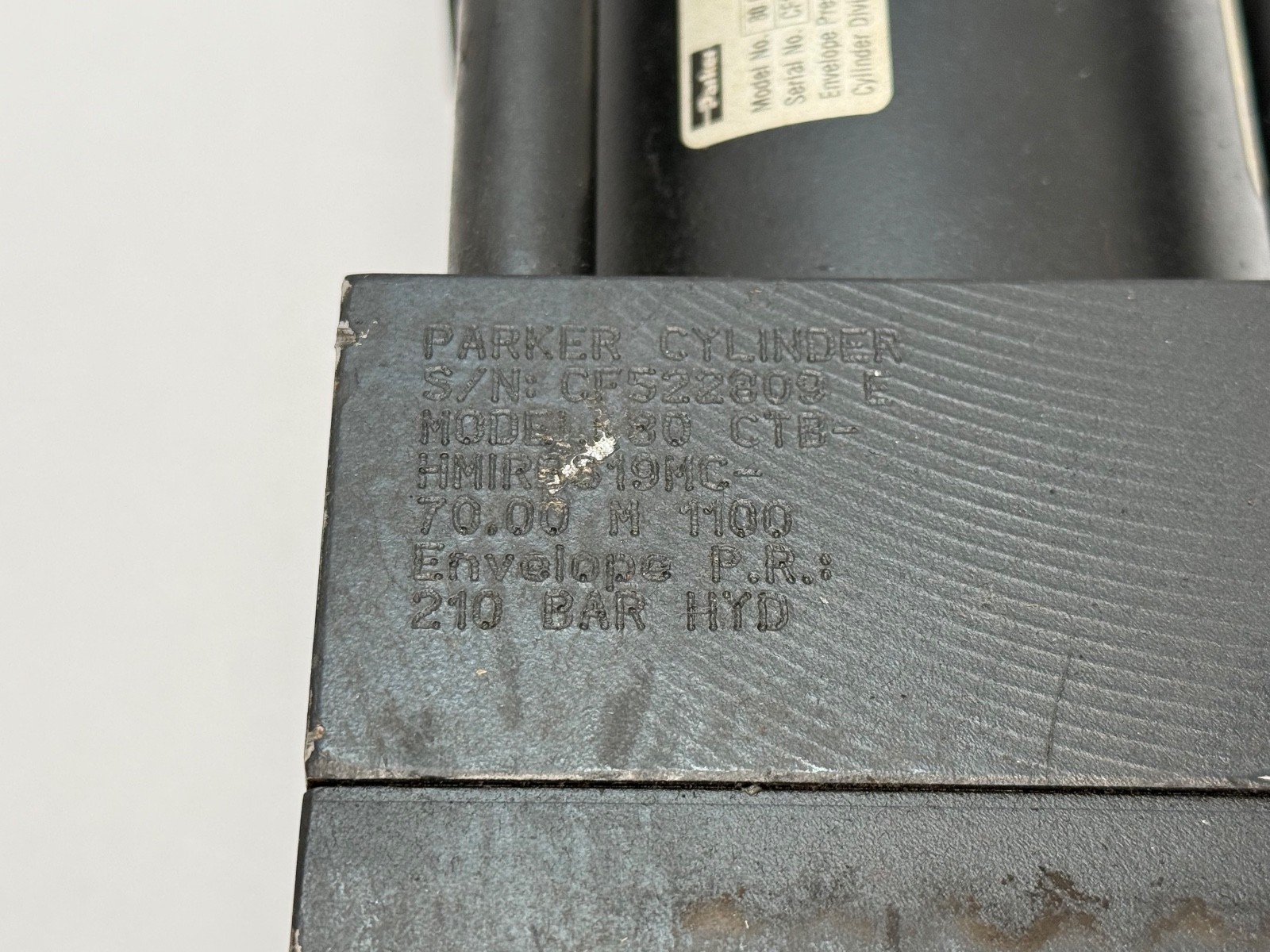

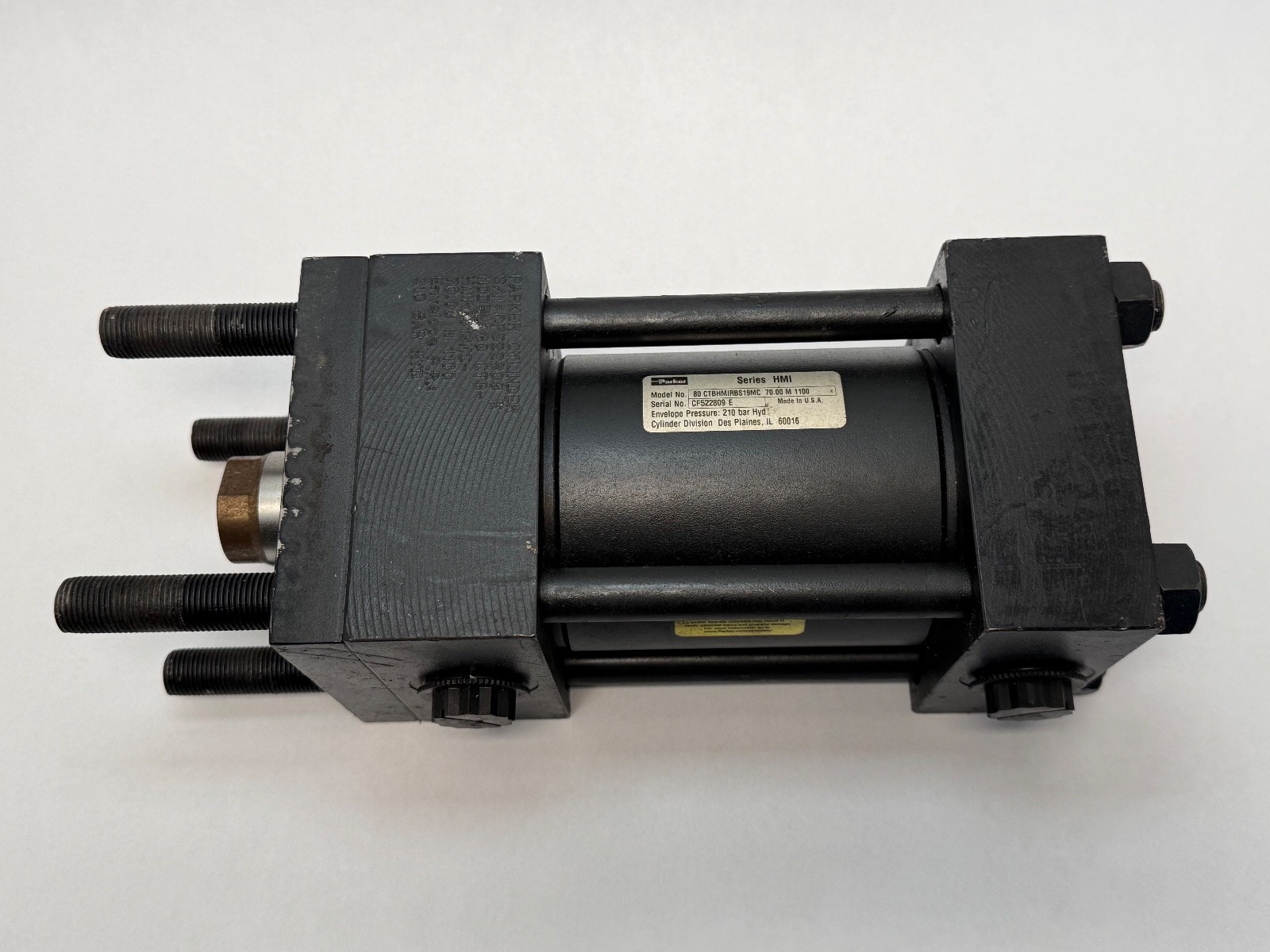

80 CTBHMIRBS19MC 70.00 M 1100 — the space-separated form of the same model number, as Parker prints it on the nameplate.

What these specs mean in practice

Bore: 80 mm. Nominal Working Pressure: 210 bar. An 80 mm piston at 210 bar develops roughly 105 kN on the extend stroke, which is press, clamp and heavy-lift territory. Stroke: 70 mm. A short stroke against a large bore is the classic clamping and pressing geometry: the cylinder is bought for its force rather than its travel, and rod buckling is a non-issue at this length. Standard: ISO 6020/2. Conforming to ISO 6020/2 fixes the mounting hole pattern, port positions and rod extension, so the cylinder mounts like any other ISO 6020/2 cylinder of the same bore, stroke and mounting style. Construction: tie rod. Tie rod construction lets the cylinder be stripped and resealed in place rather than replaced.

Mounting data

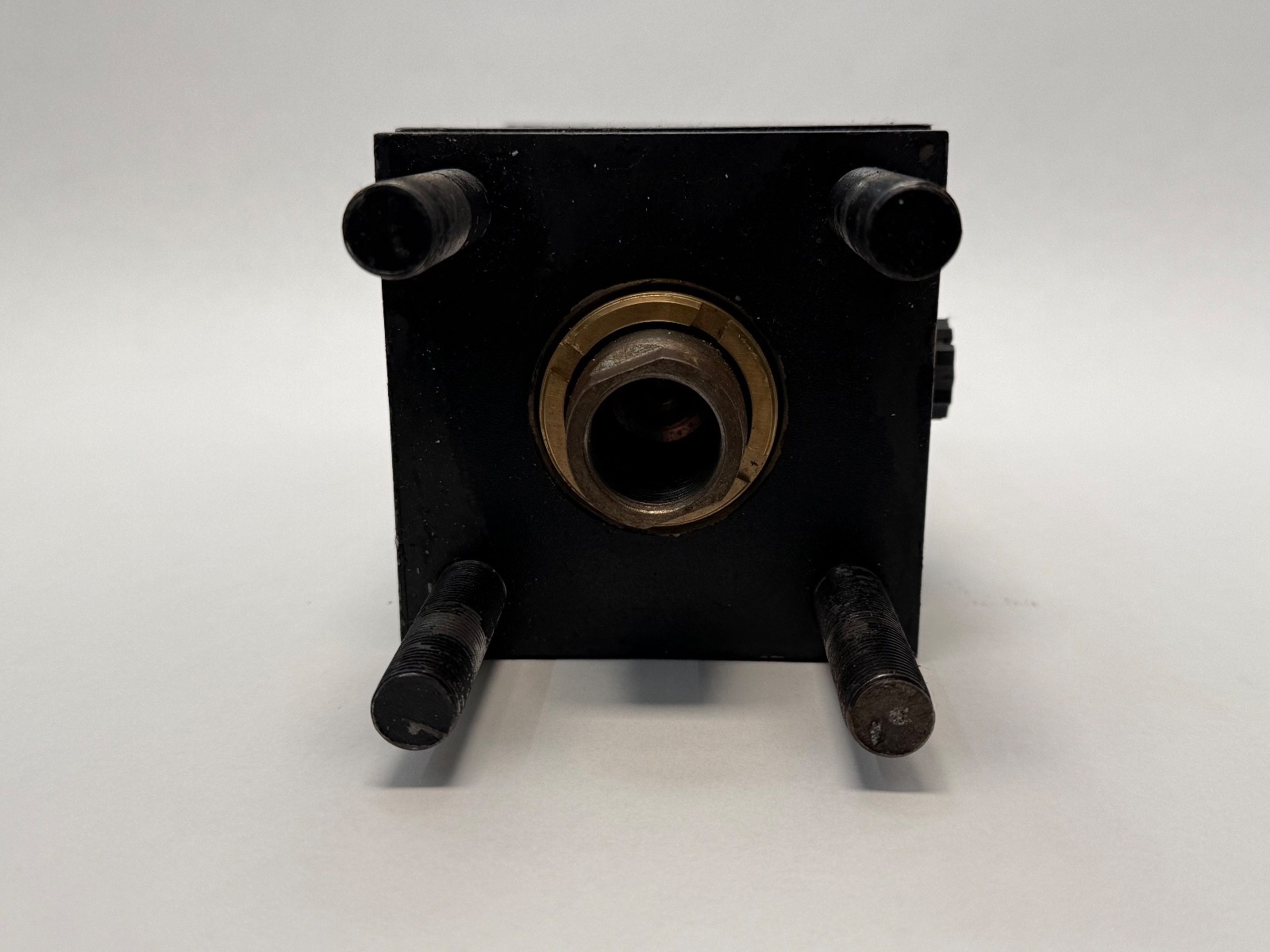

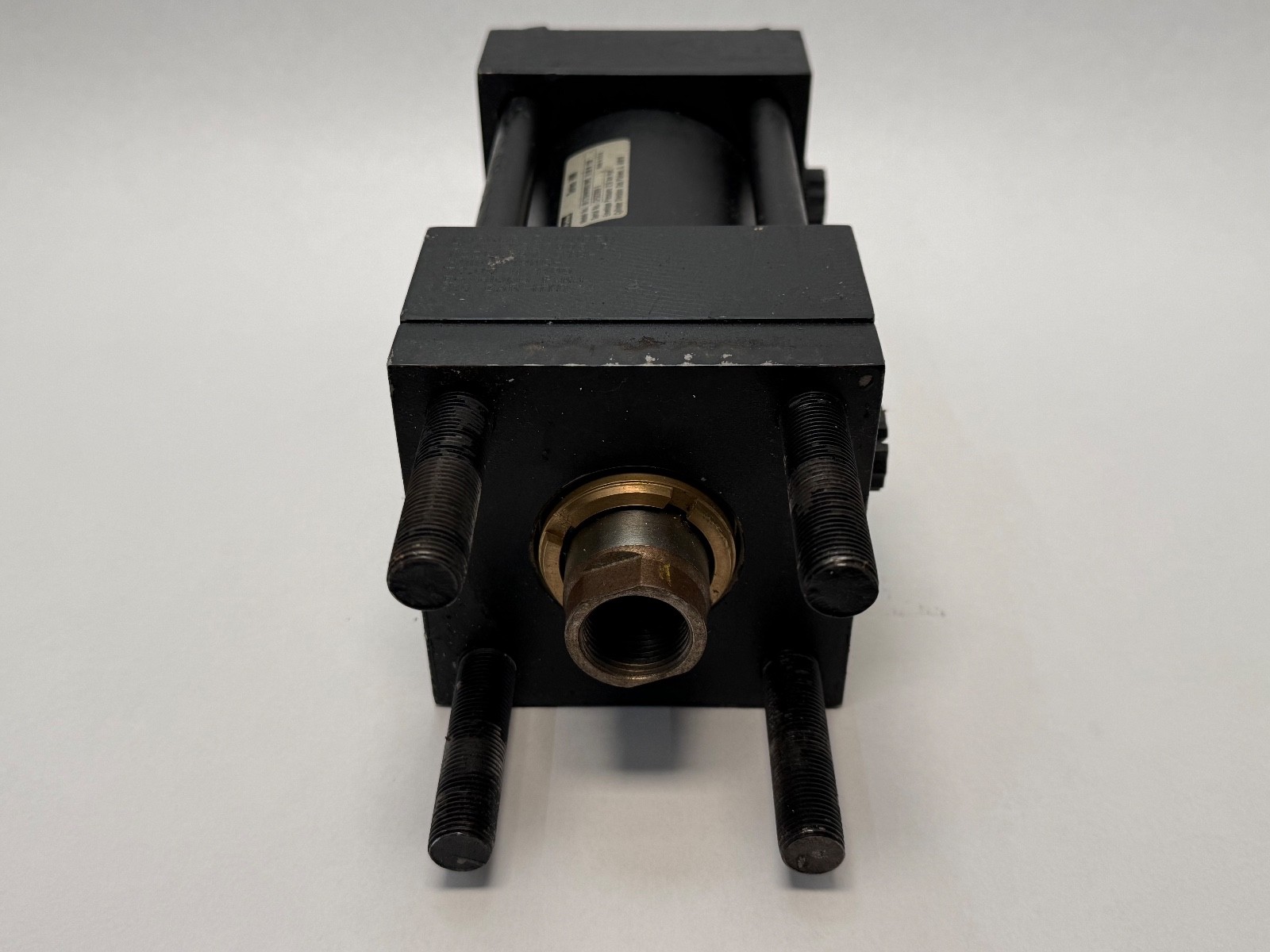

Standard: ISO 6020/2. Bore: 80 mm. Series HMI is published across bore sizes 25 mm to 200 mm, piston rod diameters 12 mm to 140 mm and 12 standard mounting styles, all on the ISO 6020/2 interface.

Quantity and configuration

Unit Quantity: 1 Pc. One complete cylinder per listing.

Condition

Condition: Used, machine takeout.
