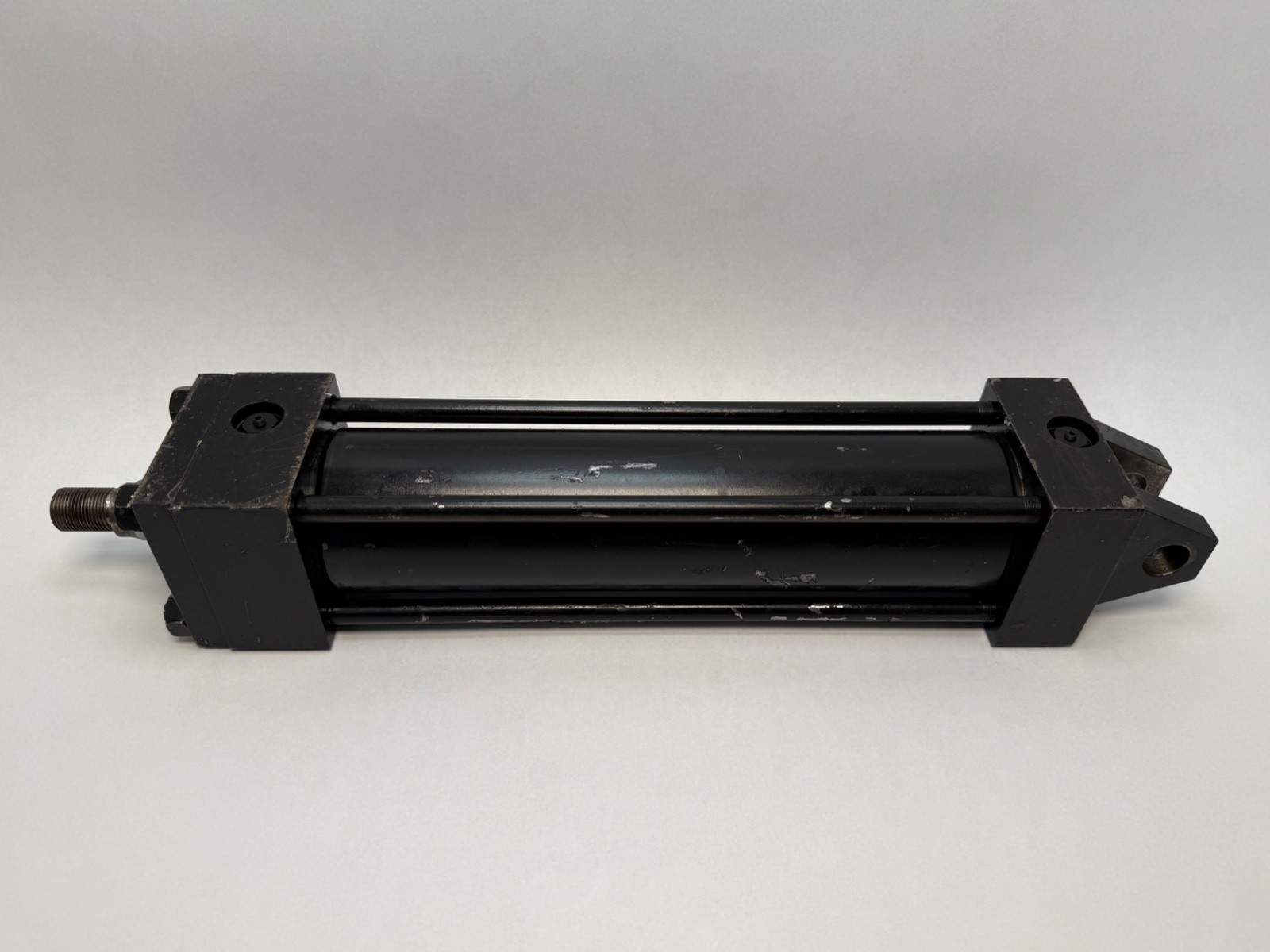

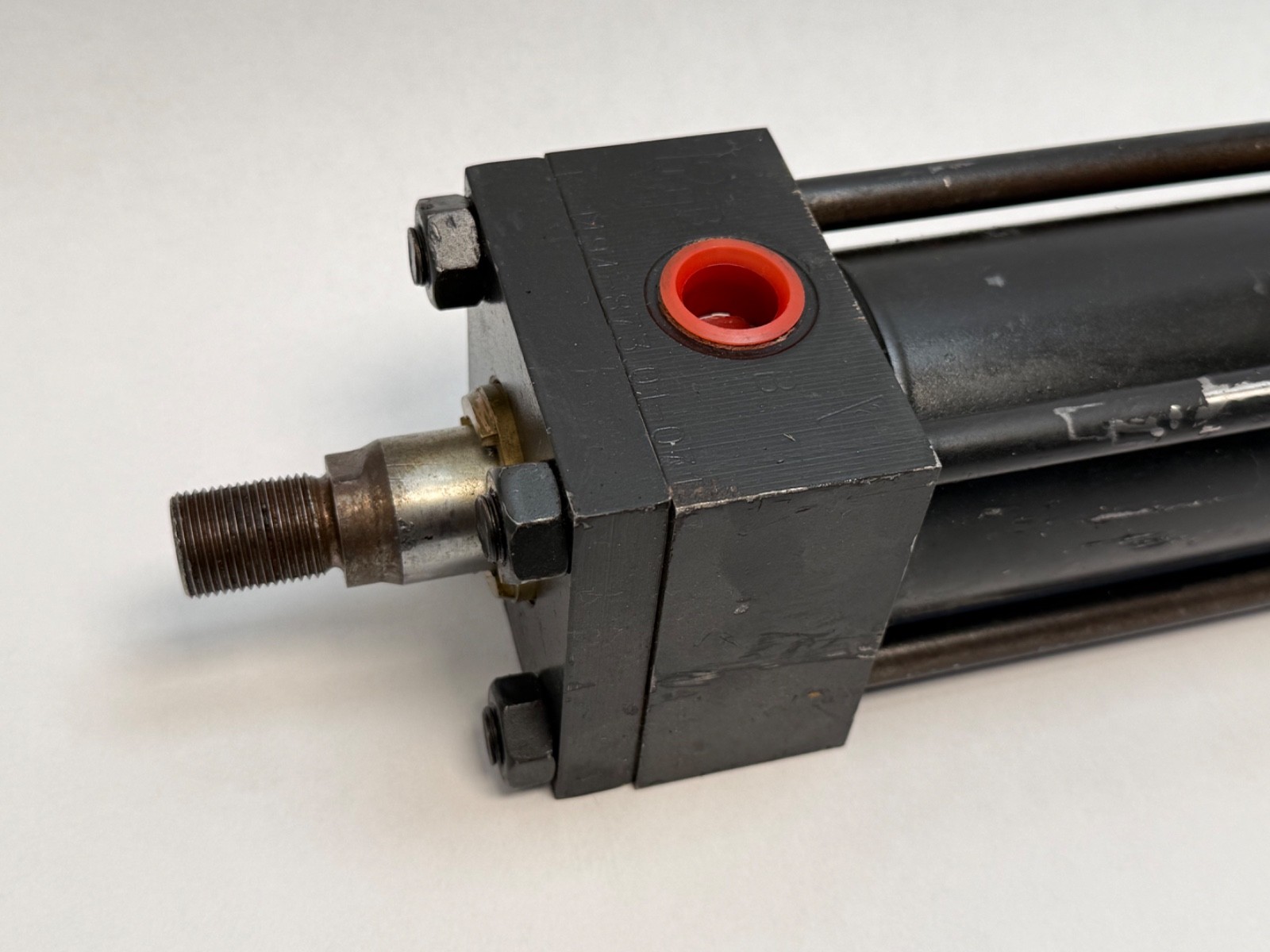

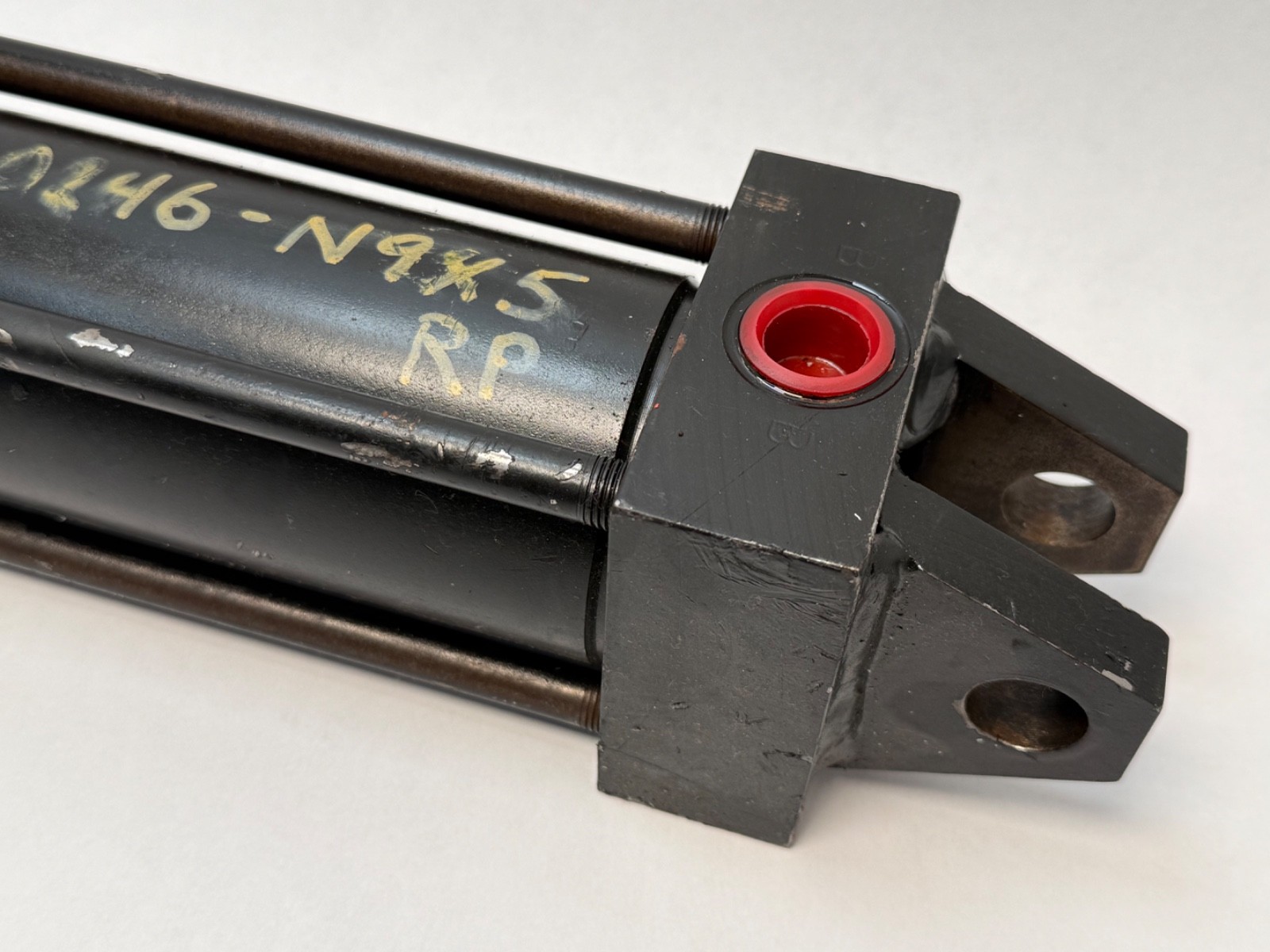

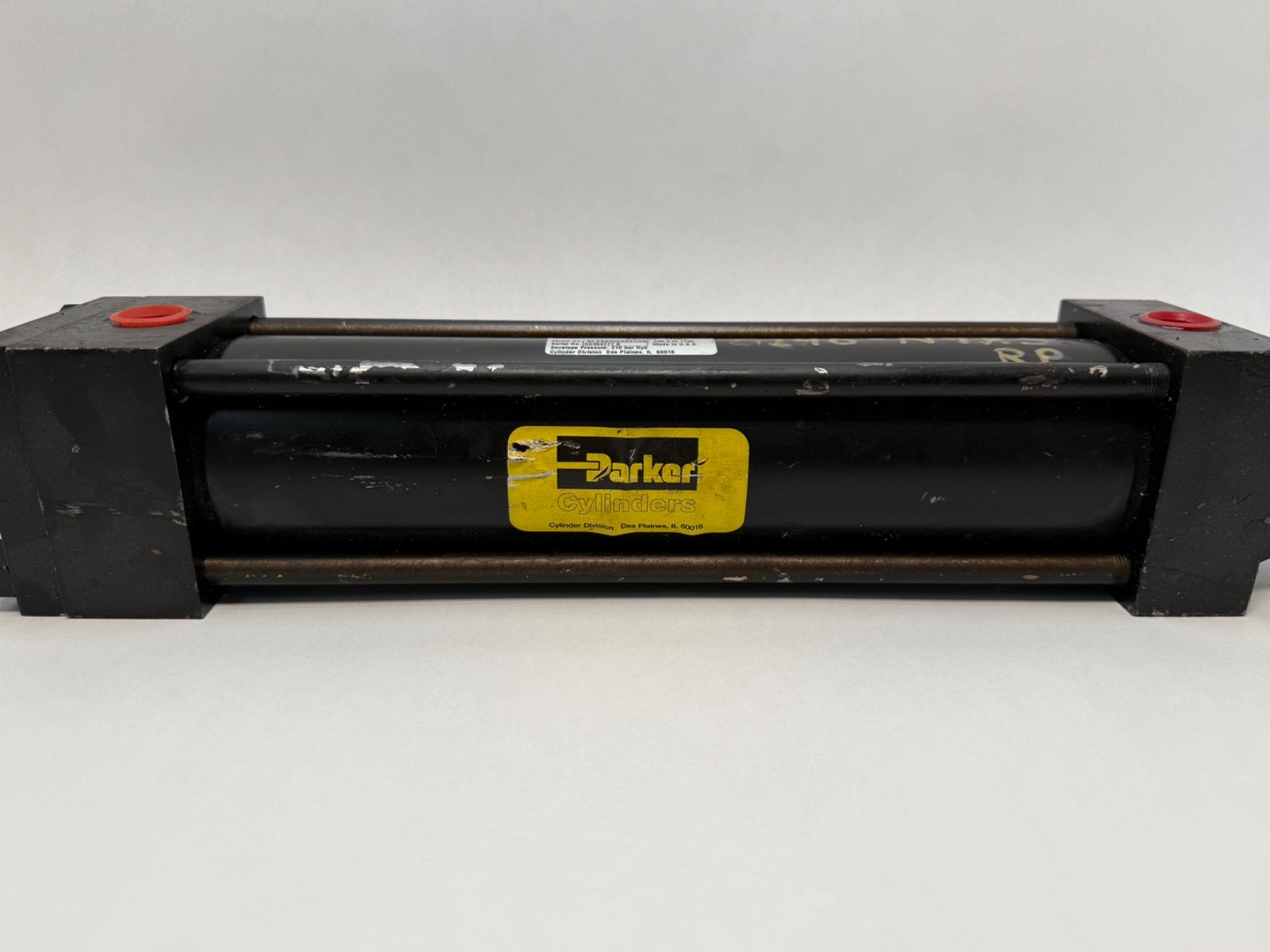

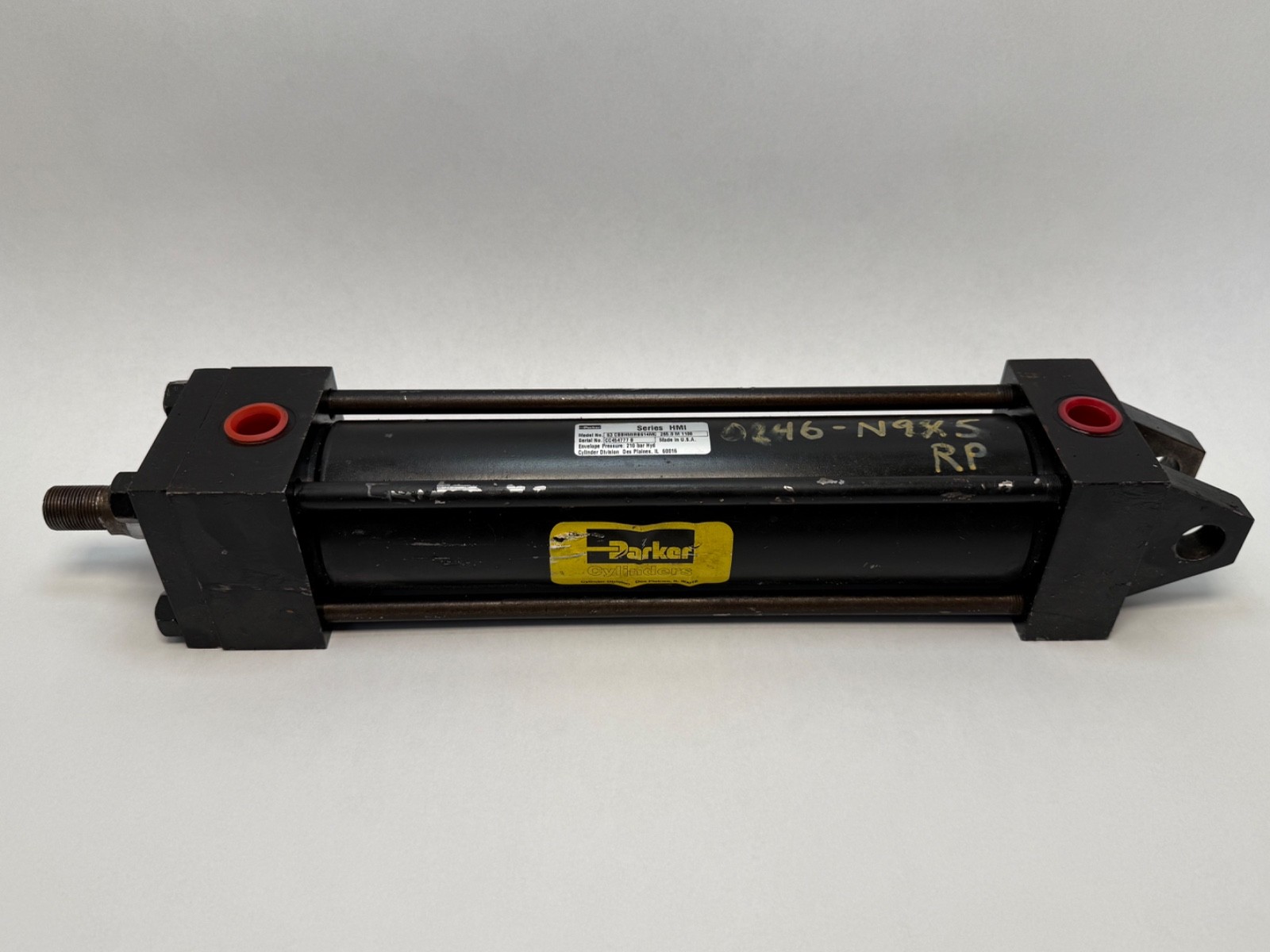

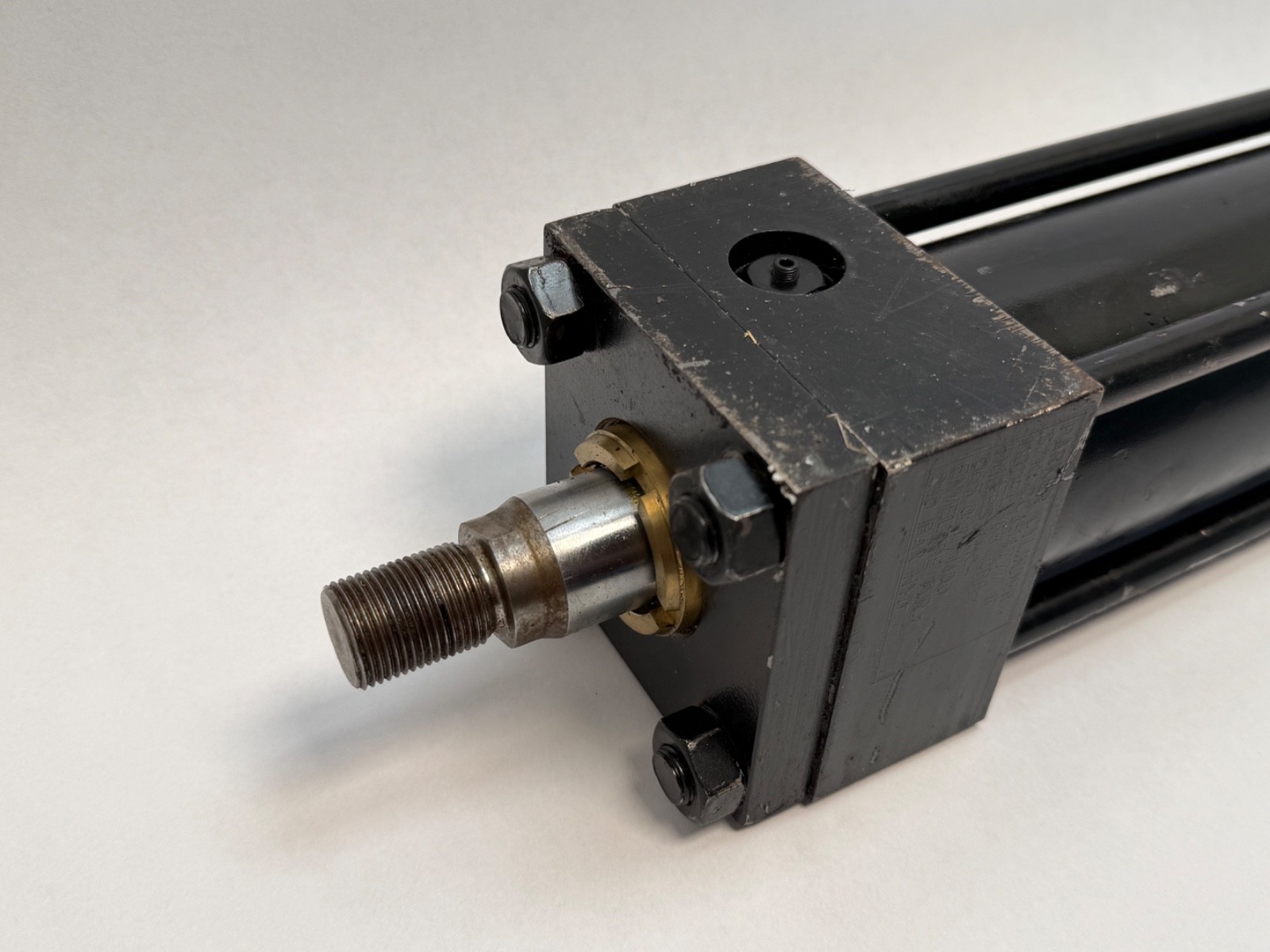

Parker63-CBBHMIRBS14MC-265.0-M-1100Tie Rod Hydraulic Cylinder ISO 6020/2, 63 mm Bore, 265 mm Stroke, 210 bar, Double Acting

Product Description

What this part is

Parker 63-CBBHMIRBS14MC-265.0-M-1100 hydraulic cylinder from Series HMI. Series HMI is Parker’s metric heavy duty industrial tie rod hydraulic cylinder line, with four tie rods clamping the head and cap against a honed steel barrel. Manufacturer: Parker. Part Number: 63-CBBHMIRBS14MC-265.0-M-1100. Series: HMI. Bore: 63 mm. Stroke: 265 mm. Nominal Working Pressure: 210 bar. Actuation: double acting. Construction: tie rod. Standard: ISO 6020/2. Medium: hydraulic fluid.

Decoding the designation

63 — 63 mm bore, the leading figure in every Parker metric cylinder model number.

HMI — Series HMI, Parker’s metric heavy duty industrial tie rod hydraulic cylinder range to ISO 6020/2.

265.0 — 265 mm stroke, which is 10.43 in.

M — metric design units.

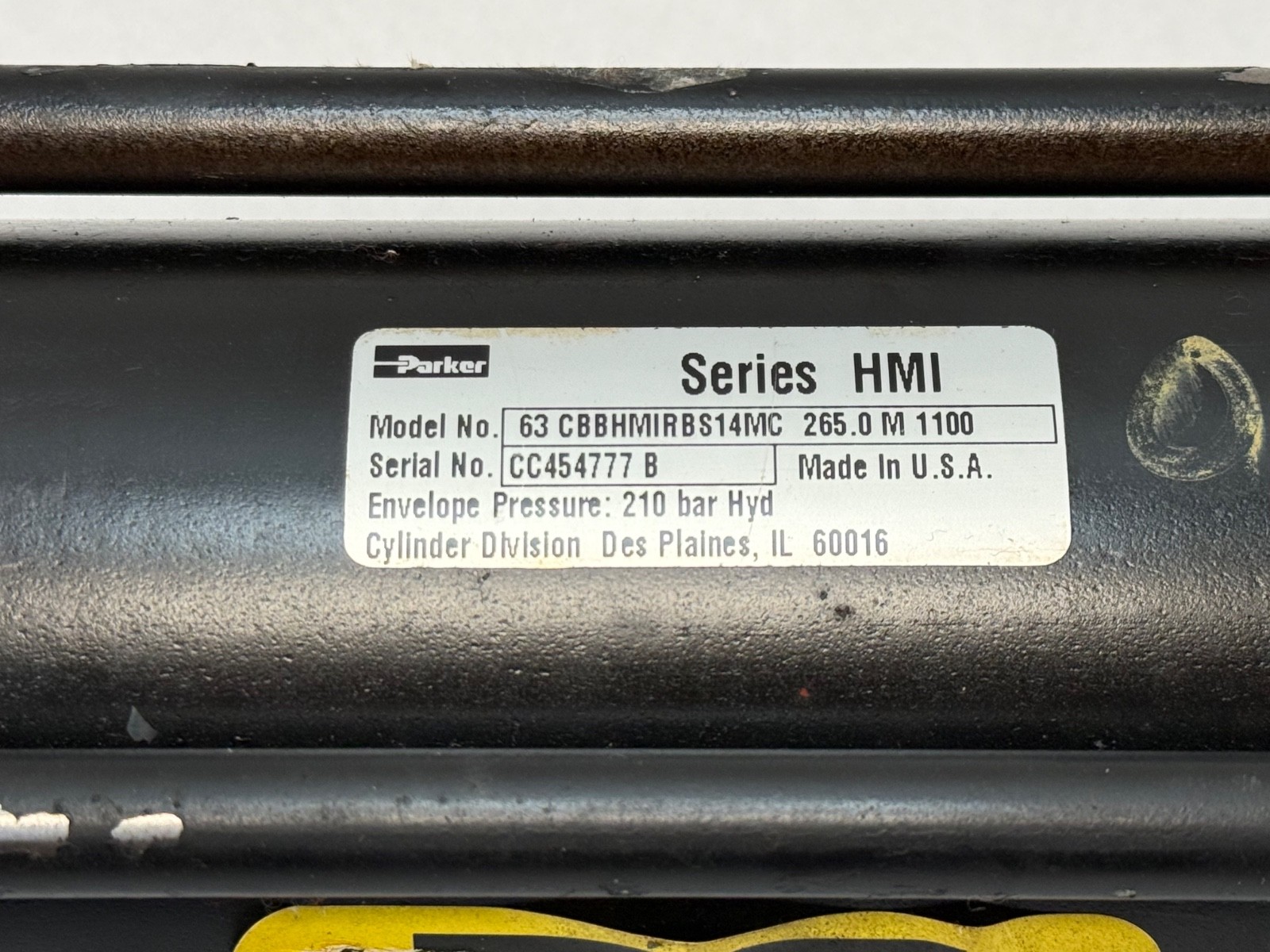

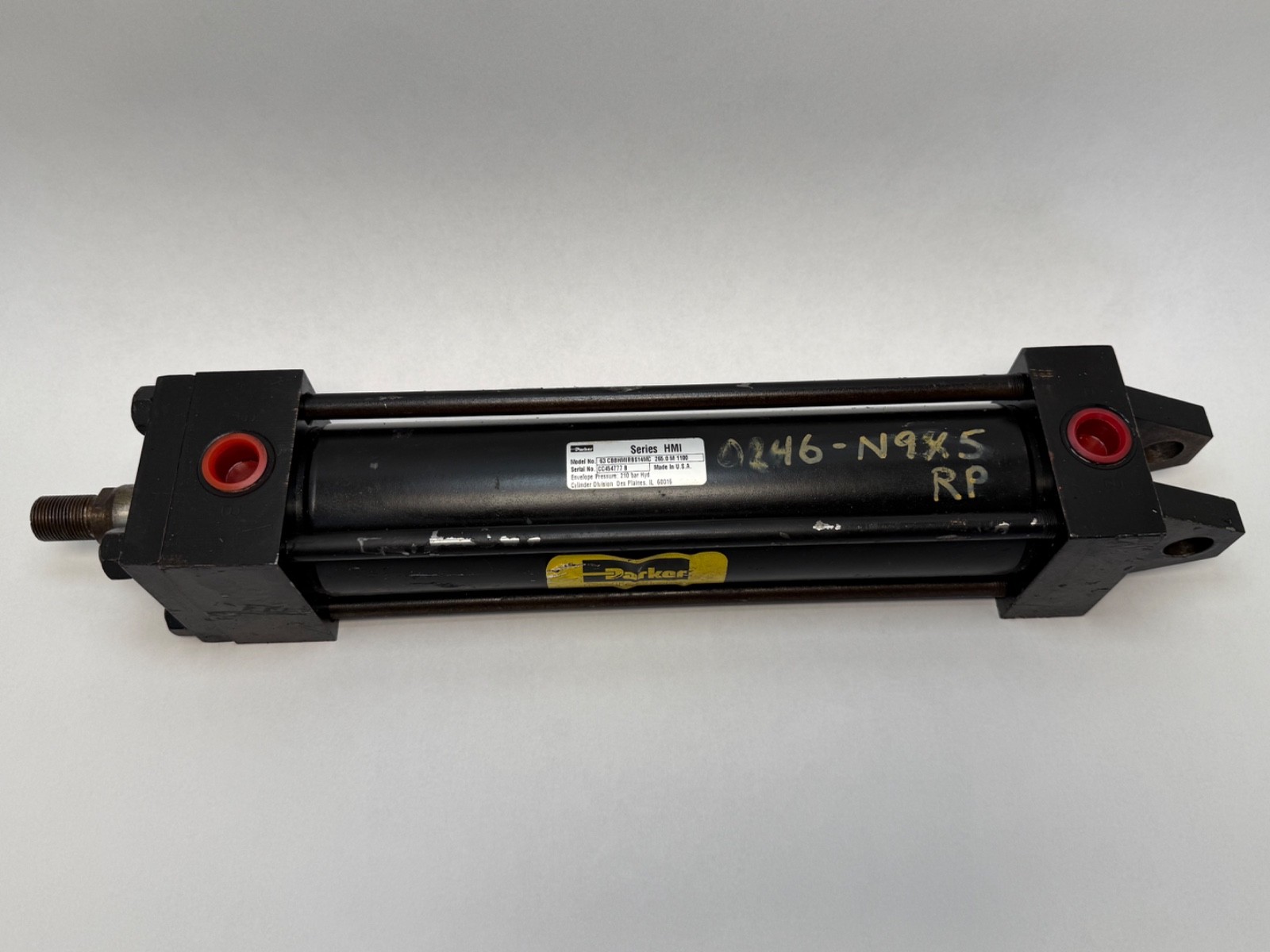

63 CBBHMIRBS14MC 265.0 M 1100 — the space-separated form of the same model number, as Parker prints it on the nameplate.

What these specs mean in practice

Bore: 63 mm. Nominal Working Pressure: 210 bar. A 63 mm piston at 210 bar develops roughly 65 kN on the extend stroke, enough for press feed, clamping, tipping and heavy positioning duty. Stroke: 265 mm. That is a working stroke rather than a clamping stroke, so rod column strength and side loading govern the mounting choice as much as the force does. Standard: ISO 6020/2. Conforming to ISO 6020/2 fixes the mounting hole pattern, port positions, rod extension and envelope, so the cylinder interchanges dimensionally with any other ISO 6020/2 cylinder of the same bore, stroke and mounting style. Construction: tie rod. Tie rod construction lets the cylinder be stripped and resealed in place rather than replaced.

Mounting data

Standard: ISO 6020/2. Bore: 63 mm. Series HMI is published across bore sizes 25 mm to 200 mm, piston rod diameters 12 mm to 140 mm and 12 standard mounting styles, all on the ISO 6020/2 interface.

Quantity and configuration

Unit Quantity: 1 Pc. One complete cylinder per listing.

Condition

Condition: Used, machine takeout.

Interchange guidance

63-CBBHMIRBS14MC-265.0-M-1100 and 63 CBBHMIRBS14MC 265.0 M 1100 are the same model number. Parker metric cylinder model numbers read bore first, the mounting and configuration block next, stroke after that, so an HMI number matching this one except in the stroke figure is the same cylinder at a different travel. The Southern Fluidpower sibling 63CSBHMIRBS14M200M1100 is the same 63 mm bore and the same RBS14 configuration at 200 mm stroke, differing only in mounting style.
