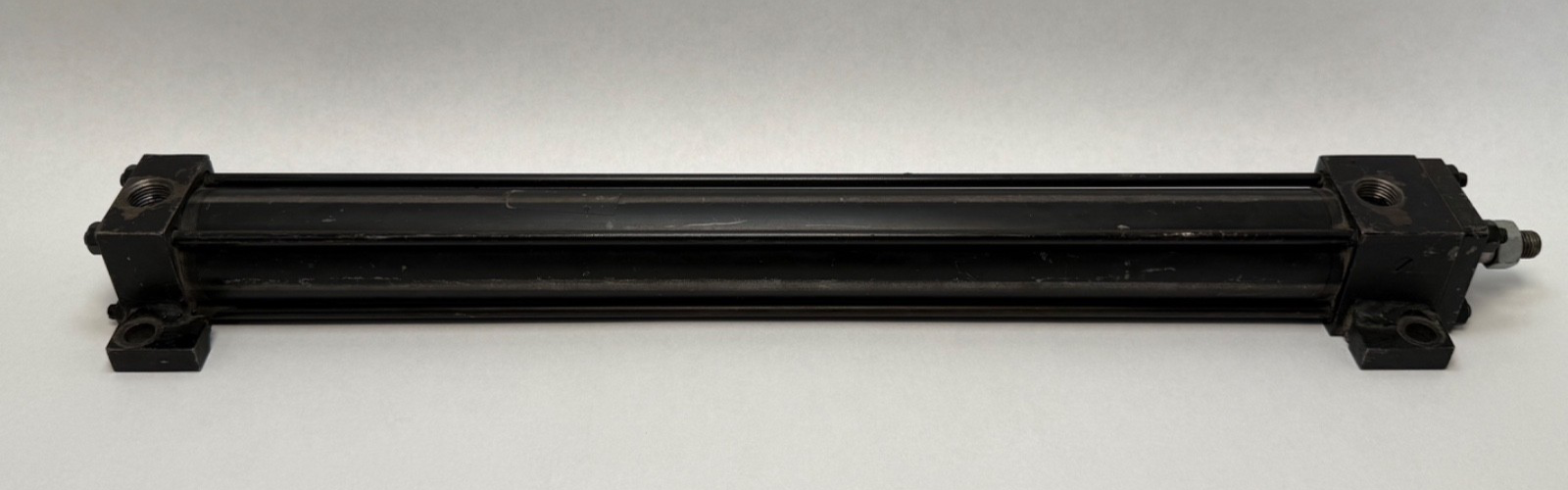

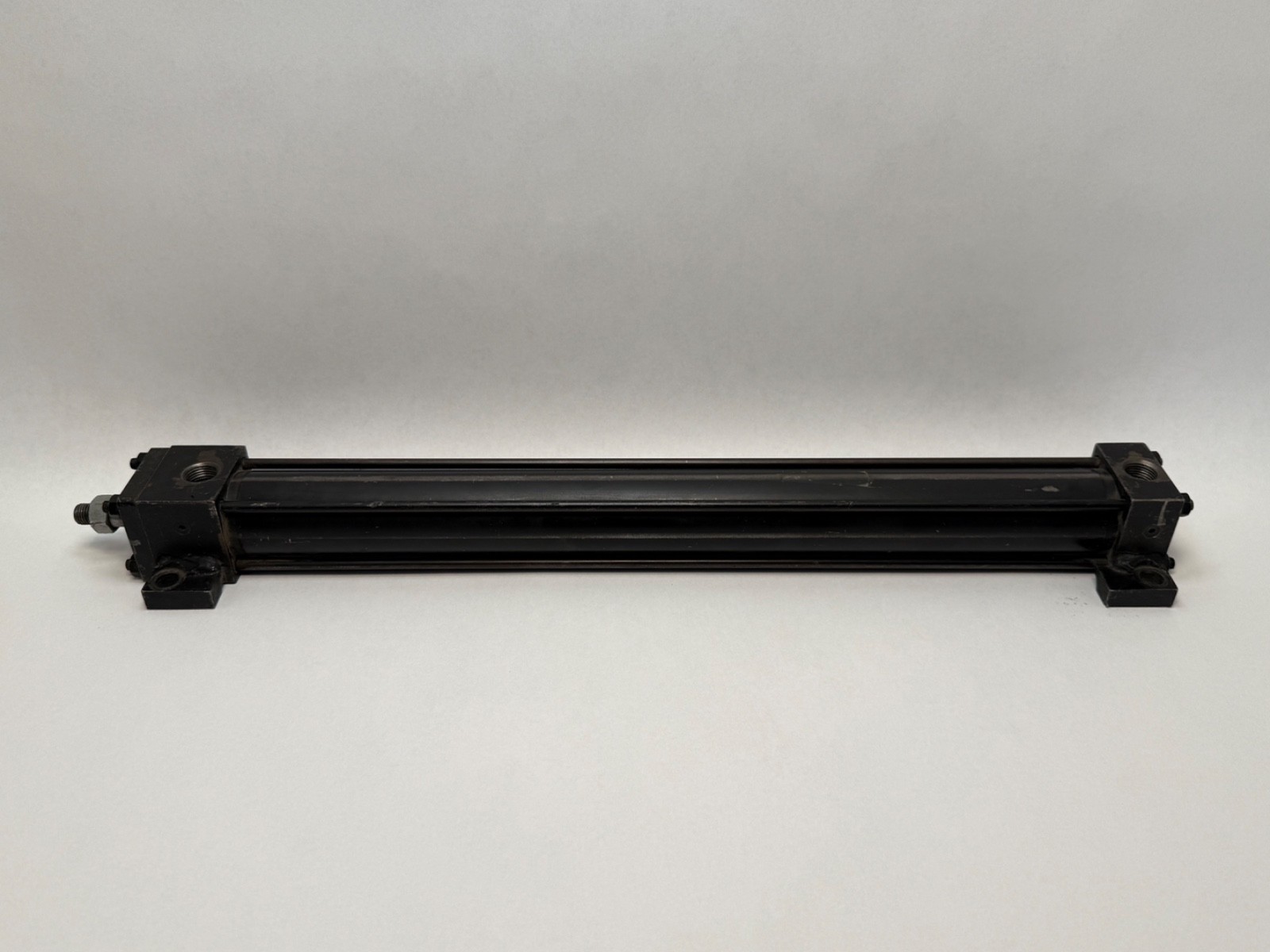

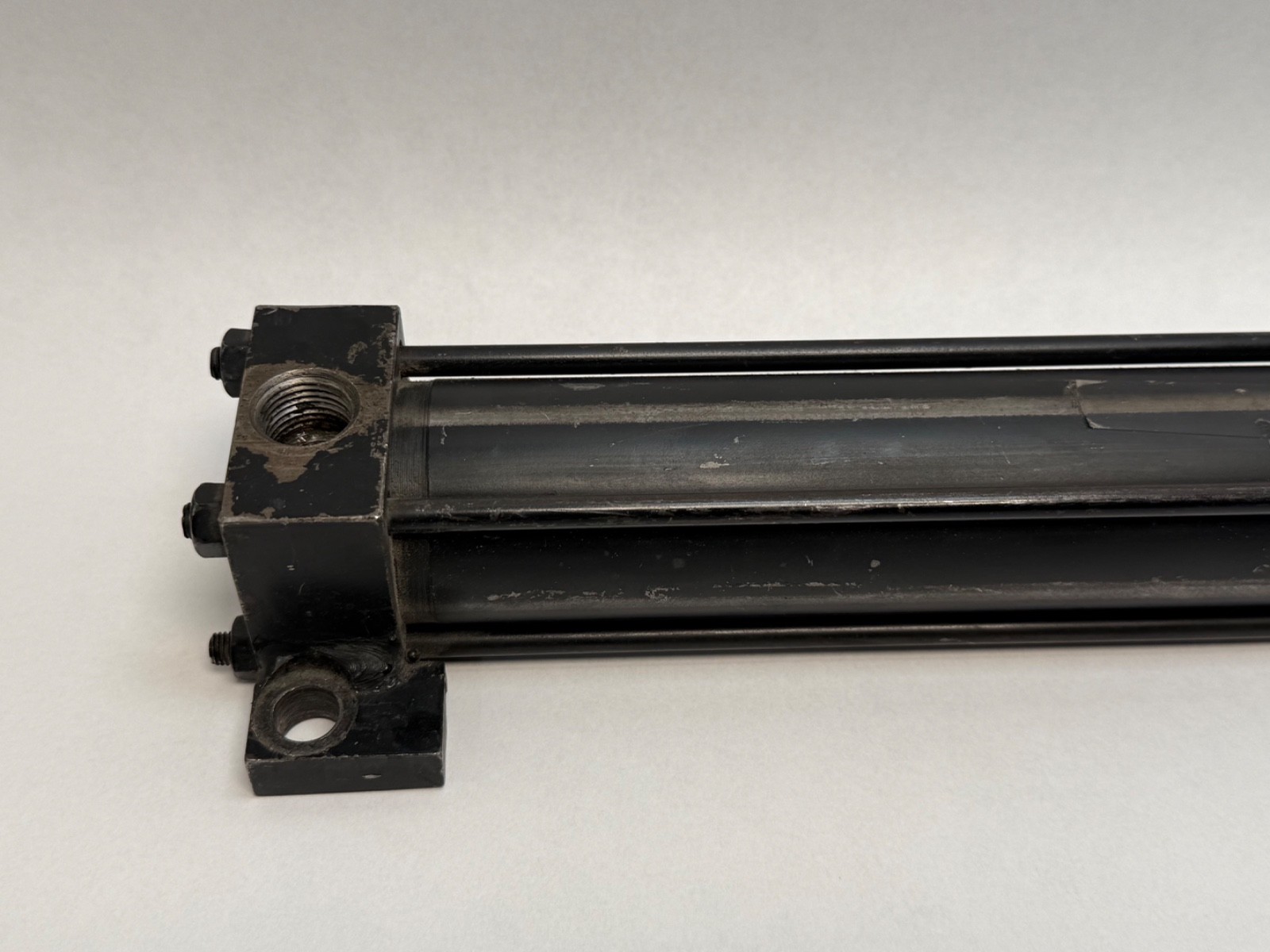

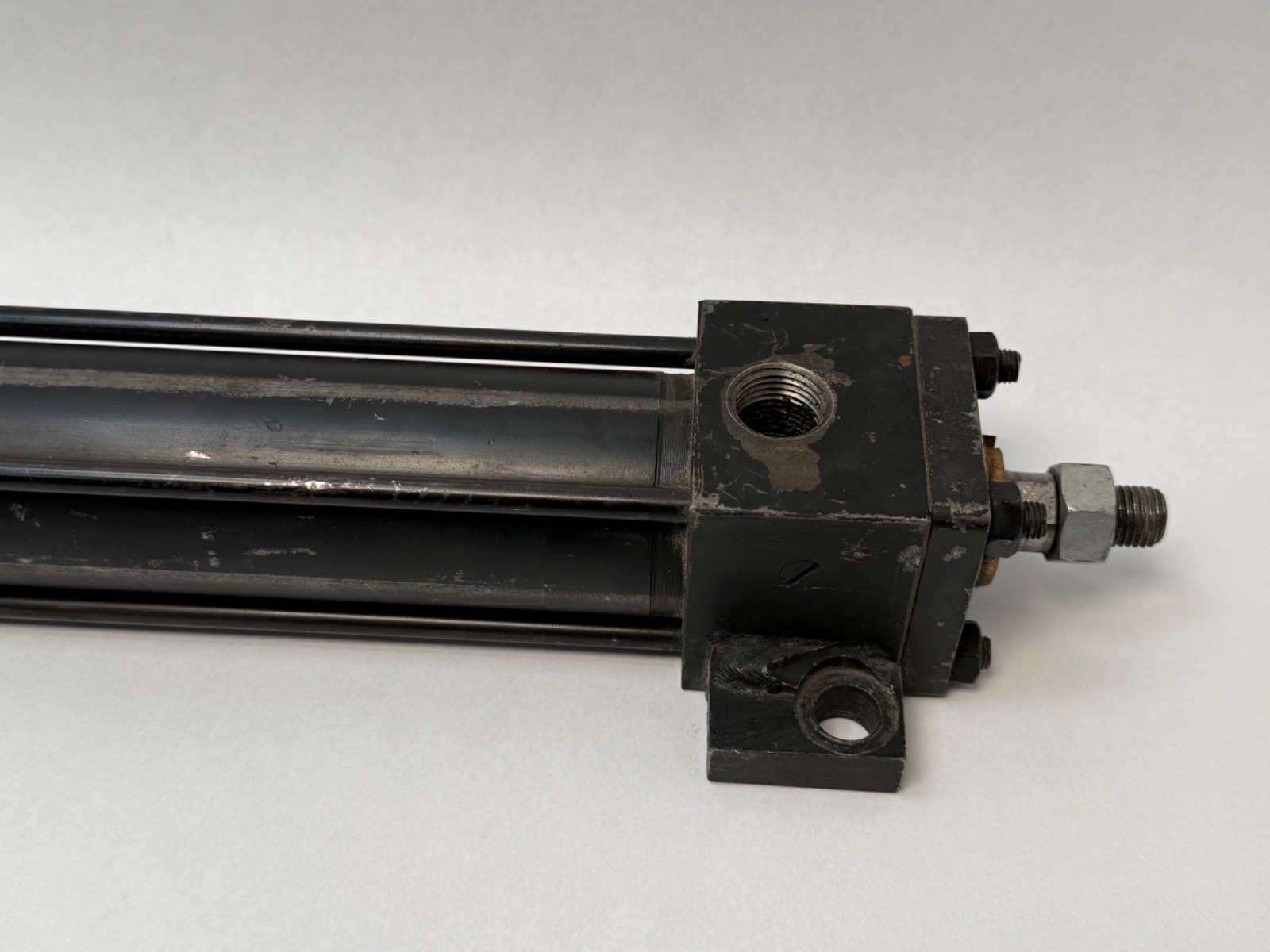

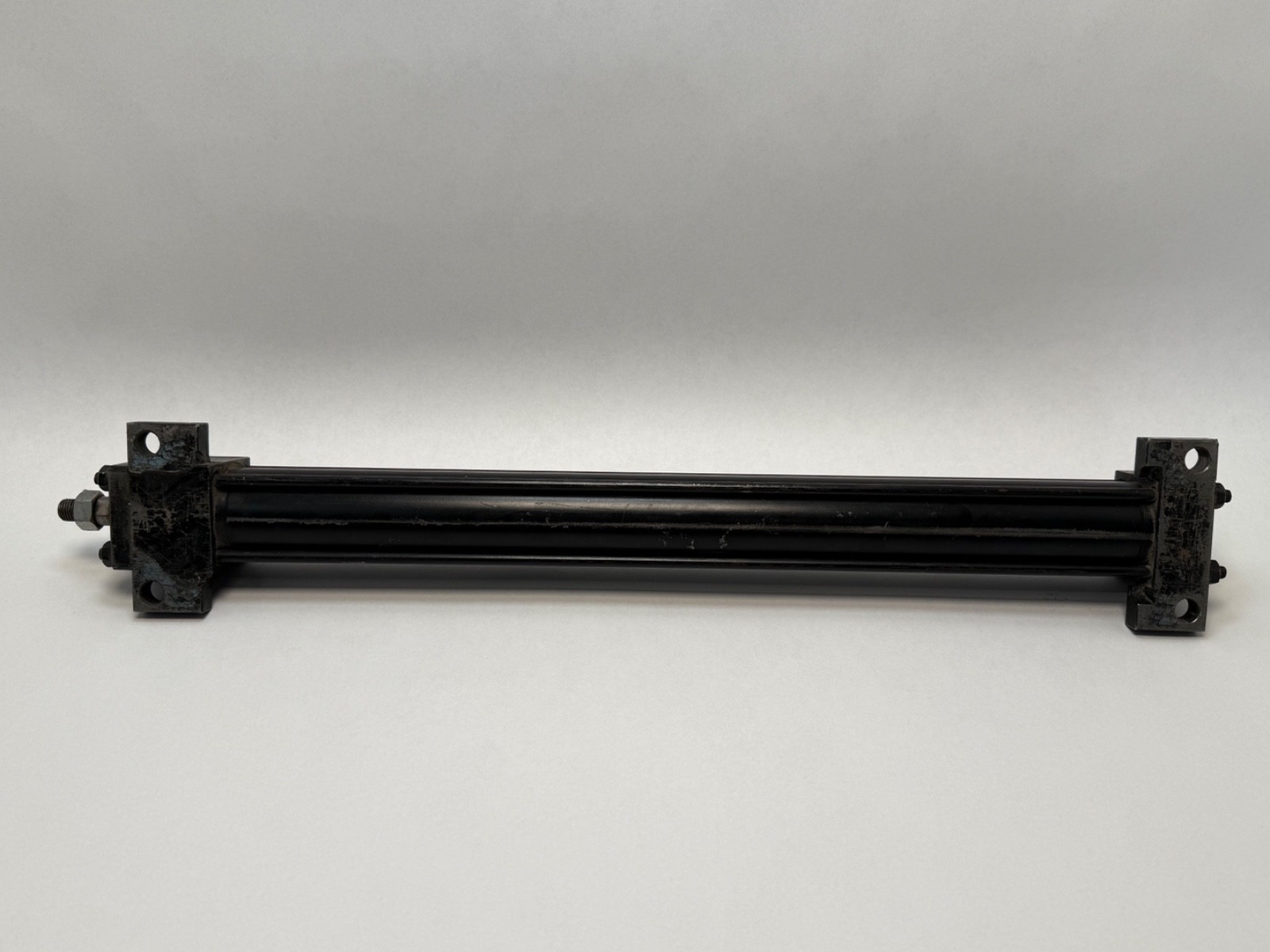

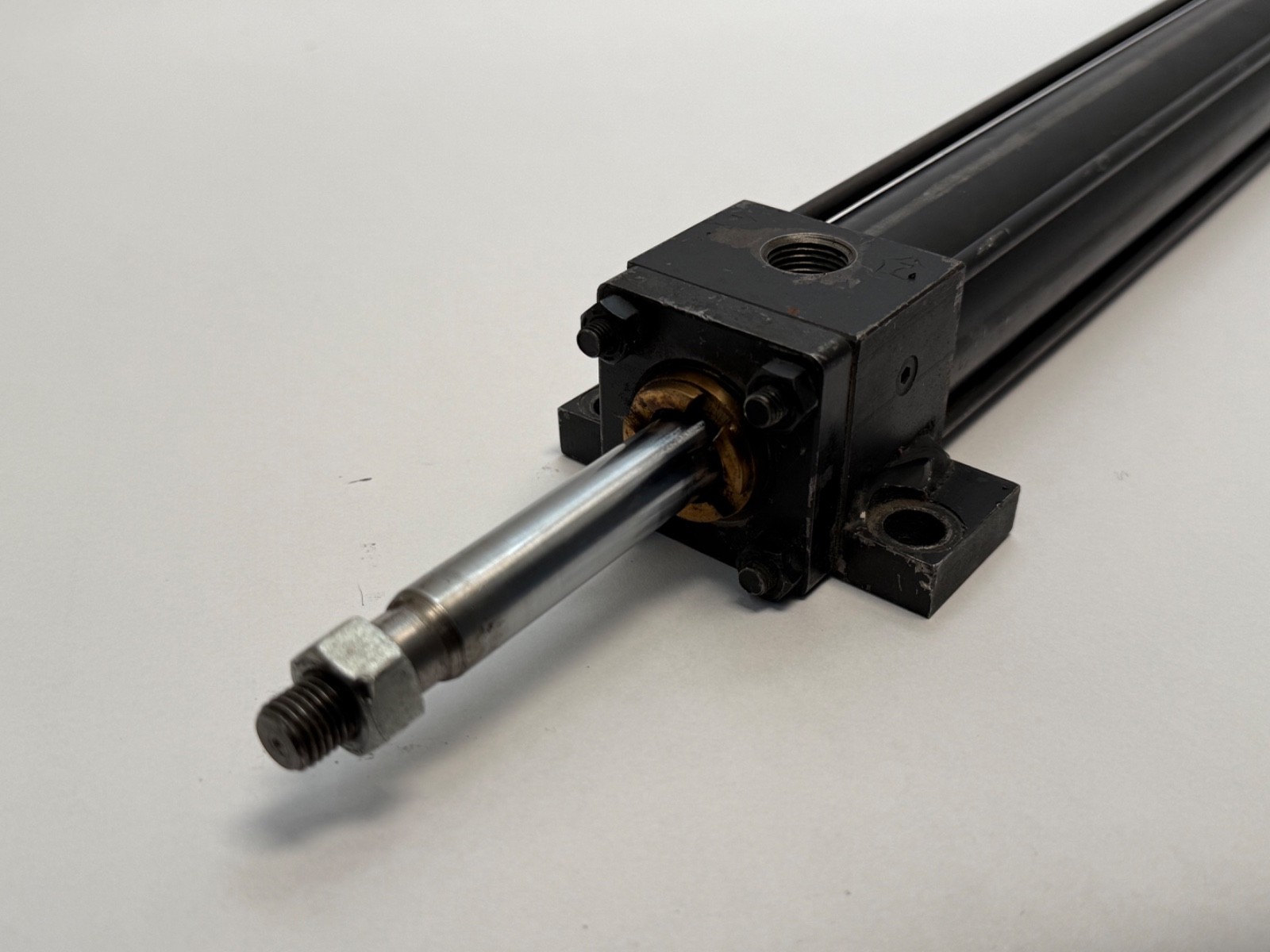

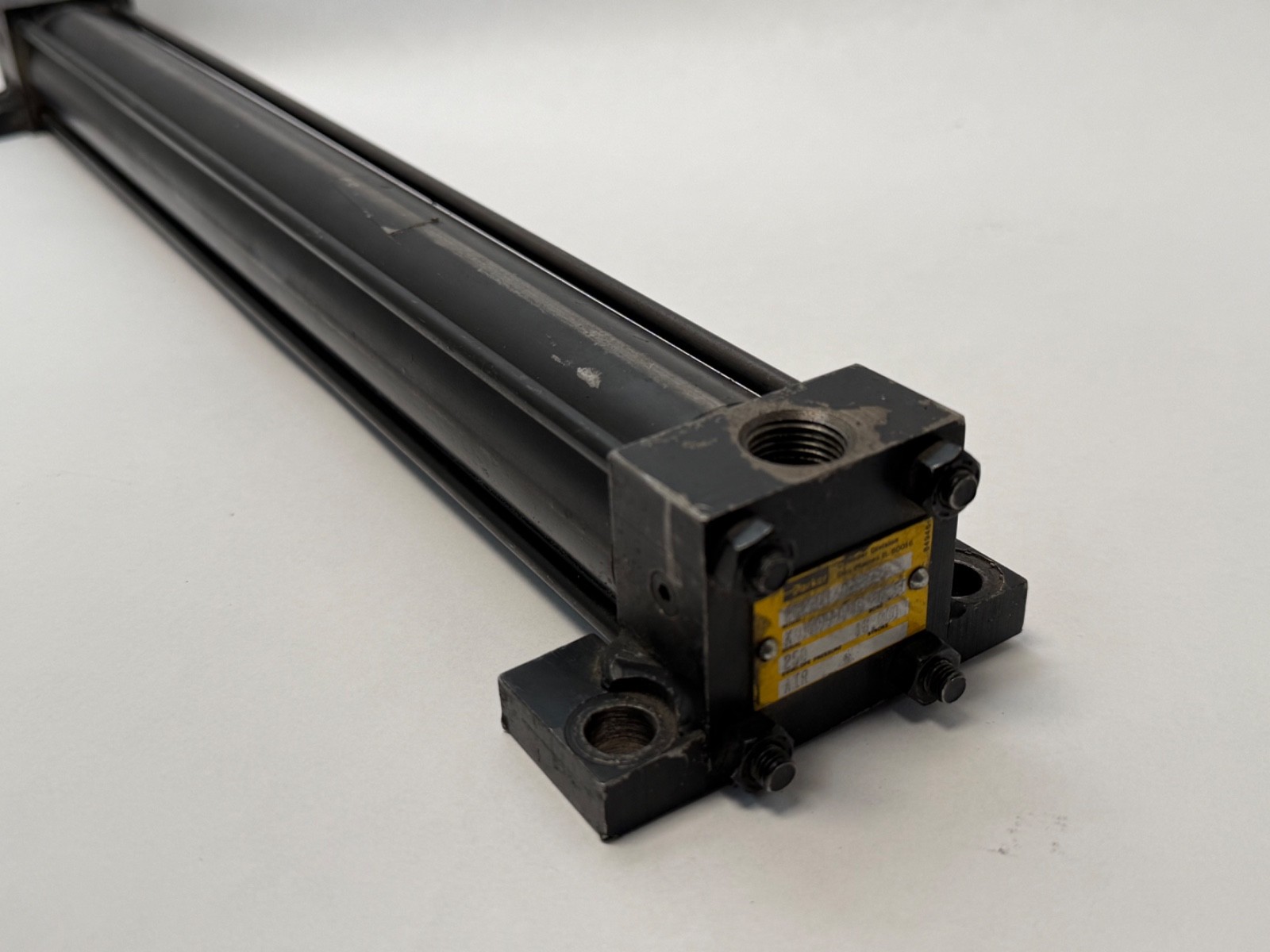

Parker01.50-CC2AU14C-16.000Heavy Duty NFPA Tie Rod Pneumatic Cylinder, 1-1/2 in Bore, 16 in Stroke, 5/8 in Rod, 250 psi

Condition: Used
Condition Note: Takeout

Availability:

1 in stock

Heavy-duty NFPA tie rod pneumatic cylinder, 1-1/2 in bore, 16 in stroke, 5/8 in rod diameter, rated 250 psi air service on a square head interface.

List Price

$88.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandParker
MPN01.50-CC2AU14C-16.000
ID1-1/2 in

Technical Specifications

Base NumberCC2AU14C
Industry TermsAir cylinder; Pneumatic cylinder; NFPA cylinder; Tie rod cylinder; Square head cylinder; Heavy duty air cylinder; Series 2A cylinder
Common MisspellingsParker 0150CC2AU14C16000; Parker 01.5 CC2AU14C 16; Parker CC2AU14; Parker 1.50-CC2AU14C-16.000
Application TypesTransfer and pusher duty; Clamping; Machine tool actuation; Conveyor diverters; Packaging machinery; Material handling
Maximum Pressure250 psi
Cylinder TypeSingle-Rod Cylinder
Shaft Type5/8 in diameter piston rod
Mpn Variants01.50-CC2AU14C-16.000; 01.50 CC2AU14C 16.000; 0150CC2AU14C16000; 1.50 CC2AU14C 16.00
SeriesParker Series 2A
Design UnitsInch
Part Number01.50-CC2AU14C-16.000
Bore1-1/2 in (38.1 mm)
Mounting TypeNFPA square head tie rod interface, 1-1/2 in bore
Seller Part Number: CD4#A8HTIJ

Product Description

What this part is:

Parker 01.50-CC2AU14C-16.000 heavy-duty tie rod pneumatic cylinder from Series 2A. Series 2A is Parker’s square-head industrial air cylinder line, built on four tie rods drawing the head and cap against the barrel. Manufacturer: Parker. Part Number: 01.50-CC2AU14C-16.000. Unit Quantity: 1 Pc. Condition: Used, machine takeout.

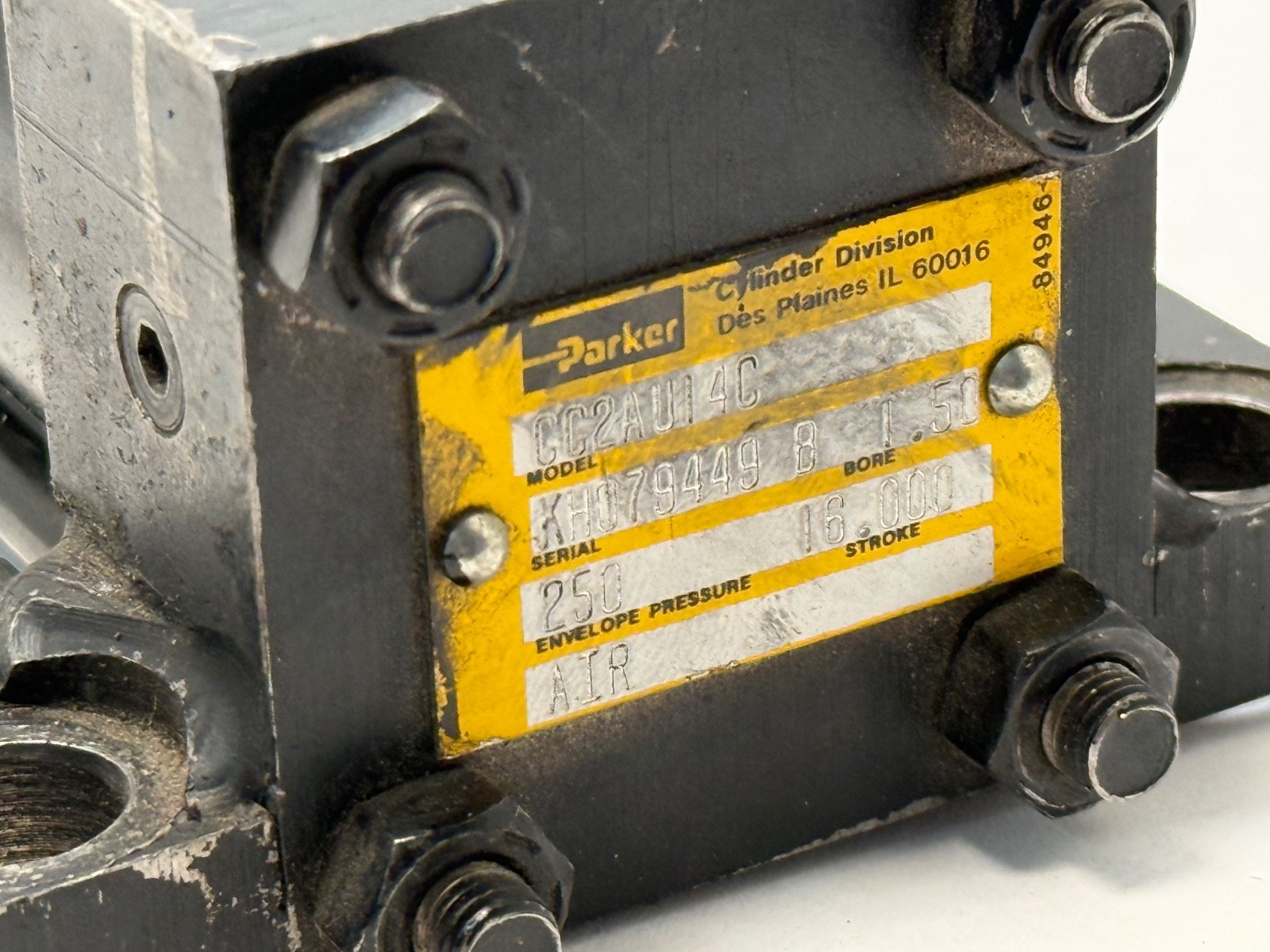

Decoding the designation:

01.50 — 1-1/2 in bore, written to two decimal places as Parker writes every inch bore.

2A — Series 2A, the heavy duty NFPA air cylinder line rated for 250 psi air service.

16.000 — 16 in stroke, written to three decimal places.

Specifications:

Series: 2A. Bore: 1-1/2 in (38.1 mm). Stroke: 16 in (406.4 mm). Piston Rod Diameter: 5/8 in (15.875 mm). Nominal Pressure: 250 psi air service. Maximum Operating Pressure: 250 psi. Medium: filtered compressed air. Standard: ANSI/NFPA T3.6.7 R2-1996 square head industrial fluid power cylinders. Cylinder Type: Single-Rod Cylinder.

Dimensions and mounting:

Standard: ANSI/NFPA T3.6.7 R2-1996. Bore: 1-1/2 in. Piston Rod Diameter: 5/8 in. Mounting Type: NFPA square head tie rod interface, 1-1/2 in bore. Series 2A is published across 17 standard mounting styles and rod diameters from 1/2 in to 5-1/2 in, all sharing the NFPA square head interface for the bore.

Compatibility and replacement:

01.50-CC2AU14C-16.000, 01.50 CC2AU14C 16.000 and 0150CC2AU14C16000 are the same model number. Parker Series 2A model numbers read bore first, mounting and rod configuration in the middle, stroke last.

Frequently asked questions:

What are the bore and stroke of the Parker 01.50-CC2AU14C-16.000?

Bore: 1-1/2 in. Stroke: 16 in.

What is the rated pressure and rod diameter?

Nominal Pressure: 250 psi air service. Piston Rod Diameter: 5/8 in.

Which standard does the cylinder follow?

ANSI/NFPA T3.6.7 R2-1996, square head industrial fluid power cylinders.
