ParkerTie Rod Hydraulic Cylinder ISO 6020/2, 63 mm Bore, 300 mm Stroke, 210 bar, Double Acting

Product Description

What this part is

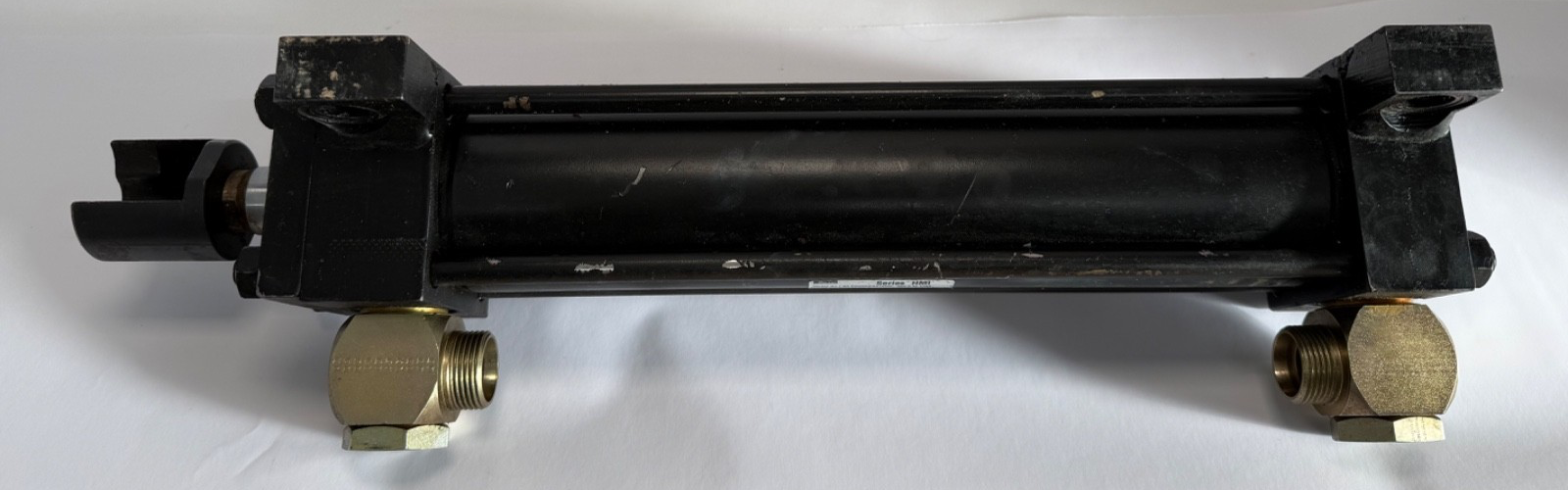

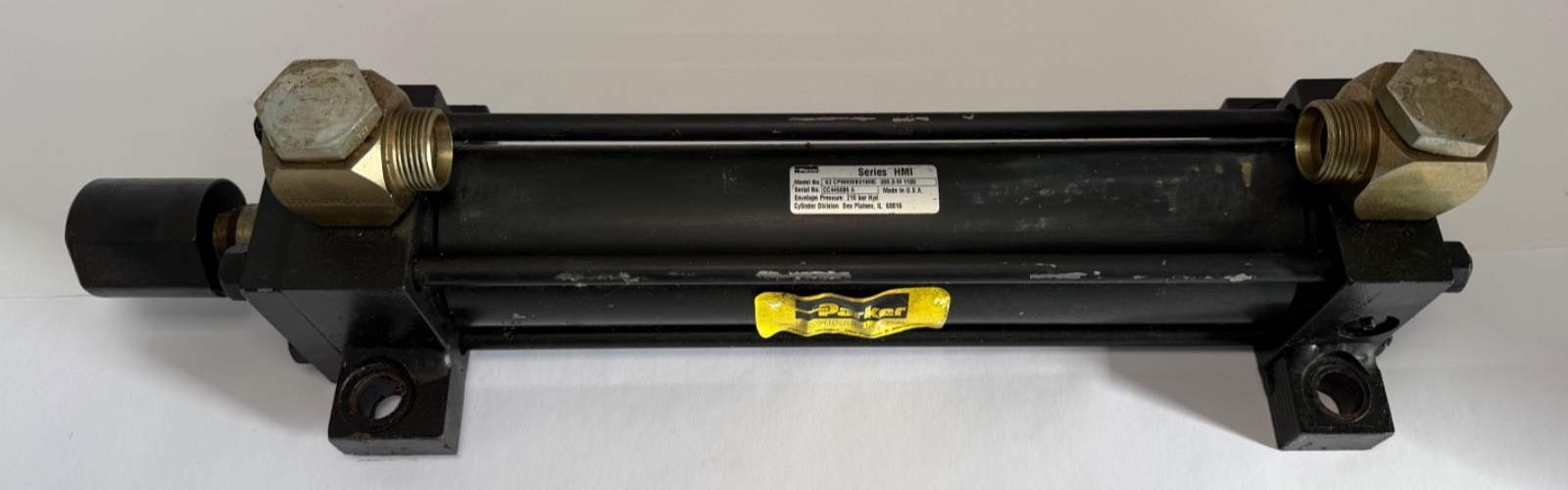

Parker 63-CPHMIRBS19MC-300.0-M-100 hydraulic cylinder from Series HMI. Series HMI is Parker’s metric heavy duty industrial tie rod hydraulic cylinder line, with four tie rods clamping the head and cap against a honed steel barrel. Manufacturer: Parker. Part Number: 63-CPHMIRBS19MC-300.0-M-100. Series: HMI. Bore: 63 mm. Stroke: 300 mm. Nominal Working Pressure: 210 bar. Actuation: double acting. Construction: tie rod. Standard: ISO 6020/2. Medium: hydraulic fluid.

Decoding the designation

63 — 63 mm bore, the leading figure in every Parker metric cylinder model number.

HMI — Series HMI, Parker’s metric heavy duty industrial tie rod hydraulic cylinder range to ISO 6020/2.

300.0 — 300 mm stroke.

M — metric design units.

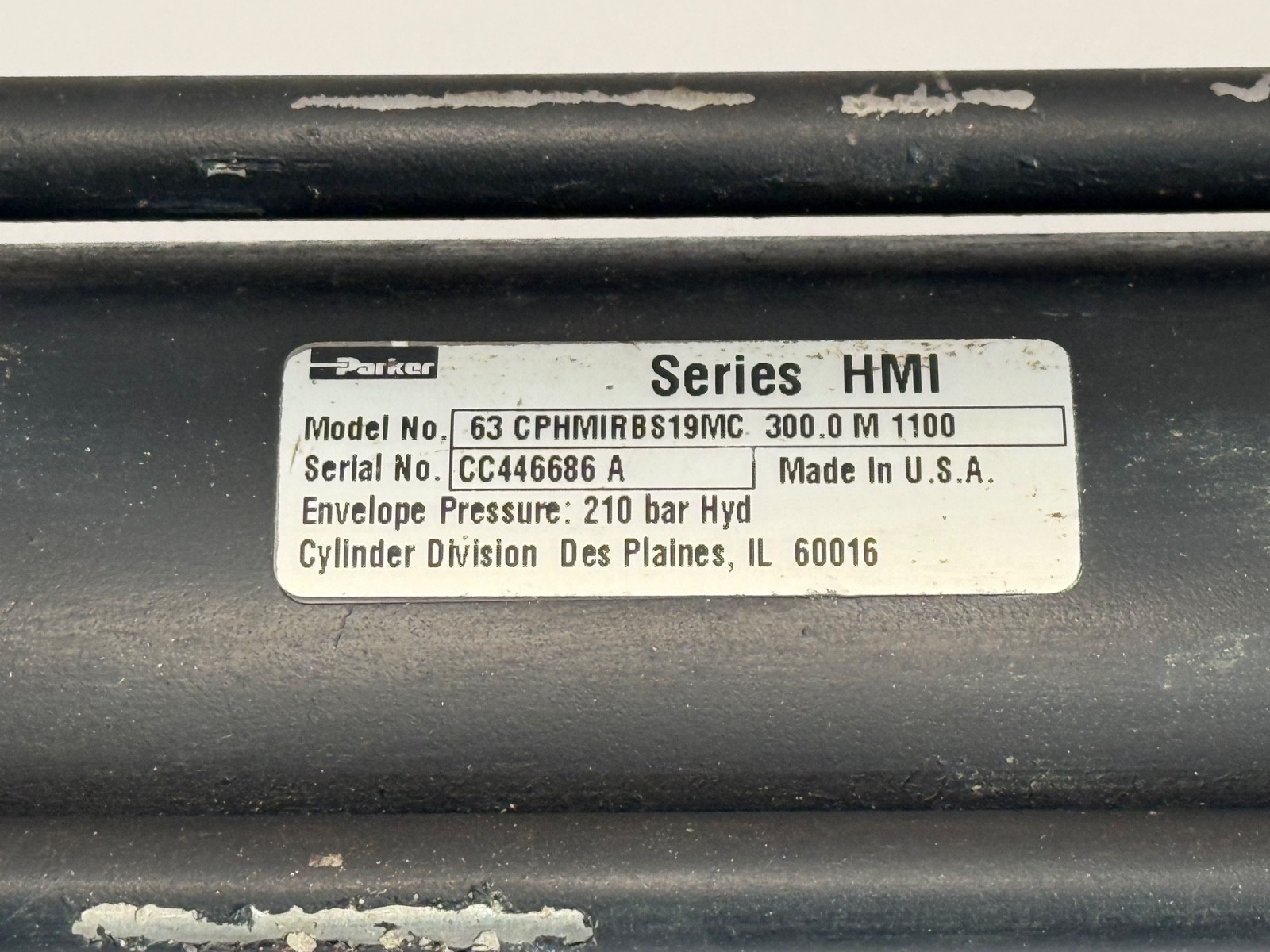

63 CPHMIRBS19MC 300.0 M 100 — the space-separated form of the same model number, as Parker prints it on the nameplate.

What these specs mean in practice

Bore: 63 mm. Nominal Working Pressure: 210 bar. A 63 mm piston at 210 bar develops roughly 65 kN on the extend stroke, enough for press feed, clamping, tipping and heavy positioning duty. Stroke: 300 mm. Three hundred millimetres of travel at 63 mm bore is a working stroke rather than a clamping stroke, so rod column strength and side loading govern the mounting choice as much as the force does. Standard: ISO 6020/2. Conforming to ISO 6020/2 fixes the mounting hole pattern, port positions, rod extension and envelope, so the cylinder fits the same mounting pattern as any other ISO 6020/2 cylinder of the same bore, stroke and mounting style. Construction: tie rod. Tie rod construction lets the cylinder be stripped and resealed in place rather than replaced.

Mounting data

Standard: ISO 6020/2. Bore: 63 mm. Series HMI is published across bore sizes 25 mm to 200 mm, piston rod diameters 12 mm to 140 mm and 12 standard mounting styles, all on the ISO 6020/2 interface.

Quantity and configuration

Unit Quantity: 1 Pc. One complete cylinder per listing.

Condition

Condition: Used, machine takeout.

Part number forms

63-CPHMIRBS19MC-300.0-M-100 and 63 CPHMIRBS19MC 300.0 M 100 are the same model number. Parker metric cylinder model numbers read bore first, the mounting and configuration block next, stroke after that, so an HMI number matching this one except in the stroke figure is the same cylinder at a different travel. Series HMI seal kits are catalogued against the bore and the seal-class digits rather than the full model number.
