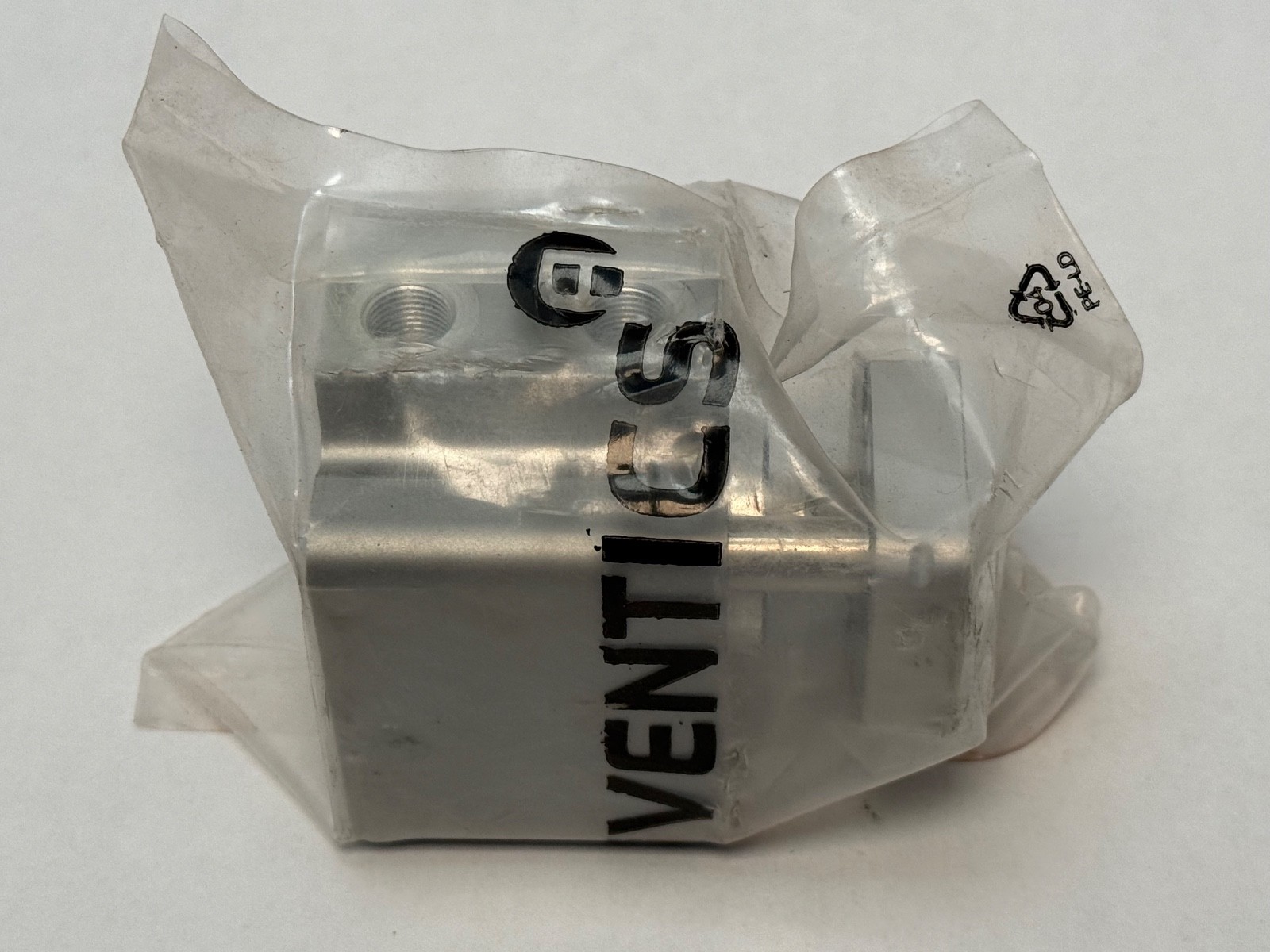

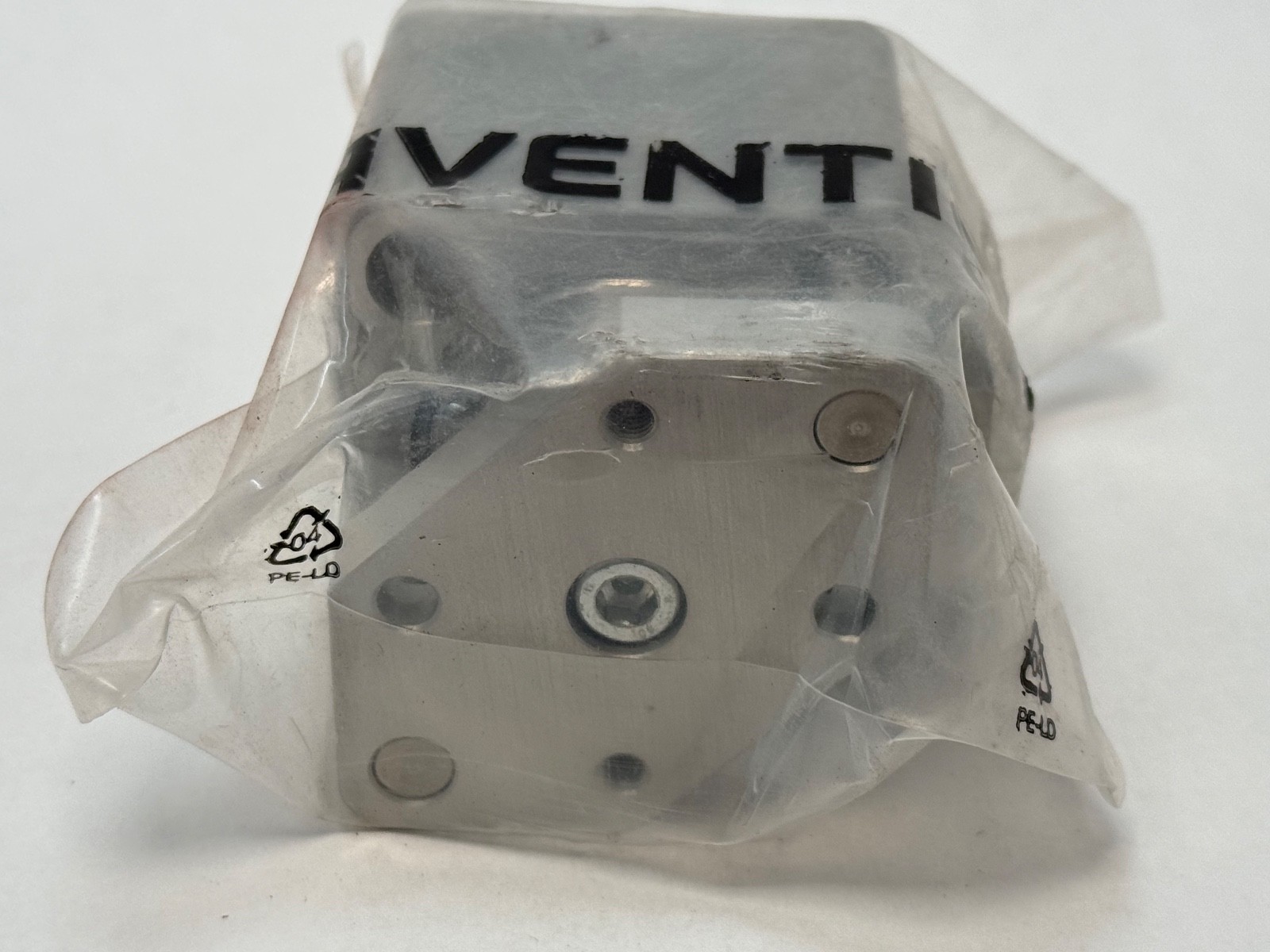

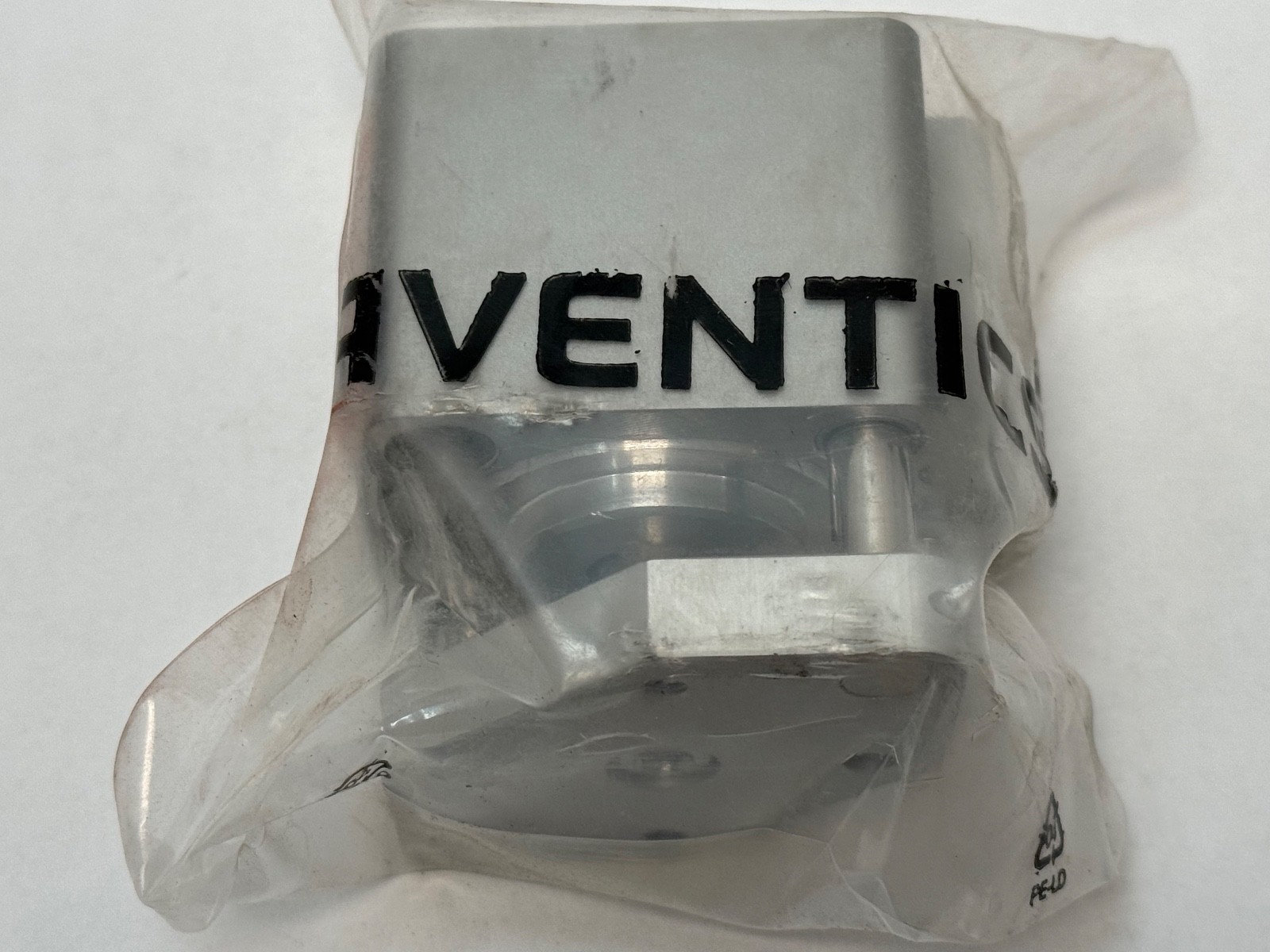

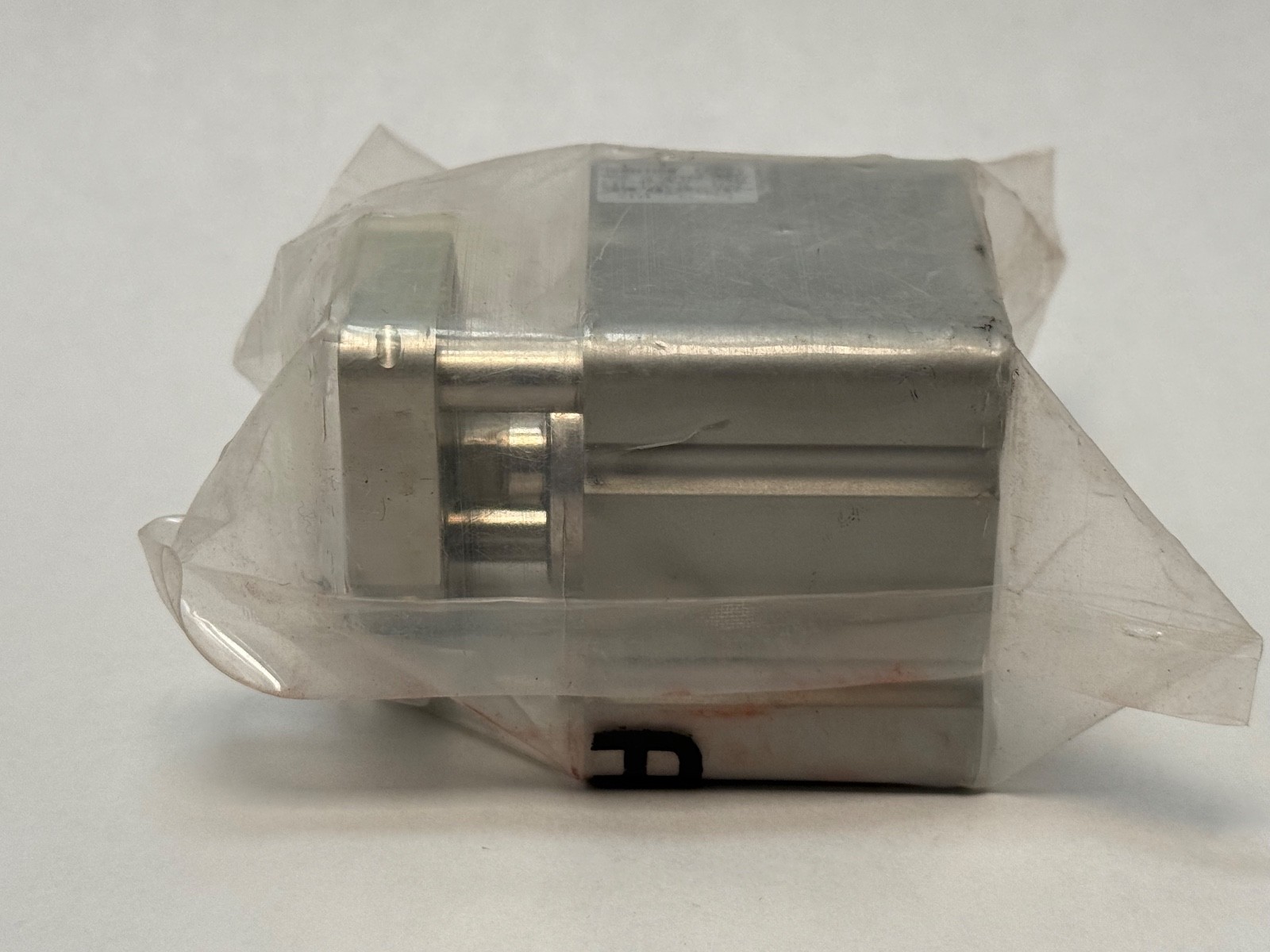

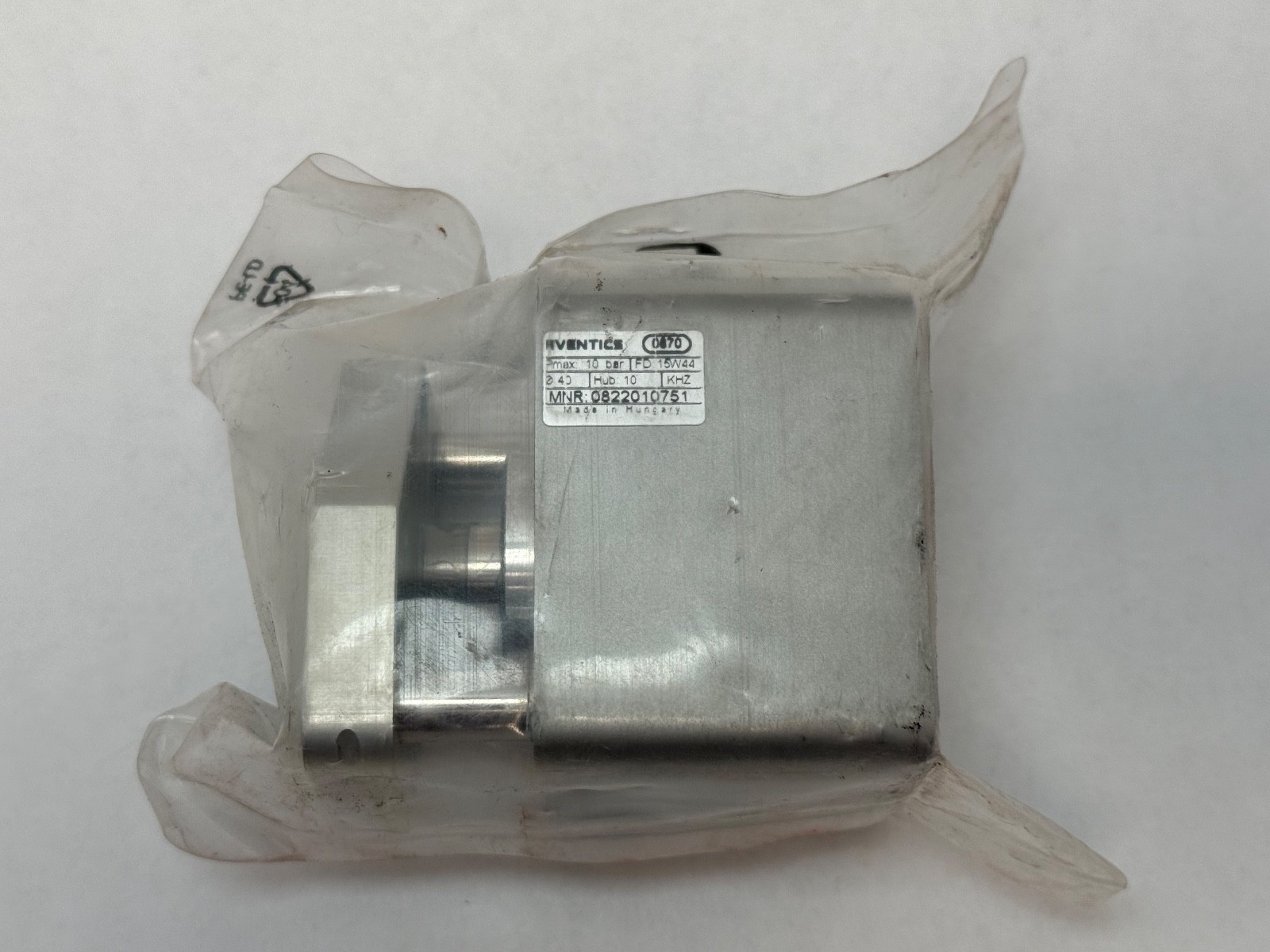

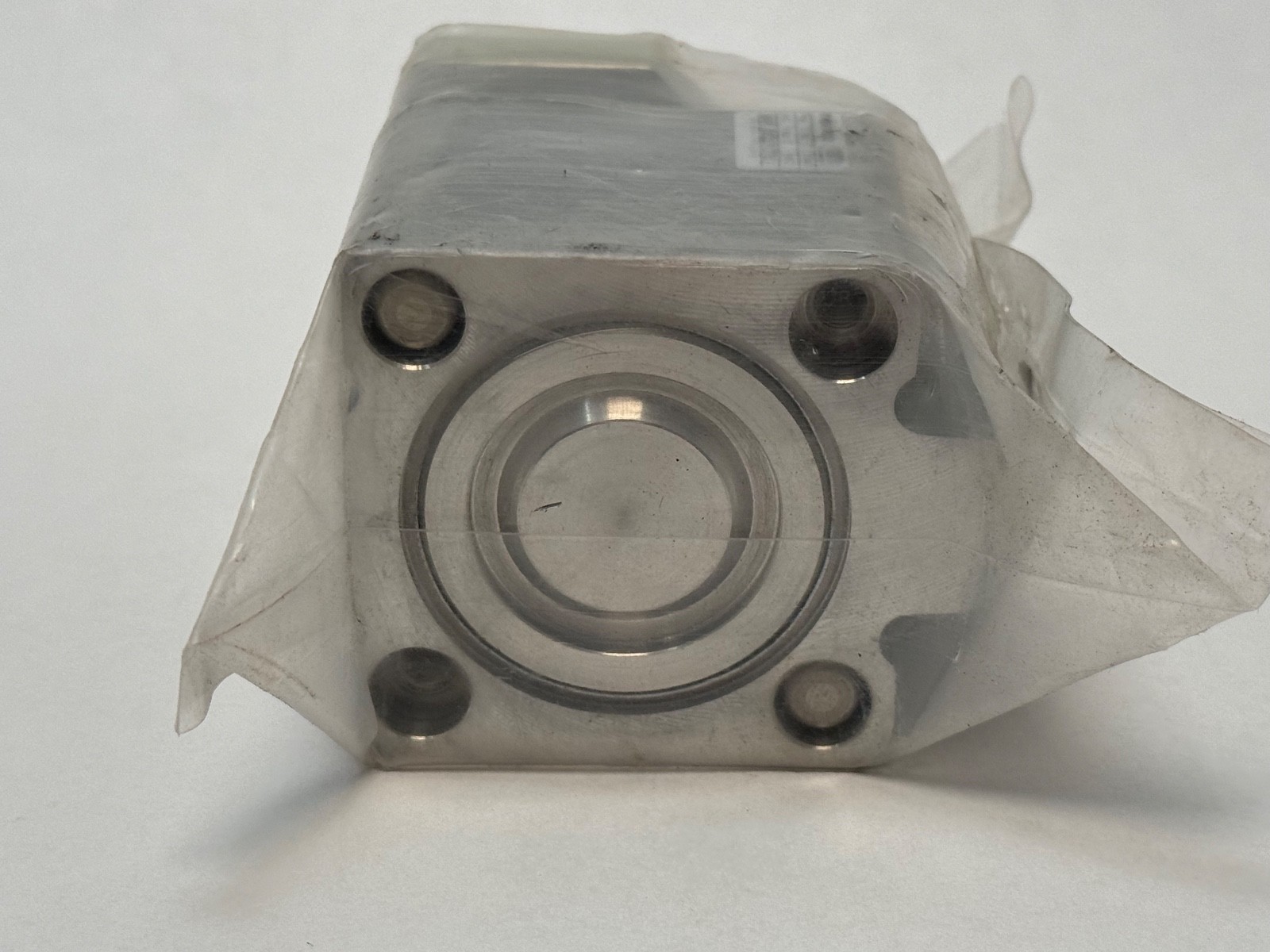

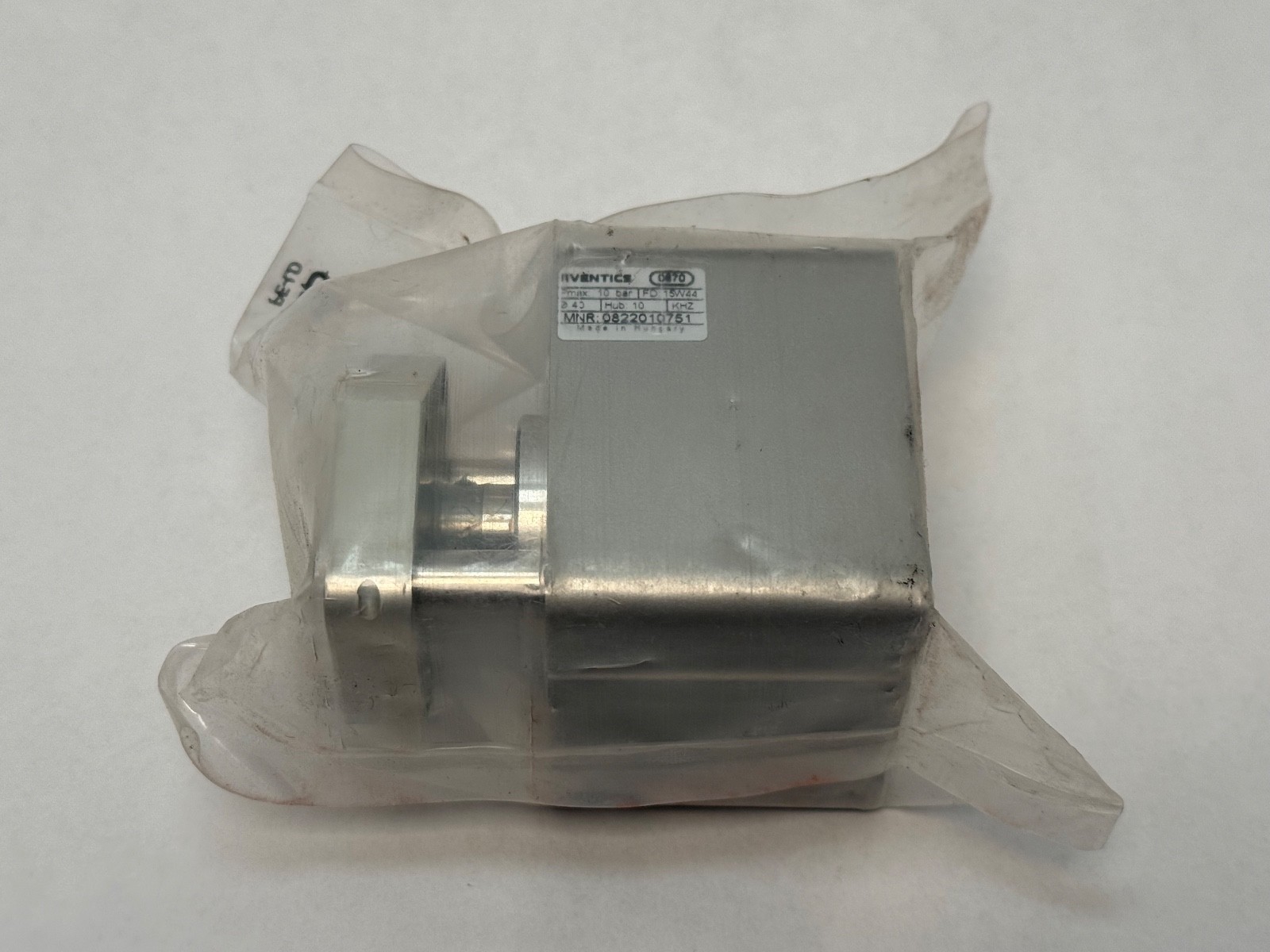

Aventics0822010751Short-Stroke Pneumatic Cylinder — Double Acting, 40 mm Piston, 10 mm Stroke, G 1/8 Ports, 10 bar

Condition: New

Availability:

10 in stock

Aventics 0822010751 KHZ double-acting short-stroke pneumatic cylinder, 40 mm piston, 10 mm stroke, G 1/8 ports, 10 bar max, female rod thread.

Same day shipment

List Price

$60.99

10 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

10 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAventics
MPN0822010751
GTIN3661475878586
Model0-822-010-751
ID40 mm

Technical Specifications

Cylinder TypeShort-Stroke Cylinder
Cylinder ActionDouble Acting
Base NumberKHZ-DA-040-0010
Industry Termsshort stroke cylinder, compact cylinder, Kurzhubzylinder, double acting air cylinder
Common MisspellingsAventix, Avantics, 822010751, 082201075
Application TypesClamping, stopping, pressing, workholding, automation stations
Stroke Length10 mm
Mpn Variants0822010751, 0-822-010-751, 822010751, KHZ-DA-040-0010-O-NR
Additional AttributesPiston Diameter: 40 mm; Stroke: 10 mm; Port: G 1/8; Max Pressure: 10 bar; Cushioning: Elastic; Piston: Non-magnetic; Rod Thread: Female; Force at 6.3 bar: 792 N extend / 720 N retract; Temperature: -25 to 80 °C
TypeShort-Stroke Pneumatic Cylinder
Item Weight0.44 kg (0.97 lb)
Seller Part Number: B-I8#FRMFL8

Product Description

What this part is:

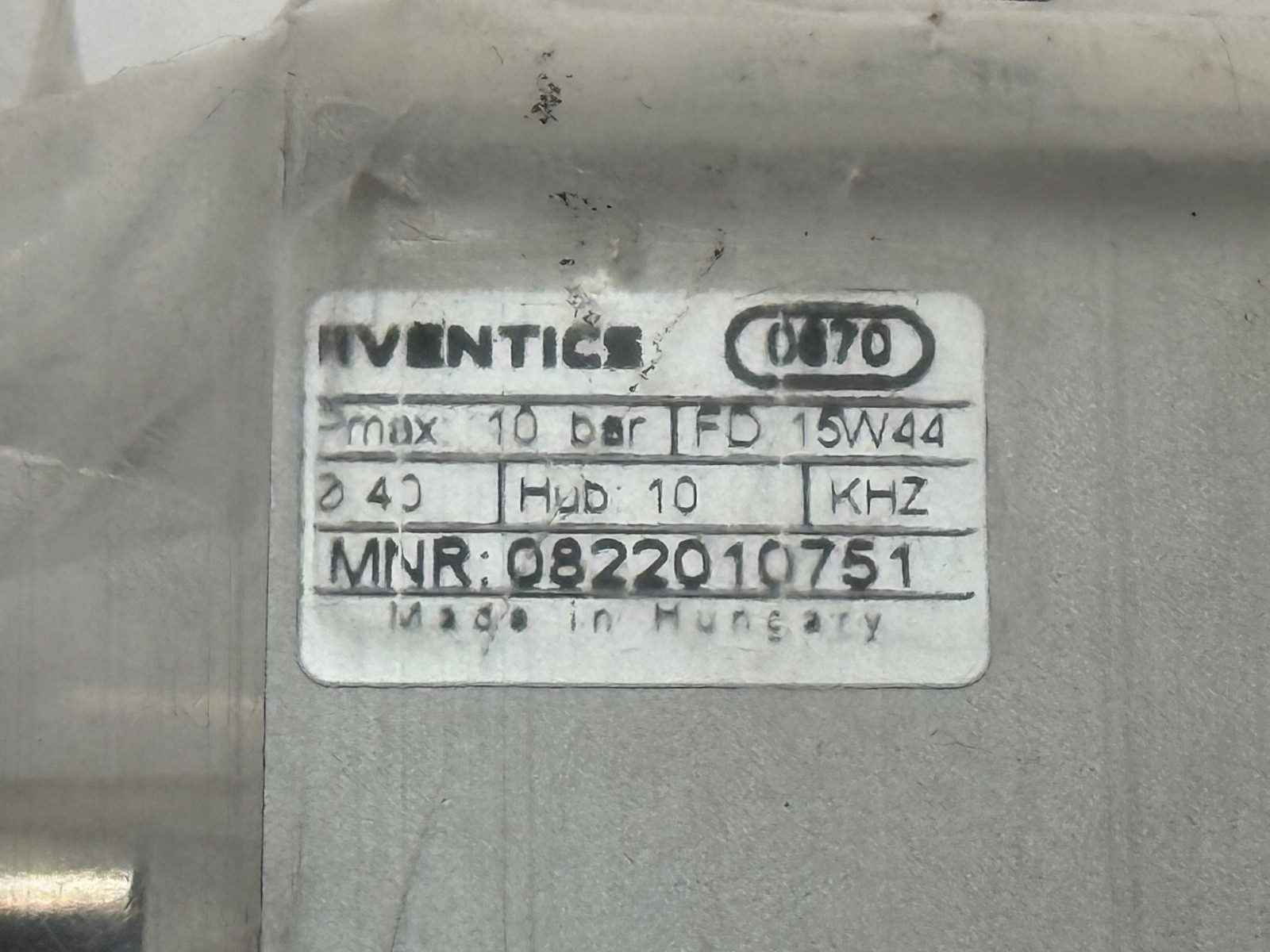

Aventics 0822010751 is a Series KHZ double-acting short-stroke pneumatic cylinder, full designation KHZ-DA-040-0010-O-NR. Unit Quantity: 1 Pc. Piston Diameter: 40 mm. Stroke: 10 mm. Maximum Working Pressure: 10 bar.

Decoding the designation:

KHZ — Aventics short-stroke cylinder series.

DA — double acting. Air drives the piston in both directions.

040 — 40 mm piston diameter.

0010 — 10 mm stroke.

O — piston without magnet.

Specifications:

Cylinder Type: Short-stroke cylinder. Action: Double acting. Piston Diameter: 40 mm. Stroke: 10 mm. Maximum Working Pressure: 10 bar. Pneumatic Port: G 1/8 internal thread. Piston Rod Thread: Female (internal). Cushioning: Elastic end-position cushioning. Piston Force Extending: 792 N at 6.3 bar. Piston Force Retracting: 720 N at 6.3 bar. Medium: Compressed air. Ambient Temperature: -25 to 80 °C. Medium Temperature: -25 to 80 °C. Cylinder Tube: Anodized aluminum. Piston Rod: Stainless steel. Piston Seal: Nitrile rubber. End Cover: Aluminum. Scraper: Polyurethane.

Dimensions and mounting:

Pneumatic Port: G 1/8 internal thread. Piston Rod Thread: Female (internal). Item Weight: 0.44 kg (0.97 lb). GTIN: 3661475878586.

Compatibility and replacement:

Aventics part number 0822010751 is also written 0-822-010-751 and 822010751. Aventics is now a brand of Emerson; the part number is unchanged.

Frequently asked questions:

What is the Aventics 0822010751?

A Series KHZ double-acting short-stroke pneumatic cylinder, full designation KHZ-DA-040-0010-O-NR, with a 40 mm piston and 10 mm stroke.

What are its port size and maximum pressure?

G 1/8 internal-thread ports and a maximum working pressure of 10 bar.

What does the O in the designation mean?

The piston is without magnet.
