cy.pag.s.r.l.CDEMP40/10EPneumatic Cylinder, Double Acting, Magnetic, Through Rod, 40 mm Bore, 10 mm Stroke

Condition: New – Open box

Availability:

1 in stock

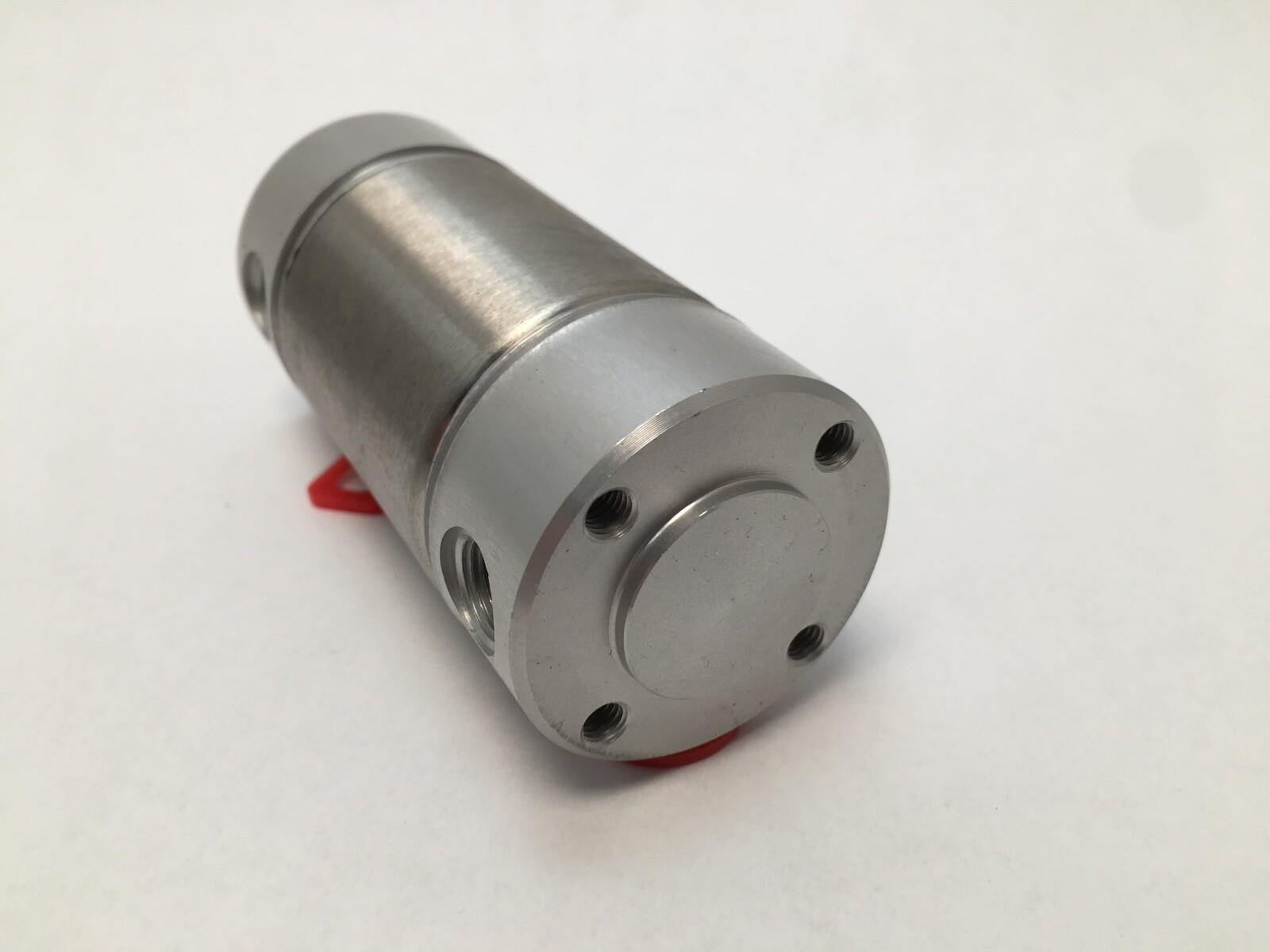

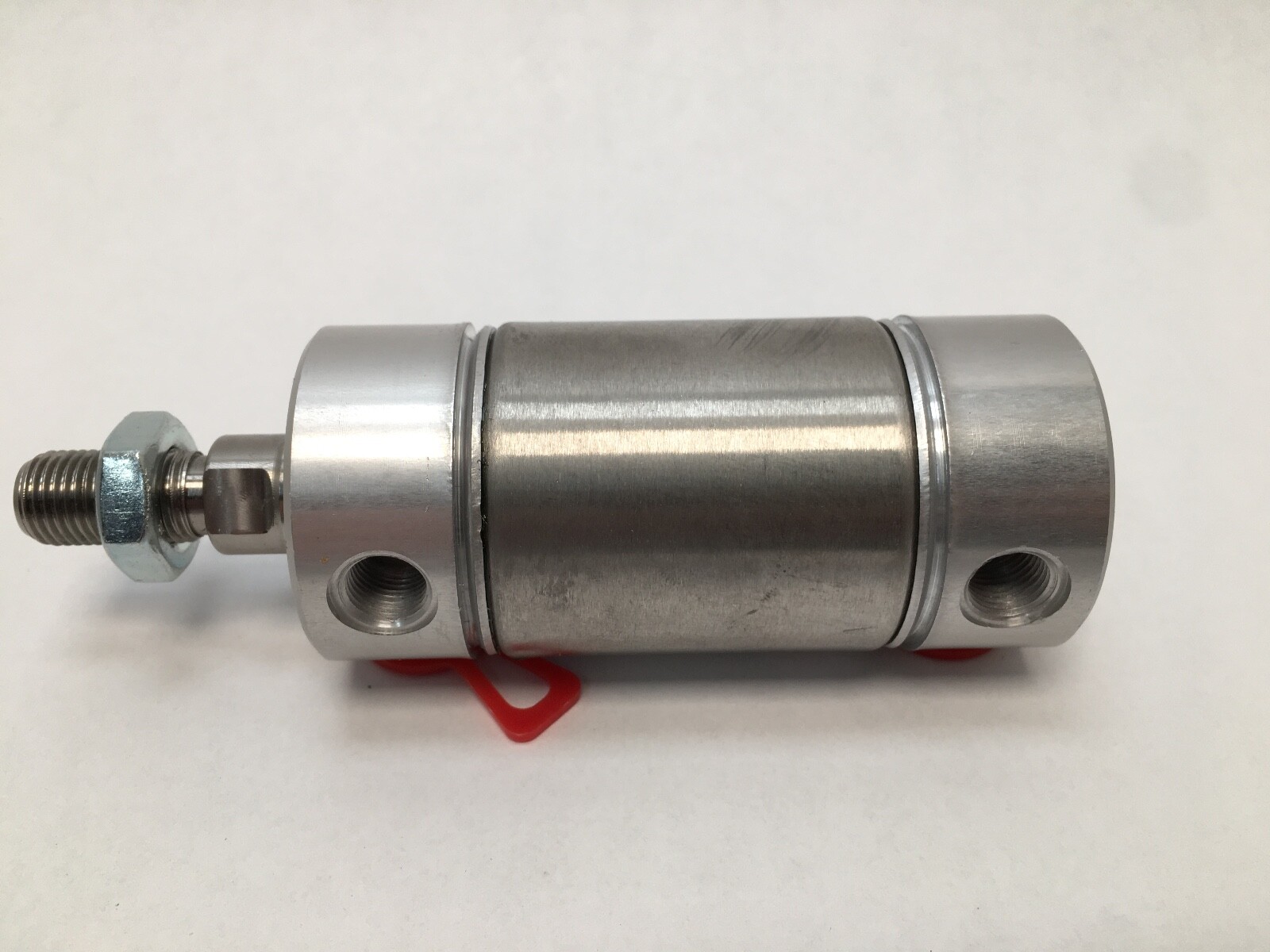

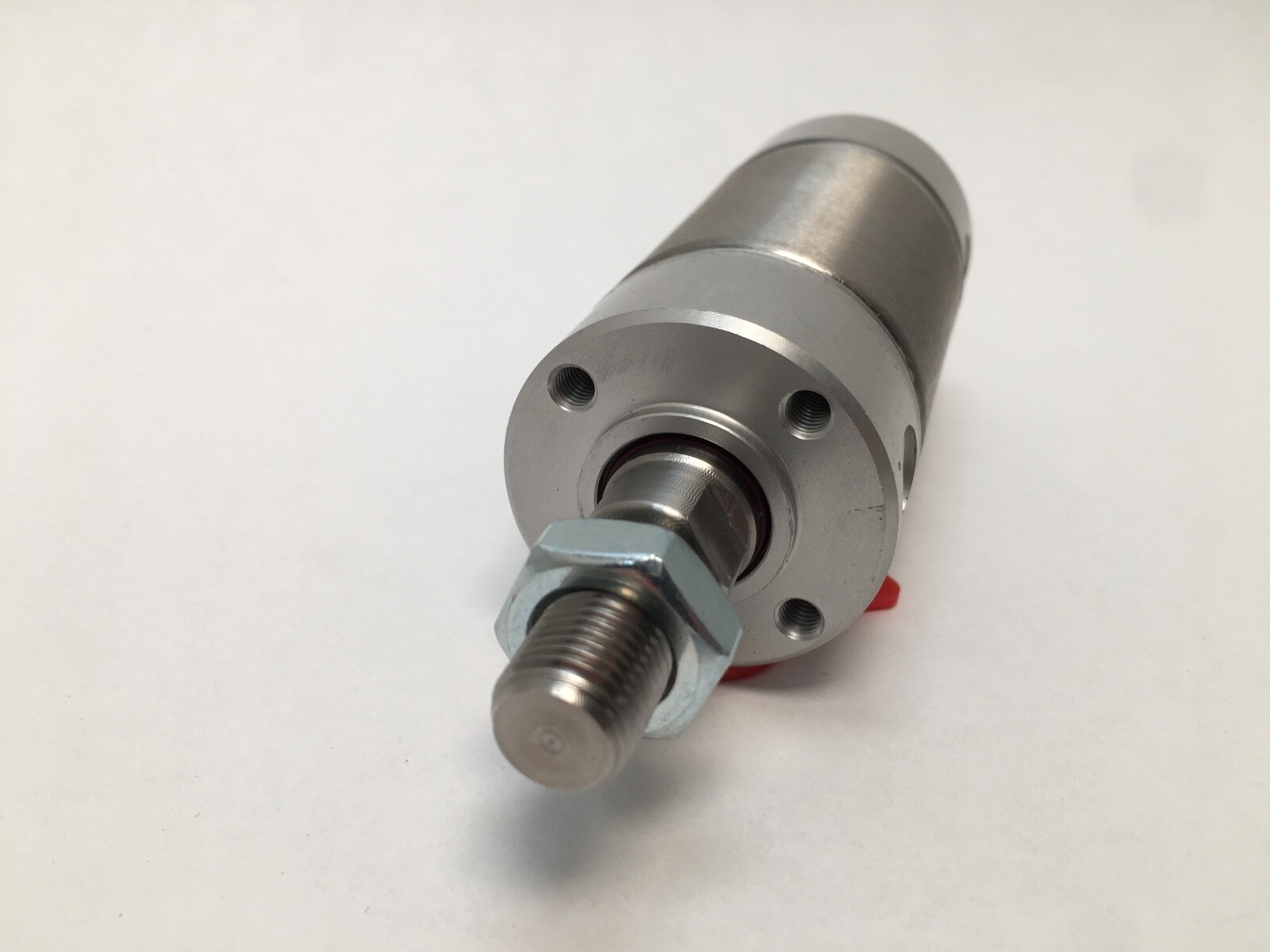

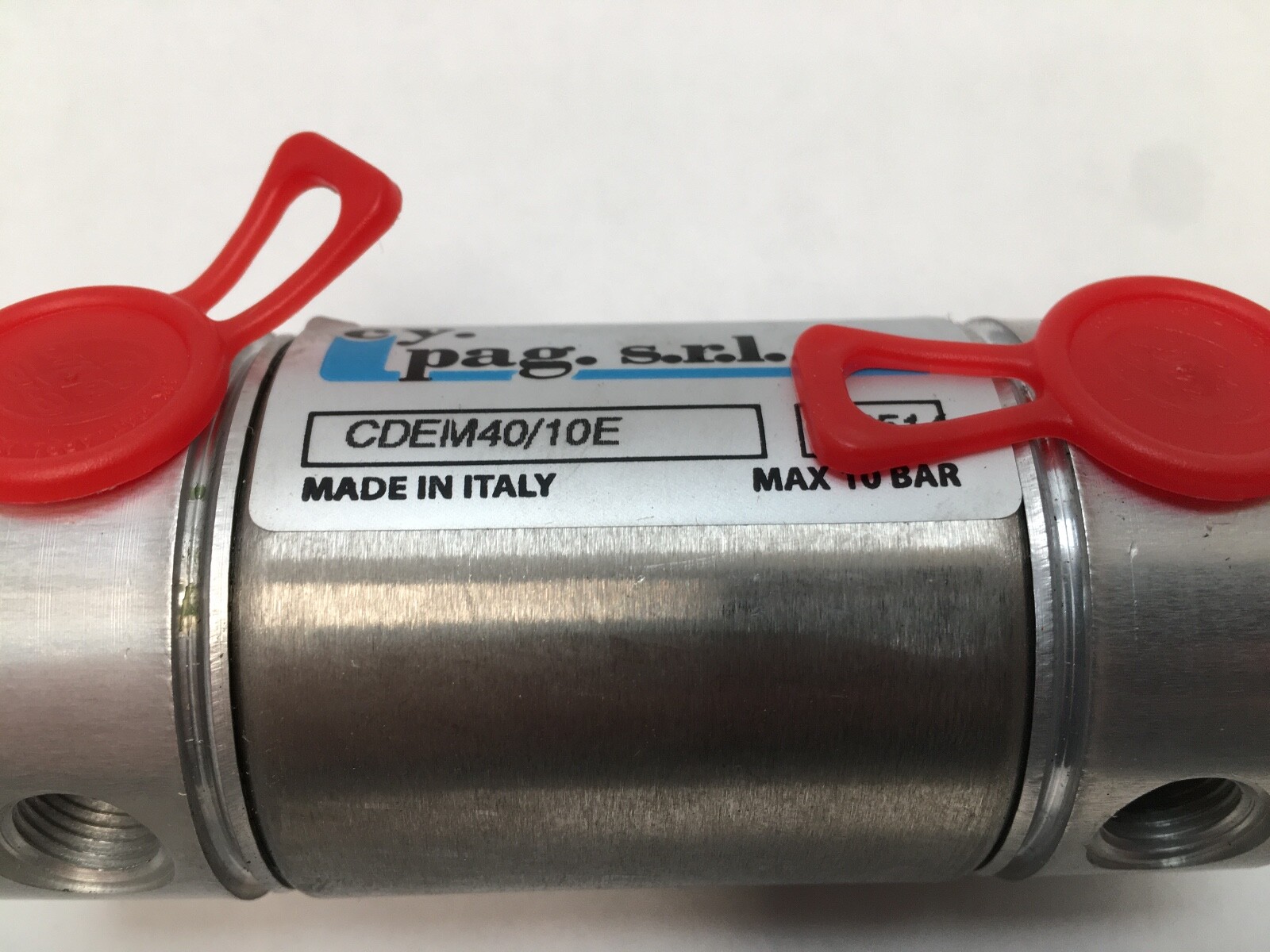

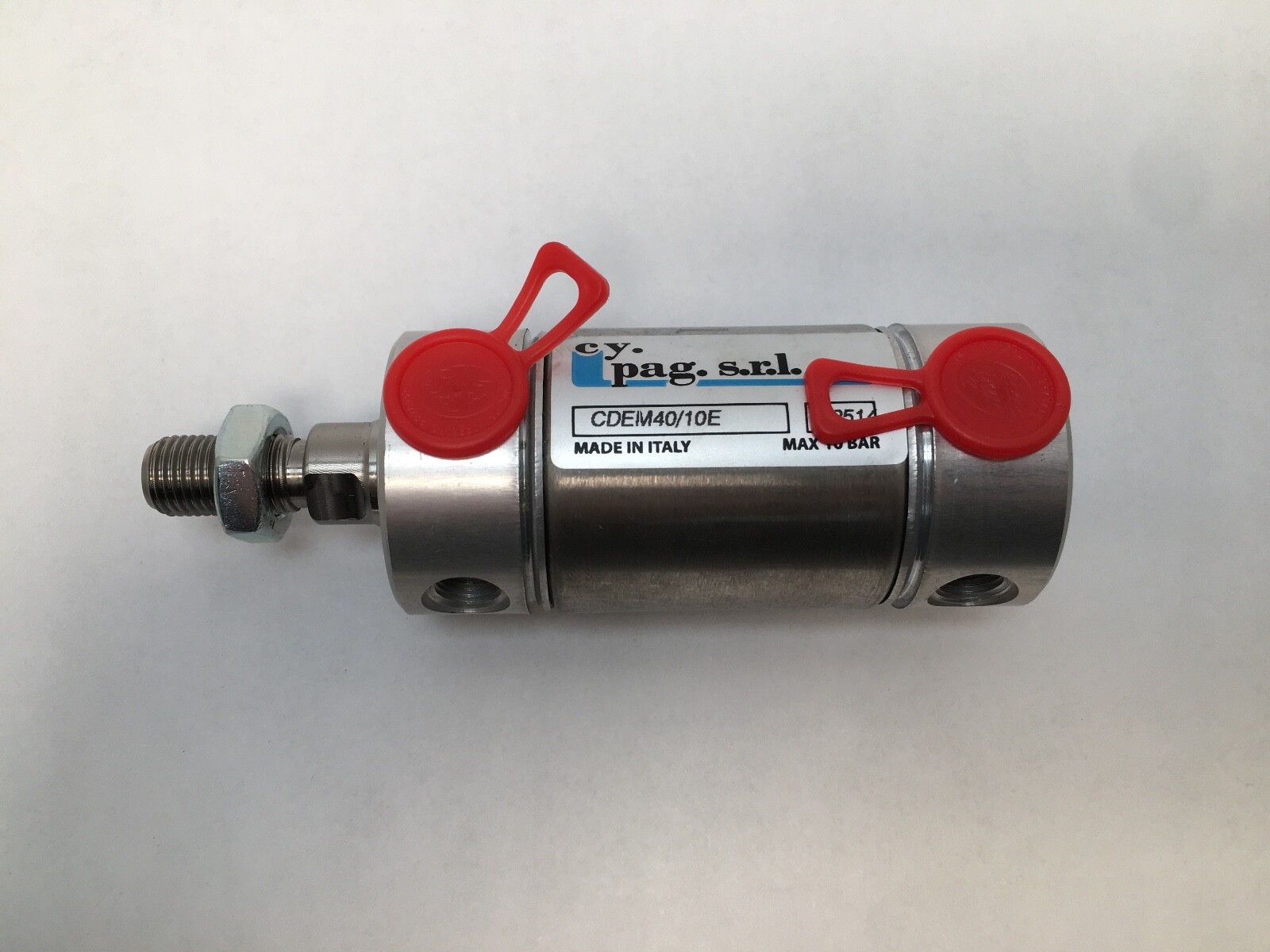

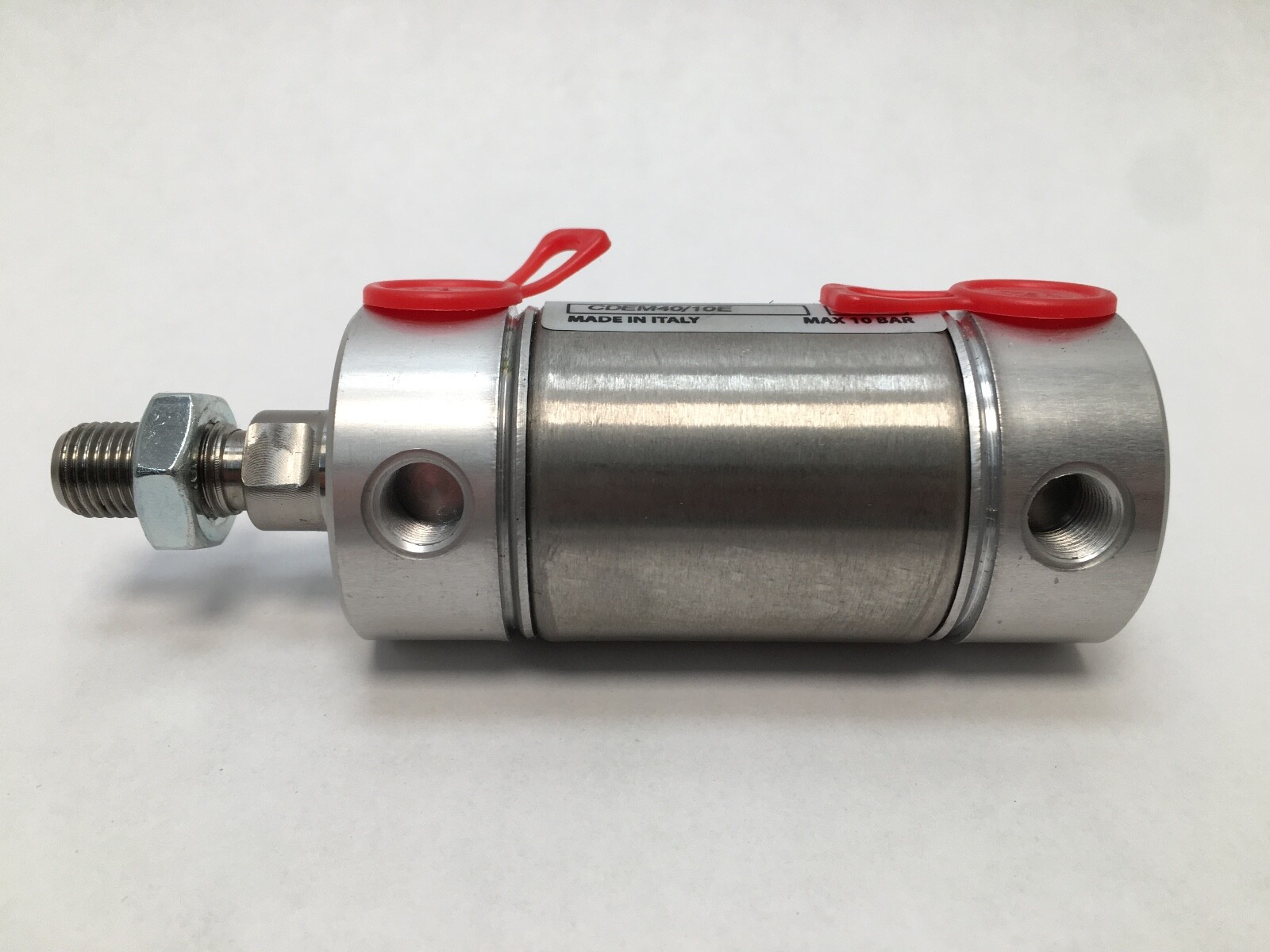

Cy.Pag. CDEMP40/10E double acting magnetic pneumatic cylinder, 40 mm bore, 10 mm stroke, through piston rod, 10 bar maximum. Also listed as CDEMP4010E.

Same day shipment

List Price

$77.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / Brandcy.pag.s.r.l.
MPNCDEMP40/10E
ModelCDEMP 40 10 E
ID40 mm

Technical Specifications

TypePneumatic Cylinder
Maximum Pressure10 bar
Mpn VariantsCDEMP40/10E, CDEMP4010E, CDEMP 40 10 E, CDEMP40/10
Industry Termsdouble acting pneumatic cylinder; magnetic piston cylinder; through rod cylinder; short stroke cylinder; 40 mm bore cylinder
Common MisspellingsCypag CDEMP 40/10E; Cy Pag CDEMP40/10 E; CDMP40/10E; Cypag CDEMP4010
Application Typespneumatic automation; clamping and positioning; machine tool fixtures; sensor-monitored actuation
Seller Part Number: AO1B5#EQ8Z1T

Product Description

What this part is:

Cy.Pag. CDEMP40/10E double acting, magnetic, through-rod pneumatic cylinder with a 40 mm bore and 10 mm stroke. Manufacturer Part Number: CDEMP40/10E. Unit Quantity: 1 Pc.

Decoding the designation:

CDEMP — Cy.Pag. version code: double acting, magnetic piston, through piston rod.

40 — bore diameter, 40 mm.

10 — stroke, 10 mm.

Specifications:

Type: Pneumatic Cylinder. Action: Double acting. Piston: Magnetic. Piston Rod: Through rod. Bore Diameter: 40 mm. Stroke: 10 mm. Maximum Operating Pressure: 10 bar. Working Medium: Filtered compressed air, lubricated or non-lubricated.

Dimensions and mounting:

Bore Diameter: 40 mm. Stroke: 10 mm. Piston Rod: Through rod.

Compatibility and replacement:

Other forms of the designation: CDEMP4010E, CDEMP 40 10 E, CDEMP40/10.

Frequently asked questions:

What is the bore and stroke?

Bore Diameter: 40 mm. Stroke: 10 mm.

Is the piston magnetic?

Yes. The M in CDEMP marks the magnetic piston version, for use with cylinder position sensors.

What is the maximum pressure?

Maximum Operating Pressure: 10 bar.
