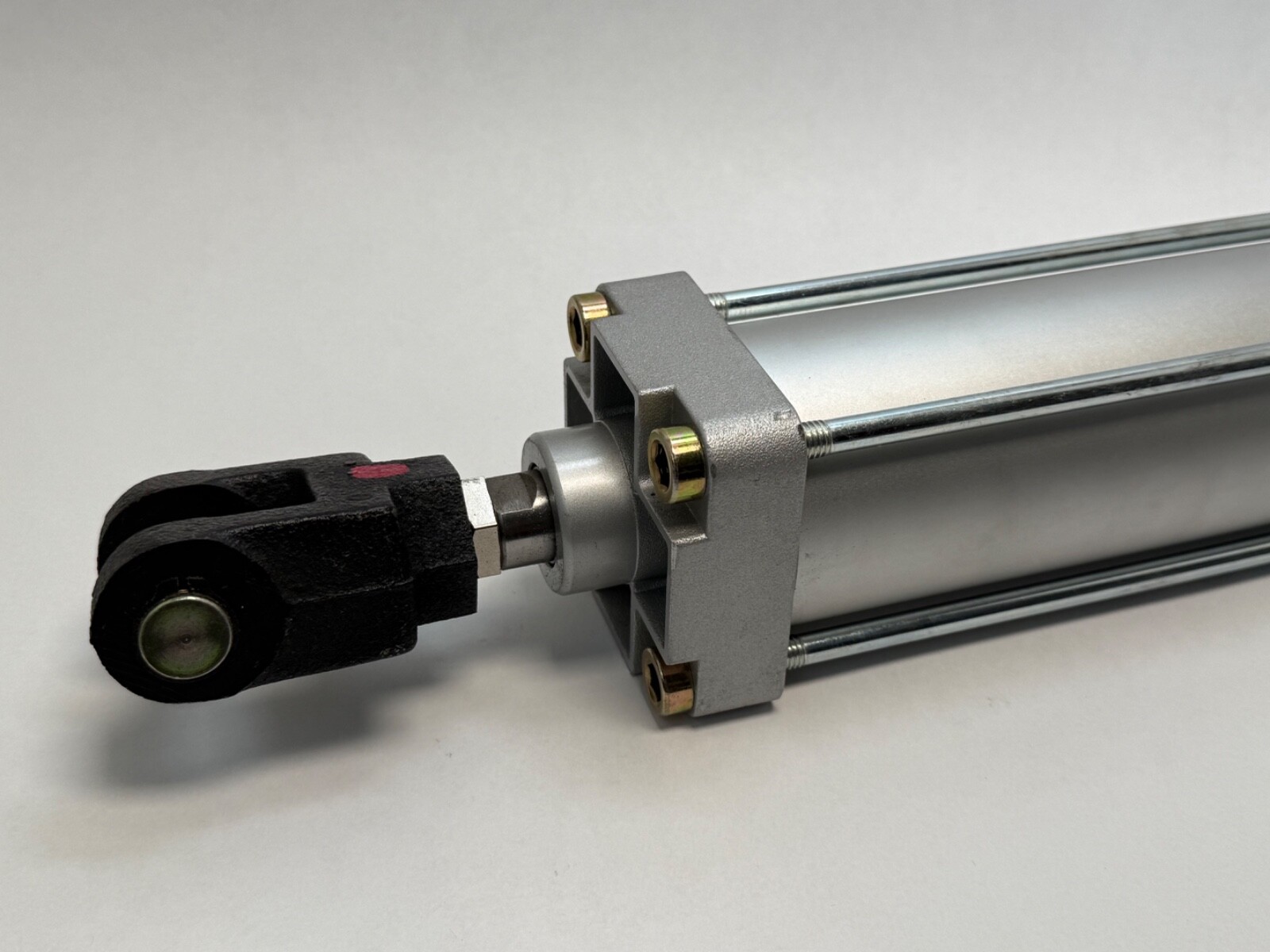

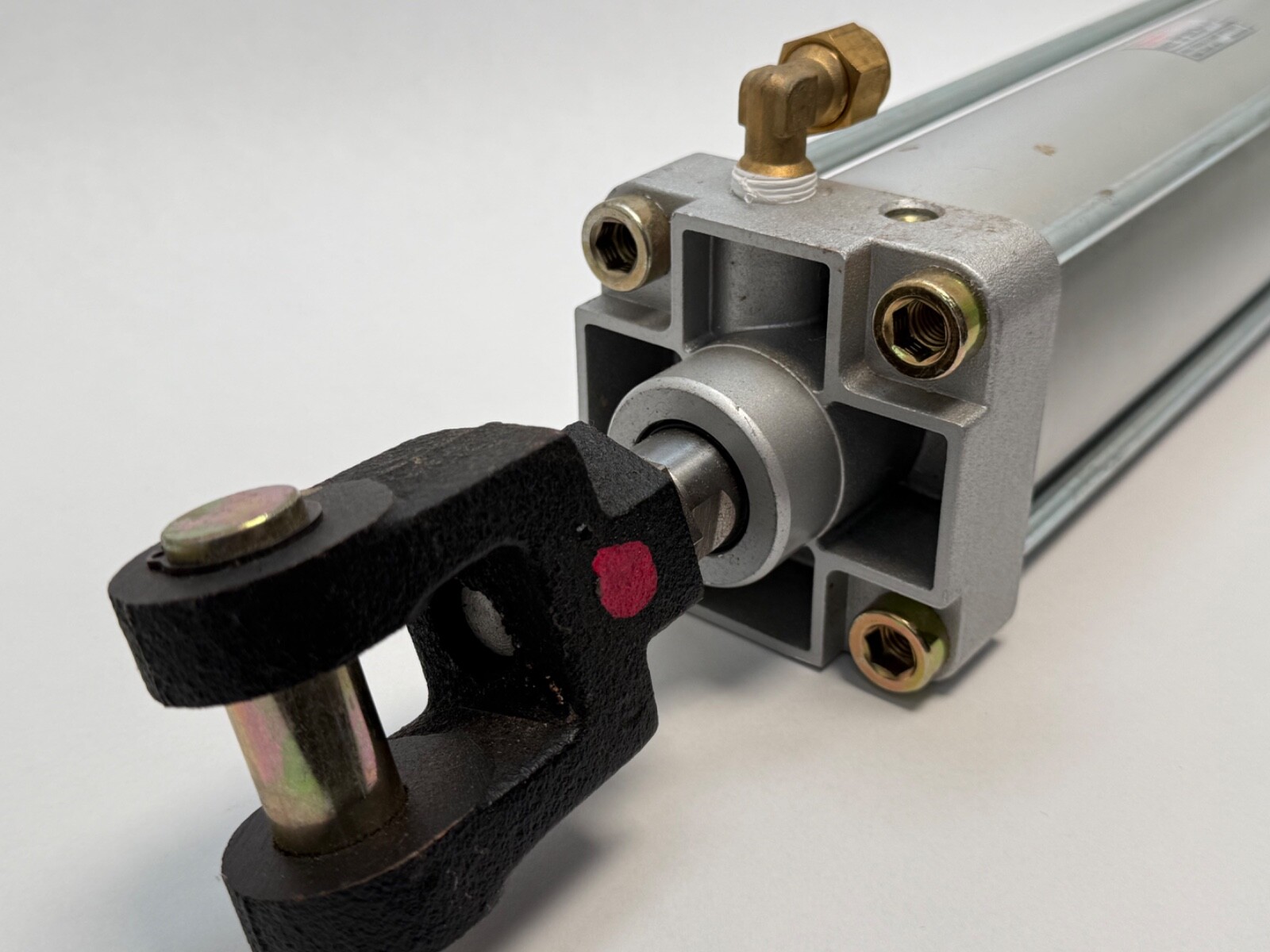

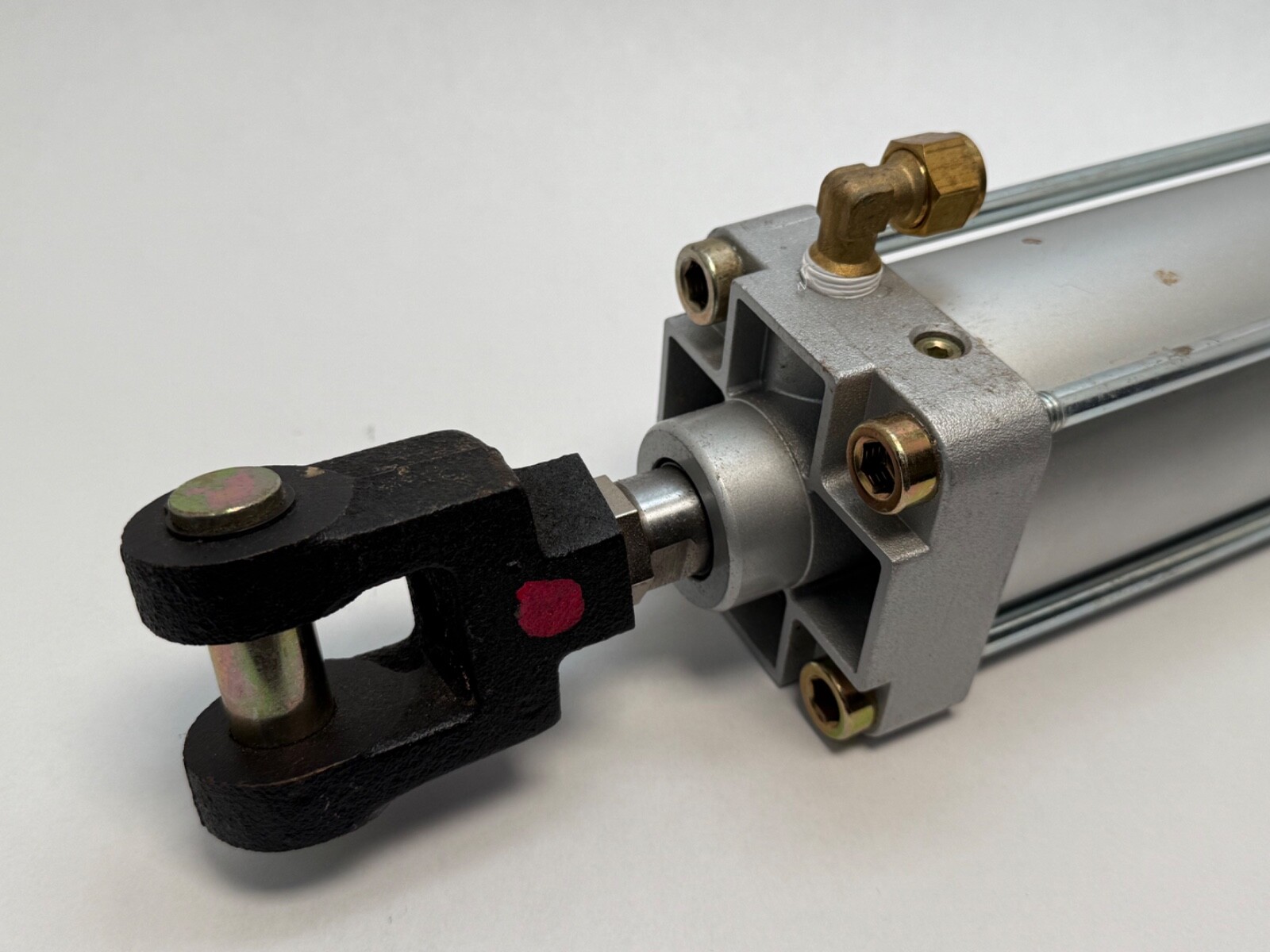

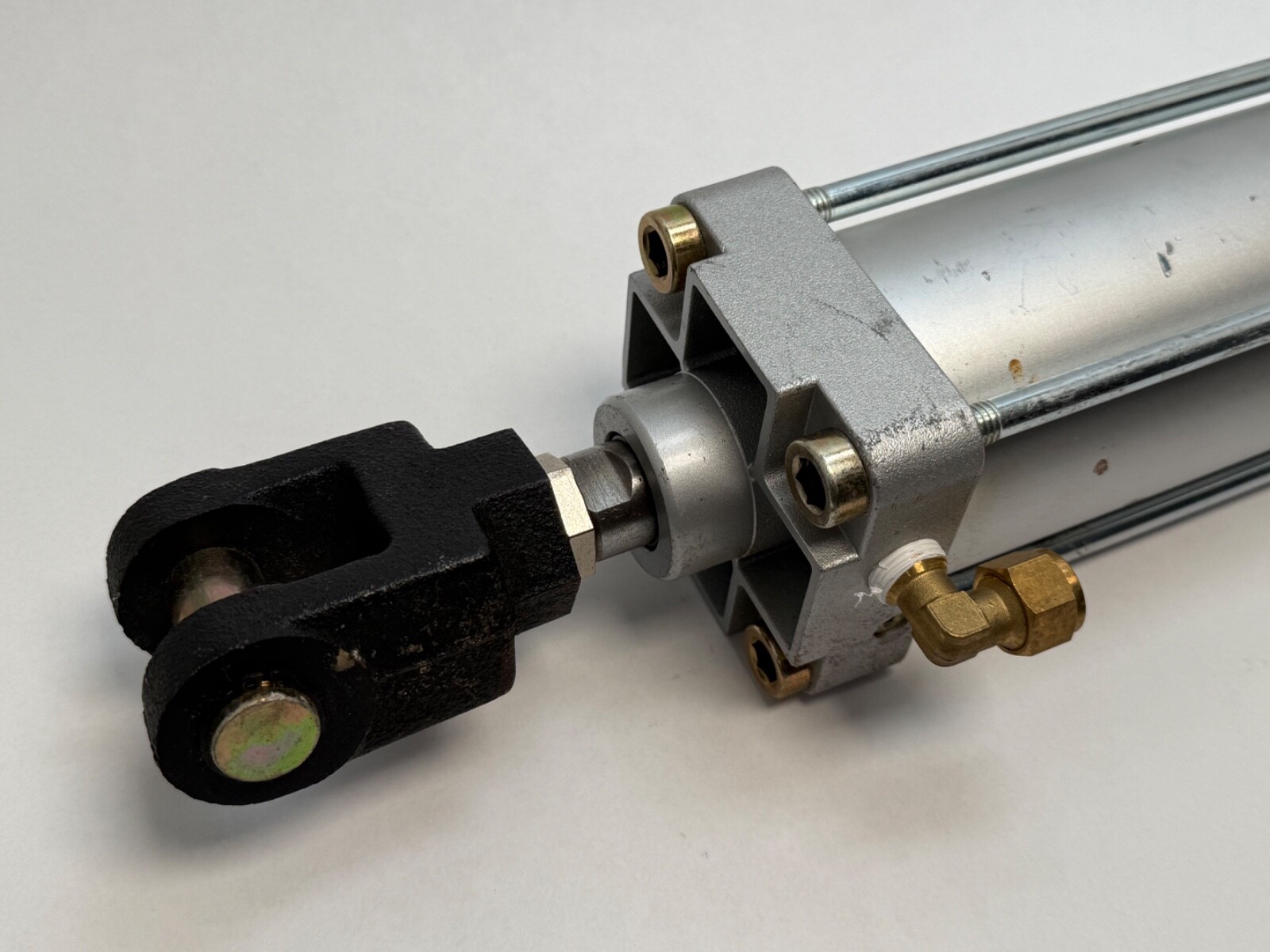

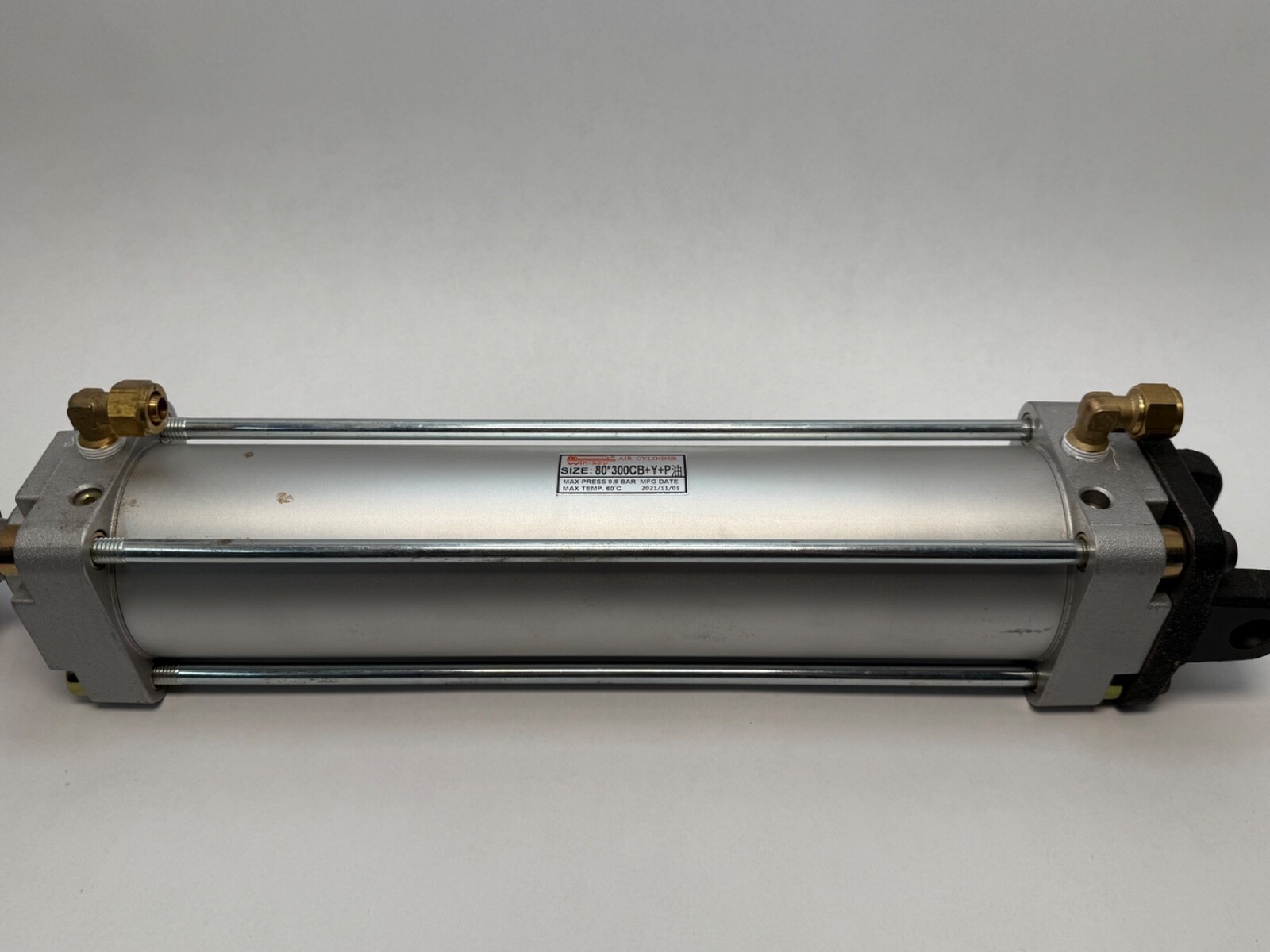

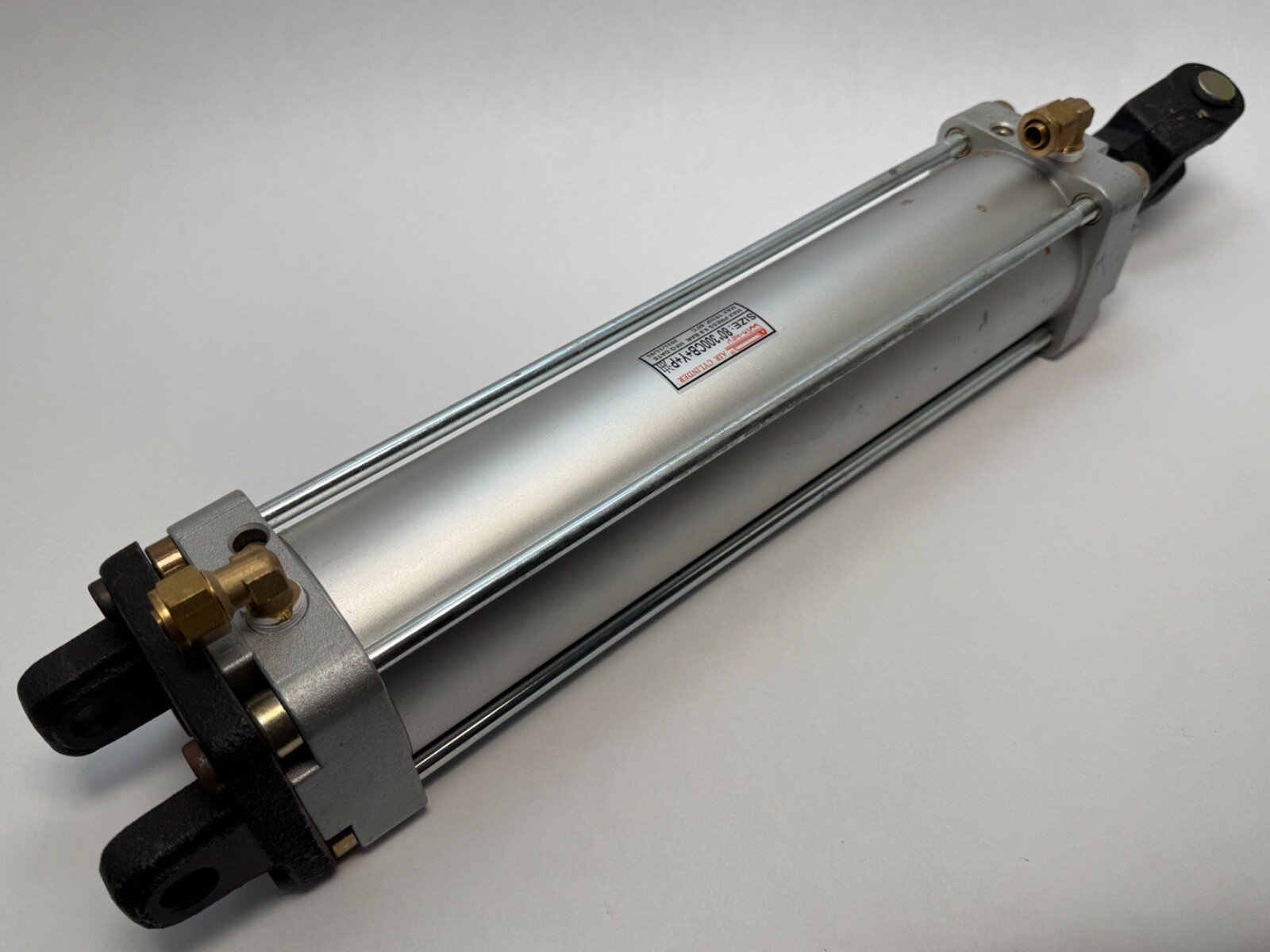

Win-Key80*300CB+Y+PTie Rod Pneumatic Cylinder – 80 mm Bore, 300 mm Stroke, Single Rod, CB Mount, 9.9 bar

Condition: New – Open box

Availability:

1 in stock

Tie rod pneumatic cylinder, 80 mm bore, 300 mm stroke, CB mounting, 9.9 bar nameplate pressure; Win-Key WA series single rod type, adjustable cushion.

Same day shipment

List Price

$228.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandWin-Key
MPN80*300CB+Y+P
Model80x300CB+Y+P
ID80 mm

Technical Specifications

TypePneumatic
Industry Termspneumatic cylinder, air cylinder, tie rod cylinder, double acting cylinder, 80mm bore cylinder
Application TypesInjection molding machines, woodworking machinery, automation clamping and pushing
Stroke Length300 mm
Mpn Variants80*300CB+Y+P; 80x300CB+Y+P; 80 300CB Y P; 80-300CB+Y+P; WA80x300CB
Additional AttributesOperating Pressure: 1-10 kg/cm2; Fluid: compressed air, filtered and lubricated; Ambient Temperature: -20 to +80 °C; Cushion: adjustable both ends; Sensor: magnetic switch
SeriesWA Tie Rod Cylinder
Seller Part Number: FH3#5EJ7QY

Product Description

What this part is:

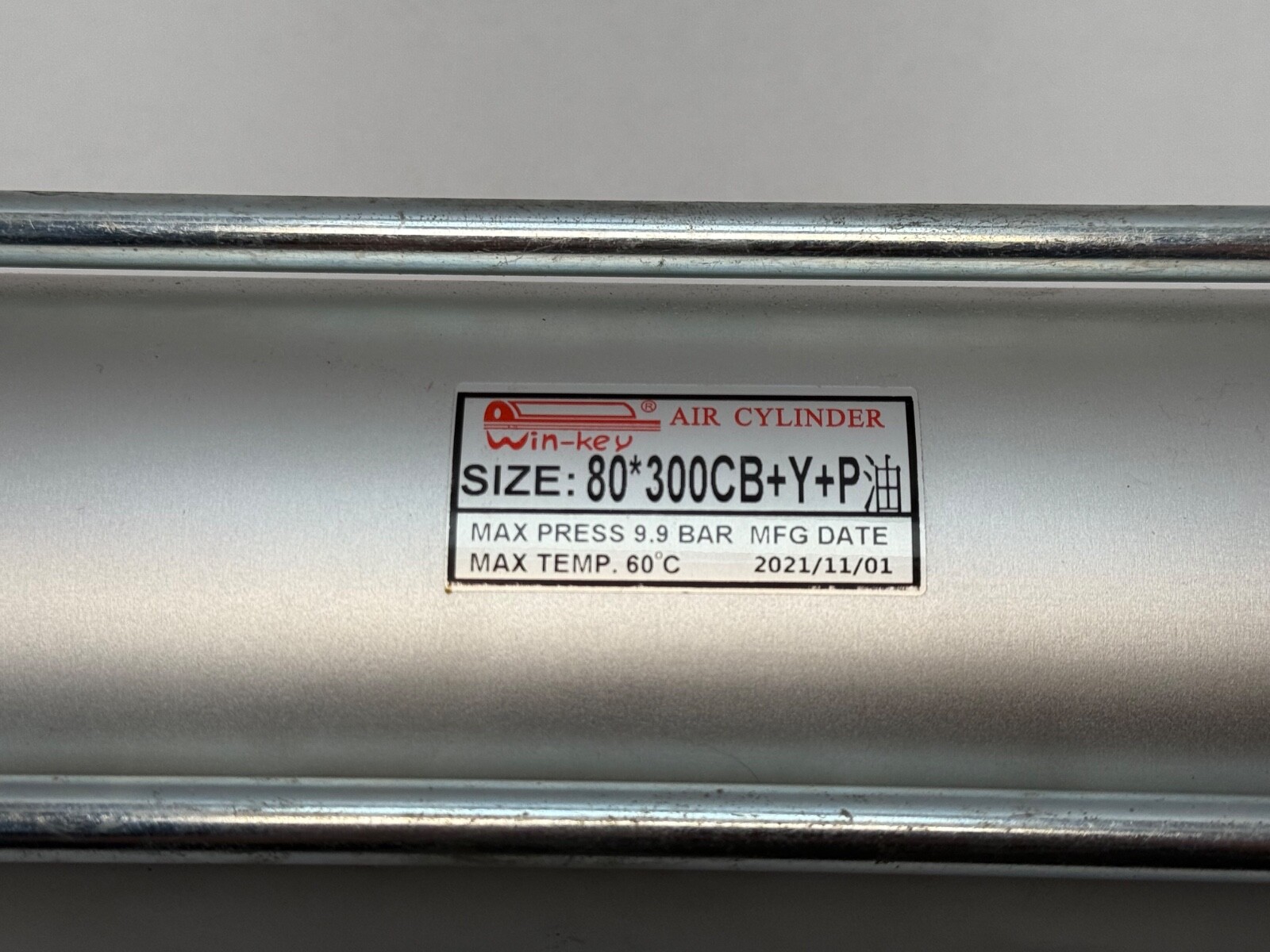

Win-Key 80*300CB+Y+P is a tie rod pneumatic cylinder from Win-Key Machinery, WA series single rod type. Cylinder Bore: 80 mm. Stroke: 300 mm. Nameplate Pressure: 9.9 bar. Unit Quantity: 1 Pc.

Decoding the designation:

80 — cylinder bore, 80 mm.

300 — stroke, 300 mm.

CB — WA-CB mounting style, as drawn in the Win-Key WA series dimension sheets.

Y — WA-Y mounting option, as drawn in the Win-Key WA series dimension sheets.

Specifications:

Cylinder Bore: 80 mm.

Stroke: 300 mm.

Nameplate Pressure: 9.9 bar.

Series: WA tie rod cylinder, single rod.

Operating Pressure (WA series): 1–10 kg/cm².

Fluid (WA series): compressed air, filtered and lubricated.

Ambient Temperature (WA series): -20 to +80 °C.

Cushion (WA series): adjustable at both ends.

Sensor (WA series): magnetic switch on magnet-type pistons.

Unit Quantity: 1 Pc.

Dimensions and mounting:

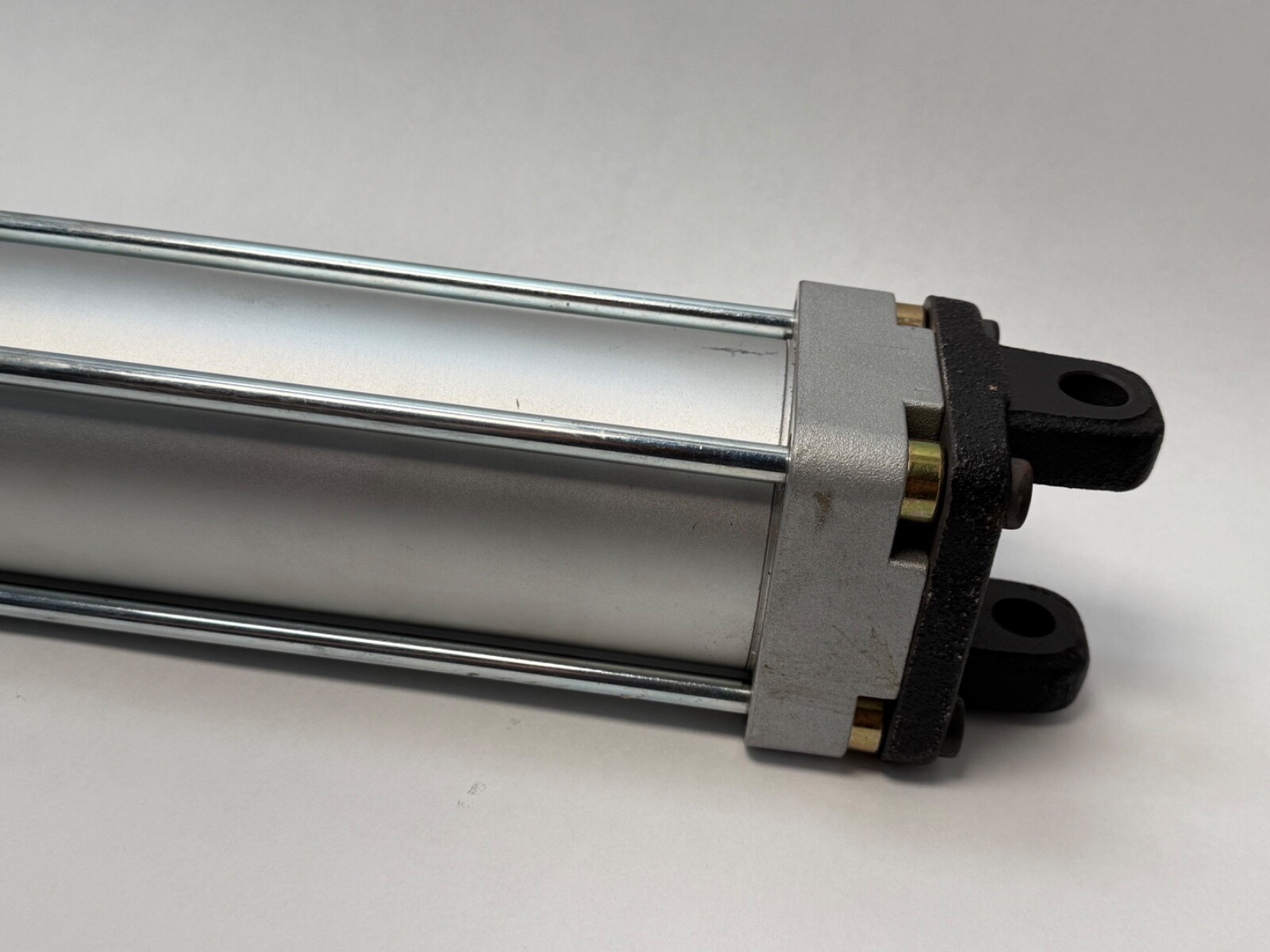

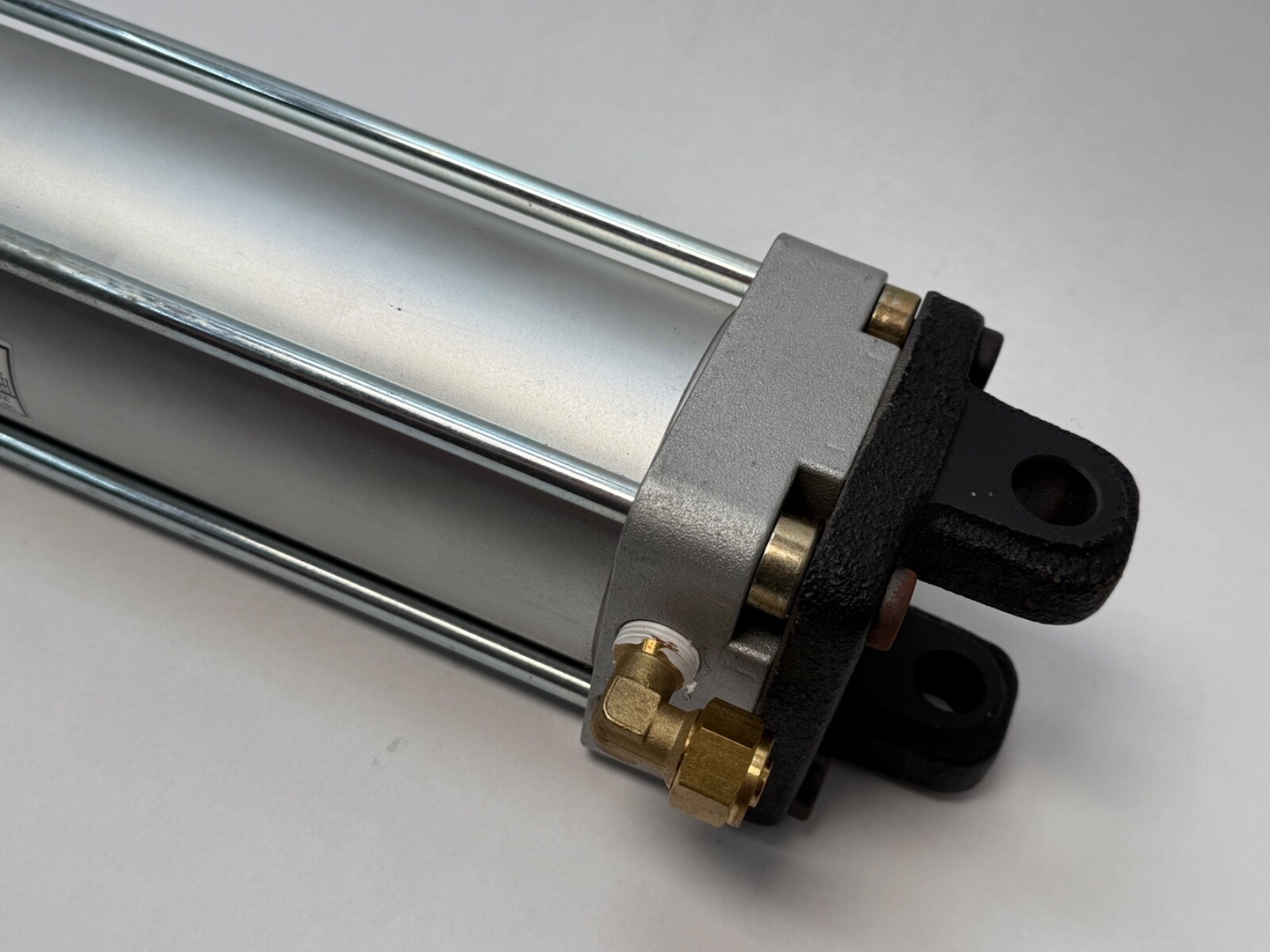

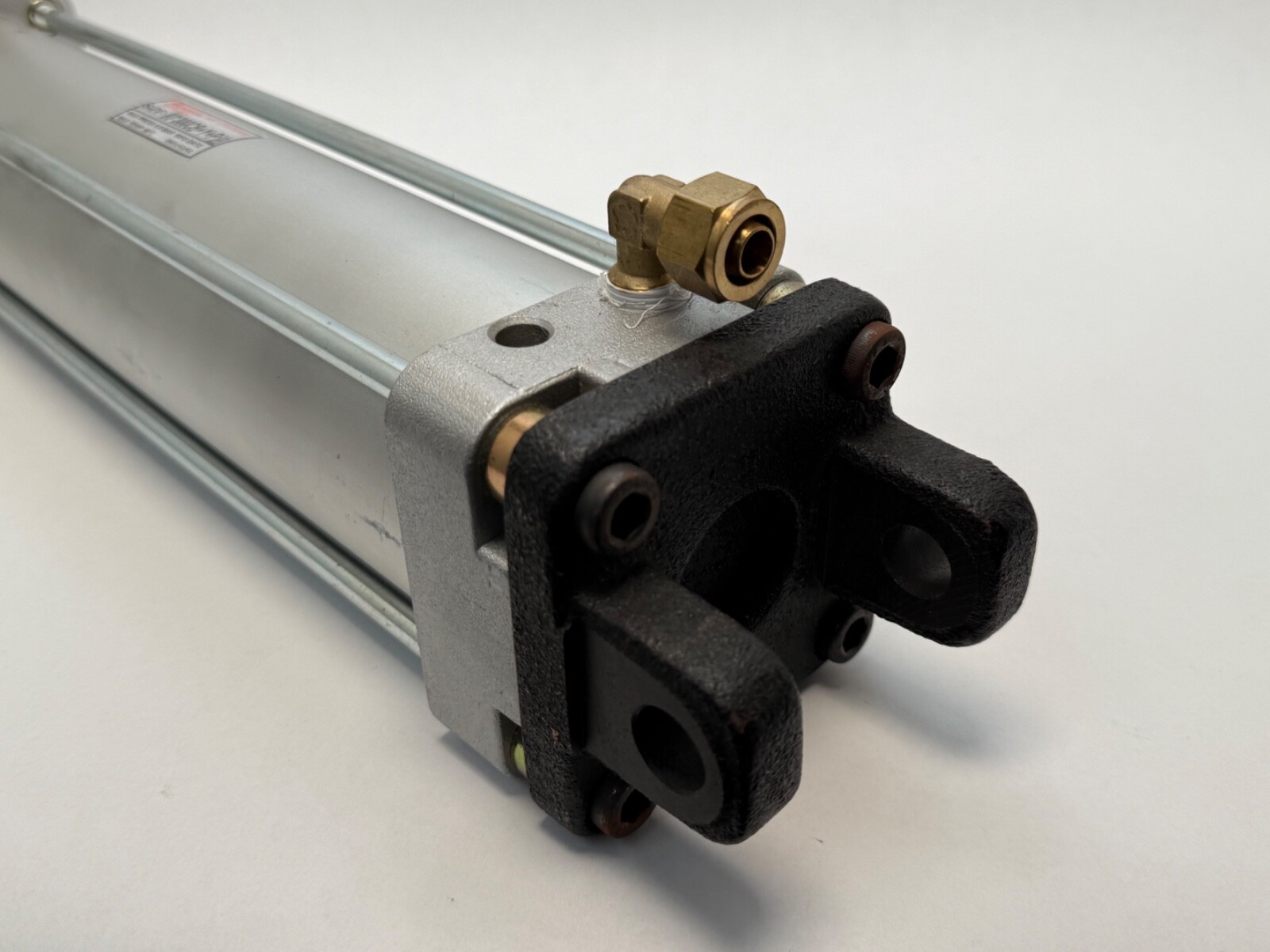

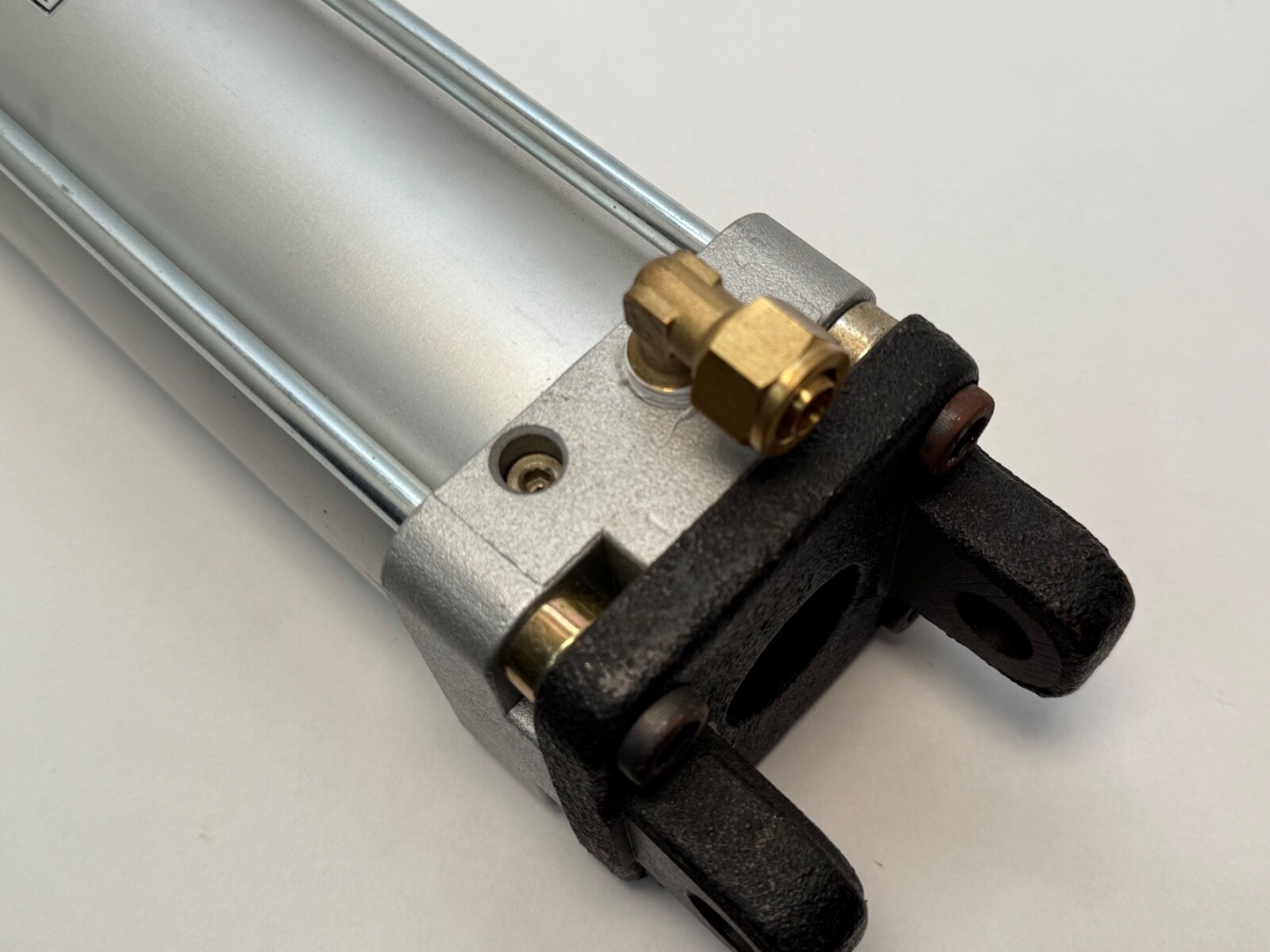

Mounting: CB style with Y option. Win-Key publishes WA-CB and WA-Y dimension drawings for the WA series.

Compatibility and replacement:

Other forms of the number: 80x300CB+Y+P and 80*300CB+Y+P. CAD model and data sheet: available from Win-Key Machinery (winkeyworld.com).

Frequently asked questions:

What are the bore and stroke of the Win-Key 80*300CB+Y+P?

80 mm bore and 300 mm stroke.

Which Win-Key series is the 80*300CB+Y+P?

WA series, single rod tie rod cylinder. CB mounting is listed only in the WA series.

What fluid and temperature range does the WA series use?

Compressed air, filtered and lubricated, at -20 to +80 °C ambient temperature.
