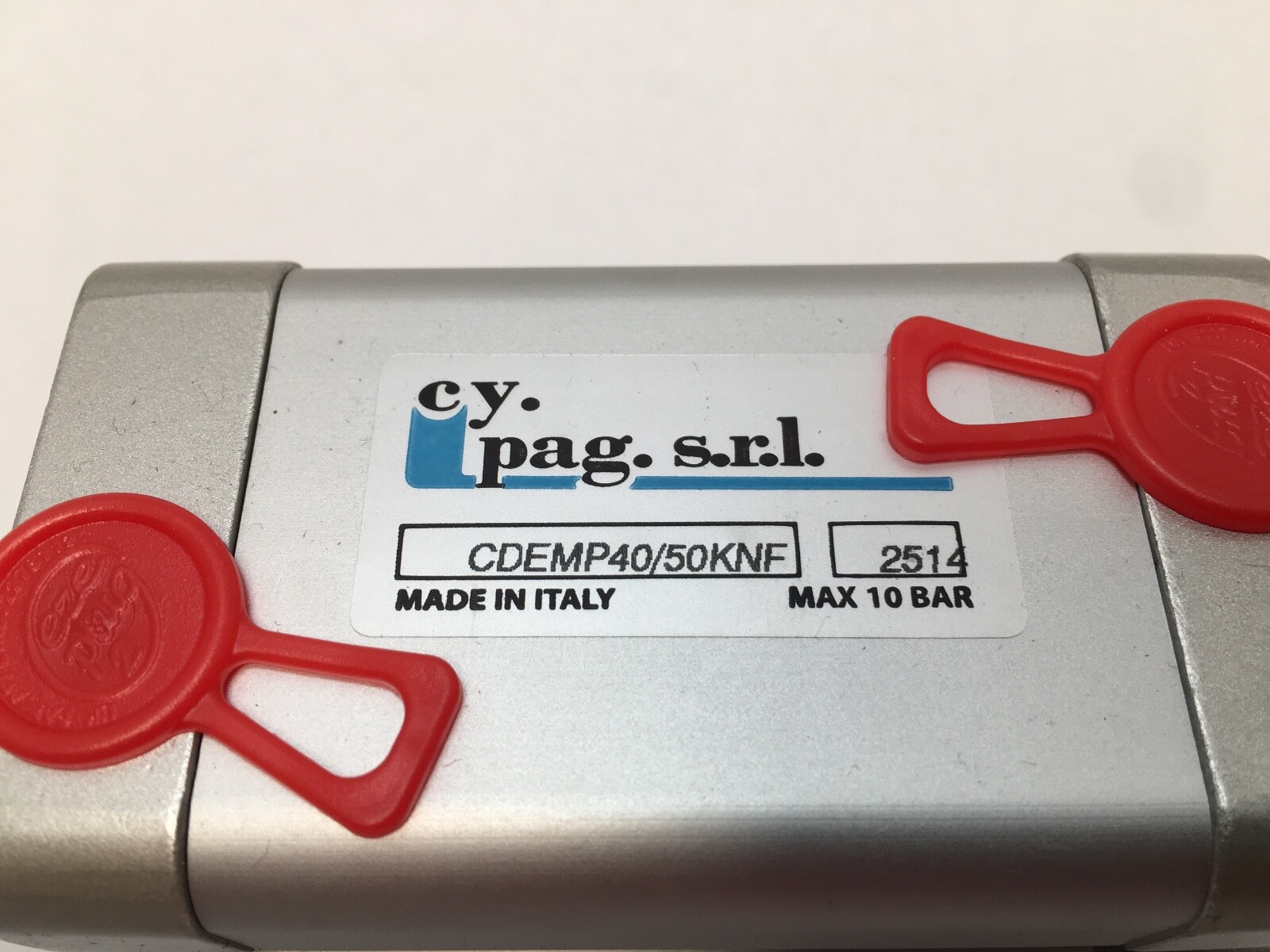

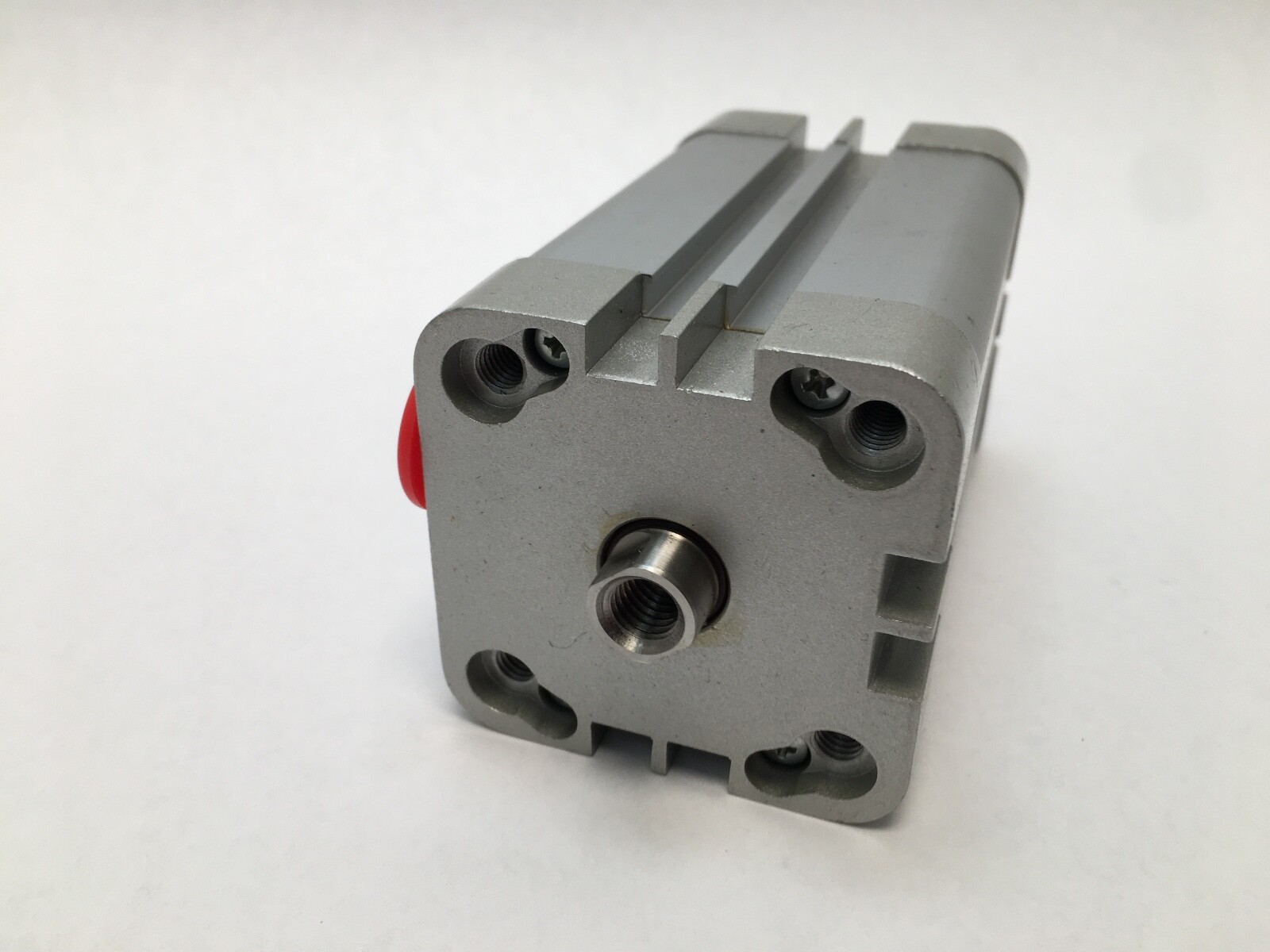

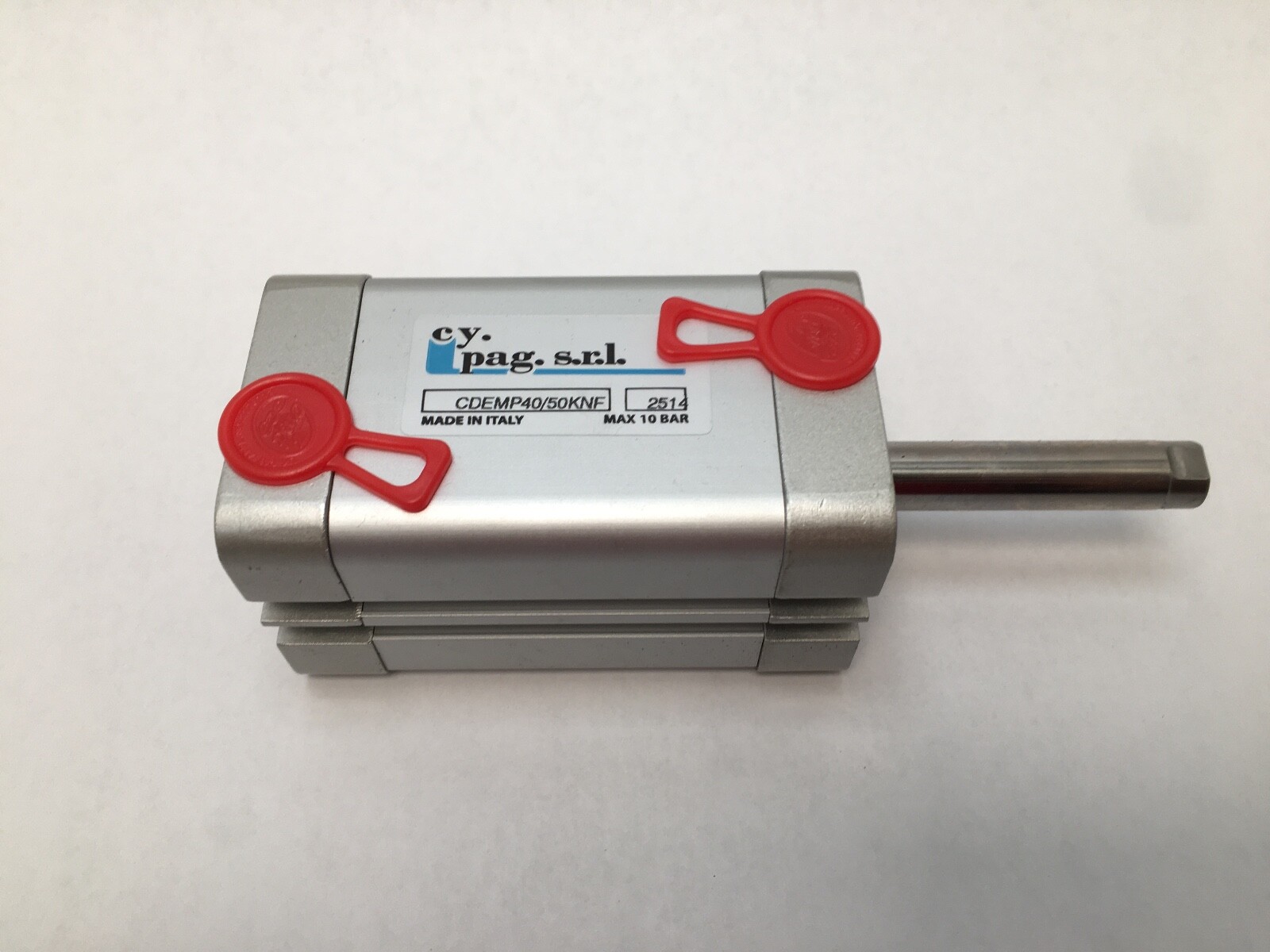

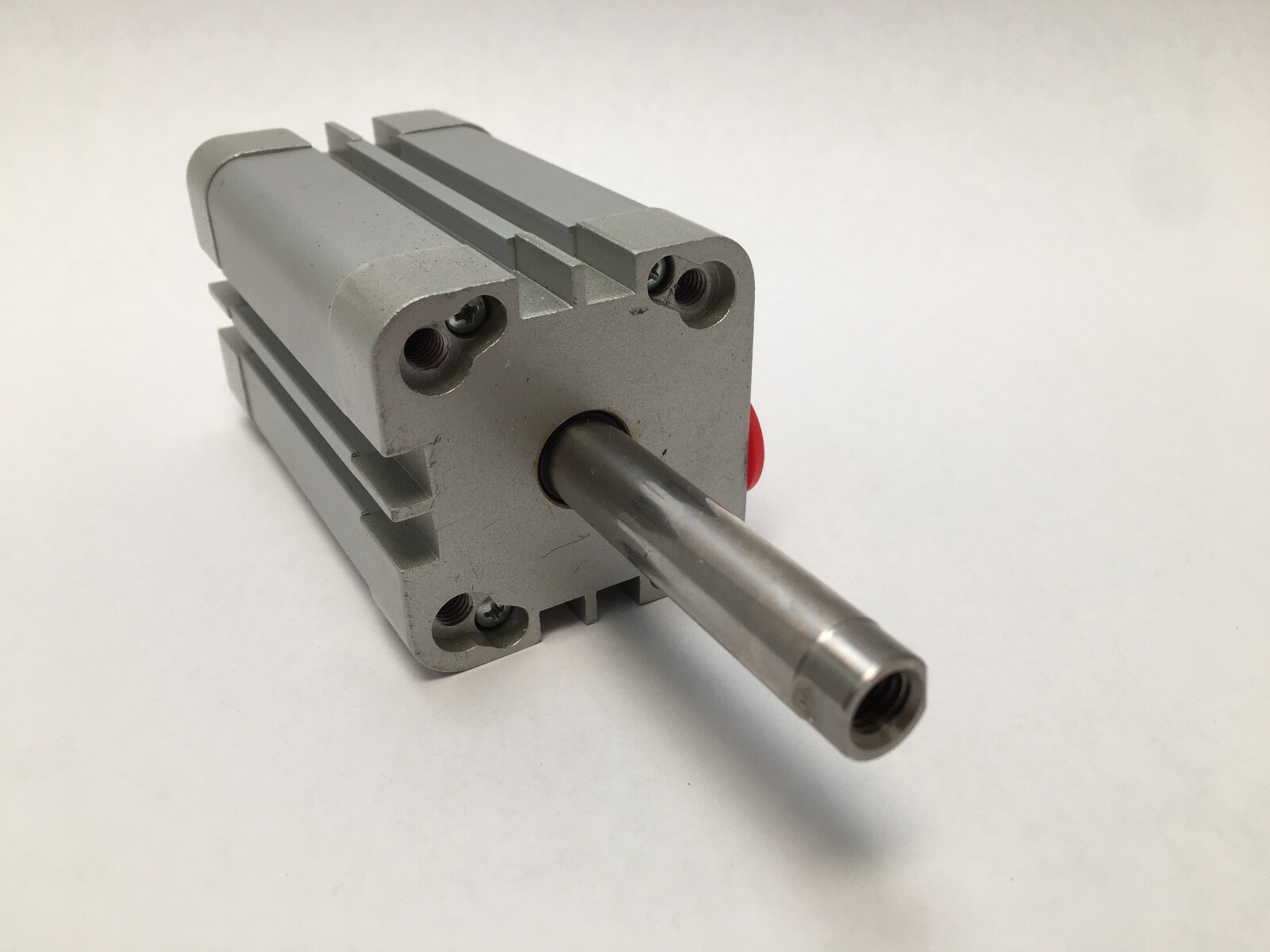

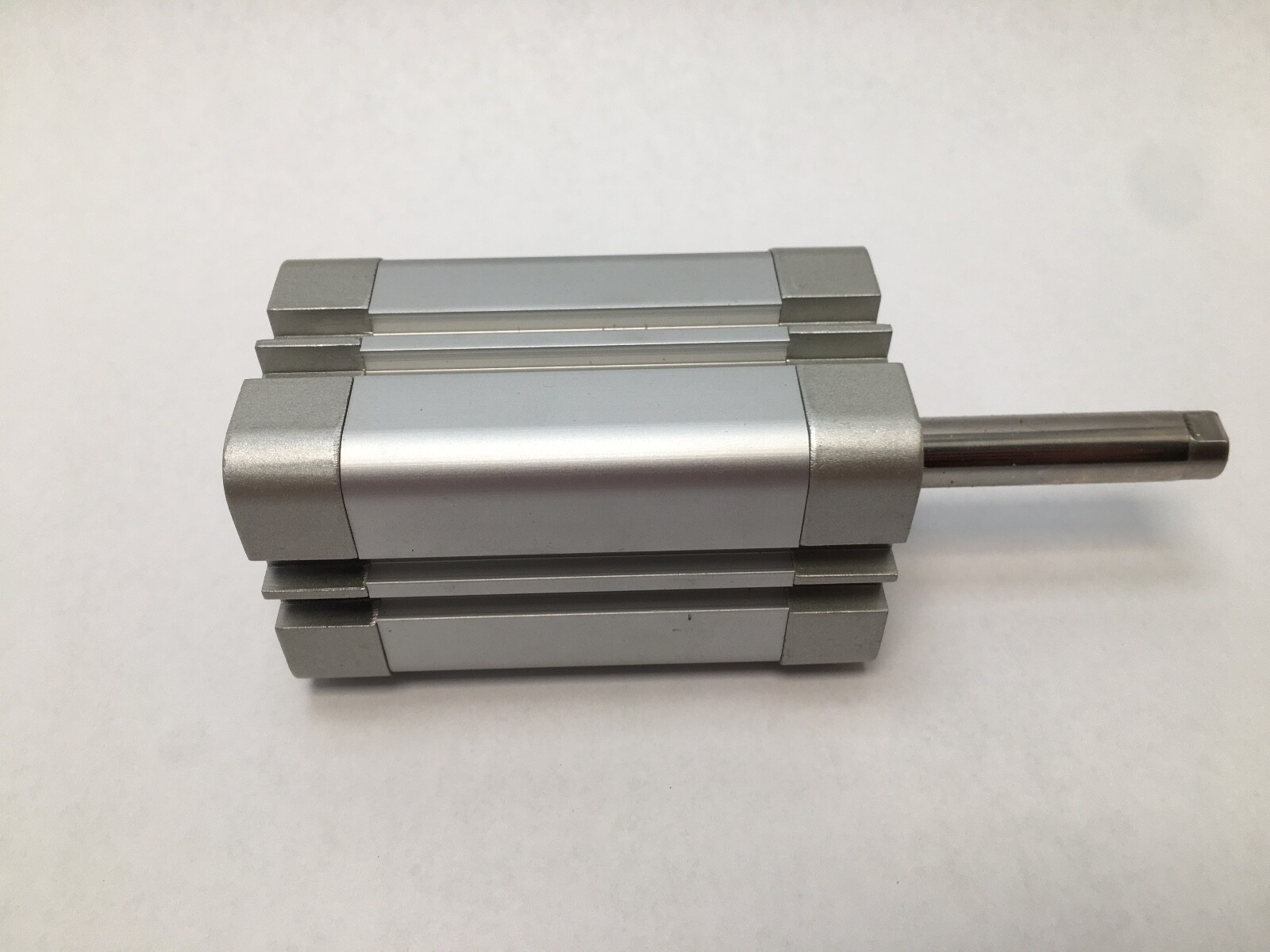

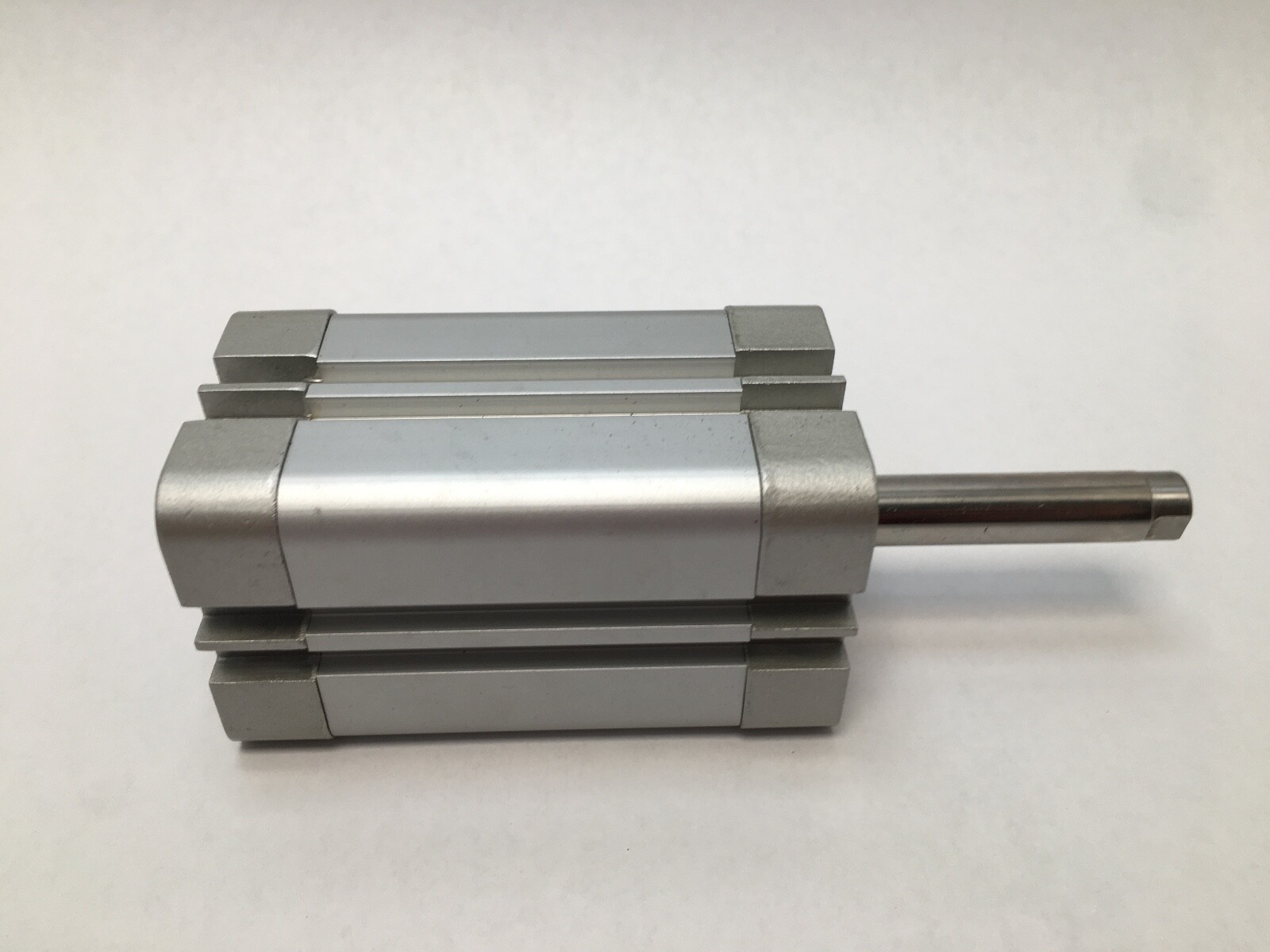

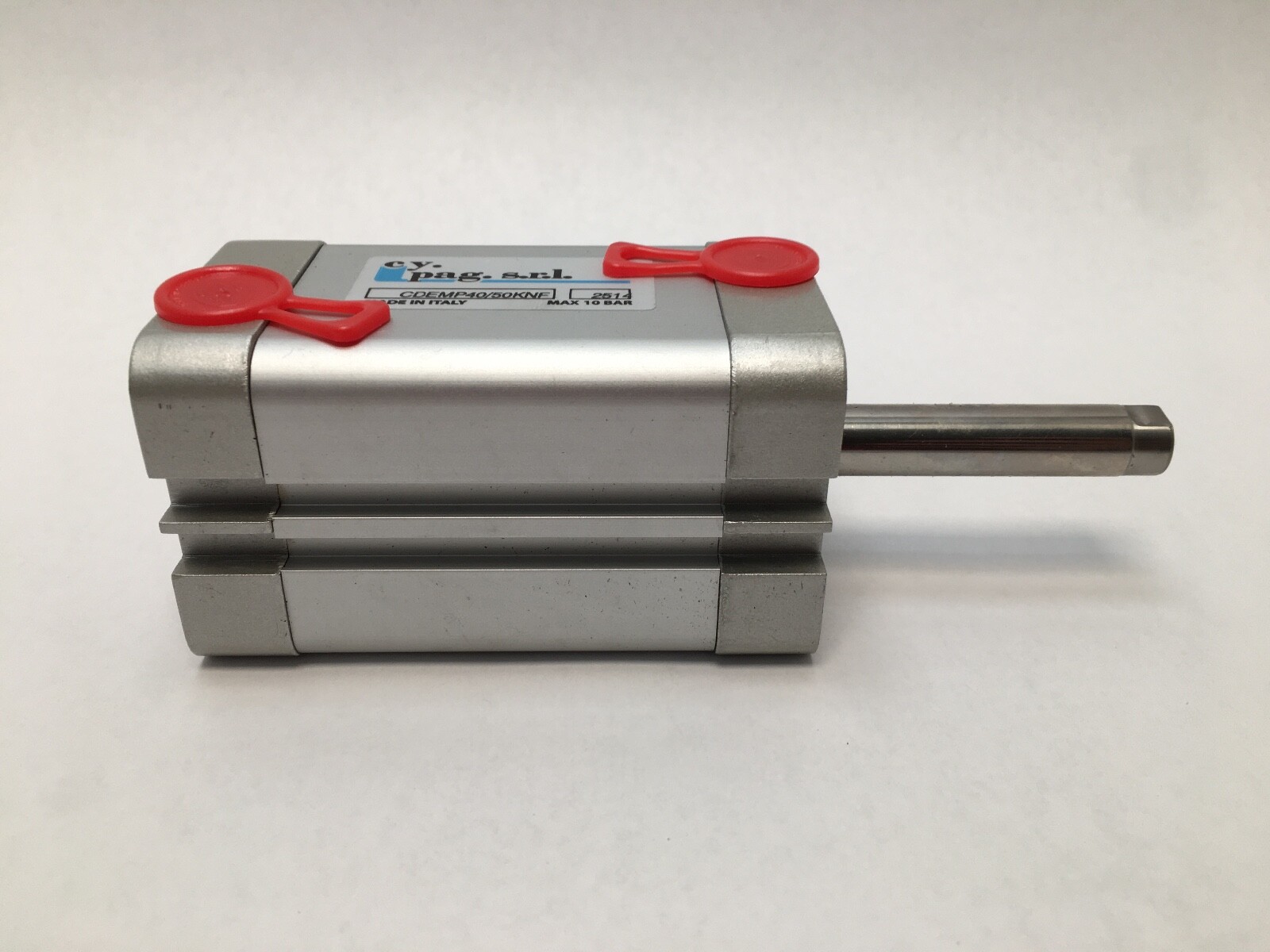

Cy.Pag. CDEMP40/50KNF double acting magnetic pneumatic cylinder, 40 mm bore, 50 mm stroke, through piston rod, 10 bar max. Also listed as CDEMP4050KNF.
List Price
$123.47
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | cy.pag.s.r.l. |
|---|---|
| MPN | CDEMP40/50KNF |
| Model | CDEMP 40 50 KNF |
| ID | 40 mm |
| Type | Pneumatic Cylinder |
|---|---|
| Maximum Pressure | 10 bar |
| Mpn Variants | CDEMP40/50KNF, CDEMP4050KNF, CDEMP 40 50 KNF, CDEMP40/50 |
The Cy.Pag. CDEMP40/50KNF is a double acting, magnetic, through-rod pneumatic cylinder with a 40 mm bore and 50 mm stroke. Type: Pneumatic Cylinder. Manufacturer Part Number: CDEMP40/50KNF.
CDEMP — Cy.Pag. version code: double acting, magnetic piston, through piston rod.
40 — bore diameter, 40 mm.
50 — stroke, 50 mm.
Type: Pneumatic Cylinder. Action: Double acting. Piston: Magnetic. Piston Rod: Through rod. Bore Diameter: 40 mm. Stroke: 50 mm. Maximum Operating Pressure: 10 bar. Working Medium: filtered compressed air, lubricated or non-lubricated. Unit Quantity: 1 Pc.
Replaces a Cy.Pag. CDEMP40/50KNF cylinder. Also listed as CDEMP4050KNF and CDEMP 40 50 KNF.
What is the bore and stroke?
Bore Diameter: 40 mm. Stroke: 50 mm.
Is the piston magnetic?
Yes. The M in CDEMP marks the magnetic piston version, for use with cylinder position sensors.
What is the maximum pressure?
Maximum Operating Pressure: 10 bar.
