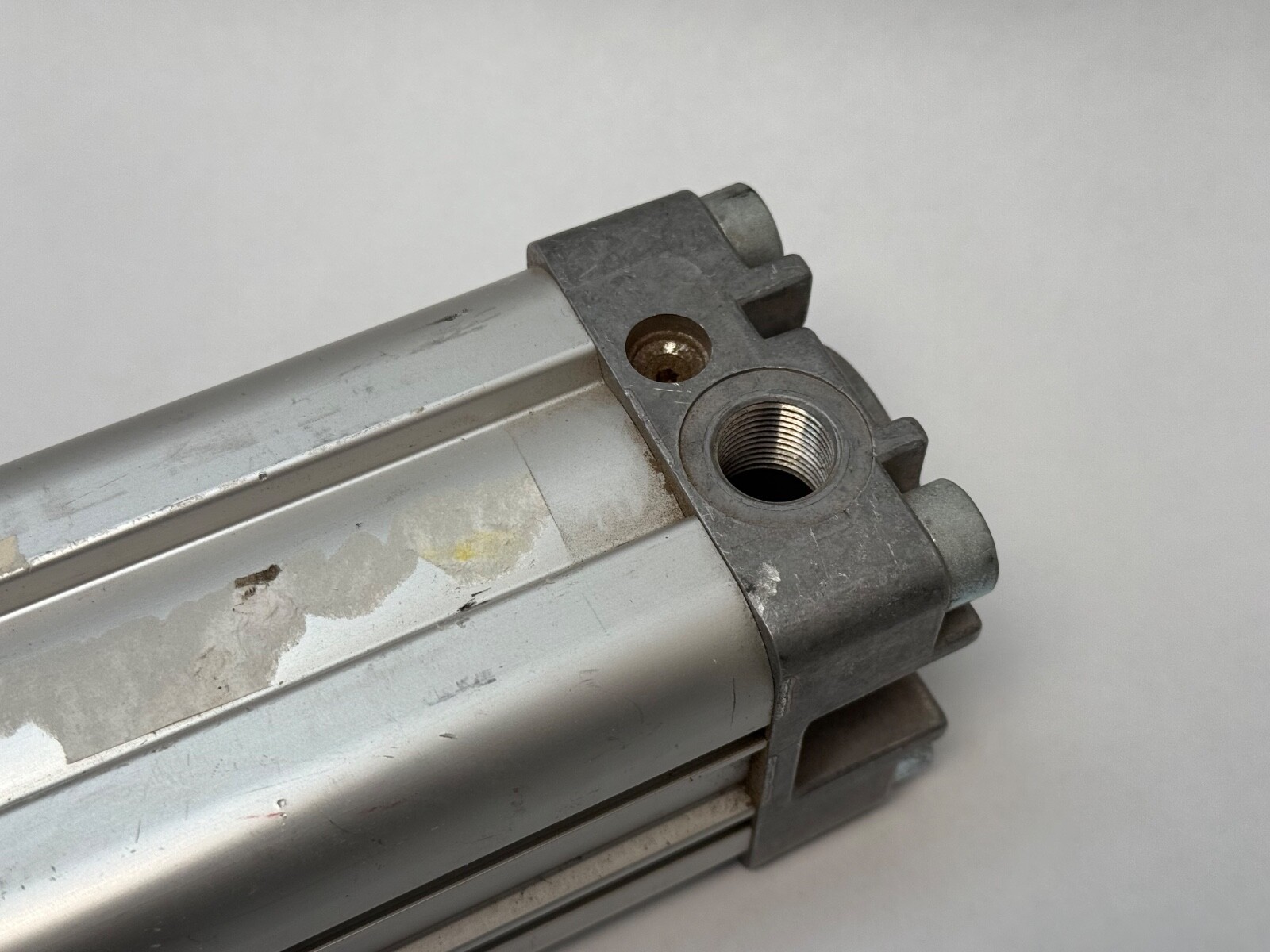

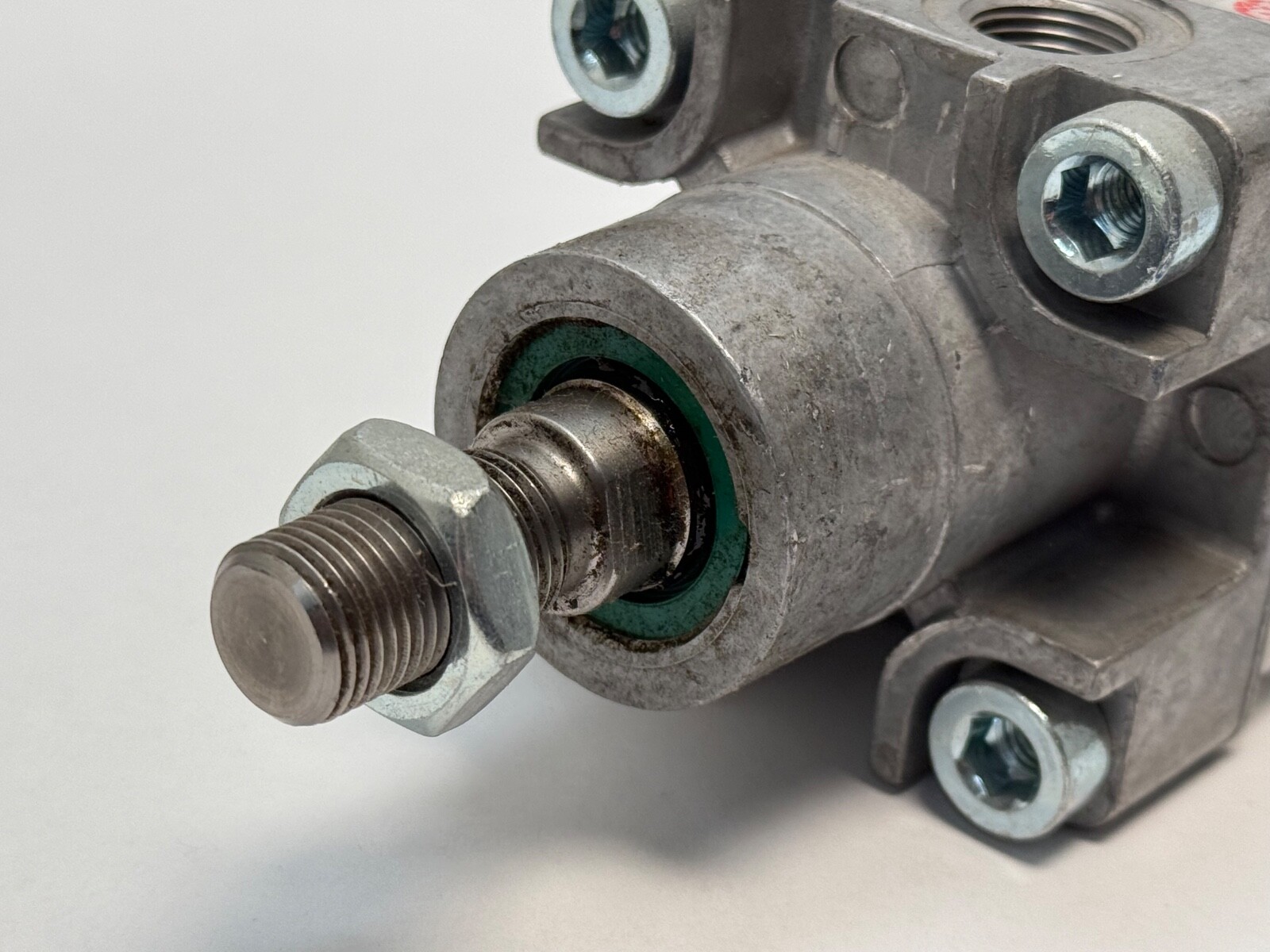

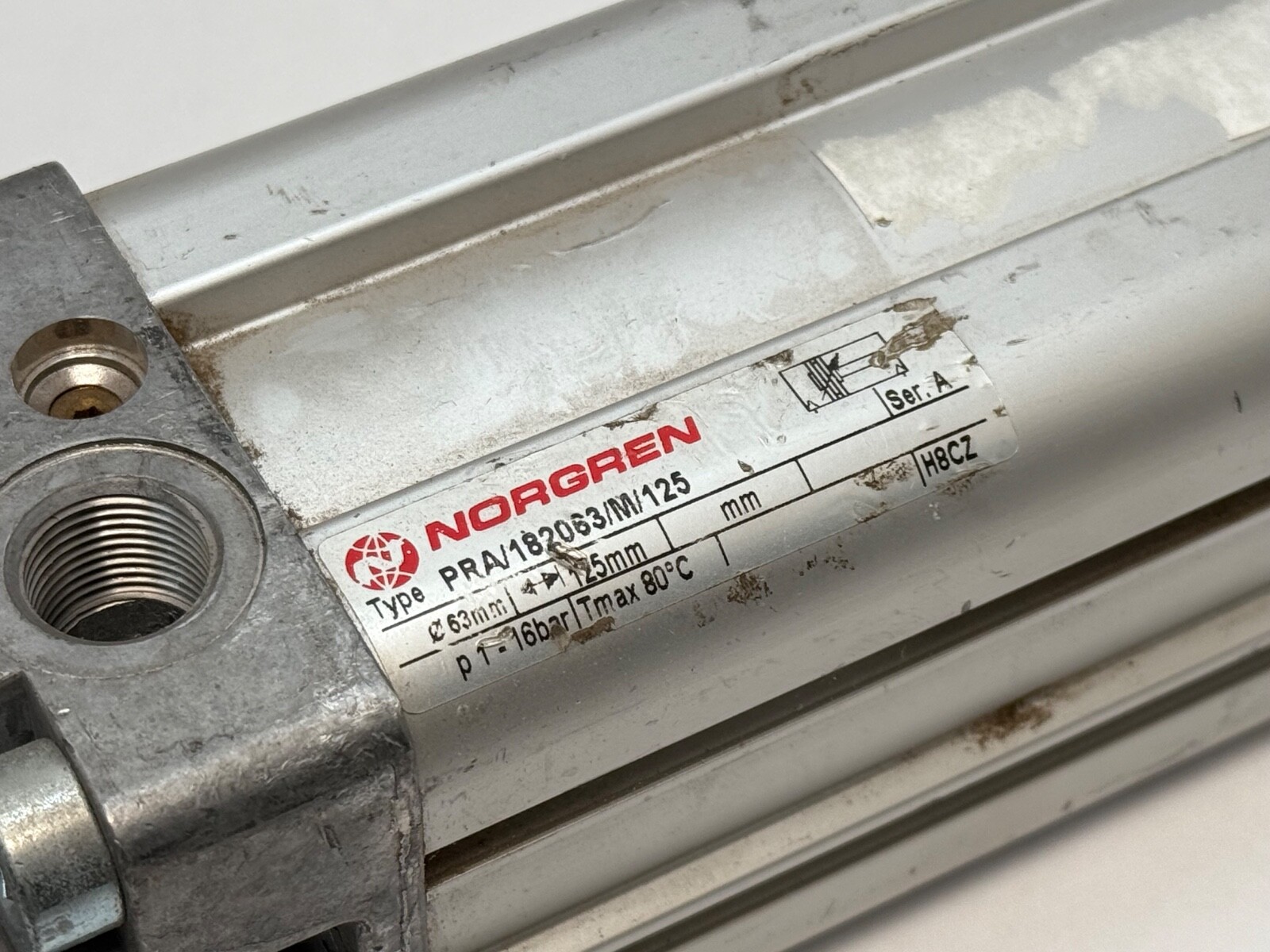

NorgrenPRA/182063/M/125Profile Pneumatic Cylinder, ISO 15552, 63 mm Bore, 125 mm Stroke, Double-Acting, Magnetic Piston, Adjustable Cushioning

Condition: Seller refurbished
Condition Note: Mounted Previously, See Photos

Availability:

1 in stock

ISO 15552 profile cylinder, 63 mm bore, 125 mm stroke, double-acting, magnetic piston, adjustable cushioning both ends, G3/8 ports, 1870 N at 6 bar.

Same day shipment

List Price

$85.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNorgren
MPNPRA/182063/M/125
ModelPRA182063M125

Technical Specifications

TypePneumatic
Base NumberPRA/182063
Maximum Pressure16 bar / 232 psi (operating range 1 to 16 bar)
Bore Shaft Size63 mm bore
Mpn VariantsPRA182063M125, PRA 182063 M 125, PRA/182063/M/125
Additional AttributesDouble-acting profile cylinder to ISO 15552 (also ISO 6431, VDMA 24562, NFE 49-003-1). Bore 63 mm, stroke 125 mm, rod 20 mm, rod thread M16x1.5, ports G3/8. Operating pressure 1 to 16 bar. Adjustable pneumatic cushioning both ends, cushion length 24 mm, initial cushion volume 64 cm3. Theoretical thrust at 6 bar: 1870 N out, 1680 N in. Air consumption at 6 bar: 0.218 l/cm out, 0.195 l/cm in. Magnetic piston for flush-mounted M/50 groove switches. Service kit QA/8063/00.
MaterialAnodised aluminium barrel; stainless steel piston rod
Min Temp-20 °C
SeriesPRA/182000
Max Temp80 °C
Item Weight2.45 kg (5.40 lb)
LubricantCompressed air, filtered, lubricated or non-lubricated
Part NumberPRA/182063/M/125
Bore63 mm
Mounting TypeISO 15552 profile body; foot, flange, clevis, trunnion mount
Seller Part Number: BL3#MG7JTX

Product Description

What this part is:

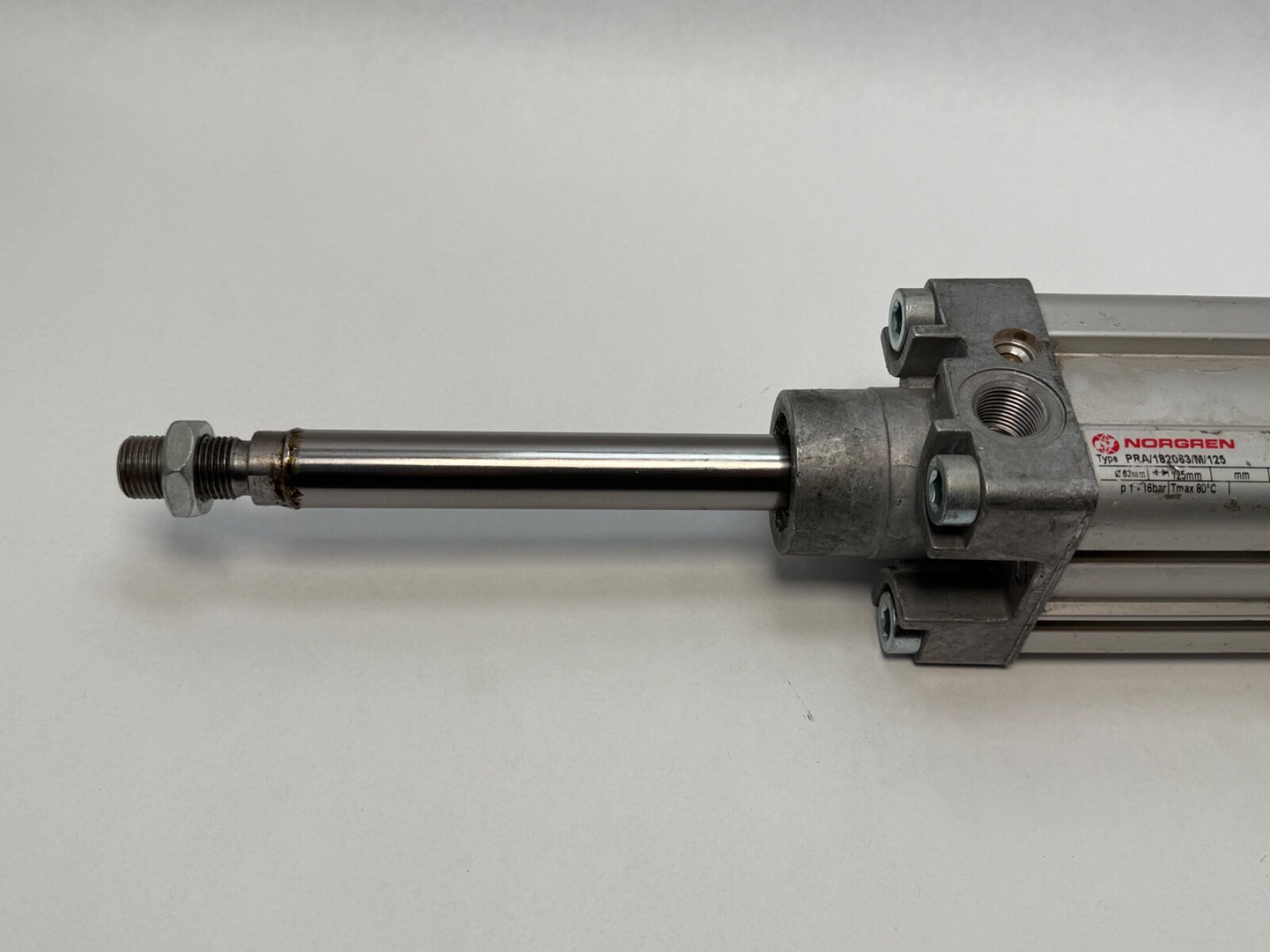

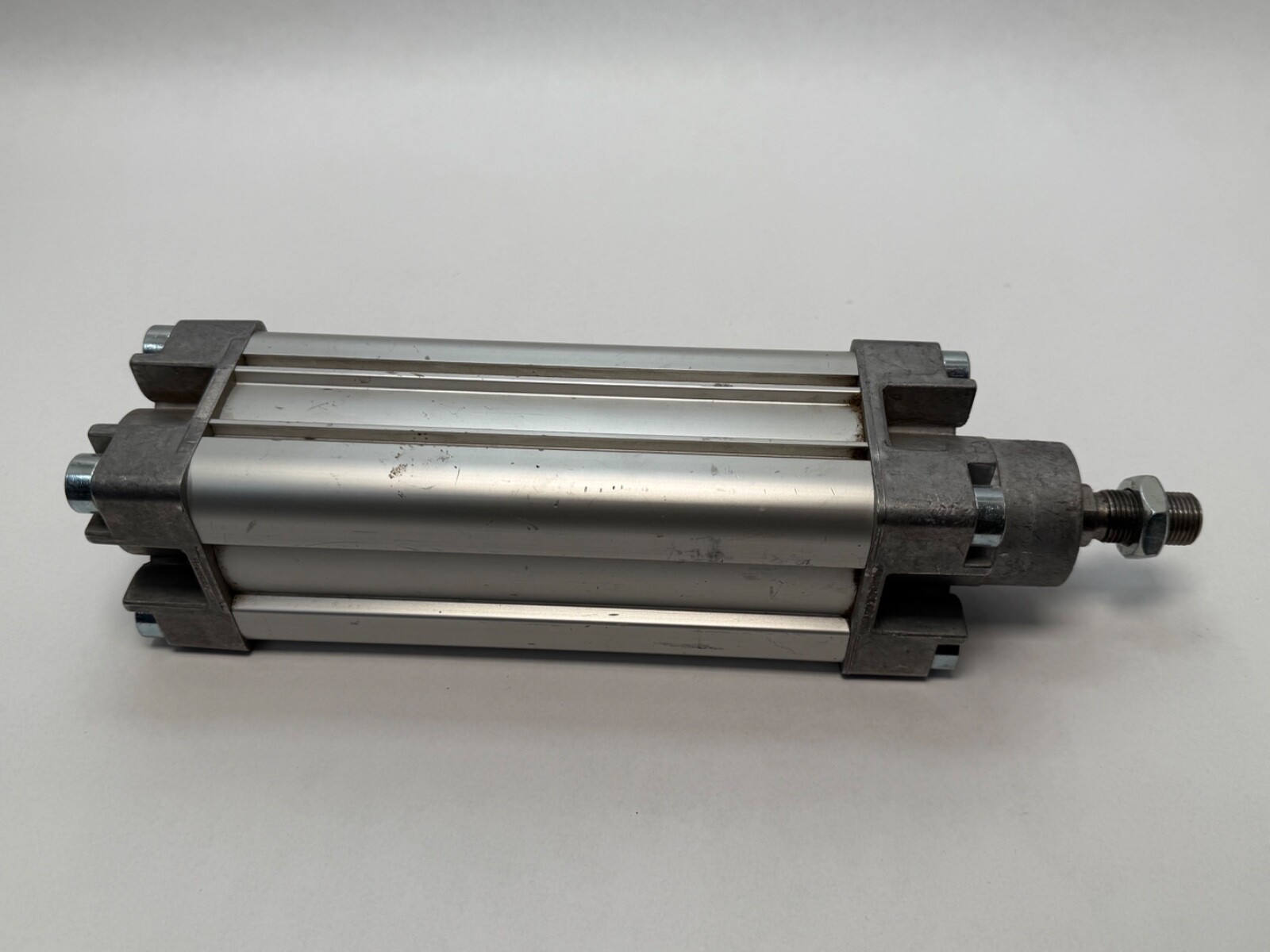

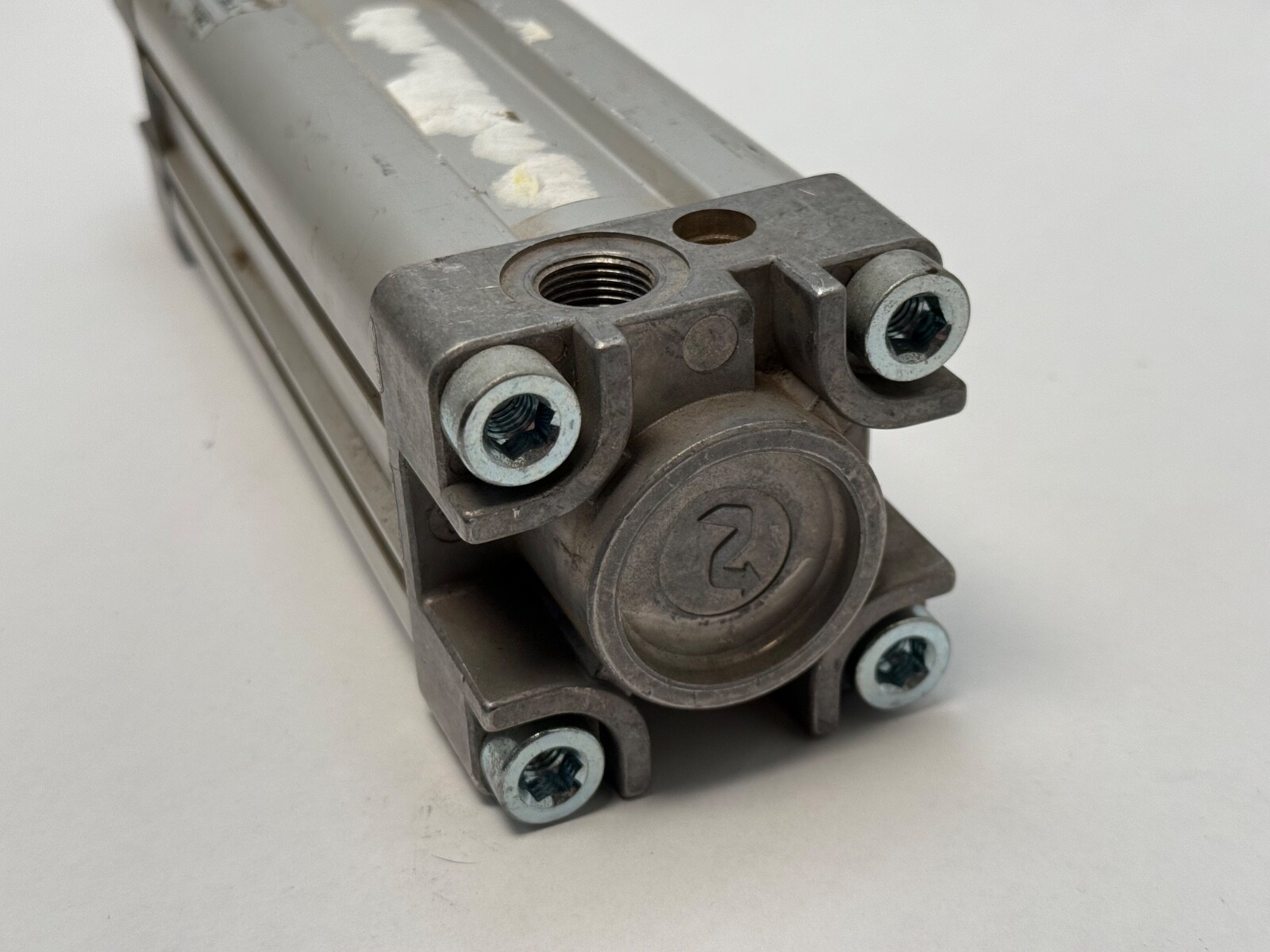

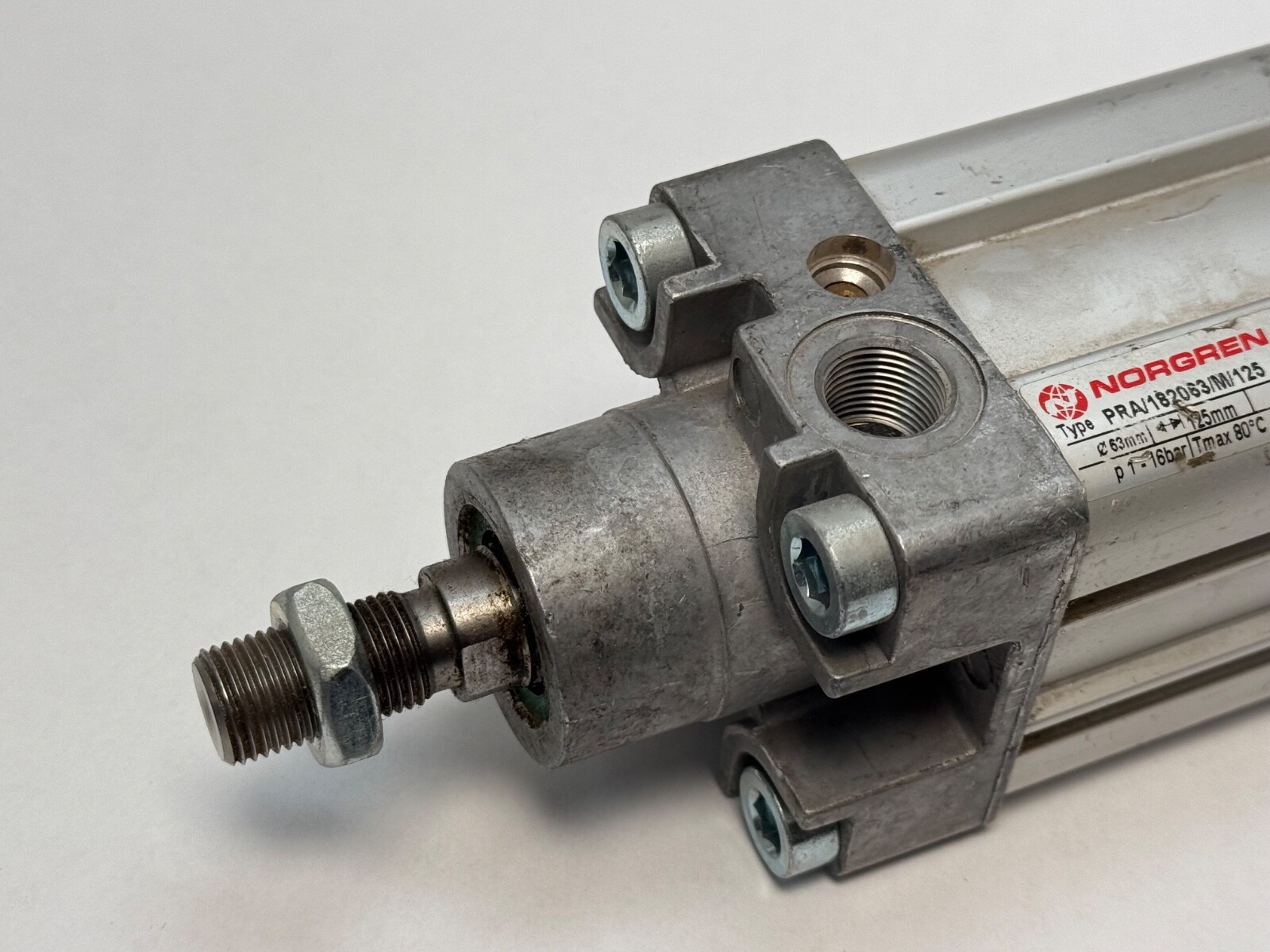

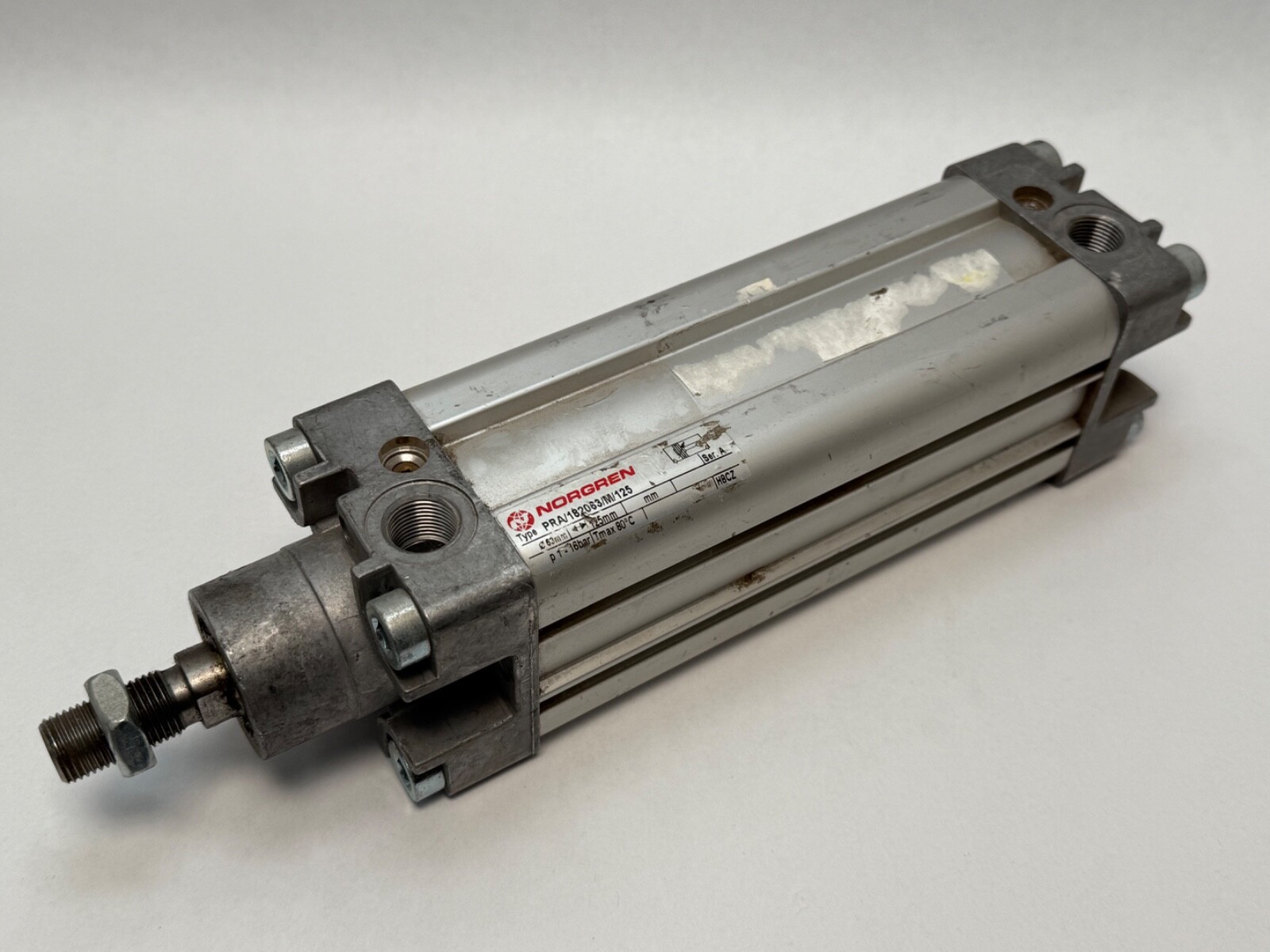

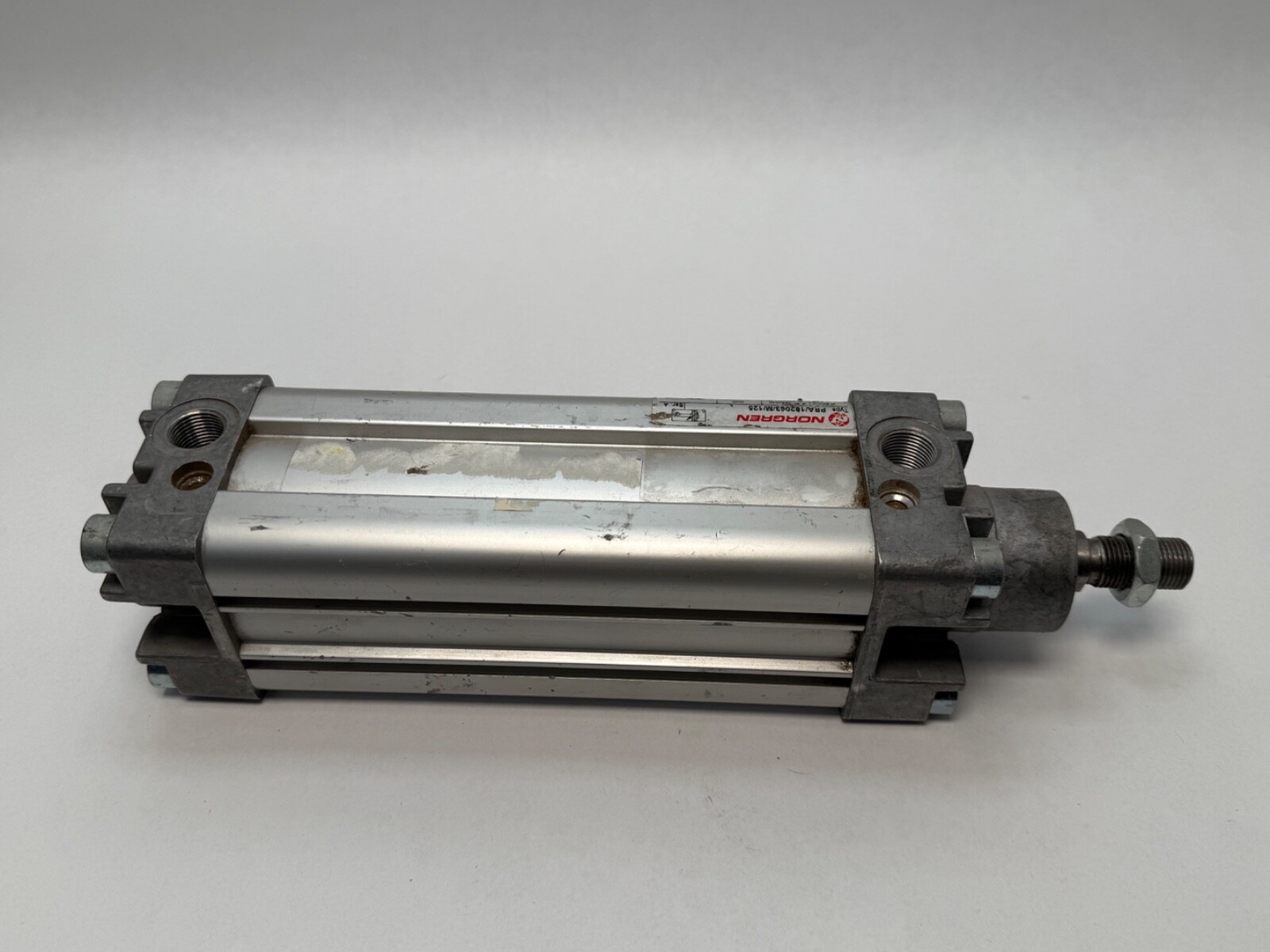

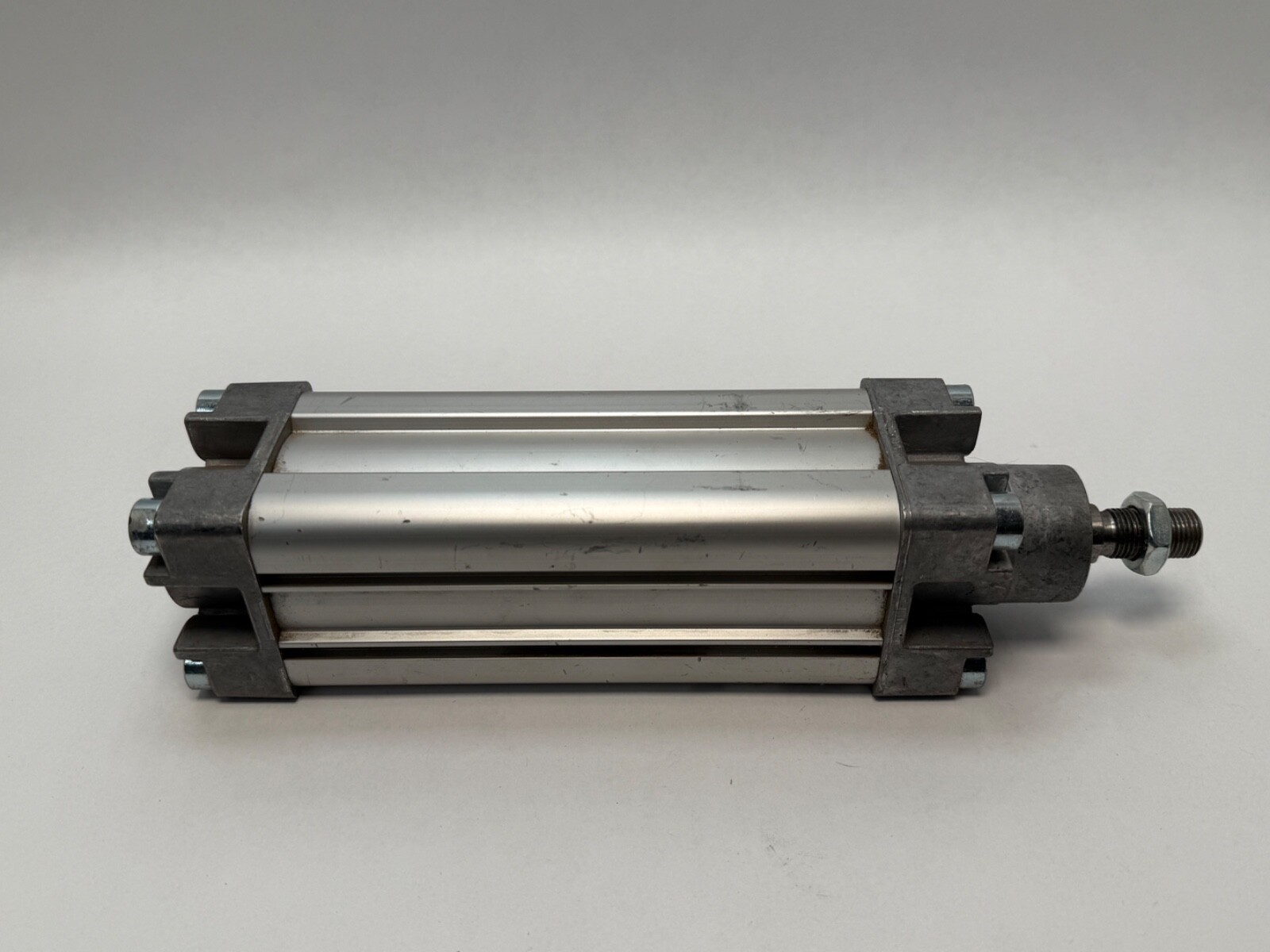

Norgren PRA/182063/M/125, a double-acting profile pneumatic cylinder to ISO 15552. Bore 63 mm, stroke 125 mm, magnetic piston, adjustable pneumatic cushioning at both ends. Seller refurbished, mounted previously. Unit Quantity: 1 Pc. Cylinder only.

Decoding the designation:

PRA — Norgren ISO 15552 profile-barrel cylinder range, double-acting with adjustable end cushioning.

182 — the 182000 series within that range.

063 — bore diameter in millimetres.

M — magnetic piston for reed or solid-state switches in the profile grooves.

125 — stroke in millimetres.

Specifications:

Bore: 63 mm.

Stroke: 125 mm.

Piston Rod Diameter: 20 mm.

Piston Rod Thread: M16 x 1.5.

Port Size: G3/8.

Operating Pressure: 1 to 16 bar (14 to 232 psi).

Cushioning: Pneumatic, adjustable at both ends.

Cushion Length: 24 mm.

Initial Cushion Volume: 64 cm³.

Piston: Magnetic.

Theoretical Thrust at 6 bar, Outstroke: 1870 N.

Theoretical Thrust at 6 bar, Instroke: 1680 N.

Air Consumption at 6 bar, Outstroke: 0.218 litres per centimetre.

Air Consumption at 6 bar, Instroke: 0.195 litres per centimetre.

Operating Temperature: −20 to +80 °C.

Medium: Compressed air, filtered, lubricated or non-lubricated.

Material, Profile Barrel: anodised aluminium.

Material, End Covers: pressure die-cast aluminium.

Material, Piston Rod: martensitic stainless steel.

Material, Piston Seals and Rod Seals: polyurethane.

Material, O-Rings: NBR.

Product Weight: 2.45 kg (5.40 lb).

Conforms to Standard: ISO 15552, ISO 6431, VDMA 24562 and NFE 49-003-1.

Dimensions and mounting:

Body Length at 125 mm Stroke: 246 mm.

Body Length at 0 mm Stroke: 121 mm.

Rod Extension Beyond the Bearing Cap: 37 mm.

Piston Rod Thread Length: 32 mm.

Across Flats on the Rod: 17 mm.

End Cap Width: 75 mm.

Tie-Rod Thread: M8.

Mounting Hole Centre Distance on the End Cap: 56.5 mm.

Spigot Diameter: 45 mm to e11.

Matching ISO 15552 mountings for the 63 mm bore: foot bracket QA/8063/21, front flange QA/8063/22, rear clevis QA/8063/23, rear eye QA/8063/27, detachable trunnion QA/8063/34, adjustable trunnion PQA/182063/40, rod clevis QM/8050/25, universal rod eye QM/8050/32, universal rear eye QA/8063/33, stud mounting QM/8050/35. Service kit: QA/8063/00.

Switch mounting: M/50 series reed and solid-state switches sit flush in the profile grooves. Reed types: 10 to 240 V AC or 10 to 170 V DC, 180 mA maximum, IP66. Solid-state PNP and NPN types: 10 to 30 V DC, 150 mA maximum, IP67.

Compatibility and replacement:

PRA/182063/125 is the same cylinder with a non-magnetic piston. PRA/182063/MW/125 omits the adjustable cushioning. PRA/182063/X4/125 is the low-friction execution without cushioning, 1 to 10 bar, on filtered non-lubricated air. ISO 15552 63 mm cylinders from other makers share the mounting interface, G3/8 ports, 20 mm rod and M16 x 1.5 rod thread. CAD model and data sheet: available from Norgren (norgren.com).

Frequently asked questions:

What are the bore and stroke of the Norgren PRA/182063/M/125?

63 mm bore and 125 mm stroke.

What does the M in the part number mean?

A magnetic piston, for reed or solid-state switches mounted in the profile grooves.

What is the operating pressure range?

1 to 16 bar (14 to 232 psi).
