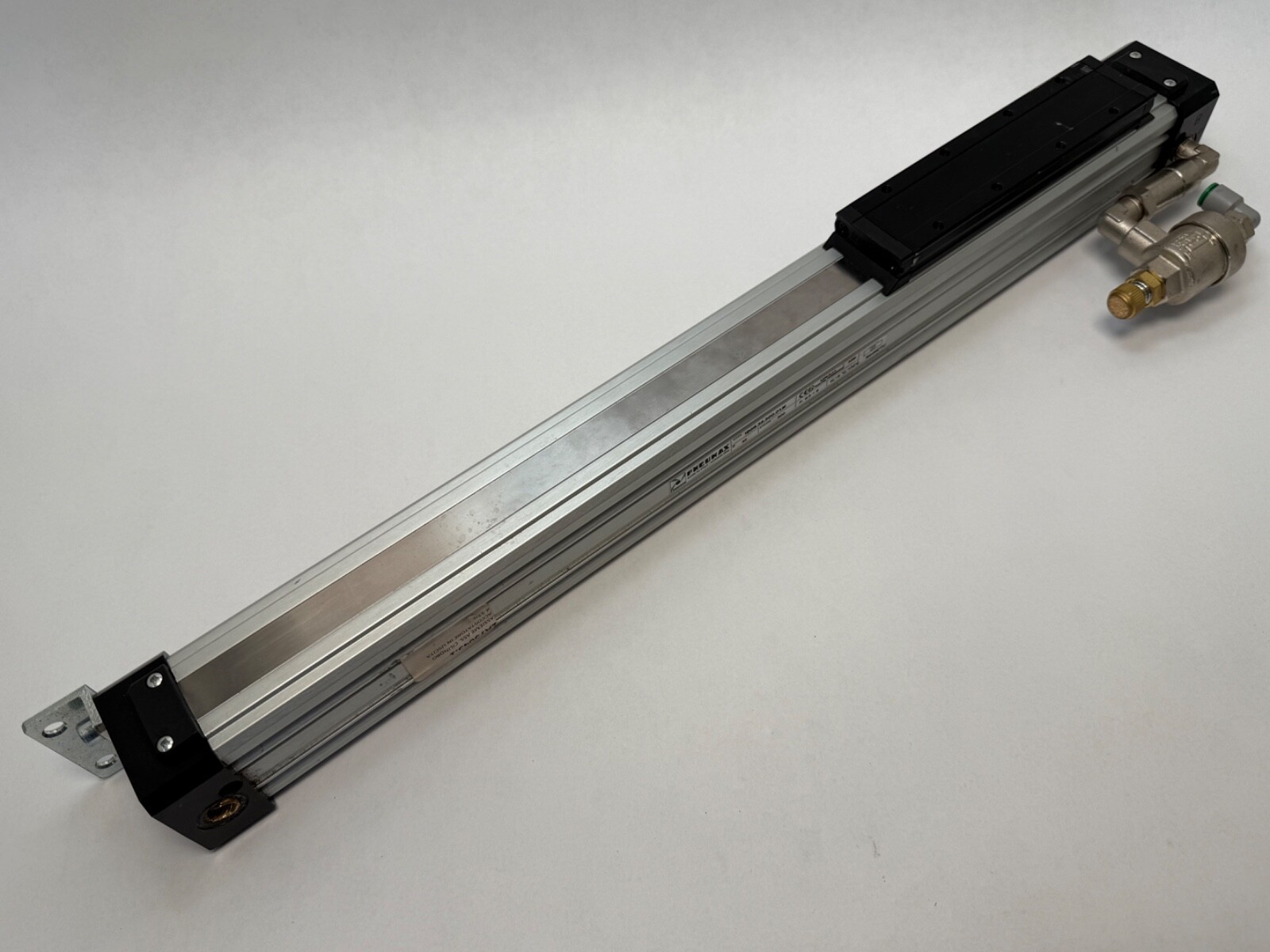

Pneumax1605.32.450.01.MRodless Pneumatic Cylinder – Mechanically Coupled, 32 mm Bore, Magnetic, 1605 Series

Condition: Used

Availability:

1 in stock

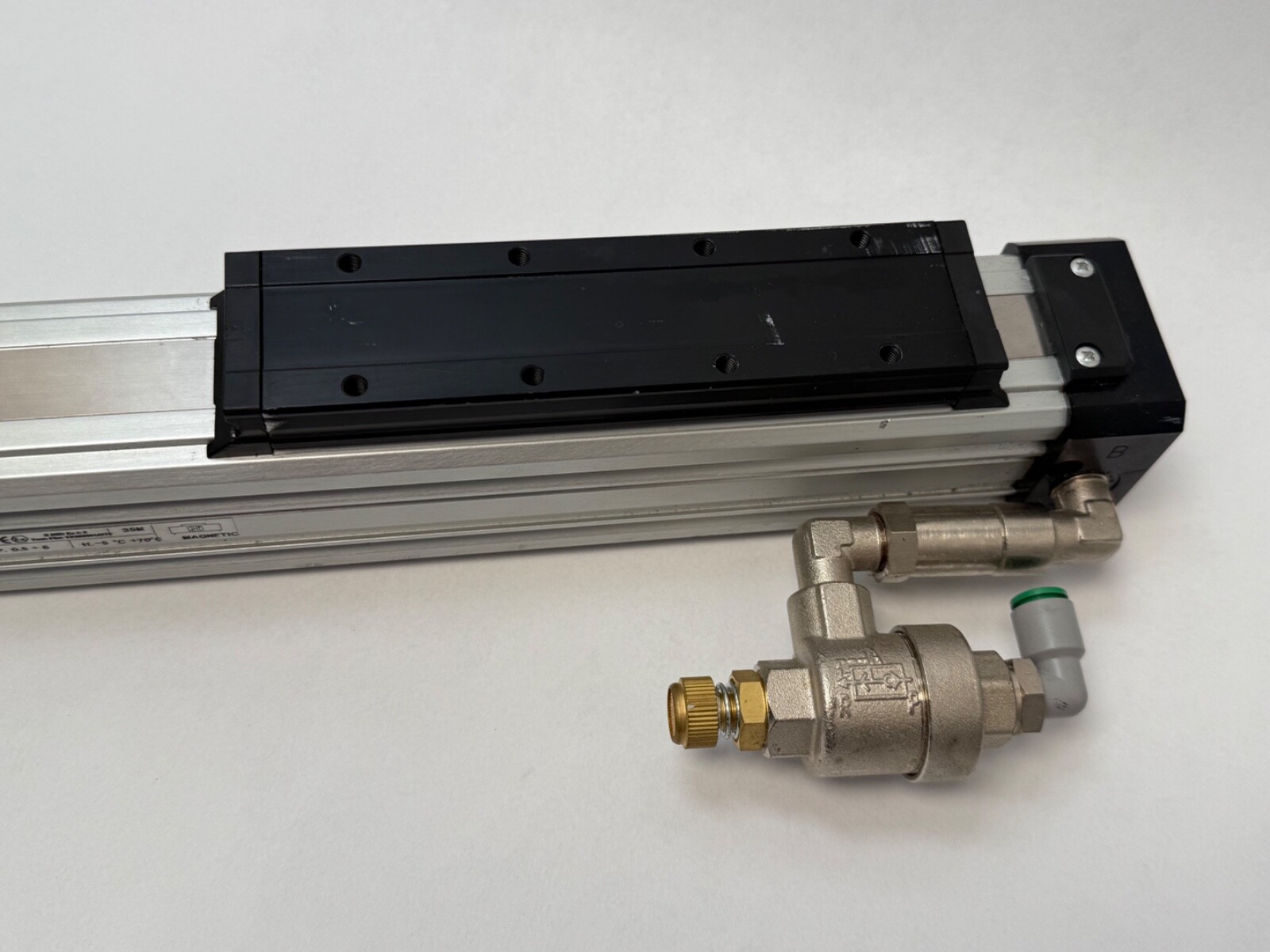

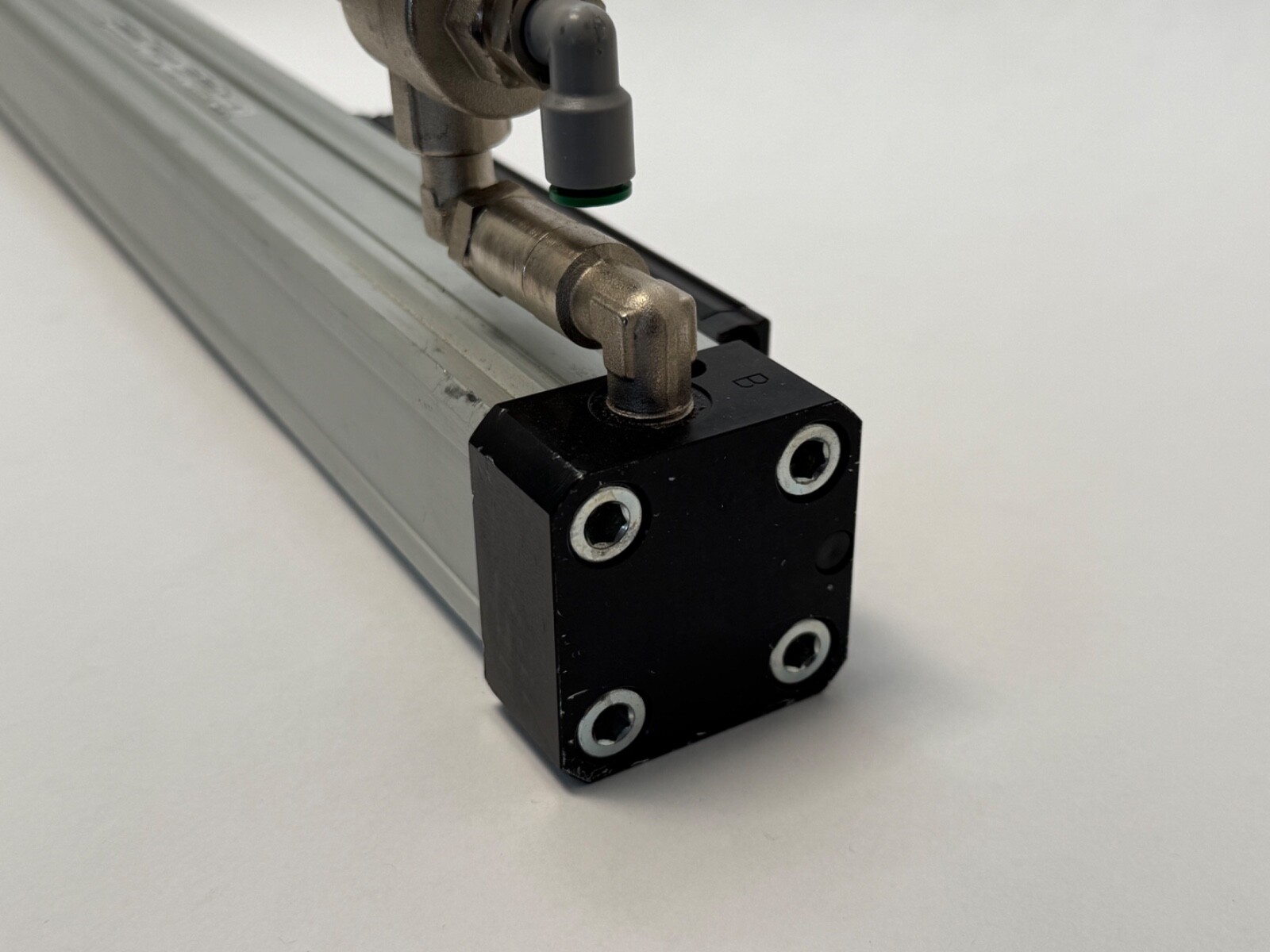

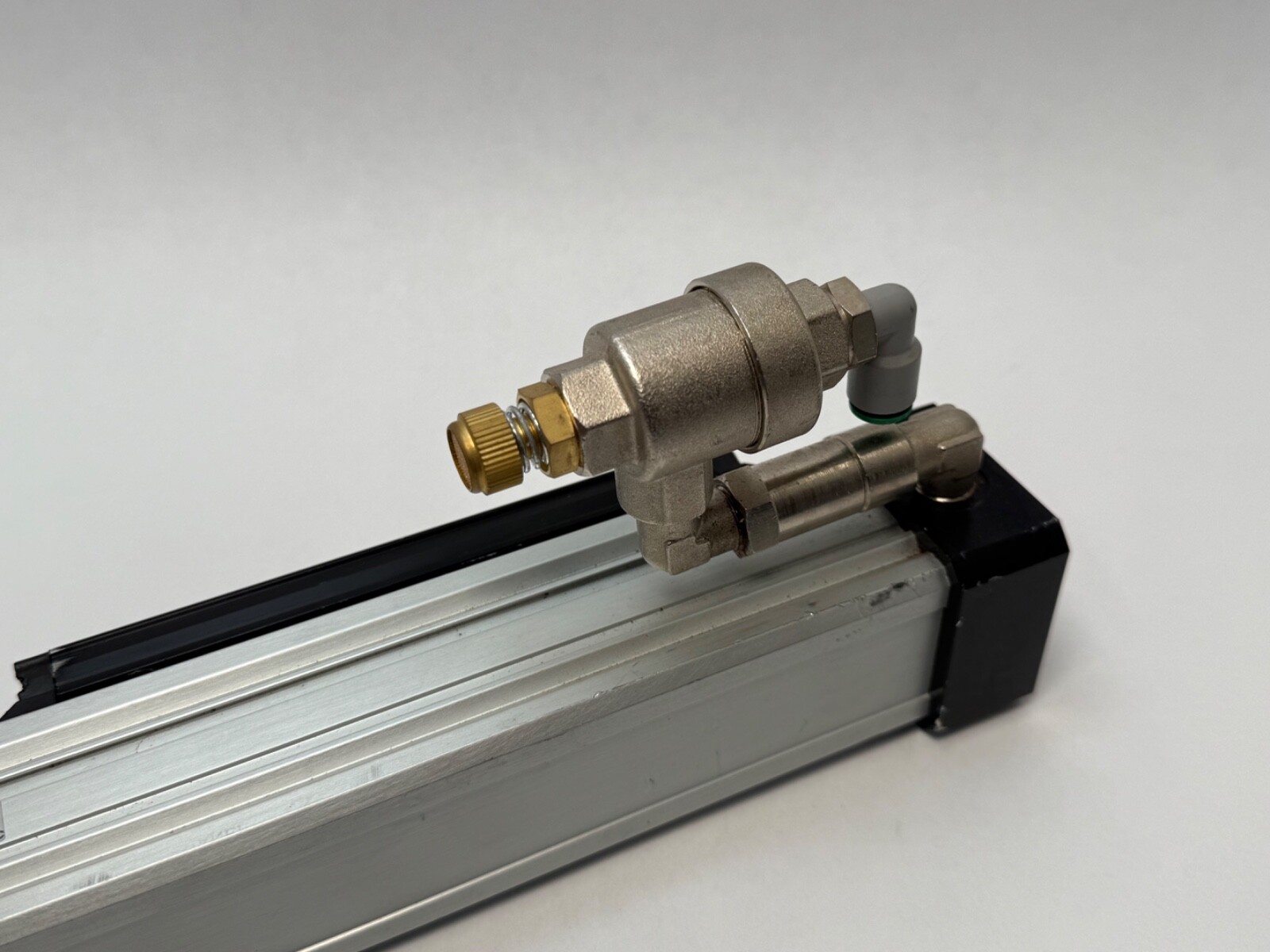

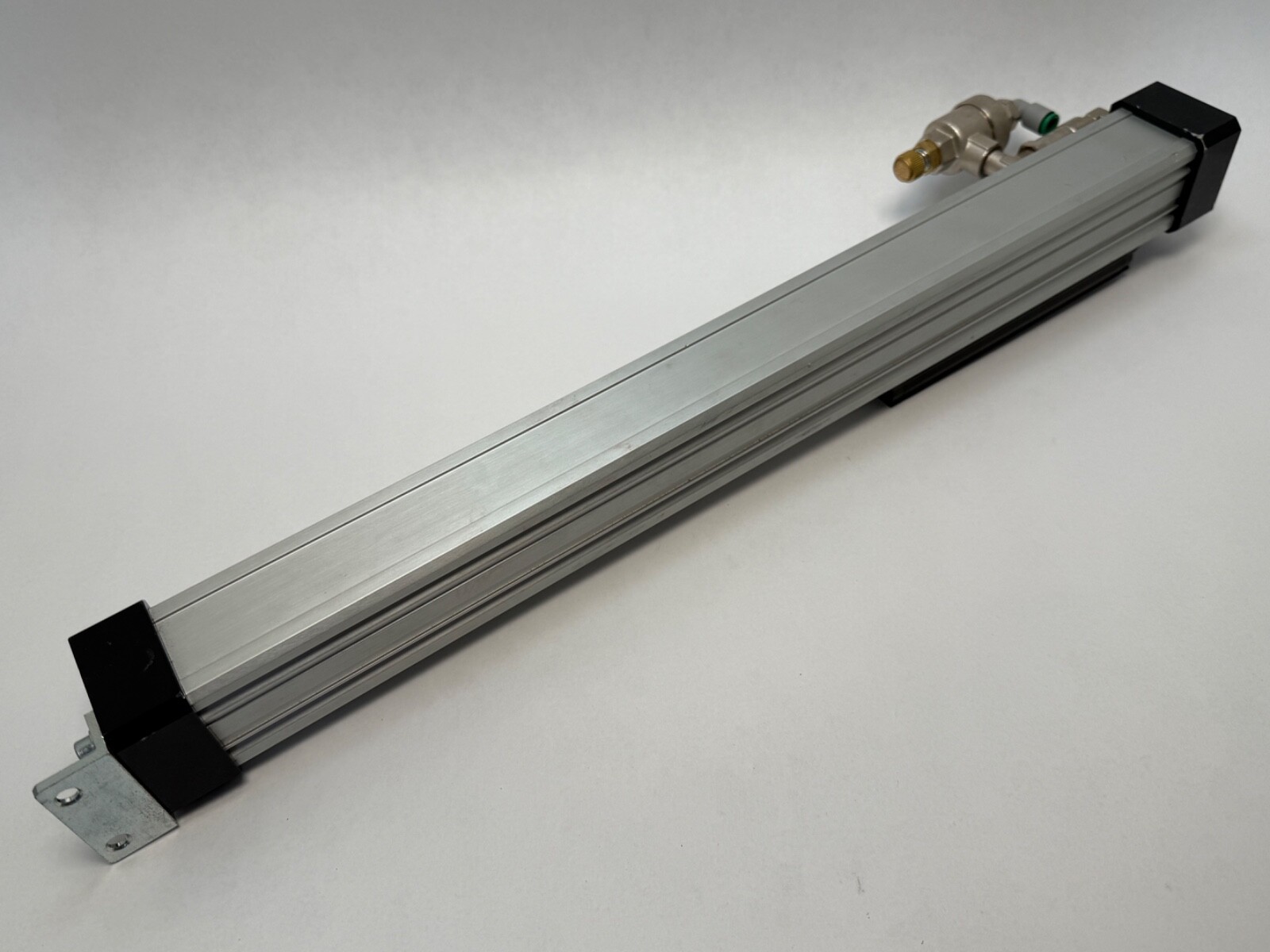

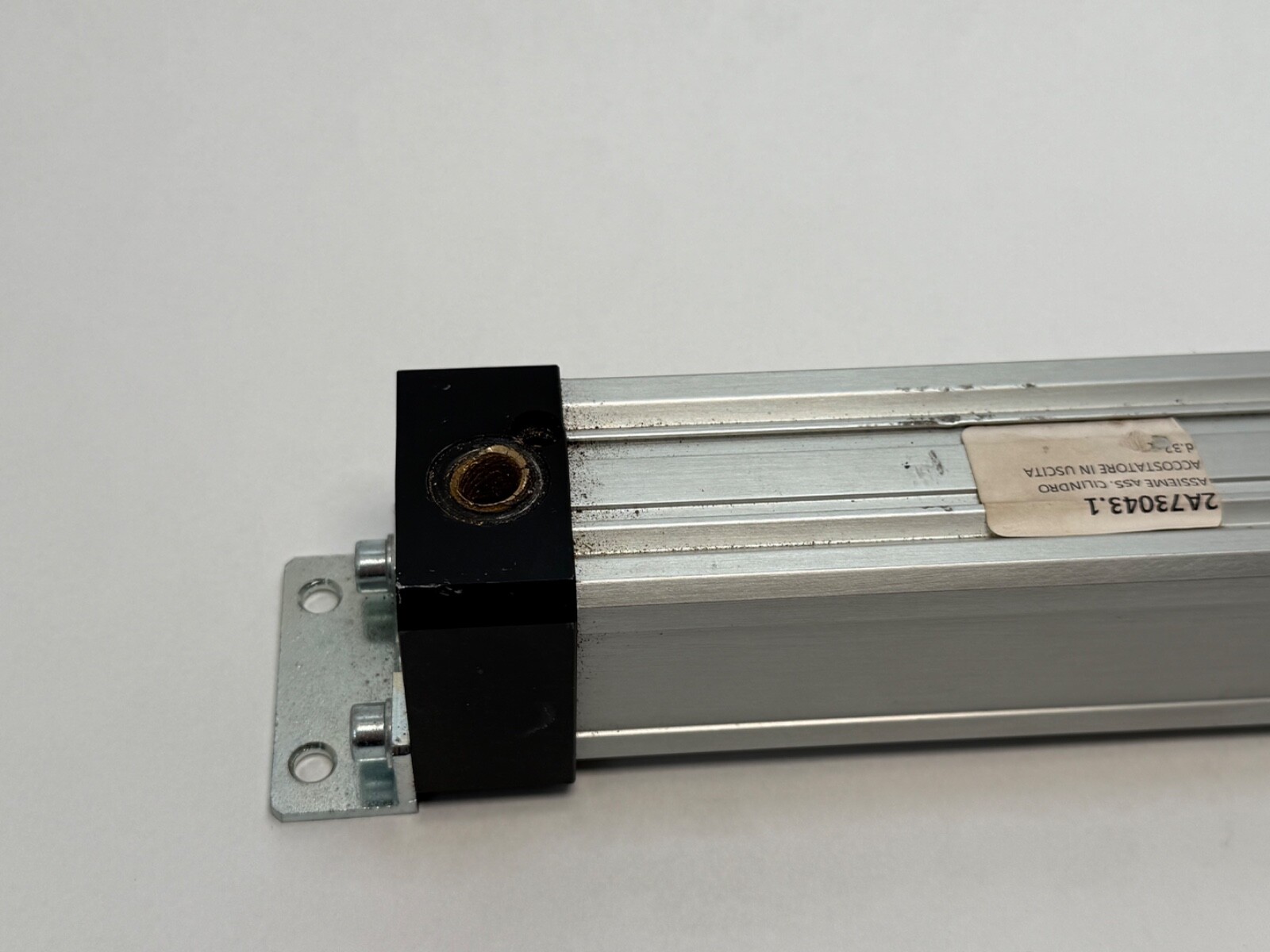

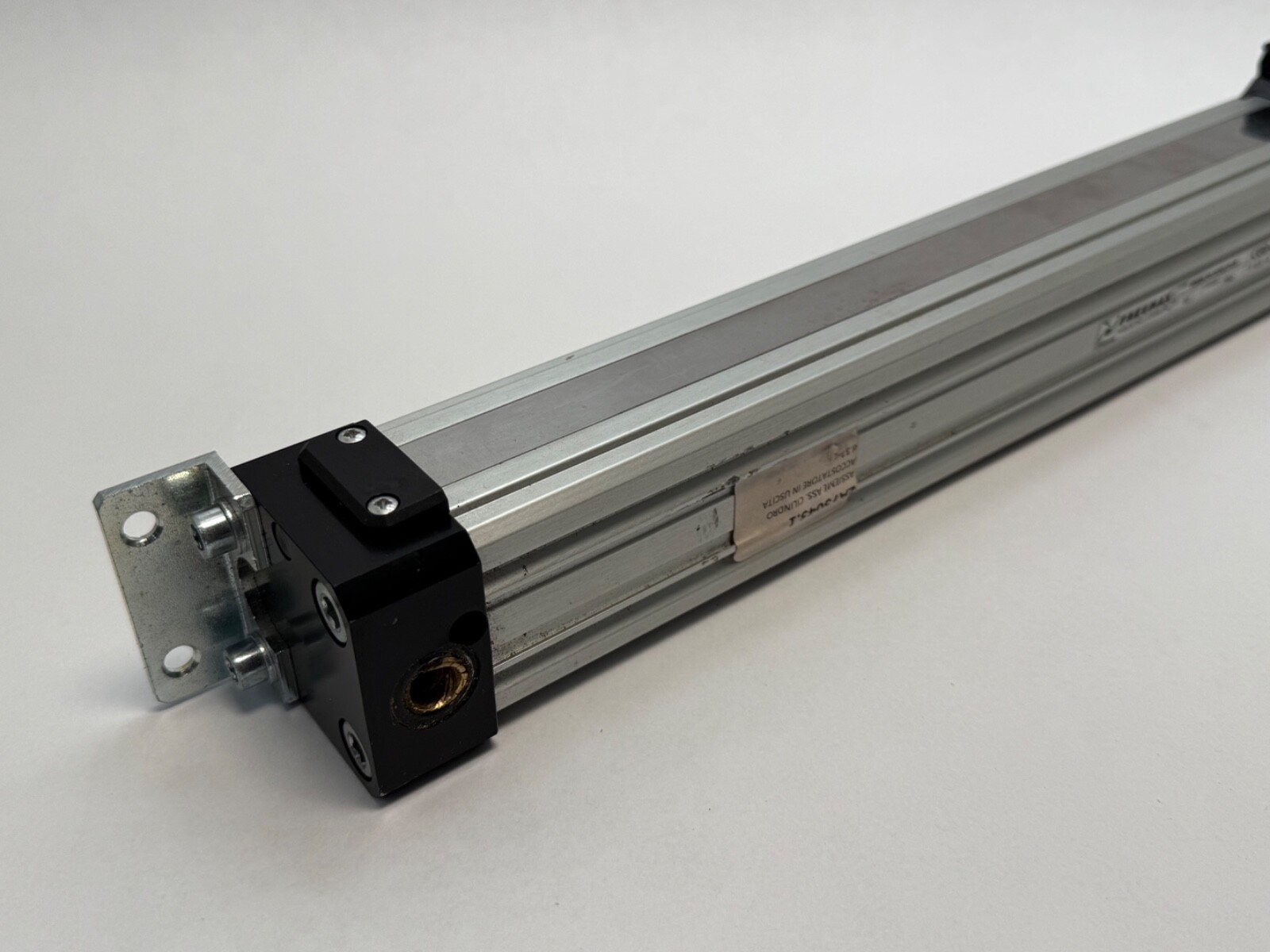

Pneumax 1605.32.450.01.M mechanically coupled rodless pneumatic cylinder, 32 mm bore, magnetic version for sensor use. 1605 Series, profiled tube.

Same day shipment

List Price

$92.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandPneumax
MPN1605.32.450.01.M
Model1605-32-450-01-M
ID32 mm

Technical Specifications

Cylinder TypeRodless Cylinder
Cylinder ActionDouble-Acting
Suitable MediaCompressed Air
Mpn Variants1605.32.450.01.M, 16053245001M, 1605-32-450-01-M
Series1605
Seller Part Number: BC4#QM2CHV

Product Description

What this part is:

Pneumax 1605.32.450.01.M is a mechanically coupled rodless pneumatic cylinder from the Pneumax 1605 Series, 32 mm bore, magnetic version, with a profiled tube. Used take-out unit, old stock.

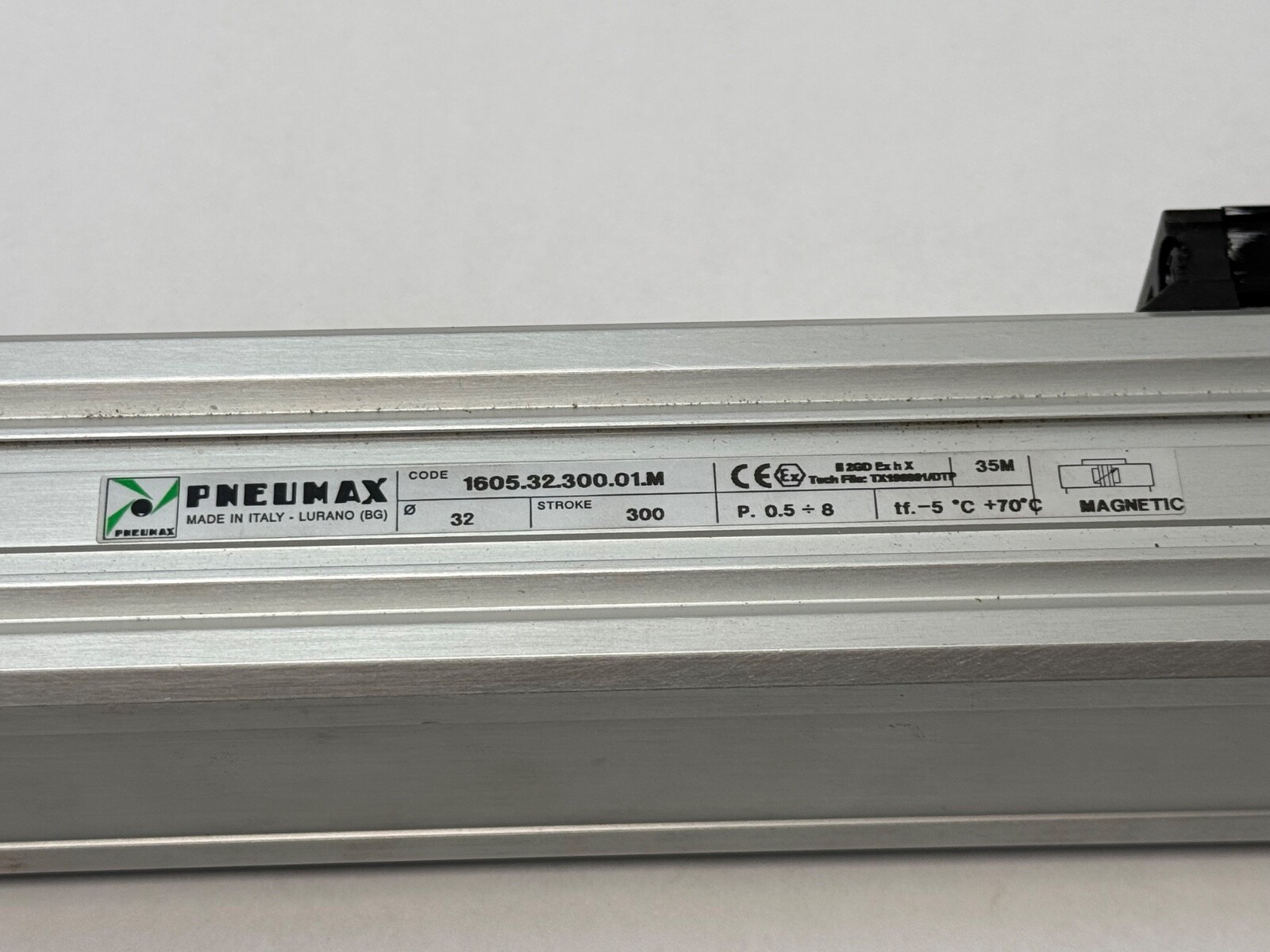

Decoding the designation:

1605 — Pneumax 1605 Series mechanically coupled rodless cylinder.

32 — bore size, 32 mm.

M — magnetic version, for use with position sensors.

Specifications:

Cylinder Type: Rodless Cylinder, mechanically coupled. Series: 1605. Bore Diameter: 32 mm. Magnetic Piston: Yes. Suitable Media: Compressed Air. Cylinder Action: Double-Acting. Country of Origin: Italy.

Dimensions and mounting:

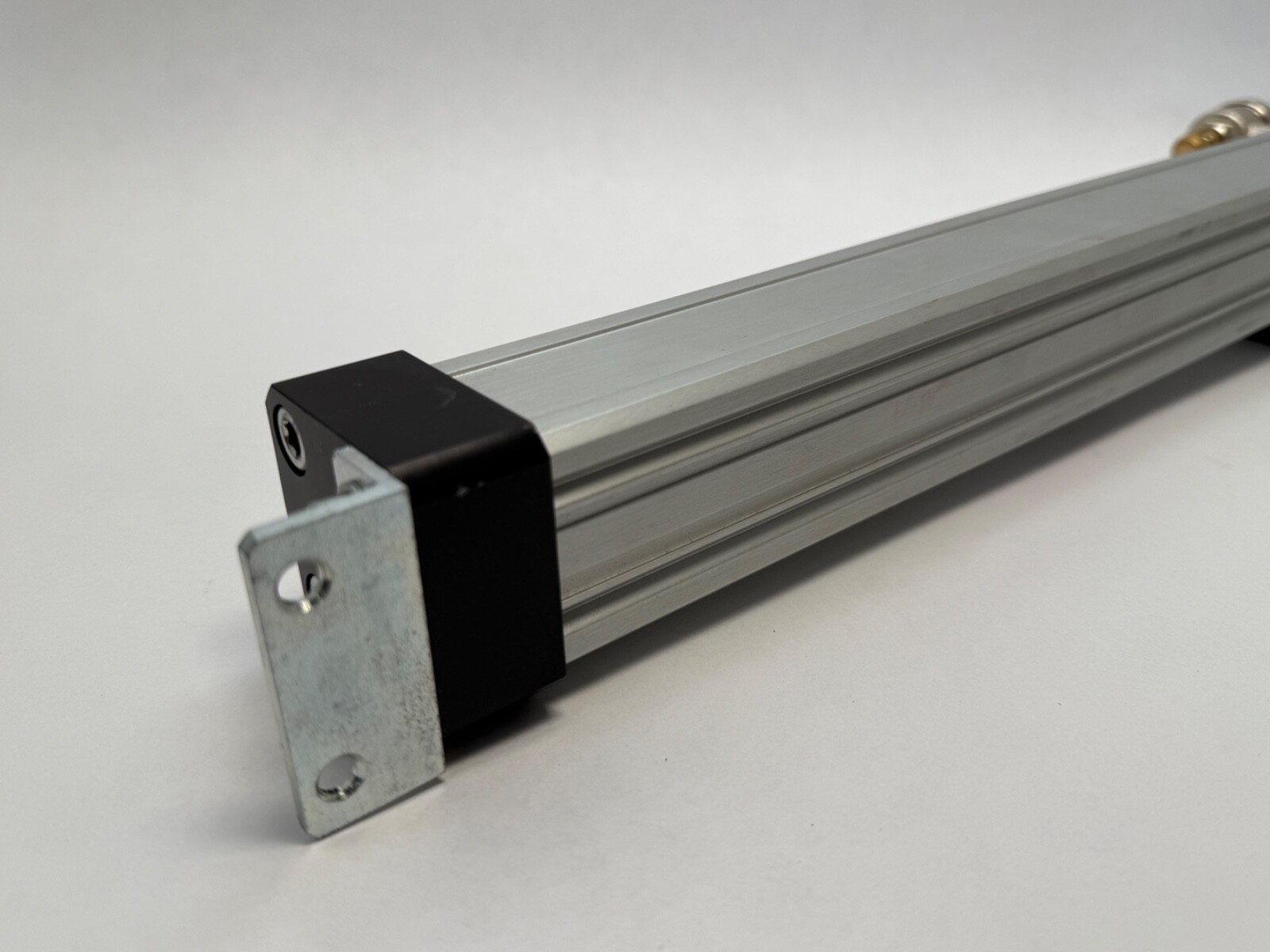

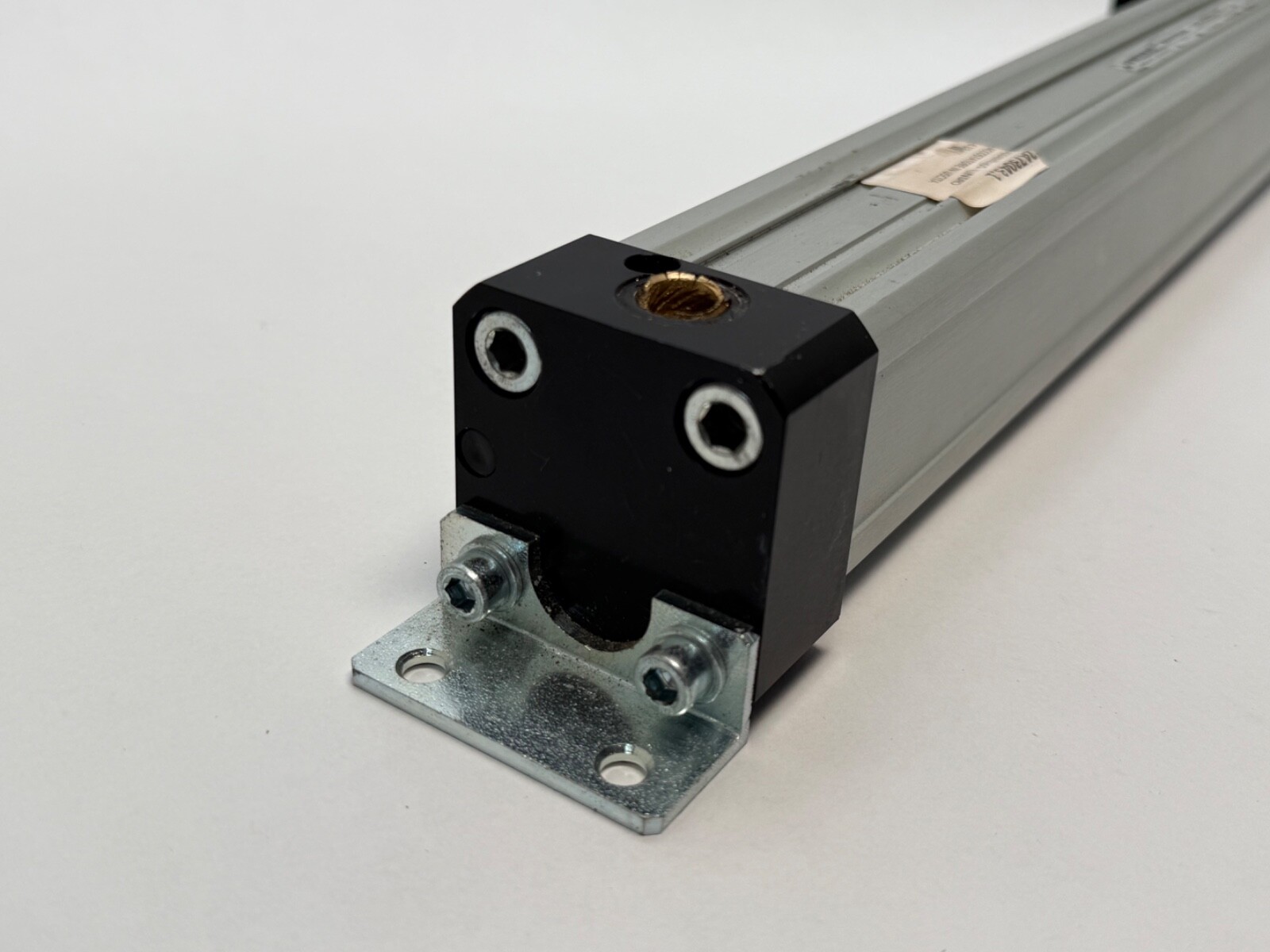

The profiled tube accepts Pneumax sensors 1500, RS, HS, 1580, MRS and MHS on both sides of the carriage using sensor brackets. Pneumax accessories for the series include foot mounting brackets for the tube and caps, intermediate supports for long strokes and an oscillating coupling between the mounting plate and the load.

Compatibility and replacement:

CAD model and data sheet: available from Pneumax (pneumaxspa.com).

Frequently asked questions:

What bore is the Pneumax 1605.32.450.01.M?

32 mm.

Is this cylinder magnetic?

Yes. The M suffix is the magnetic version for use with position sensors.

What type of rodless cylinder is it?

A mechanically coupled rodless cylinder from the Pneumax 1605 Series.
