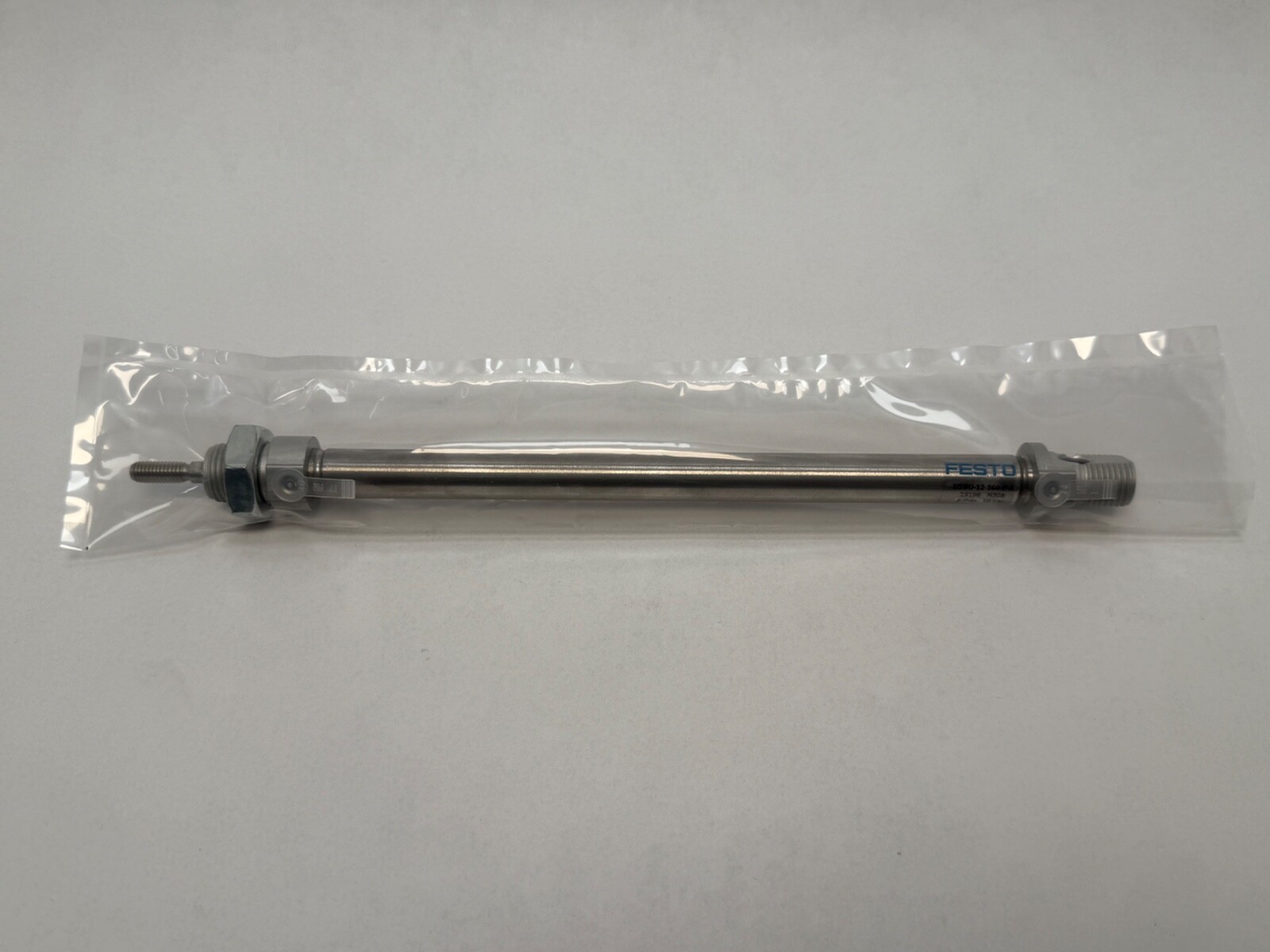

FestoDSNU-12-160-P-ARound Pneumatic Cylinder, ISO 6432, 12 mm Bore, 160 mm Stroke, Double-Acting, Magnetic Piston, Elastic Cushioning

Condition: New – Open box
Condition Note: New Old Stock

Availability:

1 in stock

ISO 6432 round pneumatic cylinder, 12 mm bore, 160 mm stroke, double-acting, magnetic piston, elastic cushioning both ends, M5 ports, 68 N at 6 bar.

Same day shipment

List Price

$23.23

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFesto
MPNDSNU-12-160-P-A
ModelDSNU-12-160-P-A / 19196

Technical Specifications

TypePneumatic
Base NumberDSNU-12
Maximum Pressure10 bar (operating range 1 to 10 bar)
Mpn Variants19196, DSNU12160PA, DSNU 12 160 P A
Additional AttributesDouble-acting round cylinder to ISO 6432 and CETOP RP 52 P. Piston 12 mm, stroke 160 mm, overall length 265 mm. Elastic cushioning rings and plates both ends, impact energy 0.07 J. Magnetic piston for proximity-switch sensing. Theoretical force at 6 bar: 68 N extend, 51 N retract. Moving mass 18.5 g at 0 mm stroke. Approvals ATEX II 2GD, Germanischer Lloyd.
MaterialBarrel: stainless steel; end caps: wrought aluminium alloy
Min Temp-20 °C
SeriesDSNU
Max Temp80 °C
Item Weight139 g (0.31 lb)
LubricantCompressed air ISO 8573-1:2010 [7:4:4]; lubricated possible
Part NumberDSNU-12-160-P-A
Mounting TypeISO 6432 round body; flange, foot, swivel, clevis accessories
Industry TermsISO 6432 cylinder; round body pneumatic cylinder; mini cylinder 12 mm bore; double-acting air cylinder; magnetic piston cylinder; 12 mm bore 160 mm stroke cylinder
Common MisspellingsFesto DSNU-12-160-P-A; Festo DSNU 12 160 PA; Festo DNSU-12-160-P-A; Festo DSNU12160 PA
Application TypesLight-duty pneumatic actuation; pick and place; clamping and positioning; packaging machinery; automation fixtures

Cross-References

Cross Reference 1DSNU-12-160-P - no magnetic piston
Cross Reference 2DSNU-12-160-PPV - adjustable cushioning
Seller Part Number: AF4B3#GMYRS0

Product Description

What this part is:

Festo DSNU-12-160-P-A, Festo order number 19196, is a double-acting round pneumatic cylinder to ISO 6432 with a 12 mm piston, 160 mm stroke, elastic cushioning and a magnetic piston. Unit Quantity: 1 Pc. Cylinder only.

Decoding the designation:

DSNU — Festo’s round cylinder family to ISO 6432, stainless steel barrel with wrought aluminium alloy bearing and end caps.

12 — piston diameter in millimetres.

160 — stroke in millimetres.

P — elastic cushioning rings and plates at both ends.

A — with position sensing; the piston carries a magnet for proximity switches clamped to the barrel.

Specifications:

Piston Diameter: 12 mm. Stroke: 160 mm. Operating Pressure: 1 to 10 bar. Pneumatic Connection: M5. Piston Rod Thread: M6, male. Cushioning: elastic cushioning rings and plates at both ends. Position Sensing: magnetic piston, via proximity switch. Theoretical Force at 6 bar, Advancing: 68 N. Theoretical Force at 6 bar, Retracting: 51 N. Impact Energy in the End Positions: 0.07 J. Moving Mass at 0 mm Stroke: 18.5 g. Operating Medium: compressed air to ISO 8573-1:2010 [7:4:4]; lubricated operation is possible. Ambient Temperature: -20 to +80 °C. Conforms to Standard: ISO 6432 and CETOP RP 52 P. Approvals: ATEX II 2GD and Germanischer Lloyd. Product Weight: 139 g.

Dimensions and mounting:

Overall Length at 160 mm Stroke: 265 mm. Body Length at 0 mm Stroke: 105 mm. Pneumatic Connection: M5, both ends. Piston Rod Thread: M6 male. Mounting Position: any. Mounting is by accessory across the ISO 6432 12 mm envelope: flange, foot, swivel, rear and front clevis.

Compatibility and replacement:

Related Festo cylinders: DSNU-12-160-P — same cylinder without the magnetic piston. DSNU-12-160-PPV — pneumatic cushioning adjustable at both ends in place of the elastic rings. ESNU-12-160 — single-acting spring-return version on the same ISO 6432 envelope. Other ISO 6432 12 mm cylinders share the mounting interface, M5 ports and M6 rod thread; they differ in cushioning type, magnet and barrel material. Searchable forms of the number: 19196, DSNU12160PA, DSNU 12 160 P A.

Frequently asked questions:

What is the Festo order number for the DSNU-12-160-P-A?

Festo order number 19196.

What are the bore, stroke and pressure range?

Piston diameter 12 mm, stroke 160 mm, operating pressure 1 to 10 bar, M5 pneumatic connections.

What cushioning and sensing does it have?

Elastic cushioning rings and plates at both ends, impact energy 0.07 J, with a magnetic piston for proximity switch sensing.
