Rexroth0822332208Mini Pneumatic Cylinder, ISO 6432 – 16 mm Bore, 200 mm Stroke, Double-Acting, Magnetic Piston

Product Description

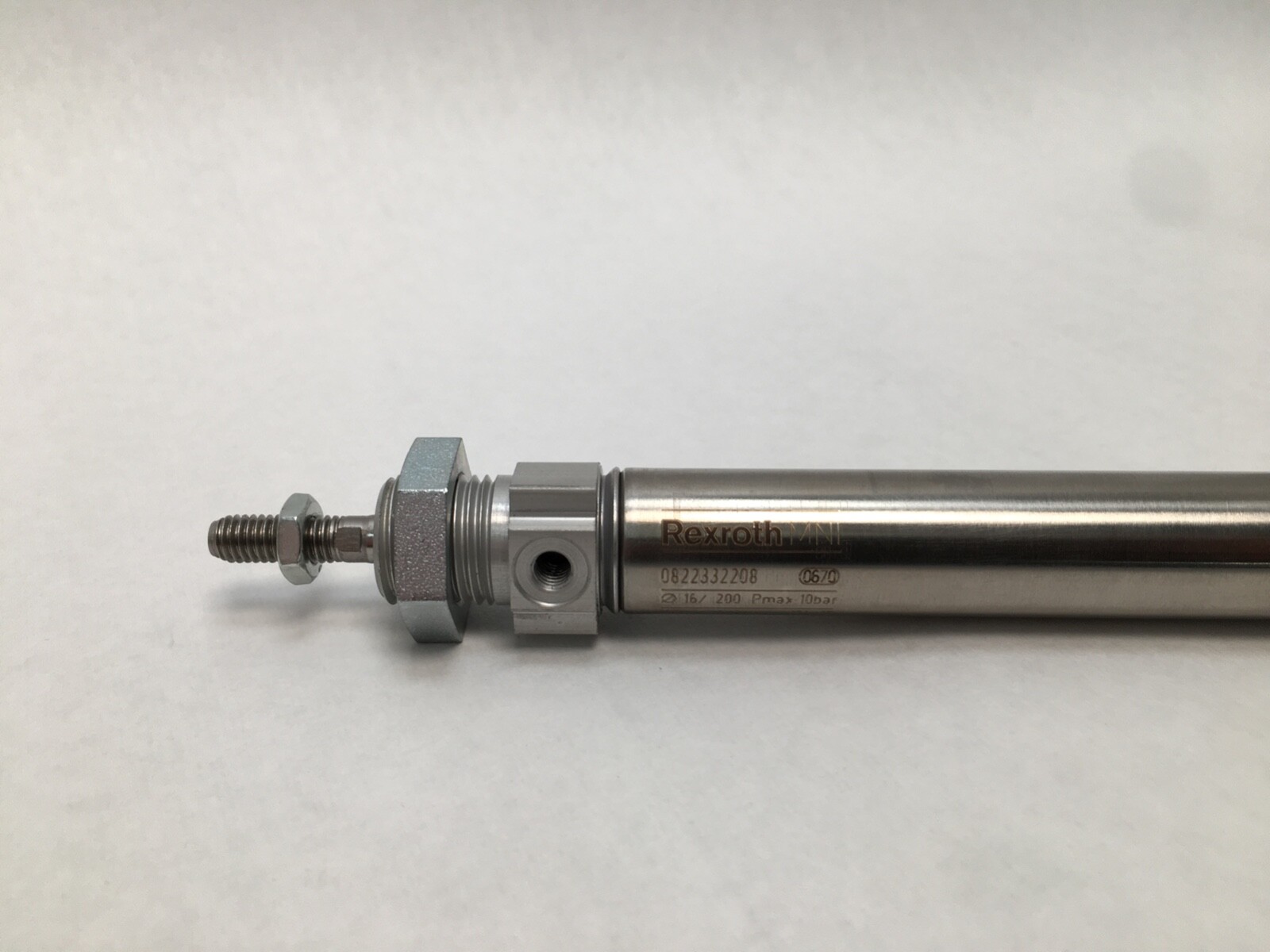

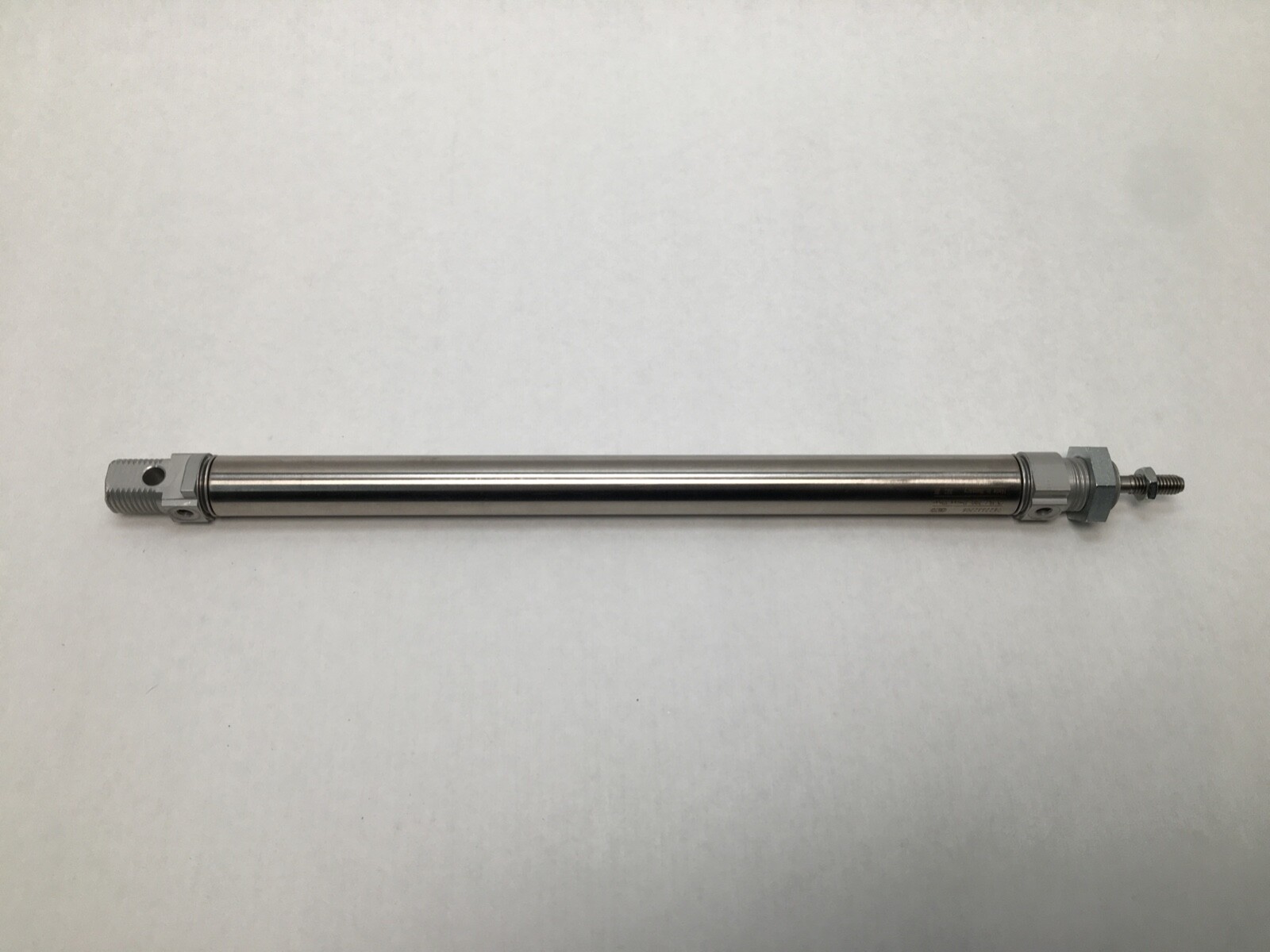

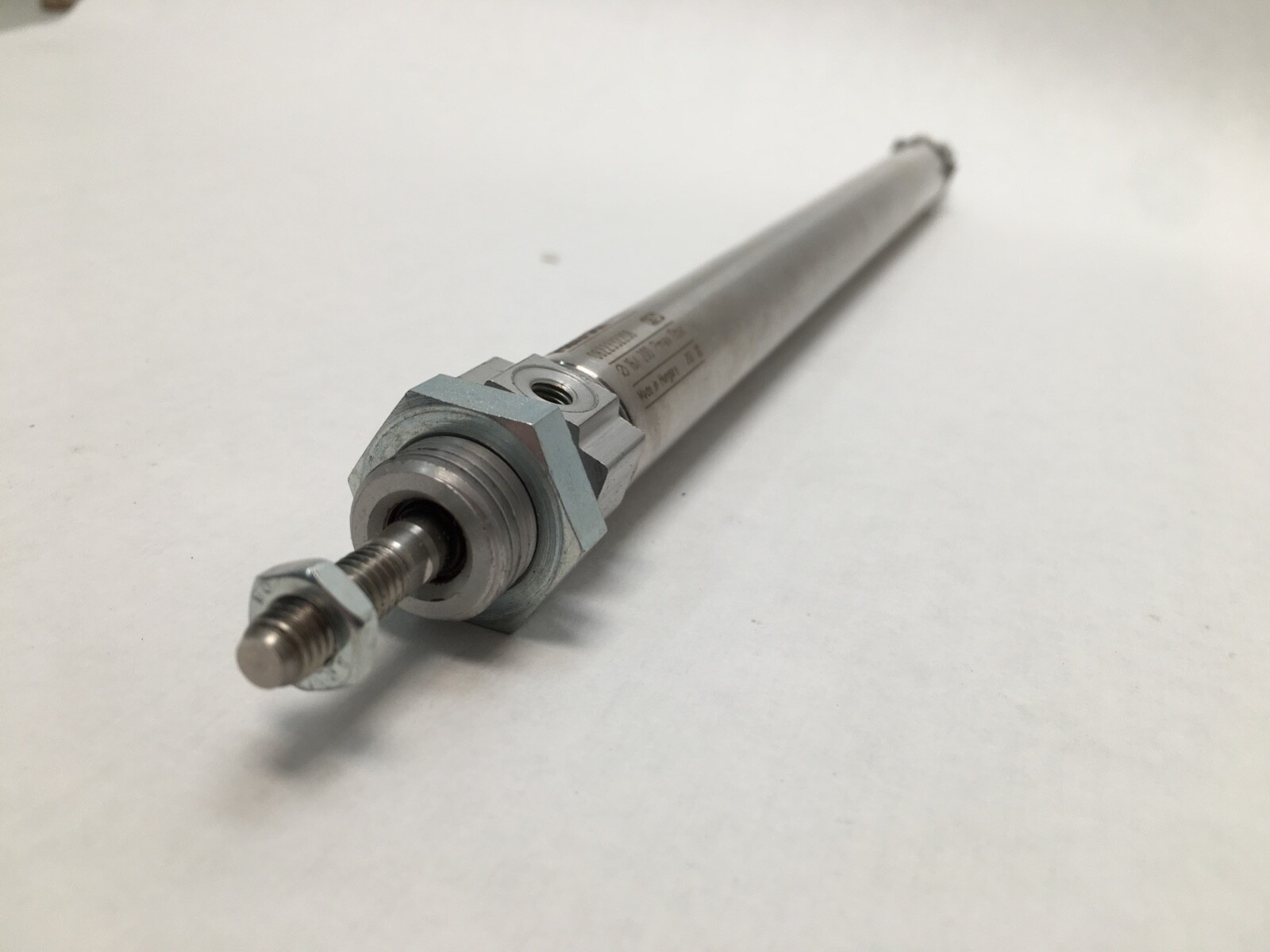

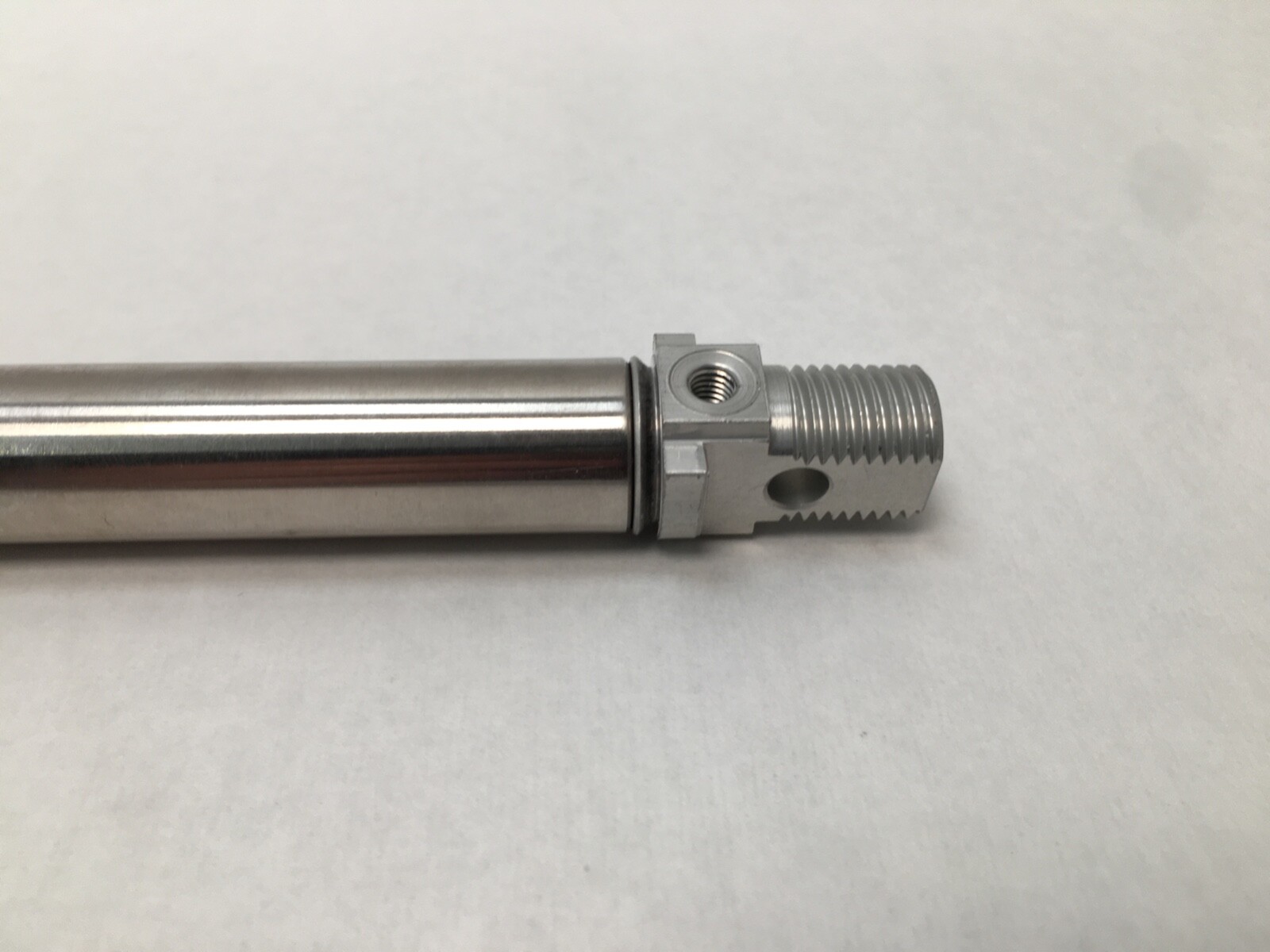

What this part is: Bosch Rexroth / AVENTICS 0822332208 mini pneumatic cylinder, Series MNI, built to ISO 6432. Bore: 16 mm. Stroke: 200 mm. Functional principle: double-acting. Ports: M5. Piston rod thread: M6 external. Body material: aluminium. Medium: compressed air. Decoding the order code: Material number 0822332208 corresponds to the AVENTICS type code MNI-DA-16-0200-U-31-01-1-00-000-00. MNI: mini cylinder series. DA: double-acting. 16: 16 mm piston diameter. 0200: 200 mm stroke. The execution carries a magnetic piston, elastic end cushioning and a standard industry scraper on the rod. Performance data: Theoretical piston force at 6.3 bar: 127 N extending, 109 N retracting. Working pressure range: 1 bar to 10 bar (145 psi). Ambient temperature range: −25 °C to +80 °C. Permissible impact energy: 0.14 J. Mass: 0.201 kg (0.44 lb). What these specs mean in practice: A 16 mm bore at 6.3 bar delivers 127 N of extending thrust, which suits clamping, ejecting, indexing and small gate or diverter duty. Elastic end cushioning absorbs the stroke end without an adjustable needle, keeping the assembly short. The magnetic piston lets a reed or magnetoresistive sensor mounted on the barrel report piston position for machine sequencing. Quantity and configuration: Sold as 1 Pc, cylinder only. Fitting notes: Round-body ISO 6432 envelope, so ISO 6432 clevis, flange, foot and swivel mountings for a 16 mm bore fit directly. Both air ports are M5 female. The rod end takes an M6 male thread for rod eyes, couplers and floating joints. Cross-reference guidance: The same cylinder is catalogued under Bosch Rexroth Pneumatics, AVENTICS and Emerson AVENTICS branding against one material number, 0822332208. Written forms in circulation: 0822332208, 0822 332 208, 0-822-332-208, and the type code MNI-DA-16-0200-U-31-01-1-00-000-00.
