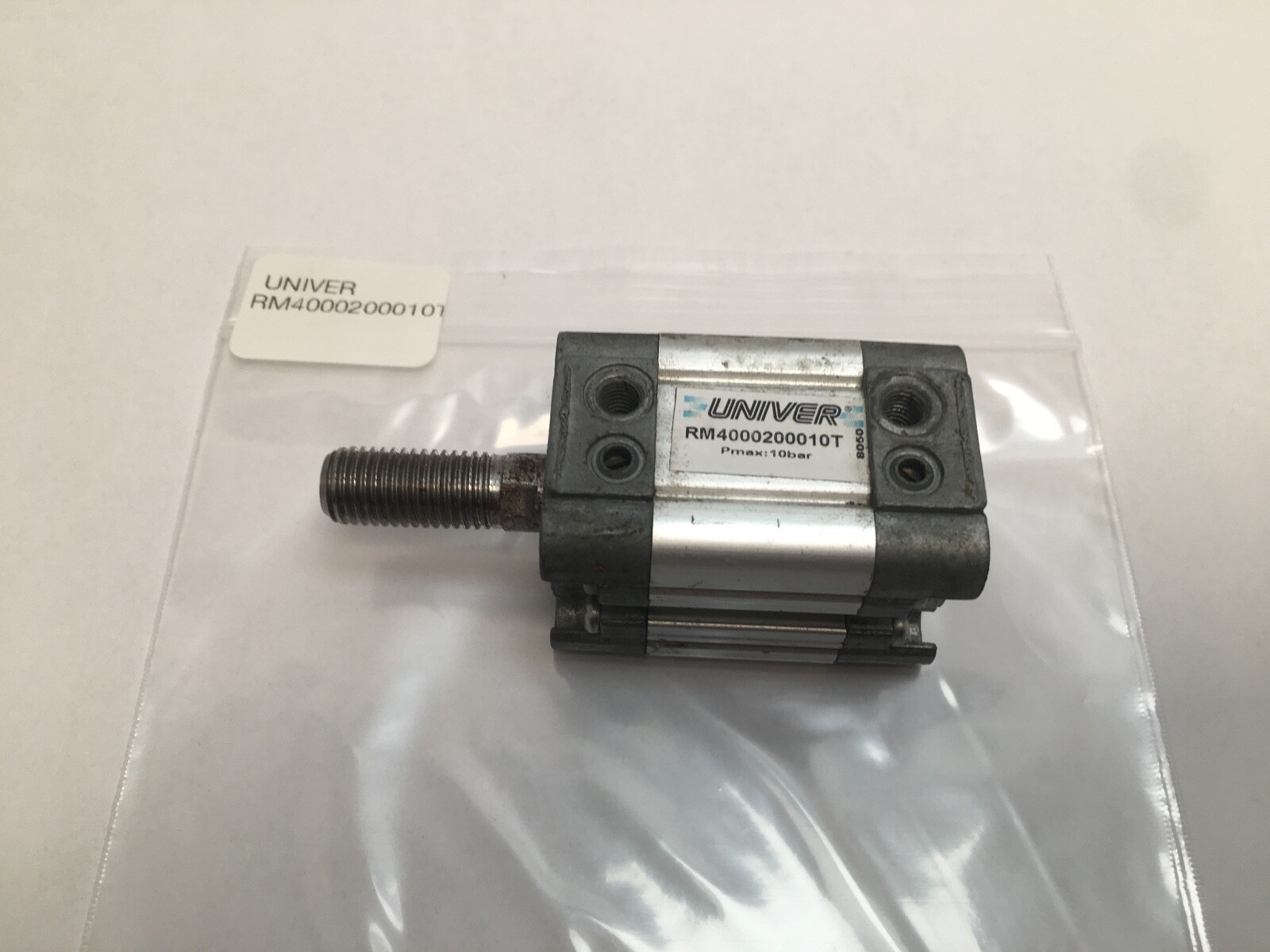

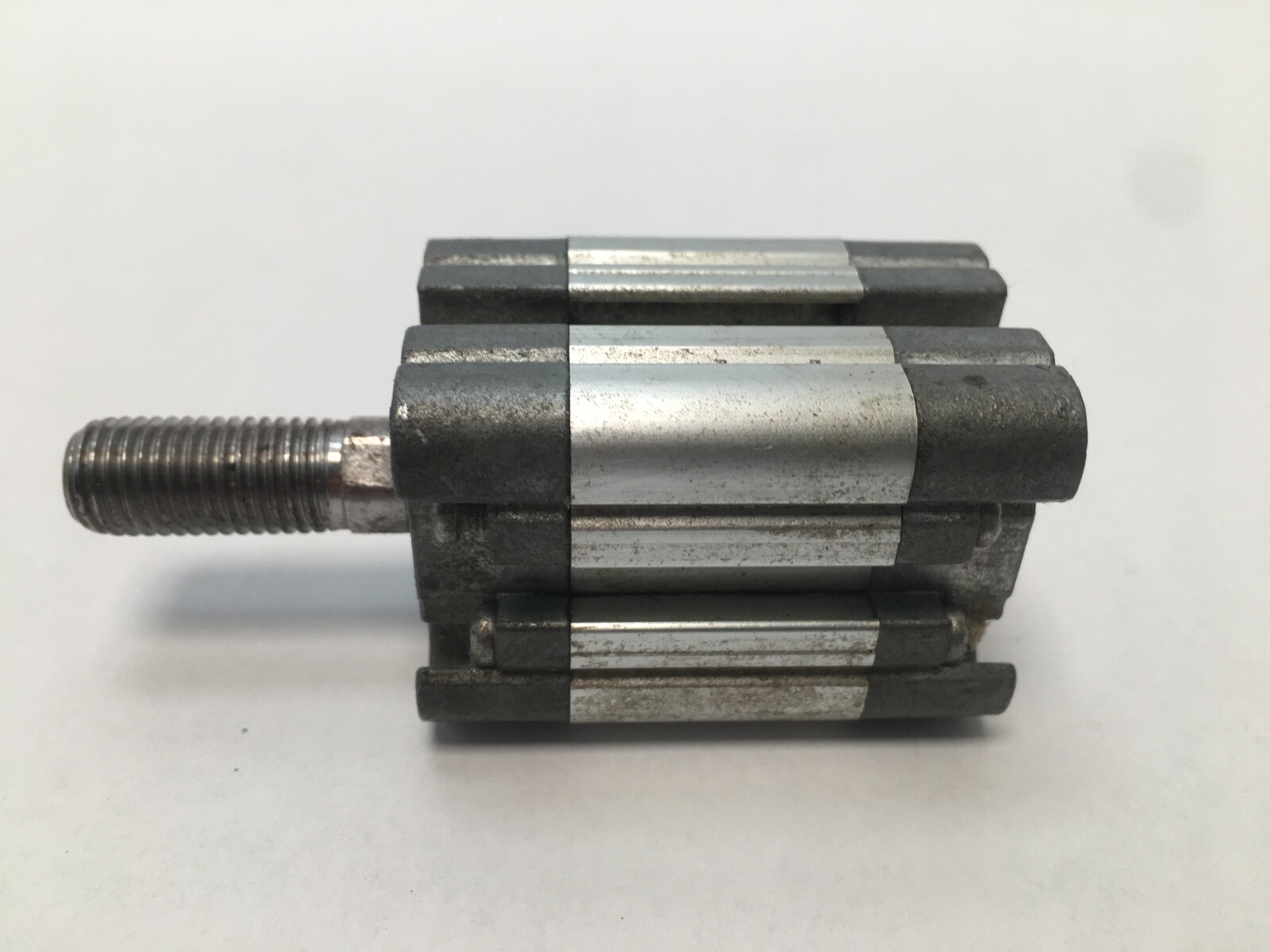

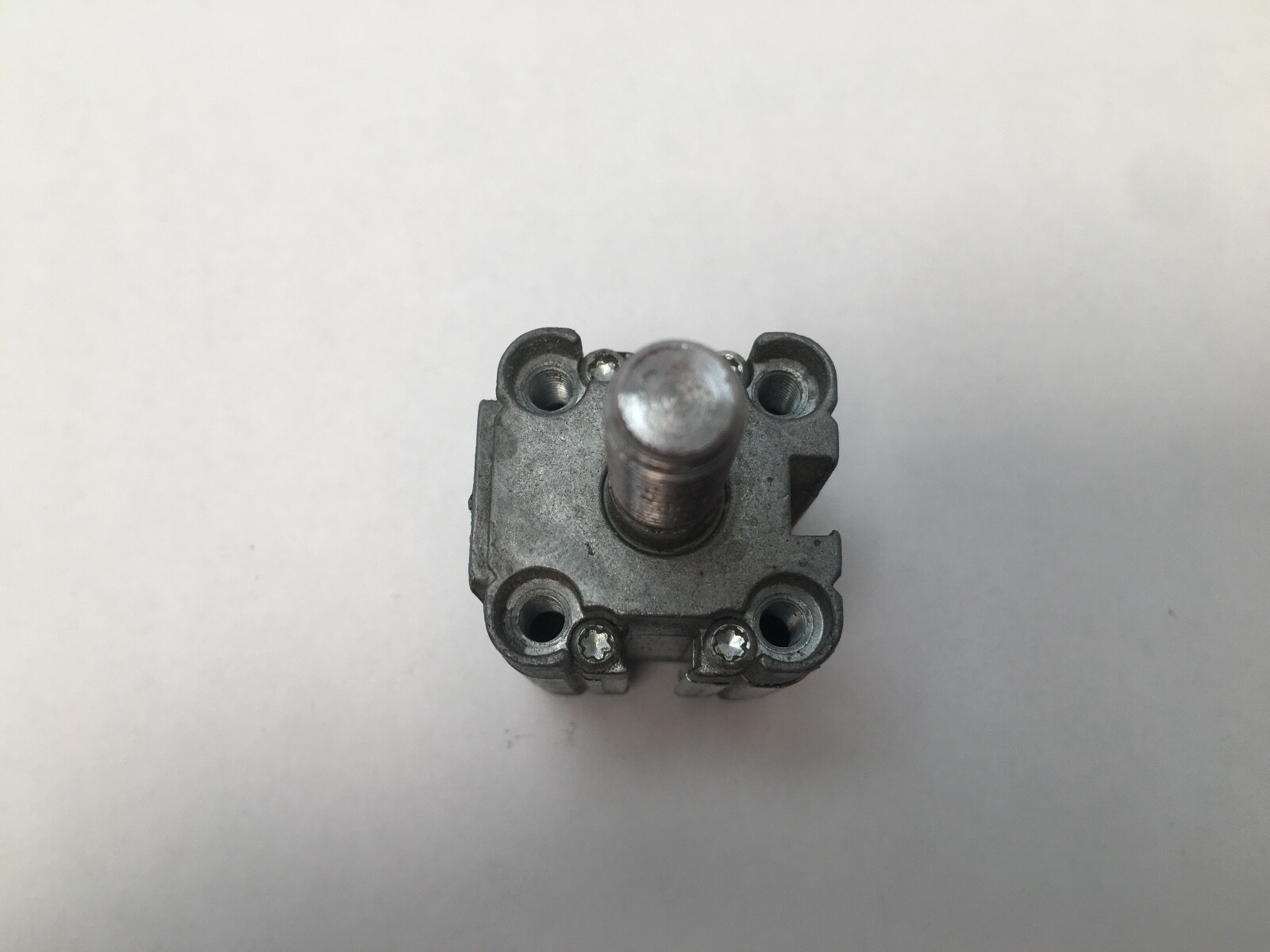

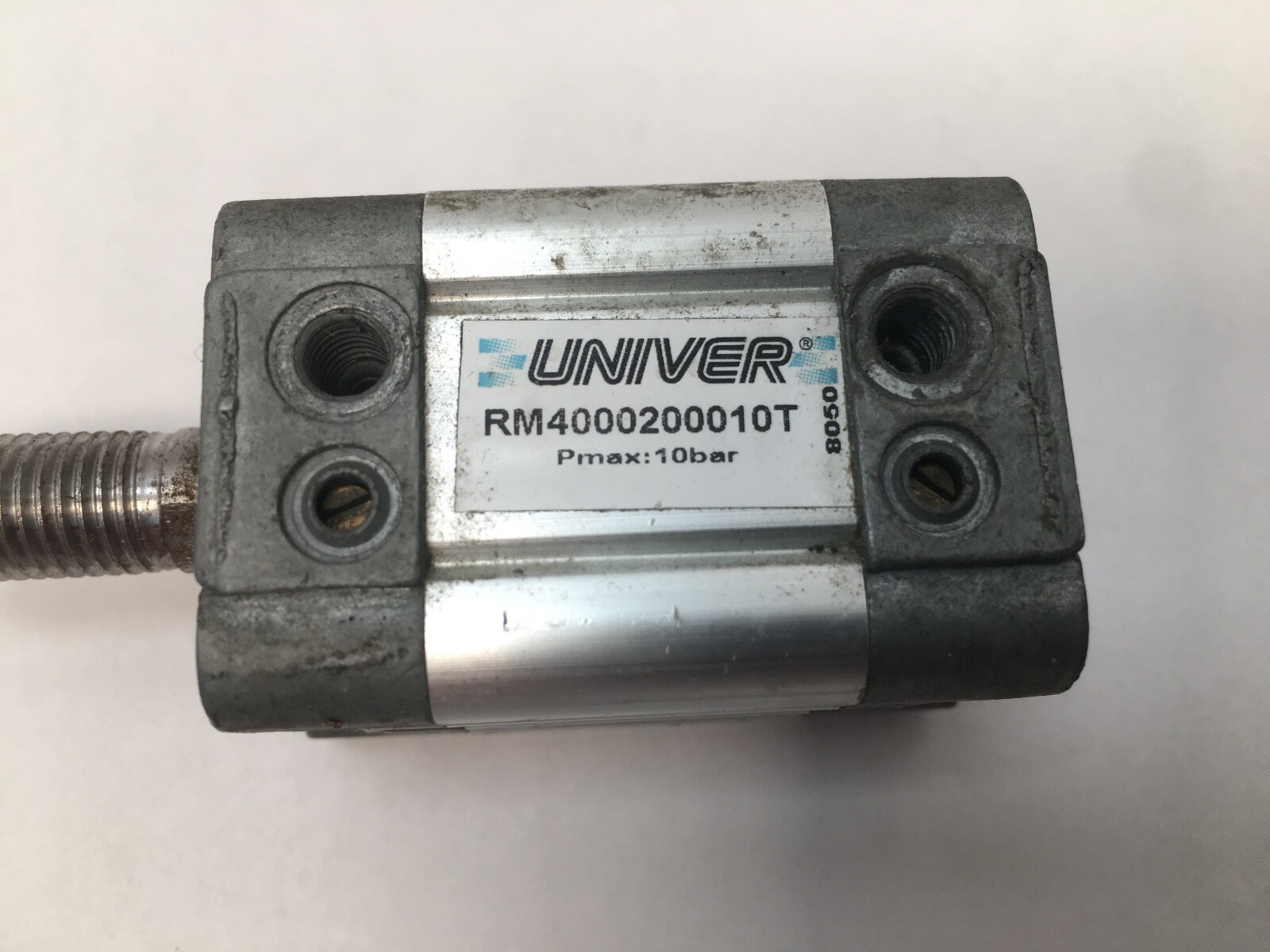

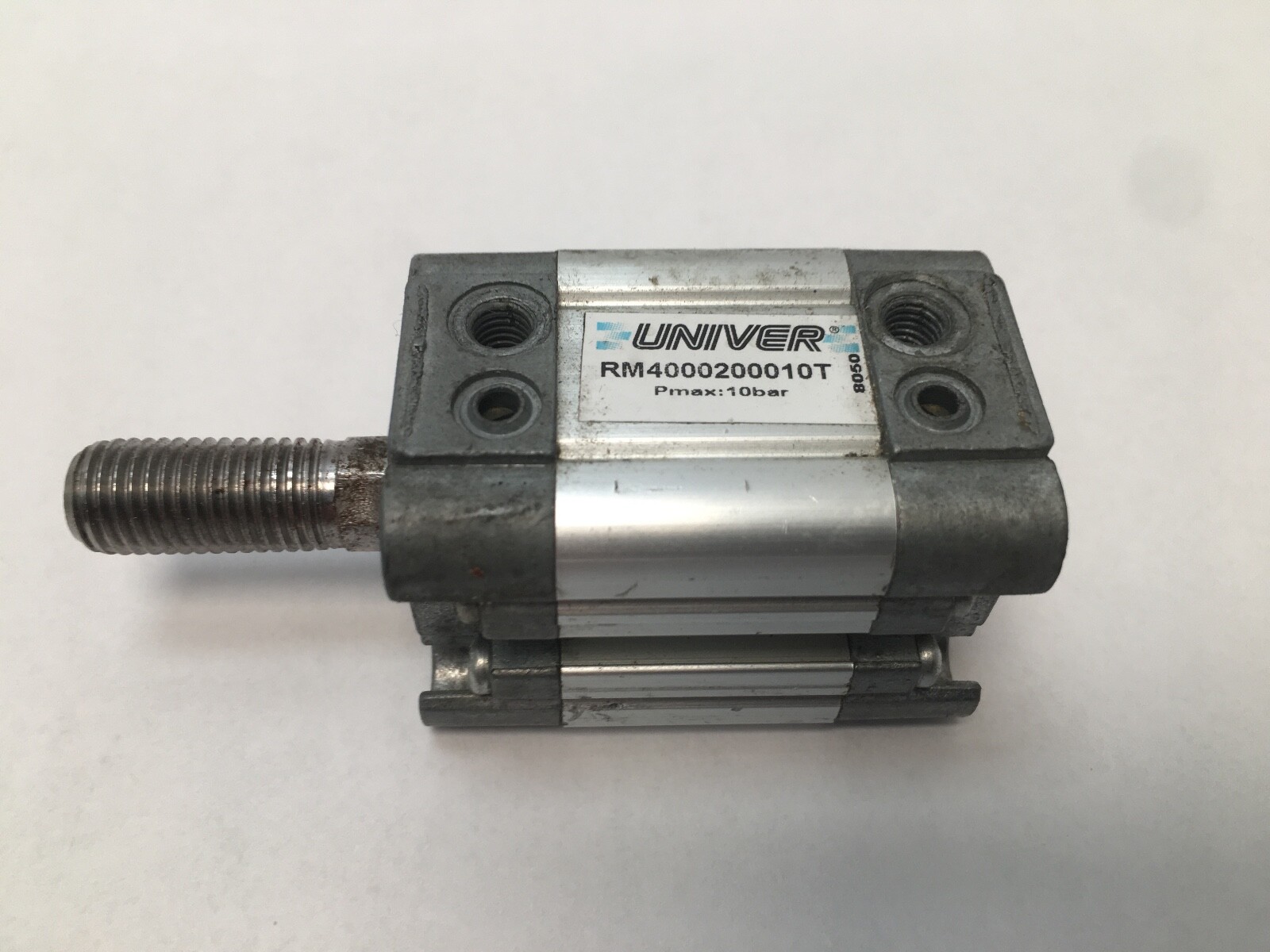

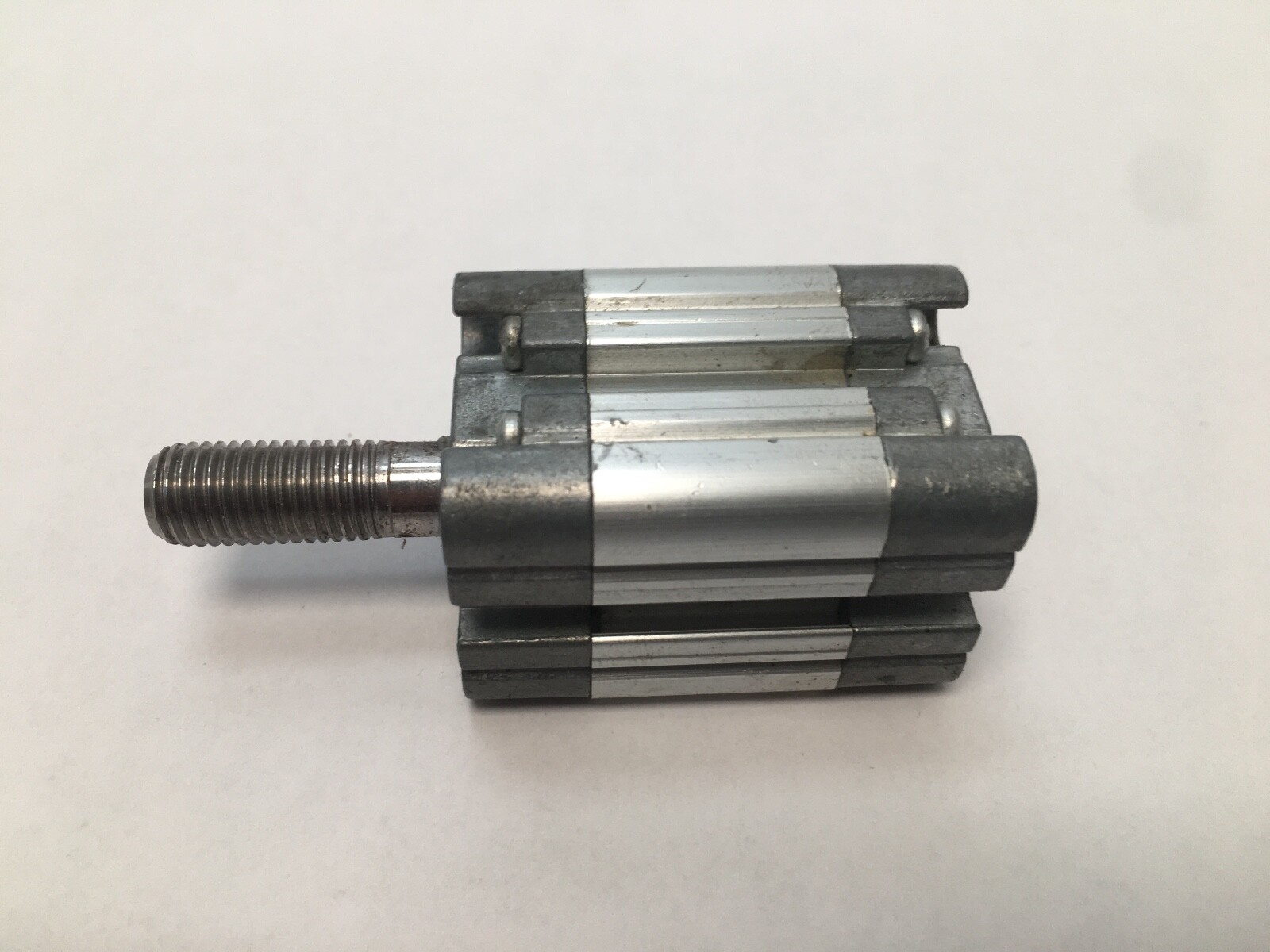

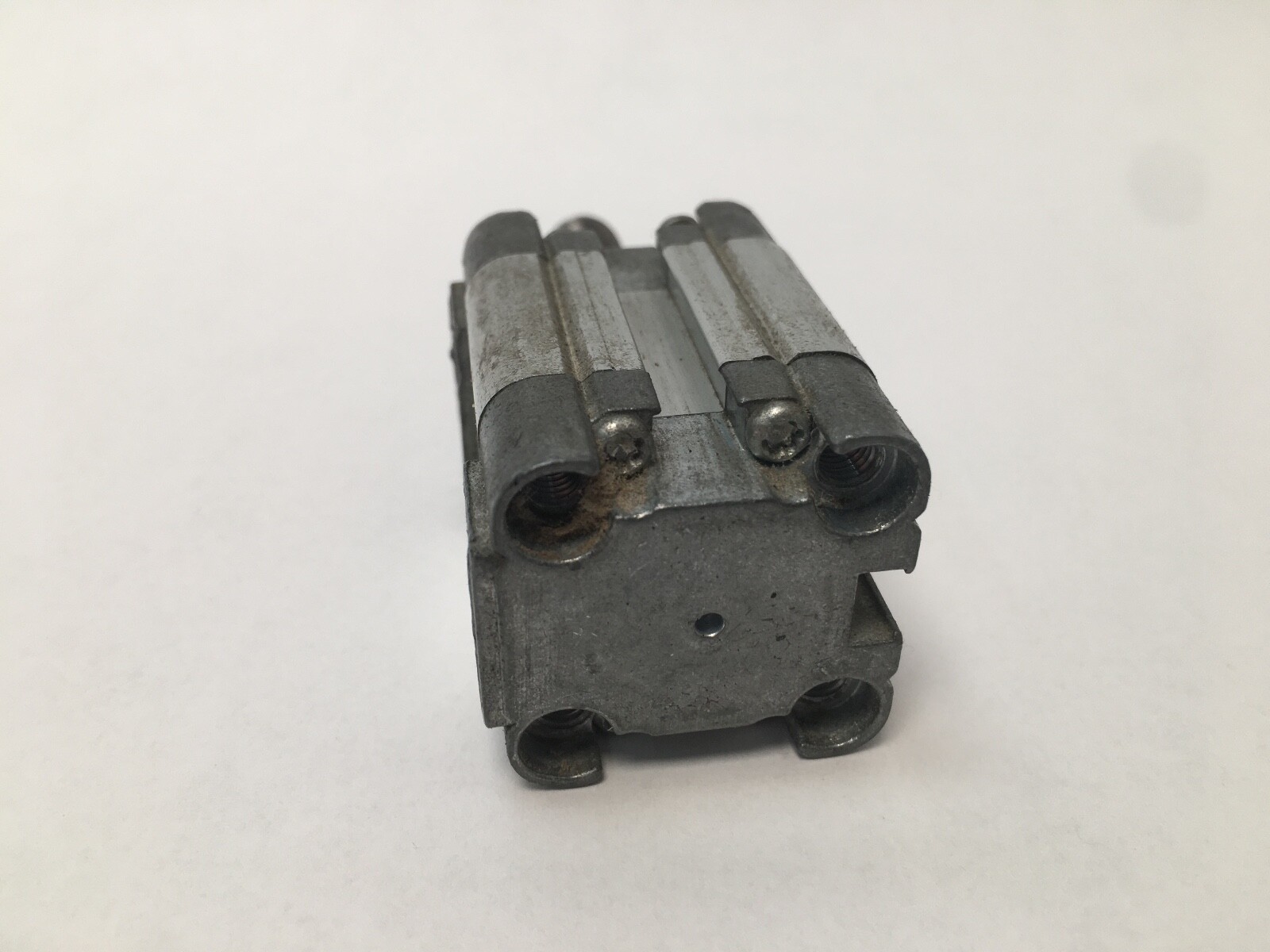

Compact pneumatic cylinder, 20 mm bore, 10 mm stroke, ISO 21287 design, male rod end, adjustable cushioning, 1.5 to 10 bar. Univer RM400 series, open box.
List Price
$32.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | UNIVER |
|---|---|
| MPN | RM400-020-0010-T |
| Model | RM4000200010T |
| ID | 20 mm |
| Type | Compact Pneumatic Cylinder |
|---|---|
| Mpn Variants | RM4000200010T, RM400-020-0010-T, RM400 020 0010 T, RM4000200010 |
| Additional Attributes | Double-acting; rod thread M8x1.25; port thread M5; max speed 1 m/s; mass 157 g at zero stroke plus 1.45 g/mm; thrust 188 N and traction 142 N at 6 bar |
| Material | Aluminum |
| Series | RM400 |
| Industry Terms | compact pneumatic cylinder; ISO 21287 cylinder; short stroke air cylinder; compact air cylinder; double-acting compact cylinder |
| Common Misspellings | Univer RM400 020 0010T, Unviver RM4000200010T, Univer RM-400-020-0010-T, RM4000200010 T |
| Application Types | Automation fixtures; clamping and positioning; packaging machinery; material handling |
Univer RM400-020-0010-T compact double-acting pneumatic cylinder, RM series to ISO 21287, with a chromium-plated steel male piston rod and adjustable pneumatic cushioning. Bore Diameter: 20 mm. Stroke: 10 mm. Unit Quantity: 1 Pc.
RM — Univer compact cylinder series with ISO 21287 inter-axes, round barrel, bores 16 to 63 mm.
4 — male piston rod in chromium-plated steel.
00 — double-acting.
020 — 20 mm bore.
0010 — 10 mm stroke.
Bore Diameter: 20 mm. Stroke: 10 mm. Operating Pressure: 1.5 to 10 bar. Operating Temperature: -20 to +80 °C. Fluid: lubricated or non-lubricated air. Maximum Speed: 1 m/s. Barrel Material: extruded aluminium alloy, anodized. Piston Material: Aluminum. Piston Rod: chromium-plated steel, male thread M8x1.25. Seal Material: NBR piston seals, polyurethane rod seals. Cushioning: adjustable pneumatic. Port Thread: M5. Theoretical force at 6 bar: thrust 188 N, traction 142 N.
Rod thread M8x1.25. Port thread M5. Mass at zero stroke: 157 g, plus 1.45 g per mm of stroke.
ISO 21287 compact cylinder, Univer RM series. MPN Variants: RM4000200010T, RM400-020-0010-T, RM400 020 0010 T, RM4000200010.
20 mm bore and 10 mm stroke.
1.5 to 10 bar working pressure and -20 to +80 °C ambient temperature.
Chromium-plated steel with a male thread, M8x1.25.
