Camozzi31M2A025A010Compact Pneumatic Cylinder – Double-Acting, 25 mm Bore, 10 mm Stroke, M10x1.25 Male Rod, M5 Ports

Condition: New

Availability:

1 in stock

Camozzi 31M2A025A010 Series 31 compact double-acting pneumatic cylinder, 25 mm bore, 10 mm stroke, M10x1.25 male rod, M5 ports, magnetic piston.

Same day shipment

List Price

$51.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandCamozzi
MPN31M2A025A010
Model31M2A025-A010
ID25 mm

Technical Specifications

TypePneumatic
Stroke Length10 mm
Mpn Variants31M2A025A010, 31M2A025-A010, 31M2A025 A010
Additional AttributesForce at 6 bar advance: 259.9 N; Force at 6 bar return: 218.3 N
MaterialAnodised aluminium barrel, stainless steel rod
SeriesSeries 31
Item Weight0.233 kg (0.51 lb)
Harmonization Code8412.31.00
Industry Termscompact pneumatic cylinder; short stroke cylinder; ISO 21287 compact cylinder; double-acting air cylinder; magnetic piston cylinder; 25 mm bore 10 mm stroke cylinder
Common MisspellingsCamozi 31M2A025A010; Camozzy 31M2A025A010; Camozzi 31M2A025 A01; Camozzi 31M2A025A10
Application TypesClamping; Part positioning; Pushers and stoppers; Pneumatic automation; Packaging machinery; Sensor-actuated stroke detection
Port SizeM5
Seller Part Number: AO1B5#LNAJ8K

Product Description

What this part is:

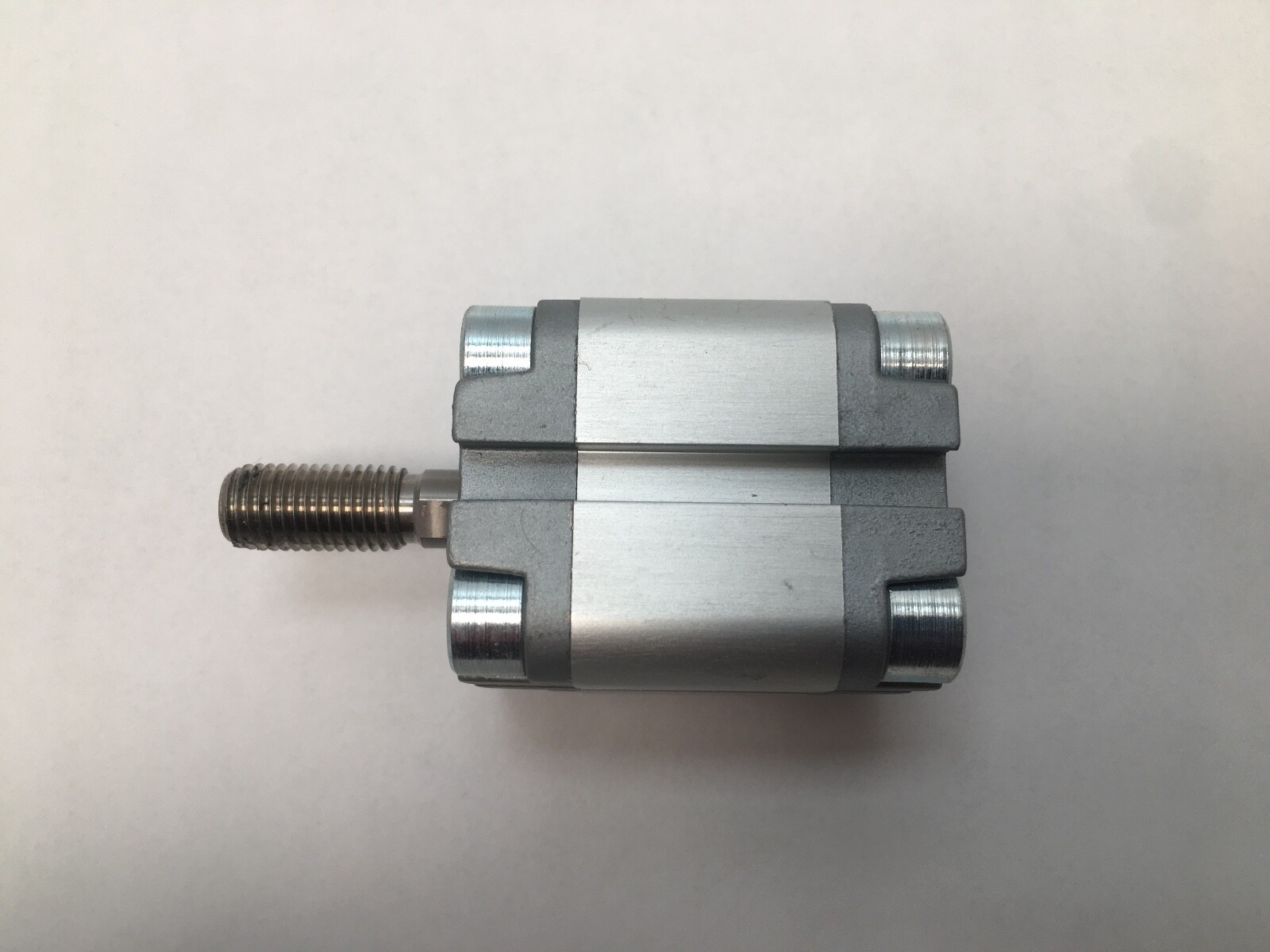

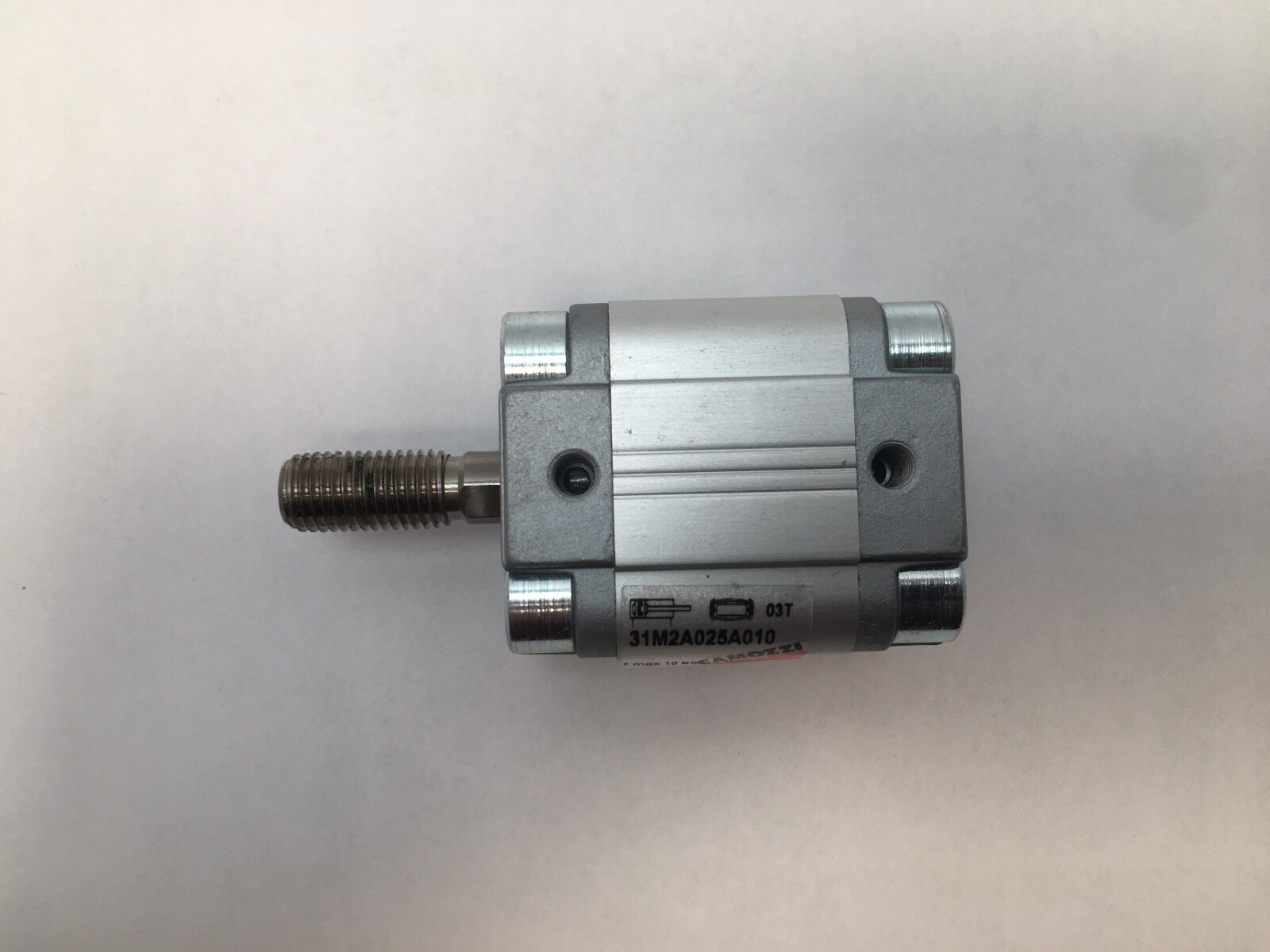

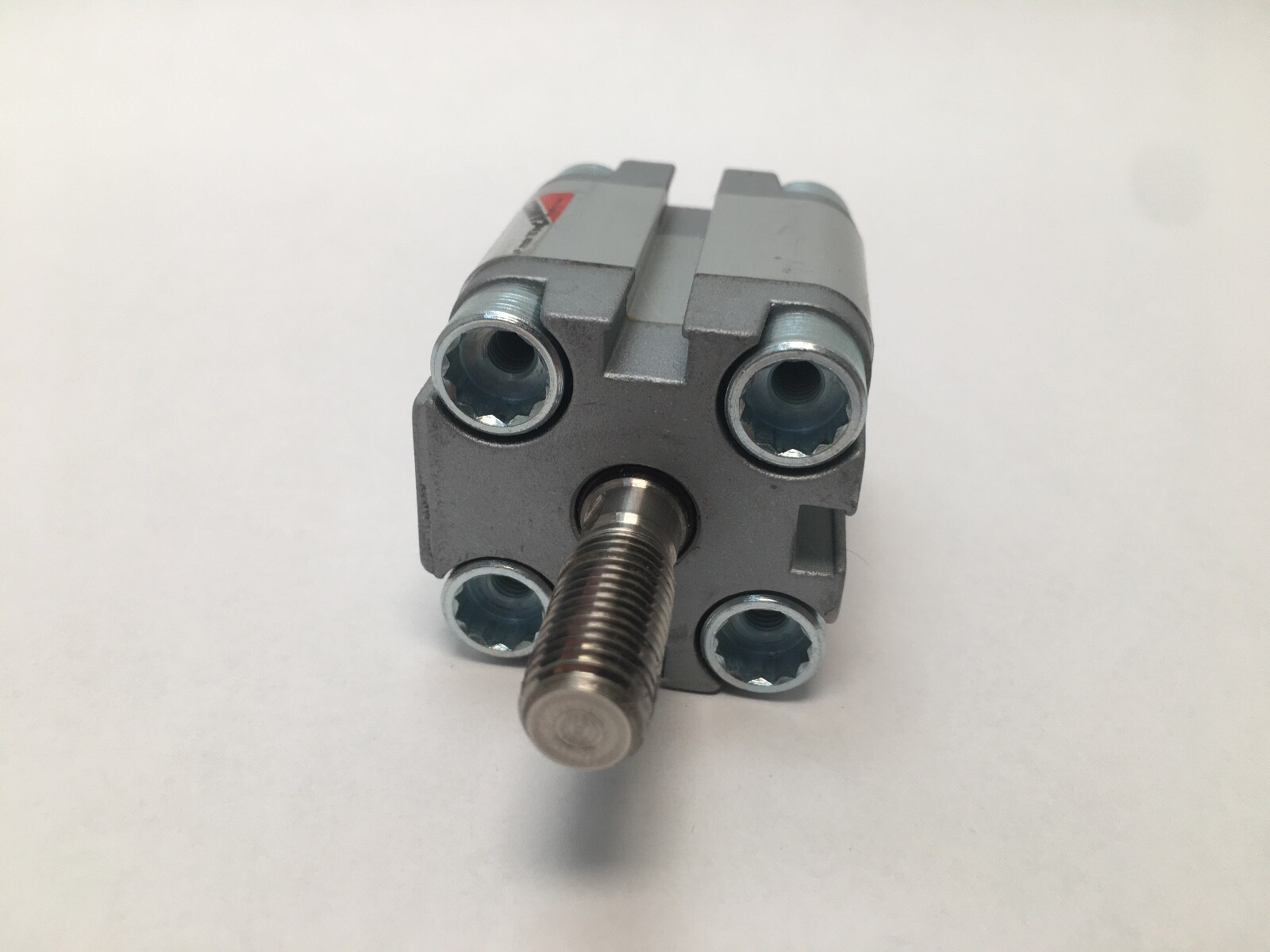

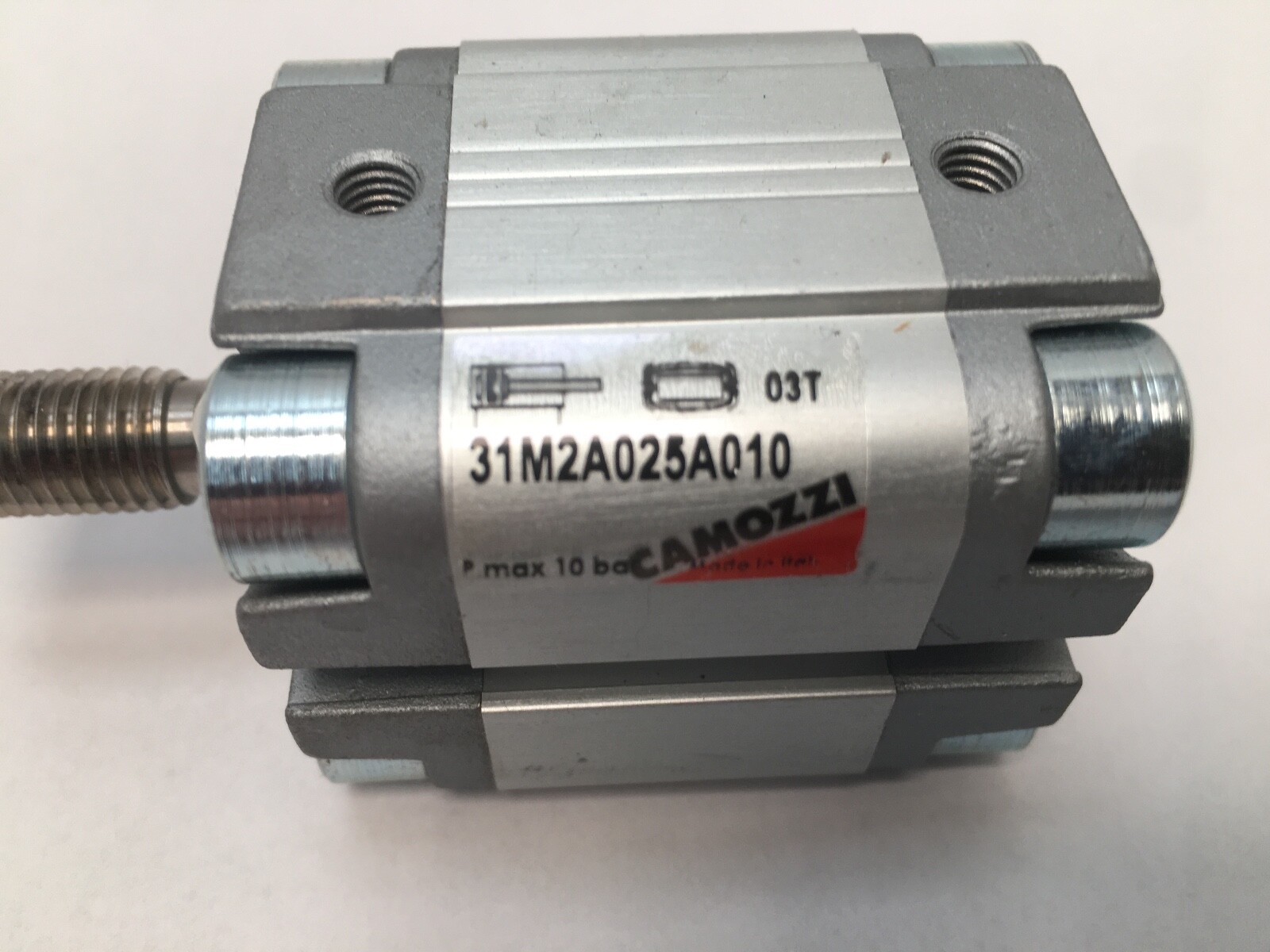

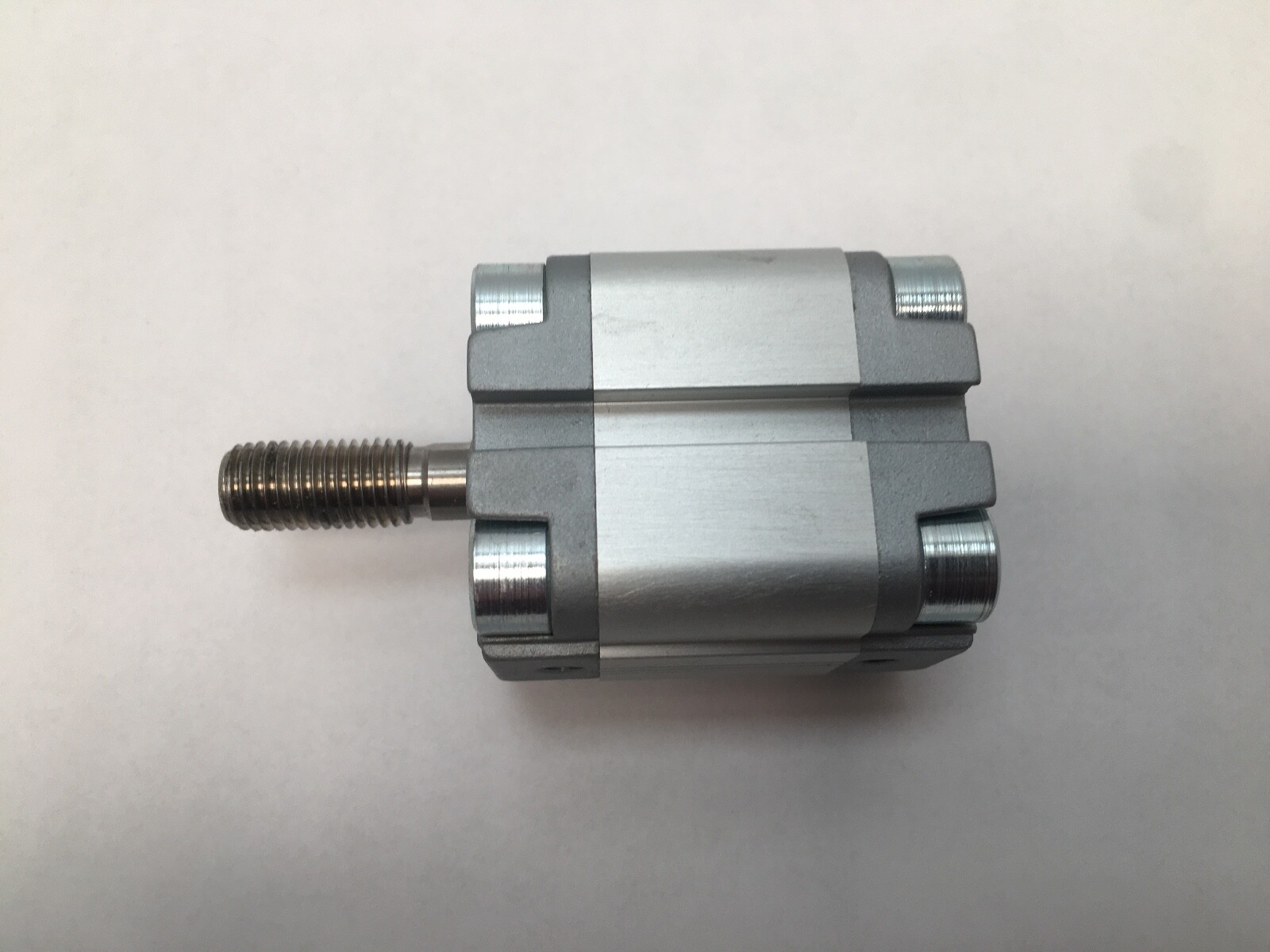

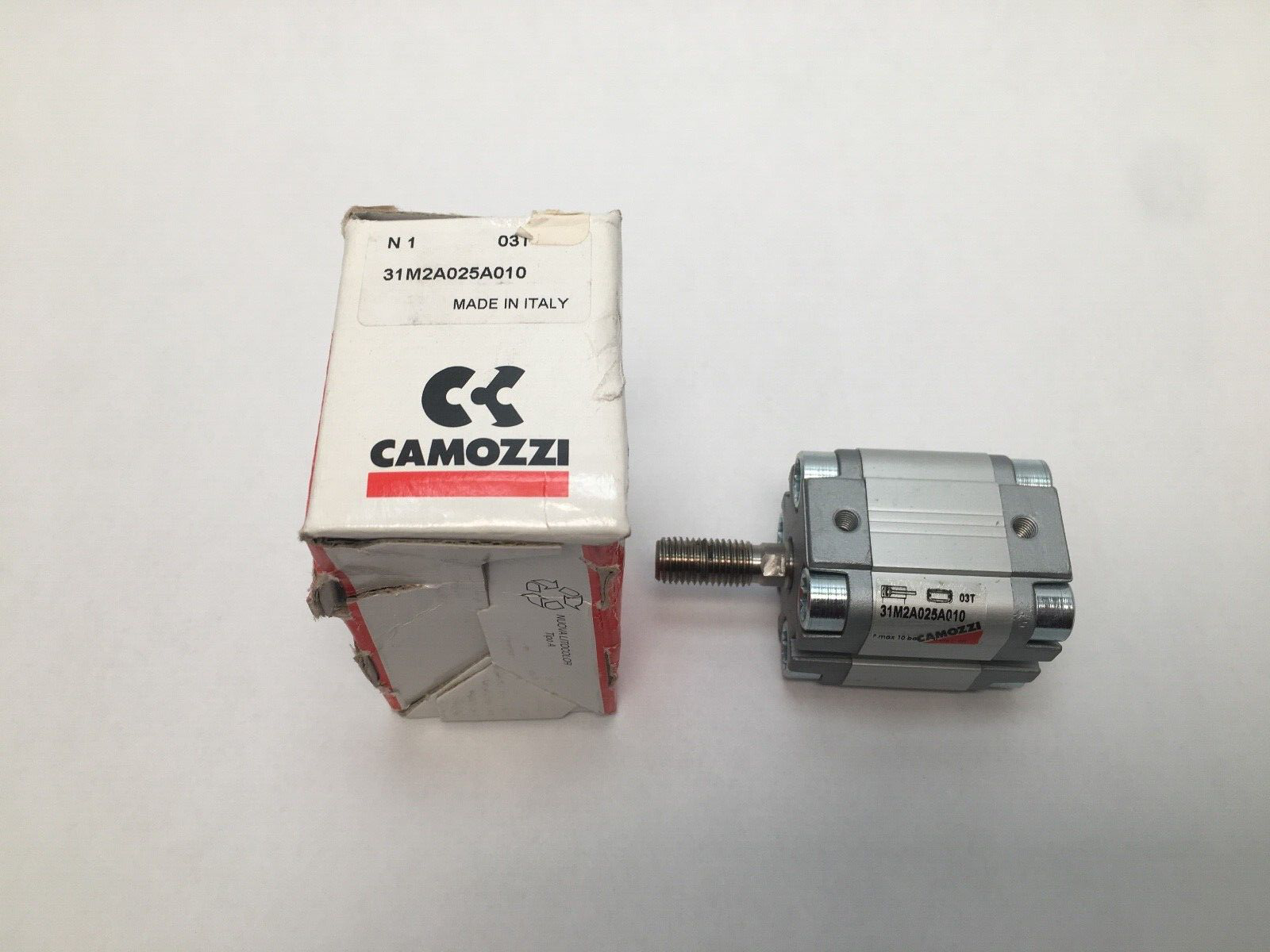

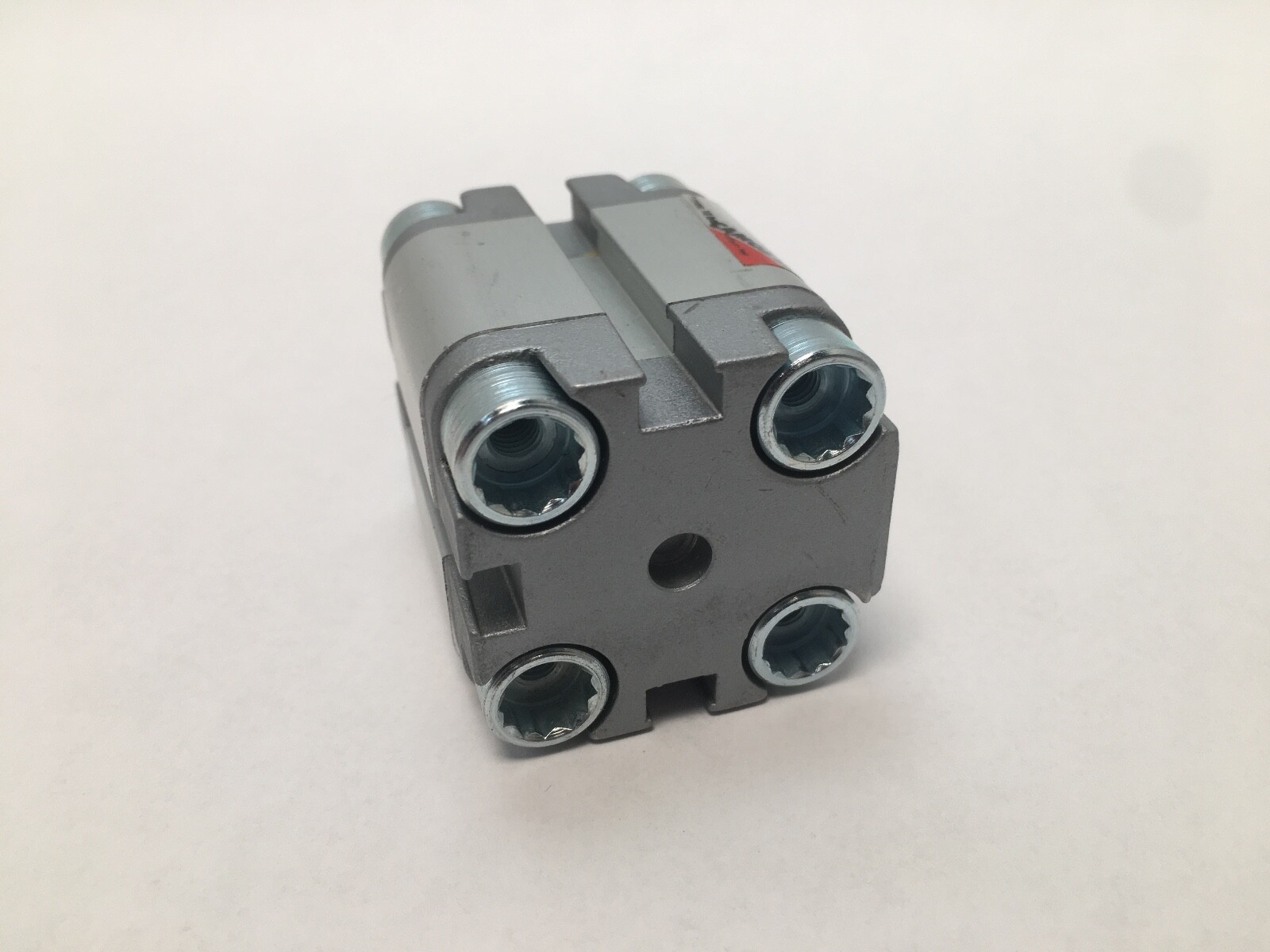

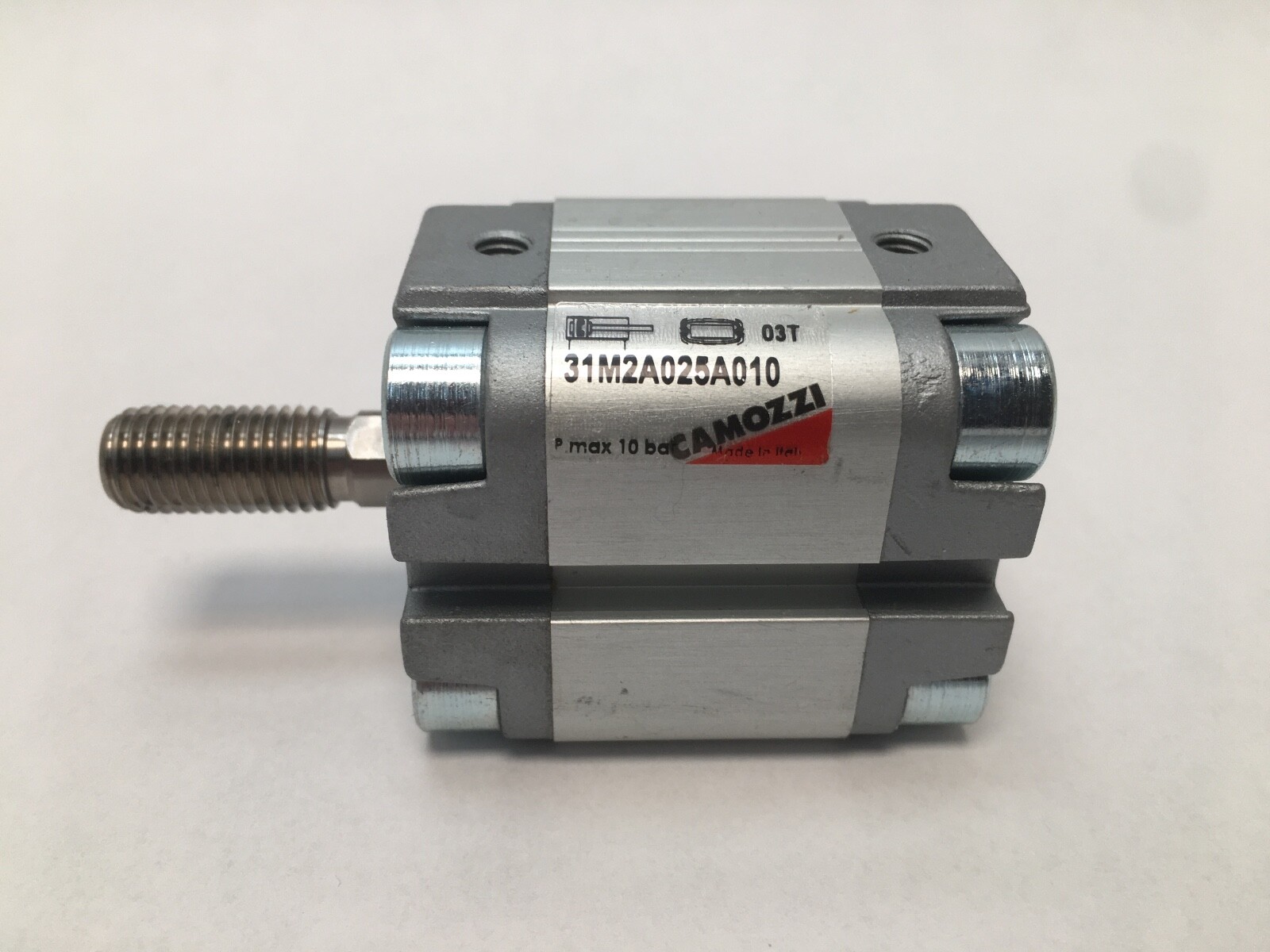

The Camozzi 31M2A025A010 is a Series 31 compact double-acting pneumatic cylinder with a 25 mm bore, 10 mm stroke and male-threaded piston rod. The magnetic piston works with proximity sensors for position detection.

Decoding the designation:

31 — Camozzi Series 31 compact cylinder.

025 — 25 mm piston bore.

A010 — 10 mm stroke.

Specifications:

Series: Series 31. Cylinder Type: Compact Cylinder. Mode of Operation: Double-Acting. Piston Bore Size: 25 mm. Stroke Length: 10 mm. Cushioning: Mechanical. Position Detection: For proximity sensors. Force at 6 bar, advance stroke: 259.9 N. Force at 6 bar, return stroke: 218.3 N. Cylinder Barrel Material: Anodised aluminium. Piston Rod Material: Stainless steel. Item Weight: 0.233 kg.

Dimensions and mounting:

Piston-rod End: Male thread. Piston-rod Thread: M10x1.25. Pneumatic Connection: M5. Accessory Size: Series 31, 25 mm.

Compatibility and replacement:

Accepts Camozzi Series 31 25 mm mounting accessories. MPN Variants: 31M2A025A010, 31M2A025-A010, 31M2A025 A010. Commodity Code: 84123100.

Frequently asked questions:

What are the bore and stroke of the 31M2A025A010?

25 mm bore and 10 mm stroke.

What thread is on the piston rod?

Male M10x1.25.

Can it be used with position sensors?

Yes. The piston is magnetic for proximity sensor detection.
