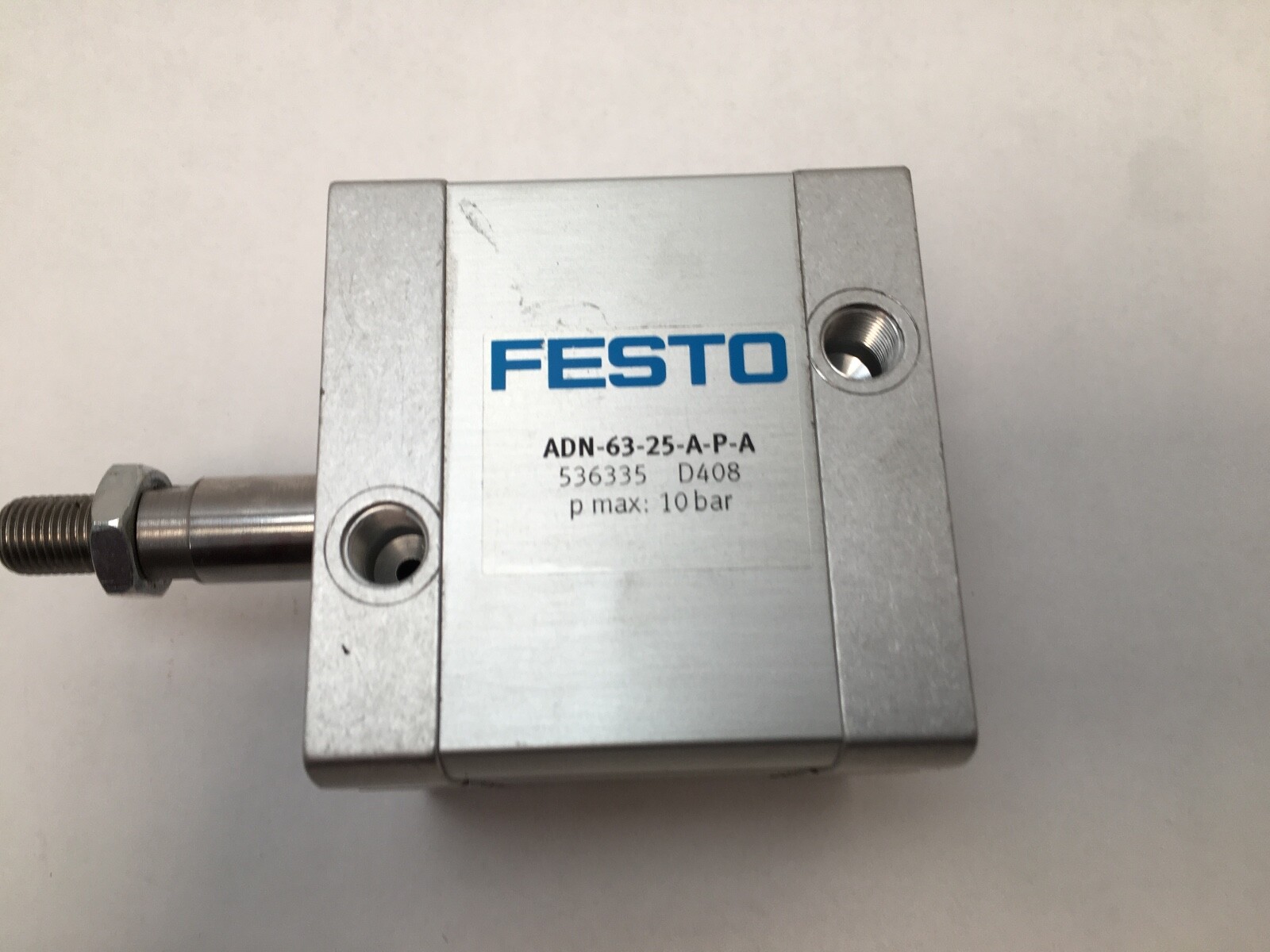

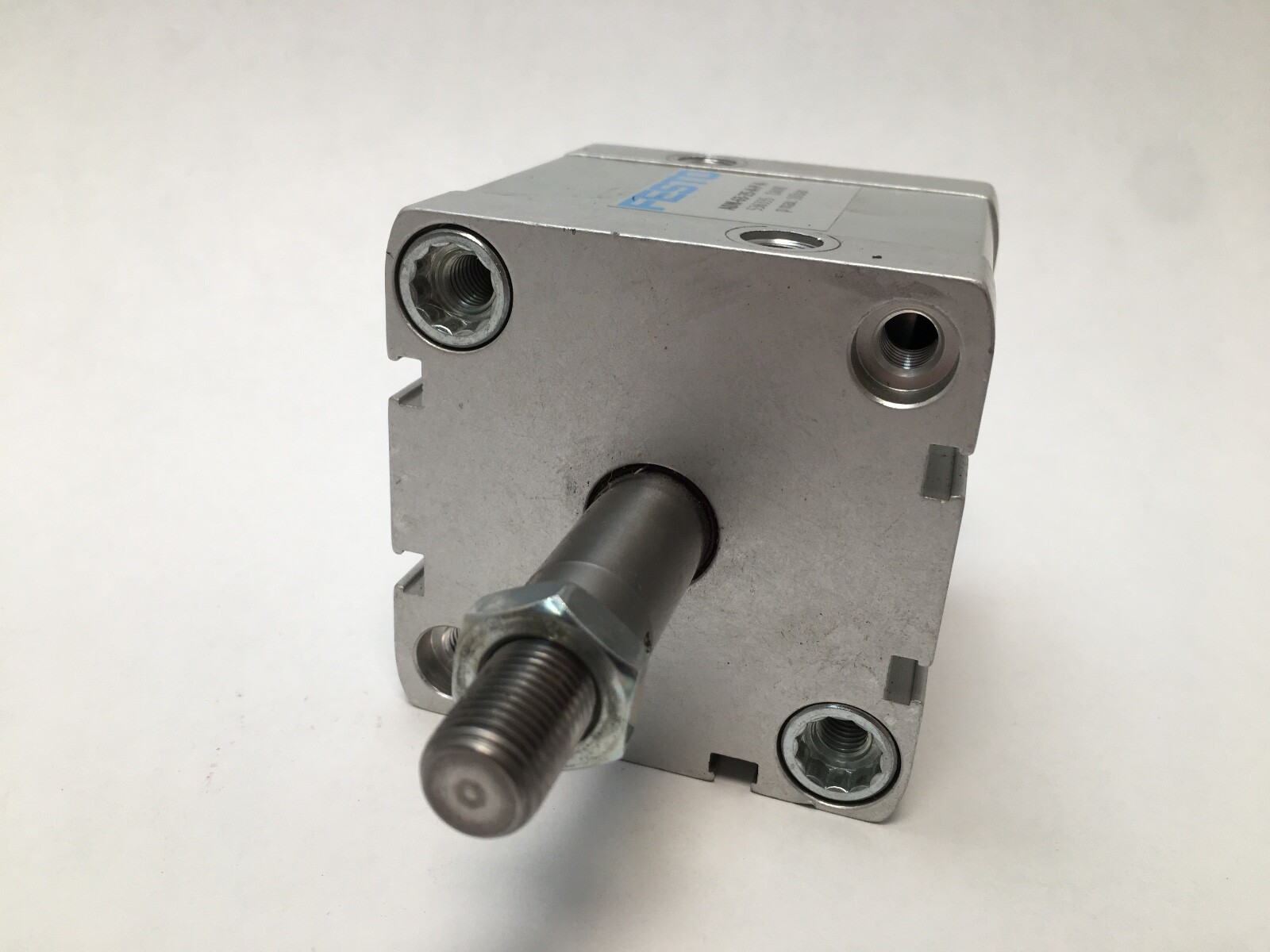

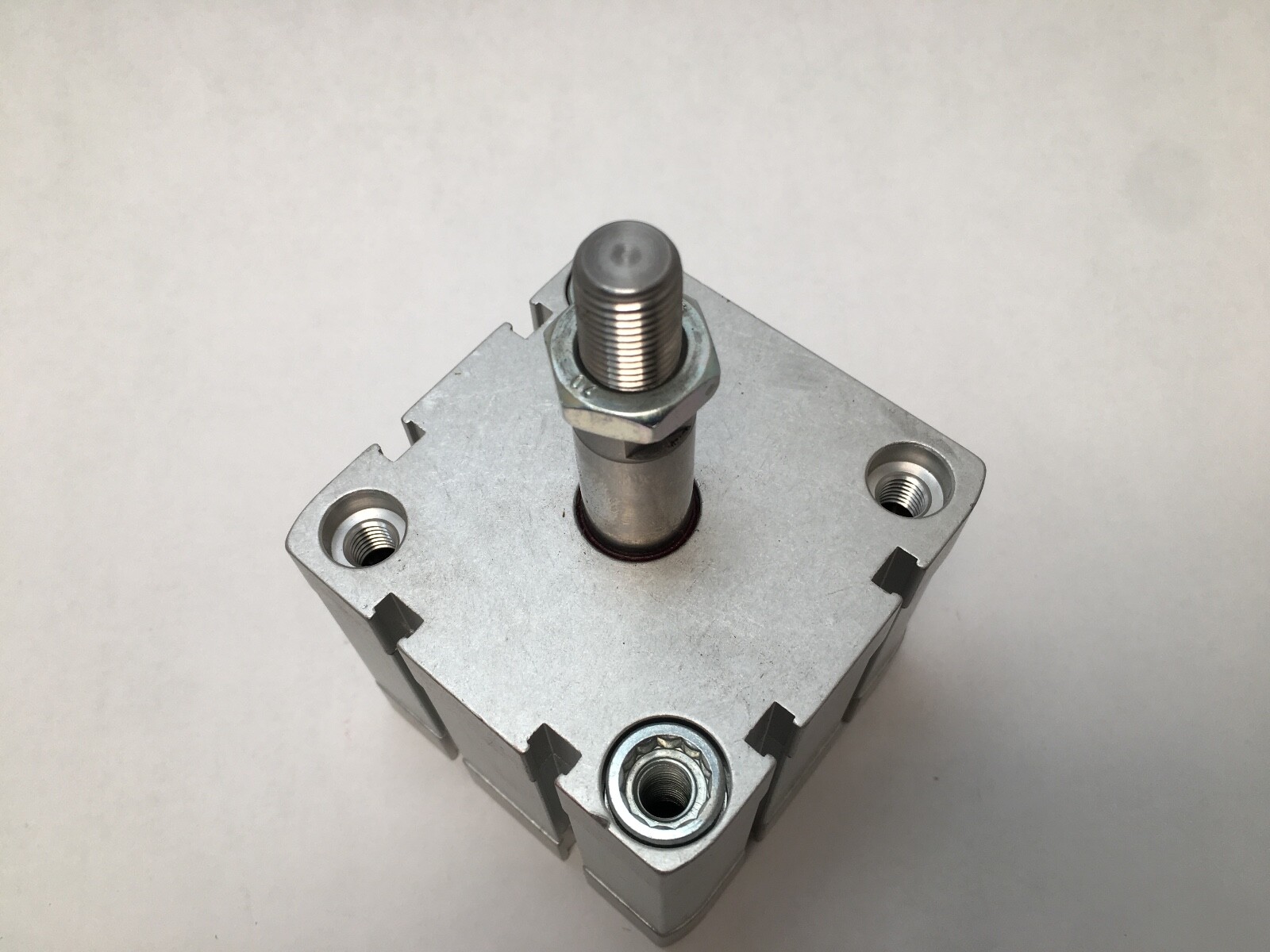

FestoADN-63-25-A-P-ACompact Pneumatic Cylinder to ISO 21287 – 63 mm Bore, 25 mm Stroke, 1,870 N at 6 bar, Magnetic Piston

Product Description

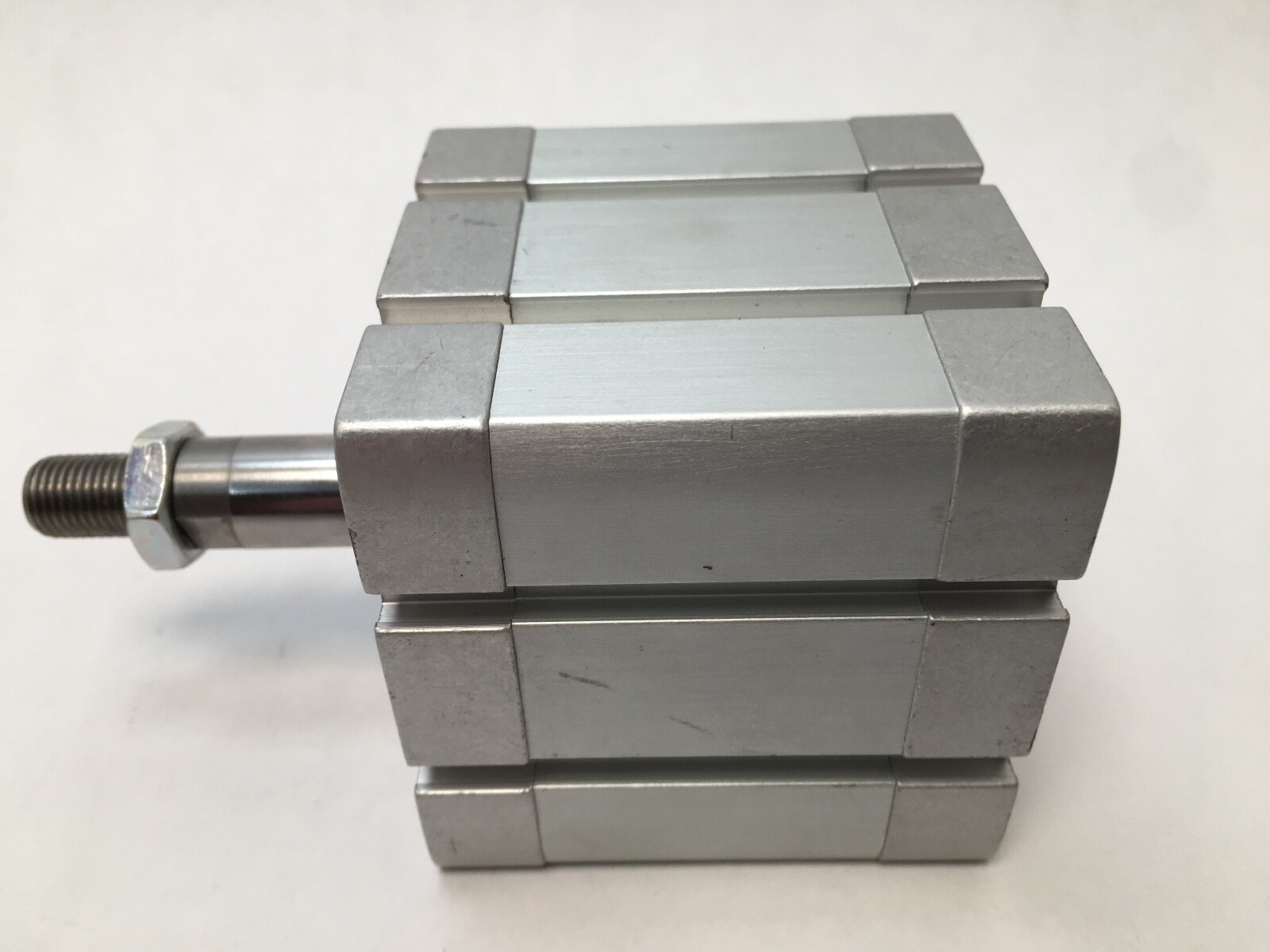

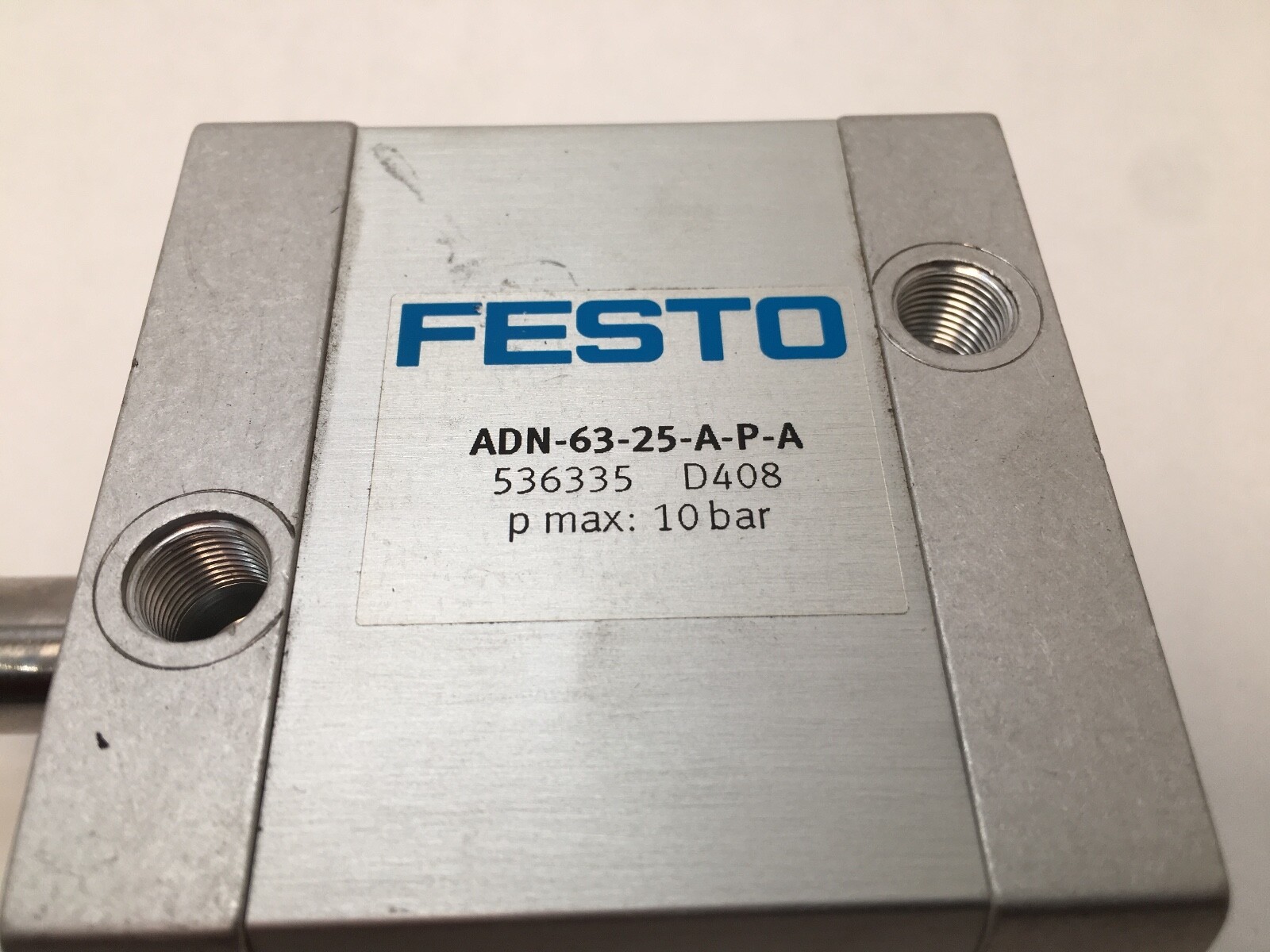

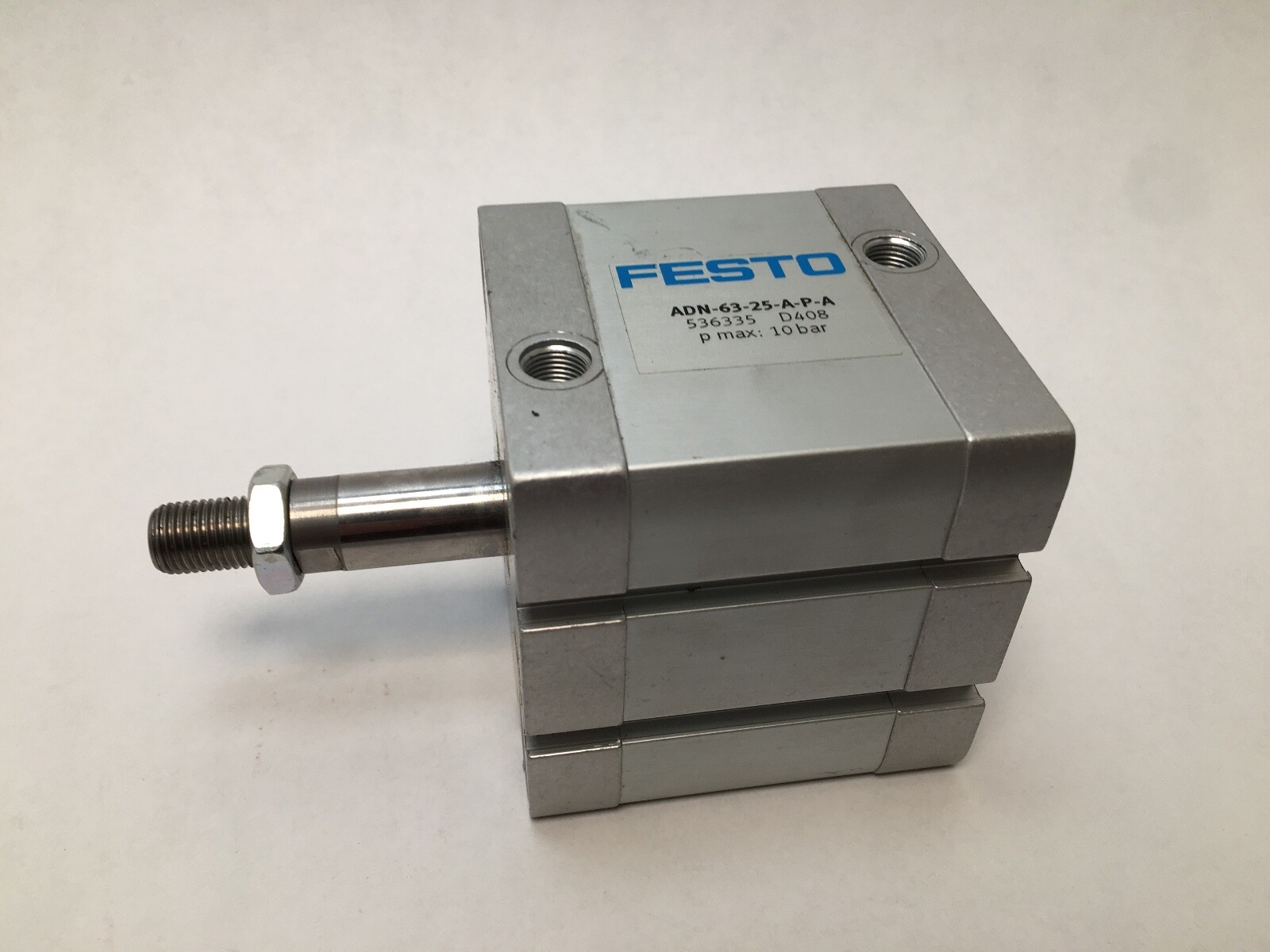

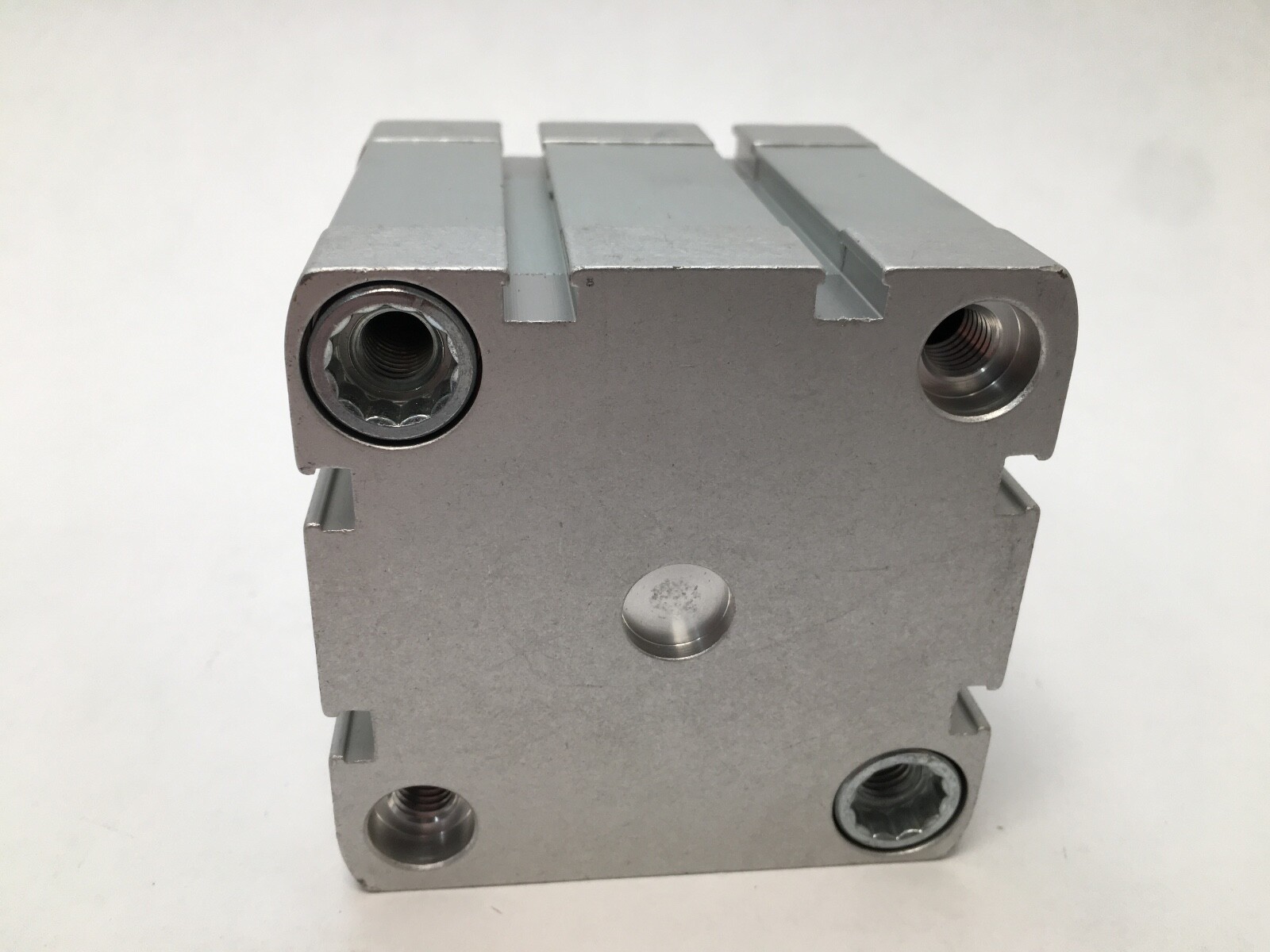

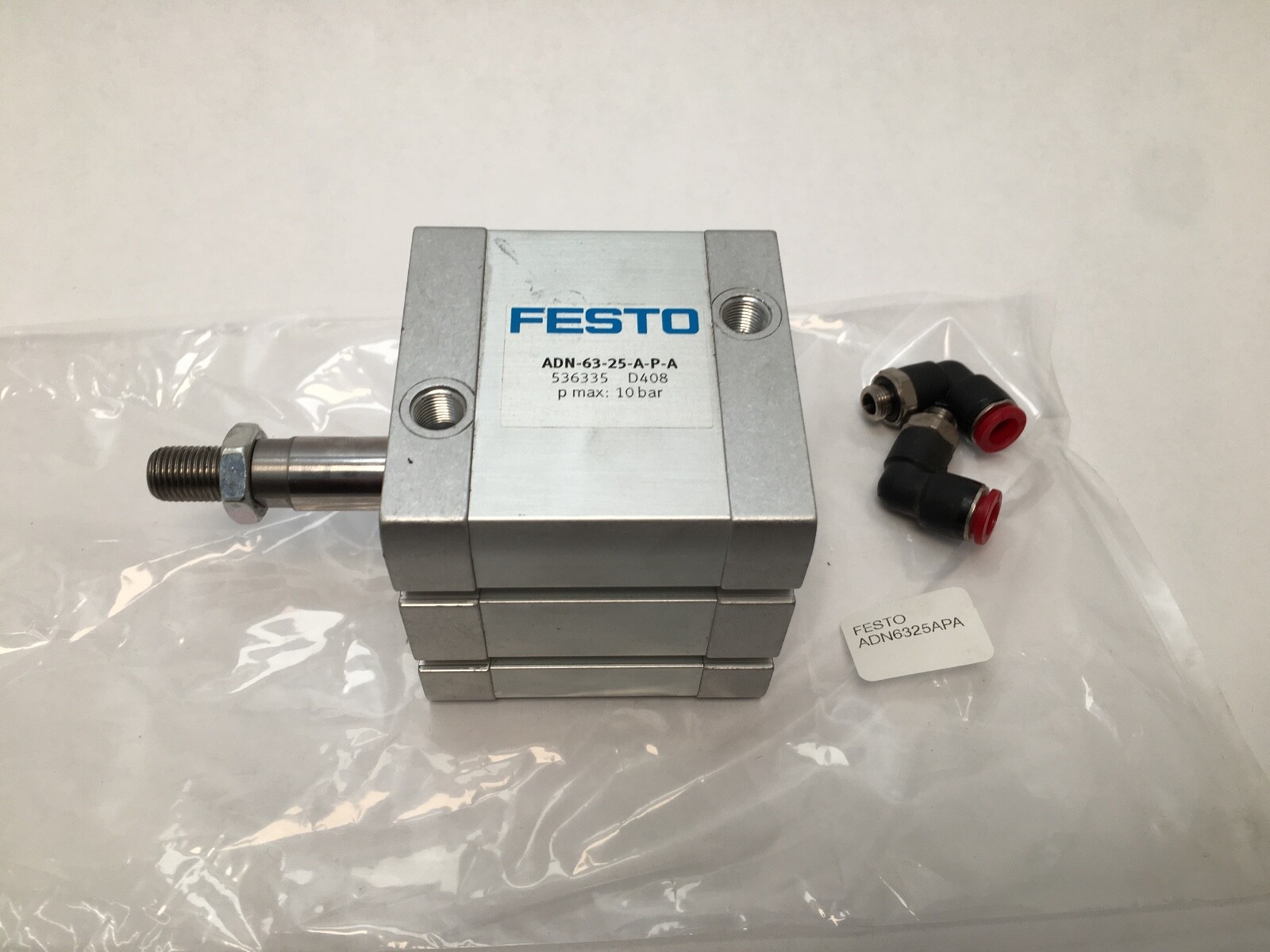

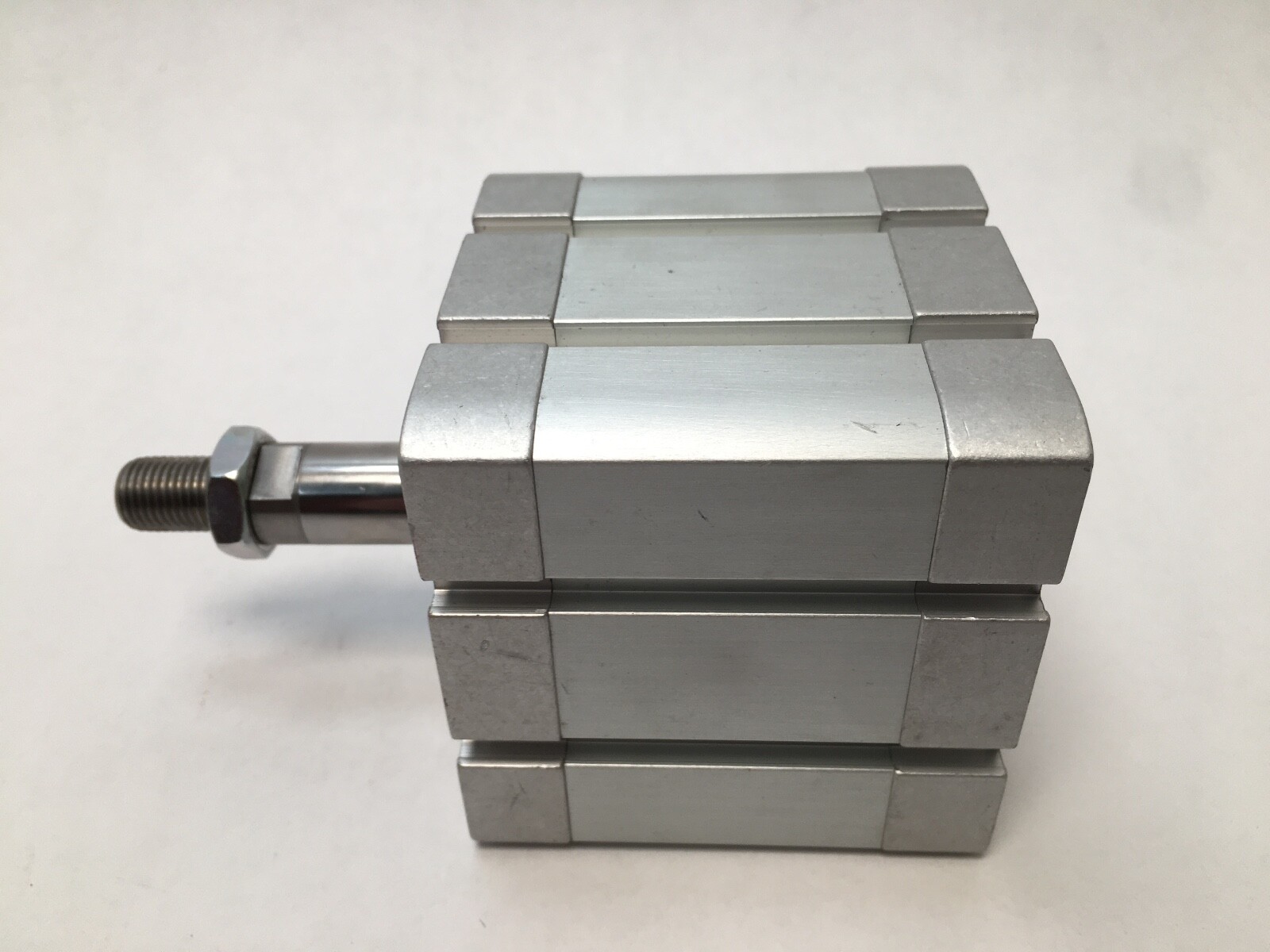

What this part is: Festo ADN-63-25-A-P-A compact pneumatic cylinder. Manufacturer: Festo. Part Number: ADN-63-25-A-P-A. Festo Part No.: 536335. Series: ADN, compact cylinders to ISO 21287. Bore: 63 mm. Stroke: 25 mm. Cylinder Action: double-acting. Force at 6 bar: 1,870 N (420 lbf). Operating Pressure: 0.6 to 10 bar (8.7 to 145 psi). Ambient Temperature: -20 to +80 °C (-4 to +176 °F). Cushioning: flexible cushioning rings and pads at both ends. Piston: magnetic, for position sensing. Piston Rod Thread Form: male, external thread. Body Material: aluminium. Mounting Position: any. Country of Origin: Germany. Decoding the order code: ADN is Festo’s compact cylinder family built to ISO 21287. The 63 is the bore in millimetres and the 25 is the stroke in millimetres. The first A is the piston rod with a male external thread. P is the cushioning code for flexible cushioning rings and pads at both ends. The final A is the magnetic piston. Bore: 63 mm. Stroke: 25 mm. What these specs mean in practice: Force at 6 bar: 1,870 N, which is the extend force a 63 mm piston develops on a normal 6 bar shop supply — the number a designer sizes a clamp, a press or a gate against. Operating Pressure: 0.6 to 10 bar. The 0.6 bar lower limit means the cylinder still strokes on a low-pressure or decaying supply, and the 10 bar ceiling gives headroom on a regulated 6 bar line. Bore: 63 mm on a 25 mm Stroke. ISO 21287 geometry takes up to half the installation length of a comparable ISO 15552 cylinder of the same bore, so the same force fits a shorter envelope. Cushioning: flexible cushioning rings and pads at both ends absorb the end-of-stroke impact within the cylinder, which keeps the shock out of the mounting and the machine frame at speed. Piston: magnetic — the piston carries a permanent magnet, so a proximity sensor clamped to the outside of the barrel reads end-of-stroke position through the aluminium wall and reports it to the controller. Ambient Temperature: -20 to +80 °C. Body Material: aluminium. Mounting Position: any, so the cylinder is not orientation-restricted. Quantity and configuration: Unit Quantity: 1 Pc. One cylinder, with 8 mm 90° push-to-connect fittings fitted to the ports. Interchange guidance: Within the ADN-63-25 size, the execution letters decide the part. ADN-63-25-A-P-A is Festo 536335 with the male piston rod thread; ADN-63-25-I-P-A is Festo 536345 with the female thread in the same envelope, so the two share bore, stroke and force but present a different rod interface. ADN-63-25-A-PPS-A substitutes self-adjusting pneumatic cushioning for the flexible rings. Searchable variants of the number: ADN-63-25-A-P-A, ADN6325APA, ADN 63 25 A P A, ADN-63-25-APA, ADN63-25-A-P-A, 536335.
