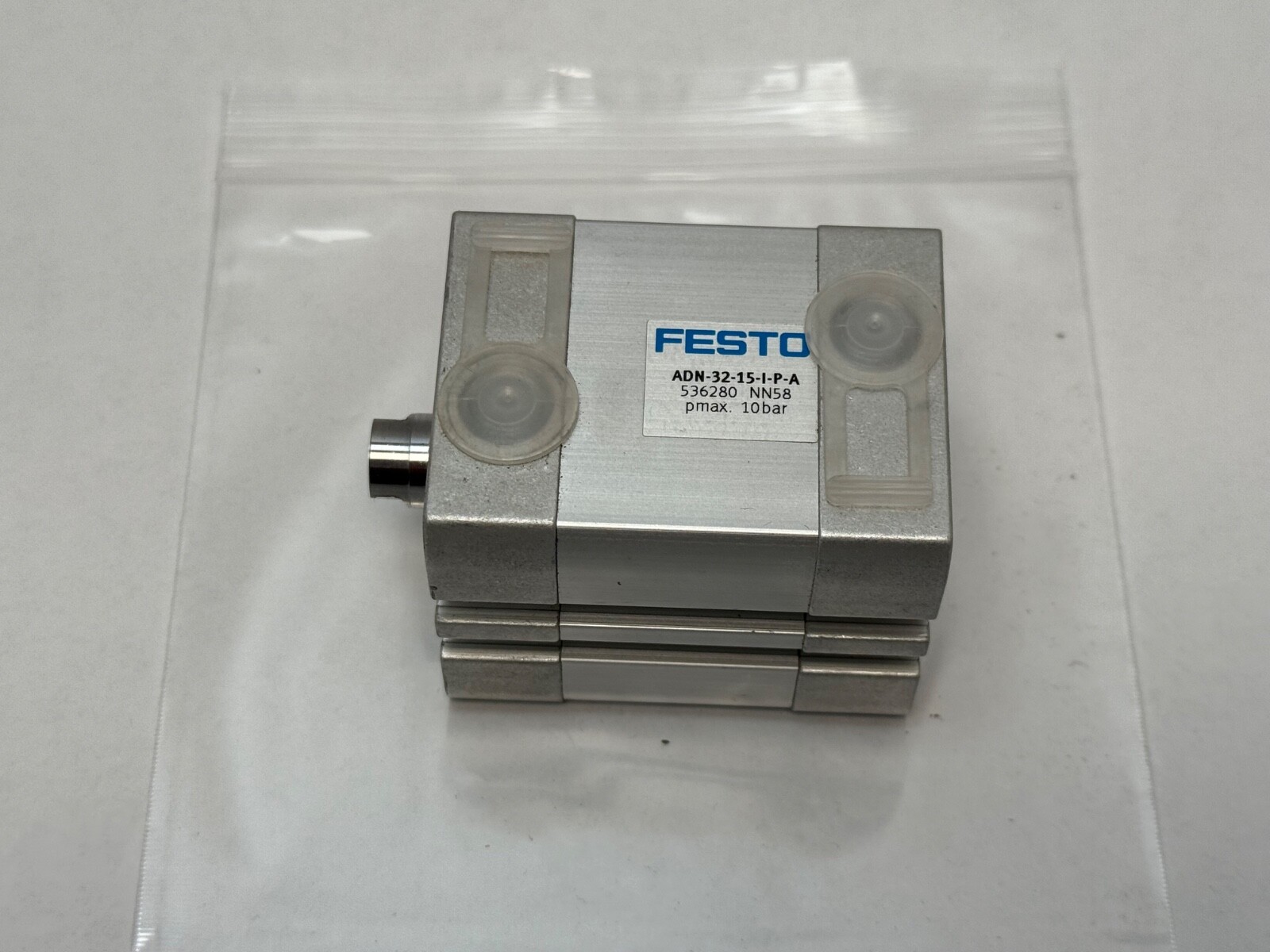

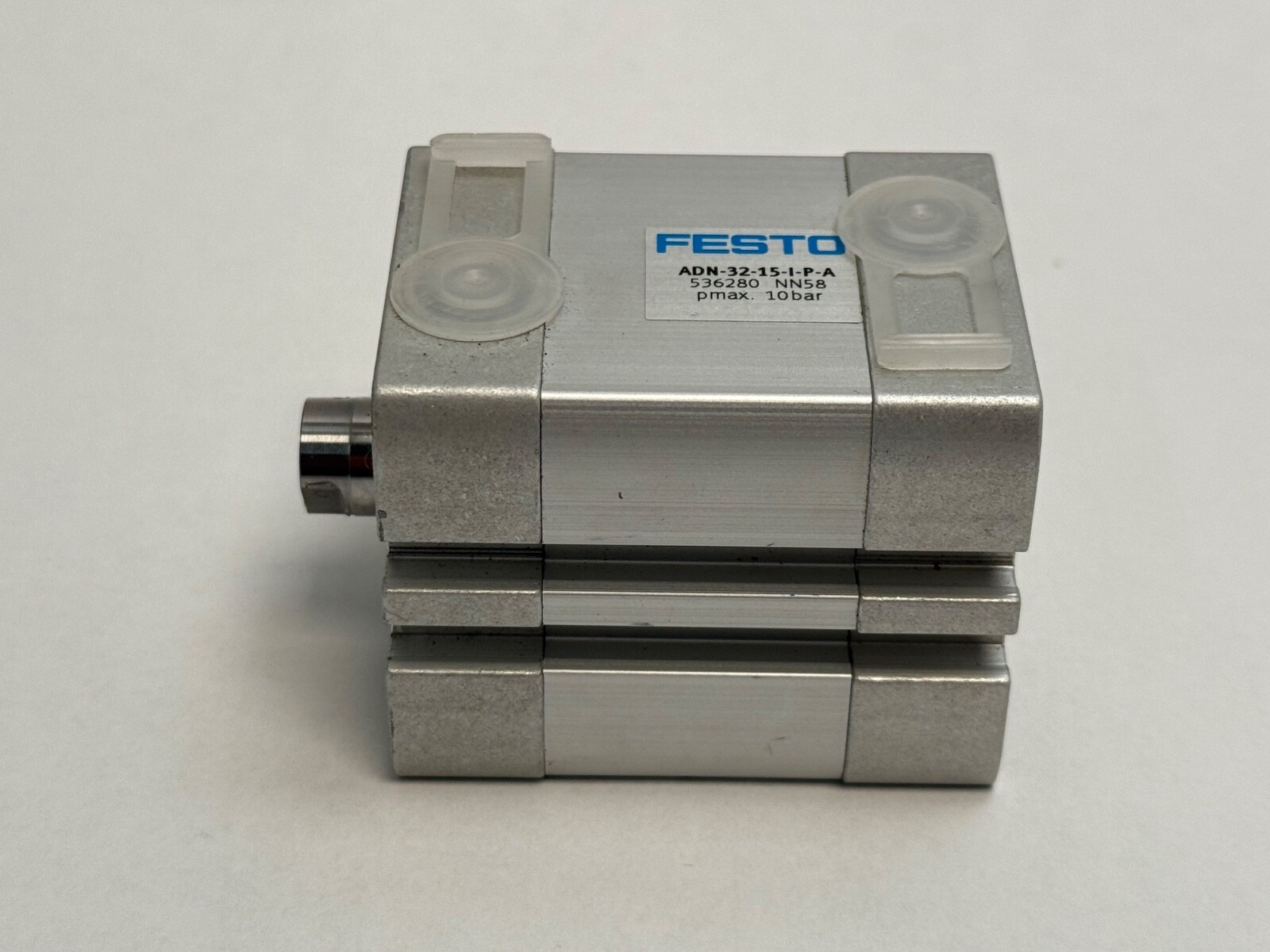

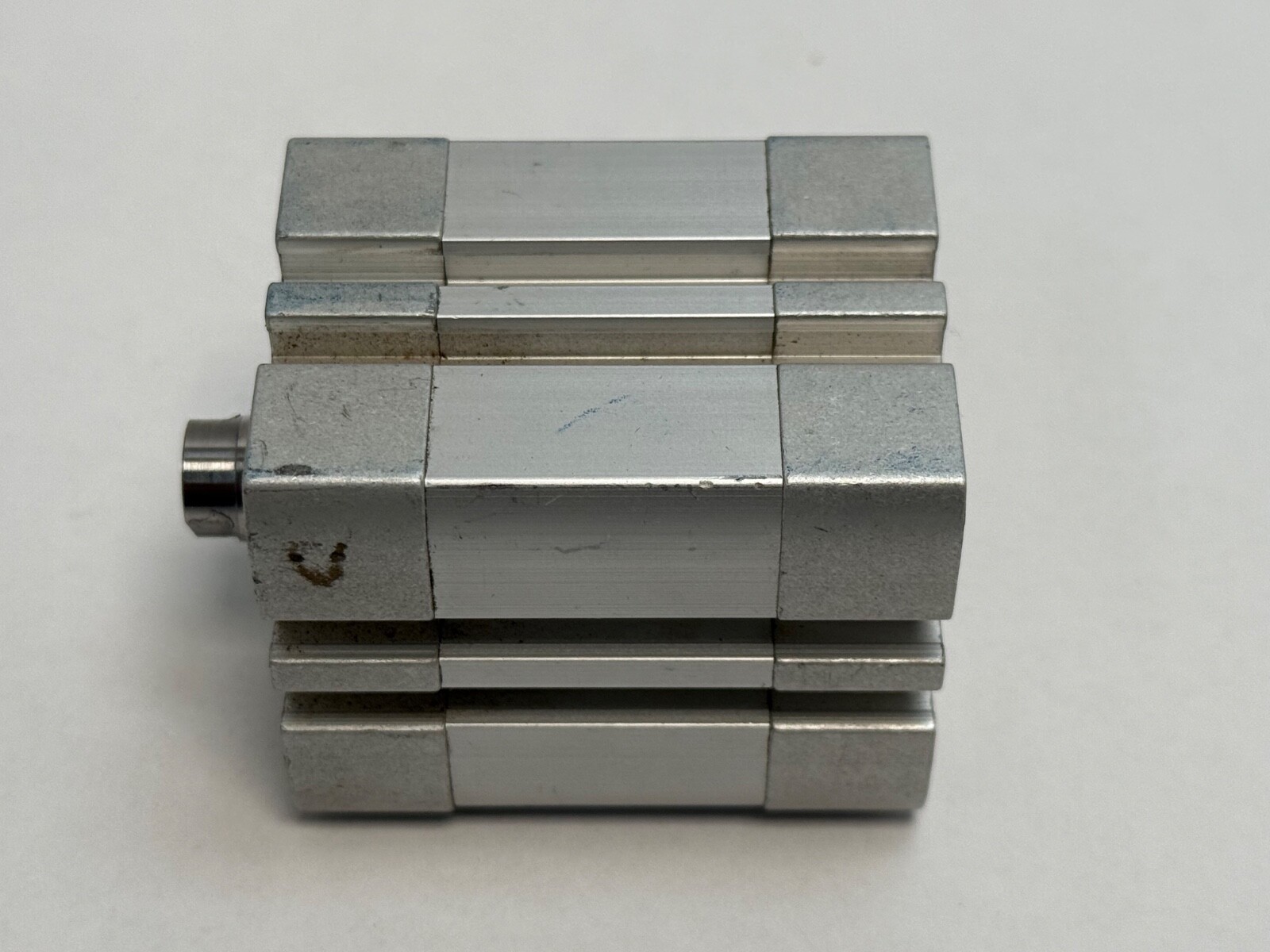

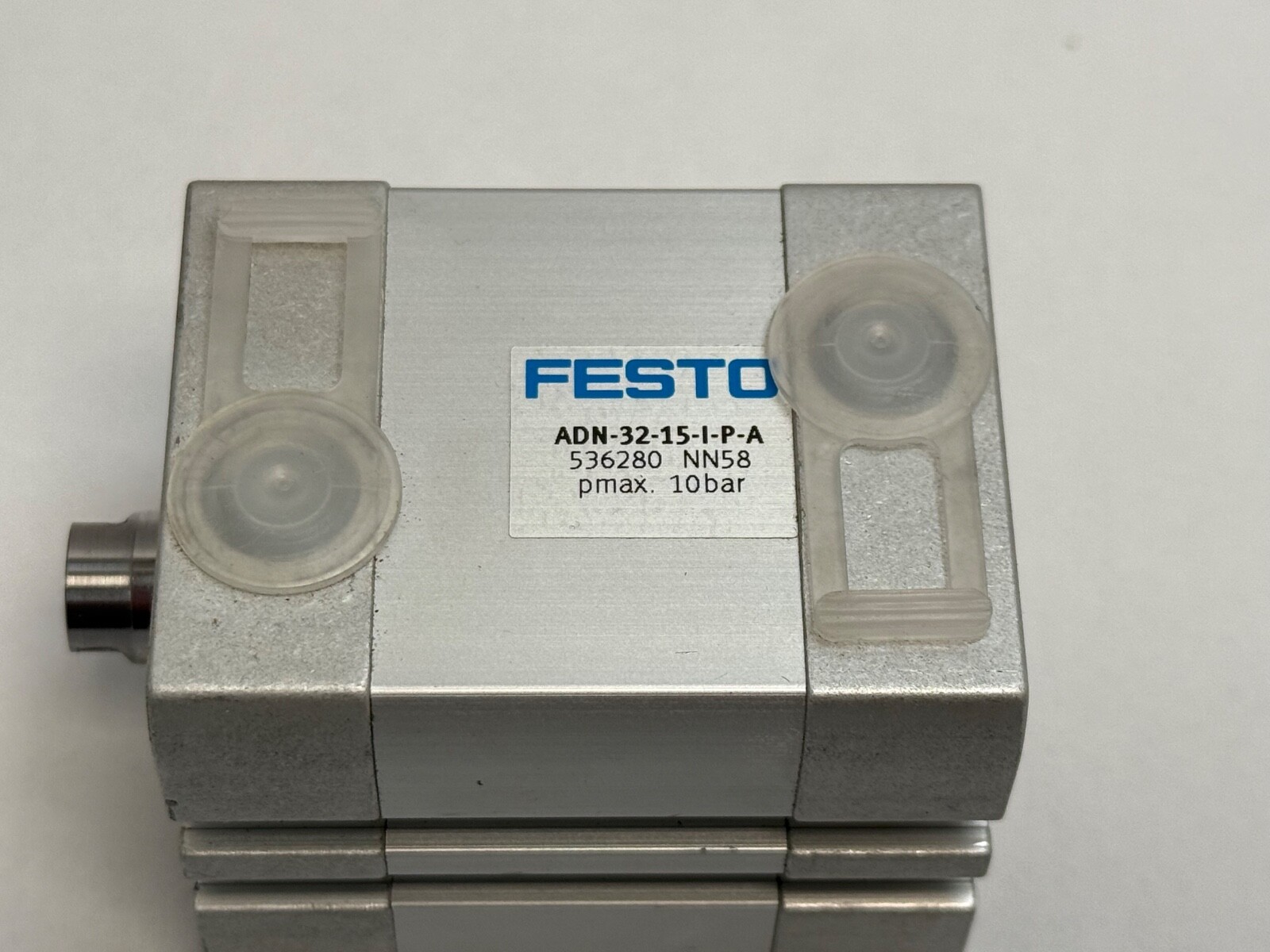

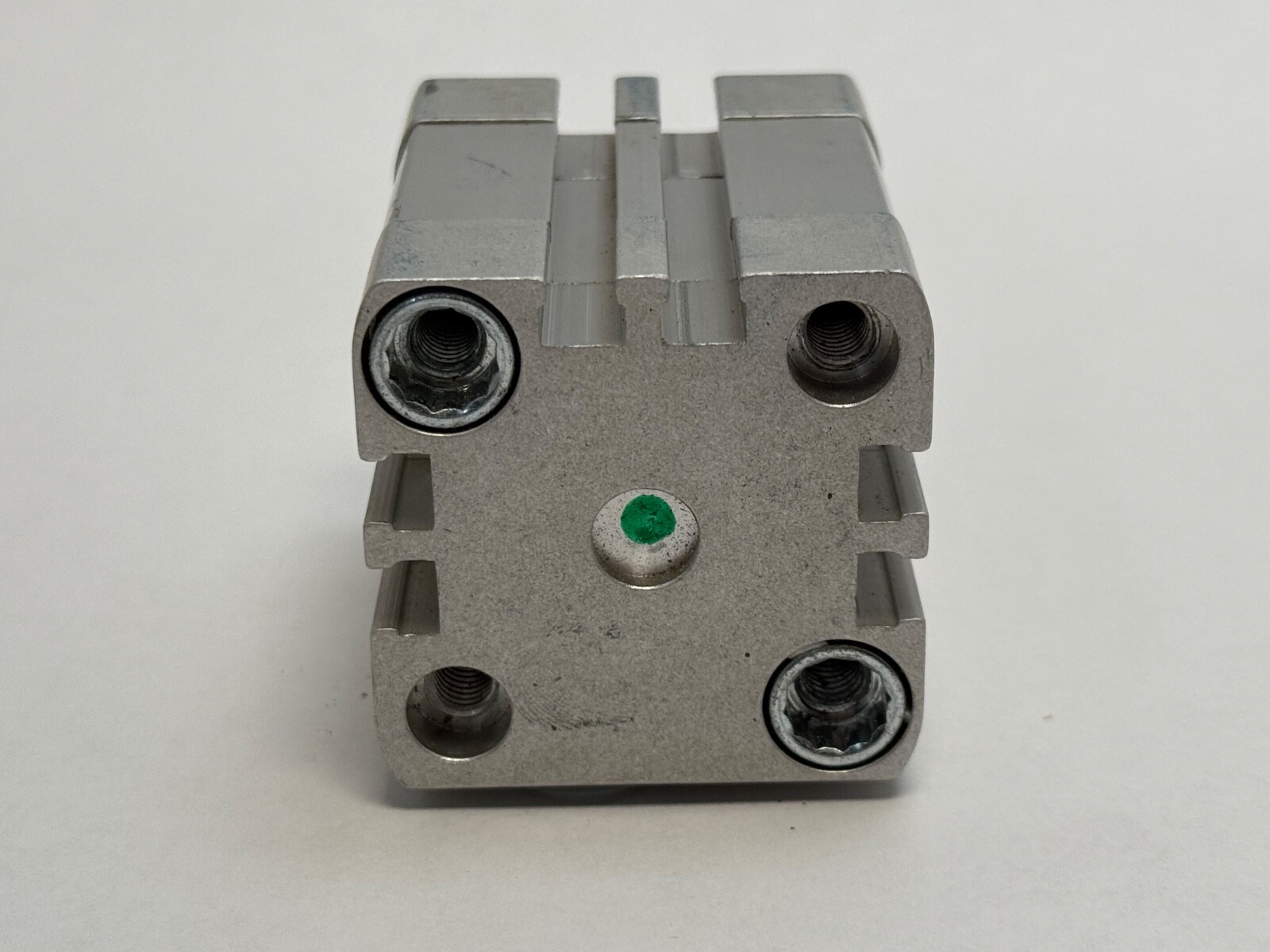

FestoADN-32-15-I-P-ACompact Pneumatic Cylinder – 32 mm Bore, 15 mm Stroke, Double-Acting, ISO 21287, G1/8 Ports

Condition: New – Open box
Condition Note: New Old Stock

Availability:

1 in stock

ISO 21287 compact air cylinder, 32 mm bore, 15 mm stroke, double-acting, G1/8 ports, M8 female rod thread, magnetic piston for proximity sensing.

Same day shipment

List Price

$43.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFesto
MPNADN-32-15-I-P-A
ModelADN 32 15 I P A

Technical Specifications

TypePneumatic
Base NumberADN-32-15
Air Pressure Range0.6 to 10 bar (8.7 to 145 psi)
Maximum Pressure10 bar (145 psi)
Cylinder ActionDouble-Acting
Number Of Ports2
Stroke Length15 mm
Bore Shaft Size32 mm piston diameter
Mpn Variants536280; ADN3215IPA; ADN 32 15 I P A
Additional AttributesISO 21287 compact cylinder; double-acting; magnetic piston; elastic cushioning both ends; impact energy 0.4 J per end; theoretical force at 6 bar 483 N advance / 415 N return; corrosion resistance class CRC 2; cleanroom class ISO 14644-1 Class 6; RoHS compliant; VDMA 24364-B1/B2-L
MaterialAnodised aluminium barrel, steel rod, TPE-U (PUR) seals
Min Temp-20 °C (-4 °F)
SeriesADN
Max Temp80 °C (176 °F)
Item Weight284 g (0.63 lb)
Part NumberADN-32-15-I-P-A
Mounting TypeThrough-hole, female thread or accessory mounting
Industry Termscompact cylinder; ISO 21287 cylinder; short-stroke air cylinder; double-acting pneumatic cylinder; magnetic piston cylinder
Common MisspellingsFesto ADN 32 15 IPA; Festo ADN3215 I P A; Festo ADN-32-15-IPA; Festo ADN-32-15-I-P-A
Application Typesclamping; indexing; gating; short-travel transfer; packaging; electronics assembly
Port SizeG1/8

Cross-References

Cross Reference 1Festo 536280
Seller Part Number: AG3B3#GQMTRI

Product Description

What this part is:

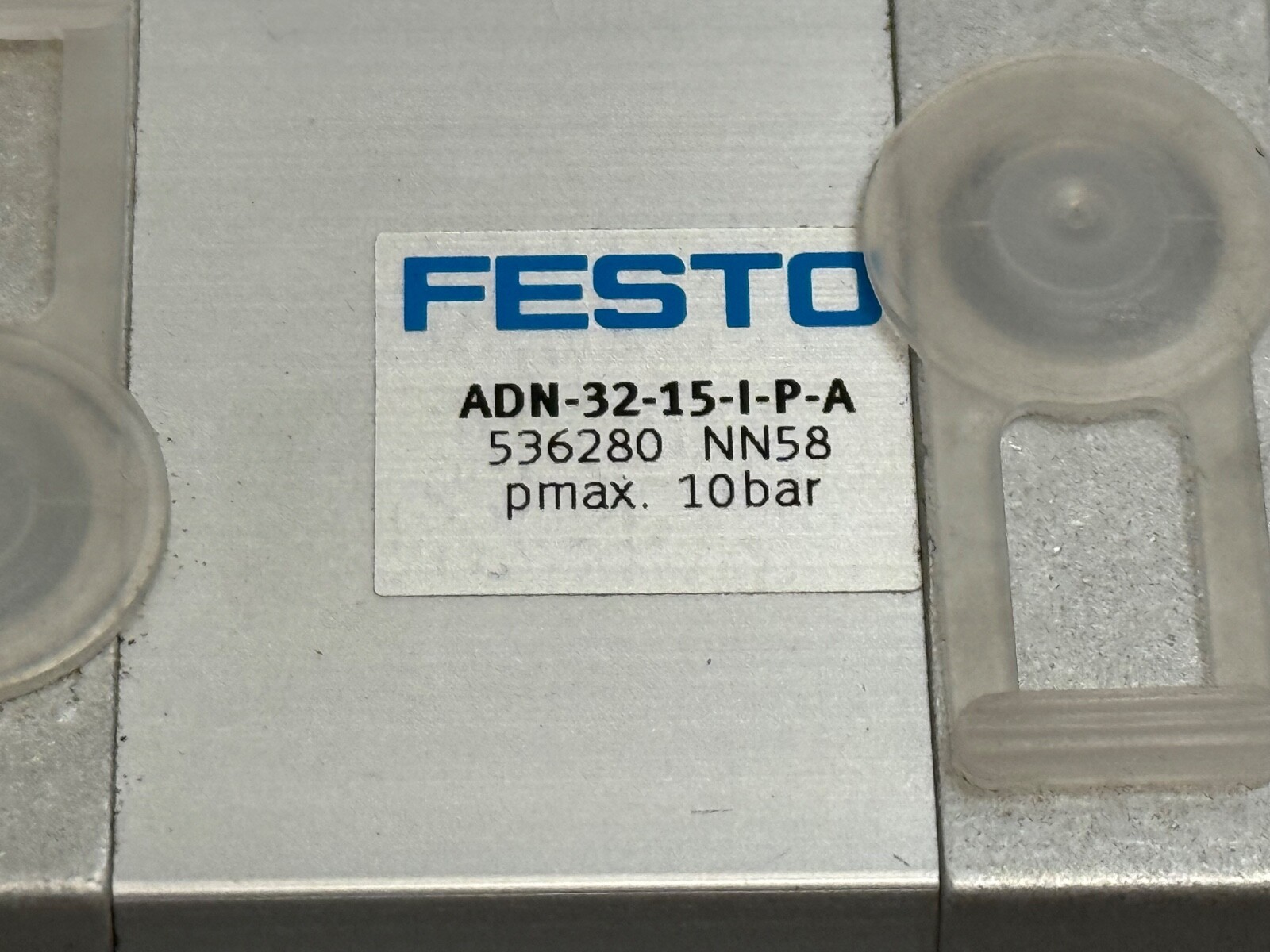

Festo ADN-32-15-I-P-A double-acting compact pneumatic cylinder to ISO 21287, Festo part number 536280. Unit Quantity: 1 Pc. Single-ended piston rod with magnetic piston.

Decoding the designation:

ADN — Festo compact cylinder range built to ISO 21287.

32 — 32 mm piston diameter.

15 — 15 mm stroke.

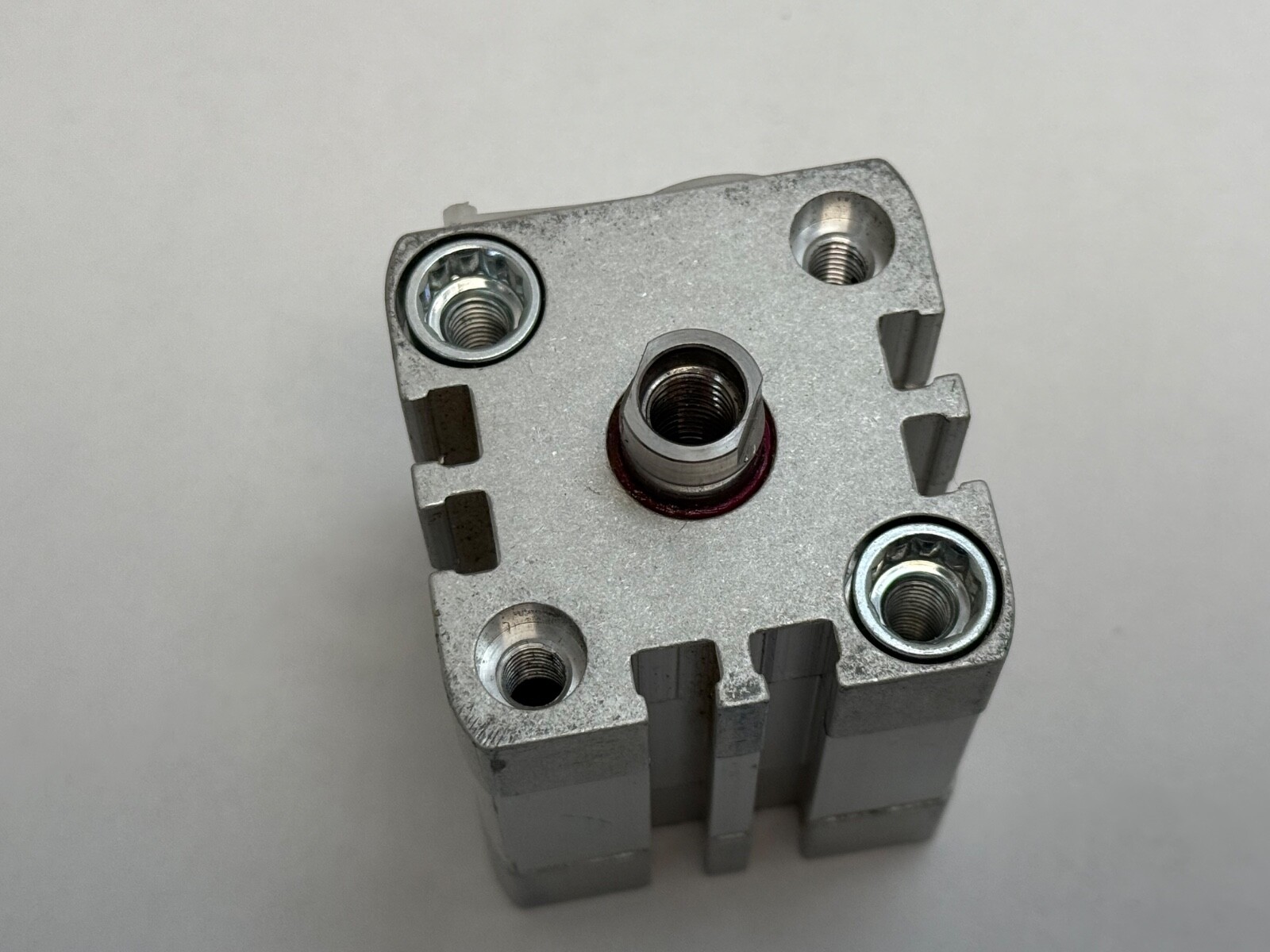

I — internal thread at the piston rod end, M8 at this piston diameter.

P — elastic cushioning rings and pads at both ends.

A — magnetic piston for end-position sensing by proximity sensor.

Specifications:

Piston Diameter: 32 mm. Stroke: 15 mm. Mode of Operation: double-acting. Piston Rod End: internal thread, M8. Pneumatic Connection: G1/8. Cushioning: elastic rings and pads at both ends. Operating Pressure: 0.6 to 10 bar (0.06 to 1 MPa, 8.7 to 145 psi). Theoretical Force at 6 bar: 483 N advance stroke, 415 N return stroke. Ambient Temperature: -20 to +80 °C. Product Weight: 284 g. Moving Mass: 64 g. Impact Energy in End Positions: 0.4 J. Corrosion Resistance Class: CRC 2. Cleanroom Class: ISO 14644-1 Class 6. Operating Medium: compressed air to ISO 8573-1:2010 [7:4:4].

Dimensions and mounting:

Mounting Position: any. Types of Mounting: through-hole, female thread, or with accessories. Foot mounting HNA-32 and flange mounting FNC-32 are the Festo accessories for this piston diameter. Pneumatic Connection: G1/8 at both ports. Cylinder Barrel: smooth-anodised wrought aluminium alloy. End Cover: anodised wrought aluminium alloy. Piston Rod: high-alloy steel. Seals: TPE-U (PUR). Collar Screws: steel. RoHS-compliant; conforms to VDMA 24364-B1/B2-L.

Compatibility and replacement:

Type code ADN-32-15-I-P-A and Festo part number 536280 identify the same cylinder. Cross-references: Festo 536280. Searchable variants: ADN3215IPA, ADN 32 15 I P A. ADN-32-20-I-P-A and ADN-32-25-I-P-A share this bore, thread and port with 20 mm and 25 mm of stroke. ADN-32-15-A-P-A carries a male piston rod thread in place of the internal thread.

Frequently asked questions:

What are the bore and stroke of the Festo ADN-32-15-I-P-A?

Piston diameter is 32 mm and stroke is 15 mm, double-acting, to ISO 21287.

What operating pressure and temperature does it carry?

Operating pressure is 0.6 to 10 bar and ambient temperature is -20 to +80 °C.

How is end-position sensing done?

The piston is magnetic, so Festo SMT or SDBT proximity sensors clamped in the barrel groove read the end positions.
