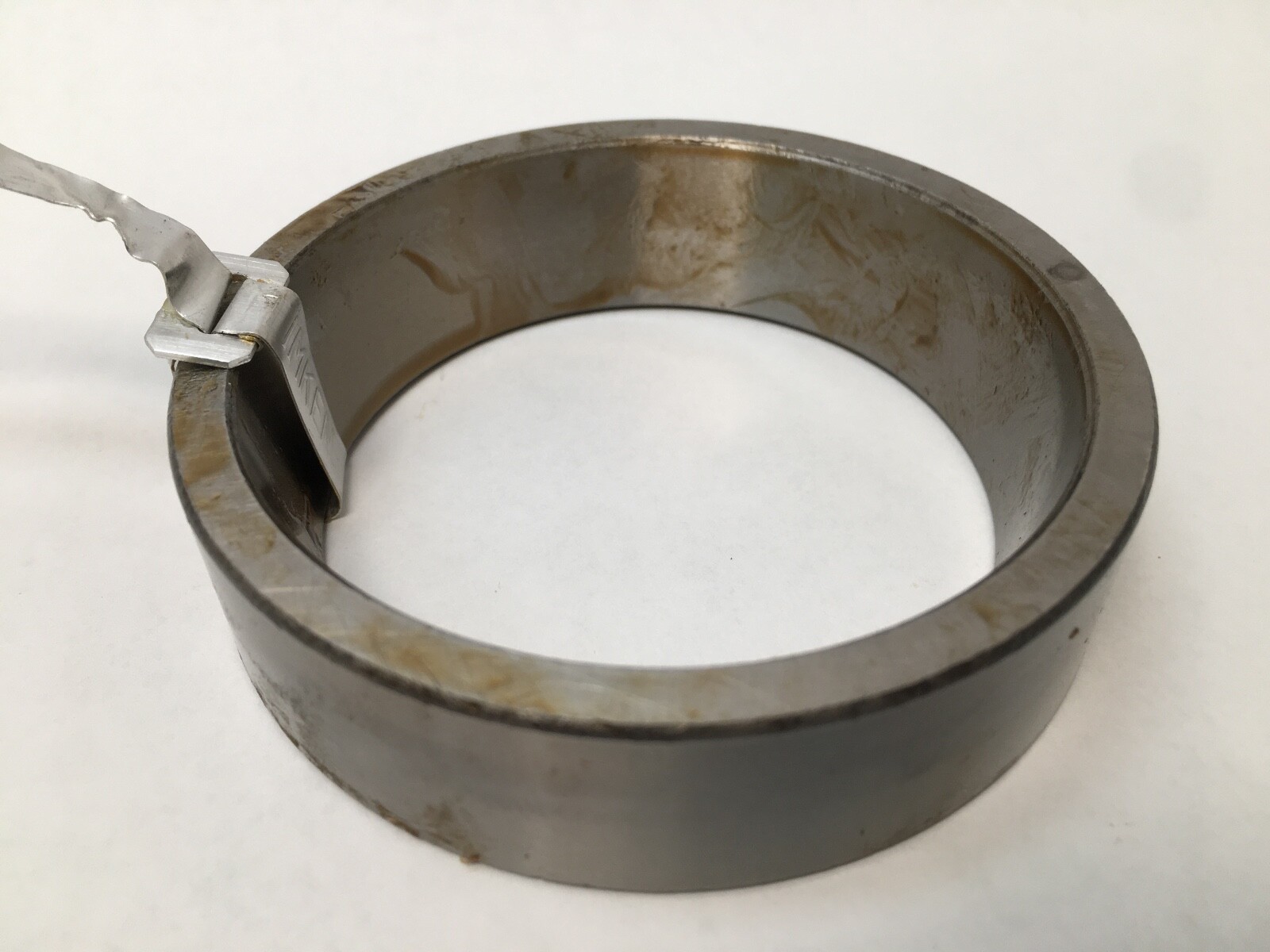

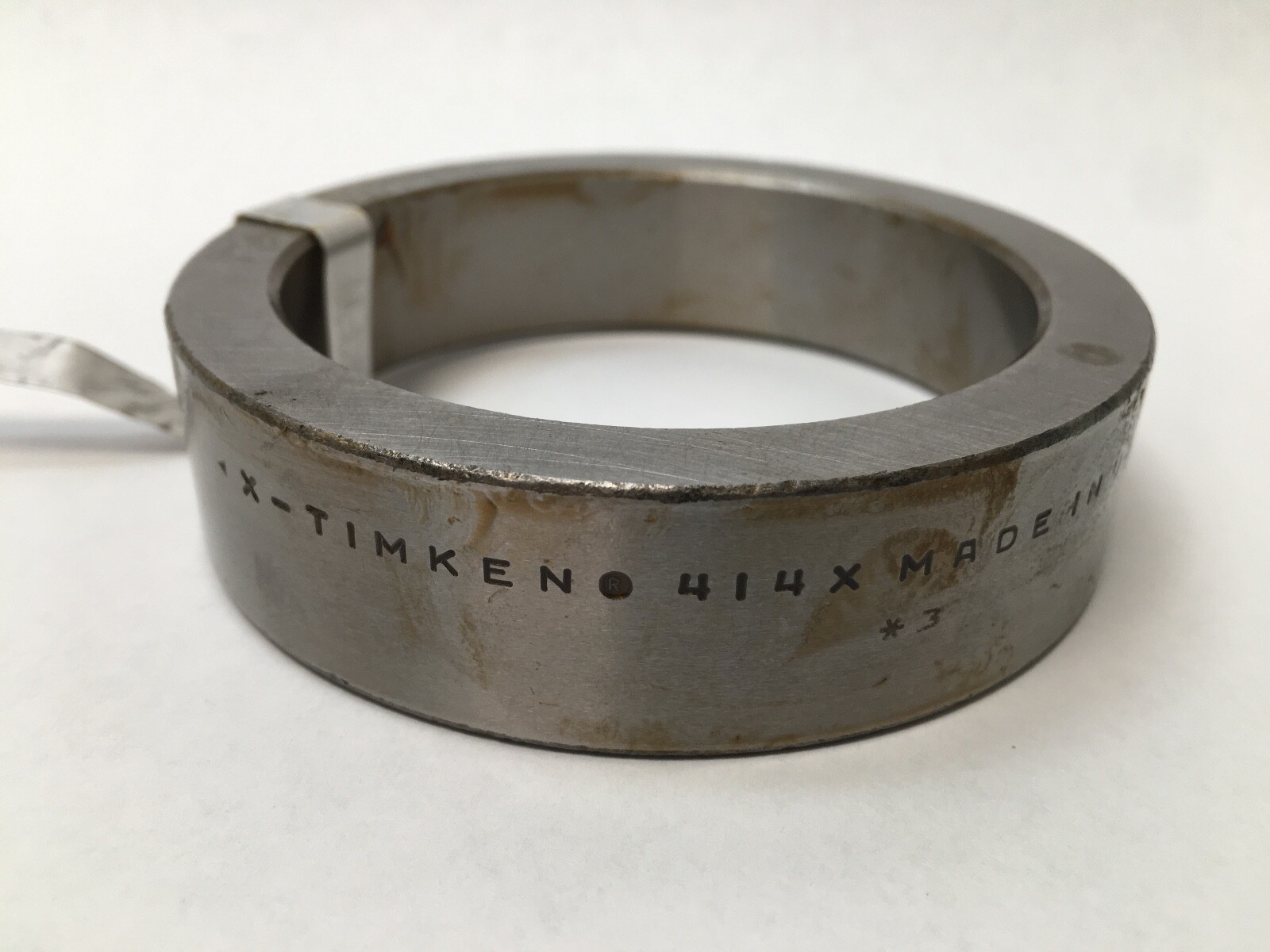

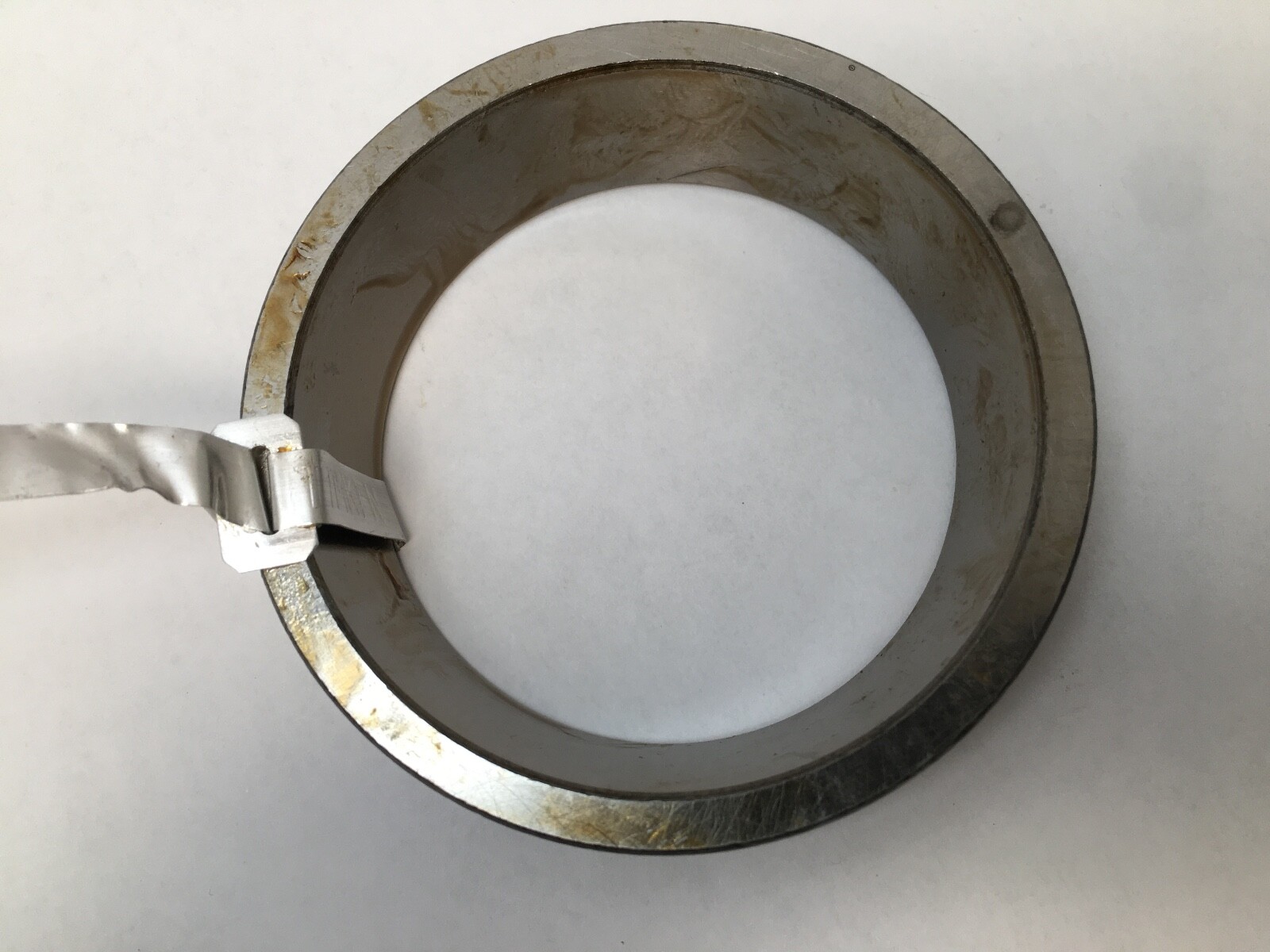

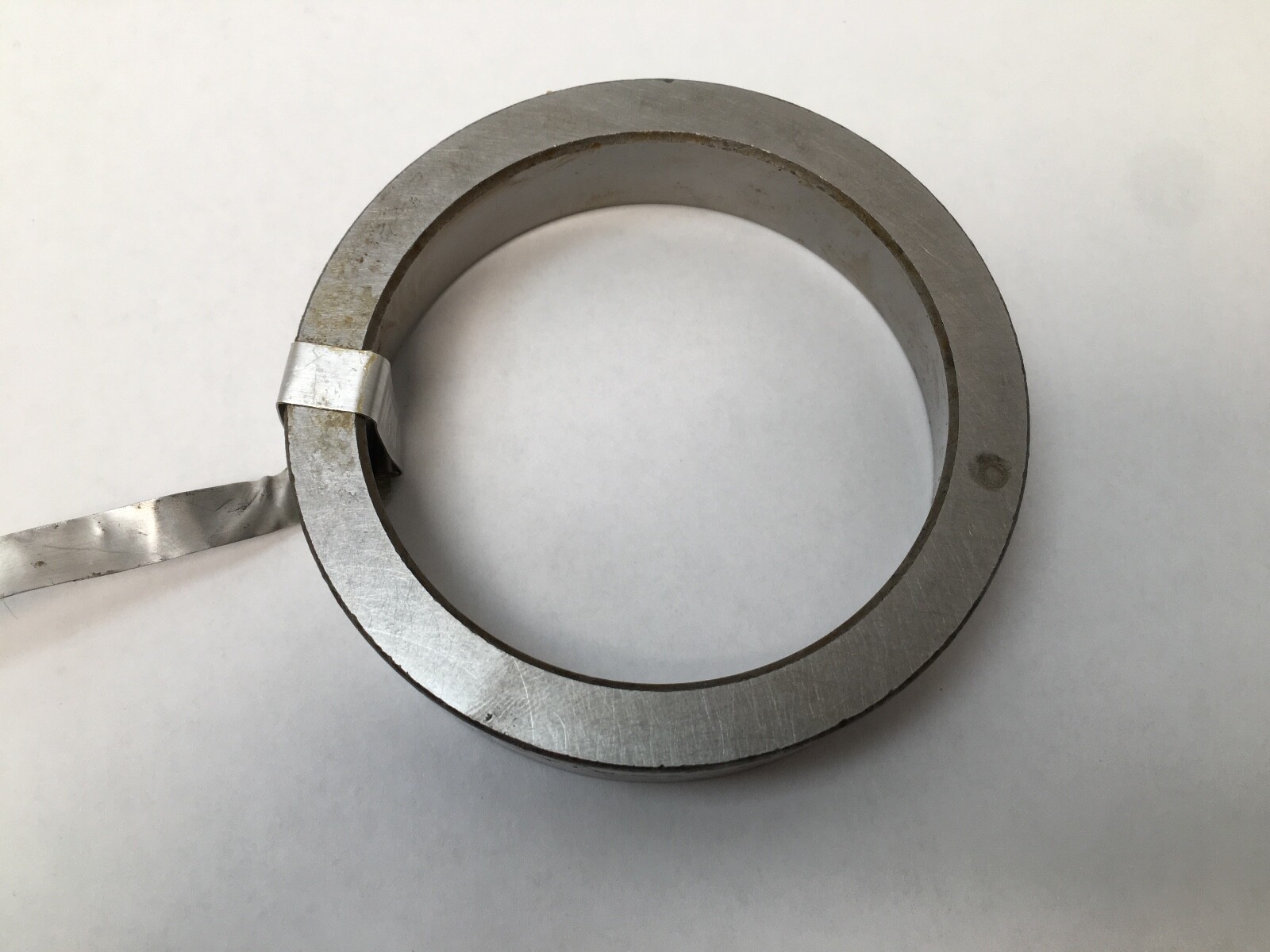

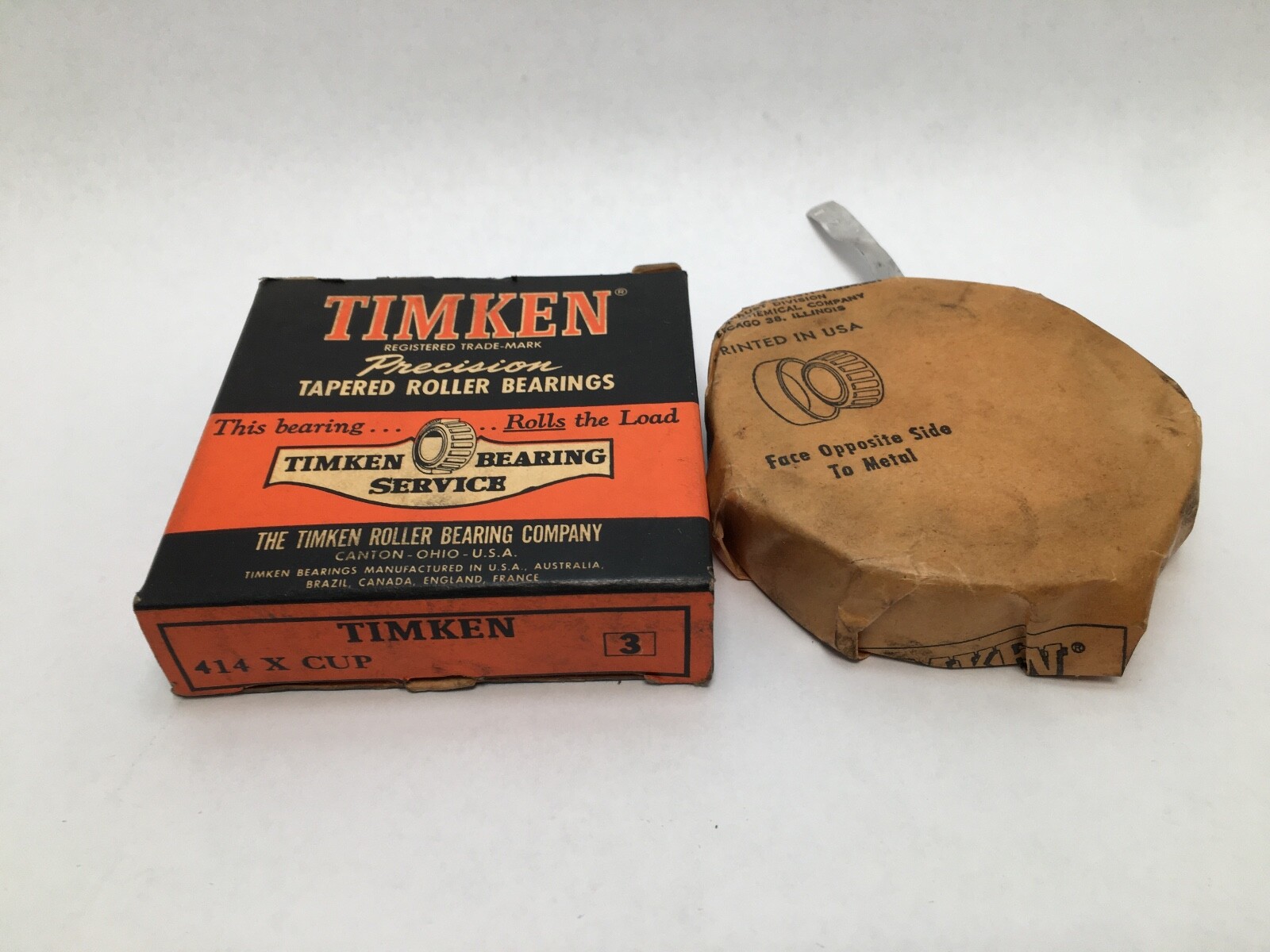

Tapered roller bearing cup, 3.5000 in OD x 0.8750 in wide, Class 3 precision, 0.8 kg. Timken 414X-3 single cup for single-row inch tapered roller bearings.
List Price
$39.54
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 414X-3 |
| Model | 414 X #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.5000 in (88.9 mm) |
| Width | 0.8750 in (22.225 mm) |
| Material | Chrome Steel |
|---|---|
| Series | 415 |
| Mpn Variants | 414X-3, 414X, 414-X *3, 414 X #3, 414X3 |
| Precision Class | Class 3 |
| Additional Attributes | e 0.26; Y 2.28; Da 80.77 mm; Db 77.98 mm |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.8 kg (1.7 lb) |
| Number Of Rows | 1 |
| Snap Ring Included | No |
| Harmonization Code | 8482.99.00 |
| Bearing Class | Class 3 |
| Cup Width | 0.8750 in (22.225 mm) |
| Cup Backface To Clear Radius | 0.03 in (0.76 mm) |
| Cup Frontface Backing Diameter | 3.18 in (80.77 mm) |
| Cross Reference 1 | Koyo 414X (standard class, not Class 3) |
|---|---|
| Cross Reference 2 | NSK 414X (standard class, not Class 3) |
Timken 414X-3 is a Class 3 single cup (outer ring) for a single-row tapered roller bearing. Outside Diameter: 3.5000 in (88.9 mm). Cup Width: 0.8750 in (22.225 mm). Item Weight: 0.8 kg (1.7 lb).
414X — Timken single cup, 3.5000 in OD, inch series.
-3 / *3 — Timken Class 3 precision: tighter tolerance and lower runout than standard Class 2.
Precision Class: Class 3. e Factor: 0.26. Y Factor: 2.28. Rolling Elements: Tapered Roller. Number Of Rows: 1.
Max Housing Fillet Radius: 0.03 in (0.76 mm). Housing Backing Shoulder Diameter: 3.18 in (80.77 mm) frontface, 3.07 in (77.98 mm) backface.
Cross-Reference 1: Koyo 414X (standard class, not Class 3). Cross-Reference 2: NSK 414X (standard class, not Class 3).
Outside diameter 3.5000 in (88.9 mm) and cup width 0.8750 in (22.225 mm).
It marks Timken Class 3 precision, a tighter tolerance grade than standard Class 2.
It is a single cup (outer ring) only, for a single-row tapered roller bearing.
