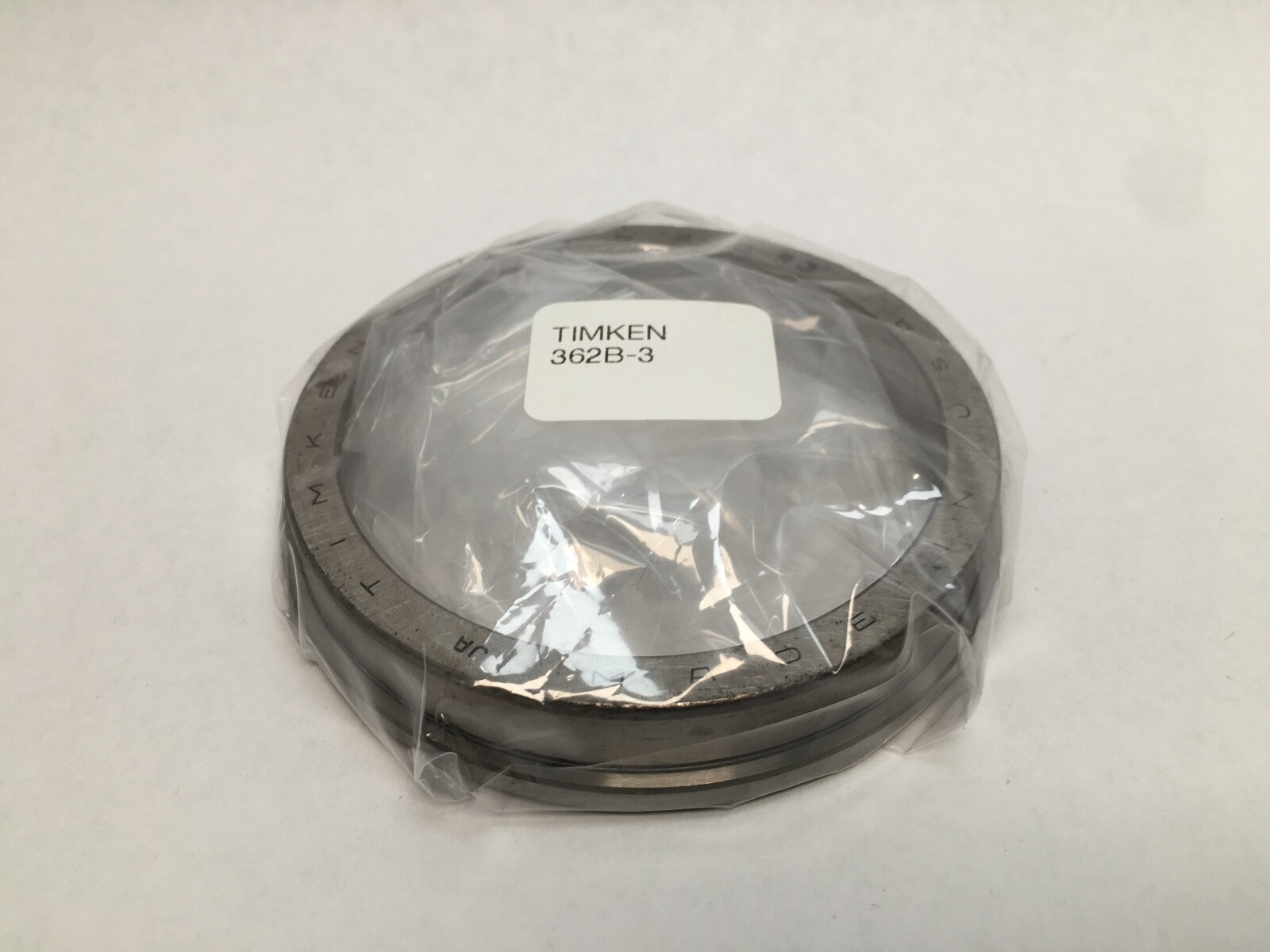

Timken362-B-3Tapered Roller Bearing Flanged Cup – 3.5433 in O.D., 0.6250 in Width, Class 3 Precision

Product Description

What this part is:

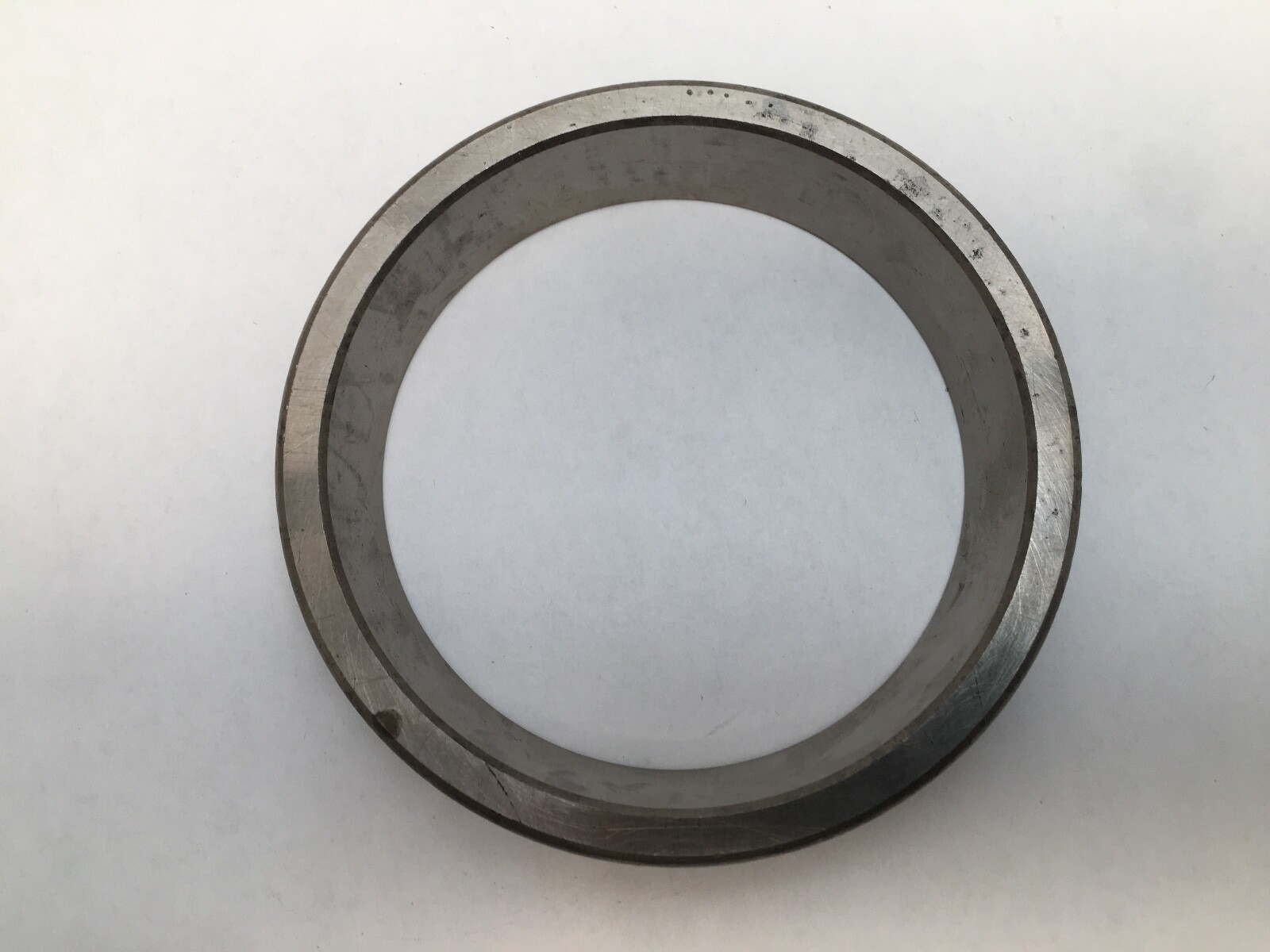

Timken 362-B *3 single flanged tapered roller bearing cup, the outer ring of a TSF-design tapered roller bearing. Outside Diameter: 3.5433 in (90 mm). Overall Width: 0.6250 in (15.875 mm). Flange Outside Diameter: 3.7268 in (94.661 mm). Flange Width: 0.1875 in (4.763 mm). Bearing Material: Carburized Steel. Design Units: Imperial. Series: 362. Unit Quantity: 1 Pc.

Decoding the designation:

362 — the cup series and its envelope.

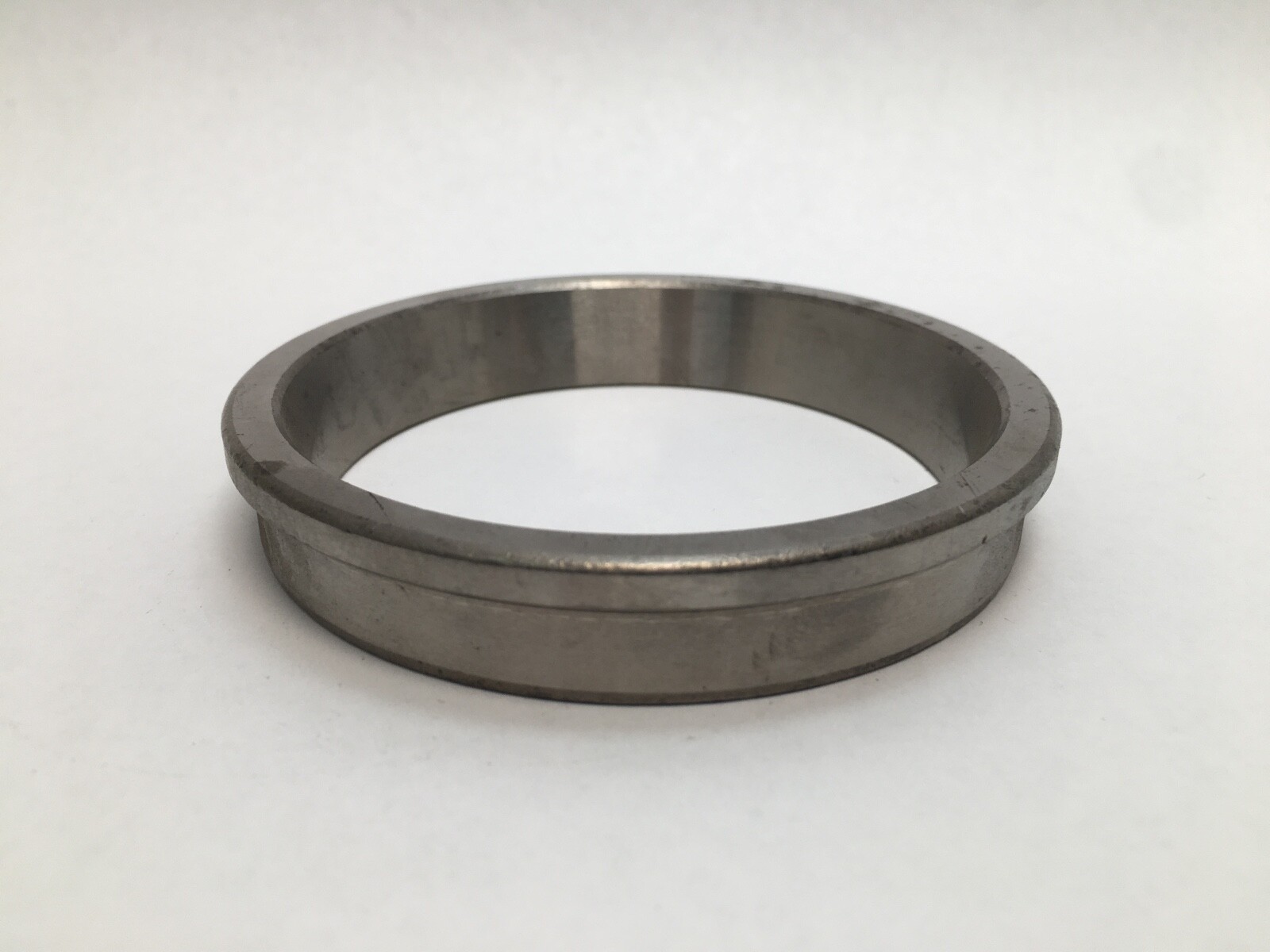

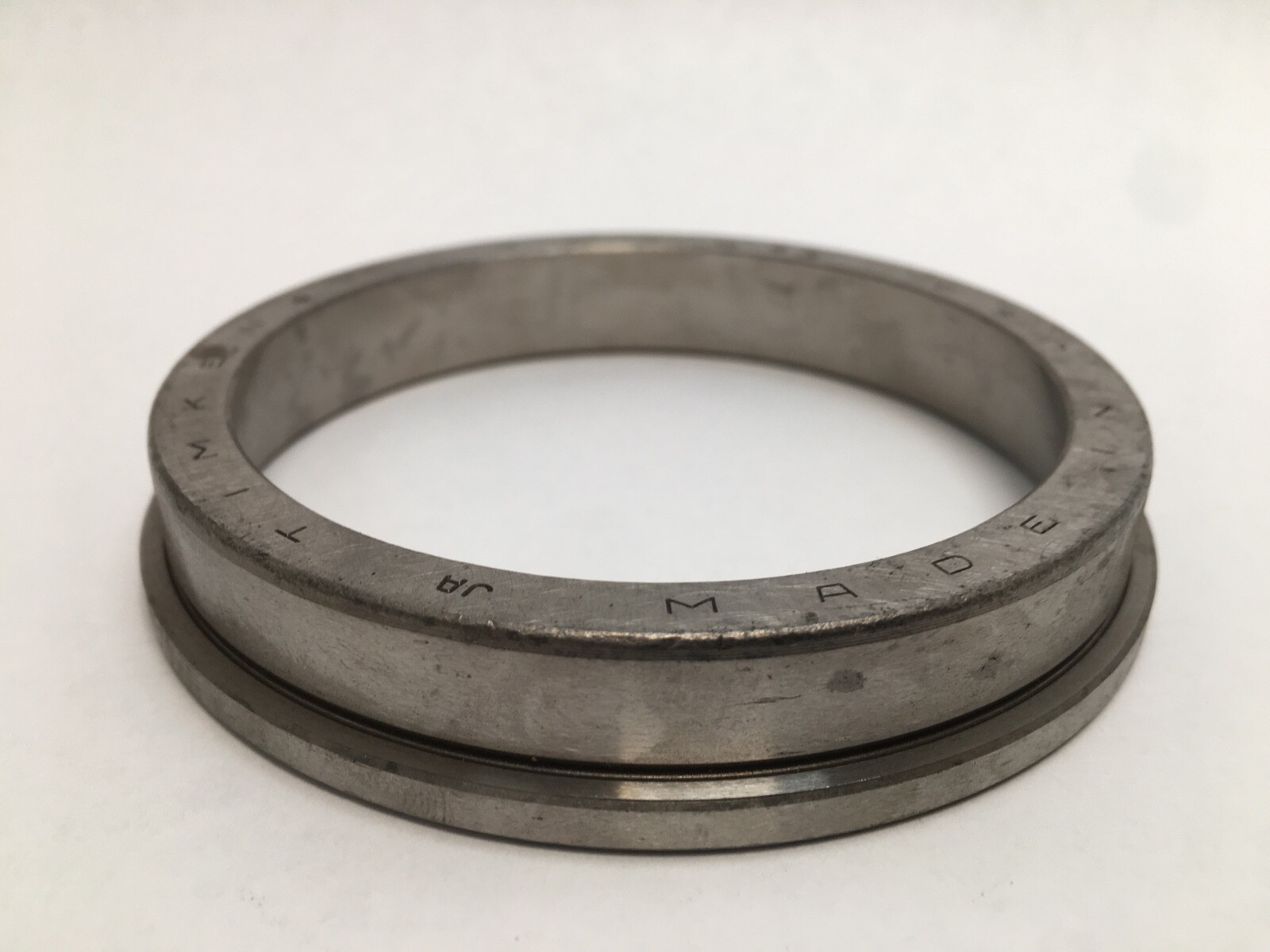

B — flanged outer ring. The flange locates the cup axially and aligns seals in a through-bored housing.

*3 — Precision Class 3, a tighter tolerance than standard, giving closer running location and lower running vibration.

Specifications:

K Factor: 1.83. e Factor: 0.32. Y Factor: 1.88. Geometry Factor (Cg): 0.0773. Precision Class: Class 3. Number Of Rows: 1. Rolling Elements: Tapered Roller. Item Weight: 0.7 kg (1.5 lb). Harmonization Code: 8482.20.00. Country of Origin: United States.

Dimensions and mounting:

Max Housing Fillet Radius: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter – Frontface (Da): 3.40 in (86.11 mm). The flange face seats against the housing and sets the cup position directly. Cup only.

Compatibility and replacement:

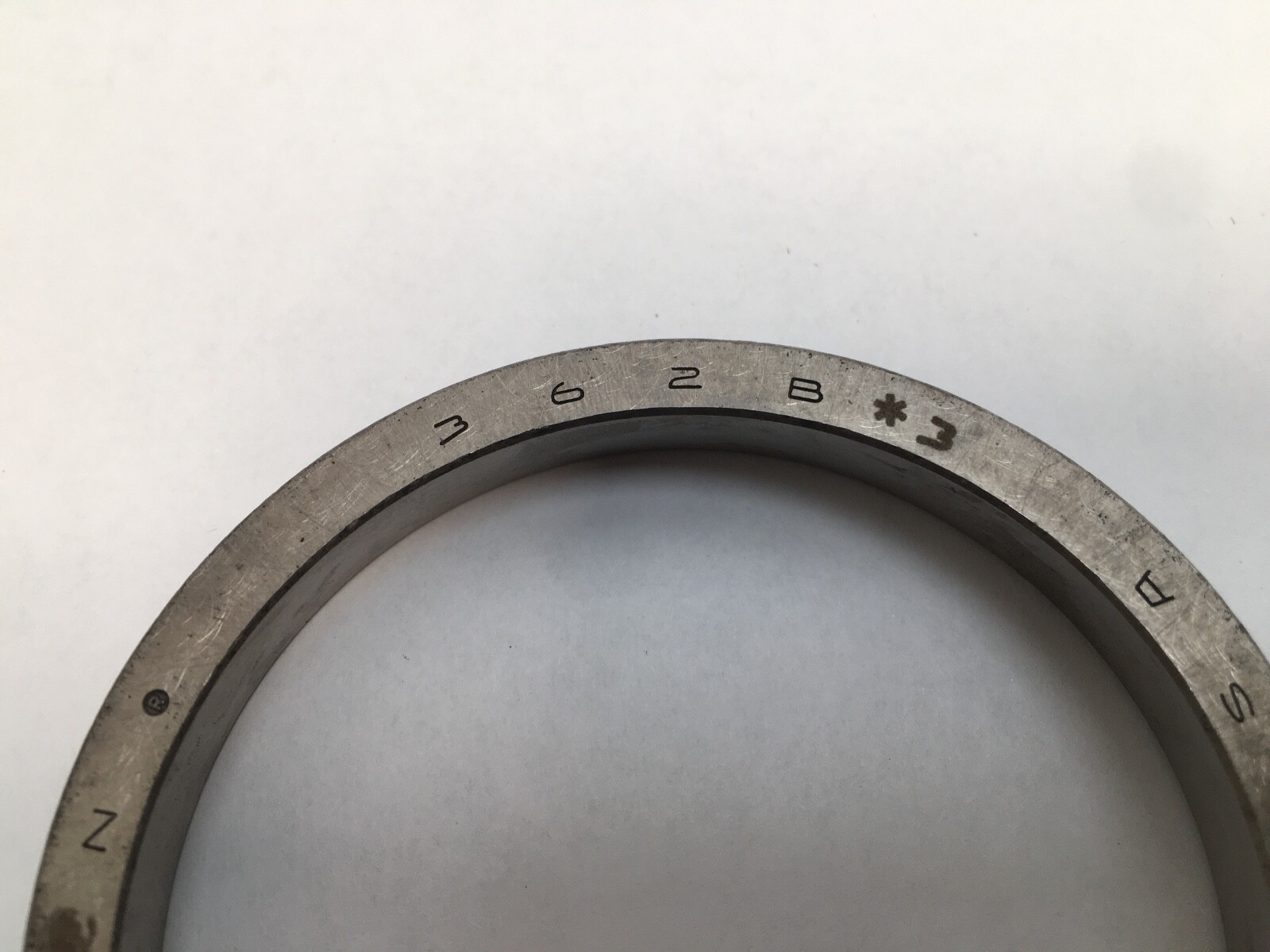

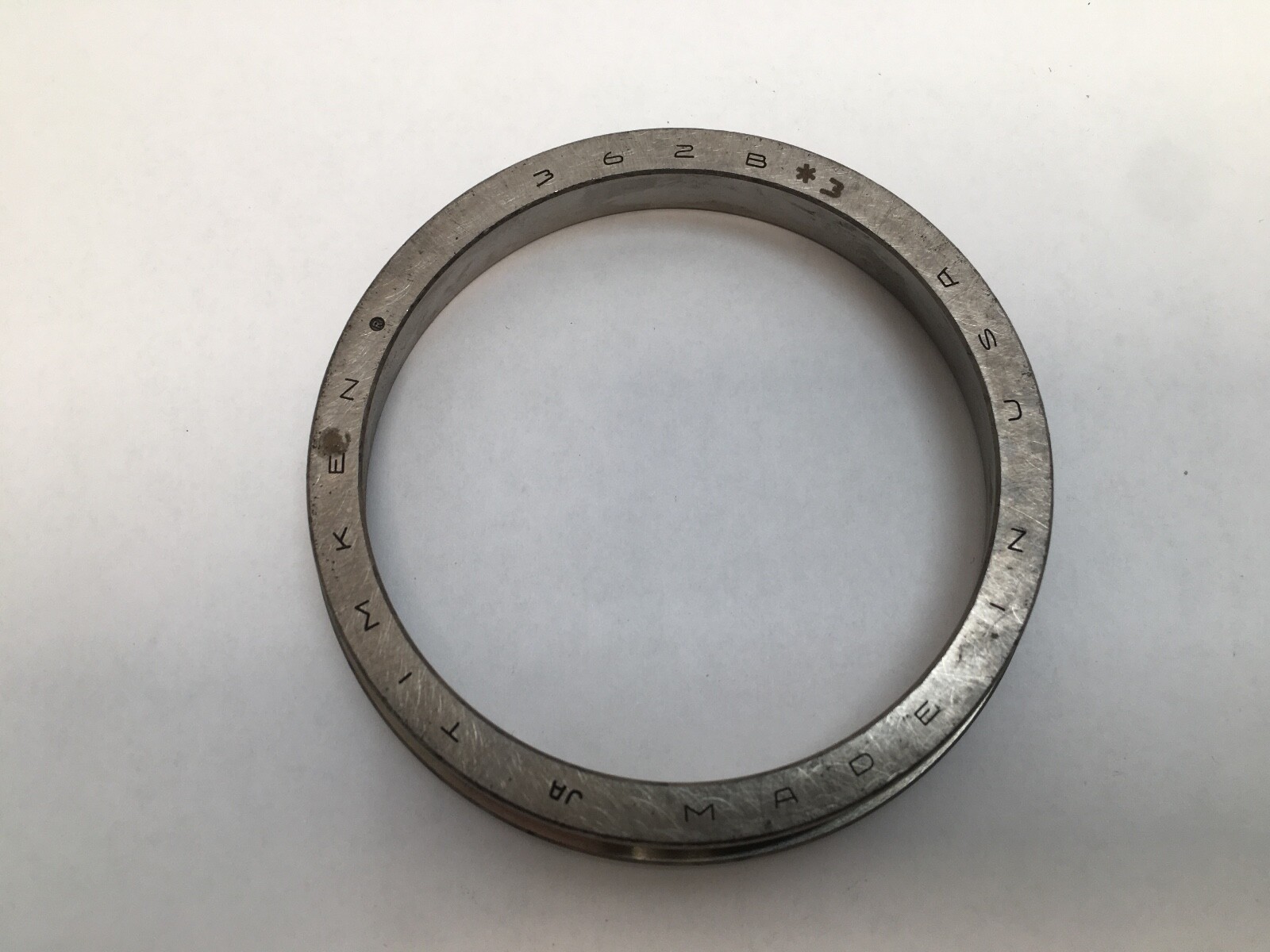

The flanged execution is specified by the Timken number 362-B. Searchable forms of the designation: 362B, 362-B, 362 B, 362B-3, 362-B *3.

Frequently asked questions:

What are the dimensions of the Timken 362-B *3?

3.5433 in (90 mm) outside diameter, 0.6250 in (15.875 mm) width and a 3.7268 in (94.661 mm) flange outside diameter.

What does the *3 mean?

Precision Class 3, a tighter tolerance than standard.

Is this a cup or a cone?

A cup, the outer ring of a tapered roller bearing.
