Tapered roller bearing cone, 2.2500 in bore, 1.1875 in width. Carburized steel with a steel cage, matched to the 39520 cup. Supplied as two pieces.
List Price
$53.69
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Tapered Roller Bearing Cone - 2.2500 in Bore, 1.1875 in Width, 167,000 N Dynamic Rating, Class 3 Precision, Carburized Steel$51.52
Tapered Roller Bearing Cone — 2-1/4 in Bore, 1.1542 in Cone Width, Class 3 Precision$39.89
Tapered Roller Bearing Cone — 2.2500 in (57.150 mm) Bore, 0.8640 in (21.946 mm) Width$42.06
Taper Roller Bearing Single Cone 2-1/4" ID Class 3 Precision$125.89| MFR / Brand | SKF |
|---|---|
| MPN | 39580 |
| Model | BR39580 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.2500 in |
| Width | 1.1875 in |
| Series | 39500 |
|---|---|
| Lubricant | Oil |
| Material | Carburized Steel |
| Base Number | 39580 |
| Industry Terms | taper bearing cone; tapered roller inner ring; cone and roller assembly; inch taper roller bearing |
| Common Misspellings | 39850; 3958-0; SKF 39580 taper cup |
| Bore Shaft Size | 2.2500 in (57.150 mm) |
| Mpn Variants | 39580; BR 39580; BR-39580; BR39580 |
| Compatible With Replaces | Mates with the 39520 cup to form a complete tapered roller bearing |
| Rolling Elements | Tapered Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20 |
| Part Number | 39580 |
| Cross Reference 6 | Timken 39580/39520 (complete cone and cup set) |
|---|

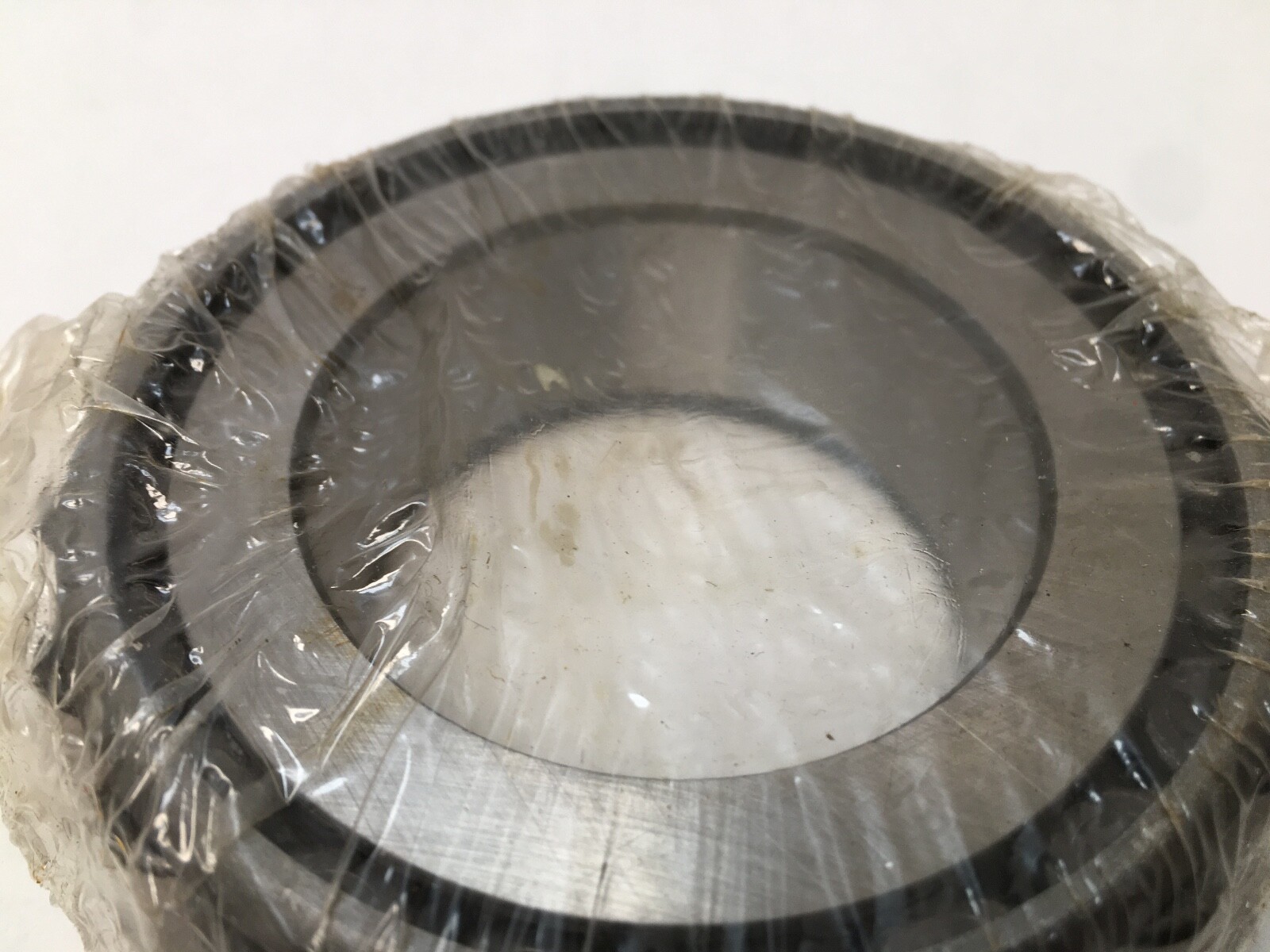

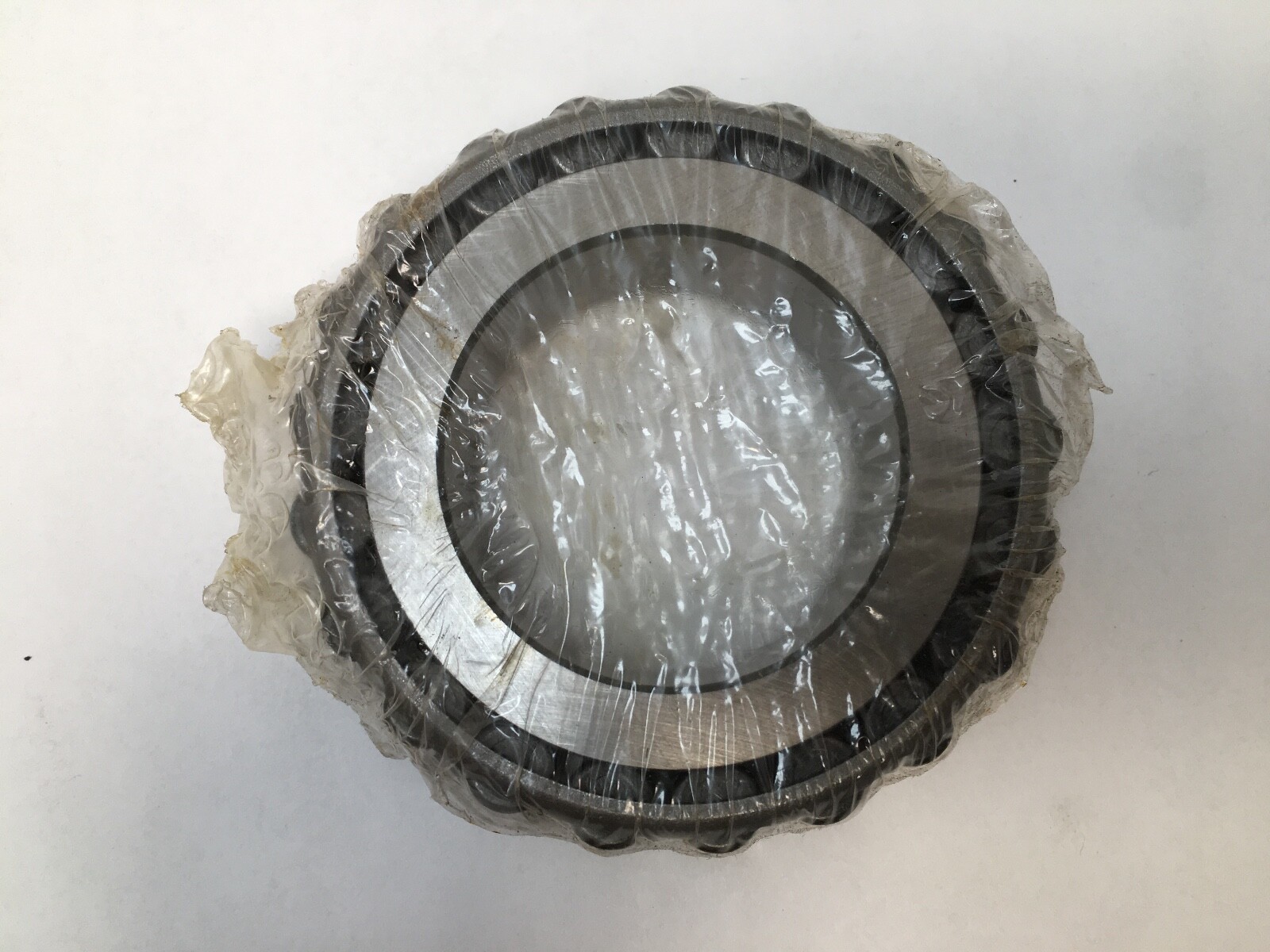

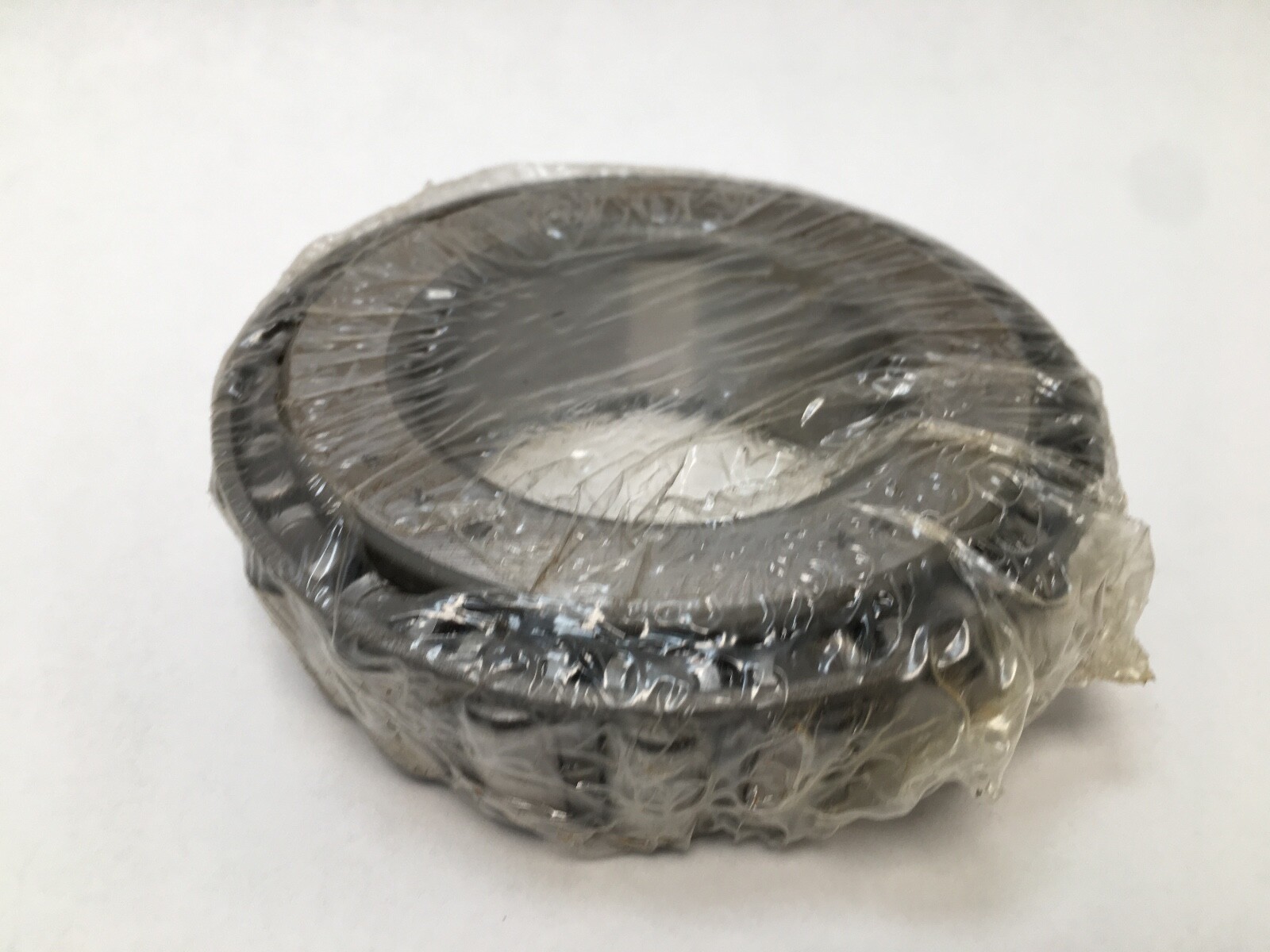

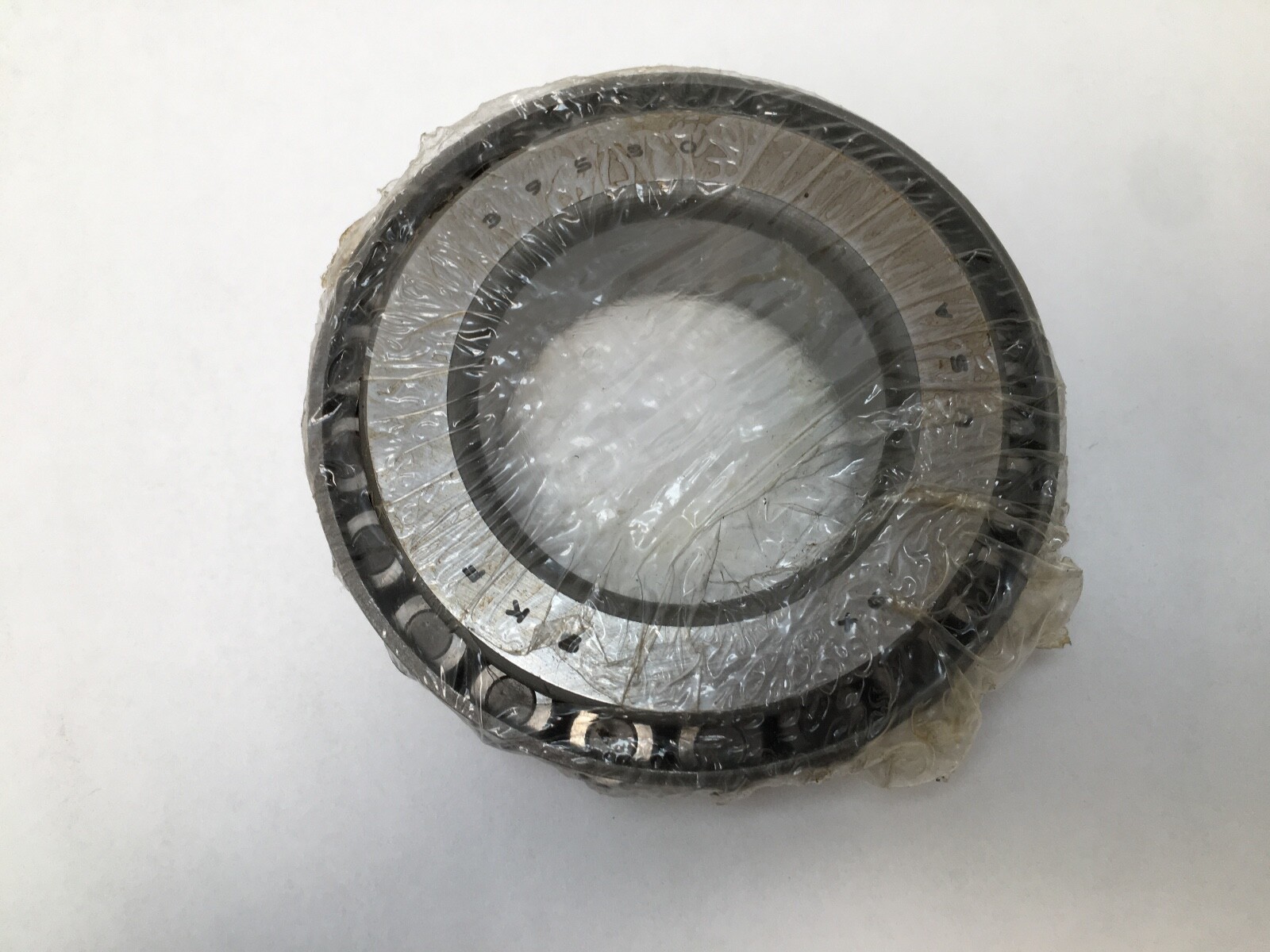

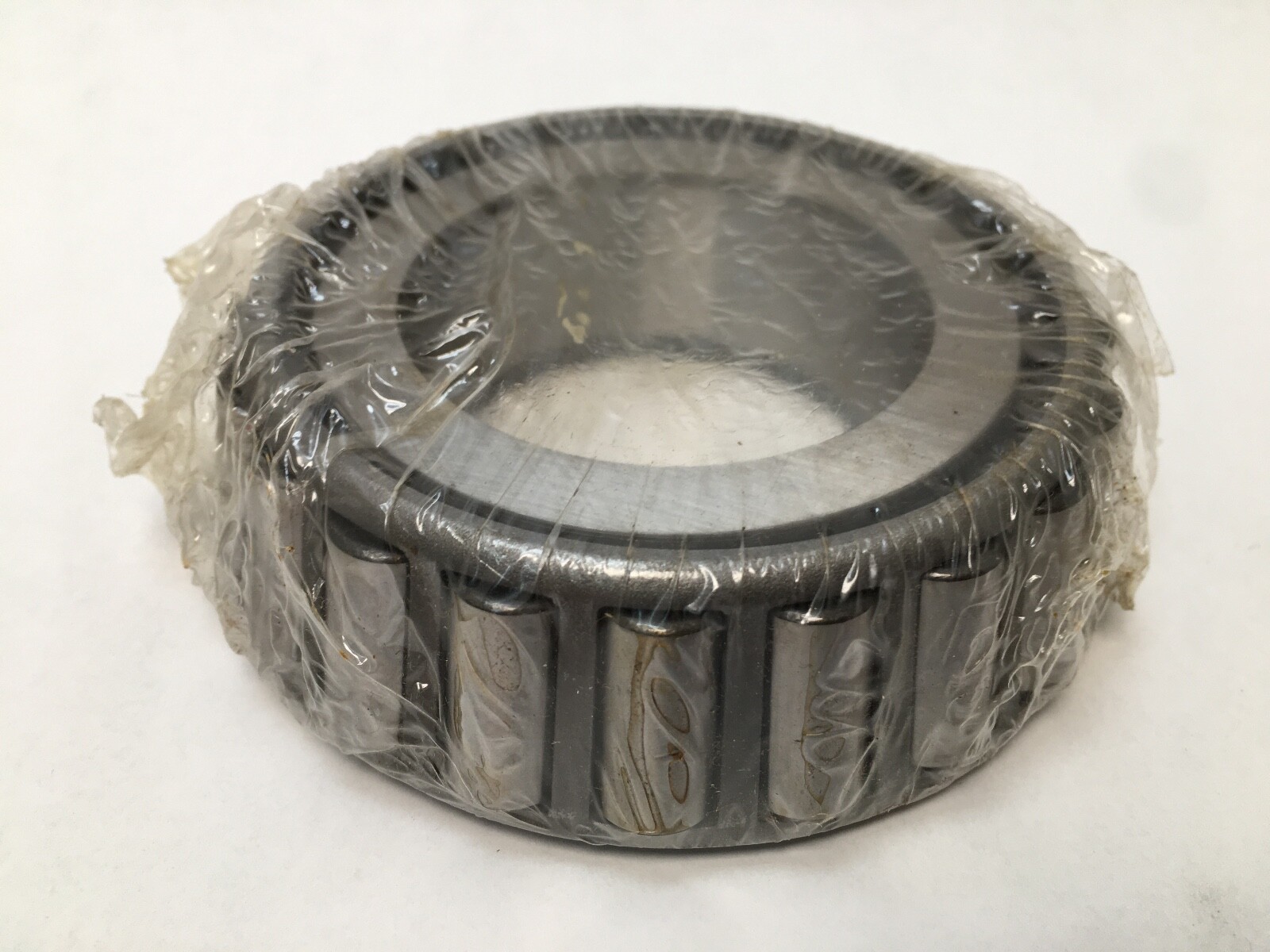

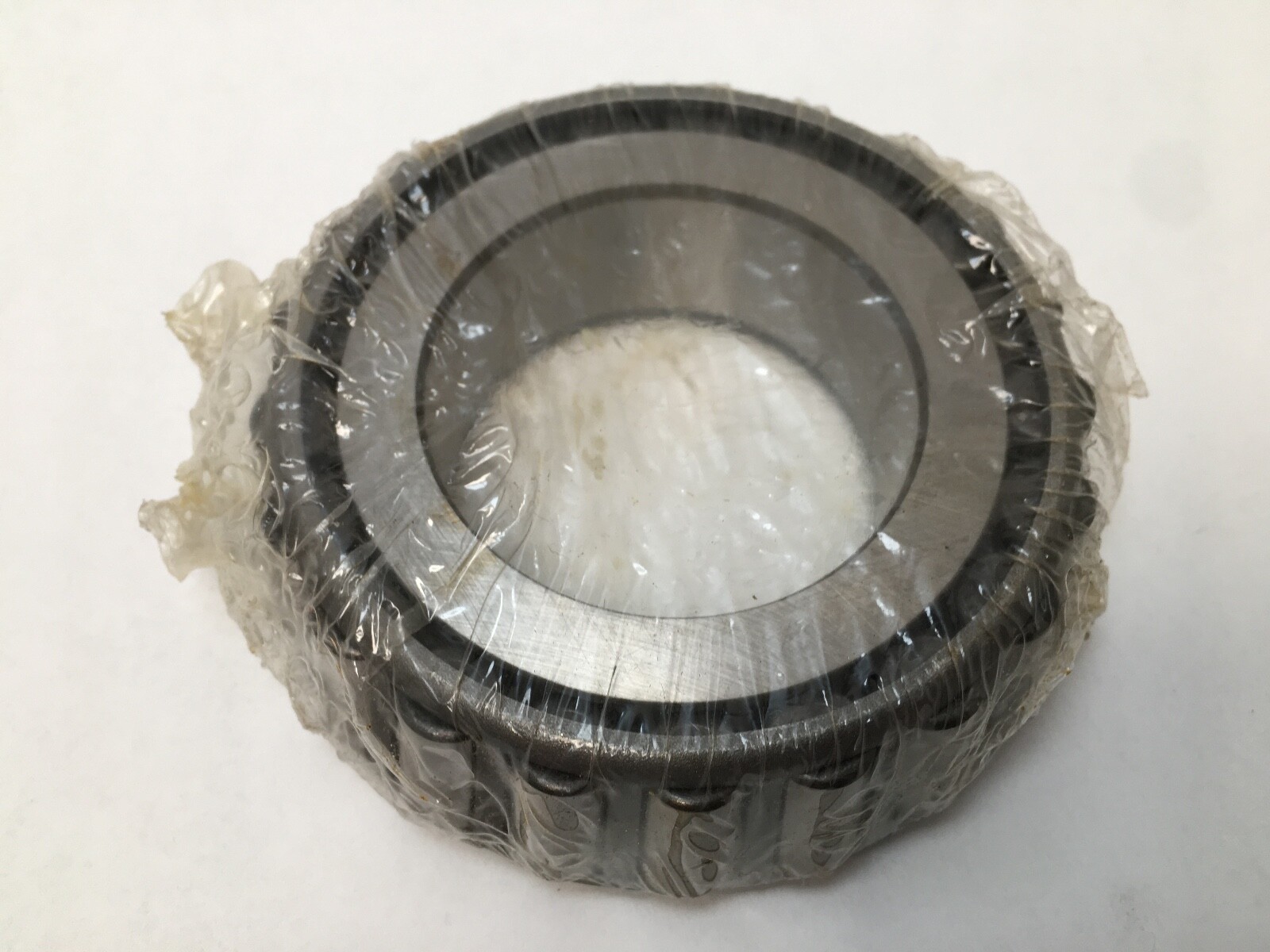

SKF 39580 tapered roller bearing cone — the inner ring complete with its tapered roller and cage assembly, in the inch 39500 series. Bore 2.2500 in (57.150 mm), cone width 1.1875 in (30.163 mm). Carburized bearing steel races with a pressed steel cage.

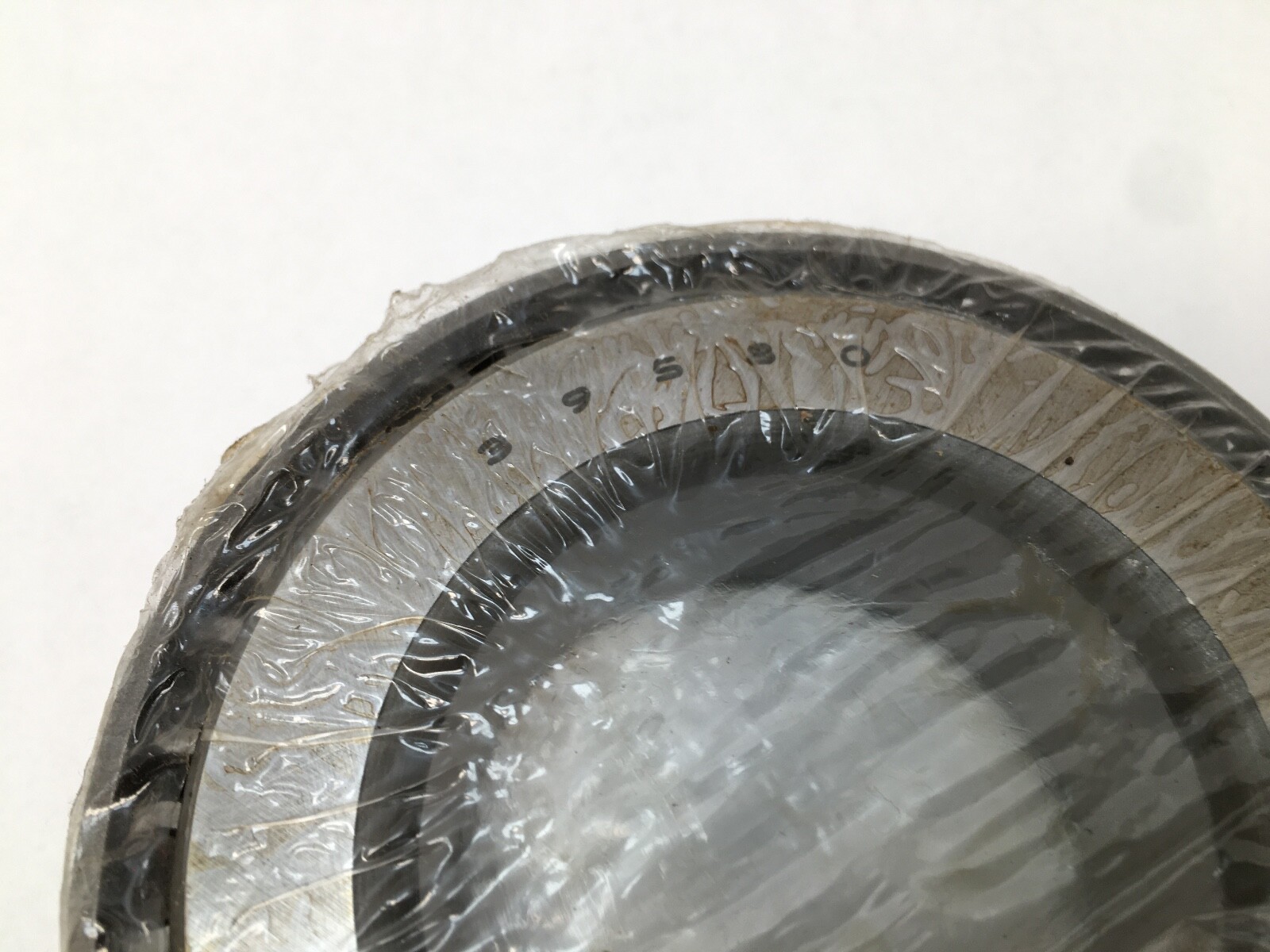

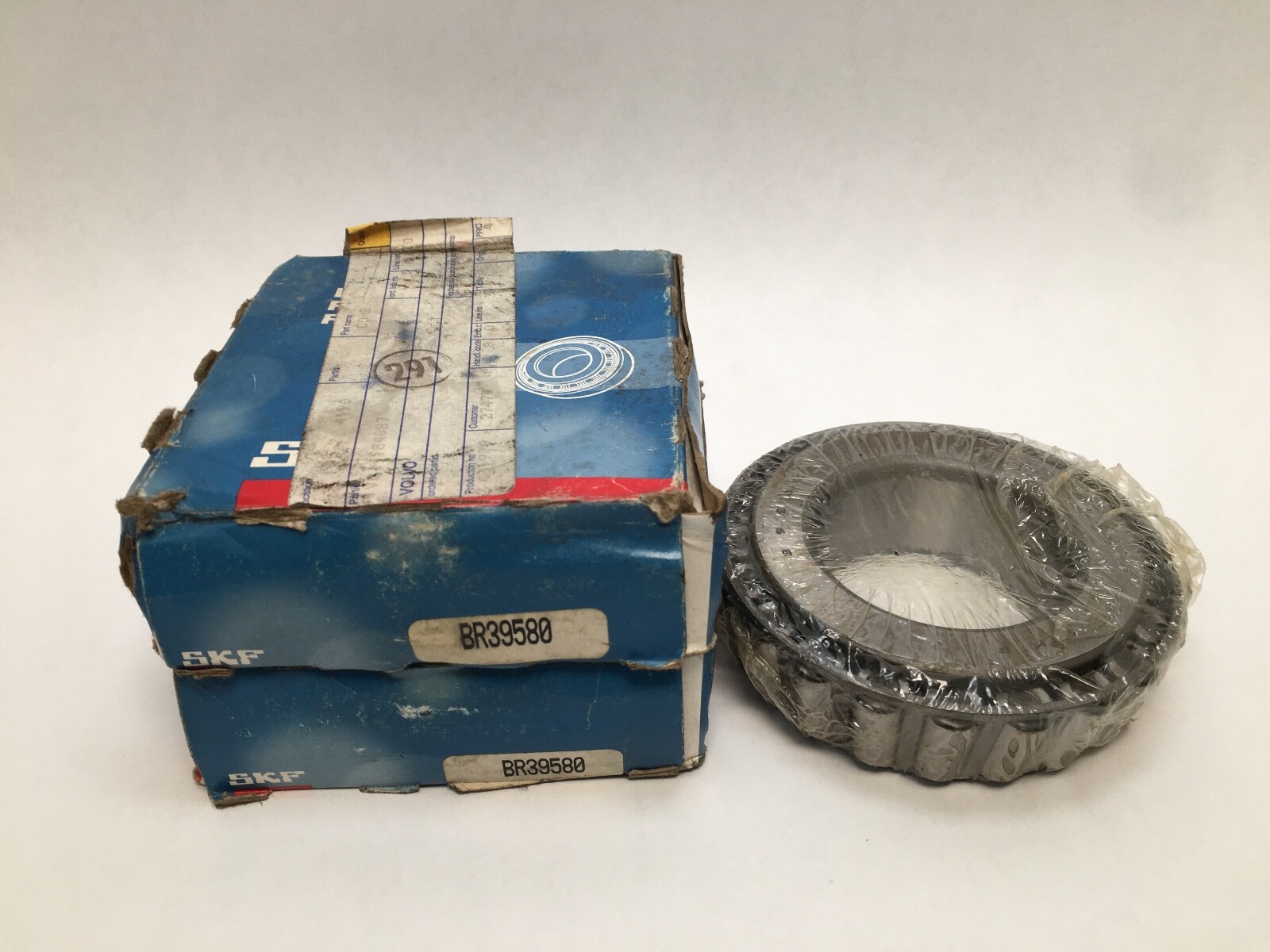

39580 is the industry cone number, carried identically by Timken, NTN, Koyo and Bower. The carton also shows the form BR 39580, where BR is SKF’s prefix for its inch tapered roller range. The number fixes the cone envelope, so every brand’s 39580 shares the same bore, width and roller path.
Straight bore, tapered raceway. A tapered roller cone carries radial load and thrust in one direction simultaneously, the split between the two being set by the raceway angle. The 39500 series is a medium-width inch series used on wheel ends, gearbox shafts and pinion supports.
Cone only, two pieces. The matching cup is the 39520.
The cone seats as a press fit on the shaft and the cup as an interference or line fit in the housing. Endplay or preload is set by axial adjustment once both halves are seated and the rollers have been run in against the cup raceway. Oil bath, circulating oil and grease lubrication all apply.
Timken 39580, NTN 39580, Koyo 39580 and Bower 39580 are the same cone and interchange directly. The 39520 cup is the published counterpart; cone and cup raceway angles are matched between the two halves of a given set number.
