Class 3 tapered roller bearing cone, 2.2500 in (57.150 mm) bore, 1.1542 in cone width, 161,000 N C1 dynamic rating. Mates with Timken 452 or 452A cups.
List Price
$39.89
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 469-3 |
| Model | 469 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.2500 in (57.150 mm) |
| Base Number | 469 |
|---|---|
| Industry Terms | tapered roller bearing cone, TRB cone, cone assembly, inner ring and roller assembly |
| Mpn Variants | 469-3, 469 *3, 469 #3, 4693 |
| Precision Class | Class 3 |
| Dynamic Axial Rating Ca90 | 23,900 N |
| K Factor | 1.74 |
| Dynamic Load Rating | 161,000 N (C1, 1 million revolutions) |
| Static Load Rating | 166,000 N |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Design Units | Inch |
| Bearing Class | Class 3 |
| Cone Part Number | 469 |
| Cone Width | 1.1542 in (29.317 mm) |
| Effective Center Location | -0.28 in (-7.1 mm) |
| Cross Reference 1 | Timken 469 (standard precision) |
|---|

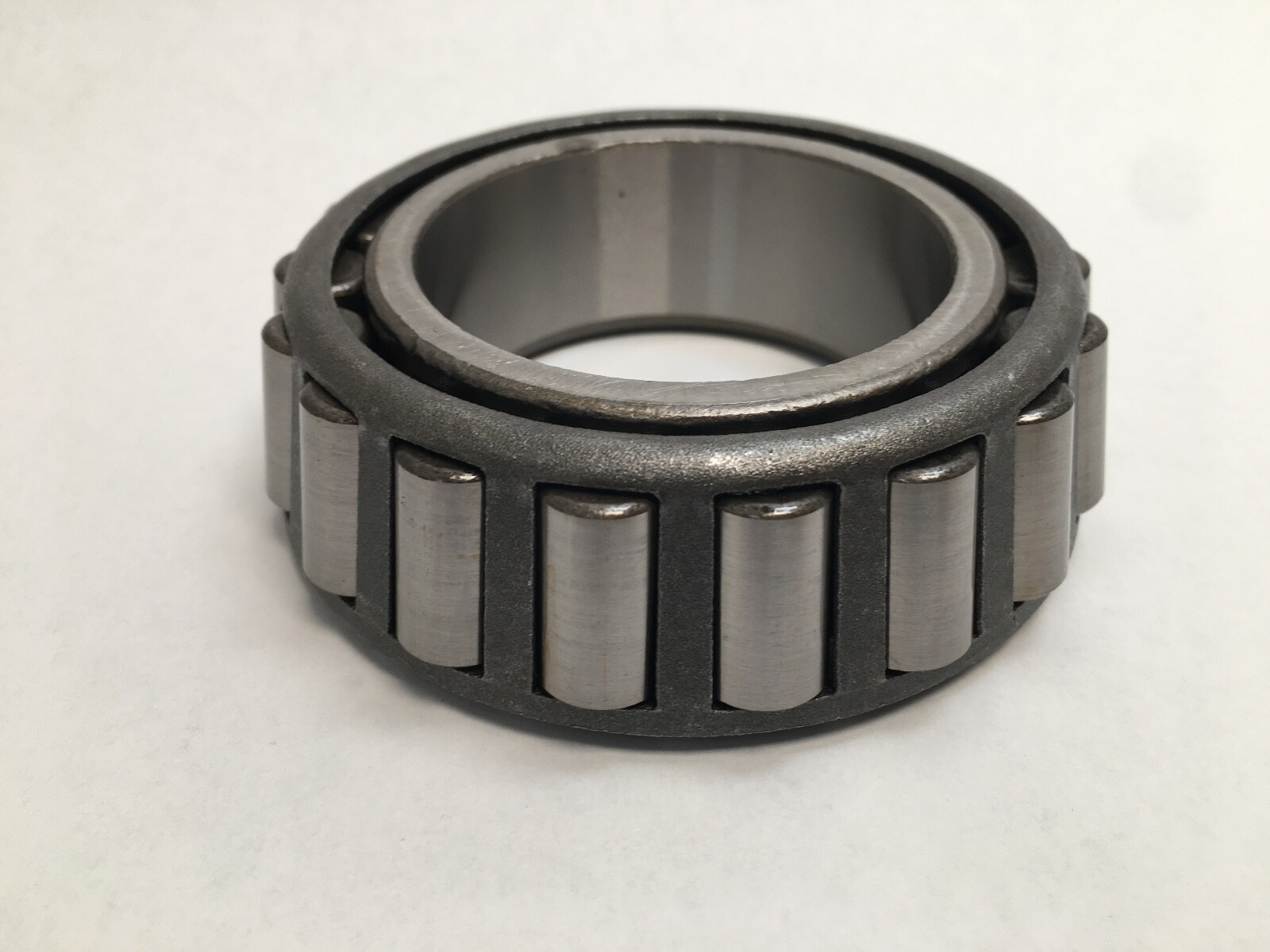

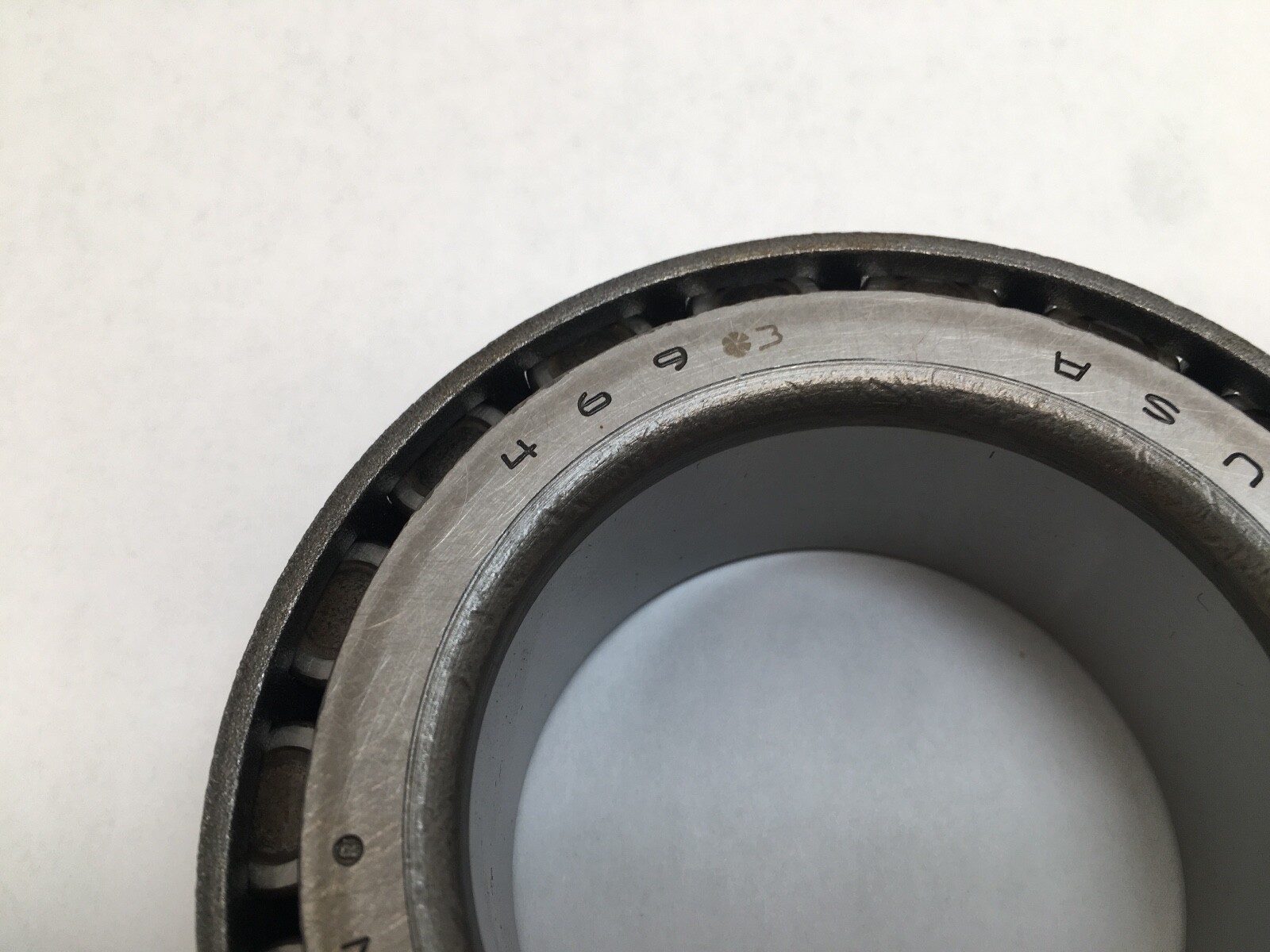

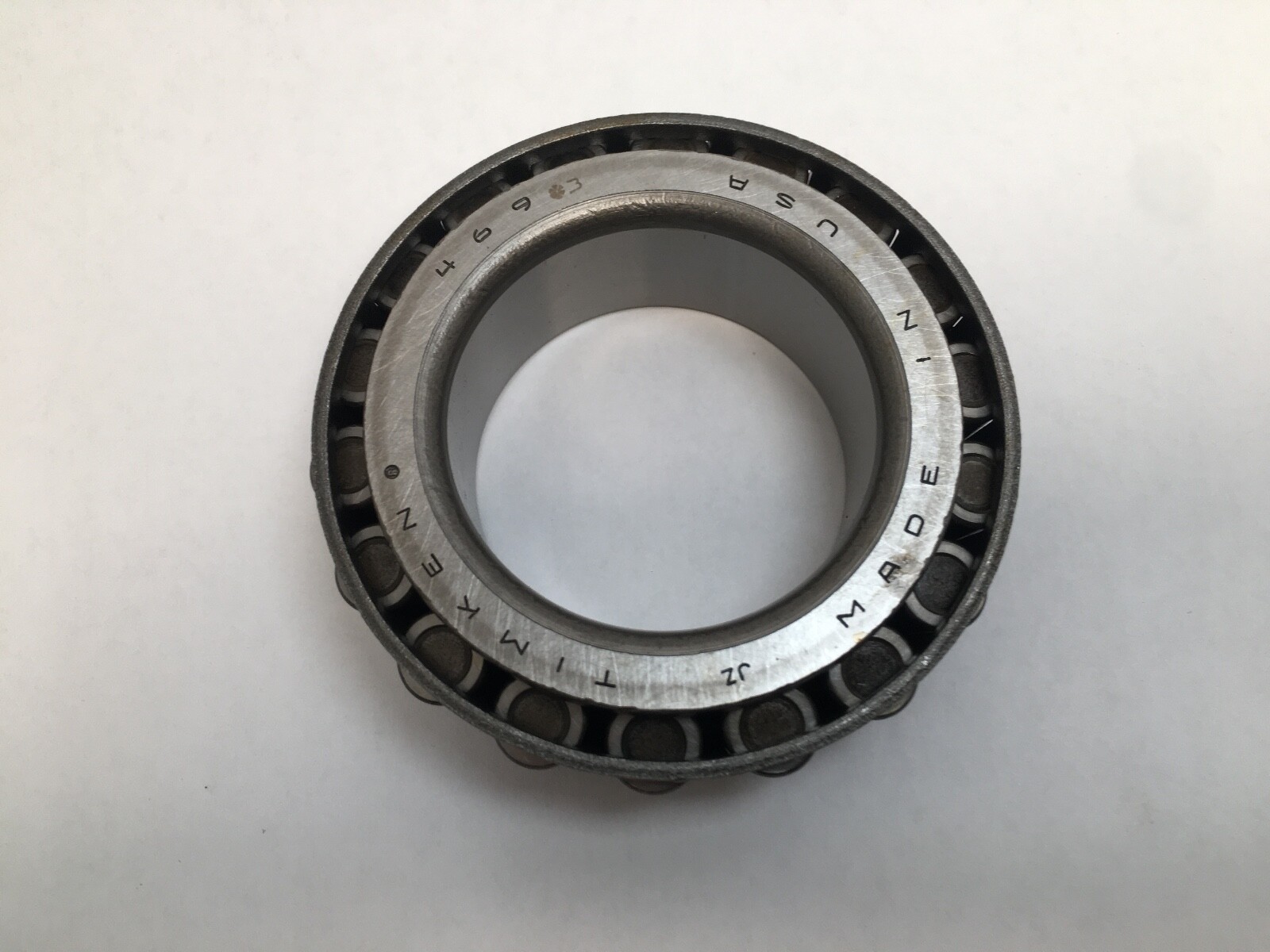

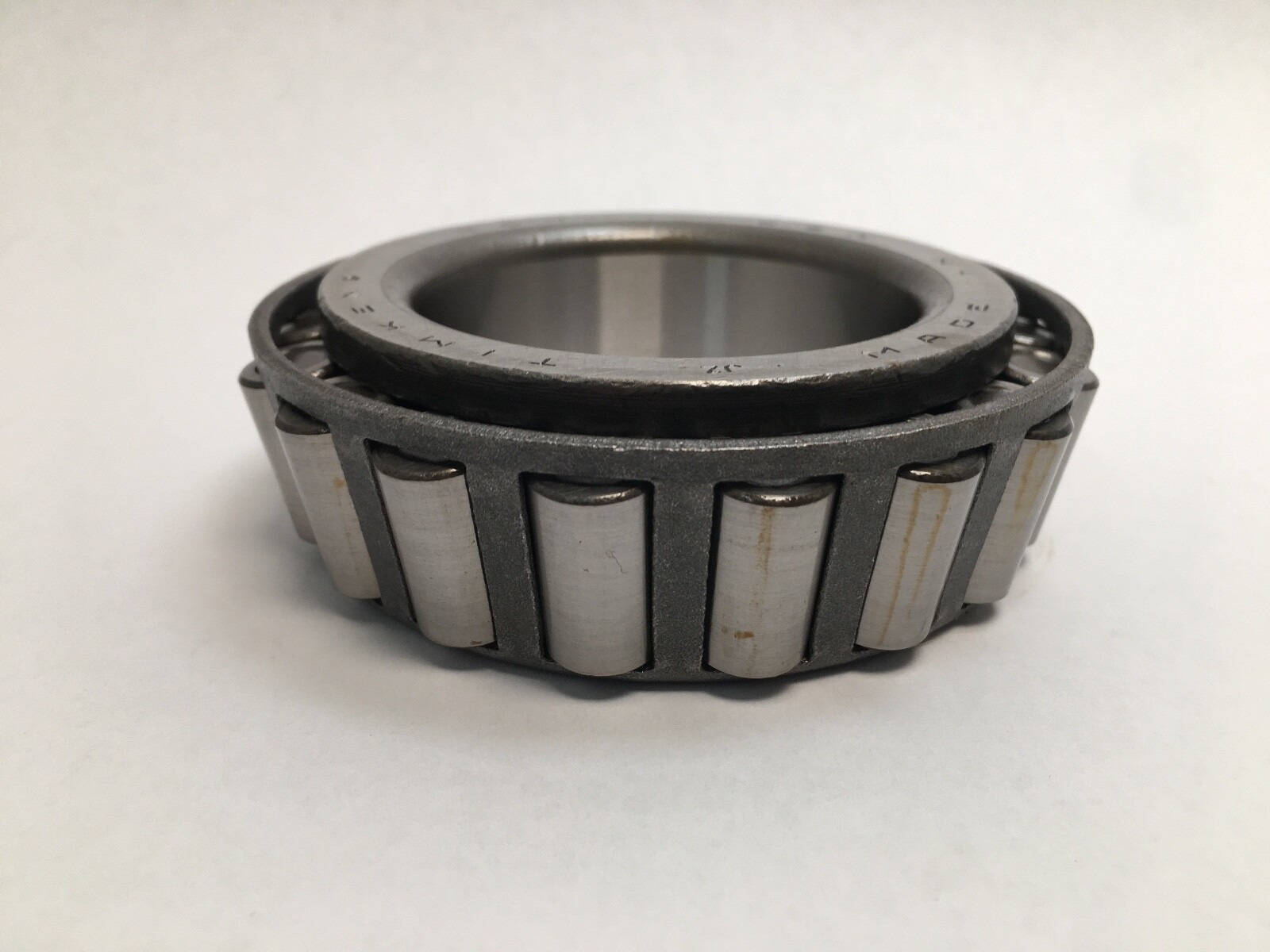

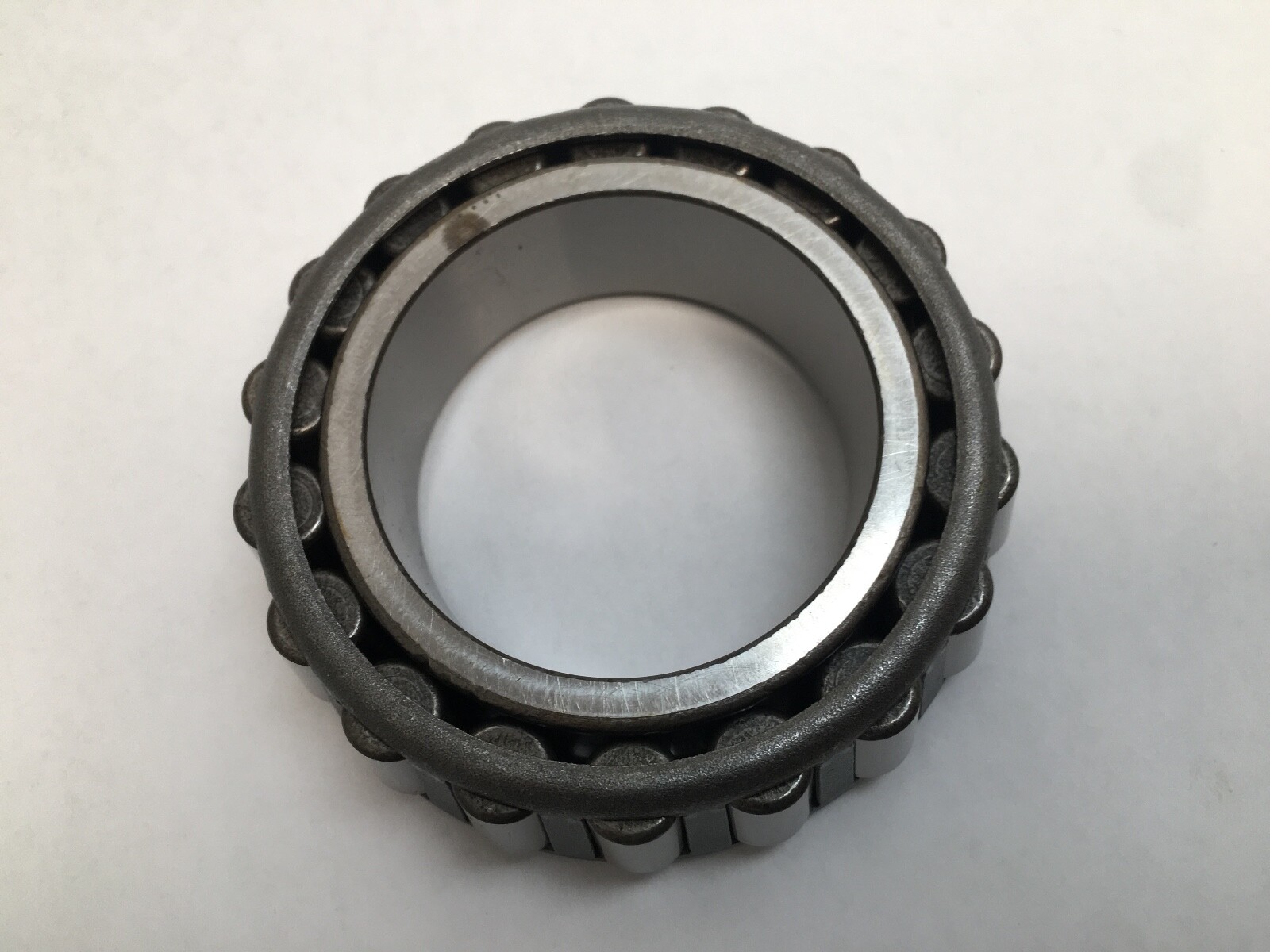

Timken 469-3 is a single tapered roller bearing cone: the inner ring with its tapered rollers and cage. Cone only. Matching Cup: Timken 452 or 452A. Bore Diameter: 2.2500 in (57.150 mm). Cone Width: 1.1542 in (29.317 mm). Precision Class: Class 3. Rolling Elements: Tapered Roller. Number Of Rows: 1. Design Units: Inch. Unit Quantity: 1 Pc. Country of Origin: United States.
469 — Timken inch cone number, 2-1/4 in bore.

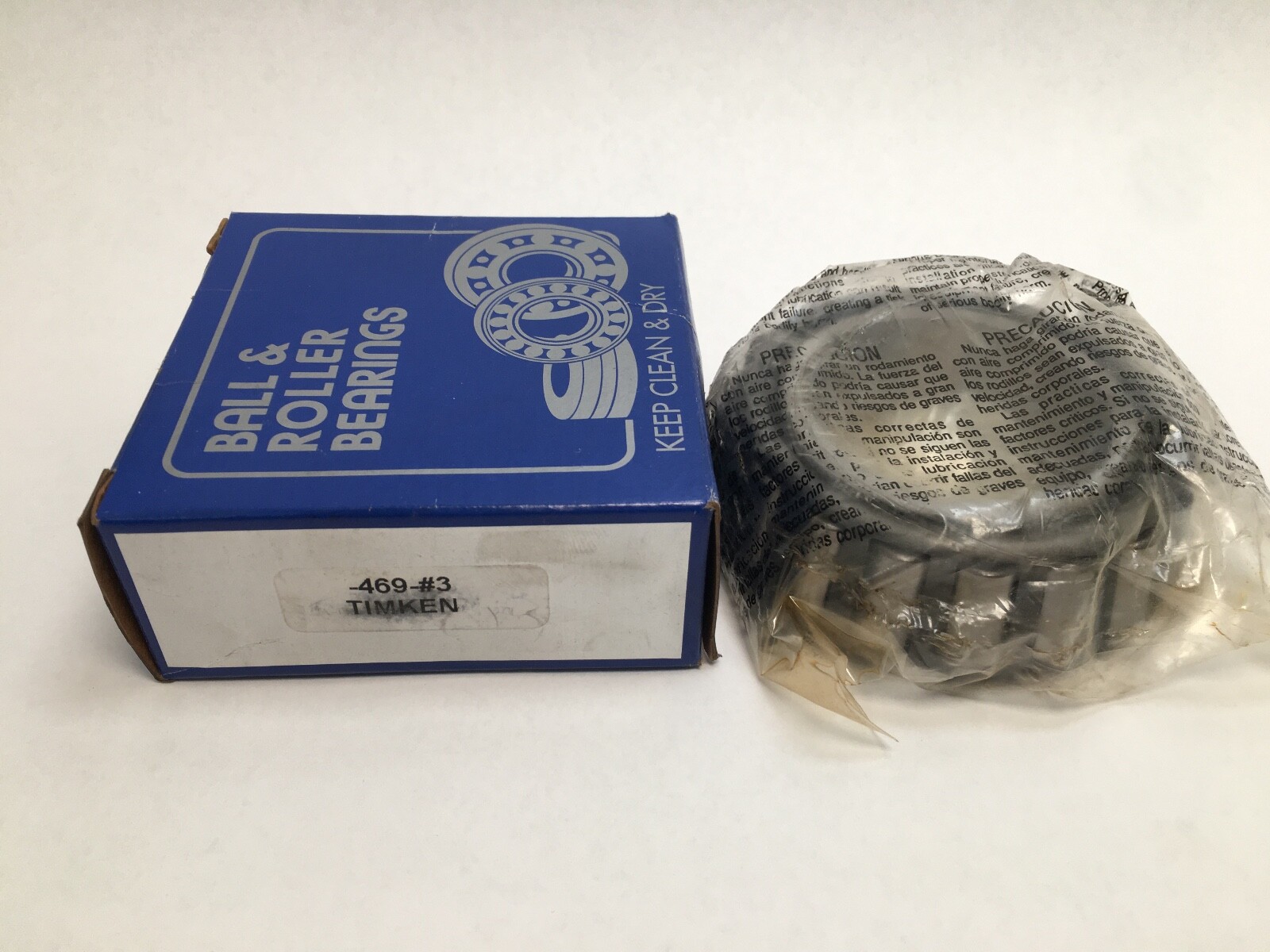

-3 — Timken Class 3 precision: tighter tolerance and lower running vibration. Marked on cartons as -3, *3 or #3.
Dynamic Load Rating: 161,000 N (C1, 1 million revolutions). Dynamic Load Rating (C90): 41,700 N (90 million revolutions). Dynamic Axial Rating (Ca90): 23,900 N. Static Load Rating: 166,000 N. K Factor: 1.74. G1 Factor: 58.6. G2 Factor: 17.1. Geometry Factor (Cg): 0.0946.
Effective Center Location: -0.28 in (-7.1 mm). Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter Frontface: 2.68 in (68 mm). Shaft Backing Shoulder Diameter Backface: 2.83 in (72 mm). Cage Location Relative To Backface: 0.07 in (1.8 mm). Cage Location Relative To Frontface: 0.08 in (2 mm).
Assembly Designation: Timken 469/452, a single-row TS bearing with Assembly Outside Diameter: 4.2500 in (107.950 mm) and Assembly Width: 1.2819 in (32.560 mm). Timken also lists the 452A cup as a mate for this cone. Cross-Reference 1: Timken 469 (standard precision). Searchable variants: 469-3, 469 *3, 469 #3, 4693.
Timken 452 or 452A.
Timken precision Class 3, with tighter tolerance and lower running vibration than standard.
2.2500 in (57.150 mm).
