Double-row spherical roller bearing, 70 x 125 x 31 mm, 1:12 tapered bore, C3 clearance. W33 lubrication groove, mounts on an H314 adapter sleeve.
List Price
$64.17
13 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 22214PCKW33C3 |
| Model | 22214 PC K W33 C3 / 22214CCK 22214CK 22214CKJ 22214CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22214 |
| Lubricant | Grease or oil |
| Bore | Taper Bore |
| Base Number | 22214 |
| Overall Width | 31 mm |
| Mpn Variants | 22214PCKW33C3; 22214-PC-K-W33-C3; 22214 PC K W33 C3; 22214PCKW33; 22214KW33C3 |
| Compatible With Replaces | Mounts on an H314 adapter sleeve with a KM14 locknut and MB14 lockwasher |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30 |
| Design Units | Metric |
| Closure Type | Open |
| Cross Reference 1 | SKF 22214 EK/C3 - E design, no W33 groove |
|---|---|
| Cross Reference 2 | FAG 22214-E1-K-C3 - E1 design, no W33 groove |
| Cross Reference 3 | NSK 22214EAKE4C3 |
| Cross Reference 4 | NTN 22214EAKD1C3 |
| Cross Reference 5 | Timken 22214KEJW33C3 |
| Cross Reference 6 | NACHI 22214EXKC3 |

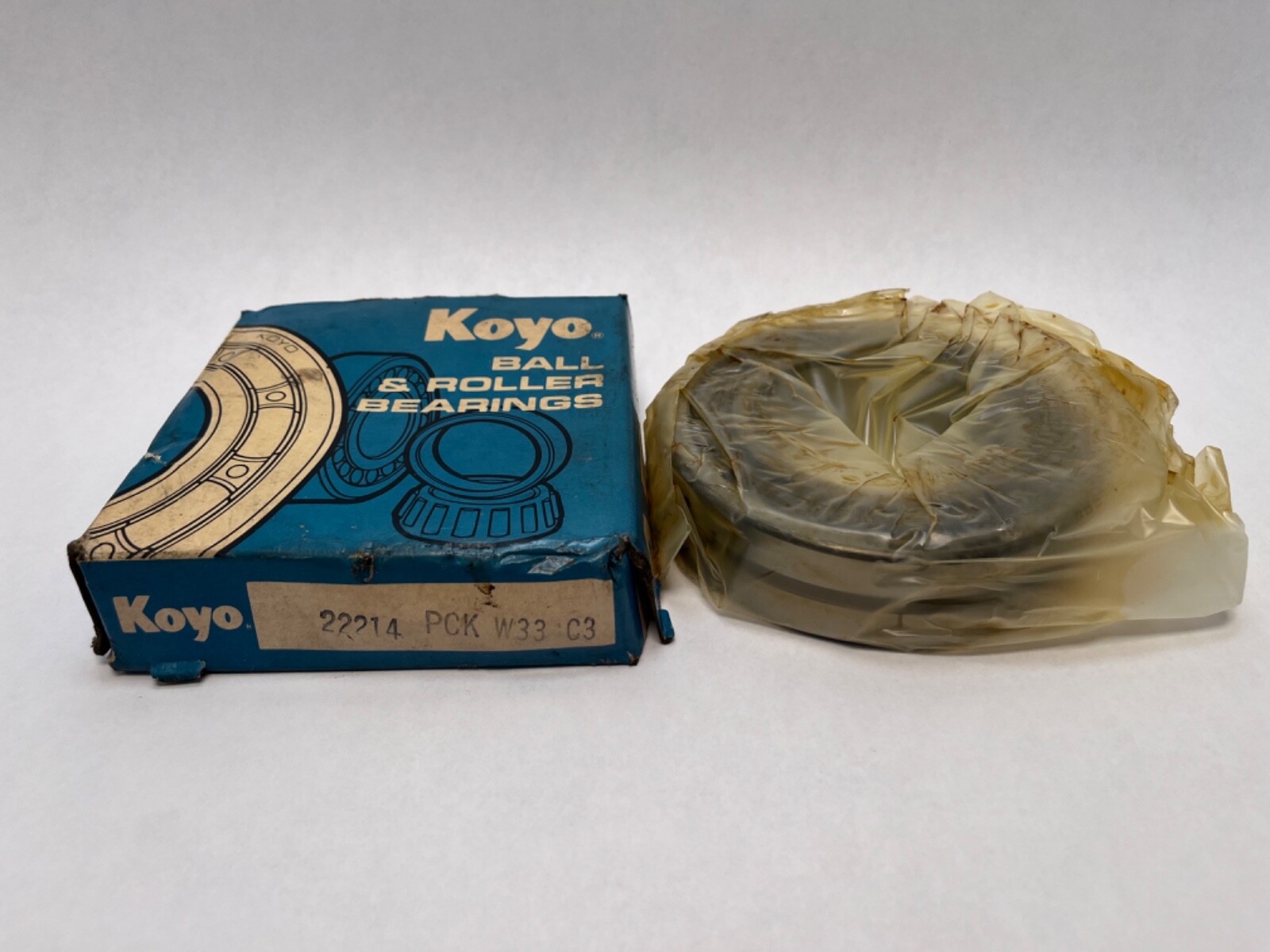

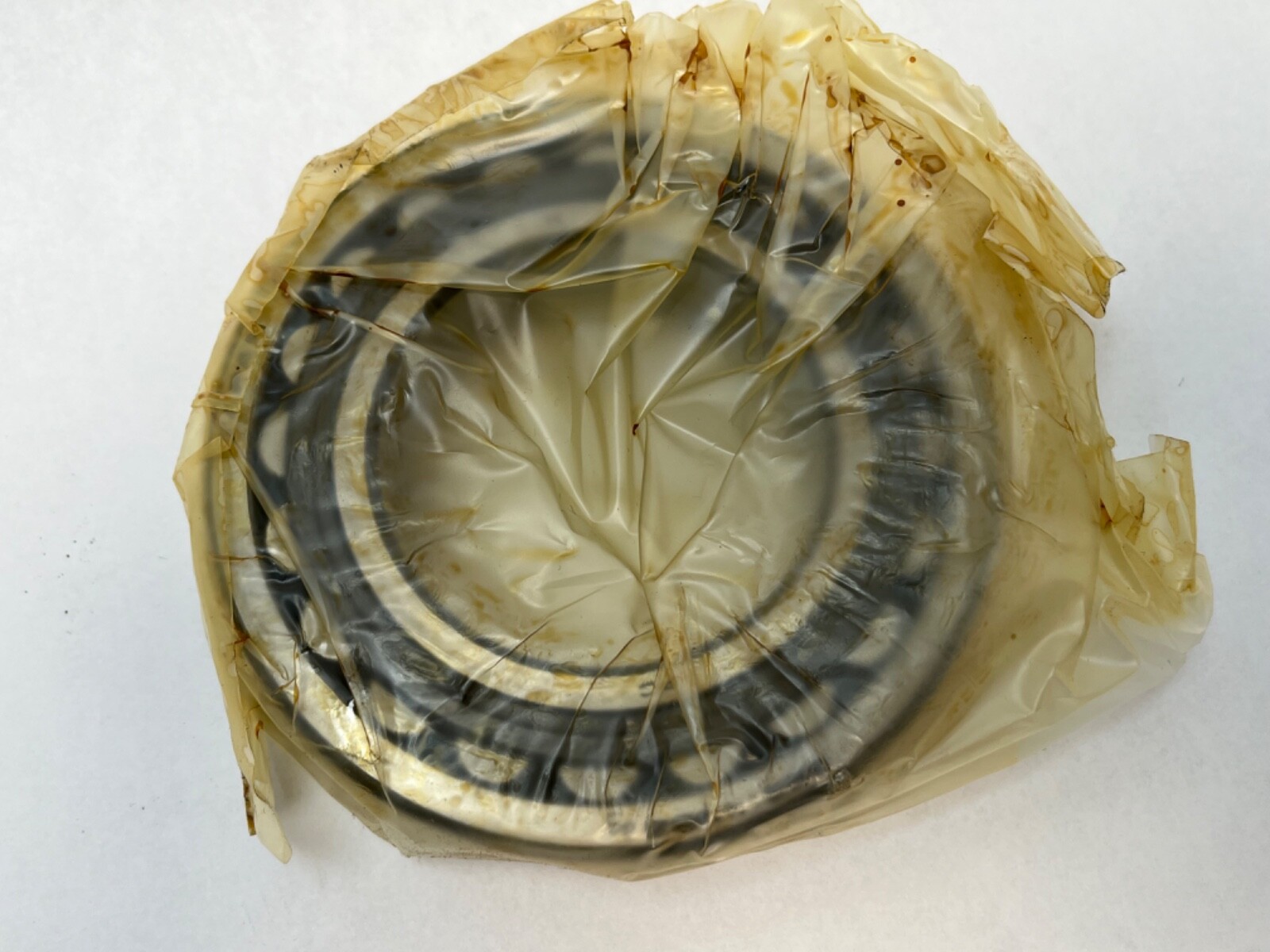

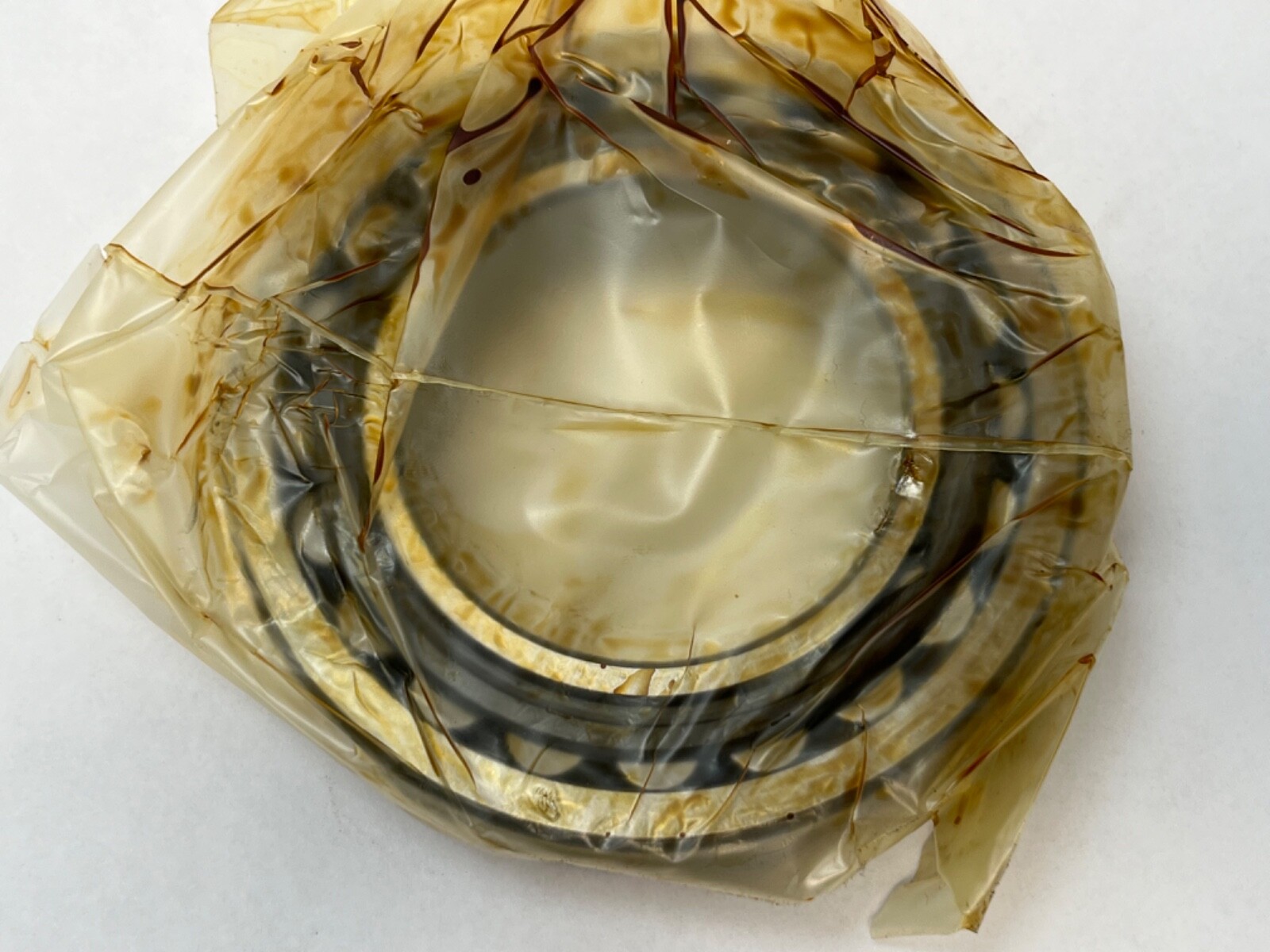

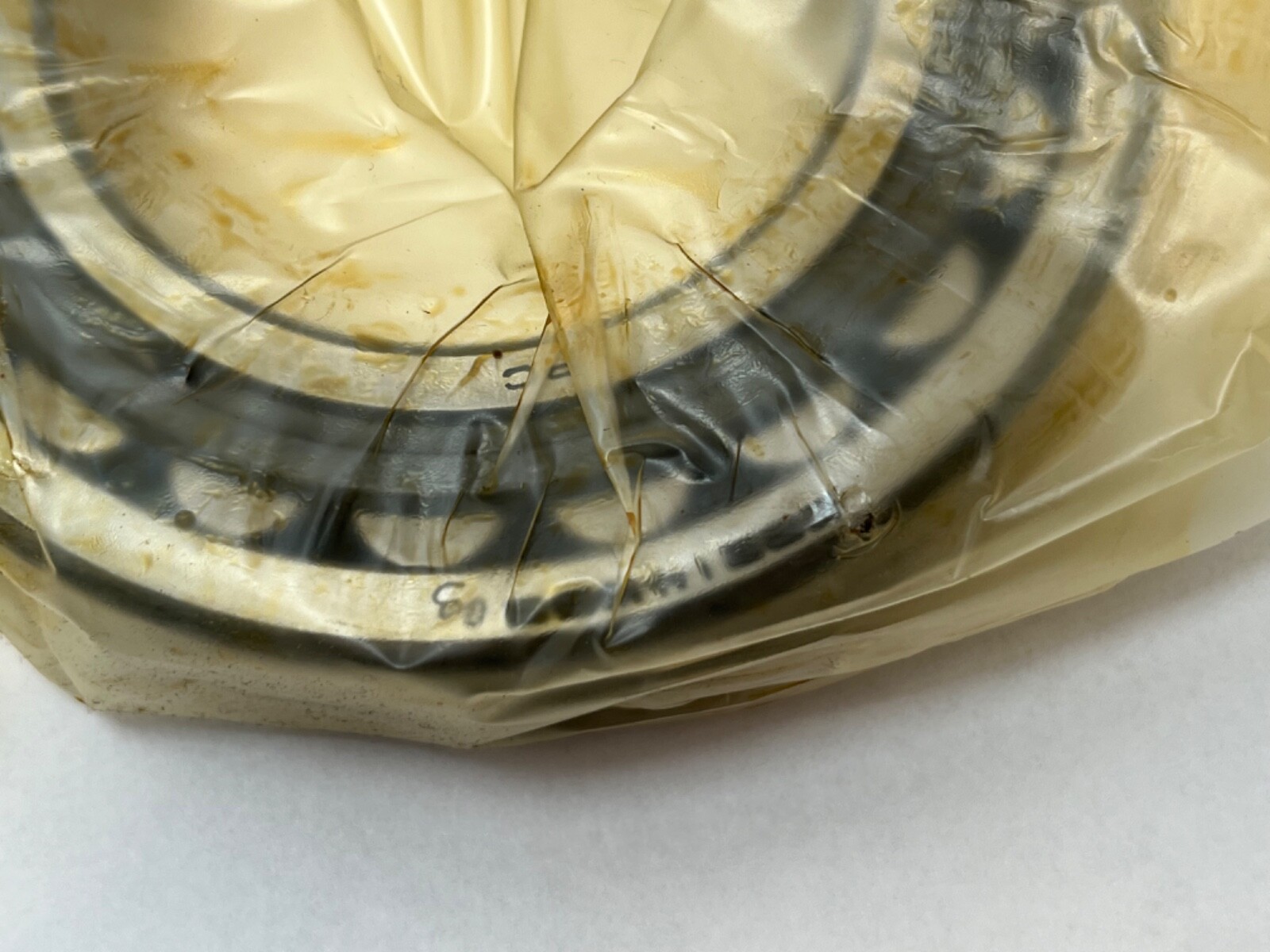

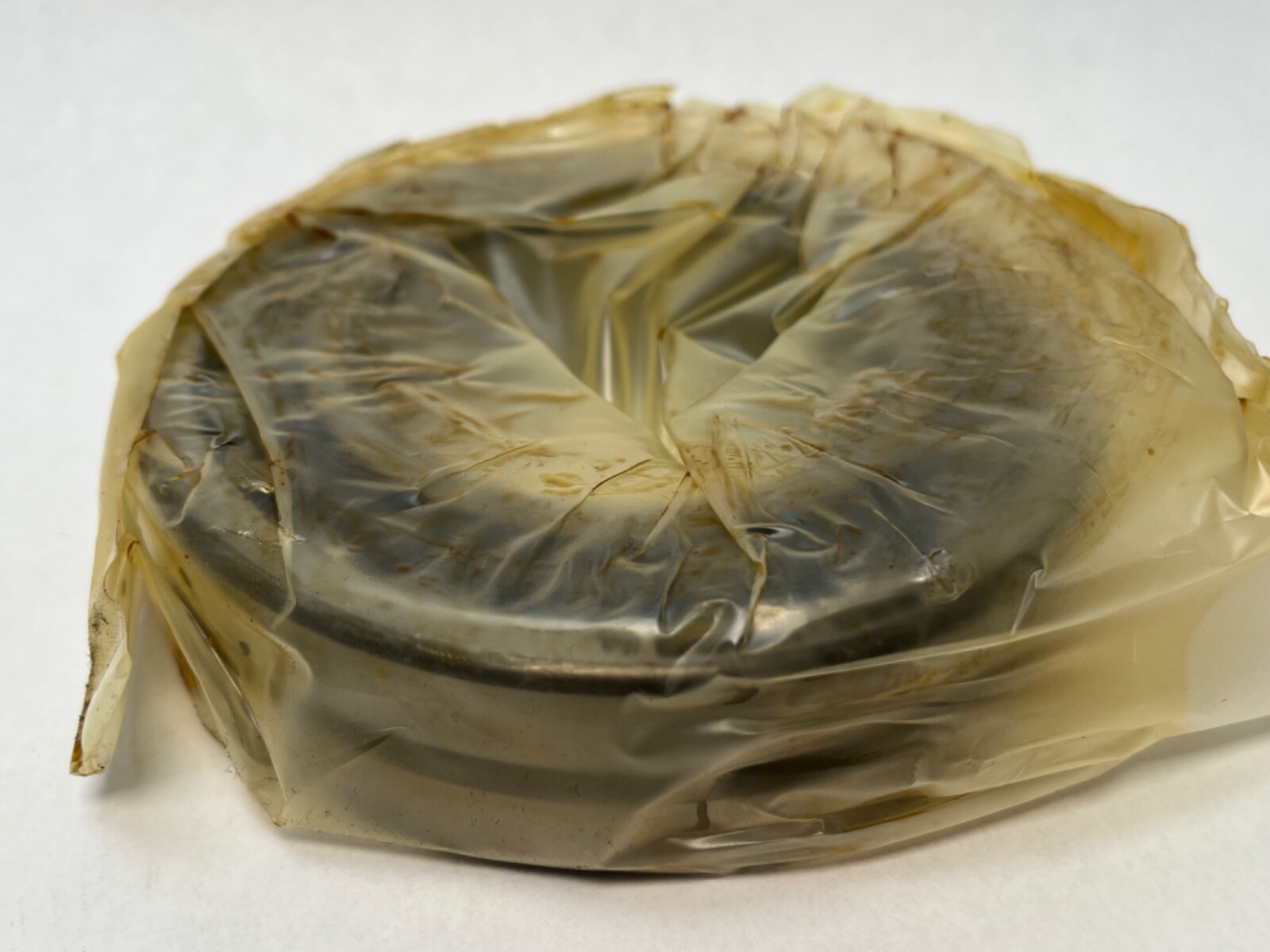

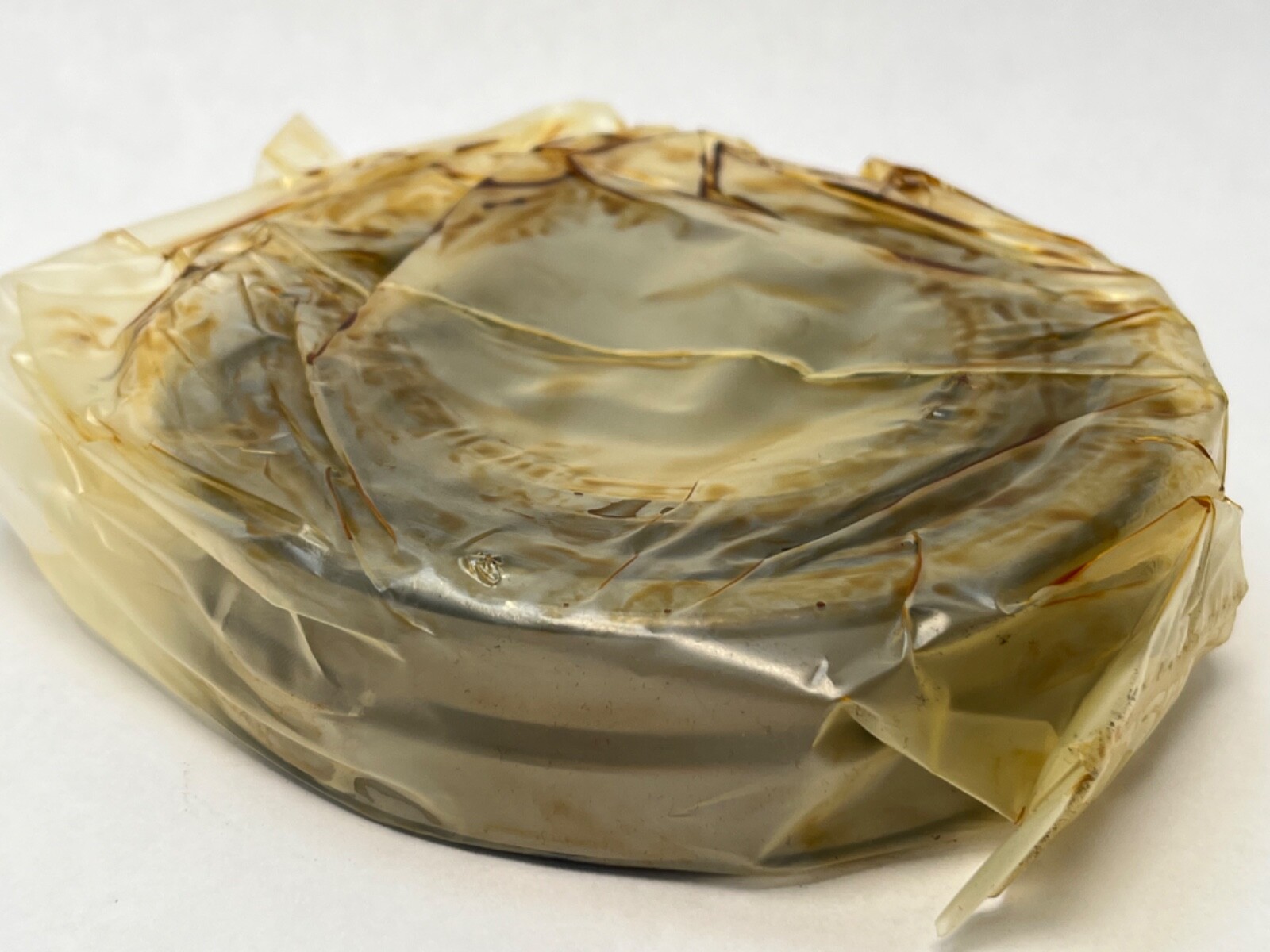

Koyo 22214PCKW33C3 double-row spherical roller bearing with a 1:12 tapered bore, W33 lubrication groove and C3 clearance. Unit Quantity: 1 Pc. One complete bearing: inner ring, both roller rows, cage and outer ring.
22214 — ISO spherical roller bearing designation, 70 mm bore, 125 mm outside diameter, 31 mm width.
K — 1:12 tapered bore.
W33 — annular groove in the outer ring outside diameter with three radial feed holes to the rollers, for grease or oil.
C3 — radial internal clearance greater than normal.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 31 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Closure Type: Open. Lubricant: Grease or oil. Series: 22214. Harmonization Code: 8482.30.
Bore Type: Tapered 1:12, for adapter-sleeve mounting on a plain cylindrical shaft. Adapter sleeve: H314, tapered outside diameter 70 mm, shaft seat 60 mm, with a KM14 locknut and an MB14 lockwasher. Axial load: both directions.
Cross-Reference 1: SKF 22214 EK/C3, E design, no W33 groove. Cross-Reference 2: FAG 22214-E1-K-C3, E1 design, no W33 groove. Cross-Reference 3: NSK 22214EAKE4C3. Cross-Reference 4: NTN 22214EAKD1C3. Cross-Reference 5: Timken 22214KEJW33C3. Cross-Reference 6: NACHI 22214EXKC3. The Koyo designation is also written 22214-PC-K-W33-C3 and 22214 PC K W33 C3.
Bore 70 mm, outside diameter 125 mm, width 31 mm, with a 1:12 tapered bore.
The H314 adapter sleeve, with tapered outside diameter 70 mm and 60 mm shaft seat, with a KM14 locknut and MB14 lockwasher.
W33 is an outer-ring lubrication groove with three radial feed holes, for grease or oil. C3 is radial internal clearance greater than normal.
