Spherical Roller Bearing - Straight Bore, 160 mm ID, 290 mm OD, 80 mm Width, Open, C3 Internal Clearance, Machined Brass Cage, 200 °C Stabilised.$611.06| MFR / Brand | SNR |
|---|---|
| MPN | 22232VF107 |
| Model | 22232 V F107 / 22232 V M/MB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 160 mm |
| OD | 290 mm |
| Width | 80 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil Preservative |
| Preload | Universal |
| Running Accuracy | RBEC 1 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 1043 kN |
| Static Load Rating | 1290 kN |
| Precision Rating | Standard |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200 °C |
| Item Weight | 49.6 lbs |
| Cage Material | Brass |
| Limiting Speed | 2000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.80 |
| Contact Angle | 15°C |
| Mounting Arrangement | Universal |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 22232 E |
|---|---|
| Cross Reference 2 | FAG 22232-E1 |

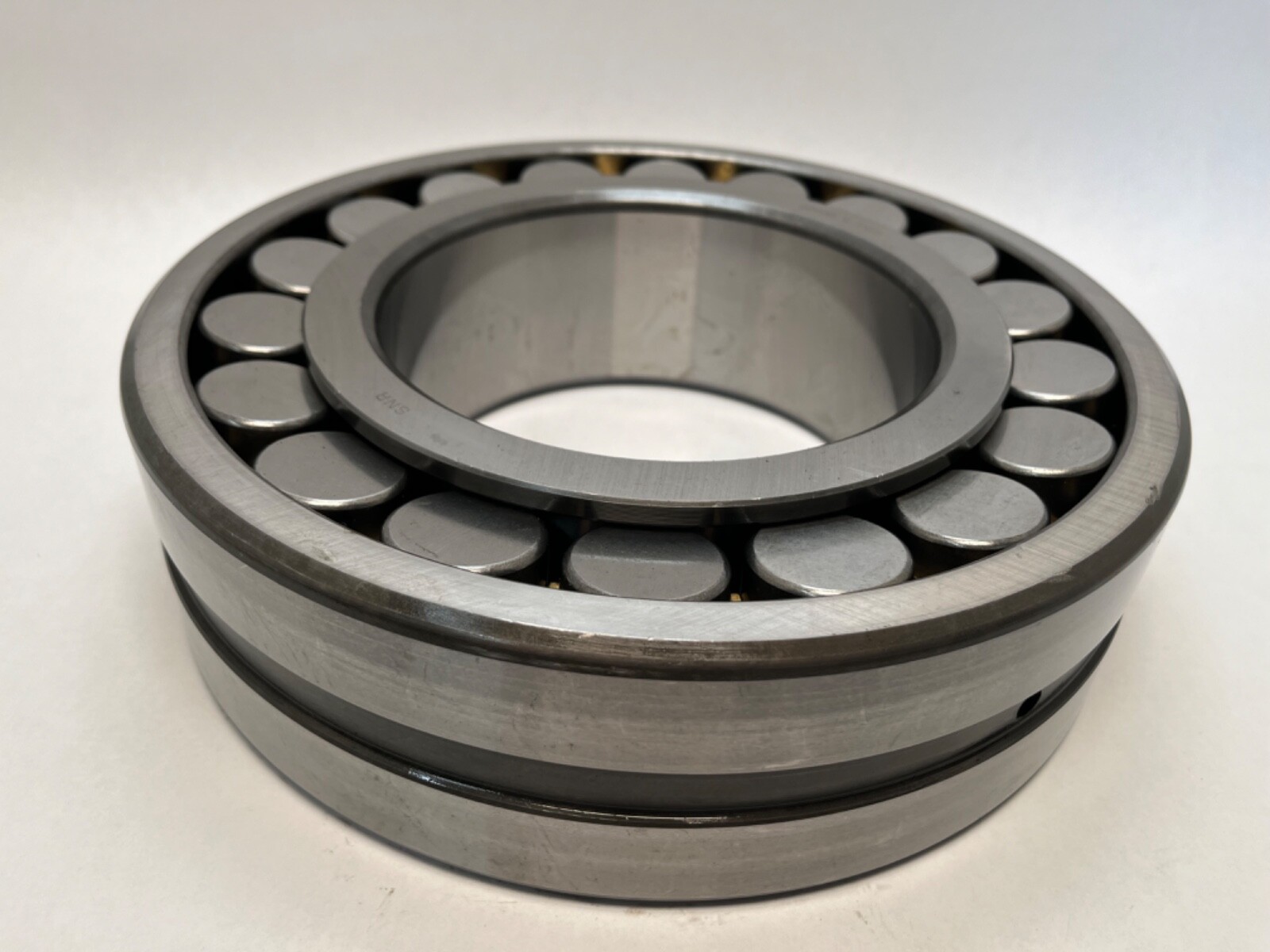

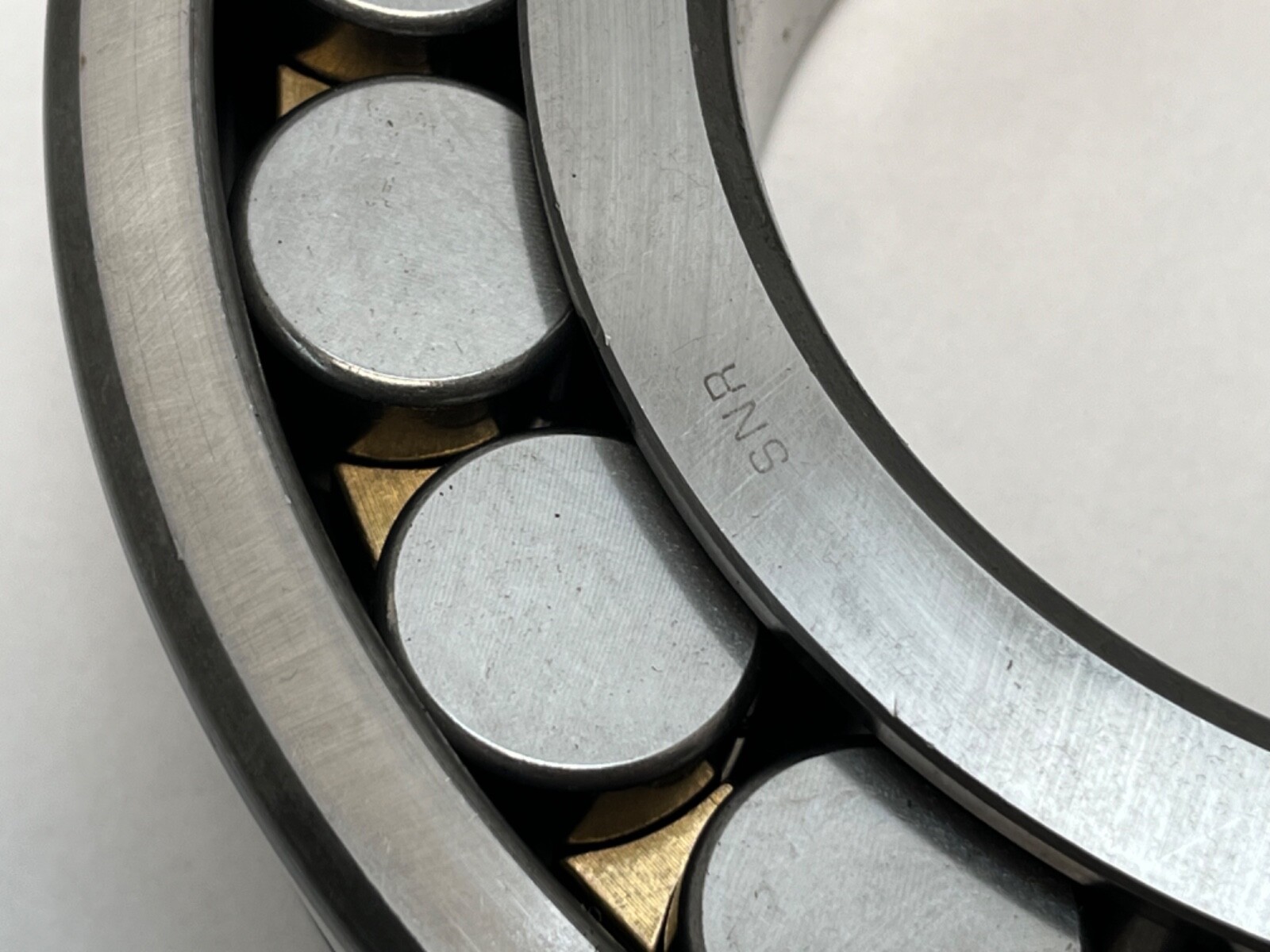

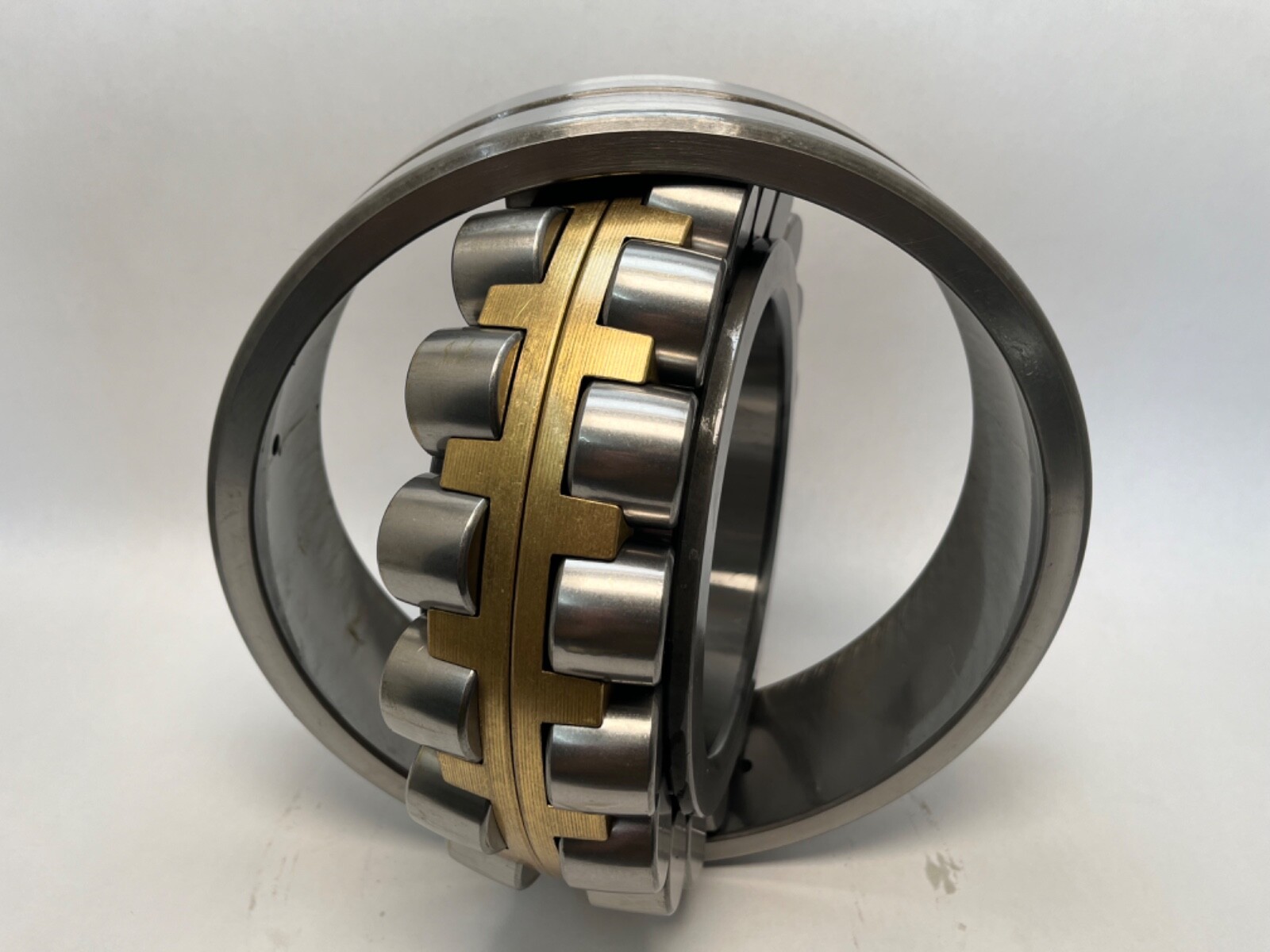

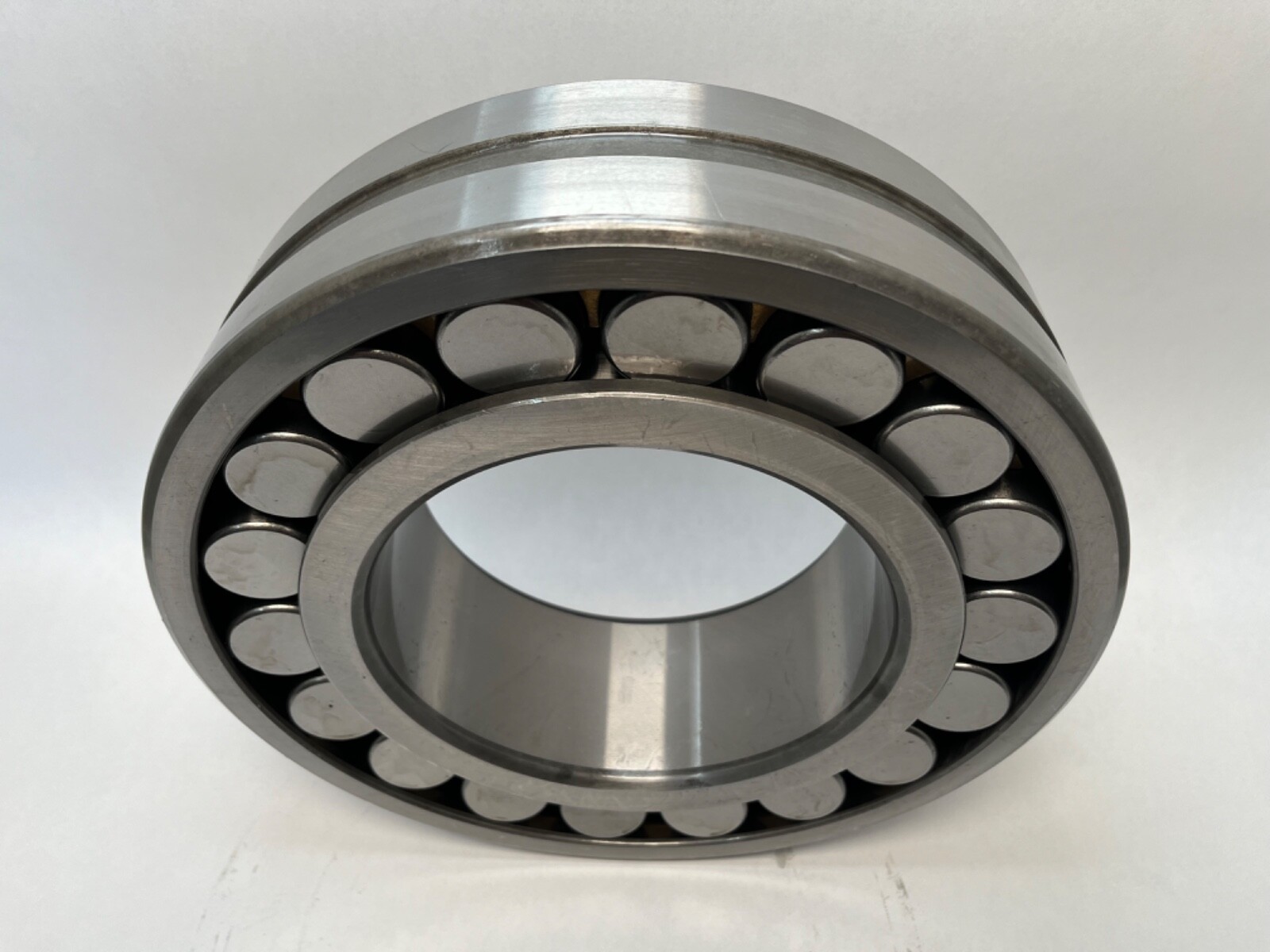

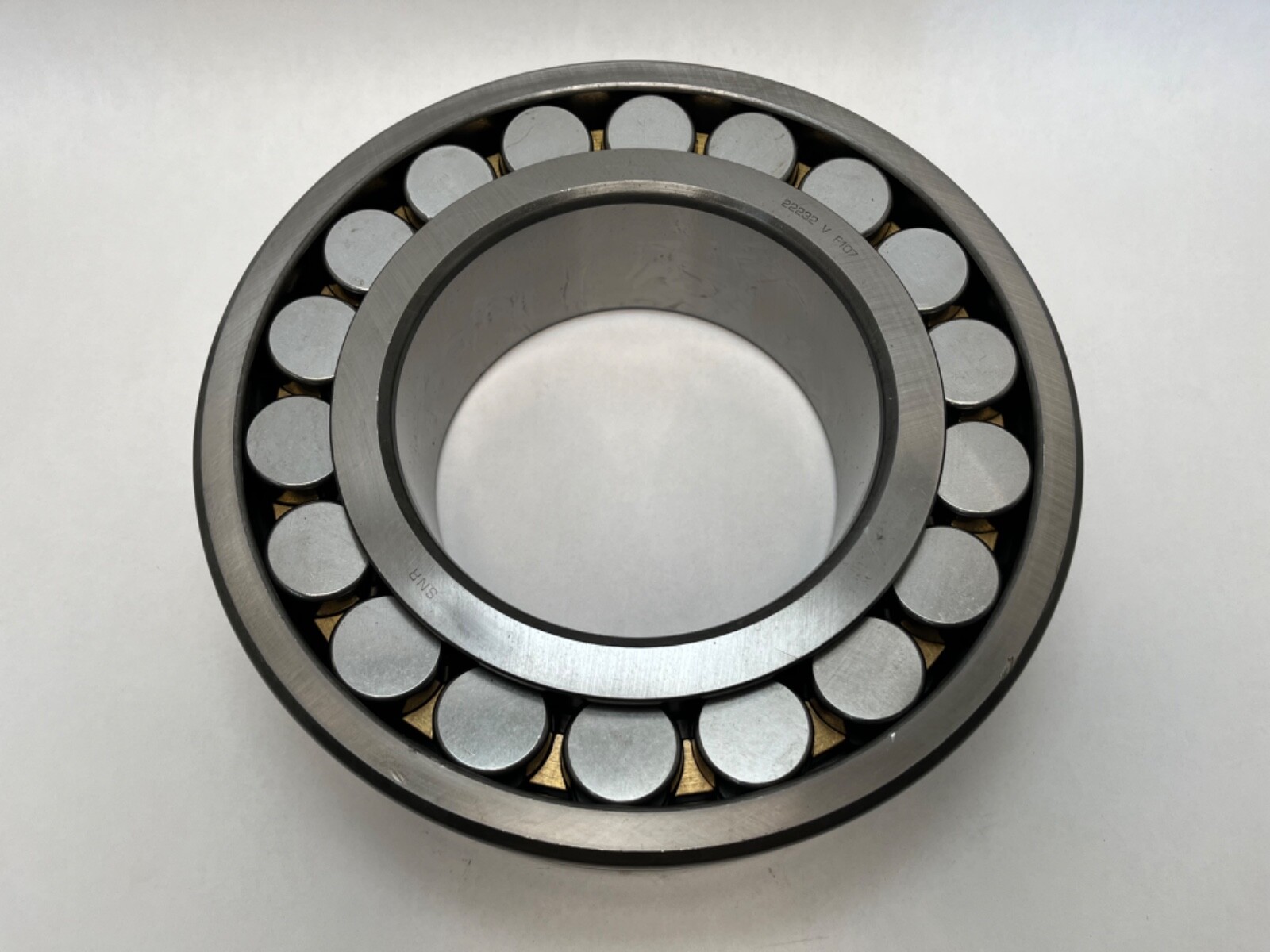

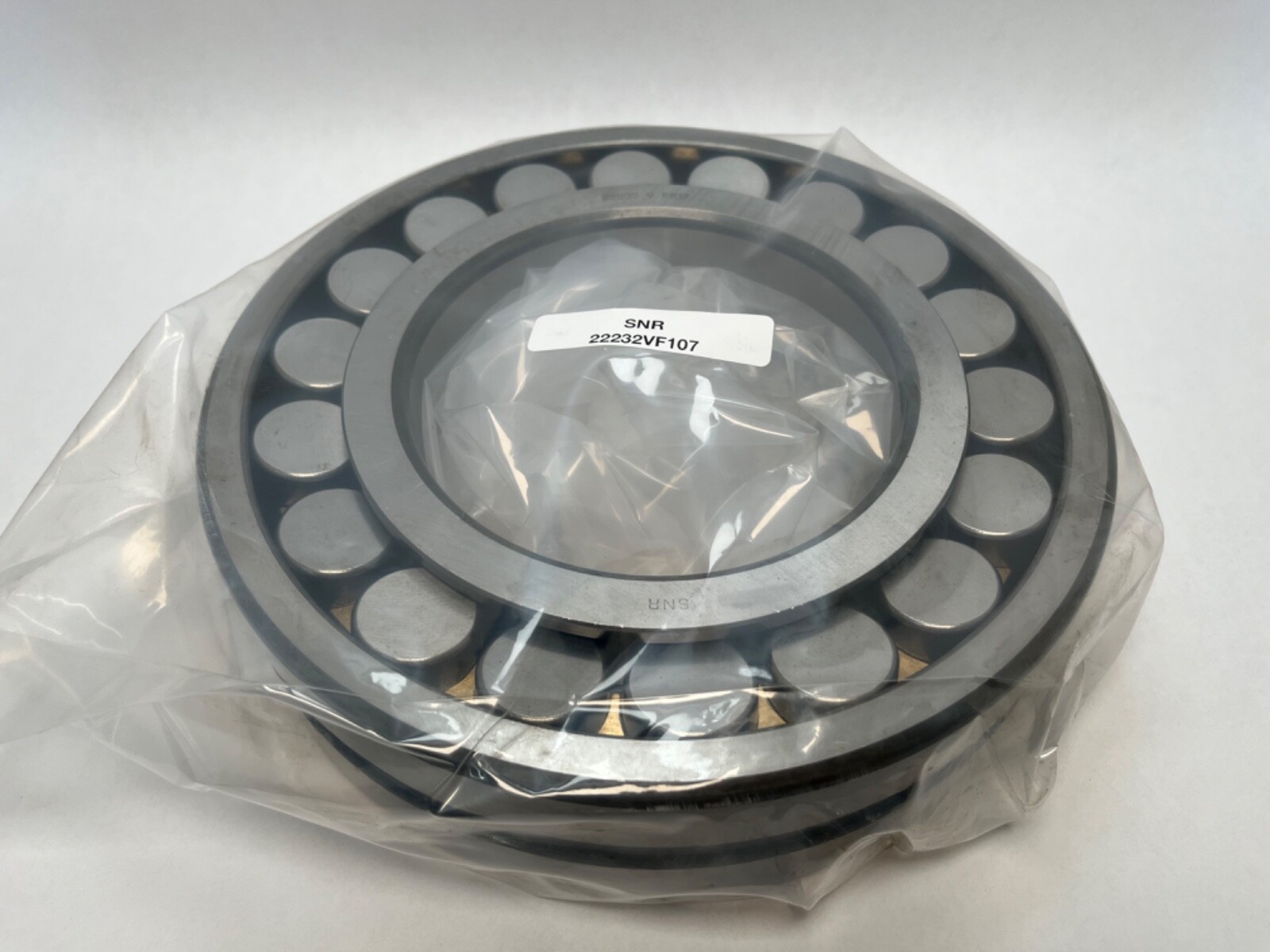

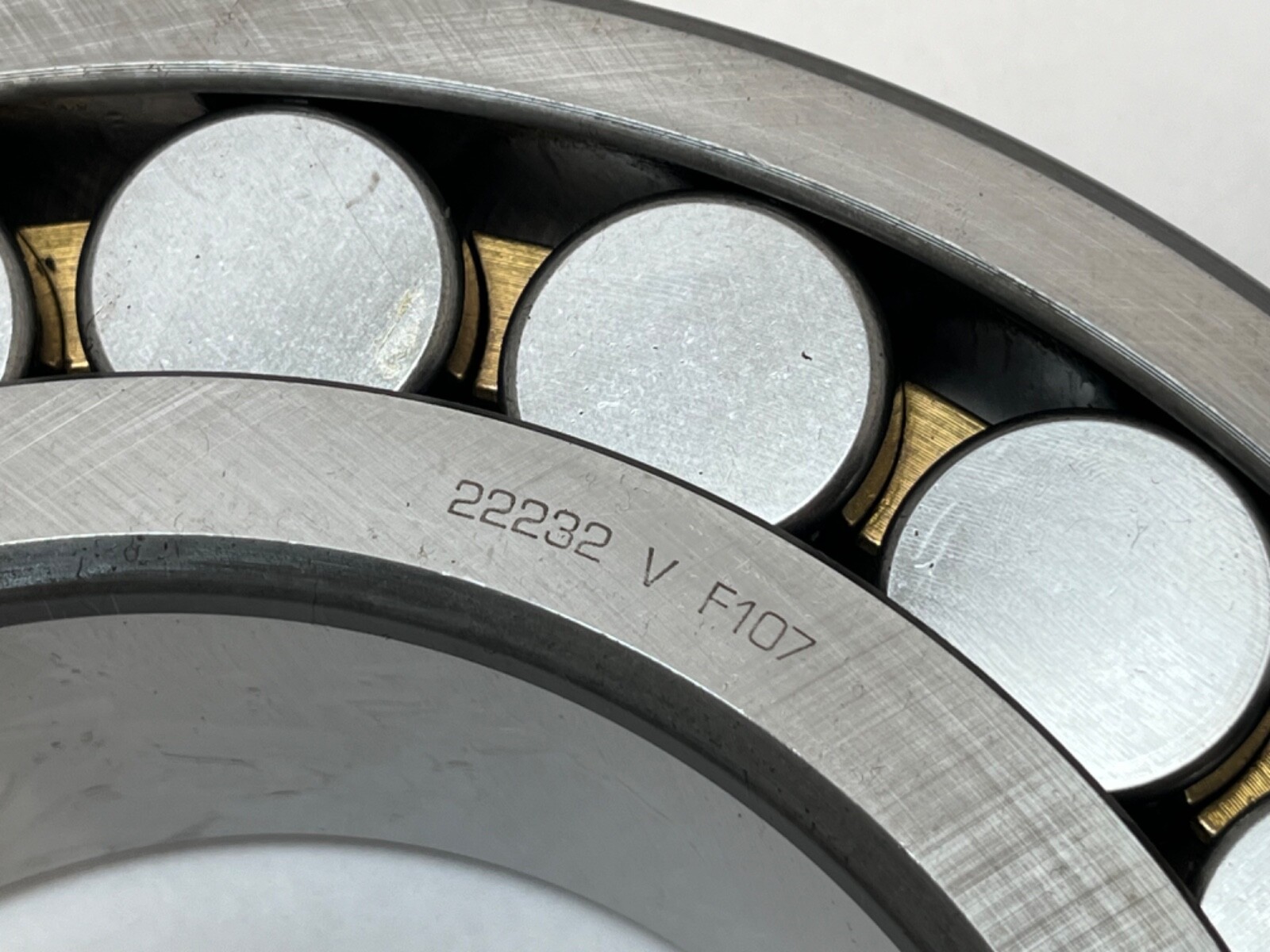

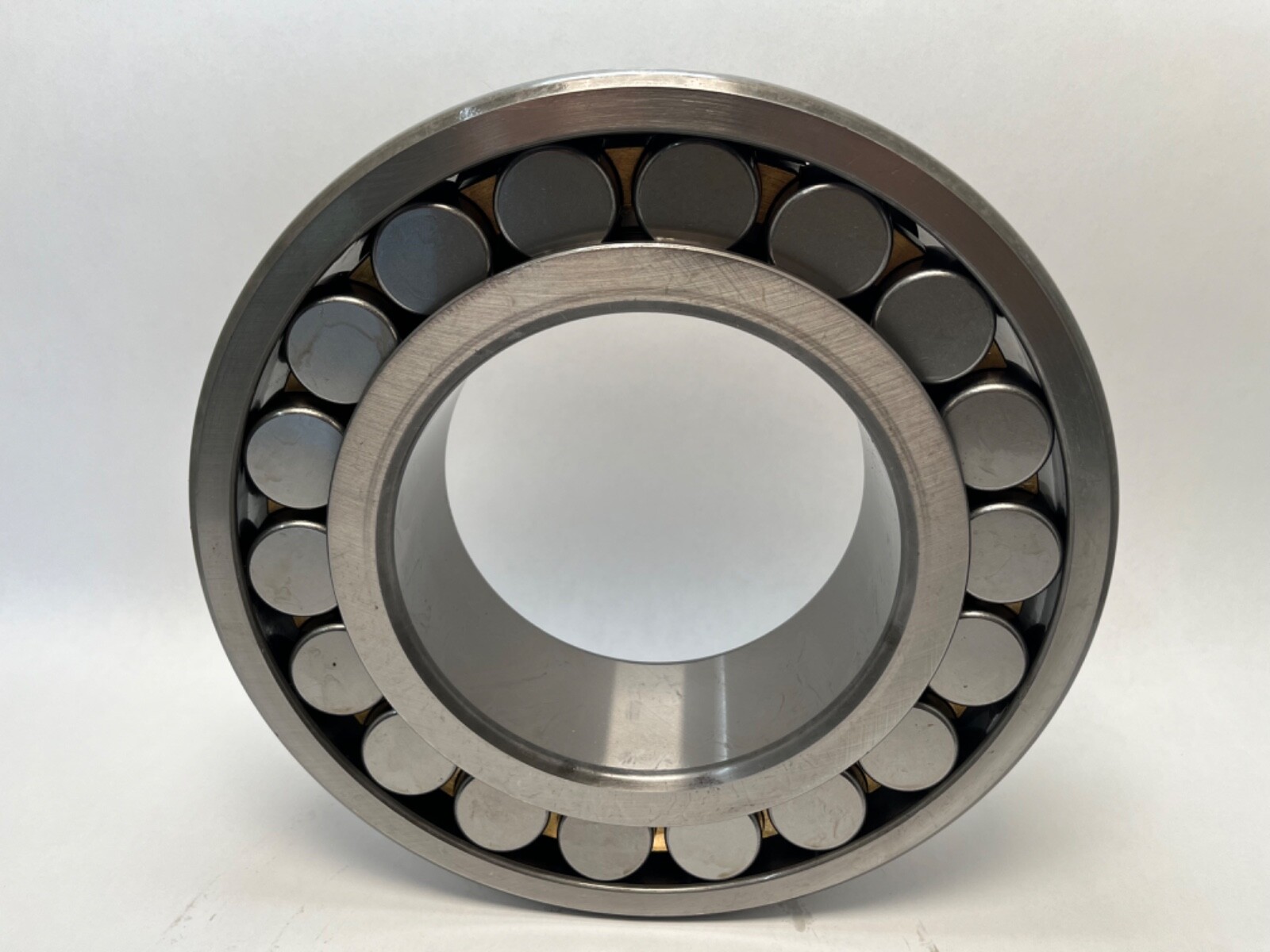

The SNR 22232VF107 Spherical Bearing is a high-quality industrial bearing designed for demanding applications. Made in Italy, this spherical roller bearing features a bore diameter of 160 mm, an outside diameter of 290 mm, and a width of 80 mm. With a focus on precision and durability, this bearing is ideal for use in industrial automation, motion controls, and other mechanical power transmission systems. The SNR brand is known for delivering reliable bearings that meet the demanding standards of various industries.
