SNR22220EAKW33C4Double-Row Spherical Roller Bearing 100x180x46 mm 1:12 Taper Bore C4 Clearance W33 Lube Groove

Product Description

What this part is

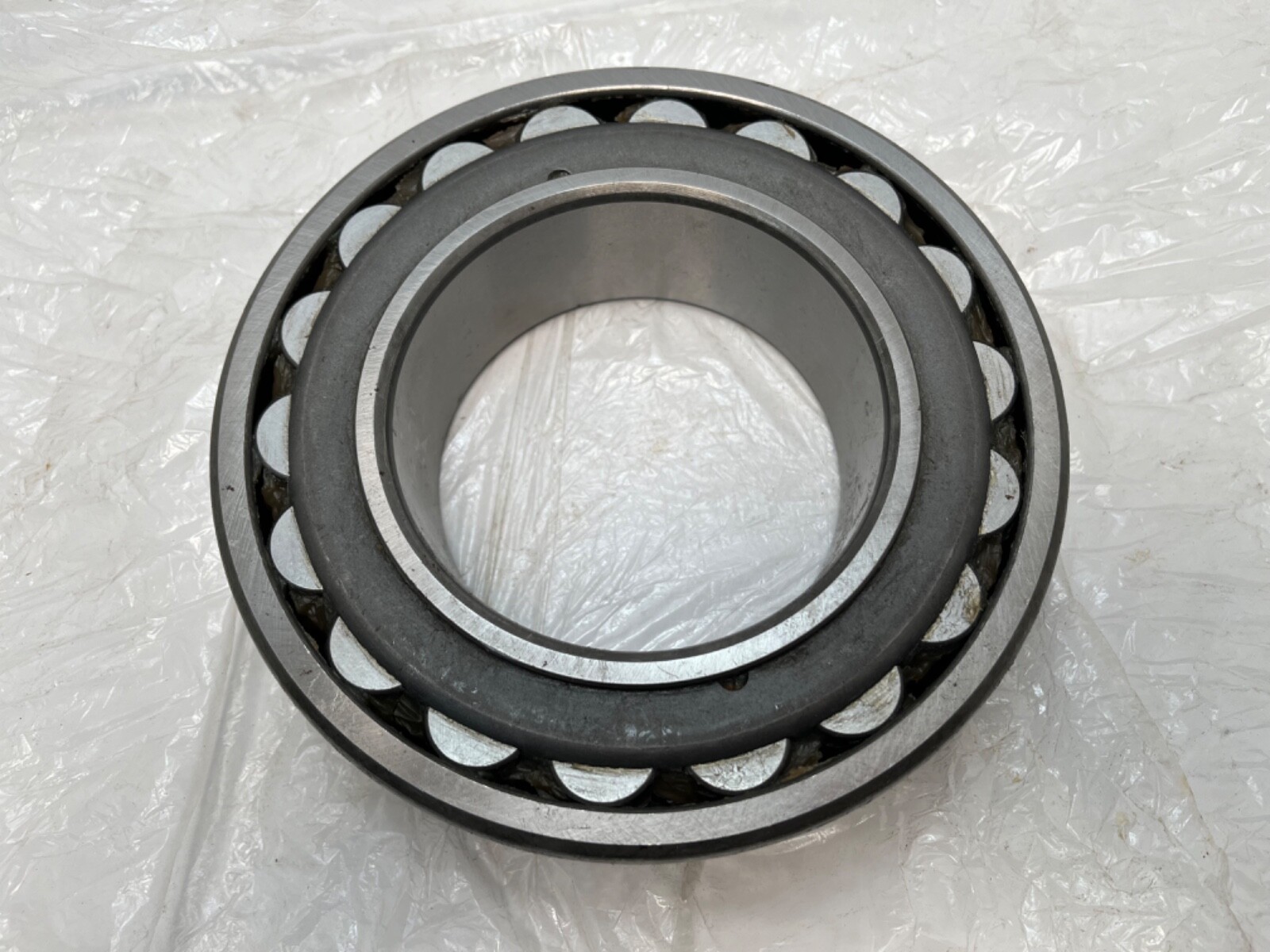

An SNR 22220EAKW33C4 double-row spherical roller bearing, 100 mm tapered bore by 180 mm outside diameter by 46 mm width. Two rows of barrel-shaped rollers run on a shared spherical outer raceway, so the bearing self-aligns while carrying very heavy radial load and axial load in both directions. It suits conveyor pulleys, vibrating screens, crushers, fans, gearboxes and heavy process plant.

Decoding the designation

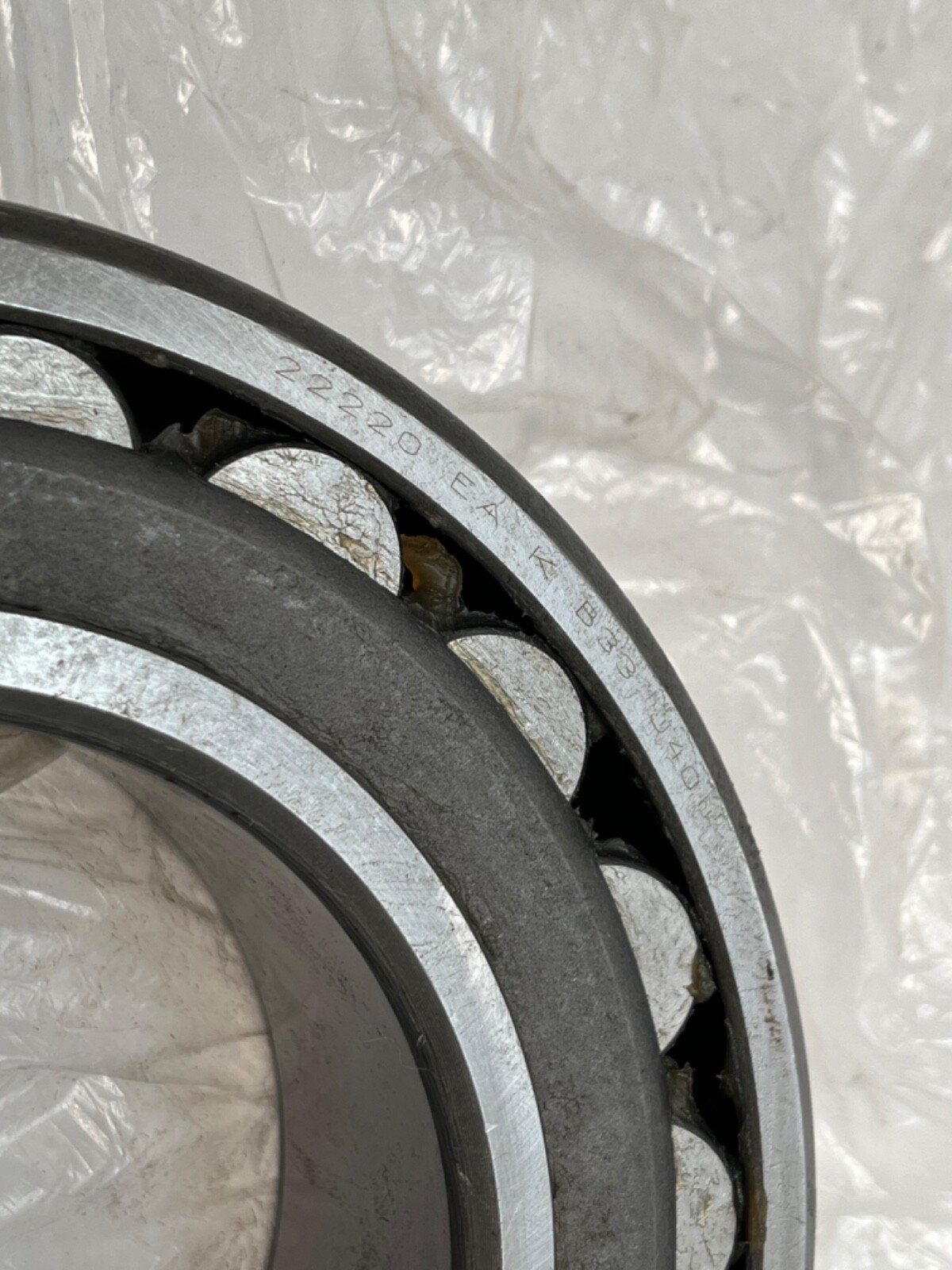

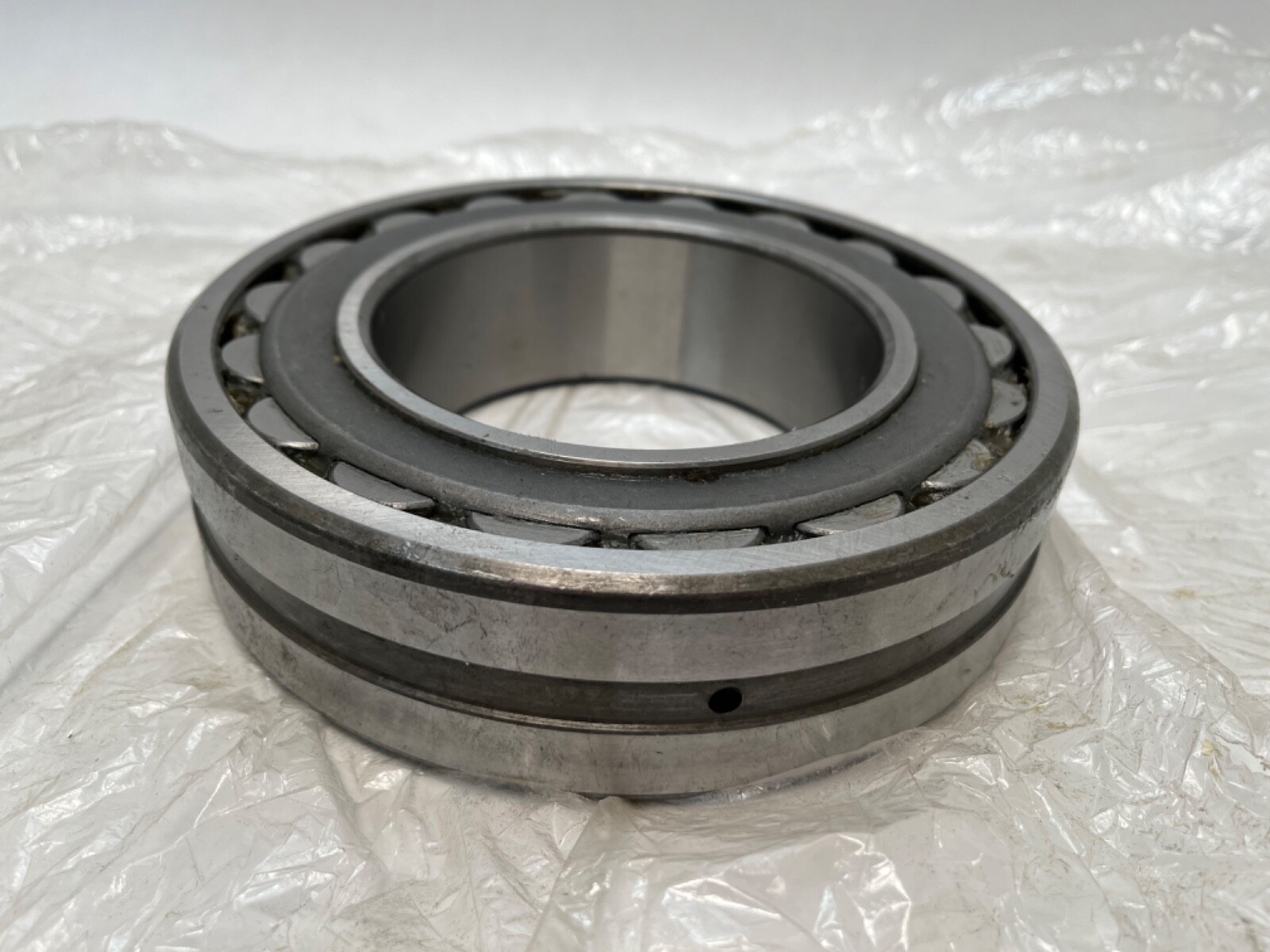

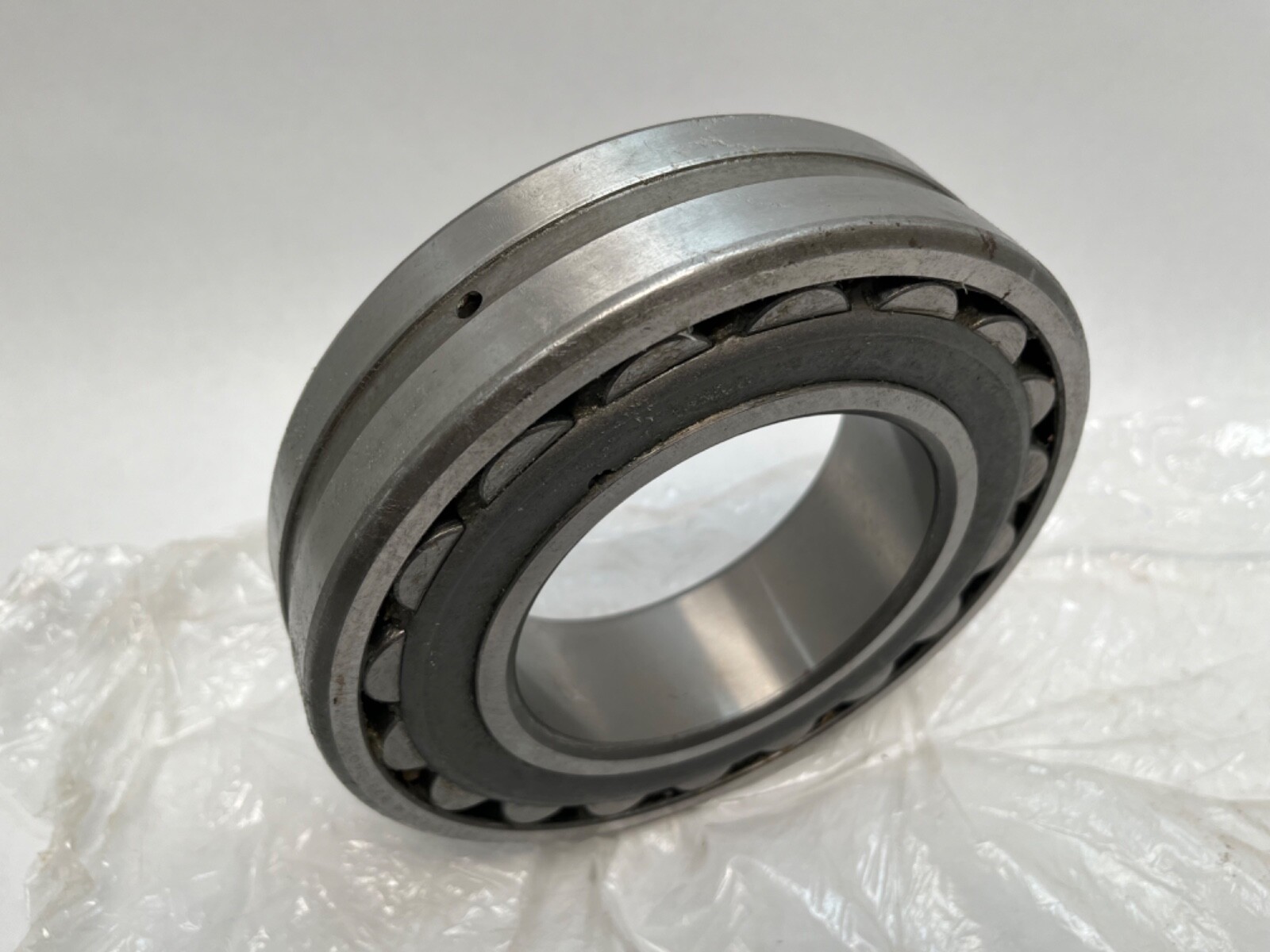

22220 — double-row spherical roller bearing, 100 x 180 x 46 mm, 222-series sectionEA — SNR reinforced internal design with an increased roller complementK — 1:12 tapered boreW33, written B33 in the SNR scheme — lubrication groove around the outer ring plus three radial lubrication holesC4, written J40 in the SNR scheme — radial internal clearance two steps above normal

What these specs mean in practice

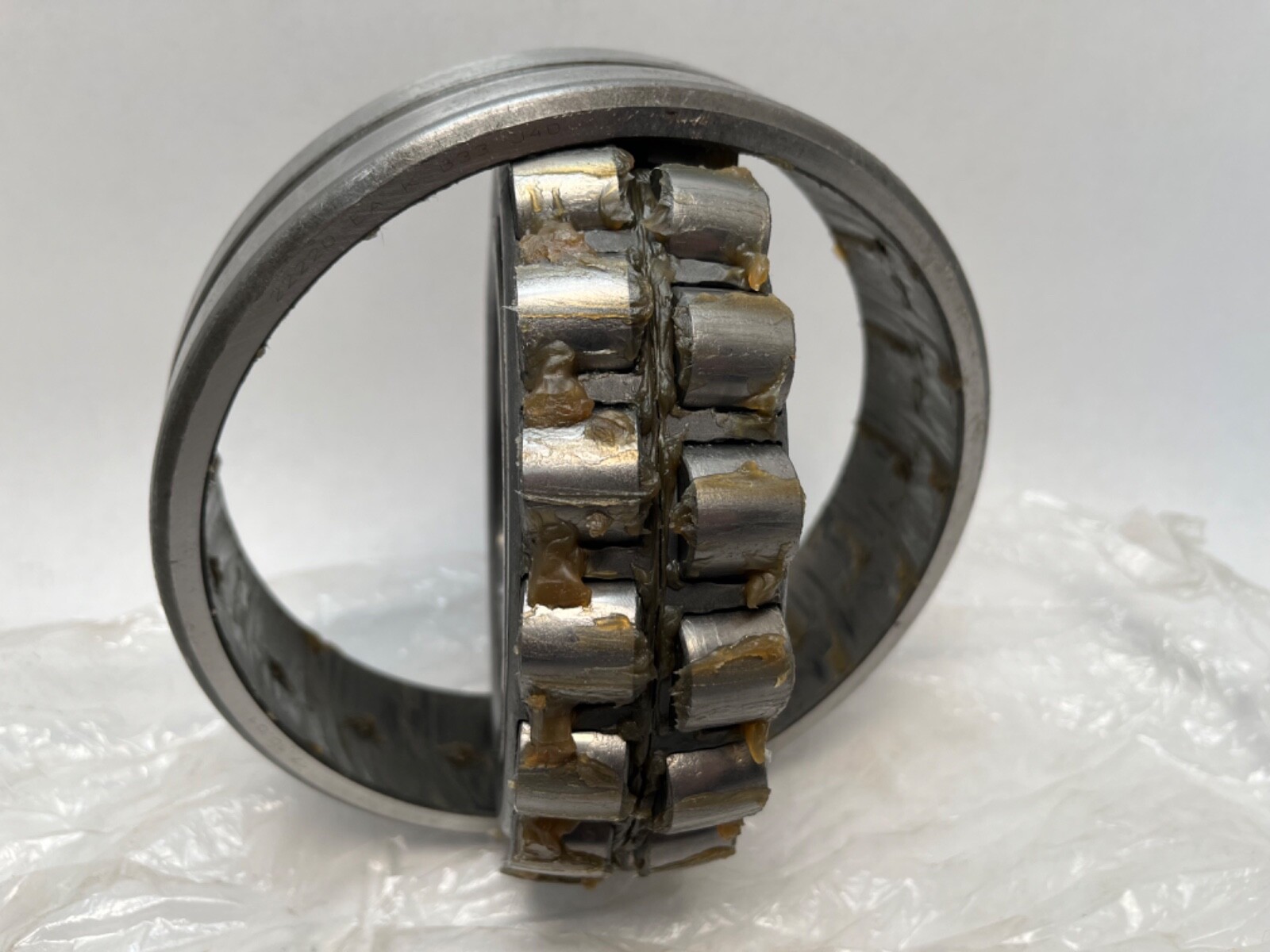

The spherical outer raceway allows the inner ring and roller set to swivel inside the outer ring, so a shaft sitting slightly out of line with its housing still loads the rollers evenly across their length. Long conveyor shafts and fabricated screen bodies rarely hold better alignment, which is why this bearing type is standard there.

Two opposed roller rows carry thrust in both directions as well as radial load, so a separate thrust bearing is usually unnecessary in the arrangement.

C4 clearance is the specification that defines this bearing’s duty. It leaves substantially more room between rollers and raceways than the normal class, and that room is consumed by inner-ring thermal growth and by the interference the taper mounting creates. Screen bodies and hot fans run the inner ring far warmer than the housing, so a tighter clearance class would preload itself in service. C4 is a deliberate choice for that condition rather than a loose tolerance.

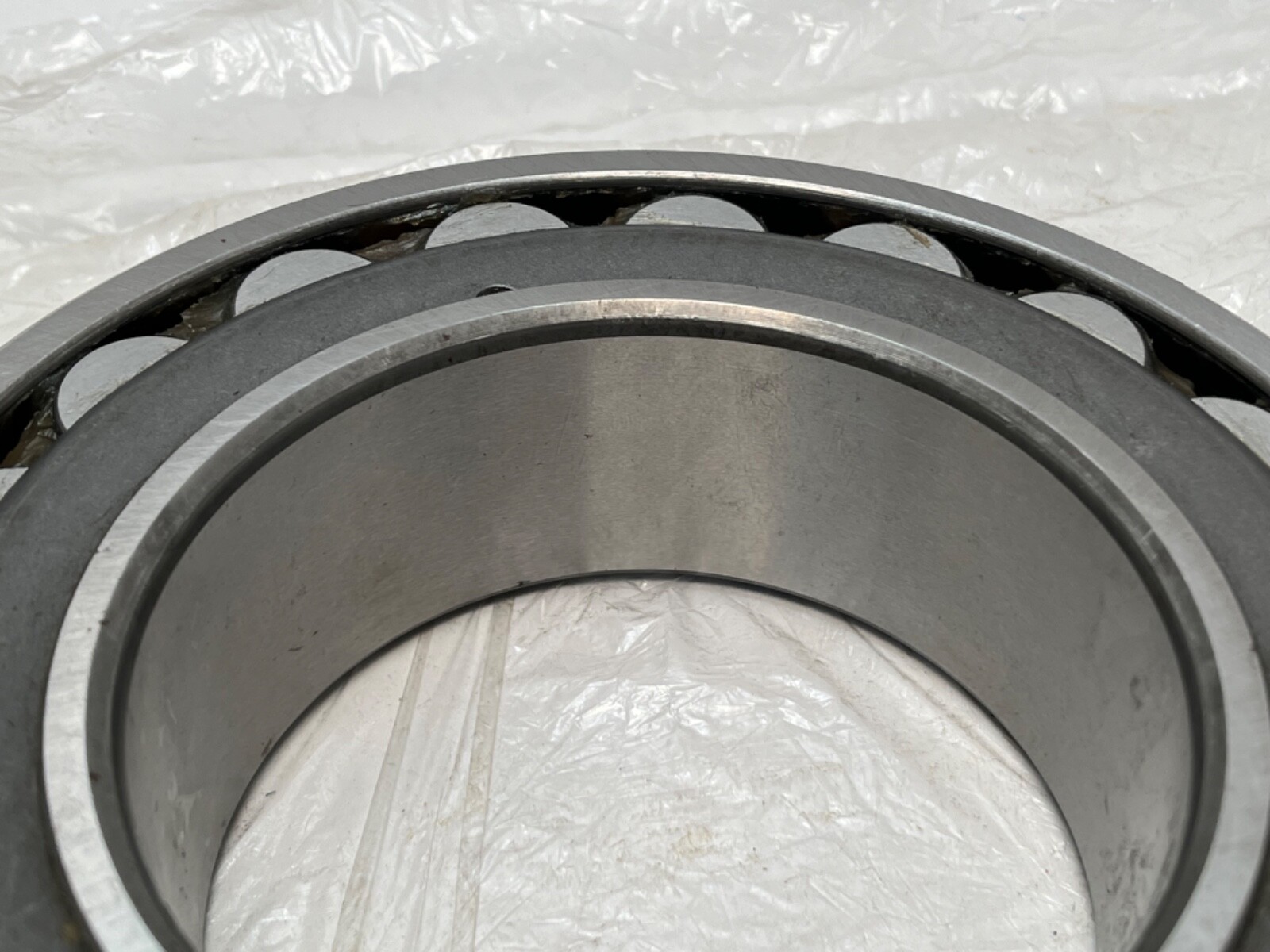

The 1:12 tapered bore is a mounting feature: drive-up distance along the taper sets the interference fit and therefore the residual clearance, giving repeatable clearance control on site with a lock nut and a feeler gauge.

Published specifications

Bore: 100 mm, tapered 1:12Outside diameter: 180 mmWidth: 46 mmRows: 2Rolling elements: barrel rollers on a spherical outer racewayRadial internal clearance: C4 (SNR J40)Lubrication features: W33 / B33 groove and three outer-ring holesClosure: openAlignment: self-aligningAxial load capacity: both directions

Quantity and configuration

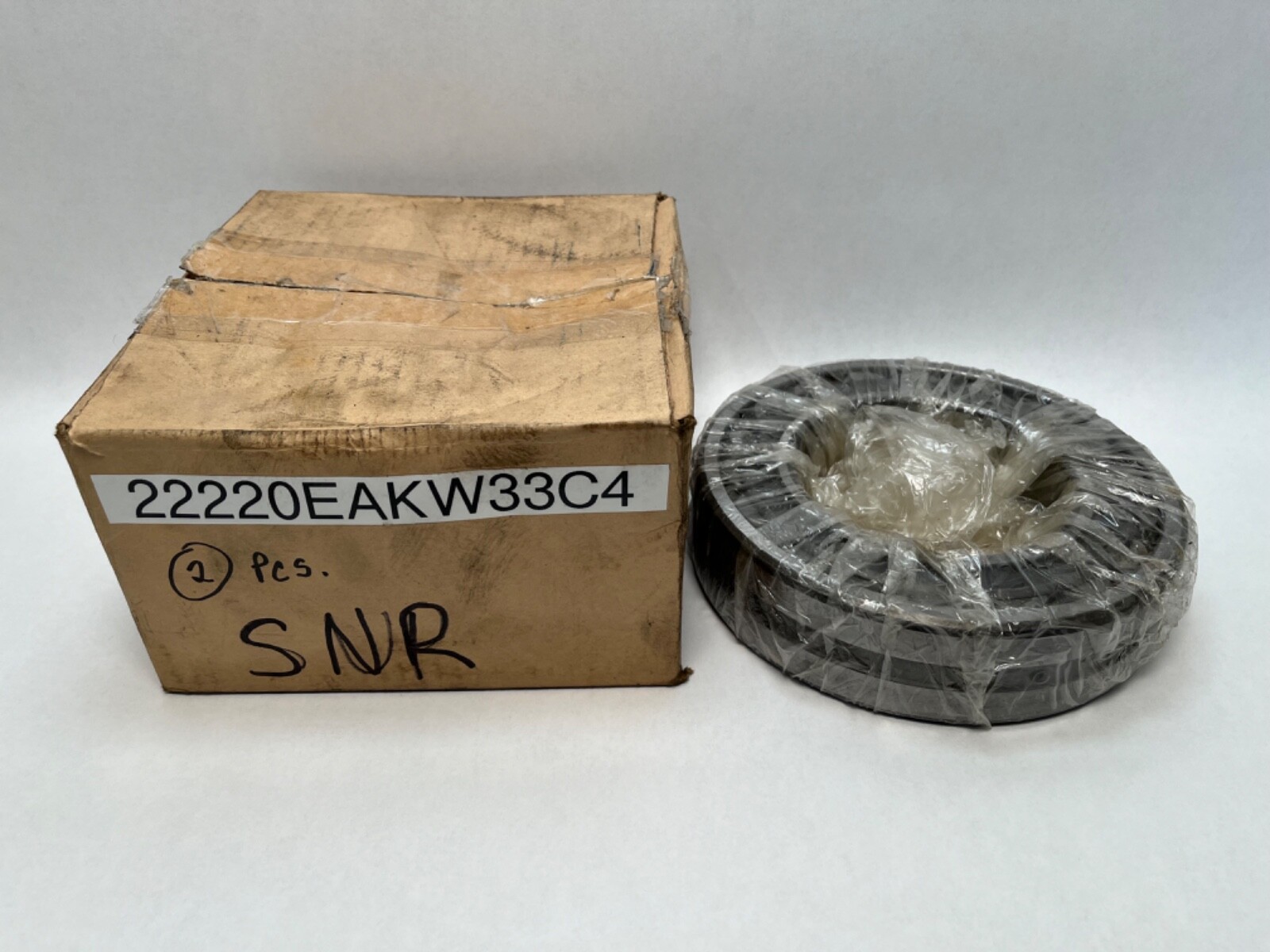

One bearing ships. The adapter sleeve is not included — the tapered bore mounts on an H320 sleeve, which seats on a 90 mm cylindrical shaft, with a KM20 lock nut and MB20 lock washer. Housings, seals and locking hardware are supplied separately.

Fitting notes

Mounting is a drive-up operation: the bearing advances along the taper until the measured reduction in radial internal clearance reaches the value tabulated for the size and the C4 class, checked with a feeler gauge across the unloaded top roller. On a shaft machined with its own 1:12 seat the bearing mounts directly and a lock nut retains it. The housing lubrication port aligns with the outer-ring groove so grease reaches the centre of the roller set.
