Availability:
2 in stock
Double-row spherical roller bearing, 90 x 160 x 40 mm, 1:12 tapered bore for an H318 adapter sleeve. Open, pressed steel cage, CN clearance.
List Price
$84.12
2 in stock

2 in stock
On the Shelf & Ready to Ship
On all orders

No Risk, No Hassle
Also Available From:
| MFR / Brand | Link Belt |
|---|---|
| MPN | DE22218K |
| Model | DE 22218 K / DE 22218 T 2 / DE 2180 B |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New – Open box |
| Lubricant | Oil |
| Bore | Taper Bore |
| Base Number | 22218 |
| Industry Terms | Spherical roller bearing, self-aligning roller bearing, tapered bore roller bearing, adapter sleeve bearing |
| Condition Note | Made In USA, New Old Stock |
| Bore Shaft Size | 90 mm |
| Mpn Variants | DE22218K, DE-22218-K, DE 22218 K, DE22218T2, DE2180B, 22218K |
| Compatible With Replaces | H318 adapter sleeve, locknut and lock washer |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 325 kN |
| Static Load Rating | 375 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200 °C |
| Item Weight | 6.40 lbs |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Not specified |
| Internal Clearance | CN |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Design Units | Metric |
| Bearing Material | Chrome bearing steel |
| Part Number | DE22218K |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22218 EK |
|---|---|
| Cross Reference 2 | FAG 22218-E1-XL-K |
| Cross Reference 3 | NSK 22218EAKE4 |
| Cross Reference 4 | Timken 22218KEJW33 |

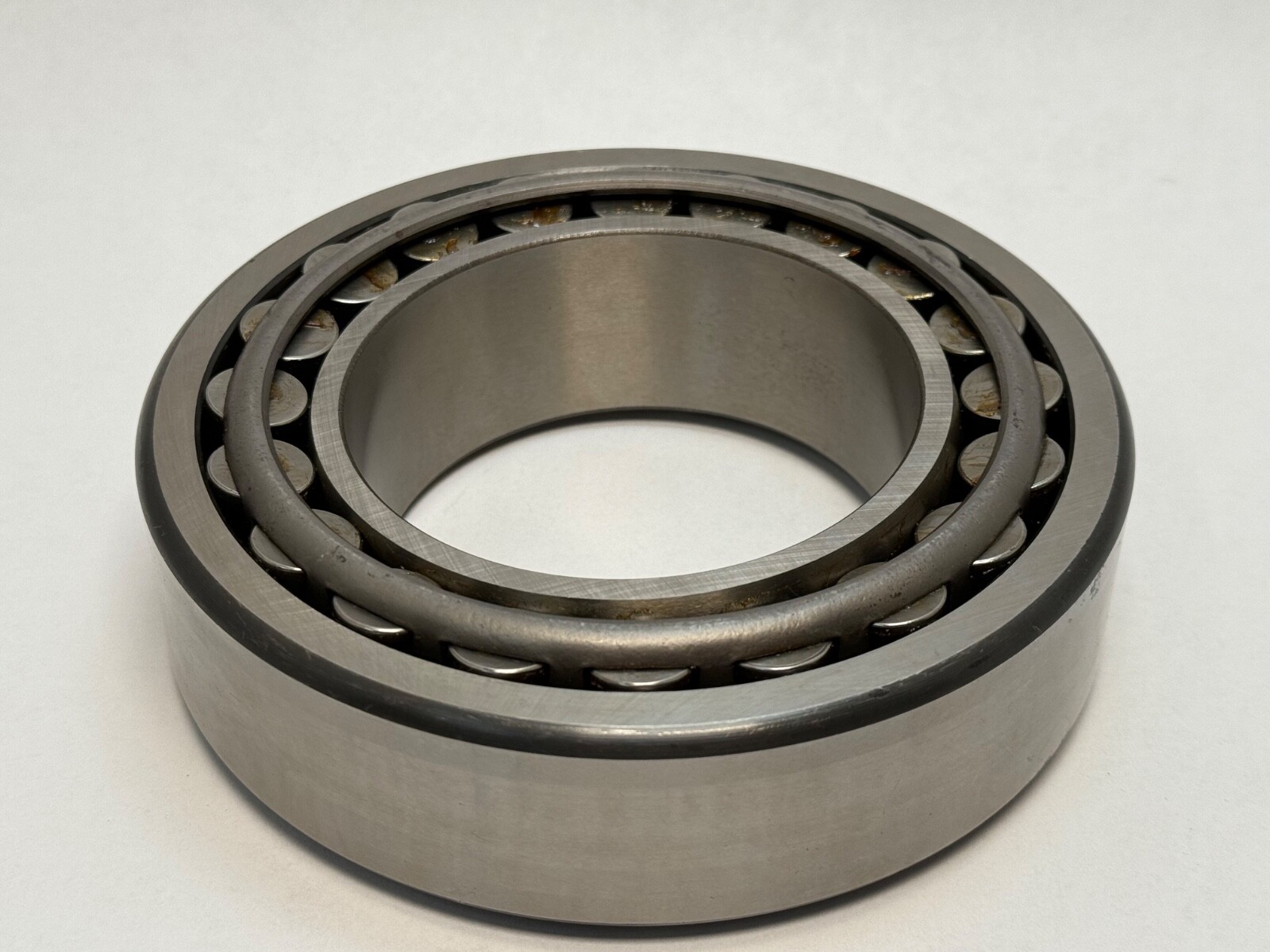

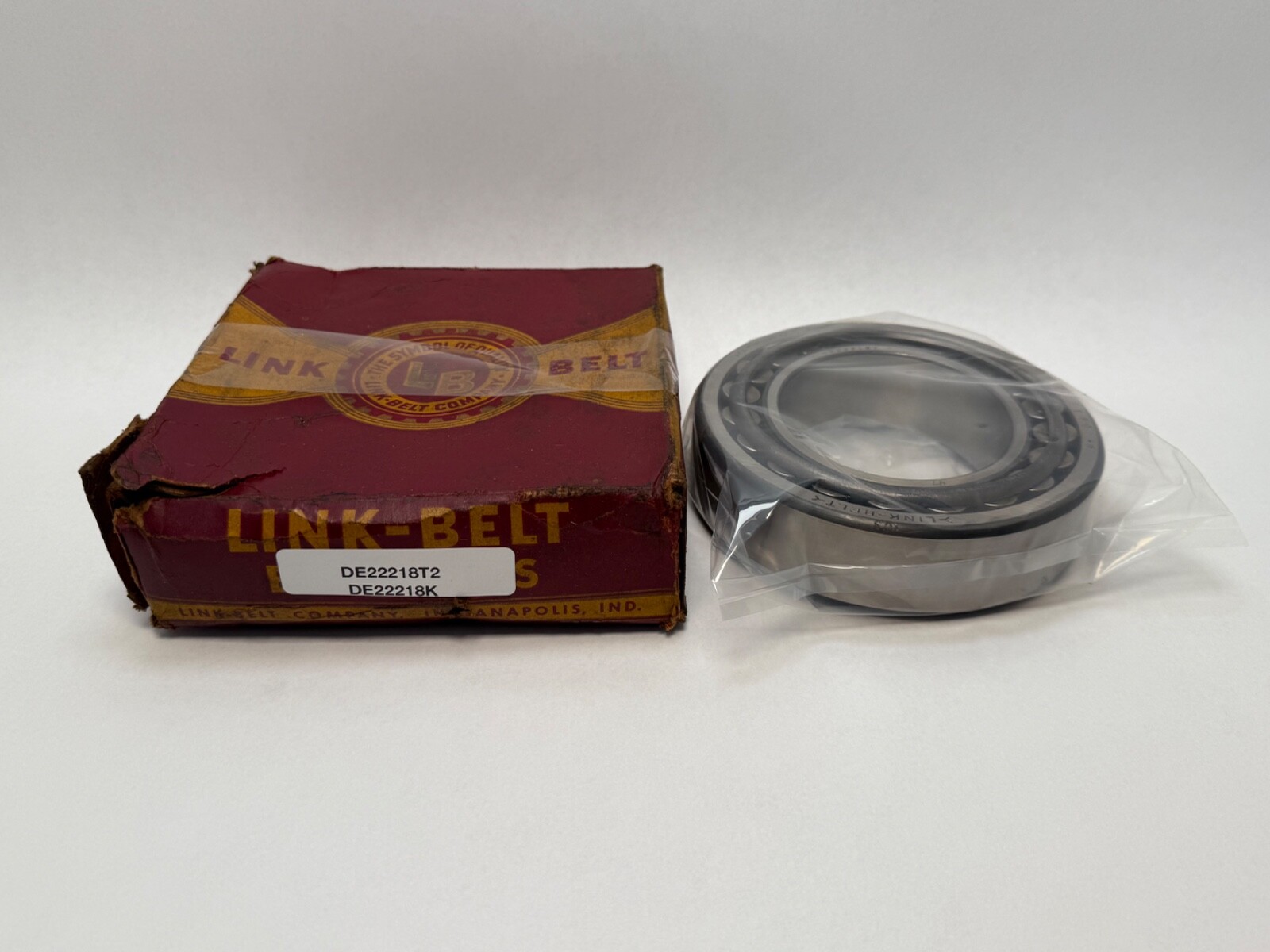

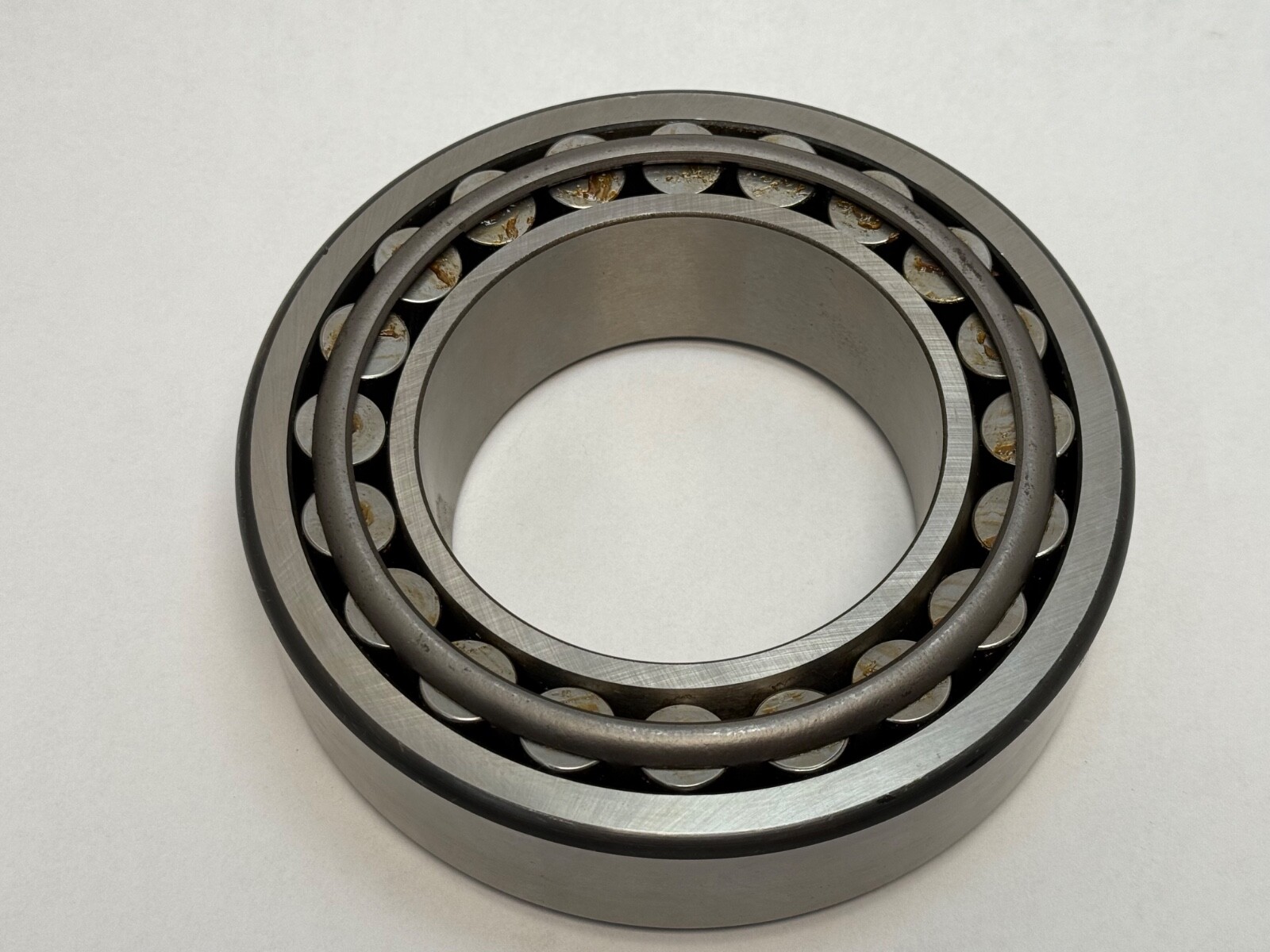

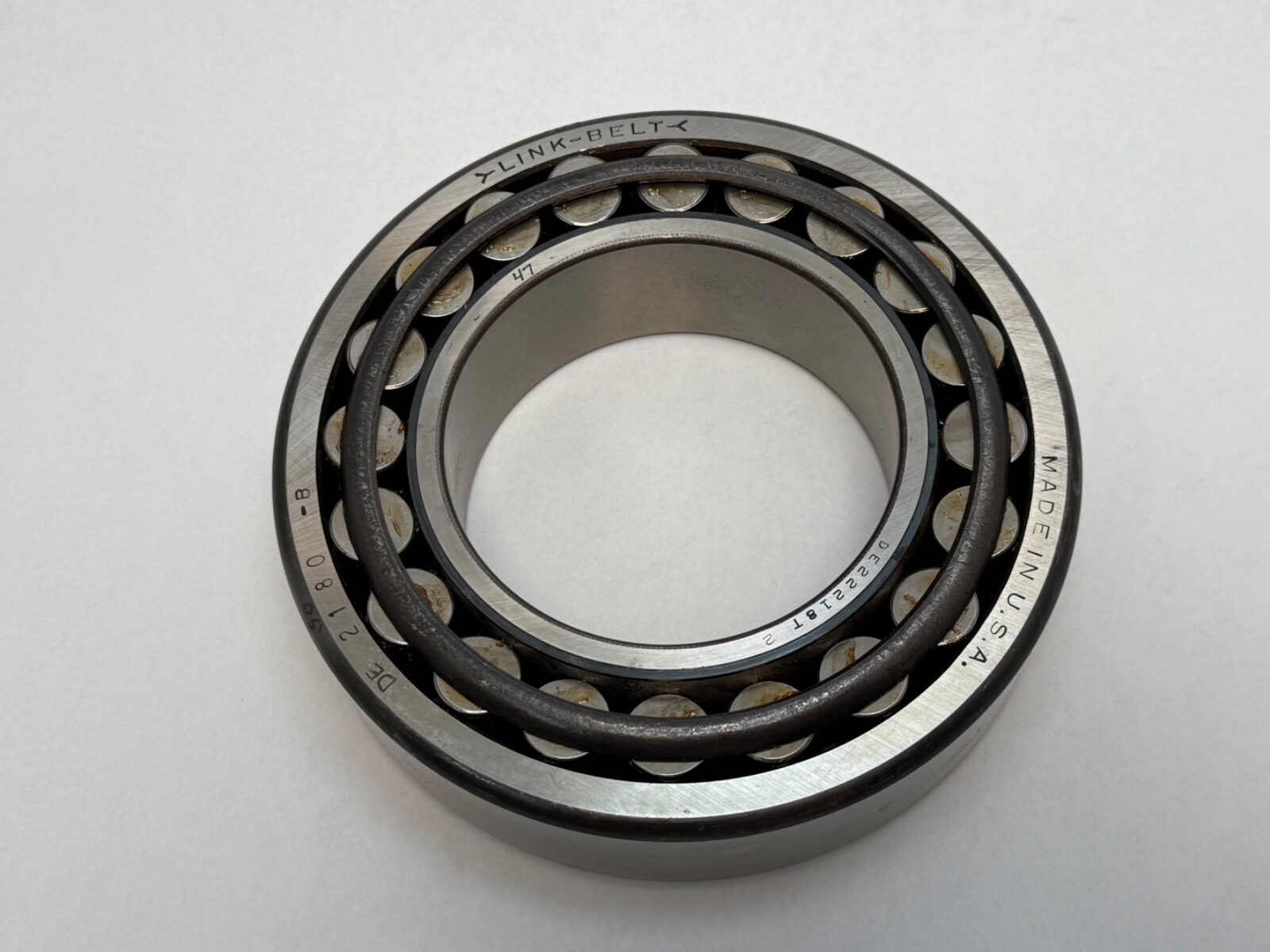

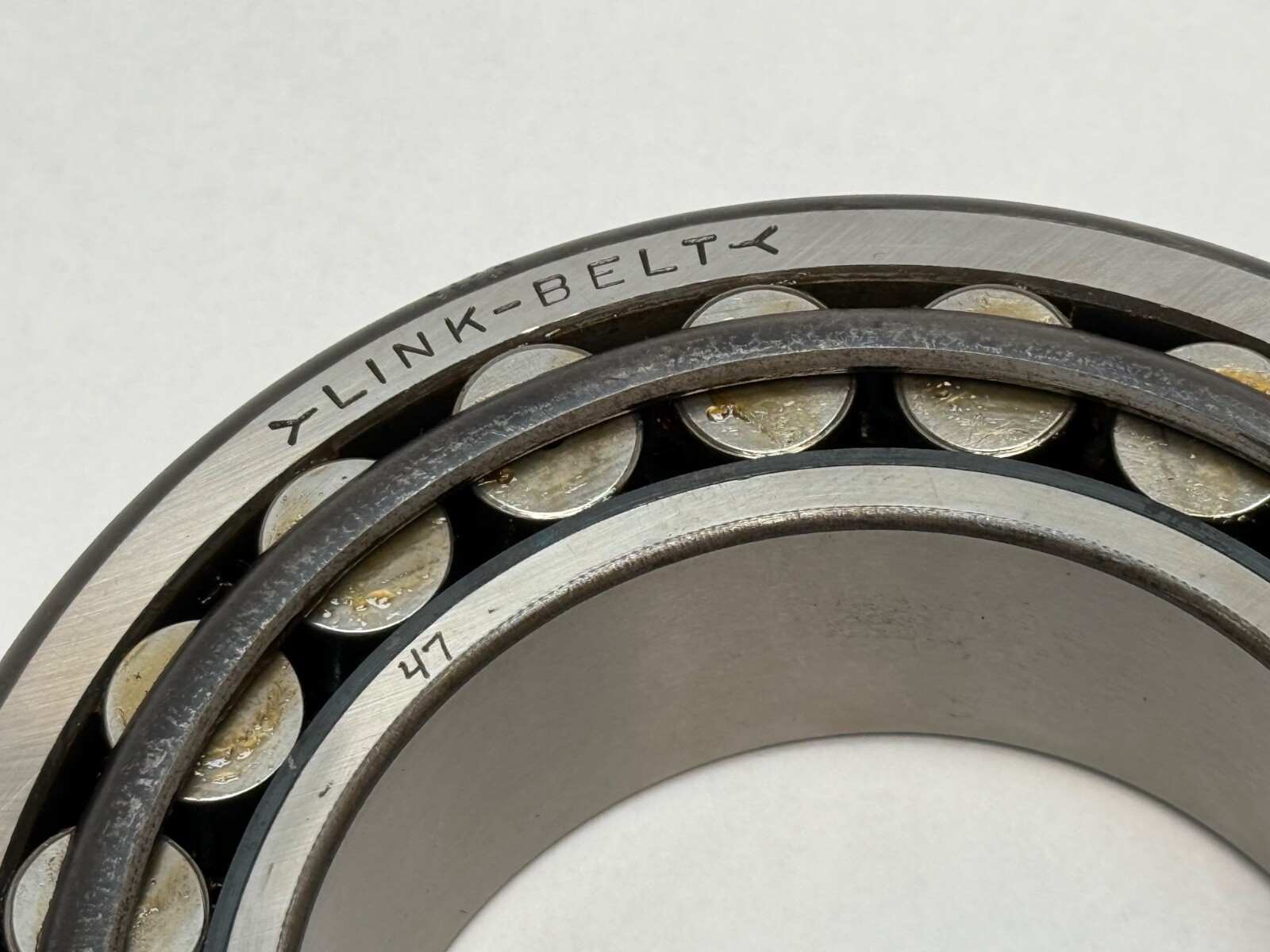

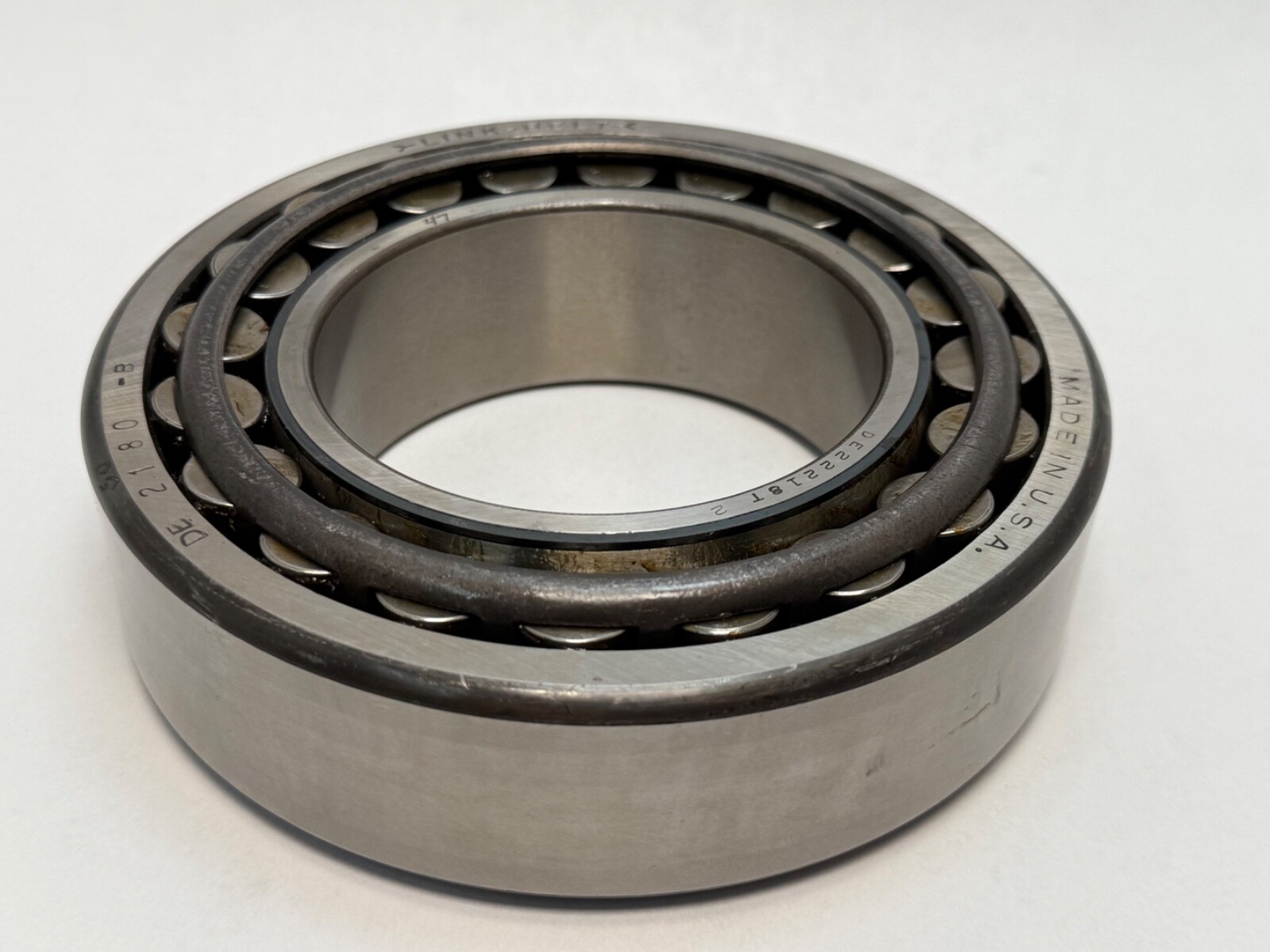

Link-Belt DE22218K double-row spherical roller bearing. Bore: 90 mm. Outside diameter: 160 mm. Width: 40 mm. Bore form: 1:12 tapered. Cage: pressed steel. Closure: open both faces. ISO dimension series 22218.

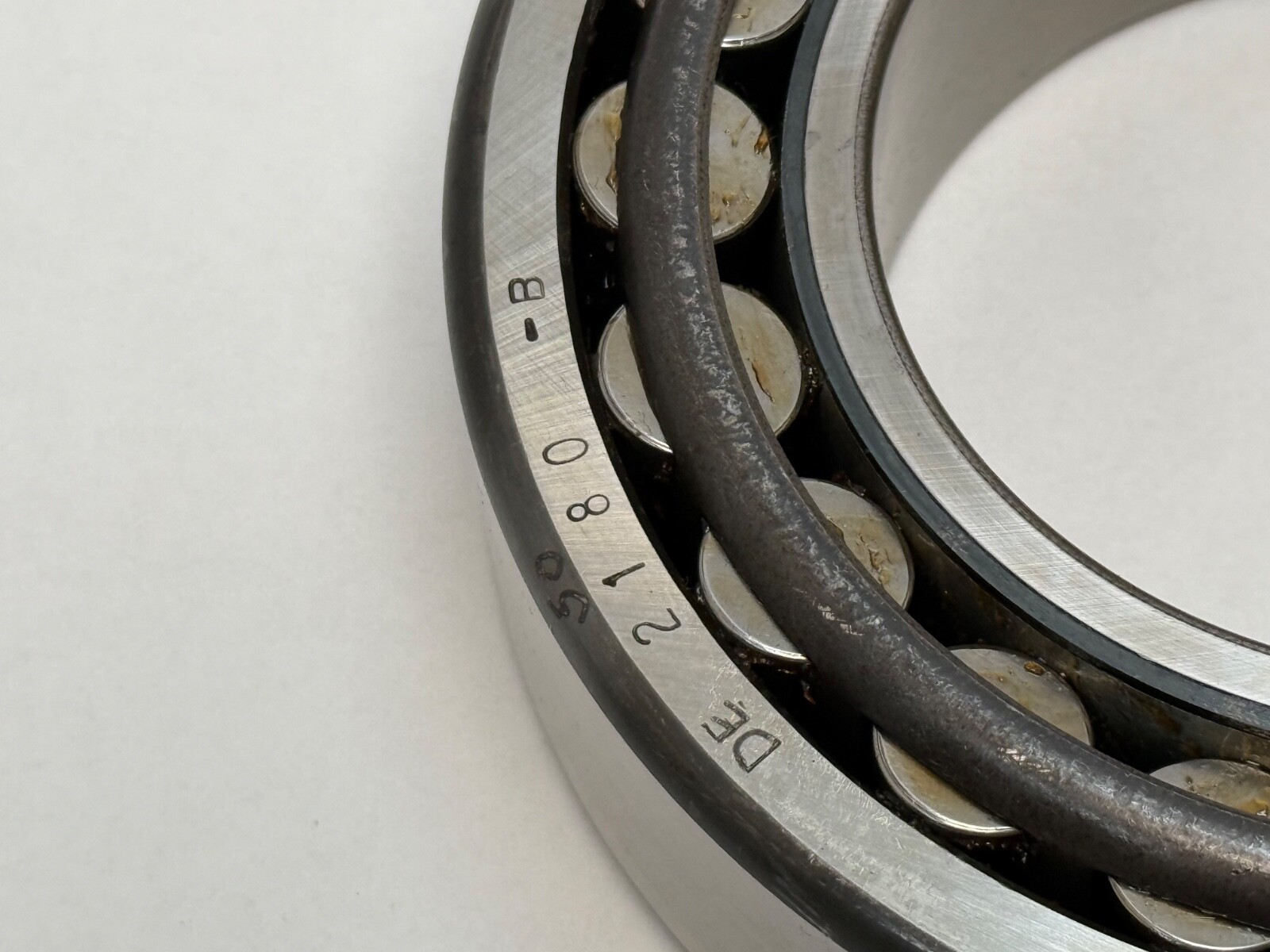

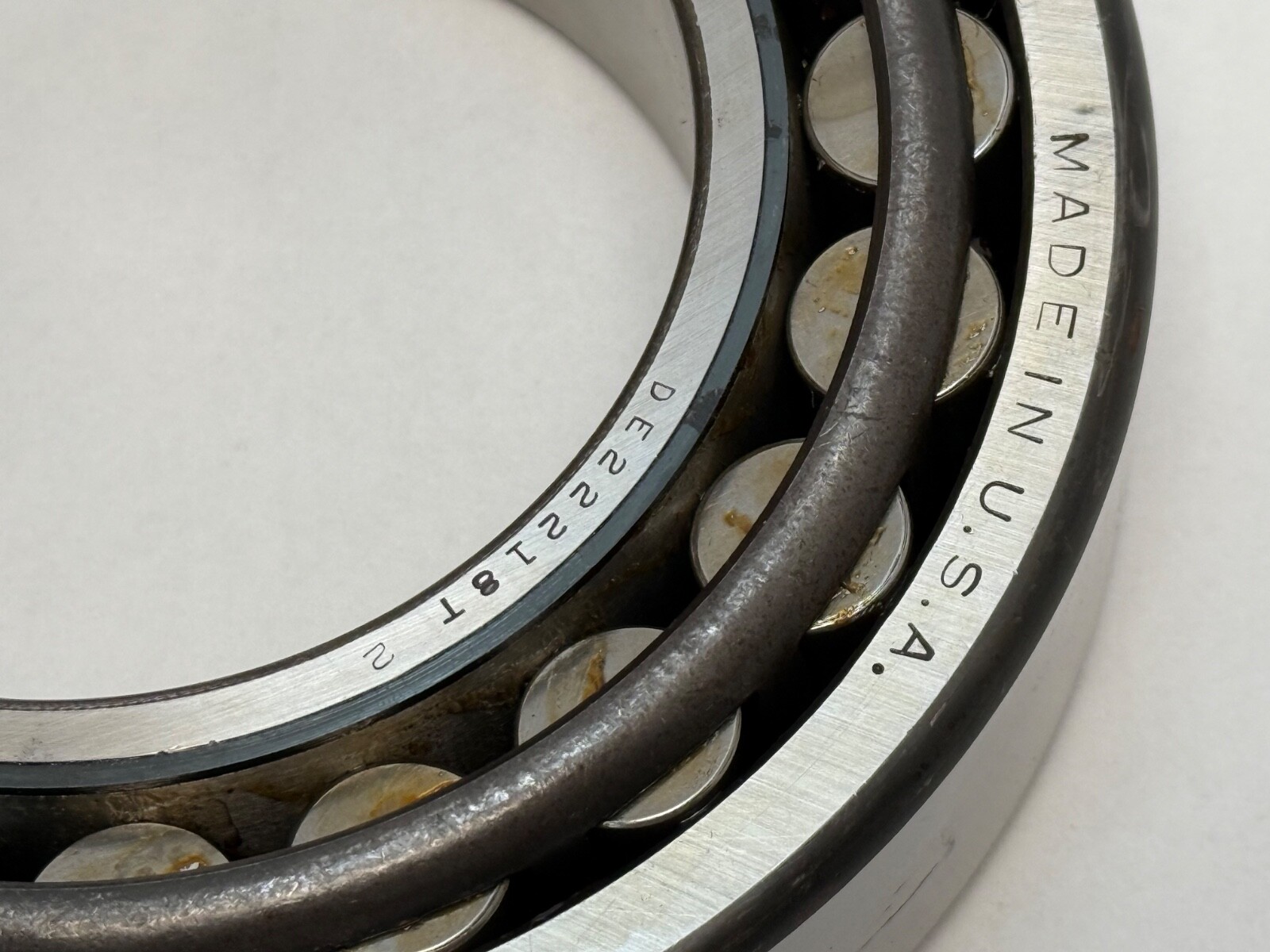

K: 1:12 tapered bore for adapter-sleeve mounting. 22218: ISO dimension series, fixing the 90 x 160 x 40 mm envelope. Searchable forms include DE22218K, DE-22218-K, DE 22218 K, DE22218T2 and DE2180B.
Two rows of barrel rollers seat on a common spherical outer raceway, so the bearing carries heavy radial load with thrust in both directions and self-aligns to shaft deflection and housing misalignment. Permissible misalignment: 1.5°. Internal clearance: CN, the standard radial class.
Bearing only, one piece per unit. Two rows of rollers, open both faces.
The 1:12 tapered bore mounts on an adapter sleeve: the matching sleeve is an H318, which seats this 90 mm bore on an 80 mm shaft and is secured with a locknut and lock washer. Drive-up along the sleeve taper sets the mounted radial clearance, which is the standard method of setting a tapered-bore spherical roller.
Same-envelope tapered-bore equivalents: SKF 22218 EK, FAG 22218-E1-XL-K, NSK 22218EAKE4, Timken 22218KEJW33. A straight-bore 22218 is a related size rather than an interchange, because it mounts directly on the shaft instead of on a sleeve.
