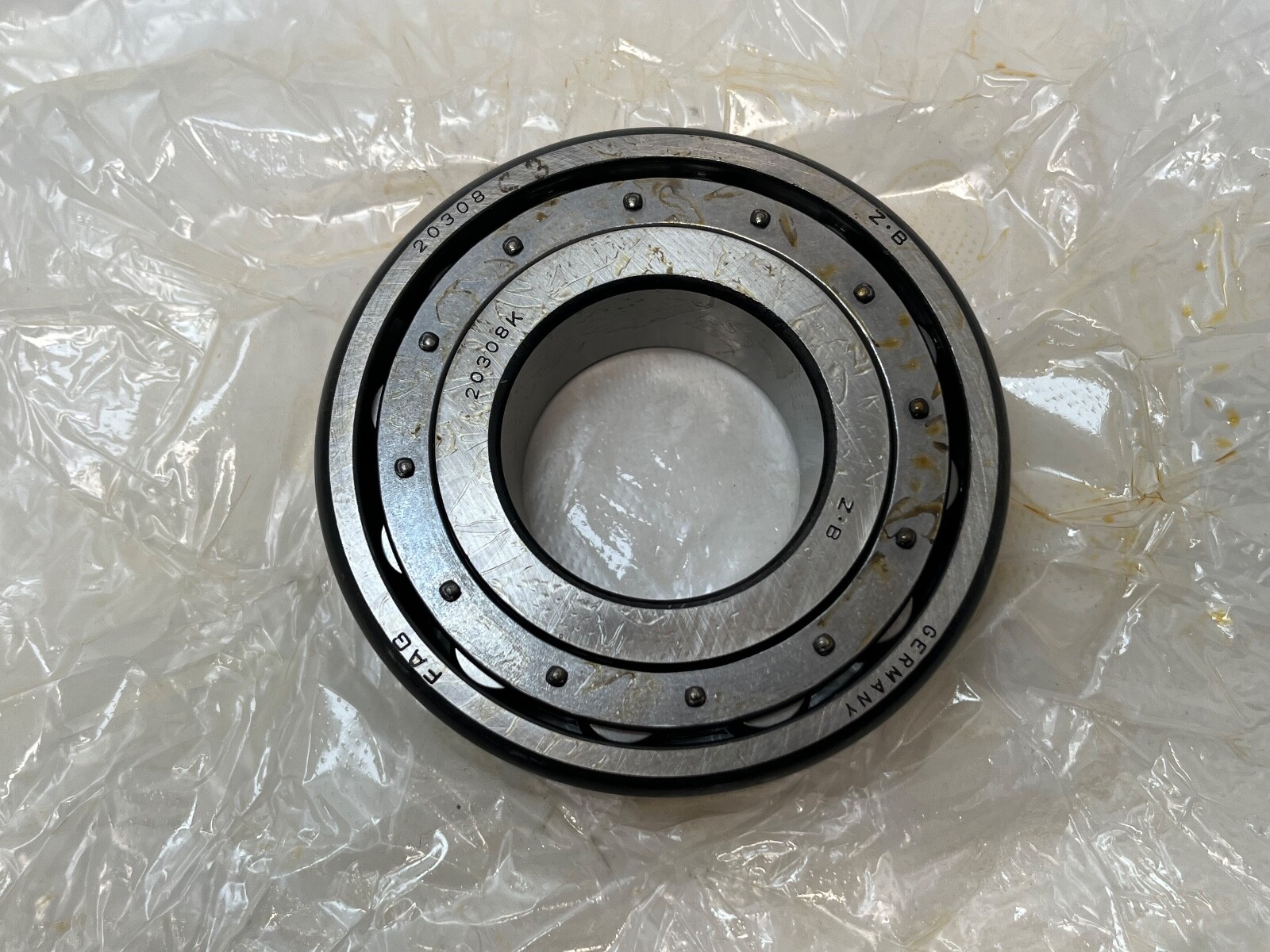

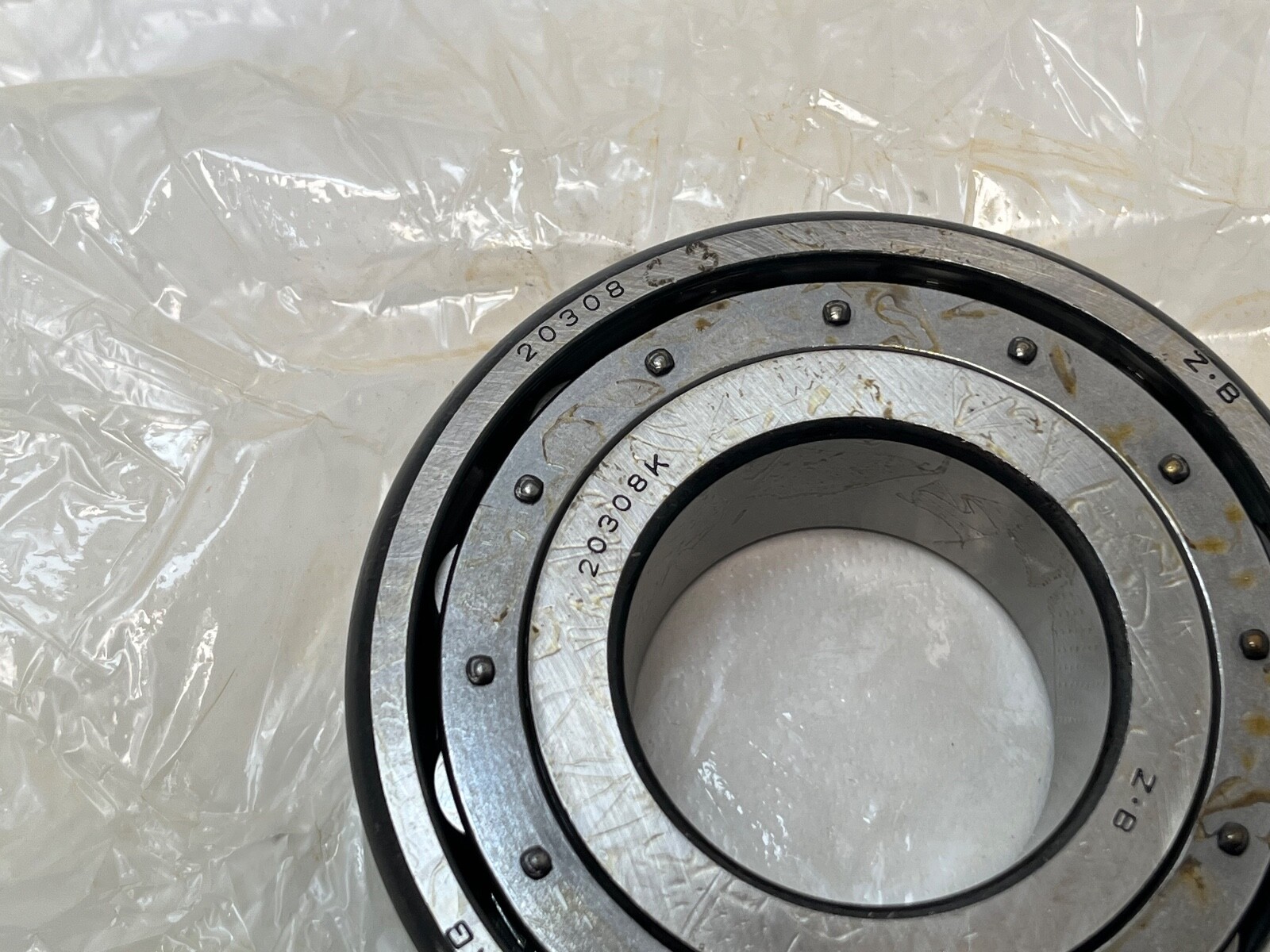

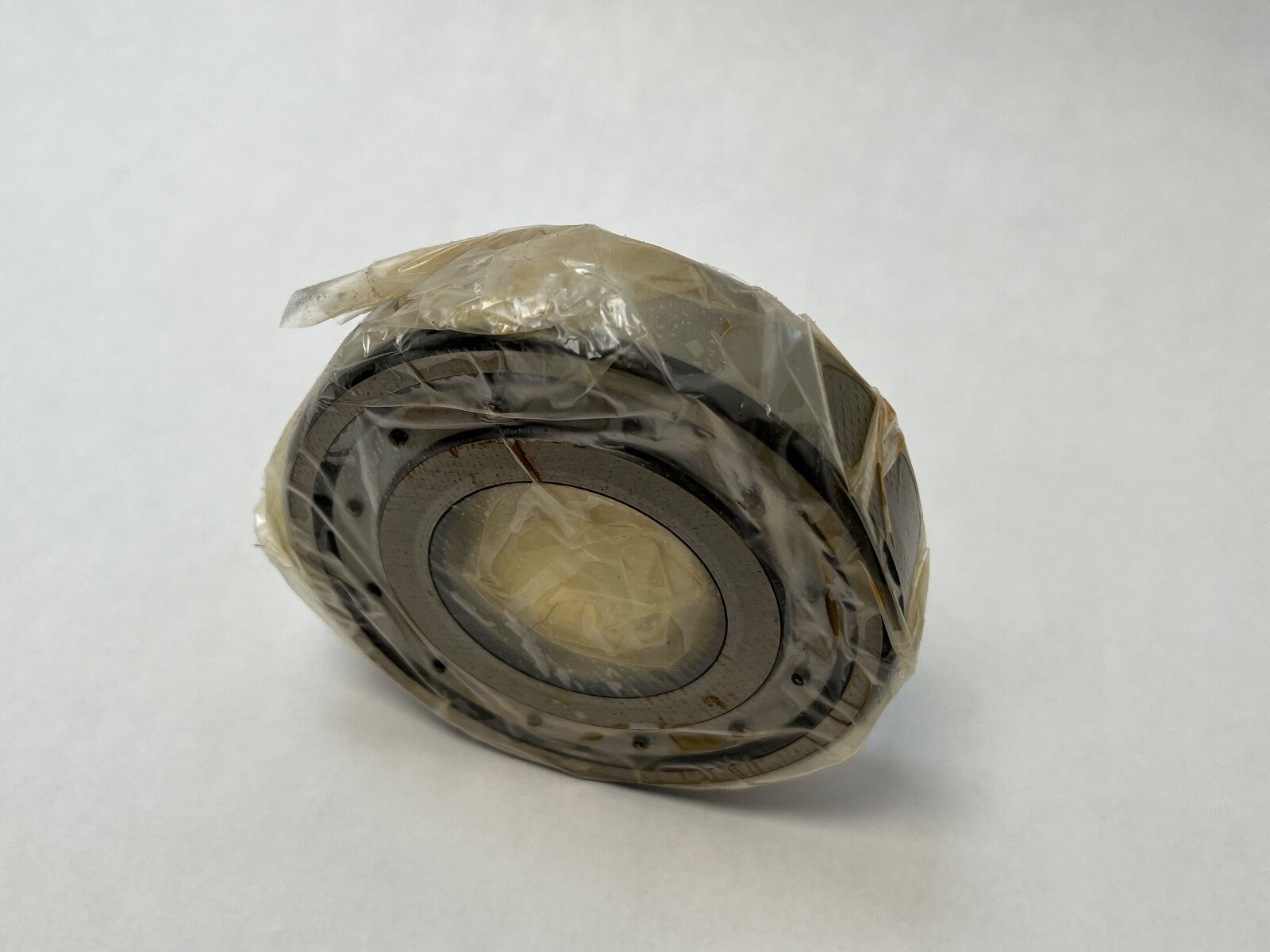

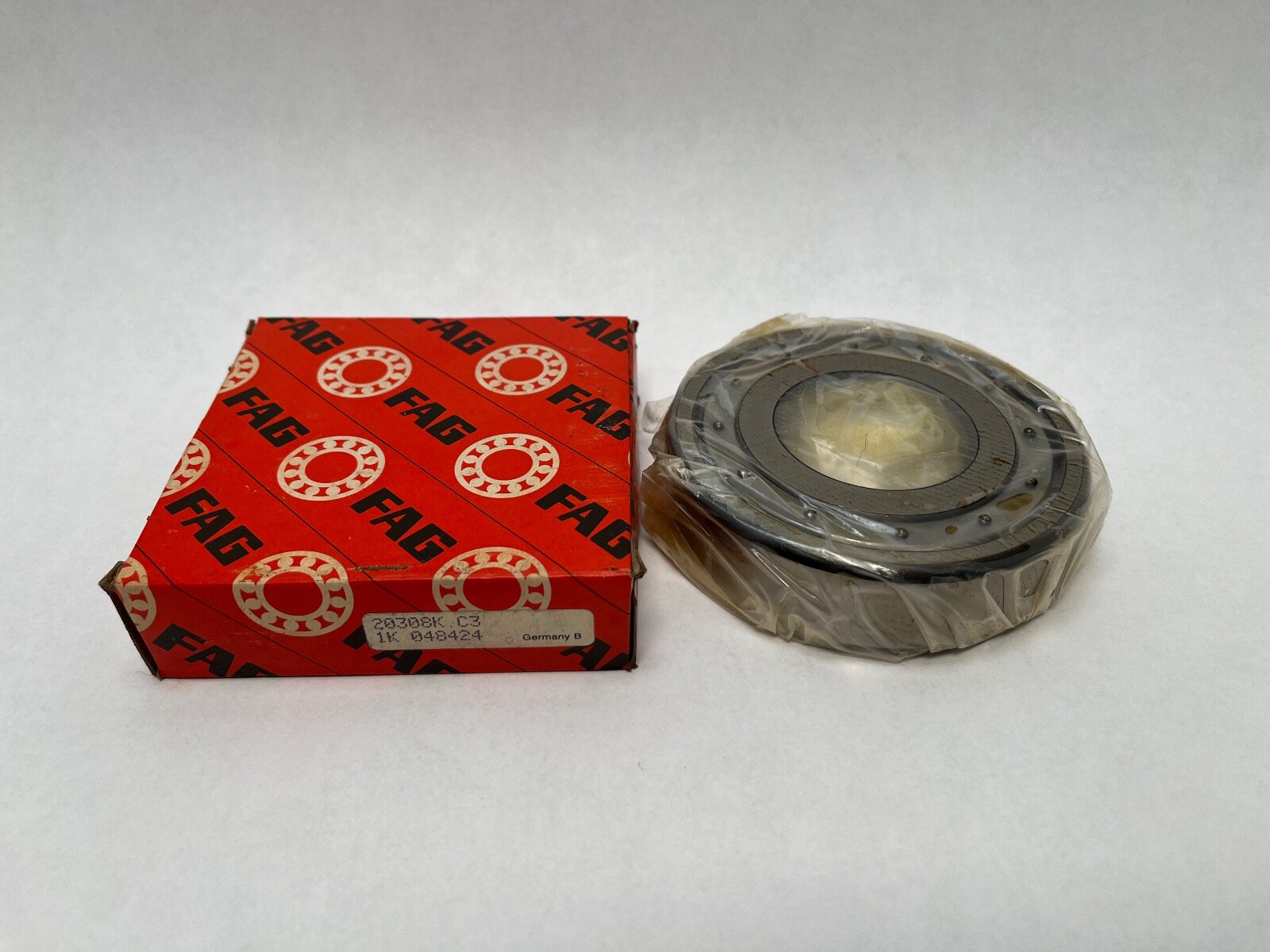

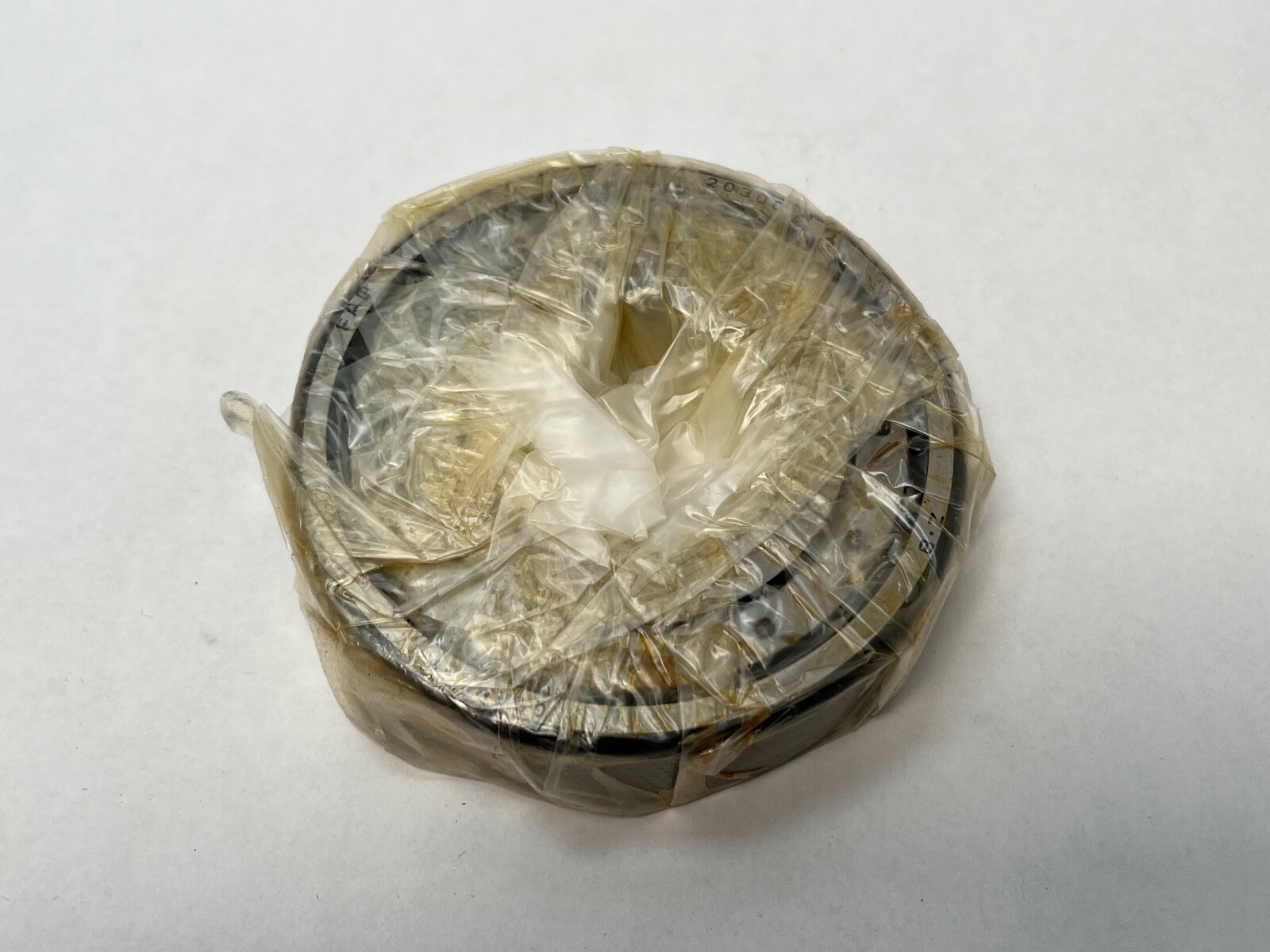

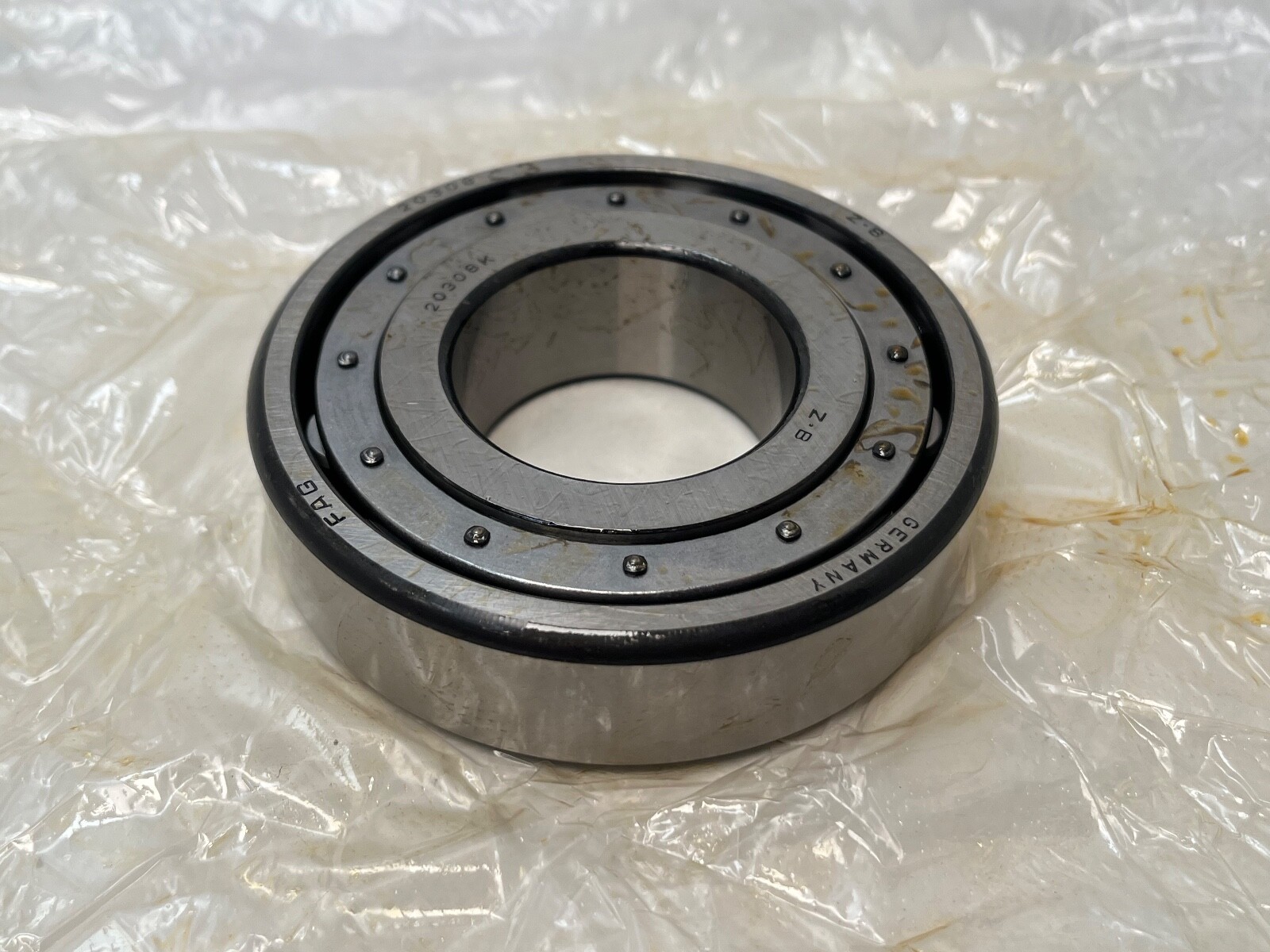

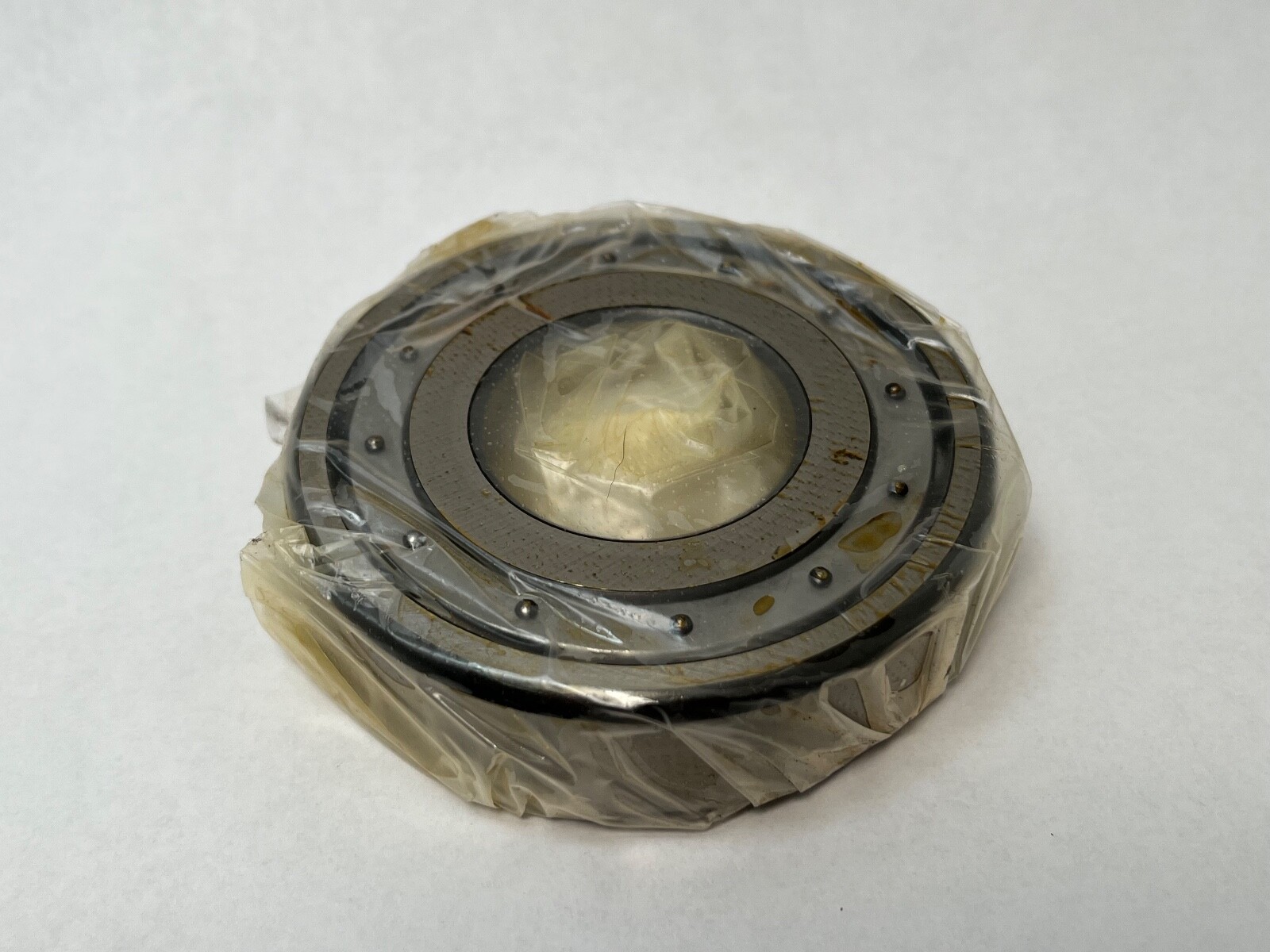

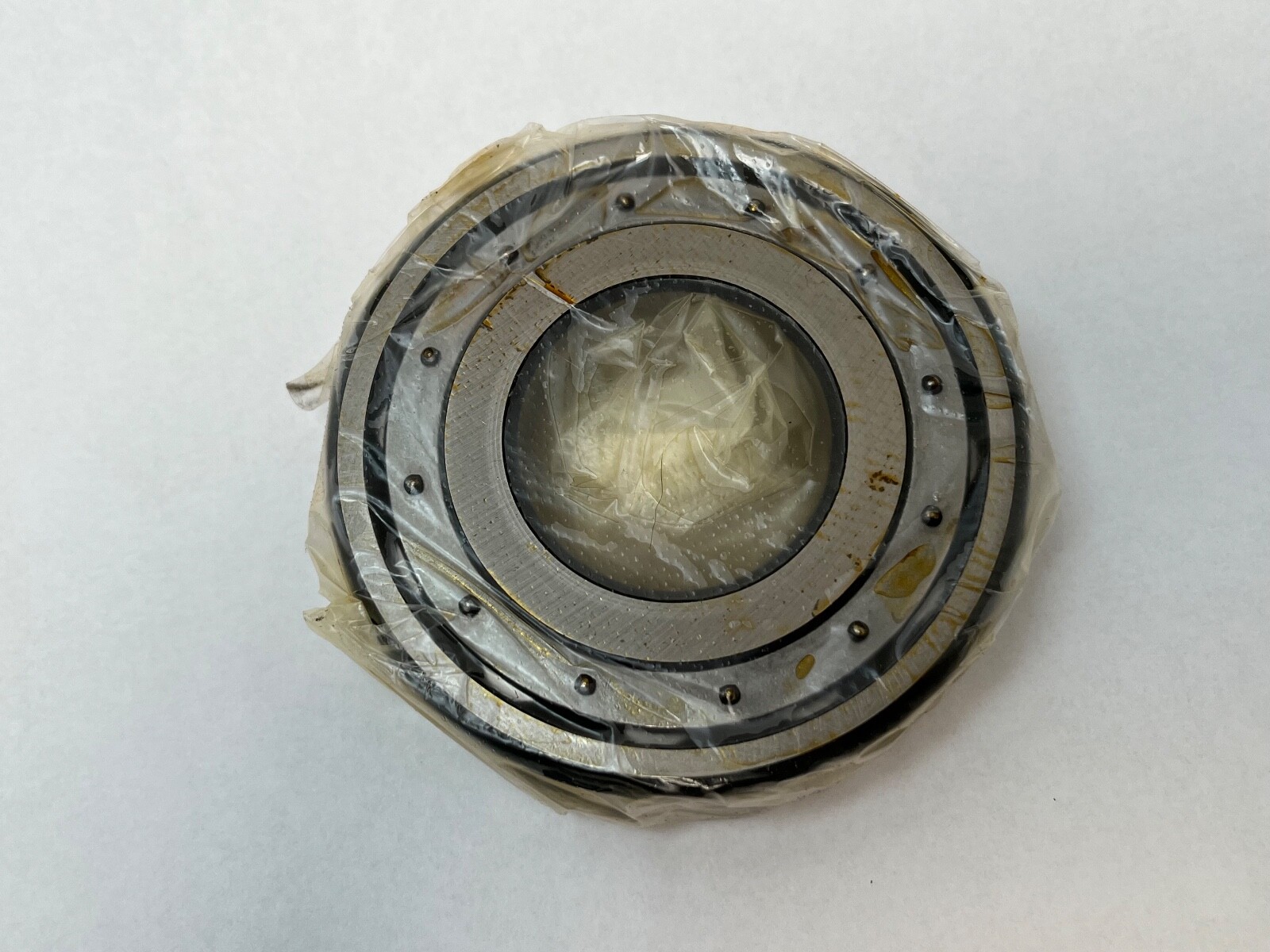

Single-row barrel roller bearing, 40 x 90 x 23 mm, 1:12 tapered bore, C3 clearance. FAG 20308-K-C3, 203 series, self-aligning radial bearing.
List Price
$48.44
23 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20308-K-C3 |
| Model | 20308 K C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 203 |
| Common Misspellings | 21308K.C3, 21308KC3 |
| Mpn Variants | 20308KC3, 20308K.C3, 20308-K-C3, 20308K |
| Closure Type | Open |
| Rolling Elements | Barrel Roller |
| Number Of Rows | 1 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.0000 |
FAG 20308-K-C3 is a single-row barrel roller bearing in the 203 series with a 1:12 tapered bore. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Width: 23 mm. Internal Clearance: C3. Rolling Elements: Barrel Roller. Number Of Rows: 1.
20308 — single-row barrel roller bearing, 203 dimension series, 40 mm bore (08 x 5).
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
A barrel roller bearing carries radial load and self-aligns through its spherical outer raceway. It is a single-row design with very limited axial capacity, distinct from a double-row spherical roller bearing of the 213 series in the same envelope. The tapered bore mounts on an adapter sleeve or a tapered journal.
Bore Type: Tapered 1:12. Adapter sleeve: H308 (35 mm shaft seat).
Unit Quantity: 1 Pc.
Straight-bore sibling in the current Schaeffler range: FAG 20308-TVP-C3. The 213-series double-row spherical roller bearing 21308-K shares the envelope but is a different bearing type.
