SKF22213CKJW33Double-Row Spherical Roller Bearing 65 x 120 x 31 mm, 1:12 Tapered Bore, CN Clearance, W33 Lubrication Groove

Product Description

What this part is

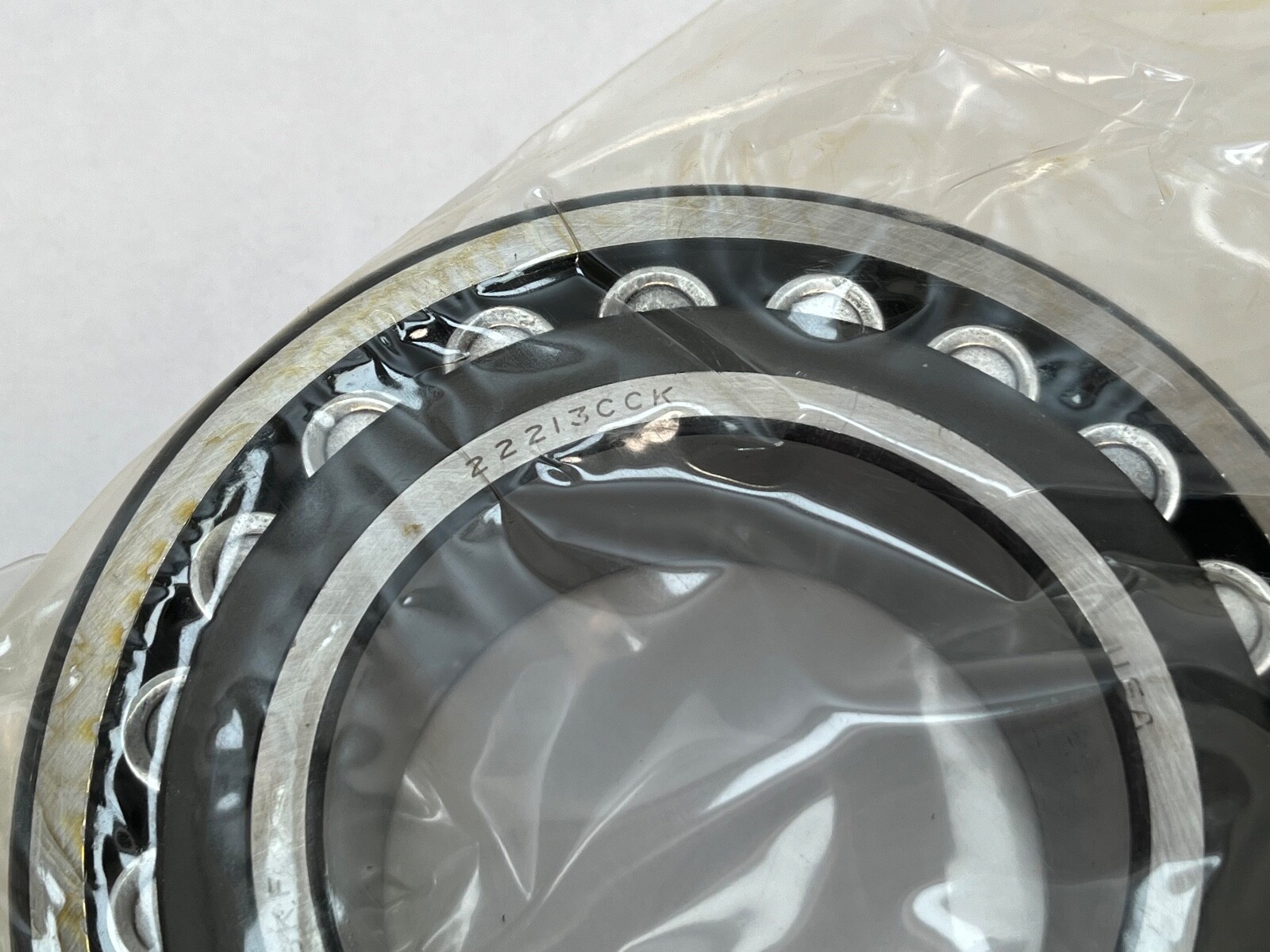

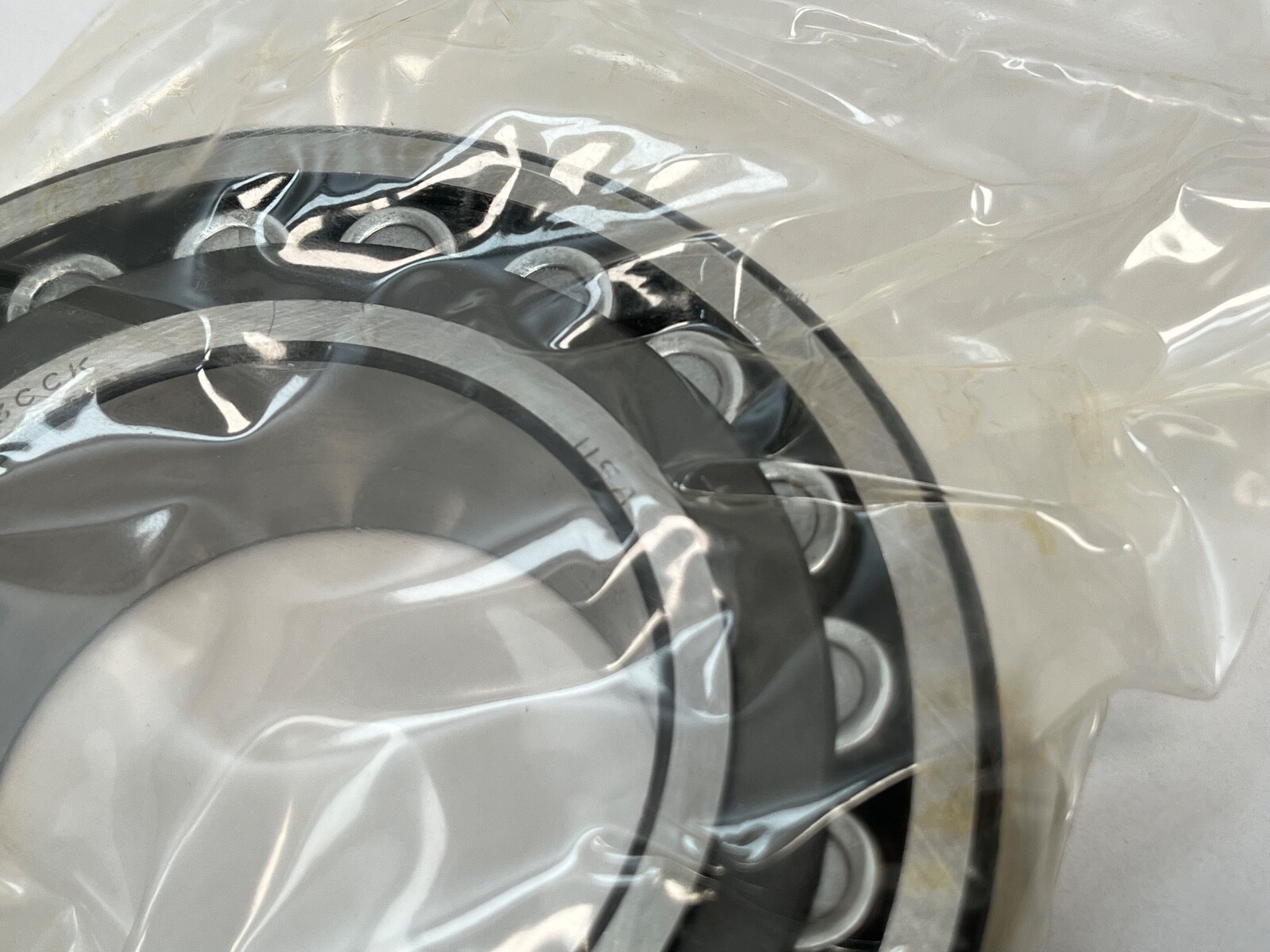

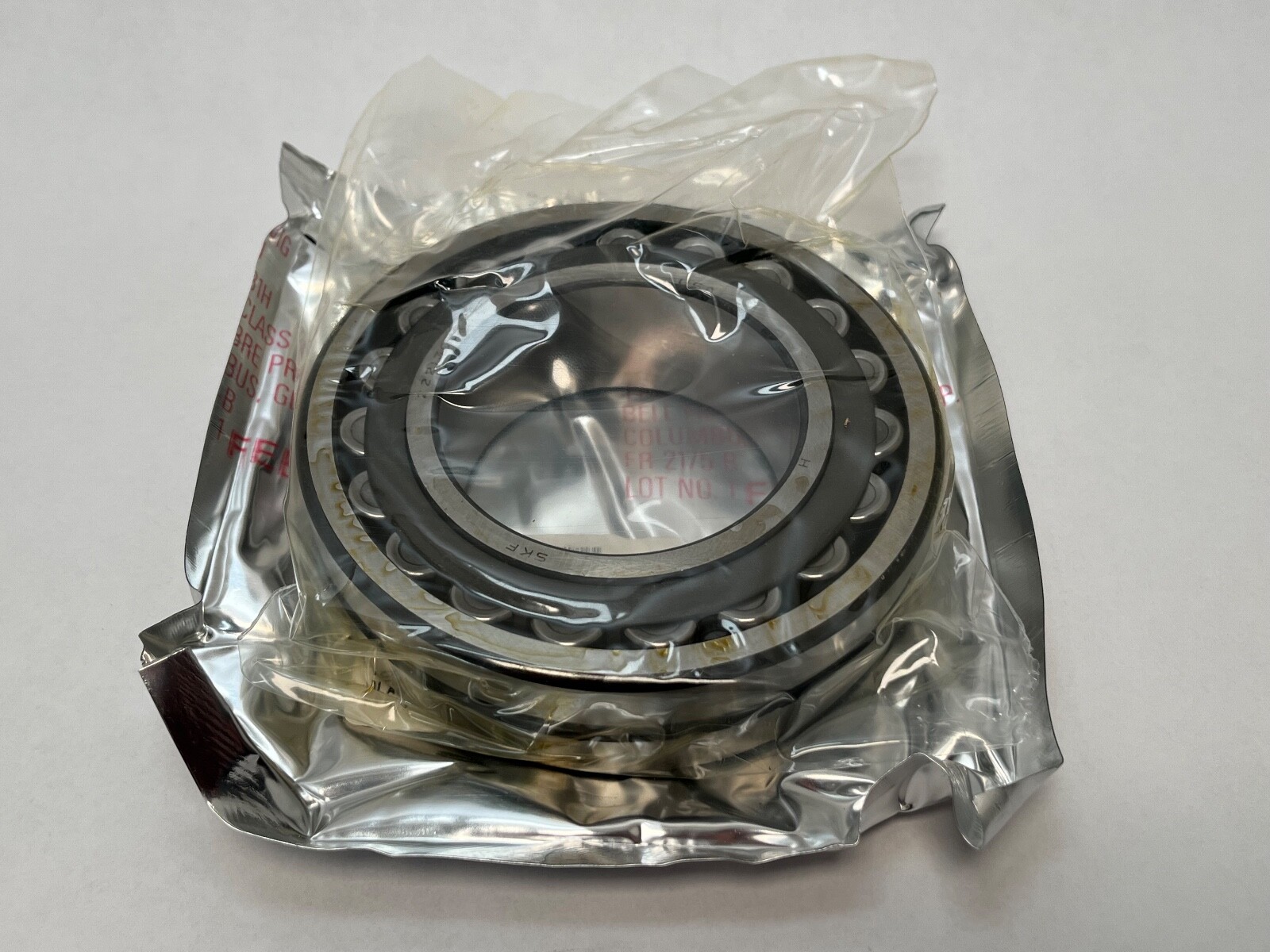

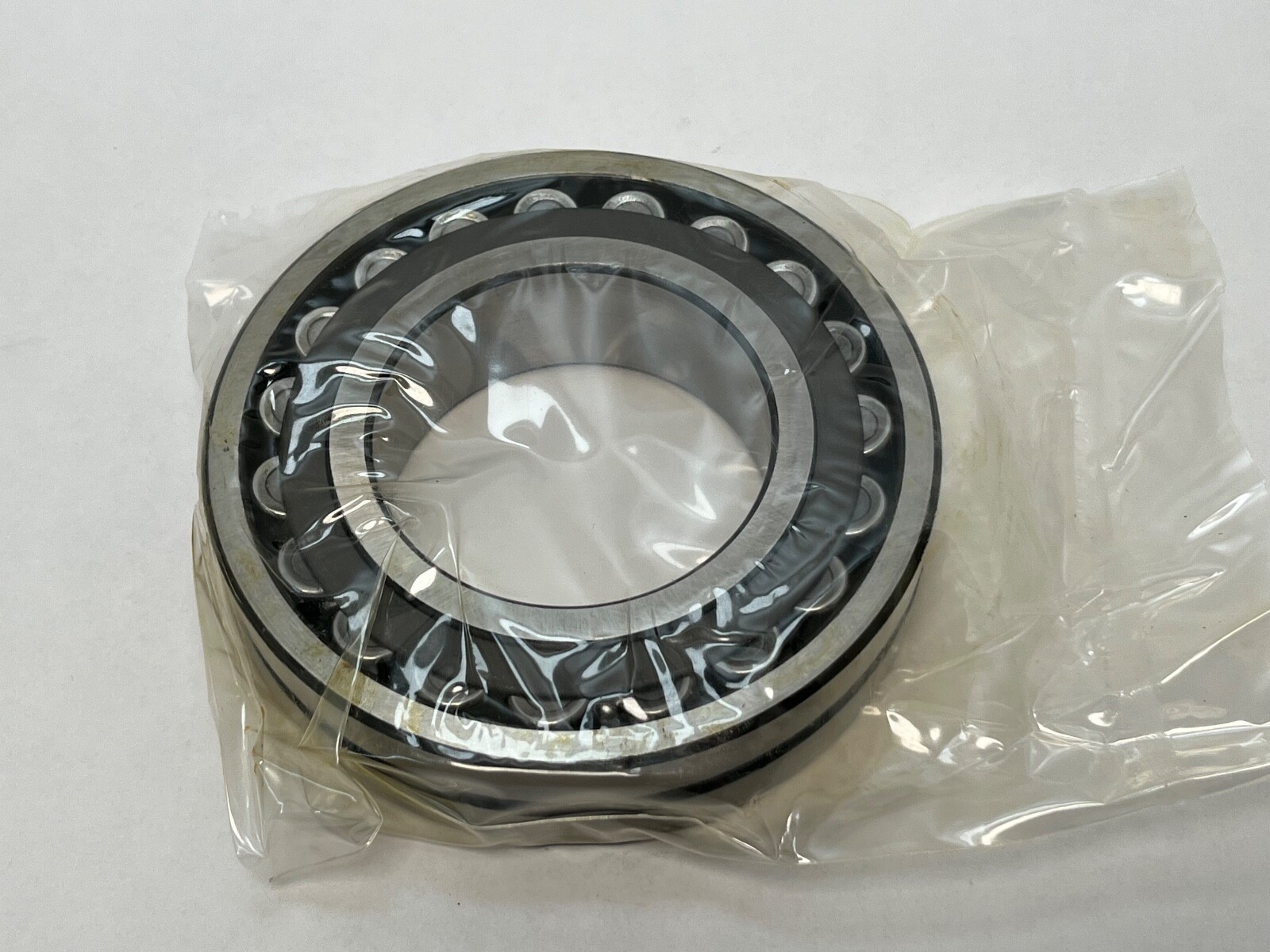

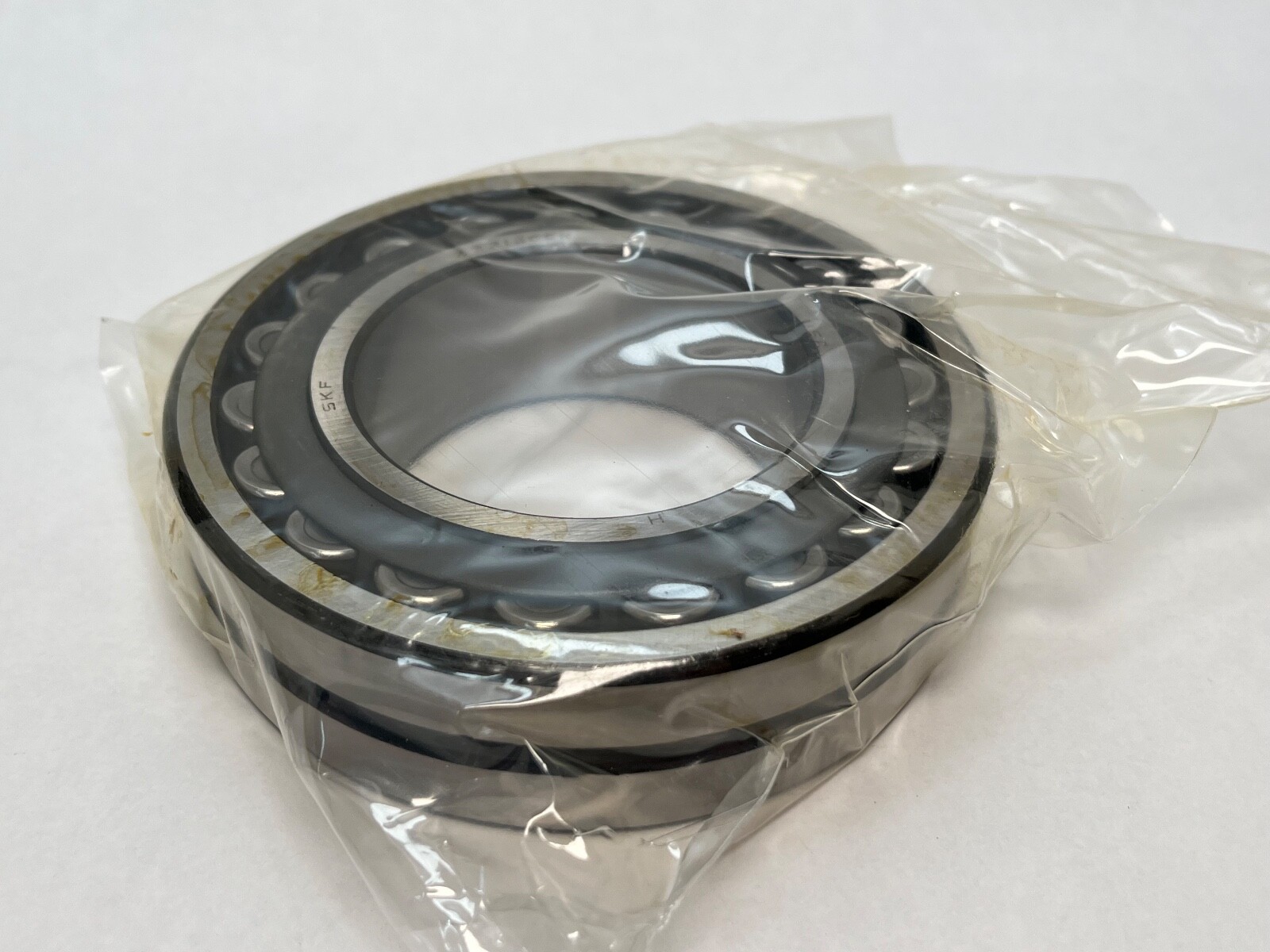

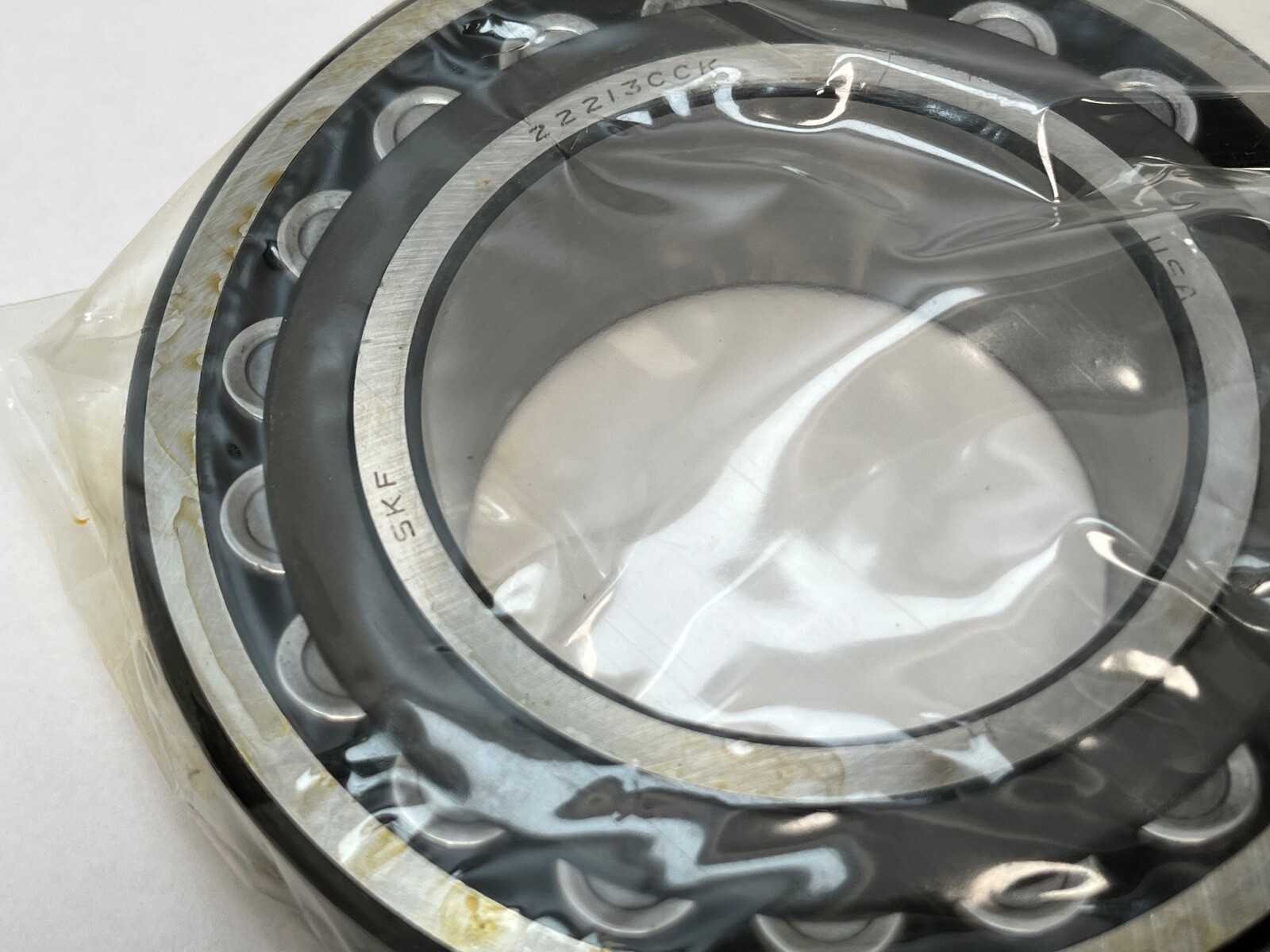

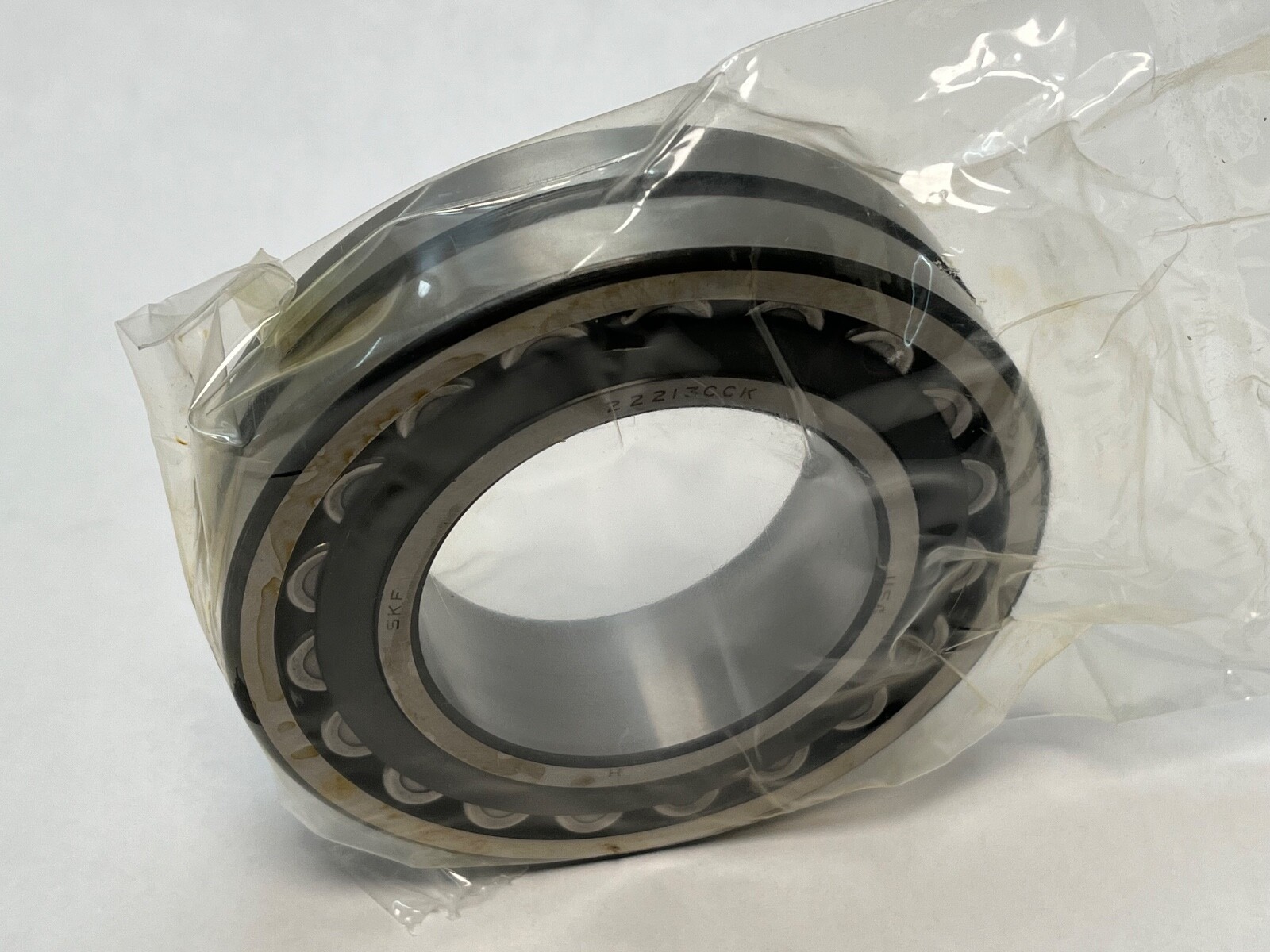

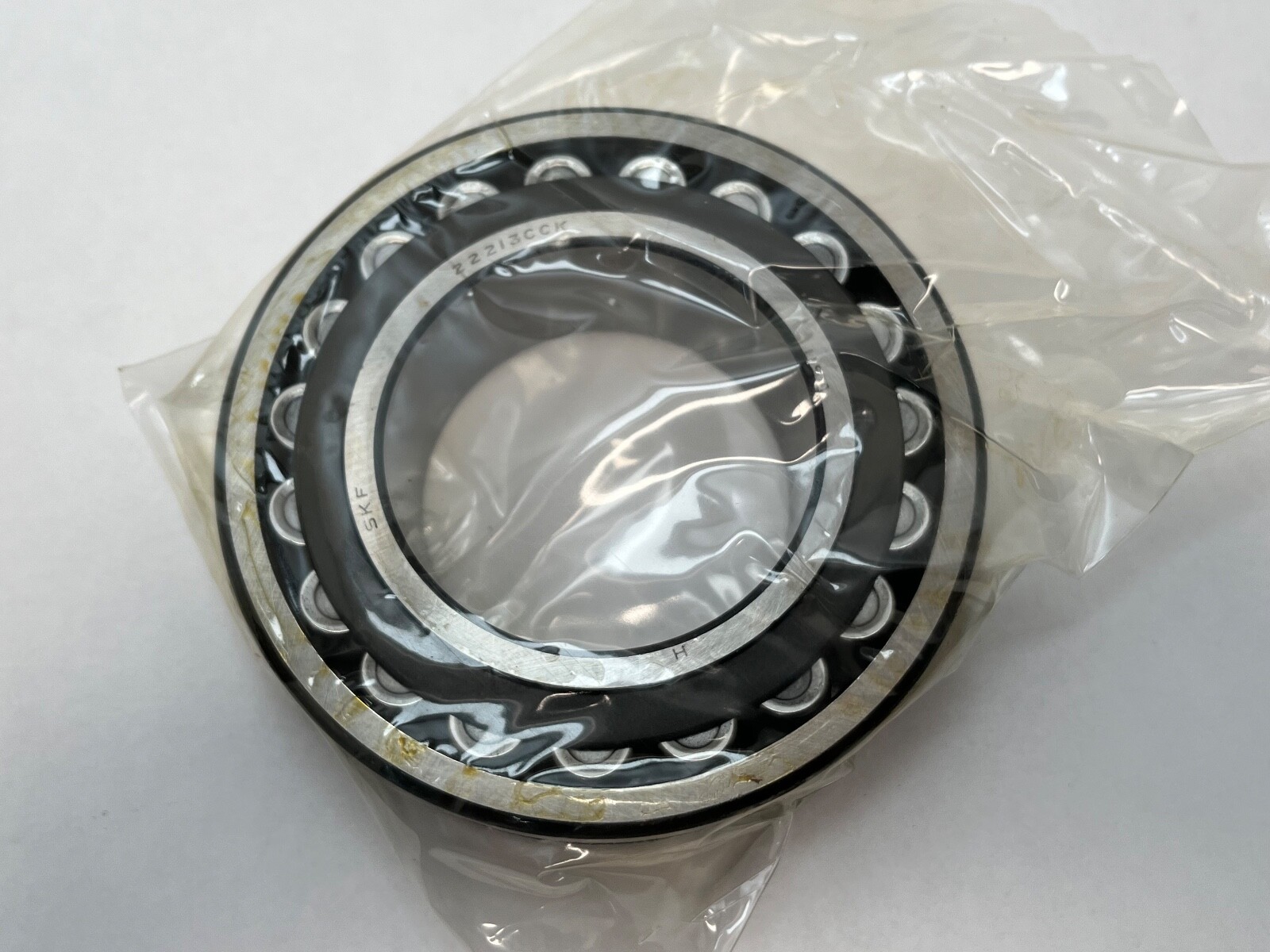

This is an SKF 22213 CK/W33 double-row spherical roller bearing with a 65 mm tapered bore, 120 mm outside diameter and 31 mm width. Two rows of barrel-shaped rollers run on a common spherical raceway in the outer ring, allowing the shaft to swivel relative to the housing and absorb misalignment under load.

Decoding the designation

The 222 prefix is the double-row spherical roller family and the 13 bore code gives 65 mm. The C and J elements specify a pressed steel window cage. K specifies a 1:12 tapered bore rather than a straight one. W33 means the outer ring carries a circumferential lubrication groove and three radial lubrication holes. There is no clearance suffix, so radial internal clearance is normal, CN.

Bore taper and mounting hardware

Adapter sleeve H313 fits this bearing and is a separate part, not included. The sleeve seats on a 60 mm plain shaft — one bore-code step below the bearing bore — and is supplied with a KM13 locknut and an MB13 lockwasher. A withdrawal sleeve arrangement or a stepped shaft with a tapered seat are the alternatives to the adapter sleeve.

What these specs mean in practice

A double-row spherical roller carries very high radial load and takes axial load in both directions. The 1:12 taper is what makes clearance adjustable at assembly: driving the inner ring further up the taper expands it and reduces running clearance, so the fitter sets the final clearance rather than accepting a fixed value. CN clearance is the general-purpose setting for a shaft and housing running at similar temperatures.

Quantity and configuration

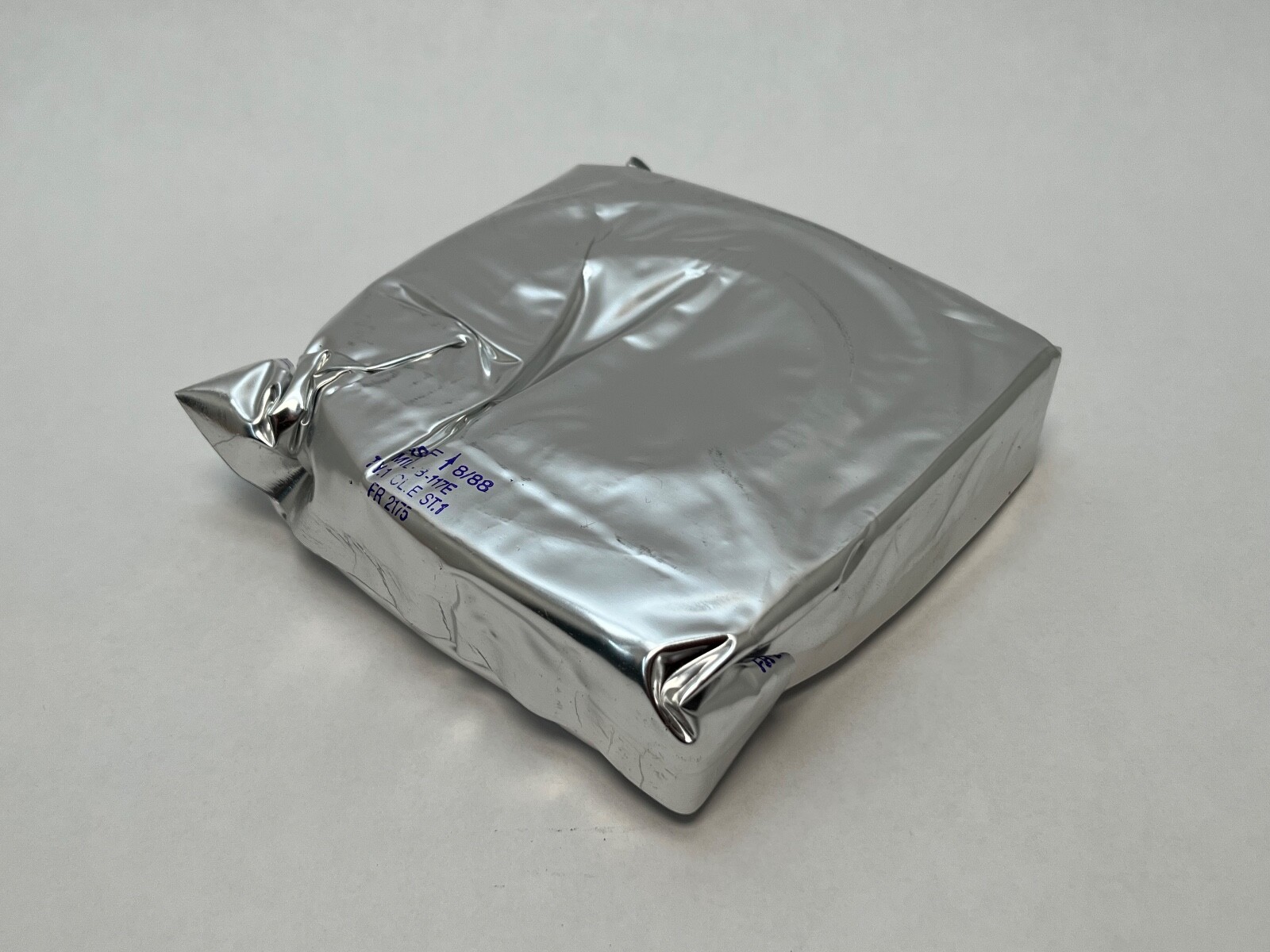

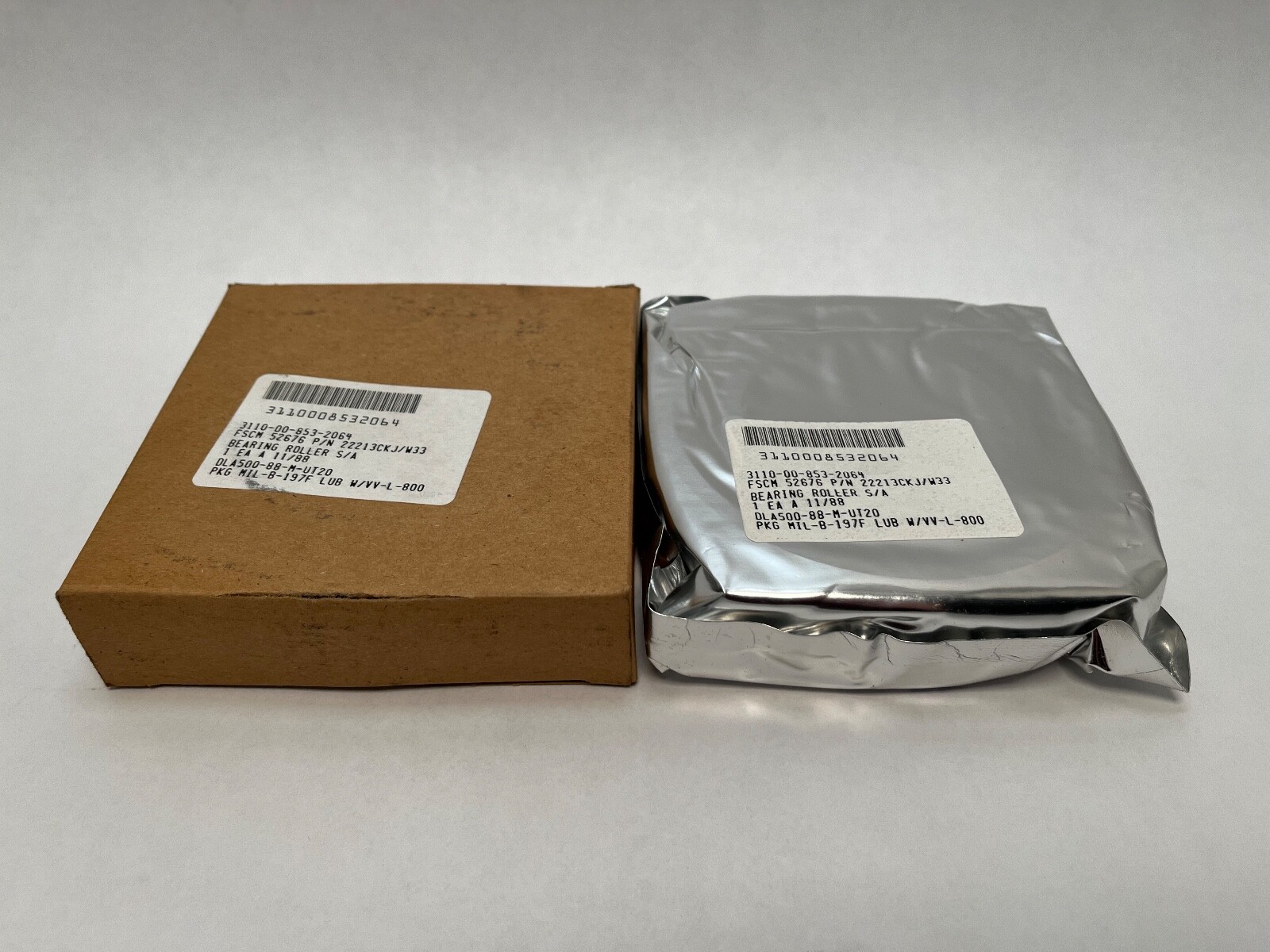

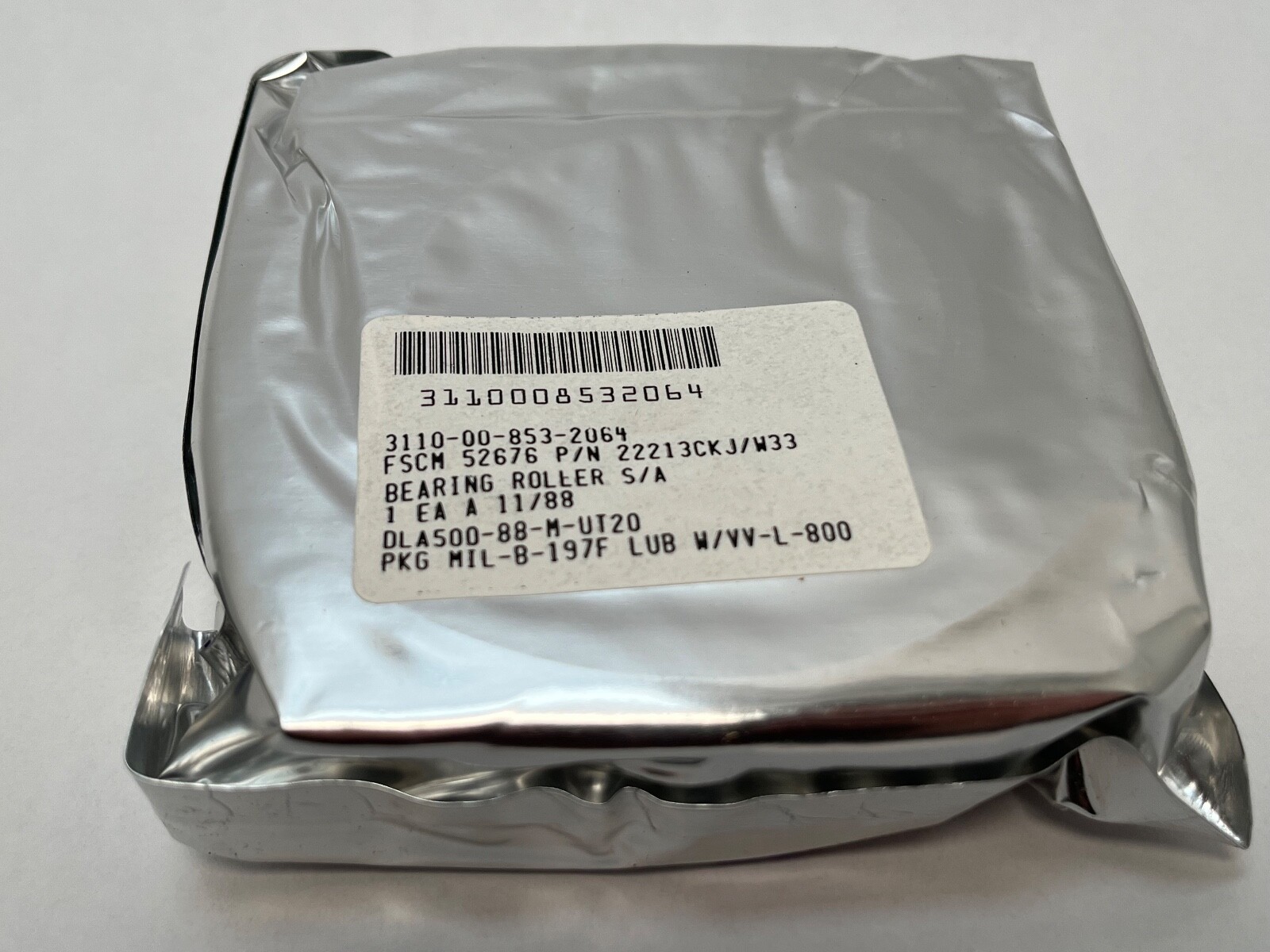

Bearing only, 1 Pc. Supplied without adapter sleeve H313 and without locknut or lockwasher.

Fitting notes

The bearing goes up the sleeve taper until the specified radial internal clearance reduction is reached, measured with a feeler gauge across the unloaded roller row or by drive-up distance. The housing lubrication port is aligned with the outer ring W33 groove so the relubrication passage stays open.

Interchange guidance

Same-spec equivalents are FAG 22213-E1-XL-K-C3 in its CN form 22213-E1-XL-K, NSK 22213EAKE4 and Timken 22213KEJW33, all 65 mm tapered bore, 120 x 31 mm, with lubrication groove and holes. The straight-bore 22213 CC/W33 and the C3-clearance 22213 CCK/C3W33 share the envelope but differ in bore form and clearance, making them related sizes rather than substitutions.
