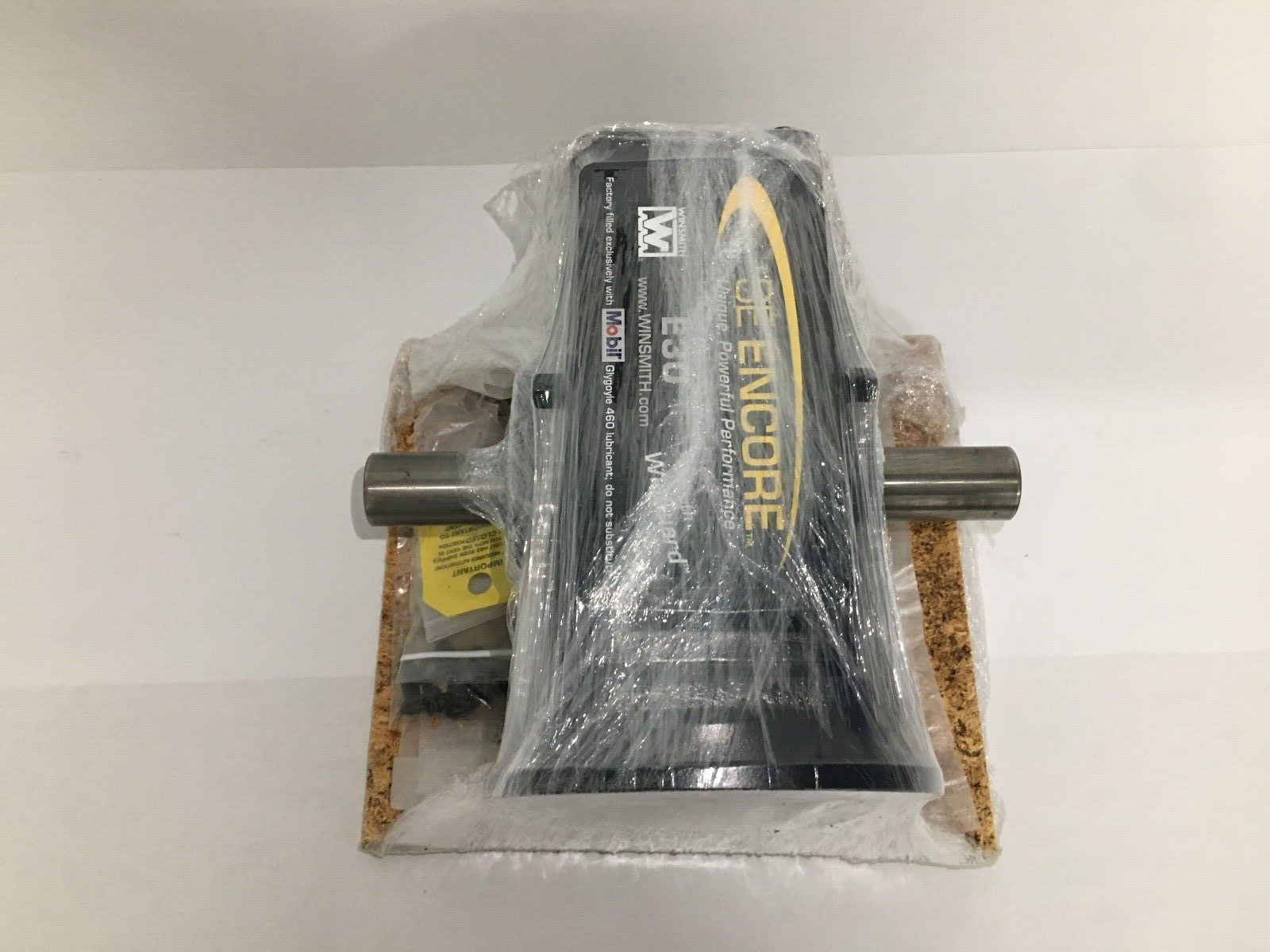

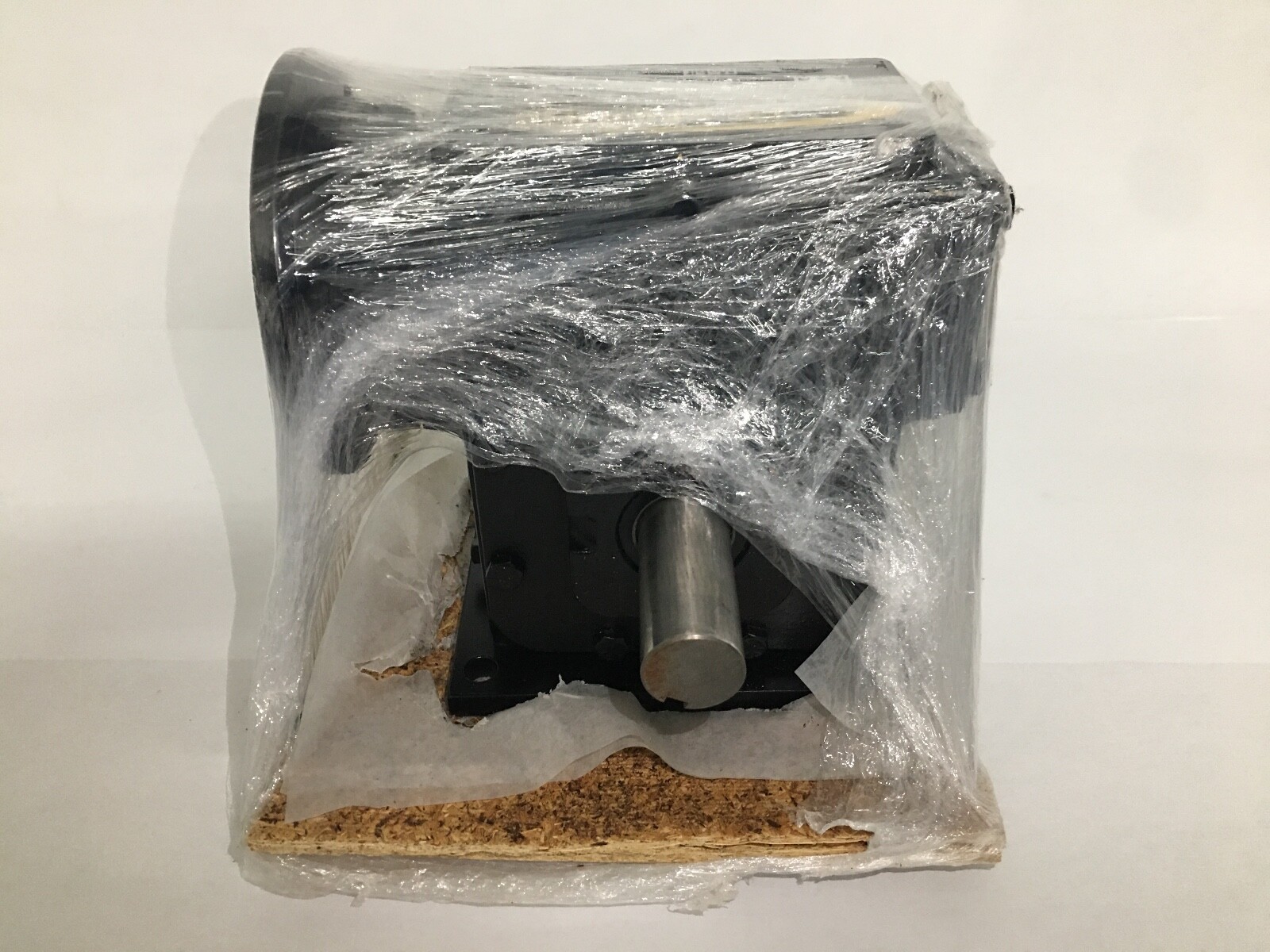

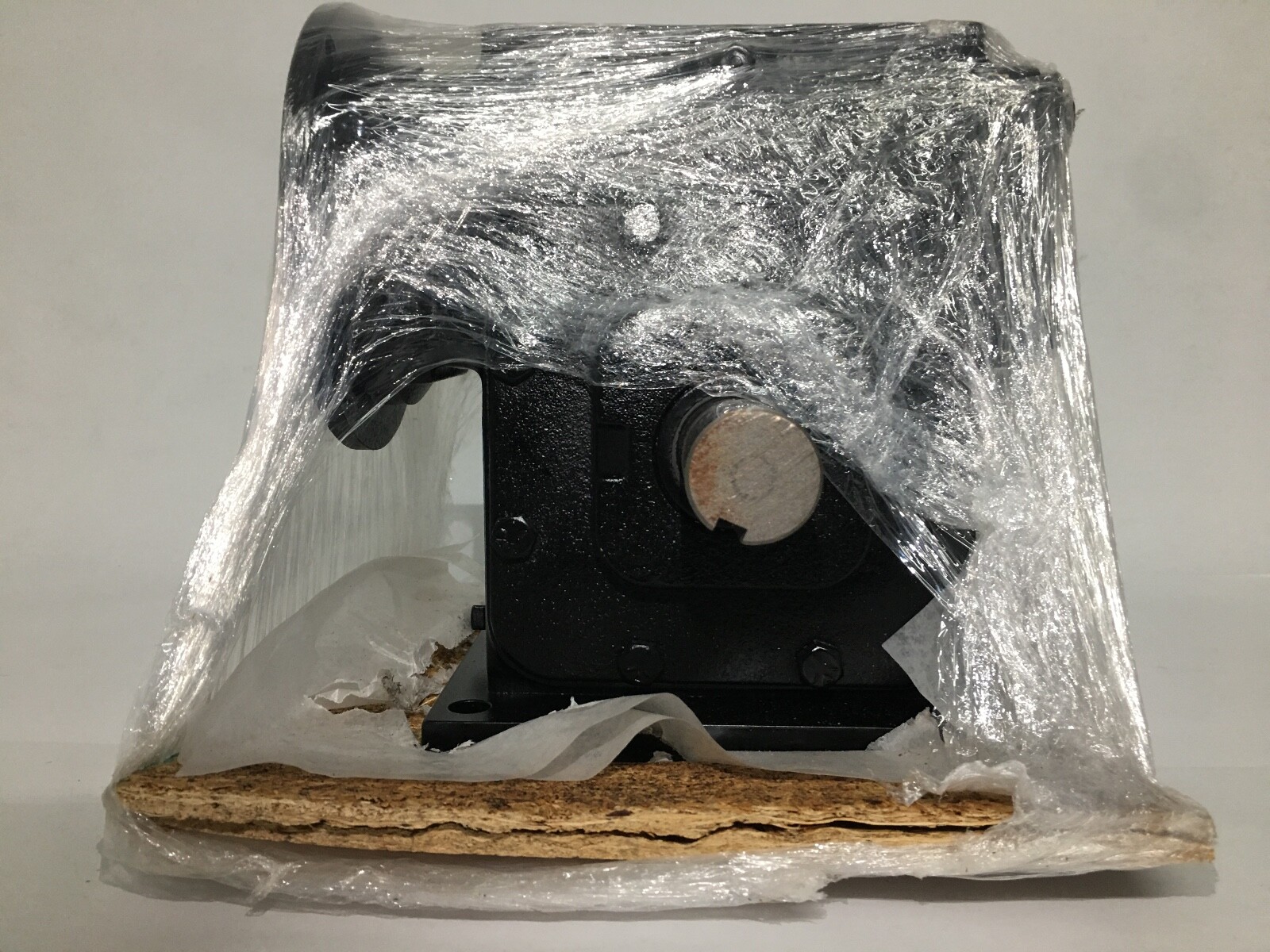

Winsmith E30MDTS22000C1 right angle worm gear speed reducer, 3.00 in center distance, quill input for 143-145TC motors, solid double-extended output shaft. SE Encore E Series.
List Price
$781.26
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Winsmith |
|---|---|
| MPN | E30MDTS22000C1 |
| Model | E30MDTS22000C1 |
| Condition | New |
|---|---|
| Type | Right Angle Speed Reducer |
| Shaft Orientation | Right Angle |
| Base Number | E30MDTS |
| Industry Terms | worm gear reducer; right angle gearbox; speed reducer; C-face reducer; quill input reducer |
| Common Misspellings | Winsmit; Winsmyth; E30MDTS2200C1 |
| Mpn Variants | E30MDTS22000C1; E30-MDTS-22000-C1; E30 MDTS 22000C1; E30-MDTS-S22000-C1 |
| Additional Attributes | Center Distance: 3.00 in; Basic Model: Worm on top; Input Style: C-flange quill motor adapter; Motor Frame Size: 143-145TC / 182-184C; Output Type: Solid double-extended shaft; Reduction Stages: Single; Mounting: Base mount |

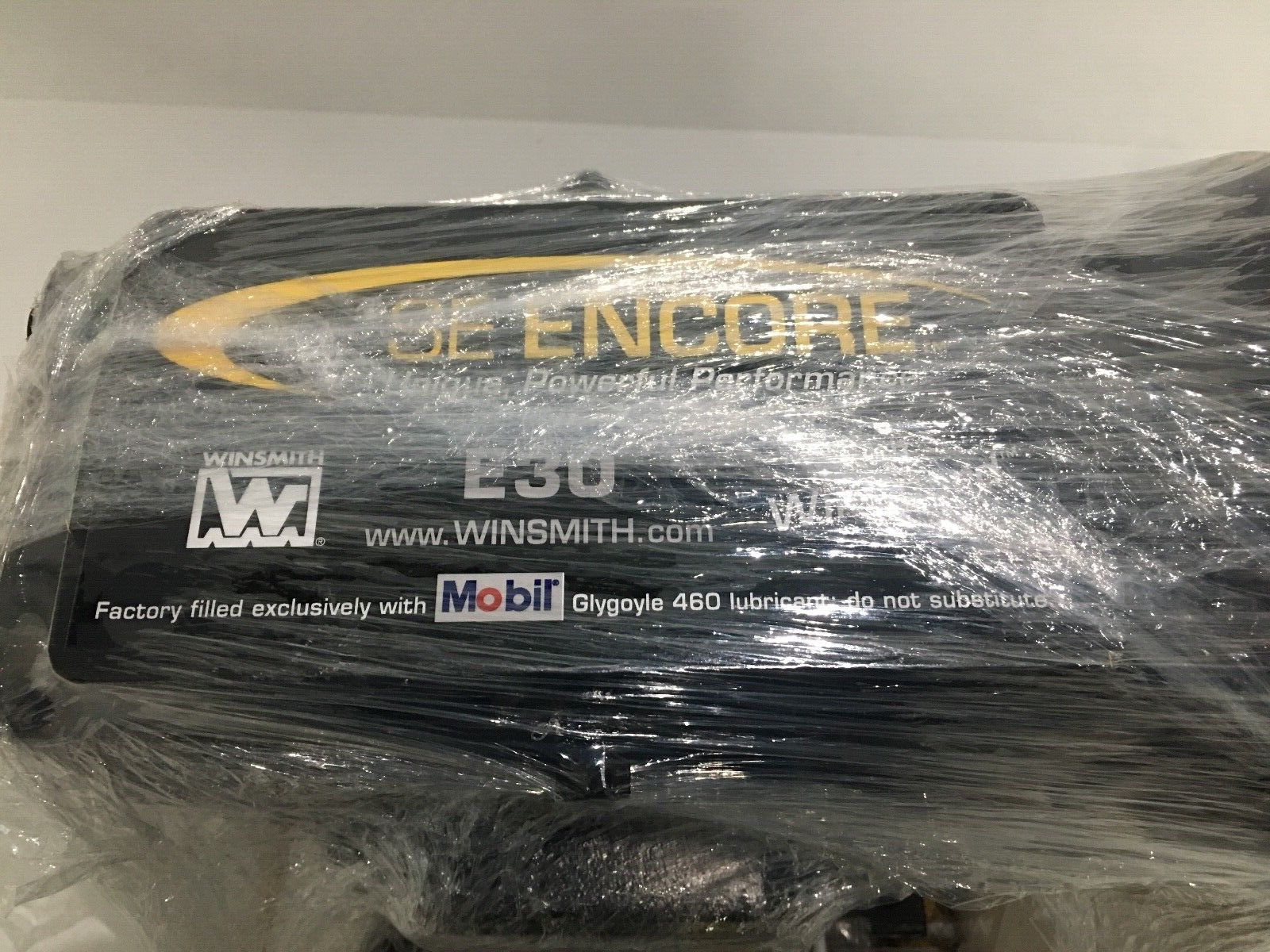

The Winsmith E30MDTS22000C1 is a right angle worm gear speed reducer from the Winsmith SE Encore E Series. Type: Right Angle Speed Reducer. Manufacturer: Winsmith. Center Distance: 3.00 in. Reduction Stages: Single. Basic Model: Worm on top.
E30 — E Series, 3.00 in worm center distance.
MDTS — worm-on-top, base-mounted, solid double-extended output shaft with C-flange quill motor input.

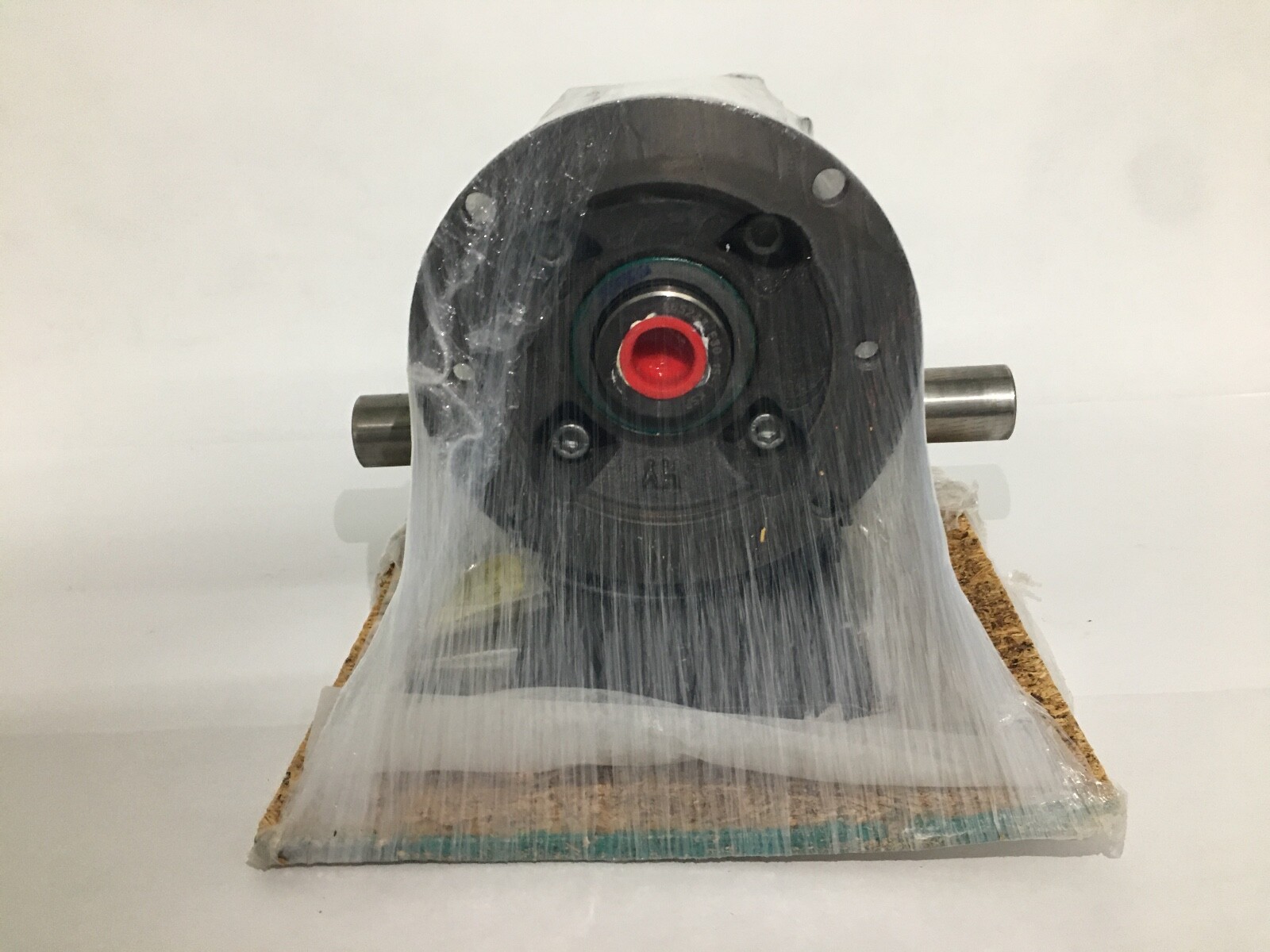

Input Style: C-flange with quill motor adapter. Motor Frame Size: 143-145TC / 182-184C. The motor shaft drops straight into the quill bore, so no input coupling is needed. Output Type: Solid output shaft, double extension, usable from either side of the housing.
Unit Quantity: 1 Pc. Condition: new.
Winsmith E Series reducers share mounting dimensions within the same center distance and assembly arrangement. Replacement matches on center distance, arrangement, ratio and motor frame.
