Availability:
1 in stock

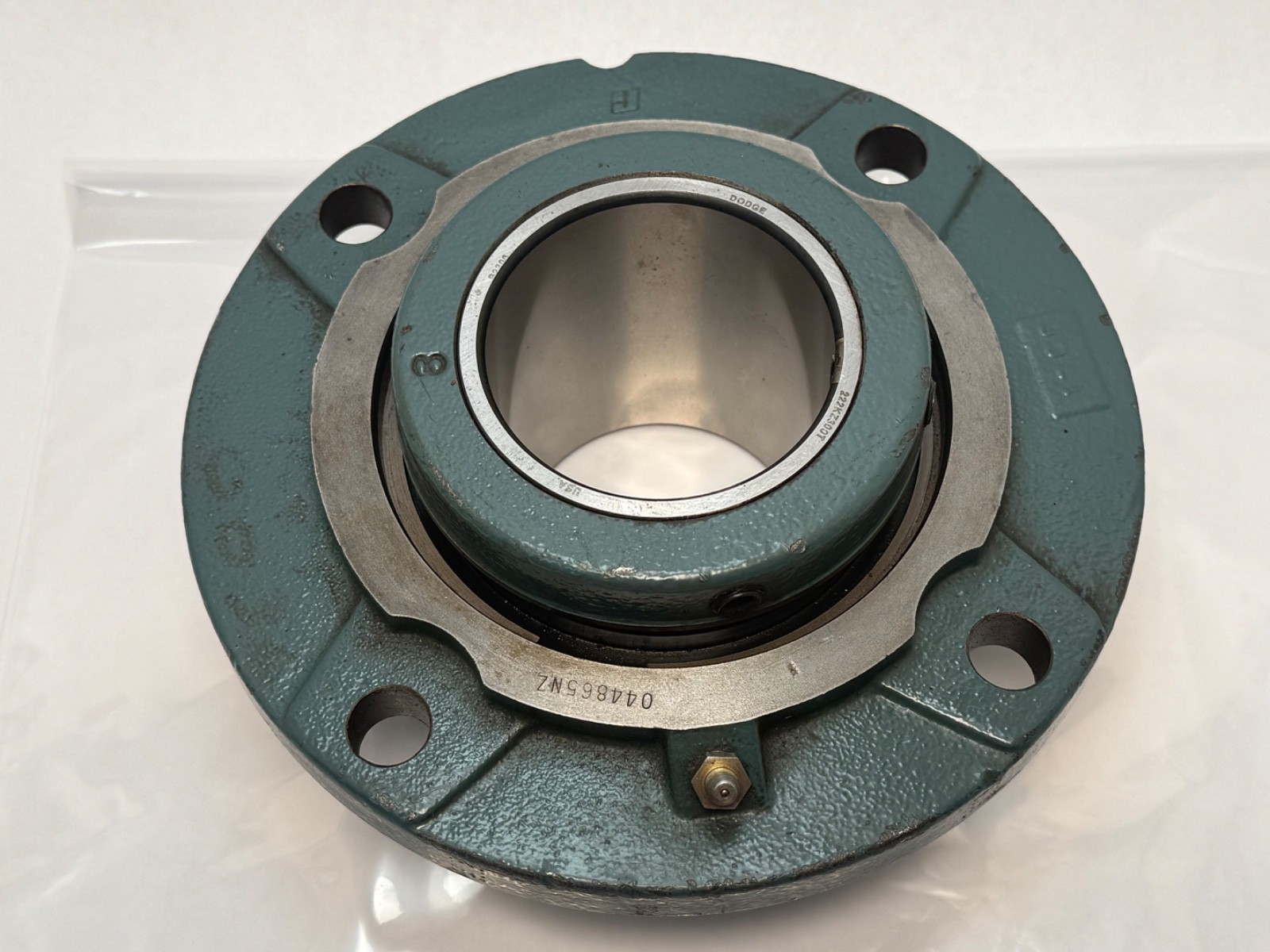

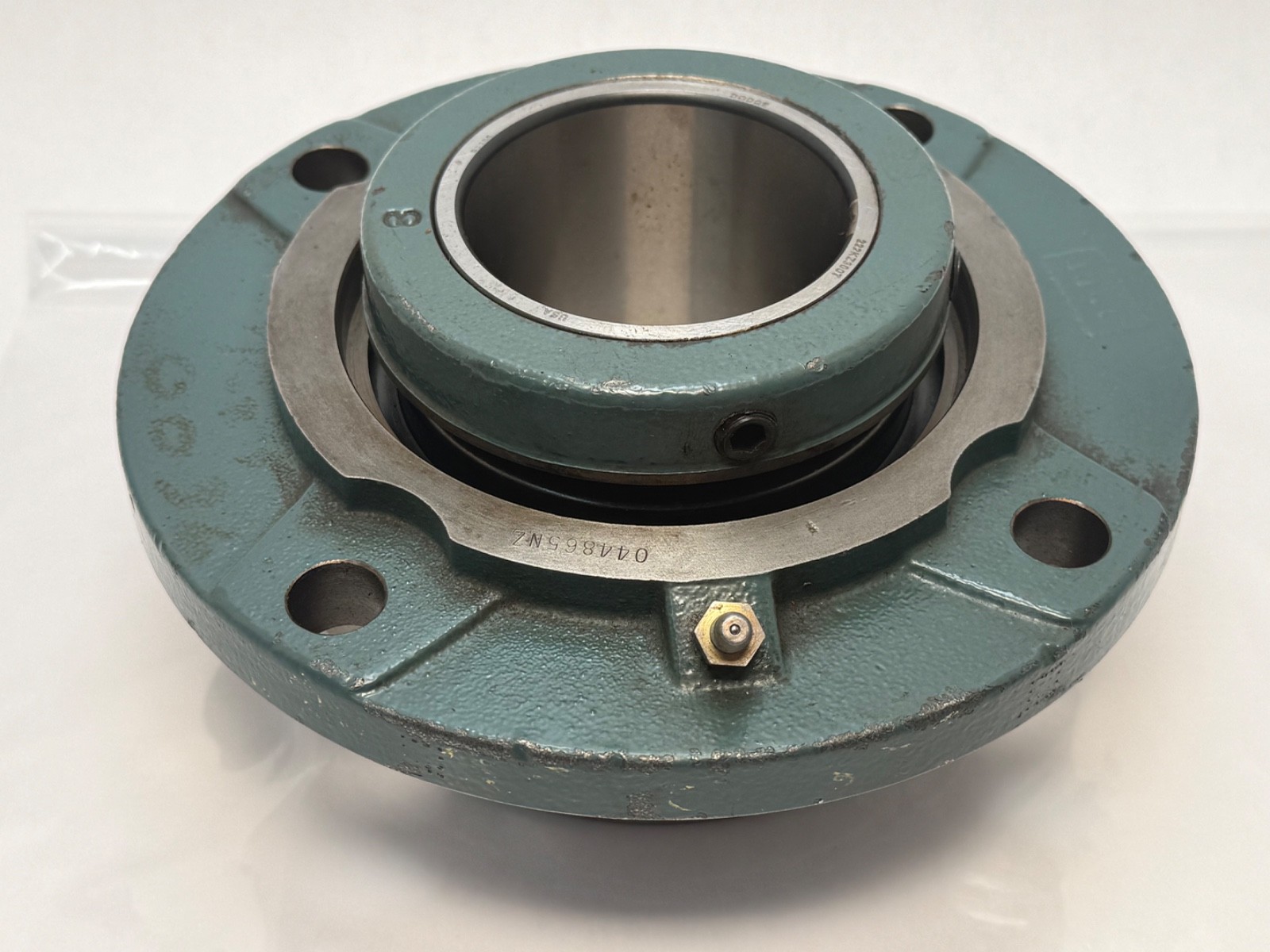

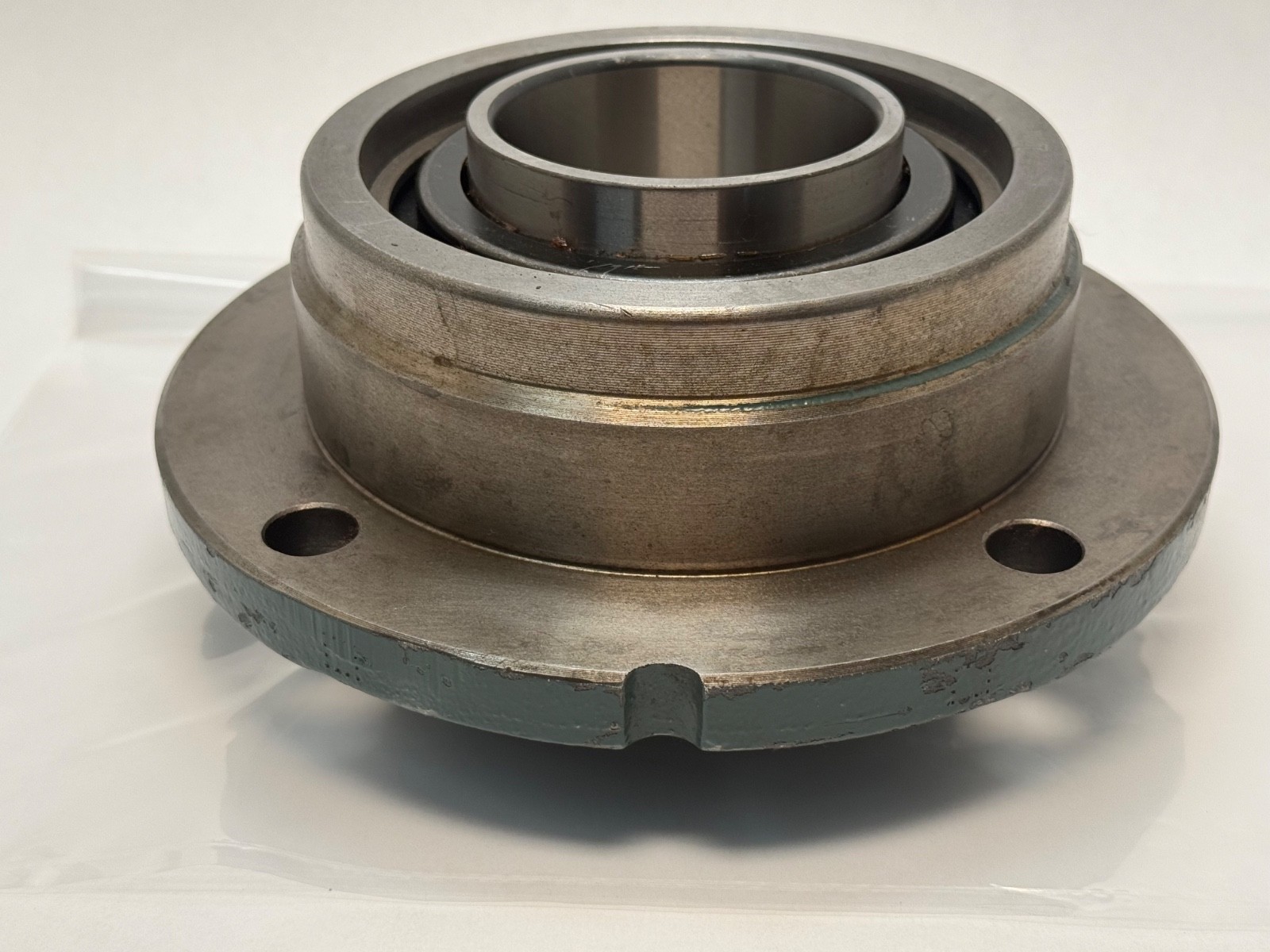

Piloted flange spherical roller bearing unit, 3 in bore, Dodge S-2000 set screw, cast iron, 41,500 lbf dynamic rating, 1,490 rpm. Insert 222KZ300T.
List Price
$520.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | FC-S2-300 |
| Model | FC S2 300 |
| ID | 3 in (76.2 mm) |
| Material | Cast Iron |
|---|---|
| Type | Piloted Flange Mounted Spherical Roller Bearing |
| Category Id | 35565 |
| Currency | USD |
| Bolt Center To Center Length | 7.5000 in bolt circle |
| Bearing Insert Type | Spherical Roller |
| Housing Style | Piloted flange |
| Locking Method | Set screw |
| Mpn Variants | FC-S2-300, FCS2300, FC S2 300, FC-S2-300R, FC-S2-300L, 222KZ300T |
| Dynamic Load Rating | 184,600 N (41,500 lbf) |
| Static Load Rating | 235,760 N (53,000 lbf) |
| Limiting Speed | 1,490 rpm |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.4080 |
| Cross Reference 1 | Dodge FC-S2-300R (070658) |
|---|---|
| Cross Reference 2 | Dodge FC-S2-300L (070712) |

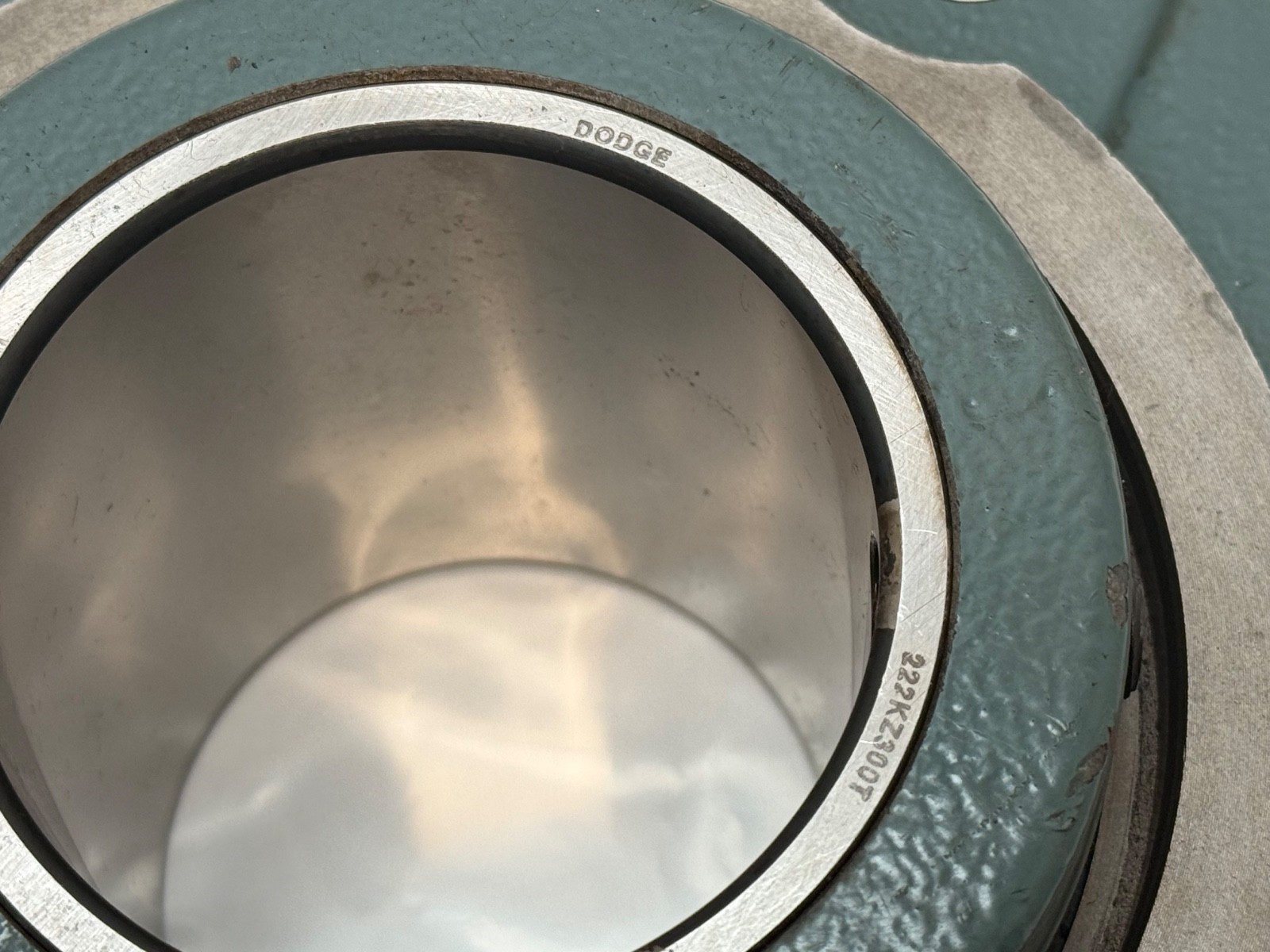

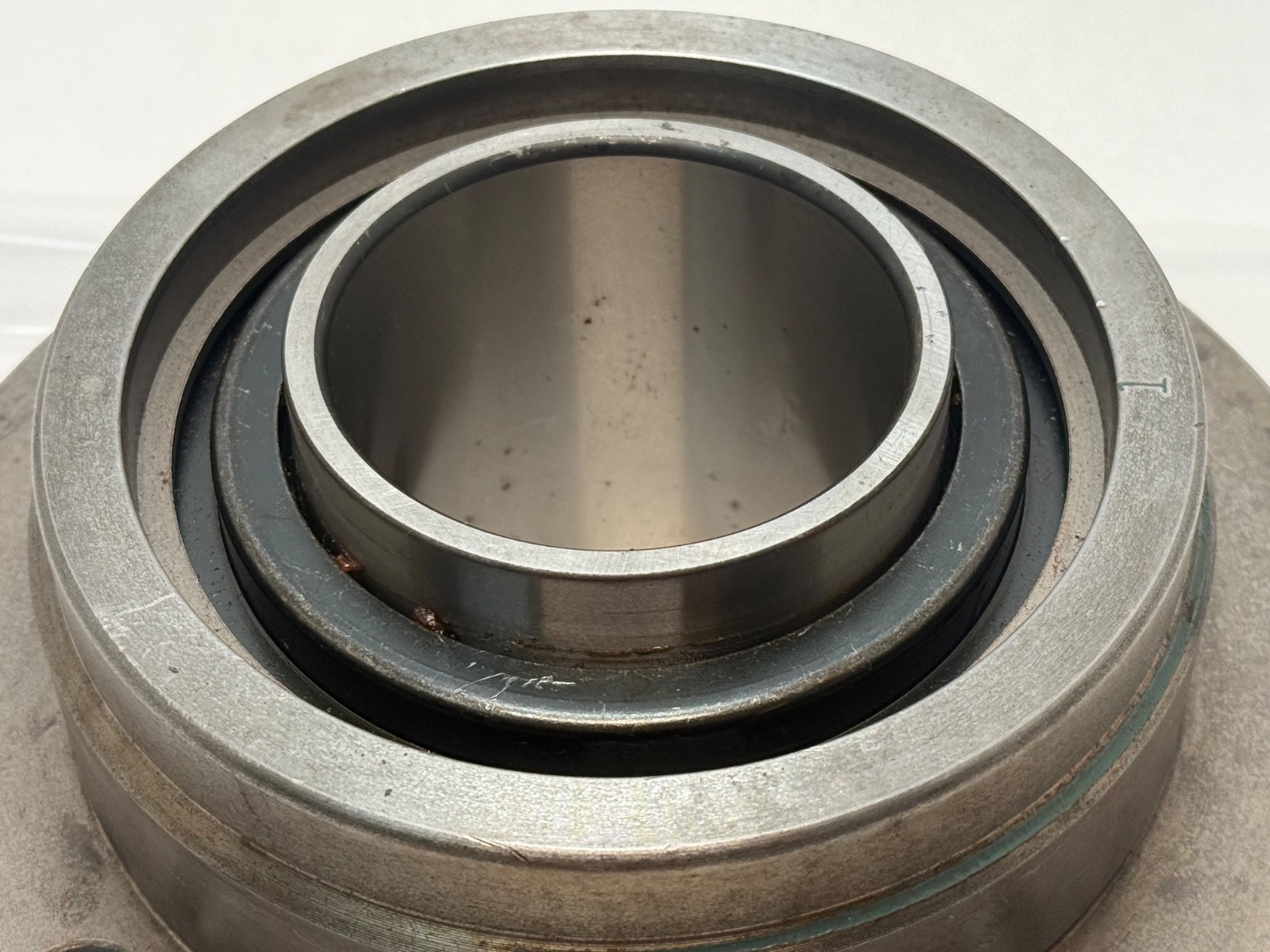

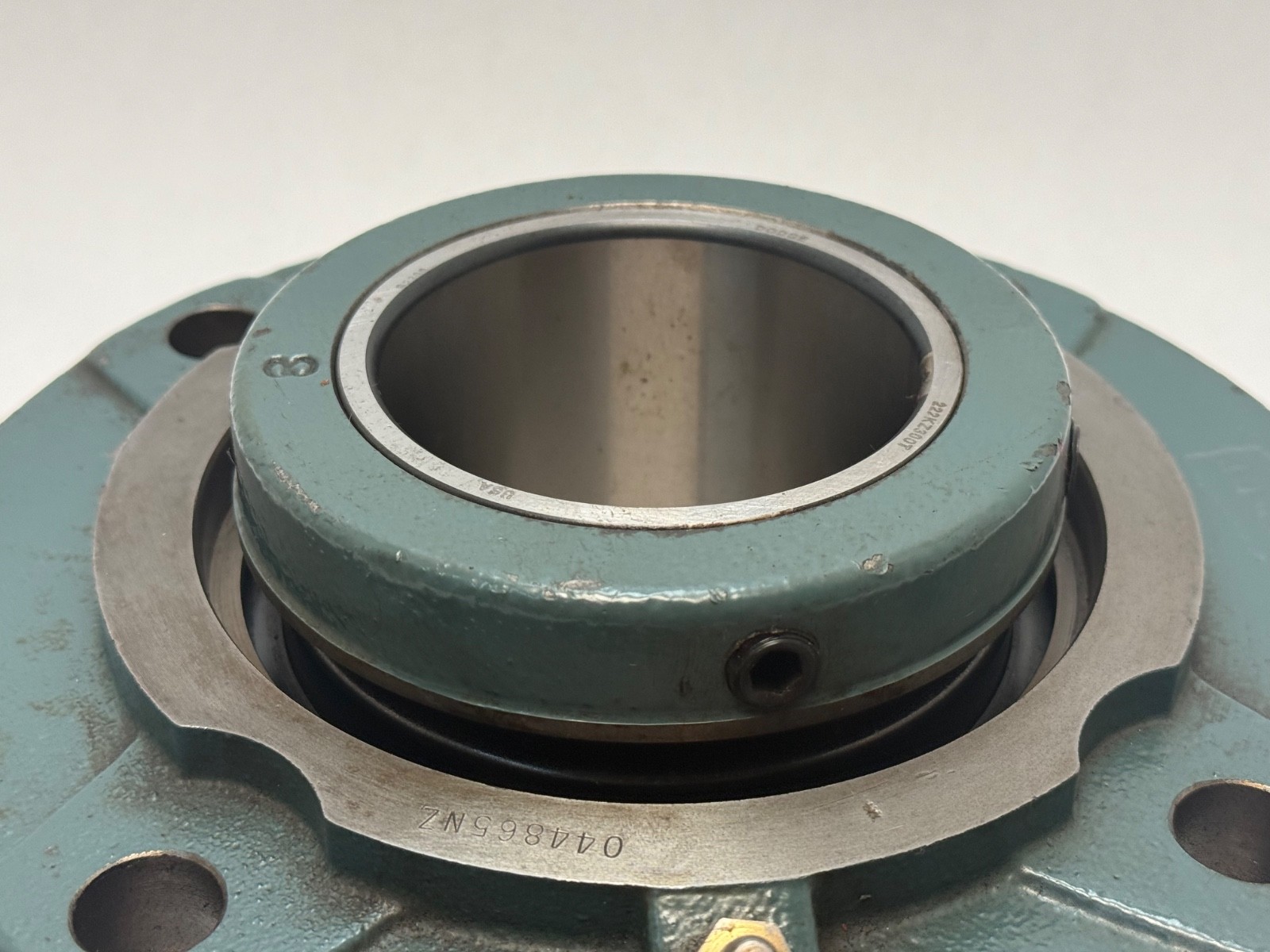

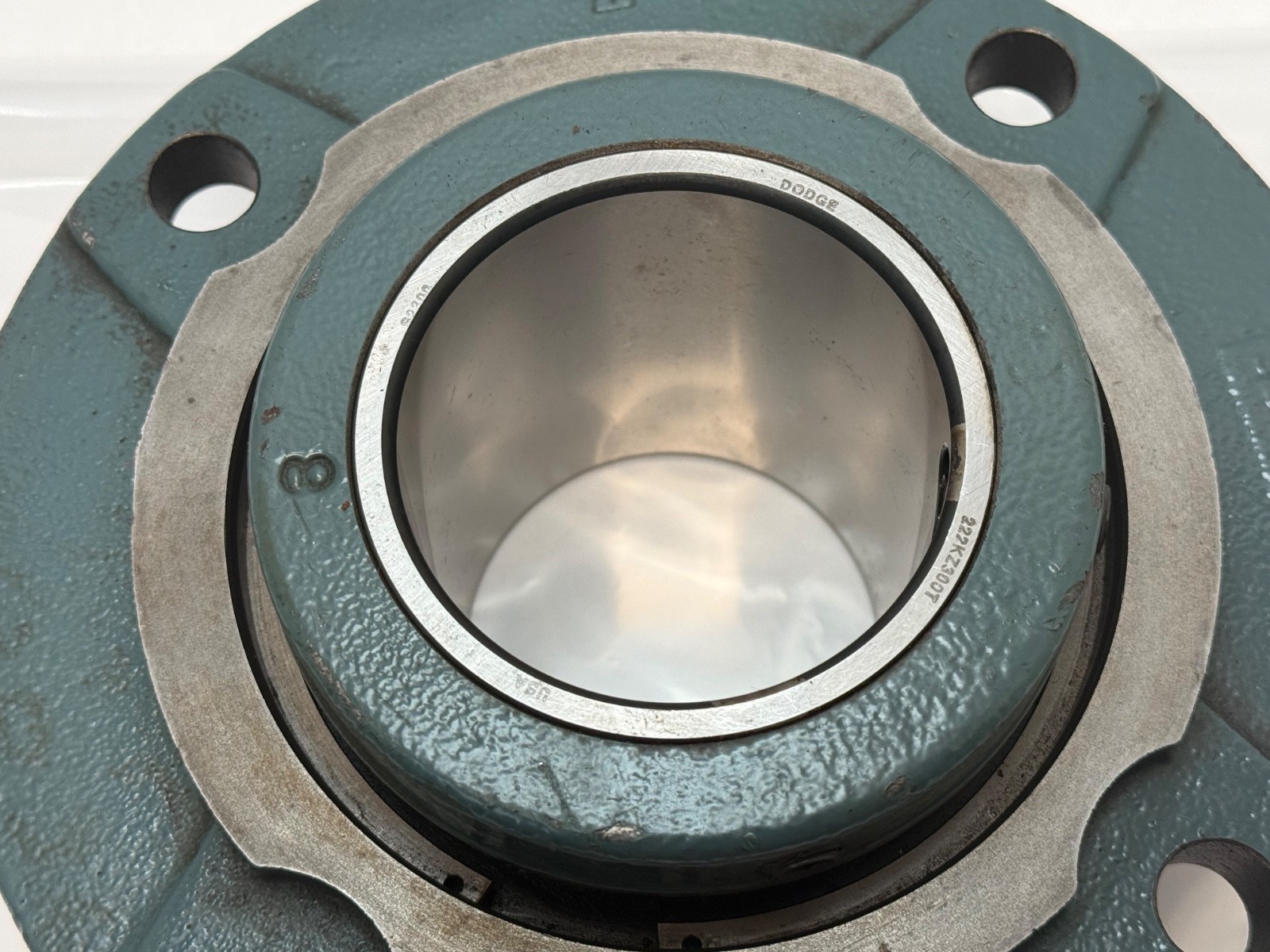

Dodge FC-S2-300 is an S-2000 piloted-flange mounted spherical roller bearing for a 3 in shaft. Bore Diameter: 3 in (76.2 mm). Housing Type: Piloted flange, solid cast iron. Shaft Attachment: Set screw. Expansion Capability: Non-expansion (fixed). Insert: 222KZ300T double-row spherical roller. This unit is fitted with an aftermarket housing on a Dodge S-2000 insert.
FC — Dodge piloted flange cartridge housing.
S2 — S-2000 spherical roller bearing line, set screw locking.
300 — 3 in shaft (3-00/16 in).

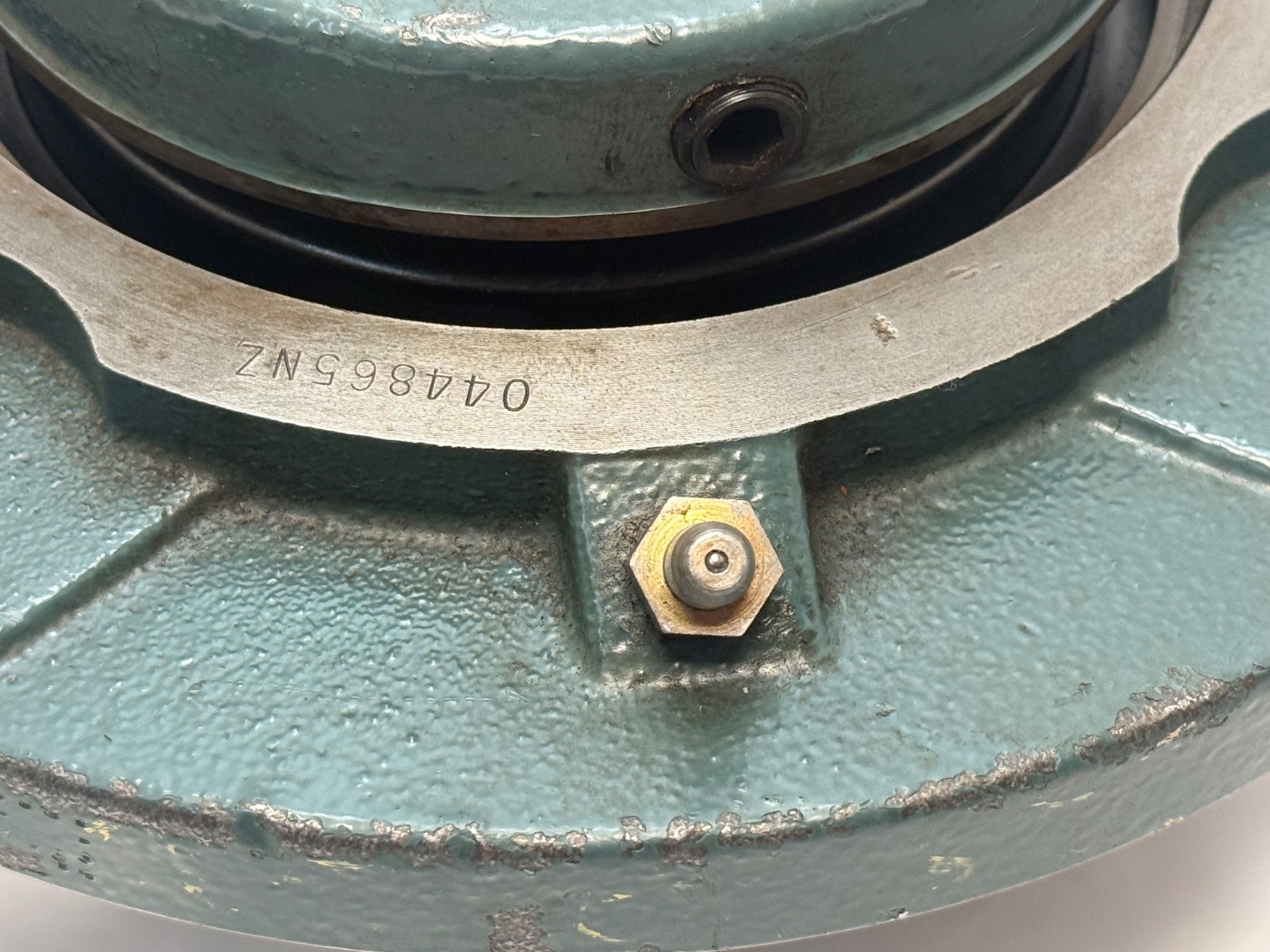

Dynamic Load Rating: 184,600 N (41,500 lbf). Static Load Rating: 235,760 N (53,000 lbf). Limiting Speed: 1,490 rpm. Seal Type: Triple-lip contact. Lubricant: Grease, Mobilgrease XHP222, relubricable. The spherical roller insert self-aligns and carries heavy radial load on fans, conveyors and large drives. Ratings are Dodge figures for the FC-S2-300R unit (part 070658).

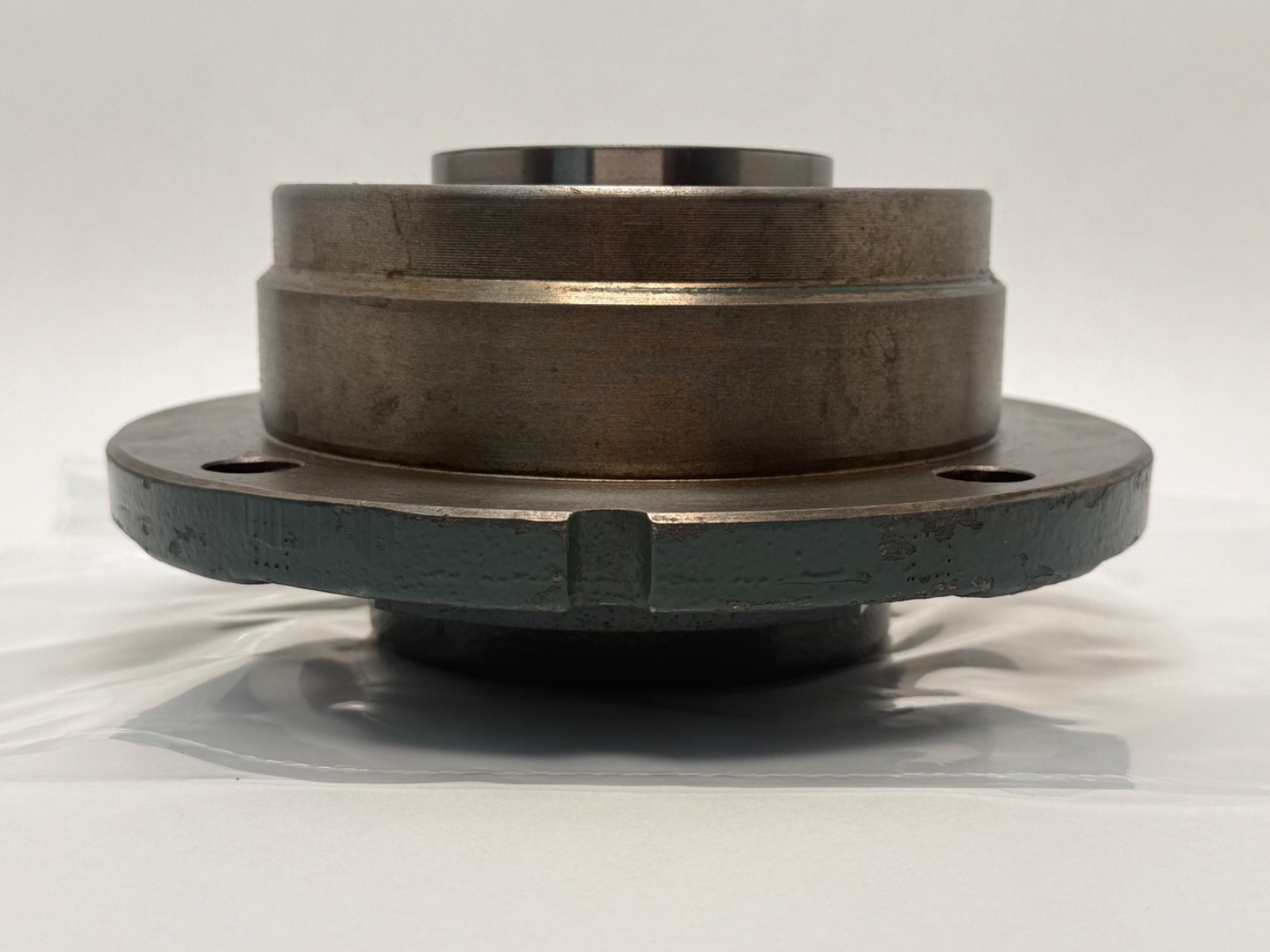

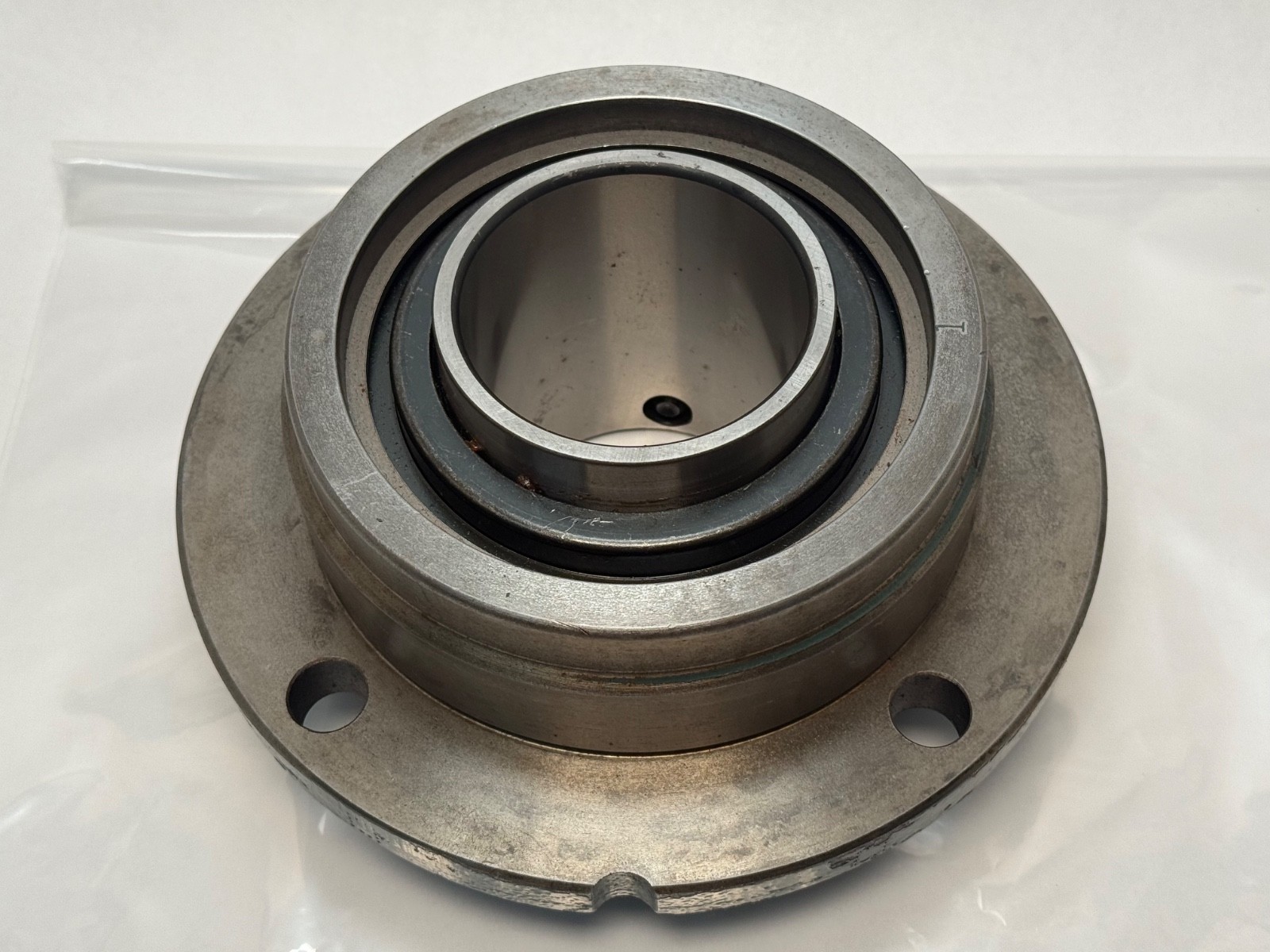

Bolt Circle: 7.5000 in. Pilot Diameter: 6.3800 in. Pilot Depth: 1.2500 in. Length Through Bore: 3.5900 in. Bolt Diameter: 0.6250 in. Item Weight: 9.87 kg (21.76 lb), Dodge FC-S2-300R.
Unit Quantity: 1 Pc, flange housing with insert.
Dodge catalogues the unit in handed versions: FC-S2-300R (part 070658) and FC-S2-300L (part 070712). Replacement insert family: S-2000 222KZ300T.
