DodgeINS-ER-SC-012Ball Bearing Inserts – 3/4 in Bore, 1.85 in Spherical OD, Setscrew Locking, Extended Inner Ring, 2 Pcs

Condition: New

Availability:

1 in stock

Categories: ,

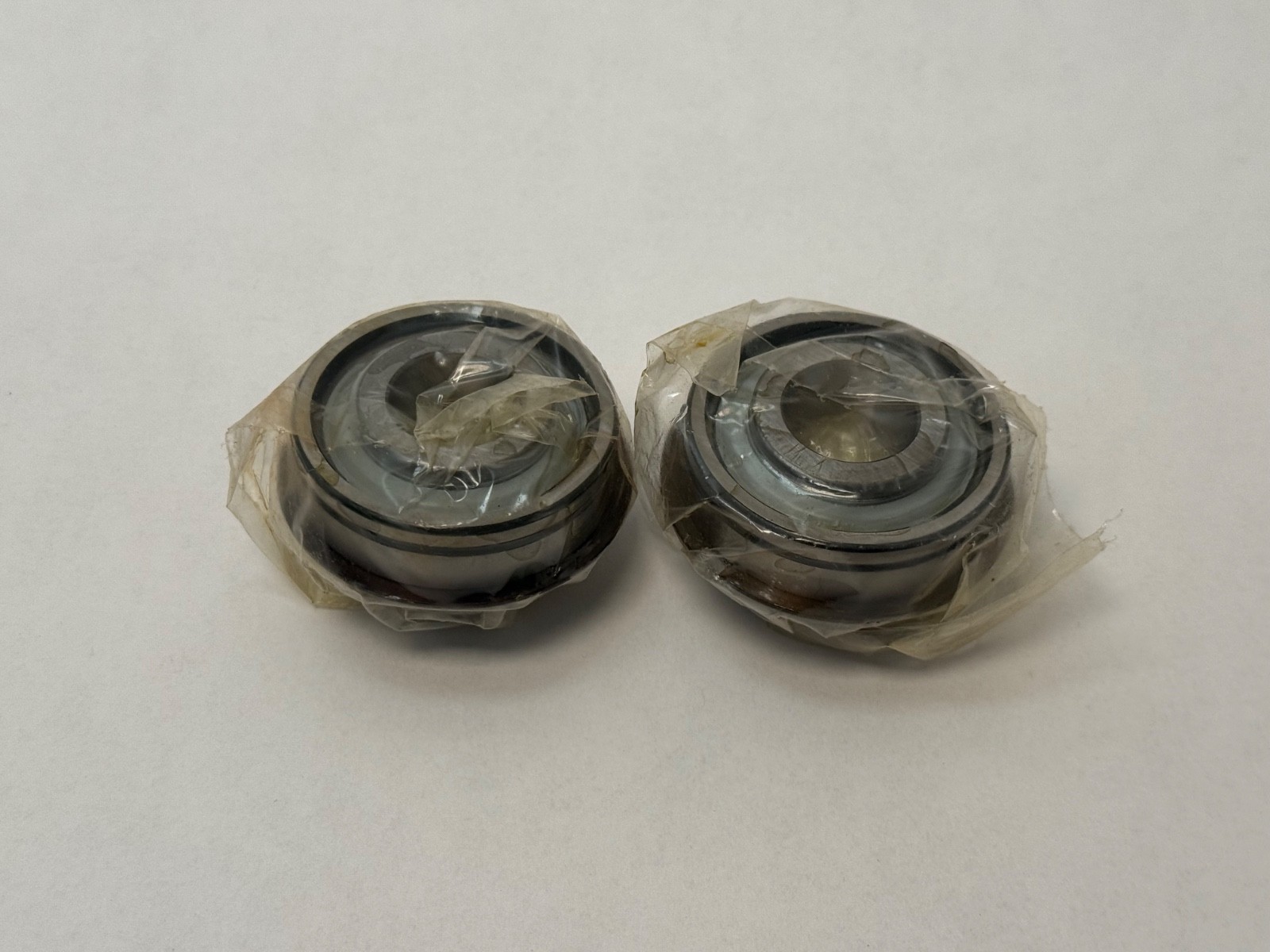

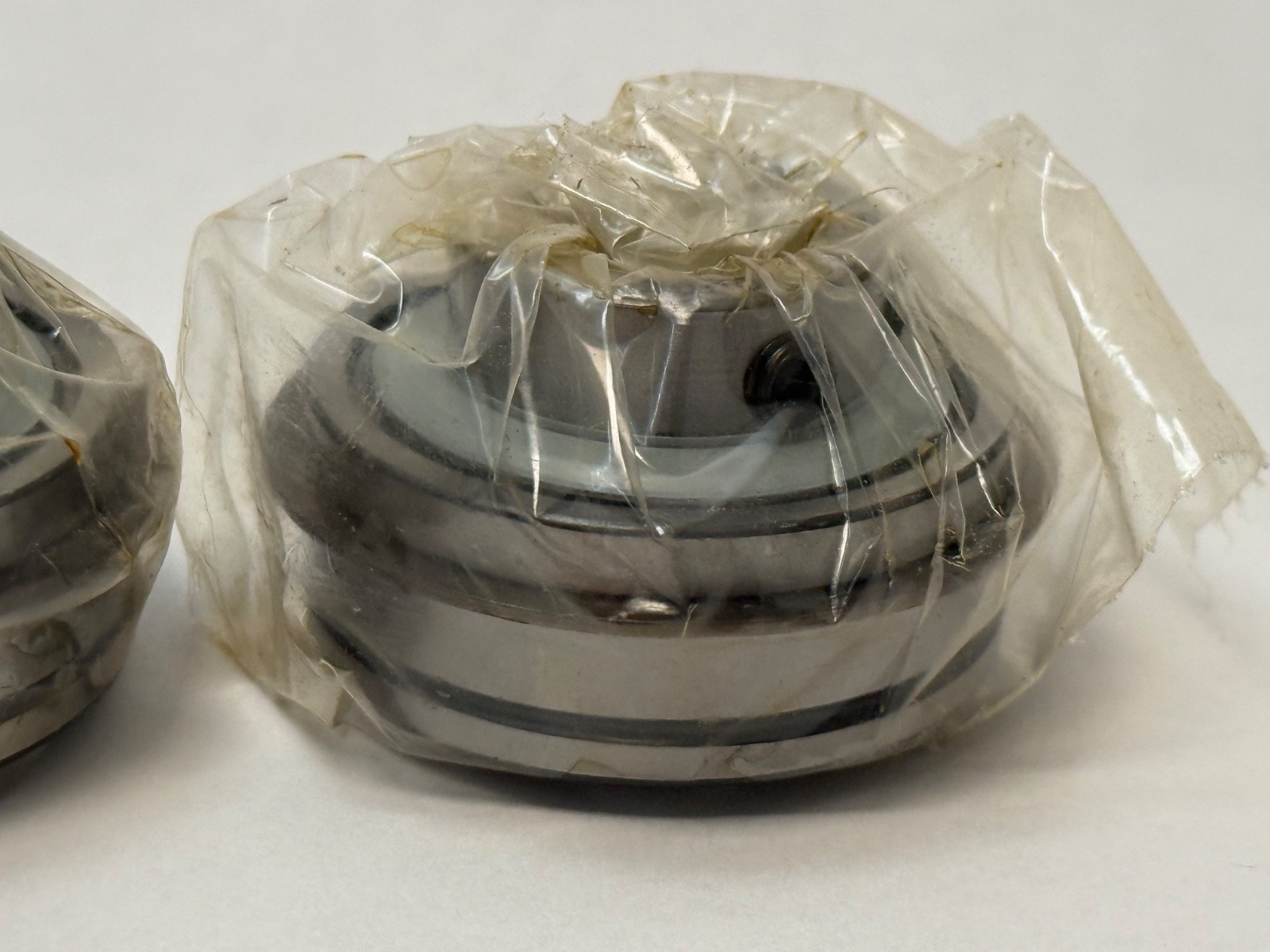

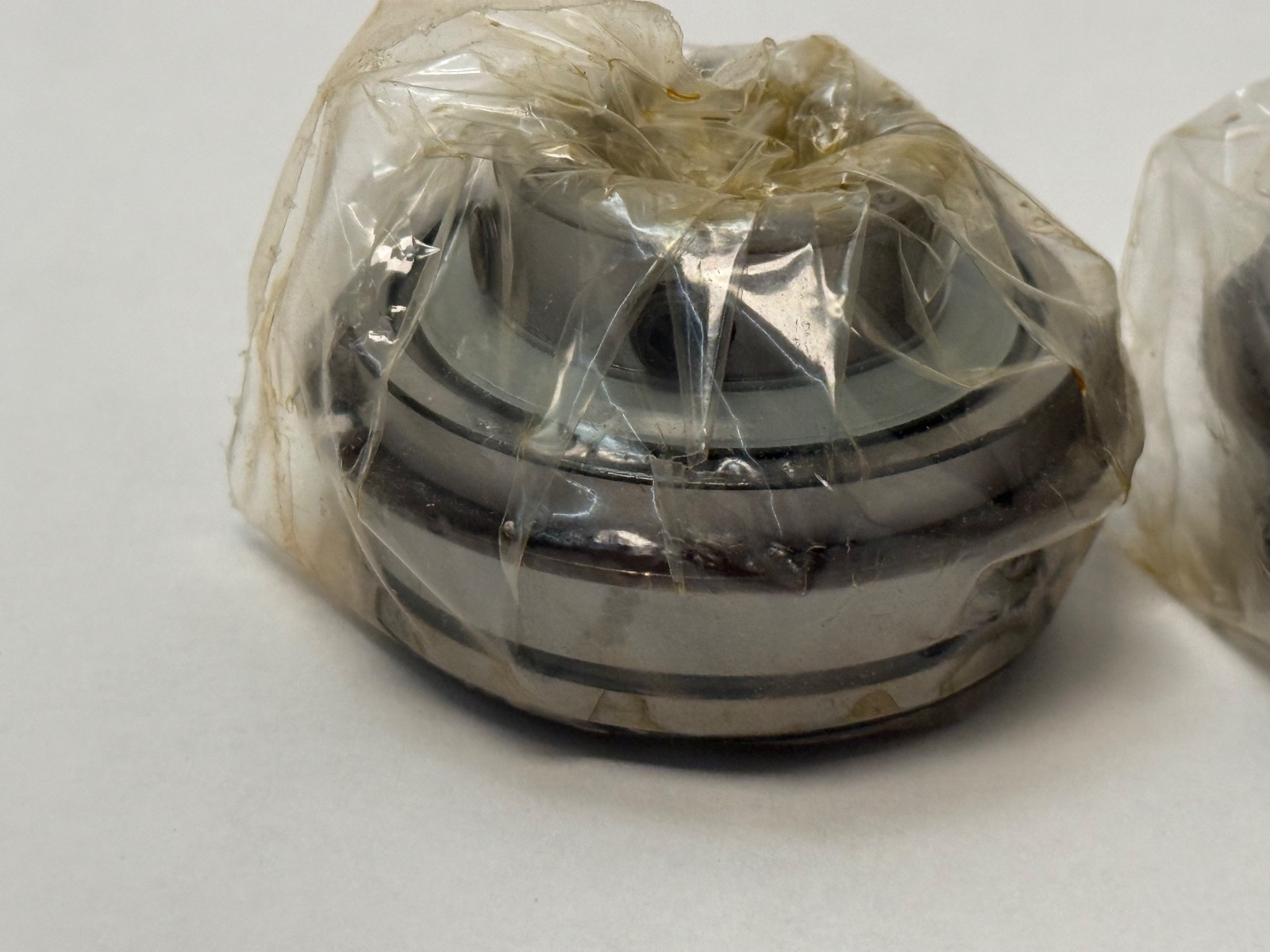

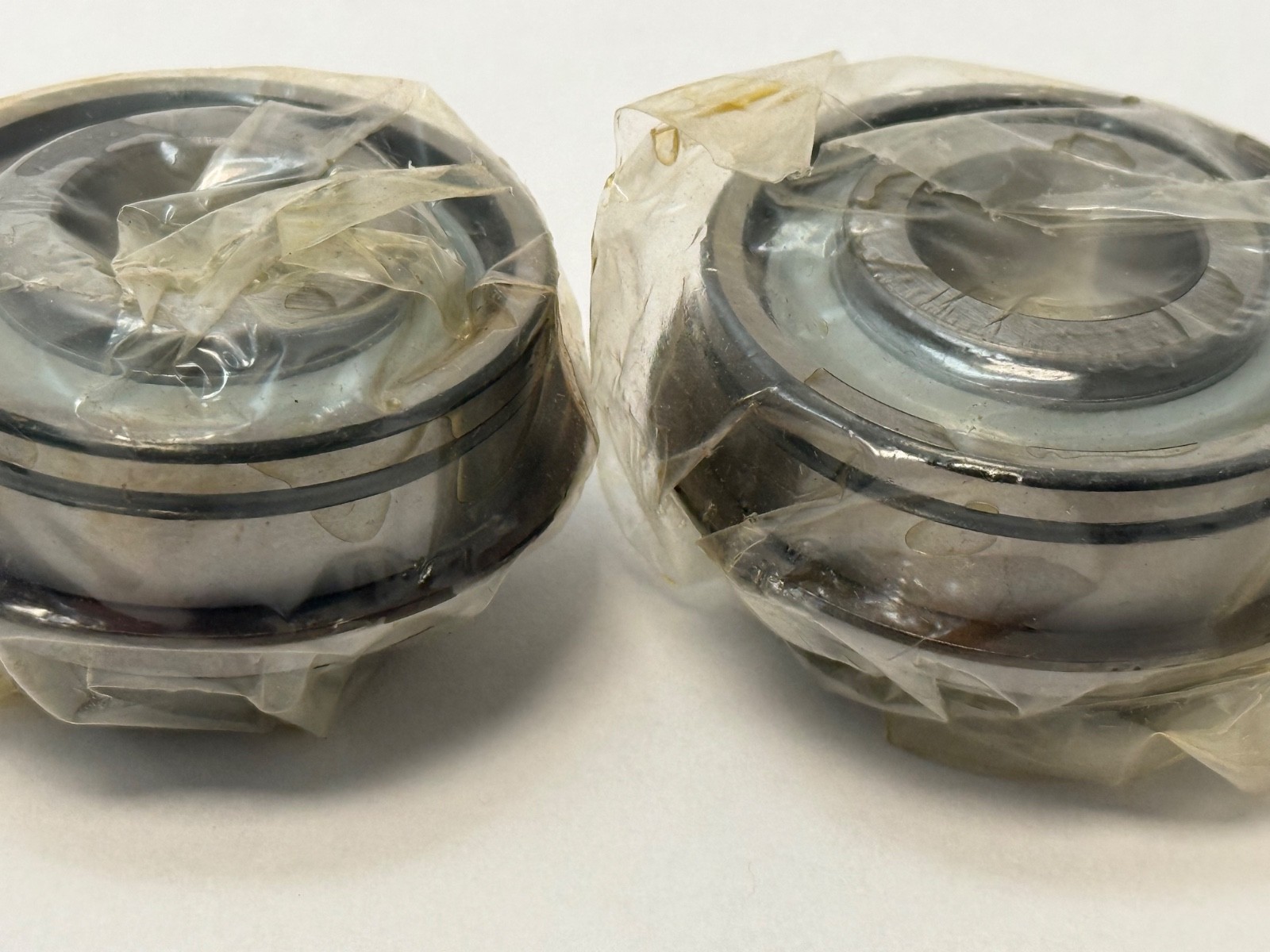

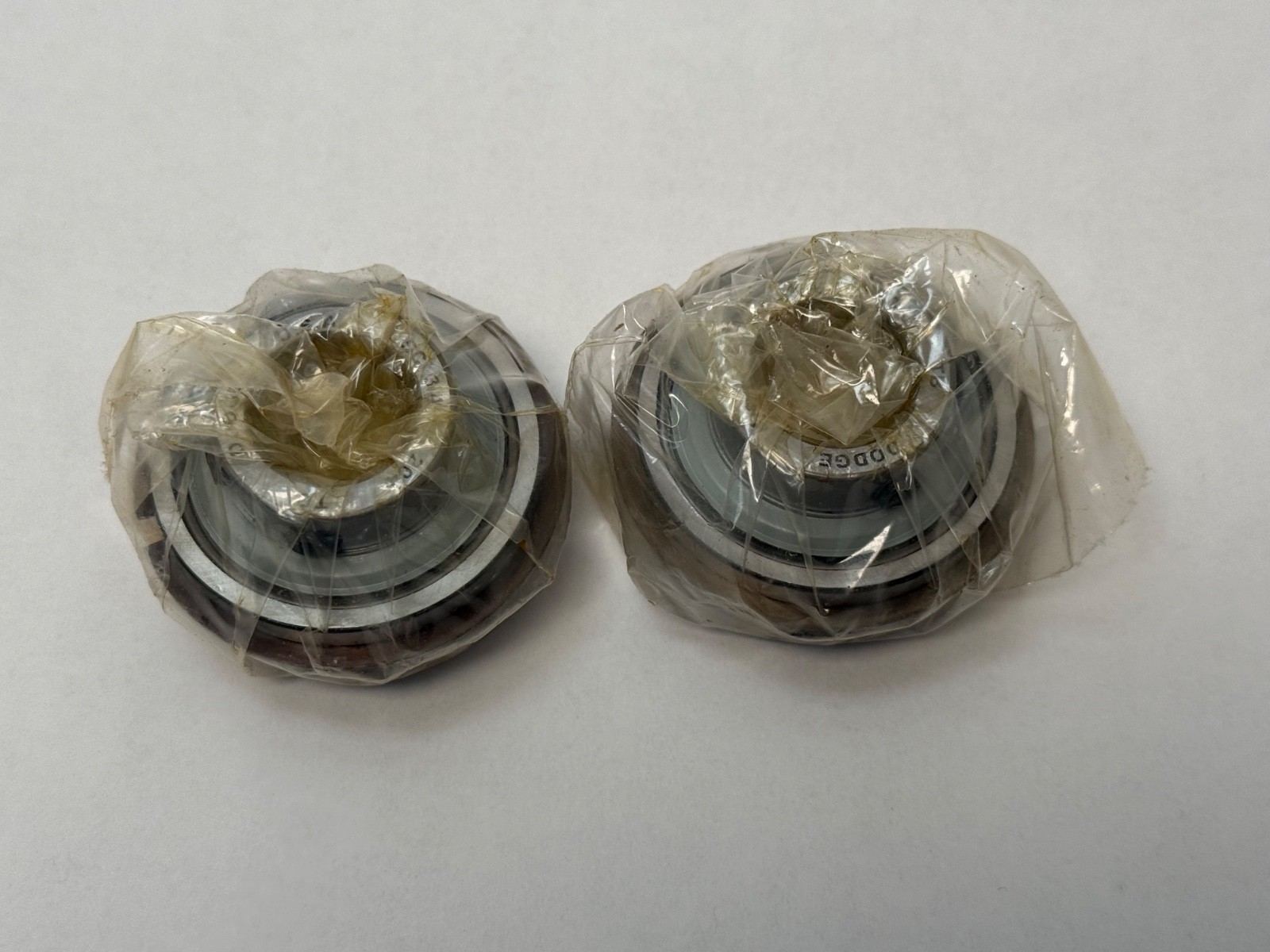

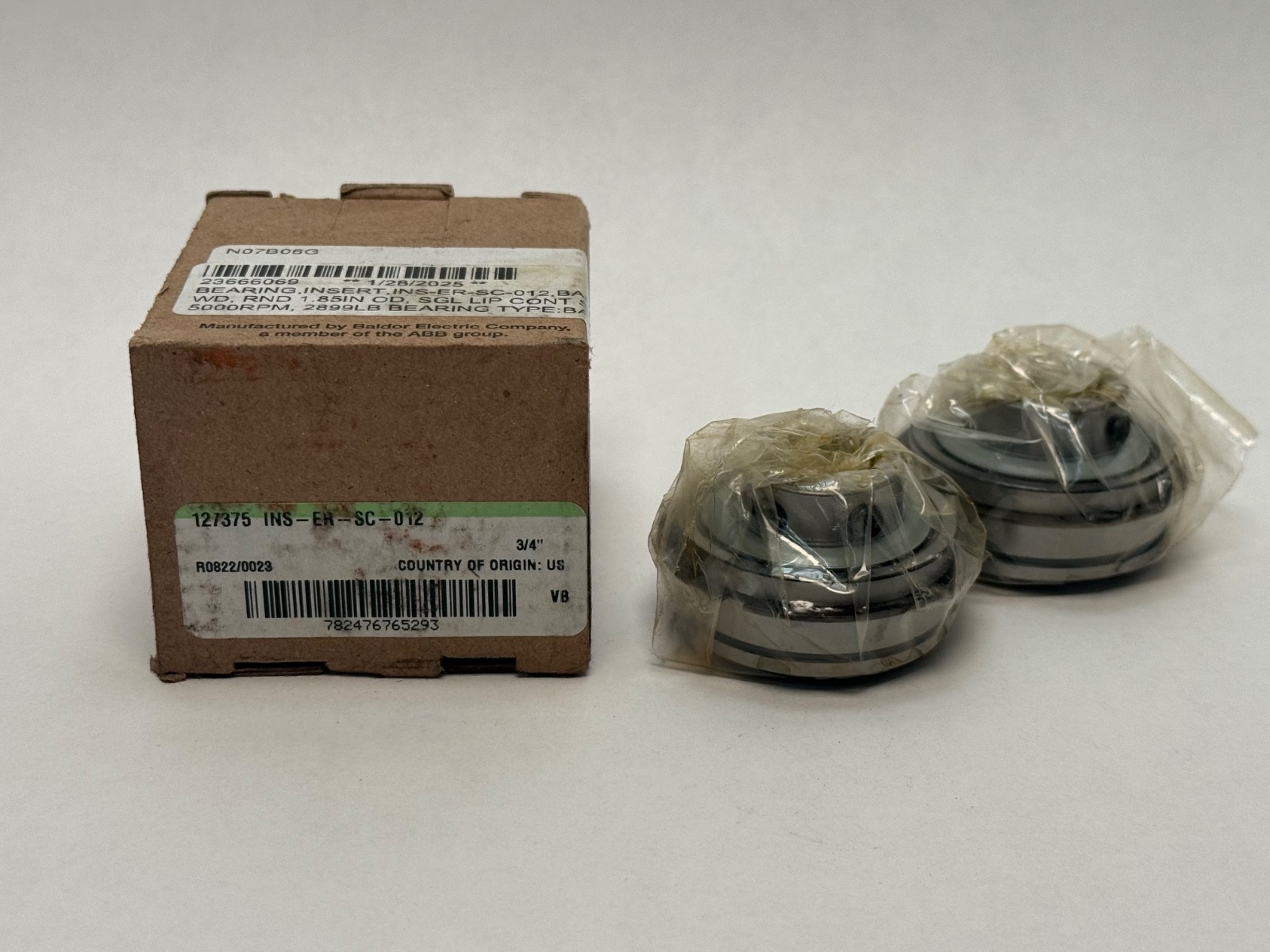

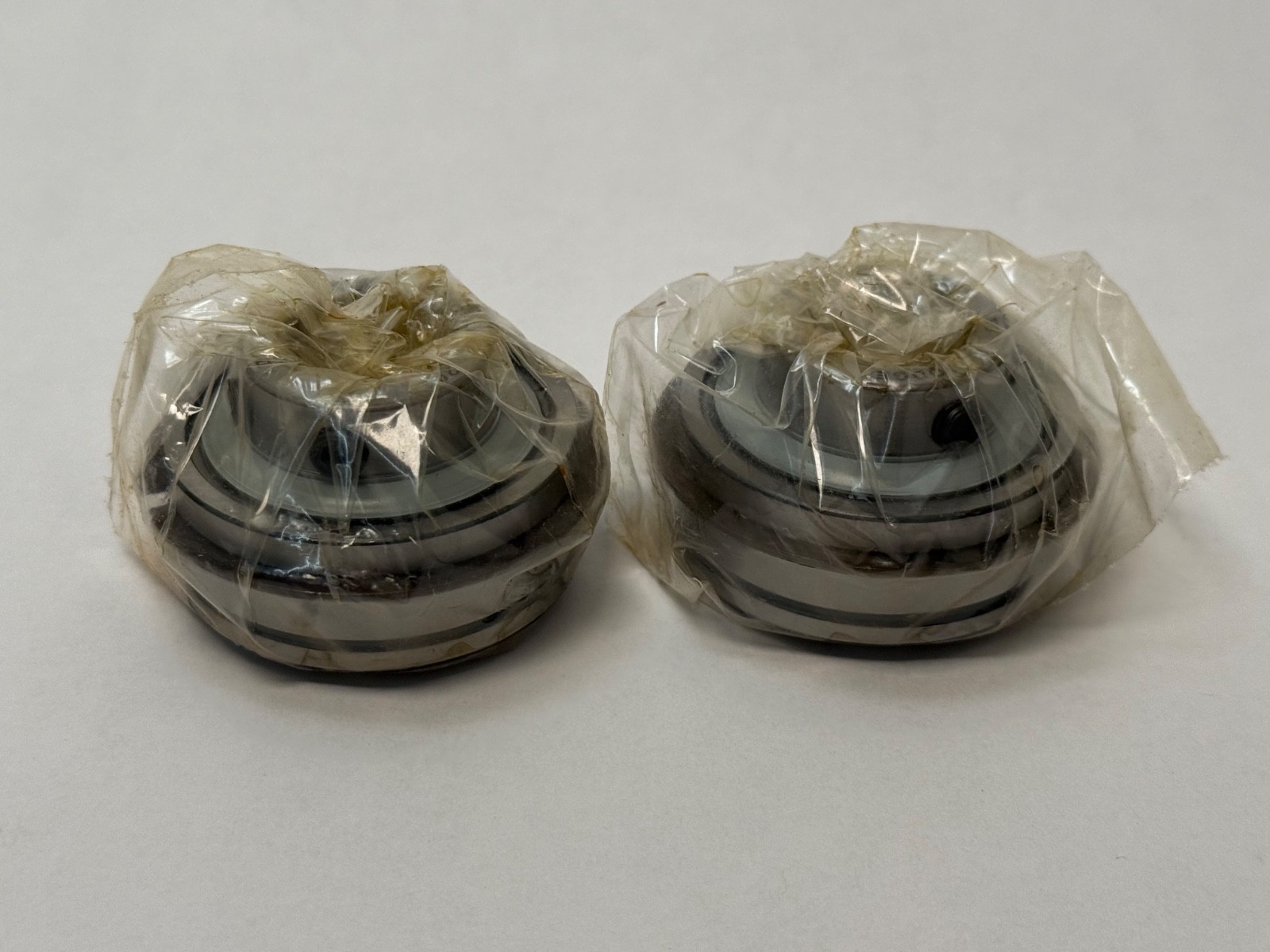

Dodge INS-ER-SC-012 ball bearing insert, 3/4 in bore, 1.85 in spherical OD, setscrew locking, wide inner ring, standard duty. Set of 2 Pcs, Dodge 127375.

Same day shipment

List Price

$39.07

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNINS-ER-SC-012
GTIN782476765293
ModelINS ER SC 012 / 127375
ID3/4 in
OD1.85 in (spherical)

Technical Specifications

MaterialChrome steel
TypeInsert Bearing
Base NumberINS-ER-SC
Industry TermsBearing insert, ball bearing insert, ER series insert, spherical OD insert, setscrew insert bearing, wide inner ring insert, pillow block replacement insert
Common MisspellingsINS ER SC 012, INS-ERSC-012, INSER-SC-012, Dodge 12737 5, INS-ER-SC-O12
Bearing Insert TypeBall
Bore Shaft Size3/4 in (0.75 in)
Locking MethodSet screw
Mpn VariantsINS-ER-SC-012; INSERSC012; INS ER SC 012; 127375
Additional AttributesExtended (wide) inner ring; spherical outer race profile for self-alignment in Dodge ER and SC series housings; standard duty
Static Load Rating1,482 lb
SeriesINS-ER-SC
Rolling ElementsBall
Bearing TypeMounted ball bearing insert, spherical outside diameter
Number Of Rows1
Part NumberINS-ER-SC-012
Seller Part Number: AR1B2#2H2ZYF

Product Description

What this part is:

Dodge INS-ER-SC-012 ball bearing insert, Dodge catalog number 127375. ER-series insert with a wide inner ring, spherical outside diameter and setscrew locking, standard duty. Sold as a set of 2 Pcs (Unit Quantity: 2 Pcs).

Decoding the designation:

INS — bearing insert, a spherical-OD bearing element that seats in a matching Dodge housing.

ER — Dodge ER series ball bearing with extended inner ring.

SC — setscrew locking.

012 — bore code in sixteenths of an inch: 12/16 = 3/4 in shaft.

127375 — Dodge catalog number for this build.

Specifications:

Bore Diameter: 3/4 in (0.75 in).

Outside Diameter: 1.85 in, spherical.

Locking Method: Set screw.

Static Load Rating: 1,482 lbf.

Rolling Elements: Ball, chrome steel.

Number Of Rows: 1.

Duty Rating: standard duty.

Country of origin: United States.

Dimensions and mounting:

Spherical outer race seats in Dodge ER-series and SC-series housings (pillow block, two-bolt flange, four-bolt flange, take-up and hanger) at the 012 shaft size.

Compatibility and replacement:

Searchable variants of this number: INS-ER-SC-012, INSERSC012, INS ER SC 012, 127375. The same 012 shaft code appears on Dodge INS-SC-012 (123332), P2B-SC-012 pillow block and F2B-SC-012 two-bolt flange.

Frequently asked questions:

What bore does the Dodge INS-ER-SC-012 have?

3/4 in (0.75 in).

How is the insert locked to the shaft?

With setscrews through the wide inner ring.

How many inserts are in this listing?

Two INS-ER-SC-012 inserts (2 Pcs).
