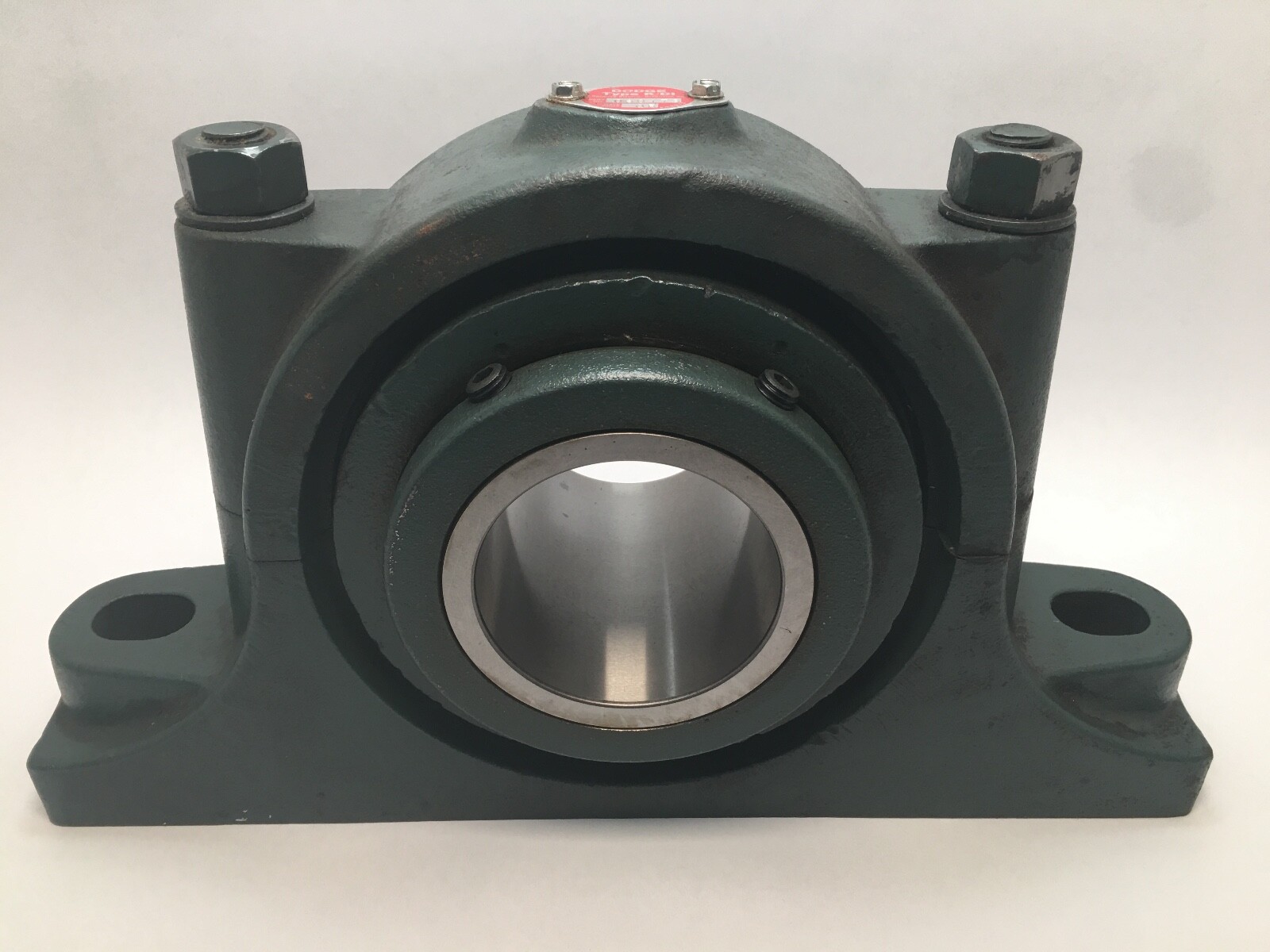

DodgeP2B-K-307RTapered Roller Pillow Block Bearing – 3-7/16 in Bore, Two-Bolt, Split Cast Iron Housing, Set Screw, Non-Expansion

Product Description

What this part is:

Dodge P2B-K-307R two-bolt pillow block with a Type K mounted tapered roller bearing, Dodge part number 023186. Bore 3-7/16 in (3.4375 in), split cast iron housing, set screw locking, non-expansion (fixed) unit, triple-lip contact seals. Unit Quantity: 1 Pc. Condition: new old stock, no box. Country of origin: United States.

Decoding the designation:

P2B — Dodge two-bolt pillow block housing.

K — Dodge Type K mounted tapered roller bearing series.

307 — shaft size, 3-7/16 in: first digit whole inches, last two digits sixteenths.

R — Dodge non-expansion (fixed) unit.

Specifications:

Bore Diameter: 3-7/16 in (3.4375 in). Bearing Type: Tapered roller. Housing Style: Two-bolt pillow block, split. Housing Material: Cast iron. Locking Device: Set screw. Expansion Type: Non-expansion (fixed). Dynamic Load Rating: 17,750 lbf (78,960 N). Static Load Rating: 108,600 lbf (483,080 N). Limiting Speed: 1,640 rpm. Seal Type: Triple-lip contact seal. Lubricant: Grease, factory fill Mobilgrease XHP 222. Greasable: Yes. Sensor Ready: Yes. Item Weight: 32.59 kg (71.84 lb).

Dimensions and mounting:

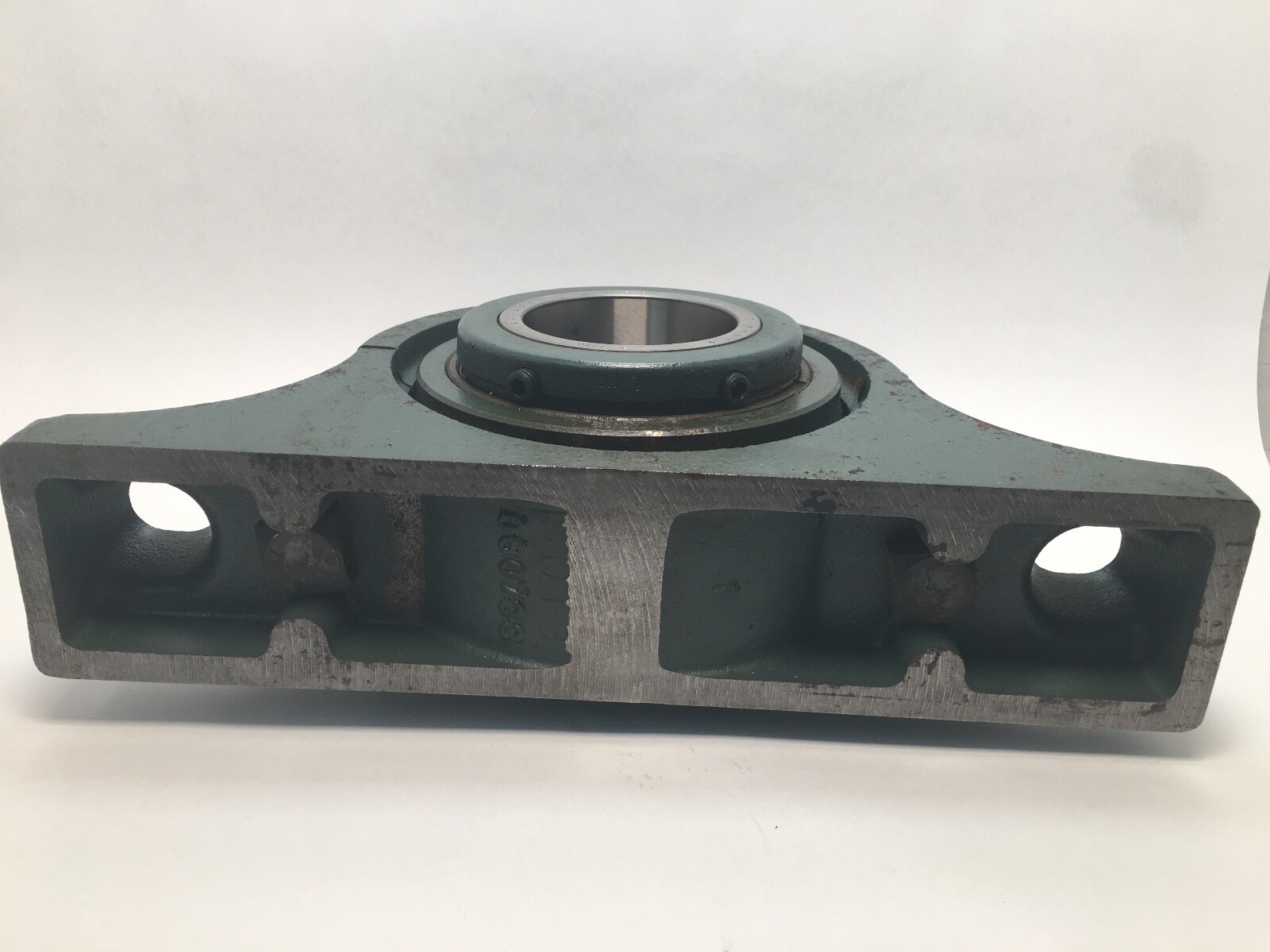

Centre Height: 4.5000 in, base to bore centreline. Bolt Center To Center: 12.81 to 13.81 in, slotted. Bolt Diameter: 0.875 in. Number Of Bolt Holes: 2. Length Through Bore: 4.270 in.

Compatibility and replacement:

Related Dodge parts: E-Tect seal kit 037657; end cover EC-KDTAF-303/304/307/308, part 037687. Searchable forms: P2B-K-307R, P2BK307R, P2B K 307 R, 023186.

Frequently asked questions:

What shaft size does the Dodge P2B-K-307R fit?

3-7/16 in (3.4375 in) bore.

What bearing and housing does the Dodge P2B-K-307R use?

A Type K tapered roller bearing in a two-bolt split cast iron pillow block housing.

How is the Dodge P2B-K-307R locked to the shaft?

With a set screw. It is a non-expansion (fixed) unit.
