Availability:
7 in stock

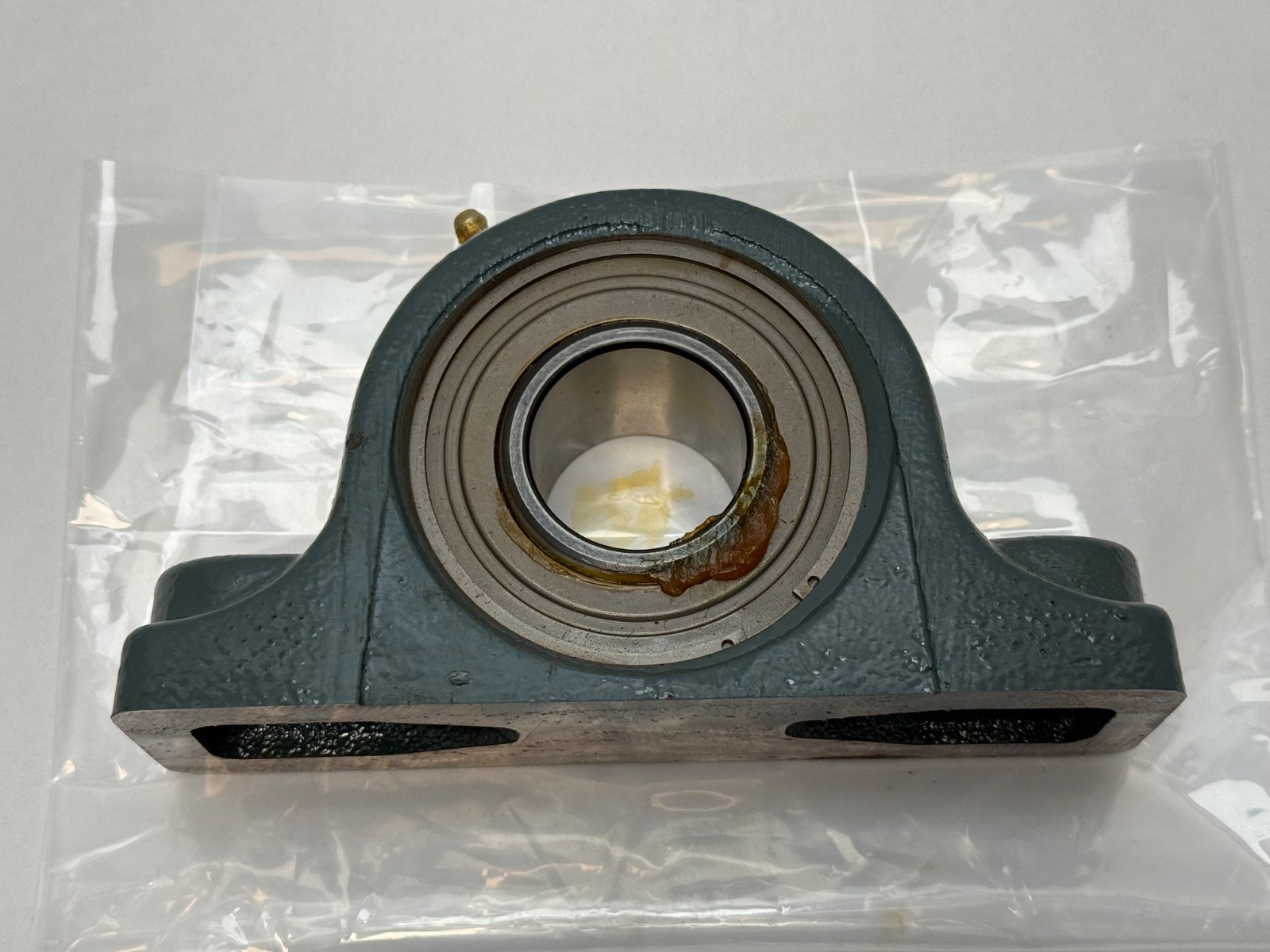

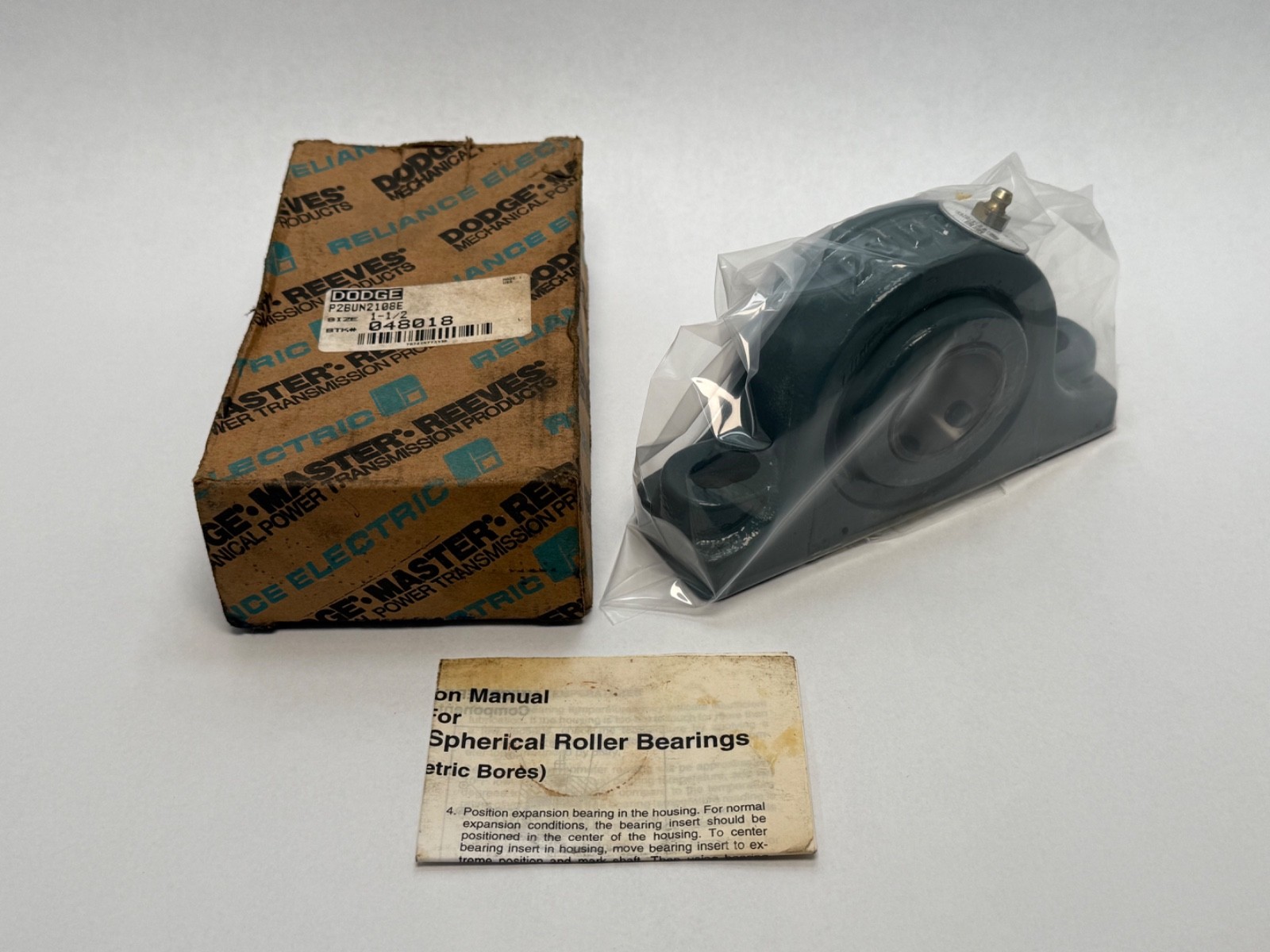

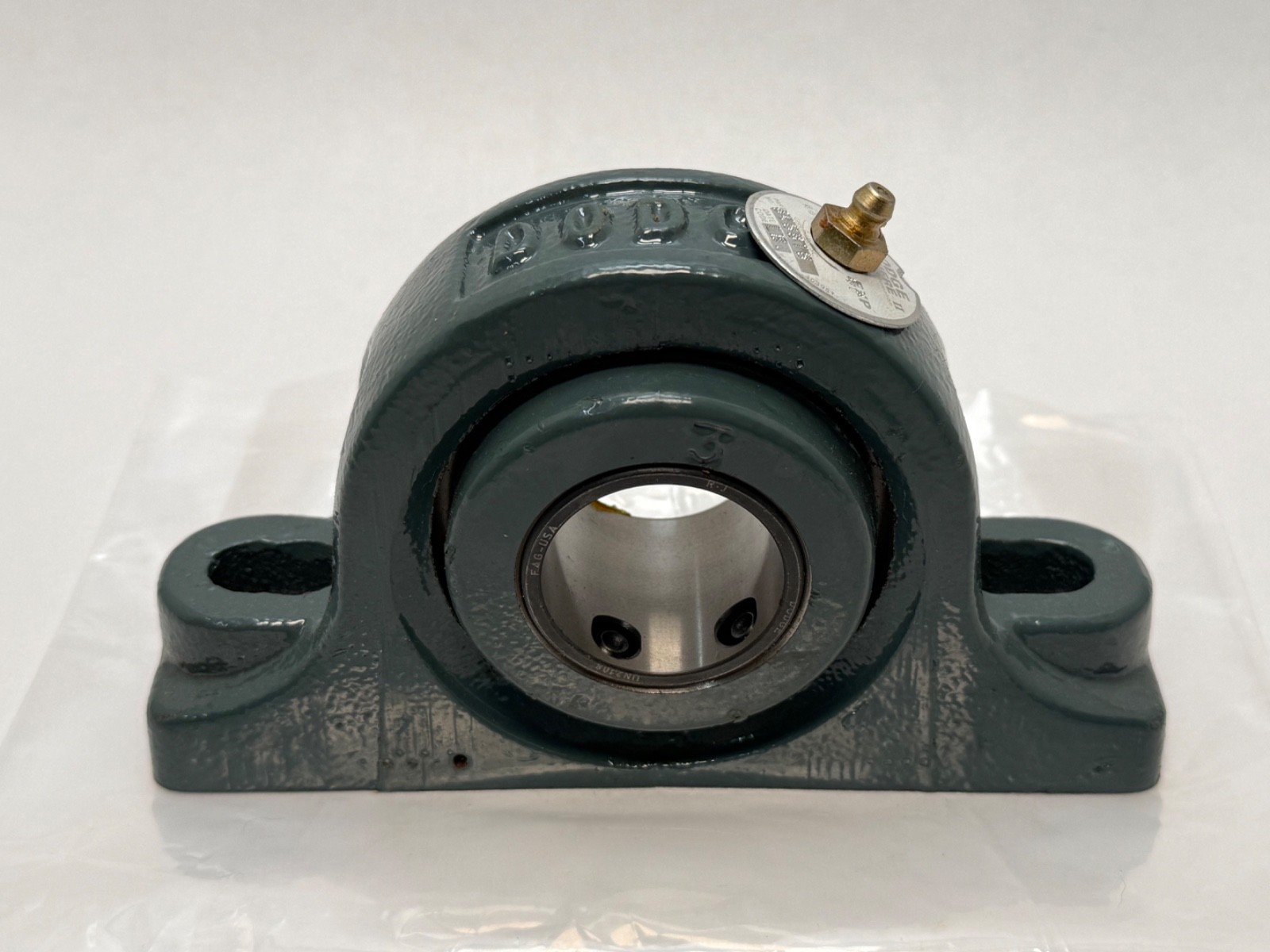

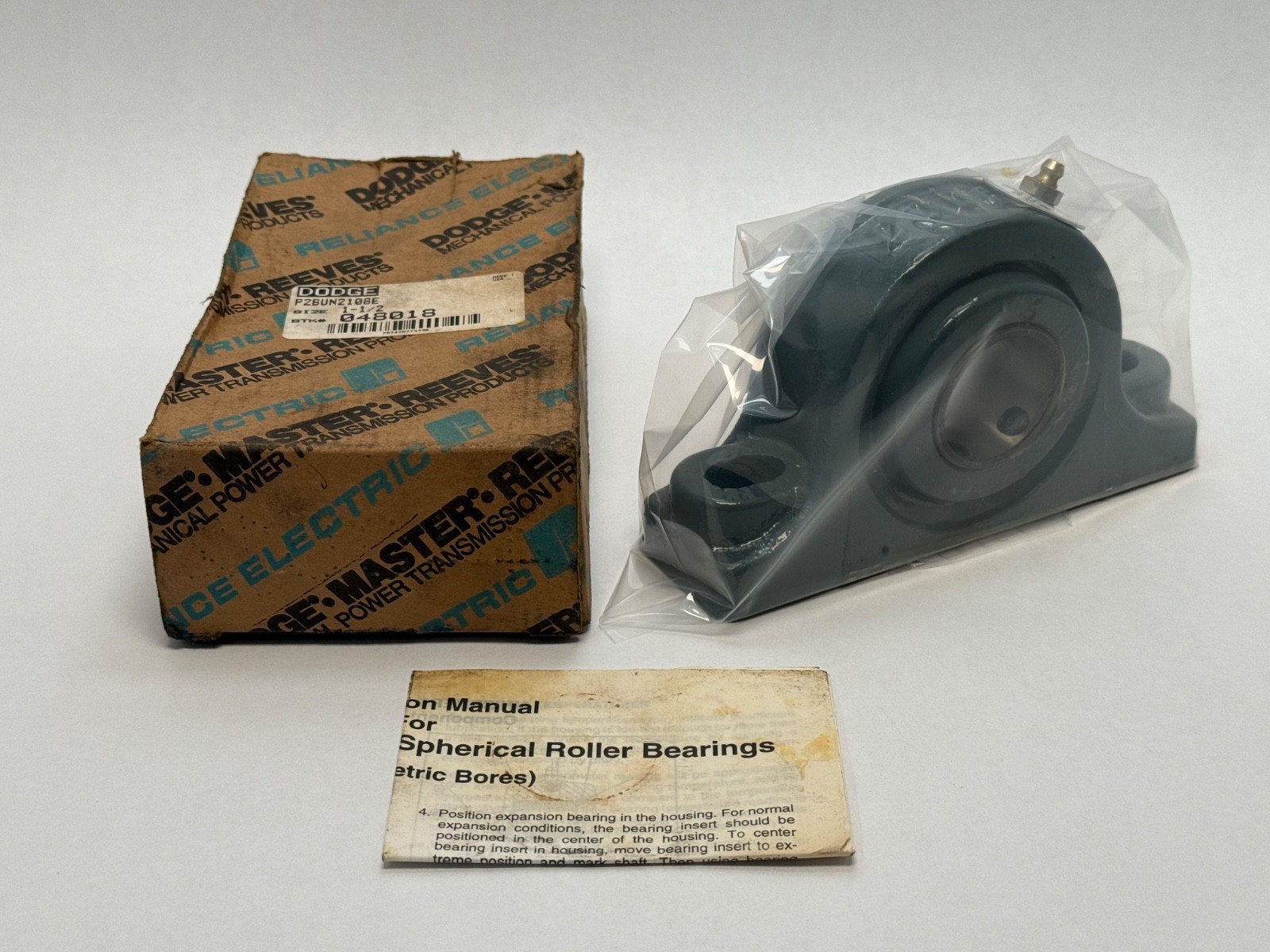

Spherical roller pillow block, 1-1/2 in bore, two-bolt ductile iron housing, set screw lock, expansion type. Dodge Unisphere II P2B-UN2-108E, 048018.
List Price
$365.28
7 in stock
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| MPN | P2B-UN2-108E |

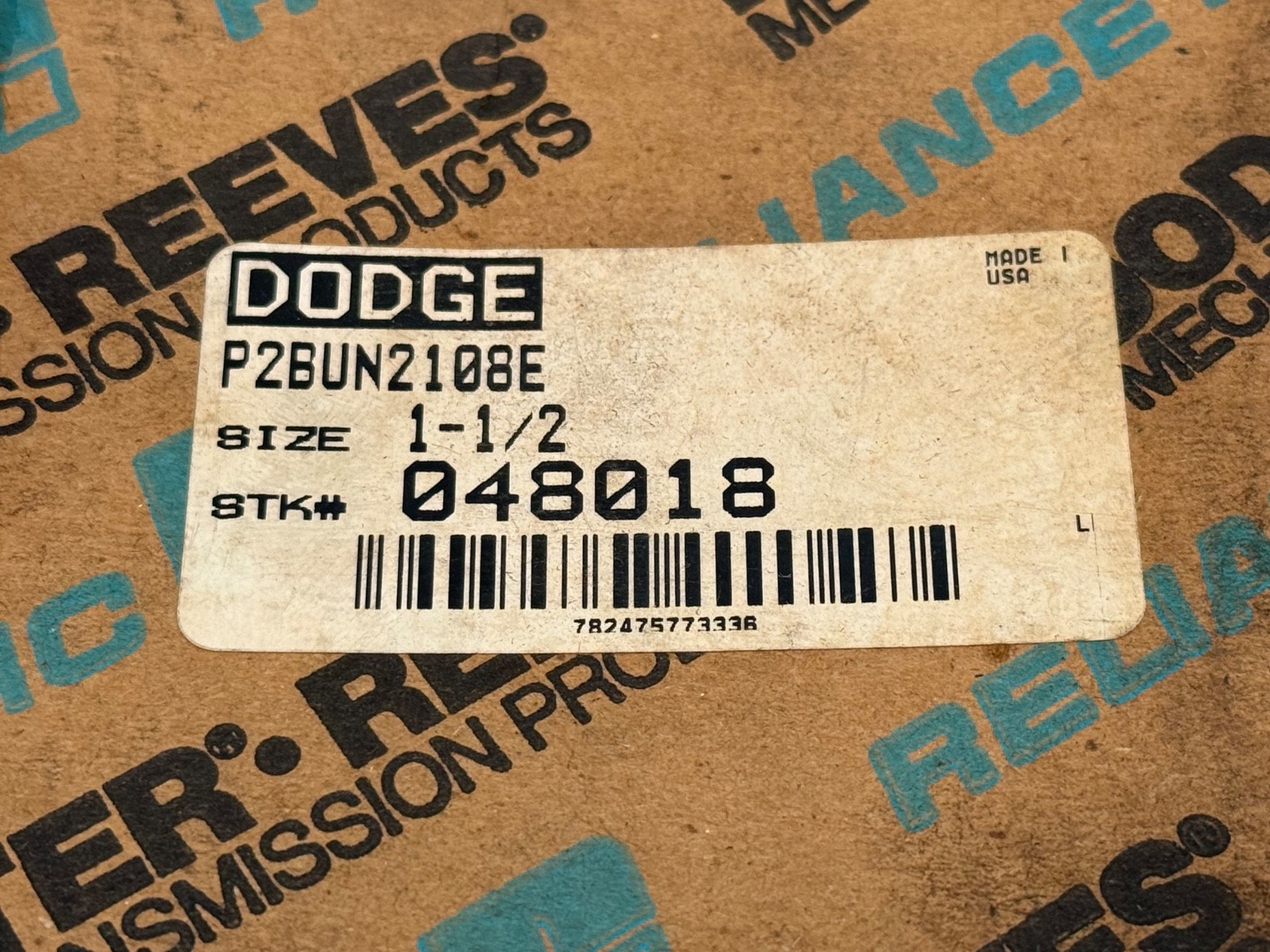

| Model | P2BUN2108E / 048018 |
| ID | 1-1/2 in |
| Condition Note | Made In USA, New Old Stock |
|---|---|
| Bolt Center To Center | 4.69-5.50 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 4.69-5.50 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Spherical Roller |
| Centre Height Pillow Block | 1.8800 in |
| Centre Height | 1.8800 in |
| Housing Style | Two-Bolt Pillow Block, Solid |
| Mpn Variants | P2B-UN2-108E, P2BUN2108E, P2B UN2 108E, 048018 |
| Material | Ductile Iron |
| Dynamic Load Rating | 20,800 lbf (92,520 N) |
| Static Load Rating | 21,000 lbf (93,410 N) |
| Series | Unisphere II |
| Rolling Elements | Spherical Roller |
| Condition | New – Open box |
| Bearing Type | Spherical Roller Pillow Block Unit, Single-lip contact seal |
| Item Weight | 2.41 kg (5.32 lb) |
| Limiting Speed | 3,000 rpm |
| Lubricant | Grease (Mobilgrease XHP 222) |
| Locking Device | Set Screw |
| Harmonization Code | 8483.20.40 |
| Housing Material | Ductile Iron |
| Expansion Type | Expansion (Float) |

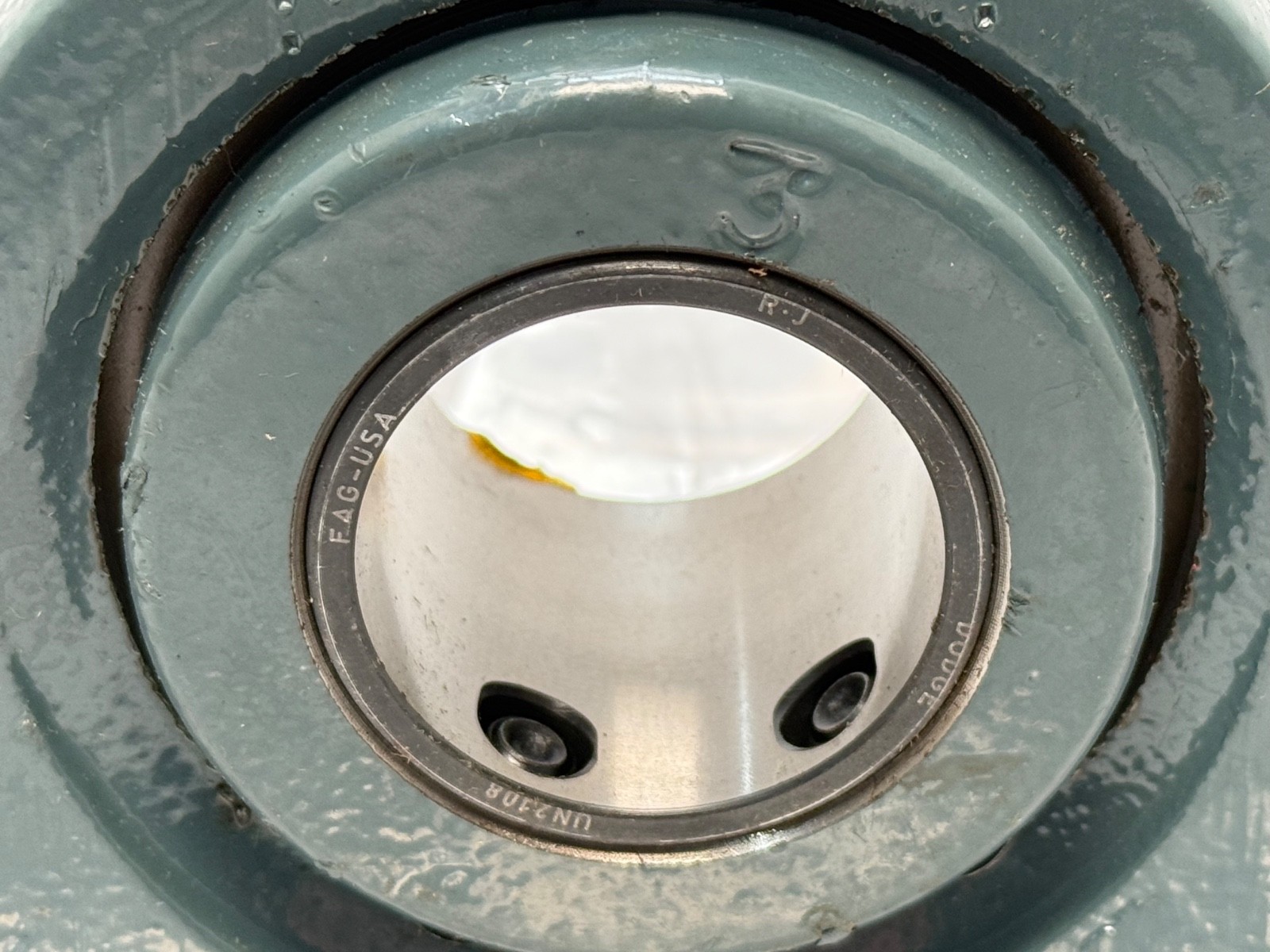

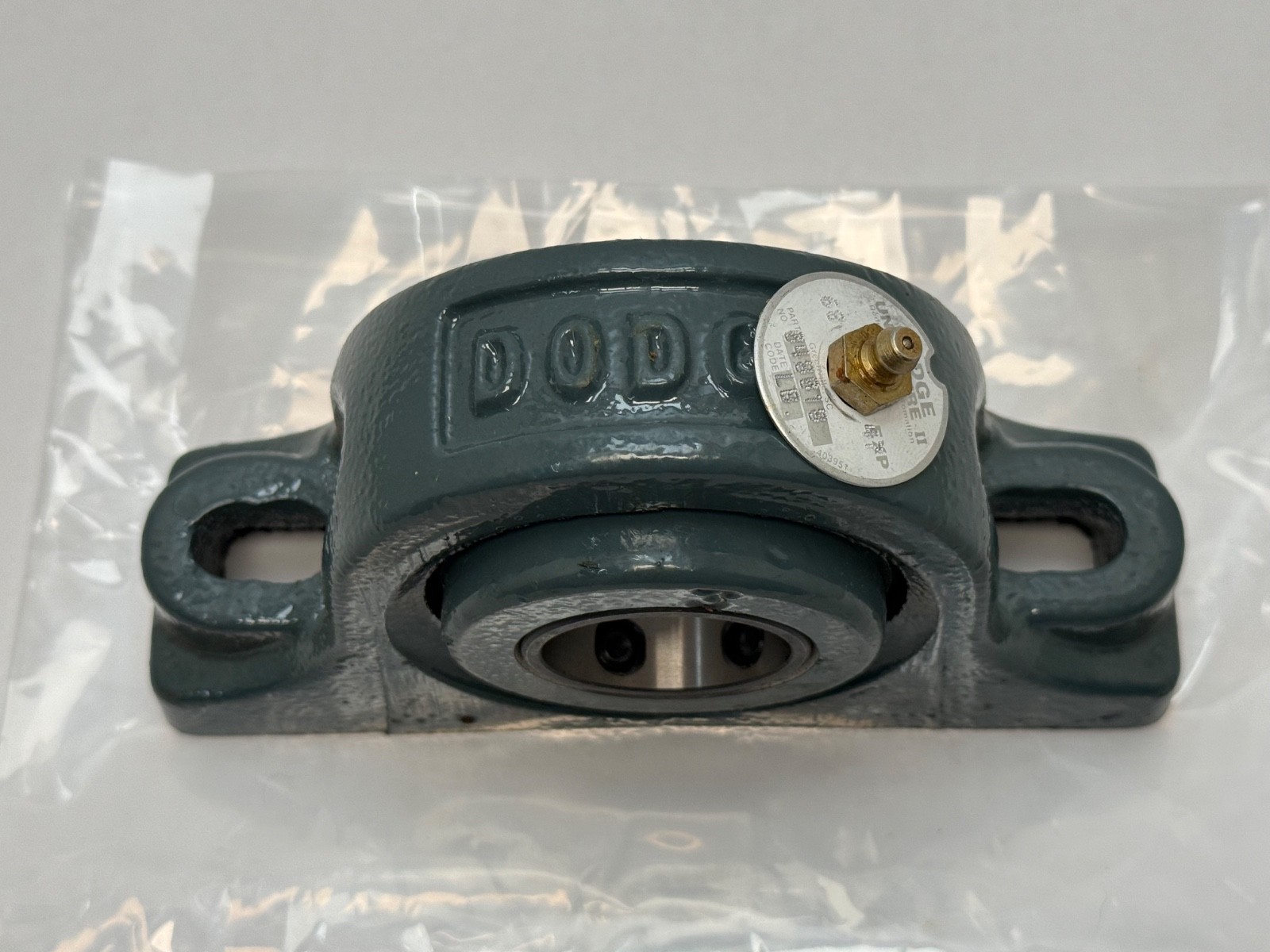

Dodge P2B-UN2-108E two-bolt pillow block from the Unisphere II mounted spherical roller bearing line, Dodge part number 048018. Bore Diameter: 1-1/2 in (1.5000 in). Bearing Type: Double-row spherical roller. Housing Type: Two-bolt pillow block, solid housing. Housing Material: Ductile iron. Locking Device: Set screw. Expansion Type: Expansion (float).
P2B — Dodge two-bolt pillow block housing.
UN2 — Unisphere II, Dodge’s mounted spherical roller bearing series.
108 — shaft size, 1-1/2 in: first digit whole inches, last two digits sixteenths.
E — expansion unit. The insert floats axially in the housing to absorb shaft growth.

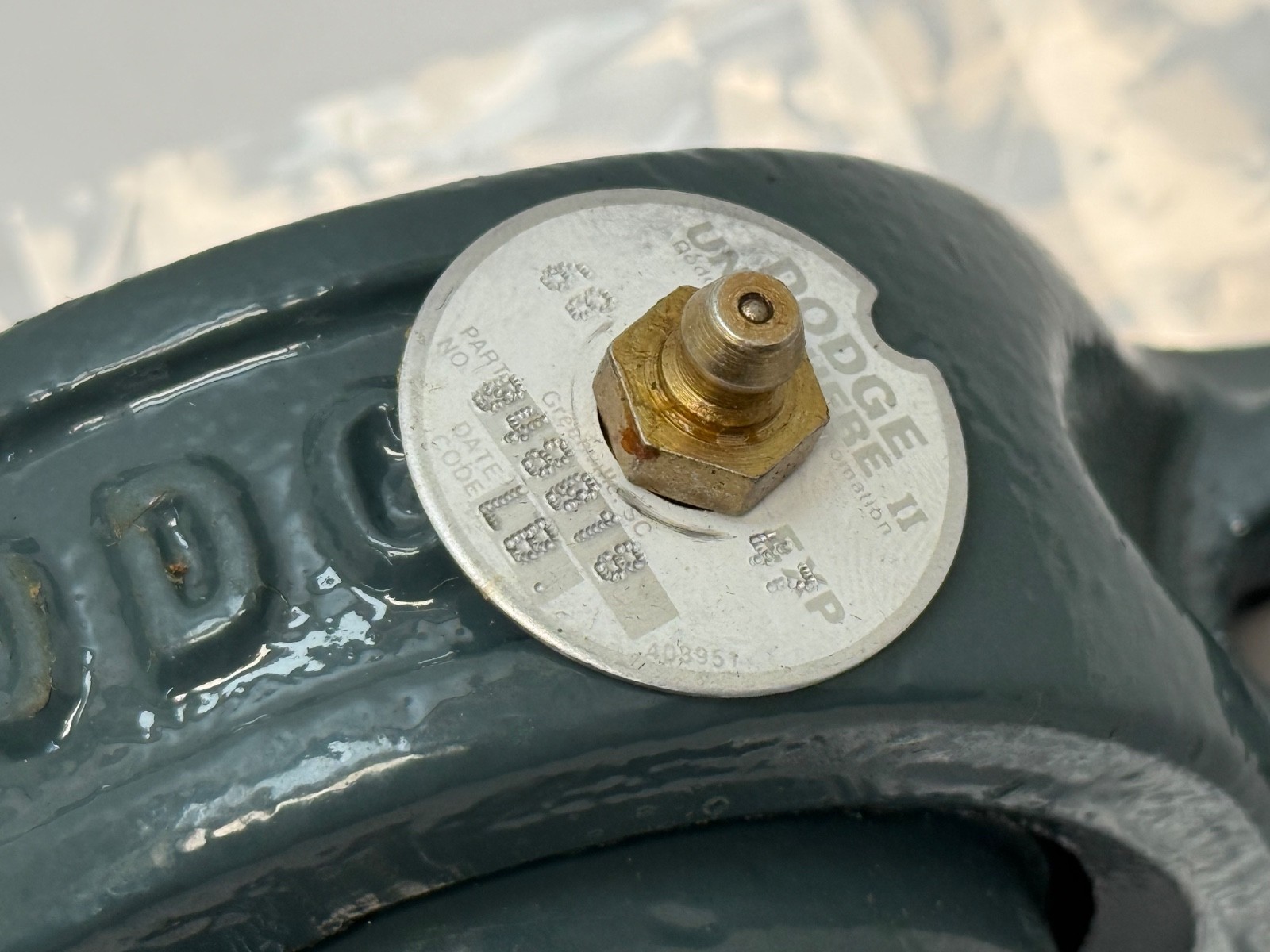

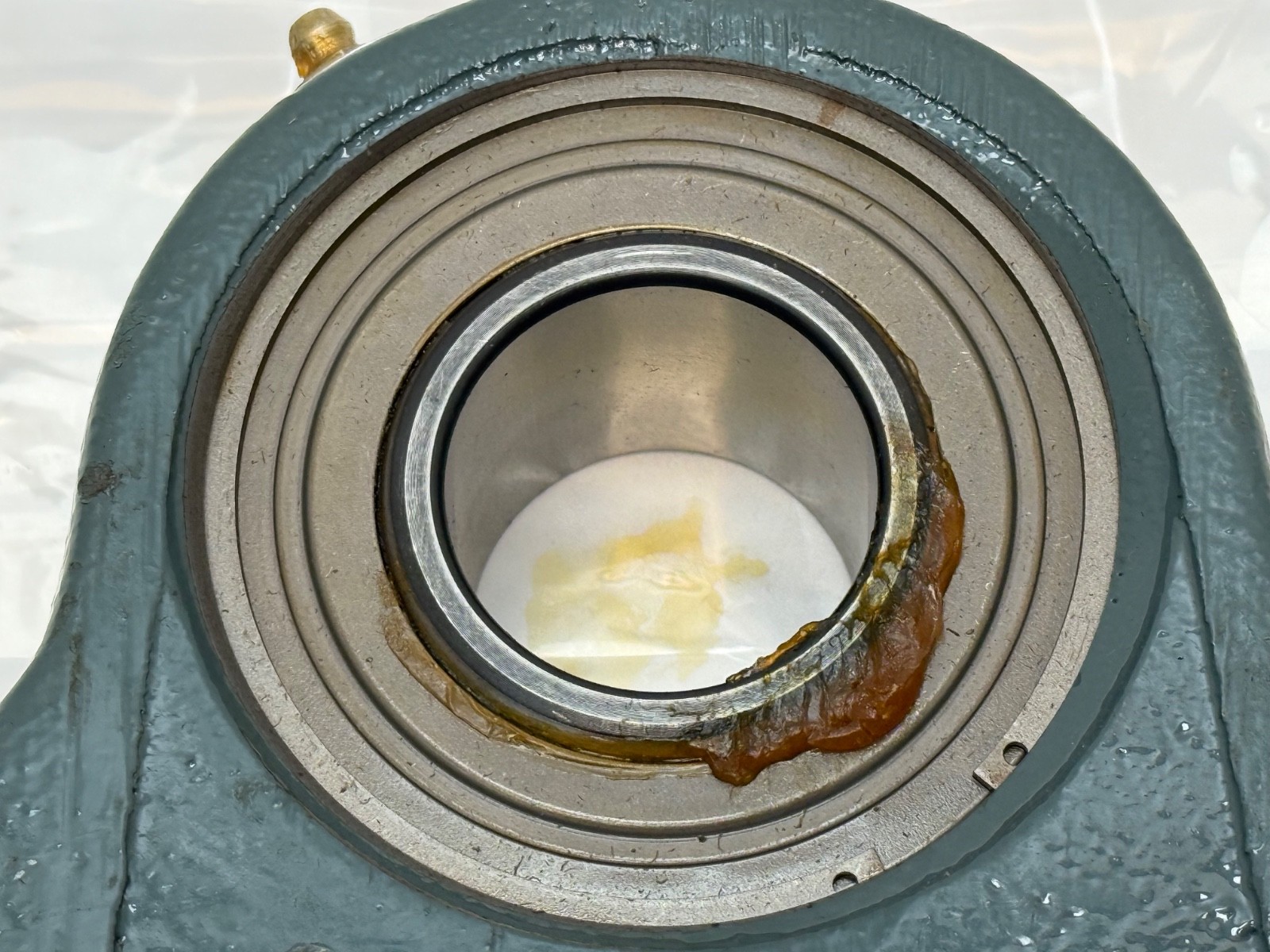

Dynamic Load Rating: 20,800 lbf (92,520 N). Static Load Rating: 21,000 lbf (93,410 N). Maximum Speed: 3,000 rpm. The double-row spherical roller insert carries combined radial and thrust loads and accommodates shaft misalignment. The expansion unit sits at the free end of a shaft with a fixed unit at the other end. Seal Type: Single-lip contact seal on a tapered seal landing. Lubricant: Grease, factory fill Mobilgrease XHP 222. Greasable: Yes.

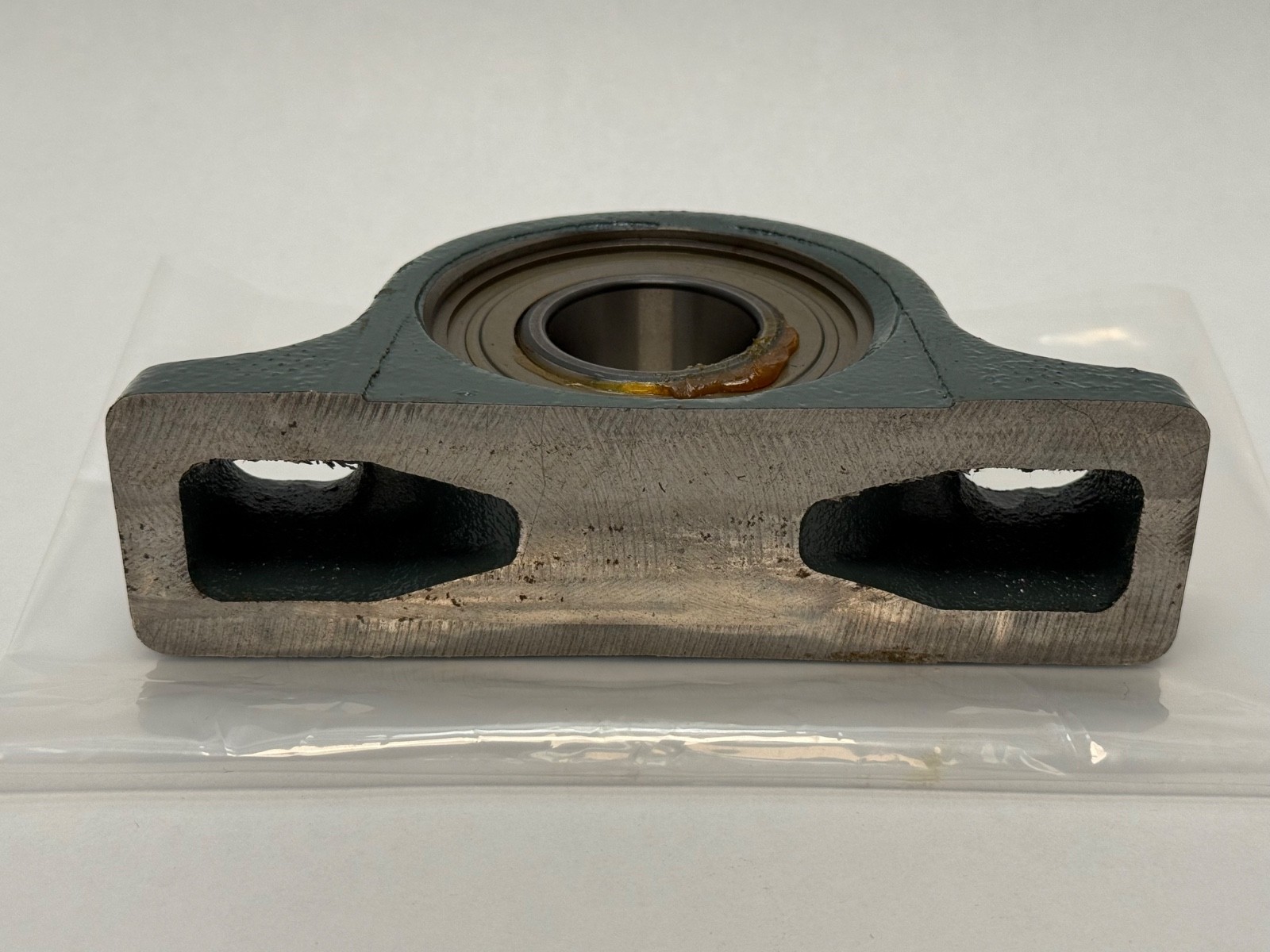

Centre Height: 1.8800 in base to bore centreline. Bolt Center To Center: 4.69 to 5.50 in slotted. Bolt Diameter: 0.500 in. Length Through Bore: 1.690 in. Item Weight: 2.41 kg (5.32 lb).
Dodge states Unisphere II units are dimensionally interchangeable with mounted ball bearing pillow blocks in length through bore, base-to-centre height and bolt footprint for the same shaft size.
