DodgeP2B-DLM-207Two-Bolt Pillow Block Ball Bearing — 2-7/16 in Bore, D-LOK Concentric Collar, Medium Duty, Non-Expansion

Condition: New – Open box
Condition Note: Made In USA, New Old Stock

Availability:

2 in stock

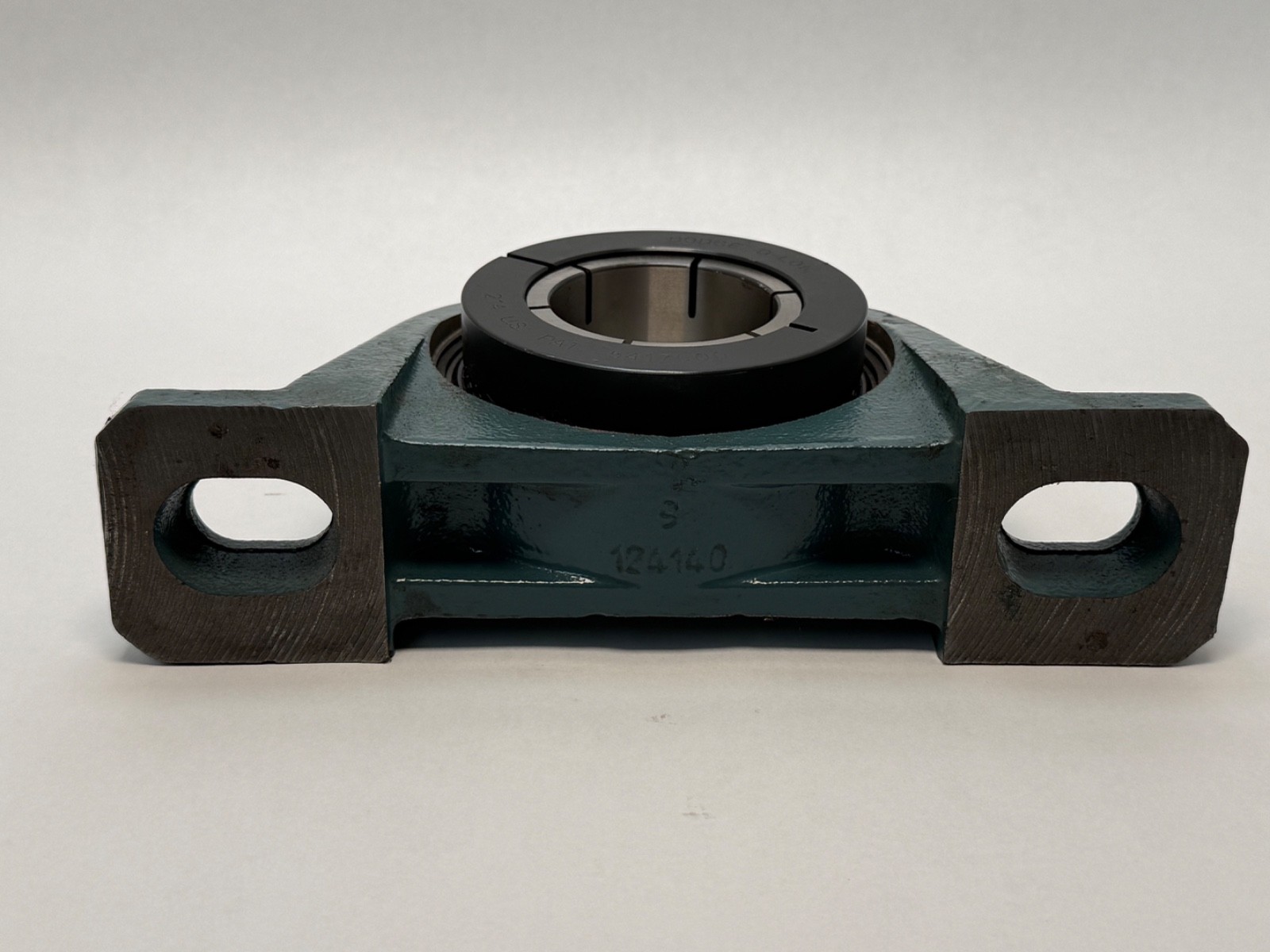

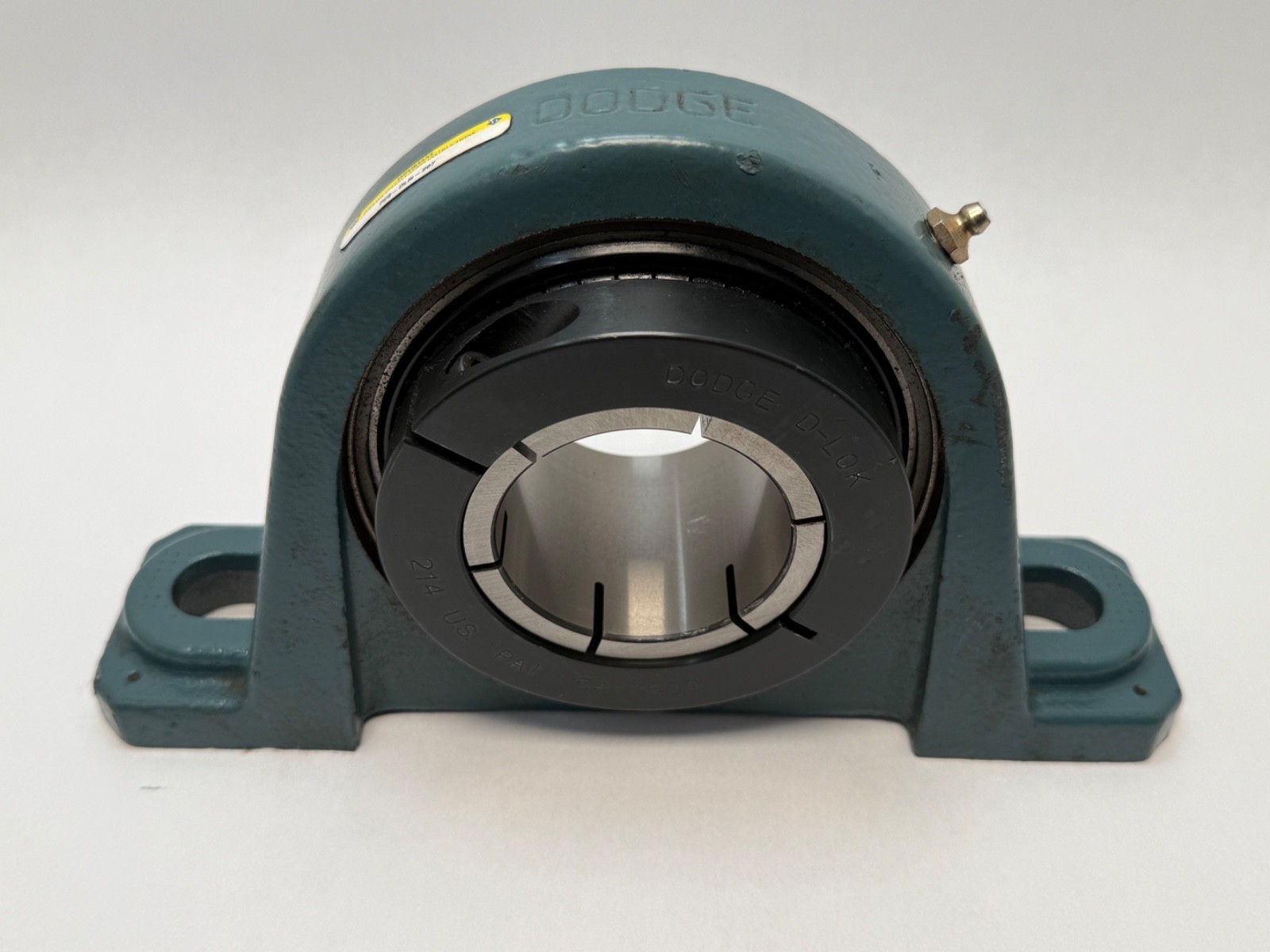

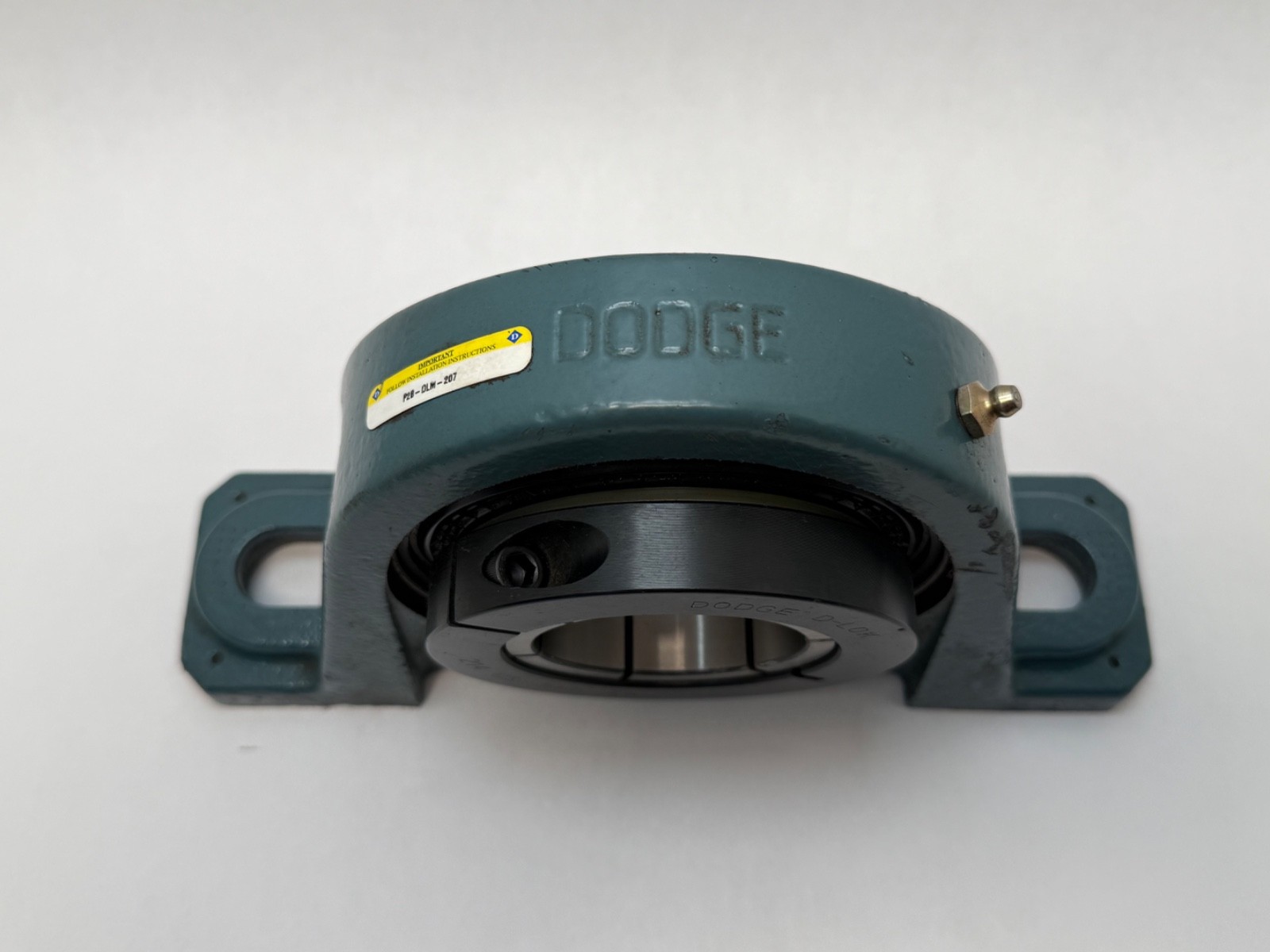

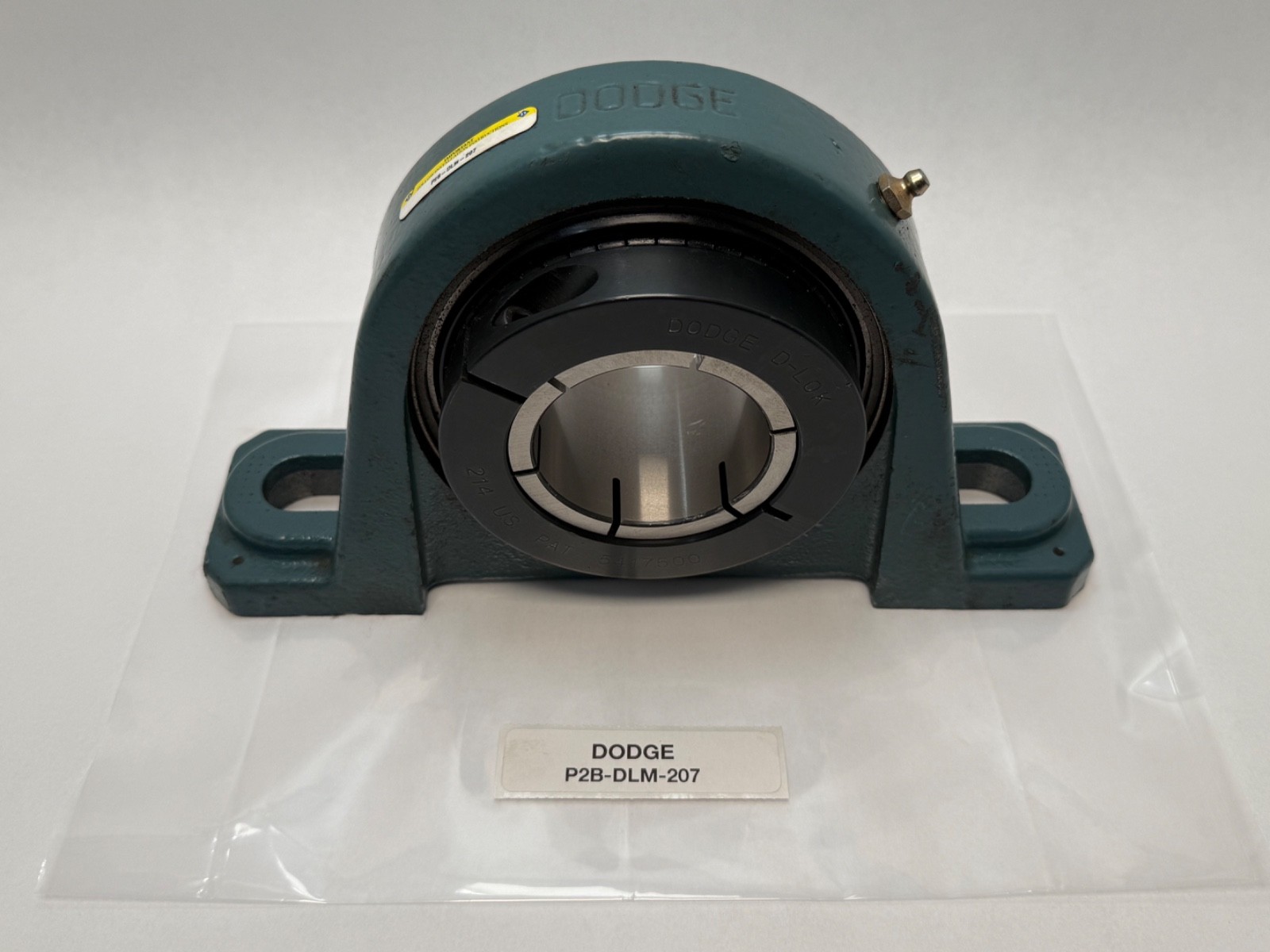

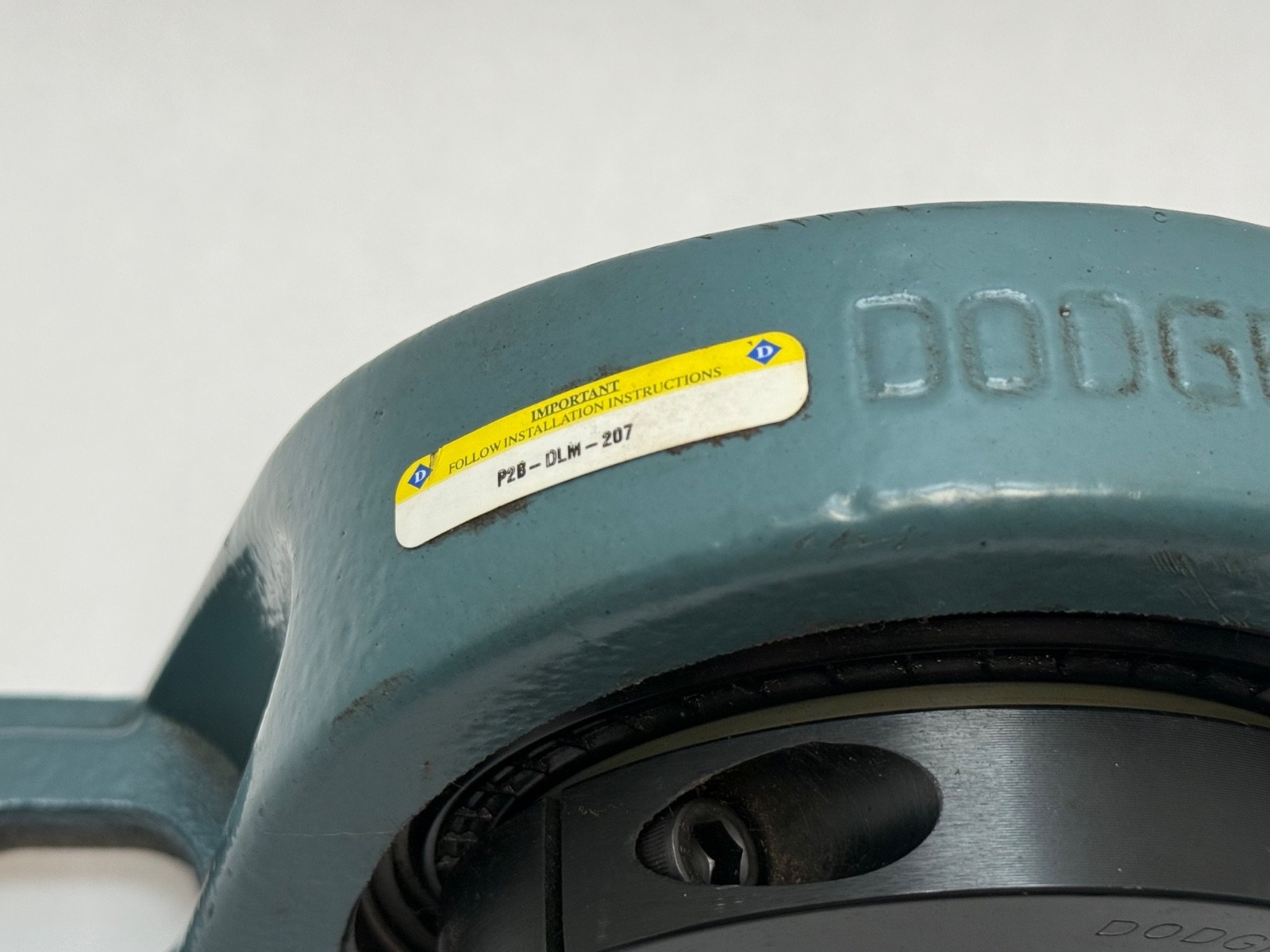

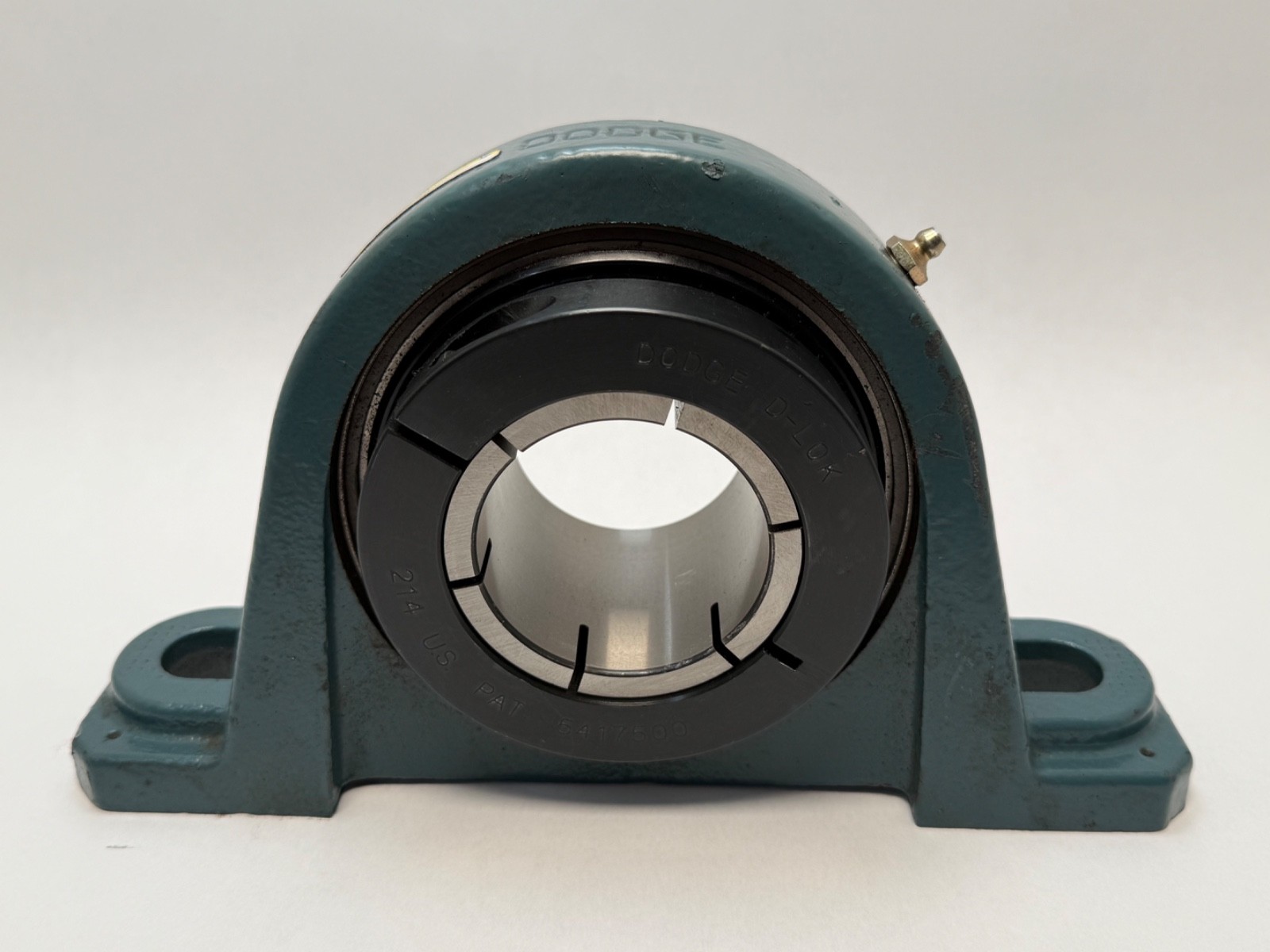

Dodge D-LOK medium-duty two-bolt pillow block ball bearing, 2-7/16 in bore, concentric clamp collar, 3 in centre height, non-expansion. Dodge part 128833.

List Price

$152.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNP2B-DLM-207
ModelP2BDLM207
ID2-7/16 in

Technical Specifications

MaterialCast Iron
TypePillow Block Bearing
Category Id35565
CurrencyUSD
Base NumberP2B-DLM
Industry TermsD-LOK pillow block; concentric collar pillow block; mounted ball bearing; two-bolt pillow block
Common MisspellingsP2BDLM207; P2B-DLM207; P2B-DL-M-207; P2B DLM207
Application TypesConveyors; fans; general medium-duty power transmission
Centre Height Base To Bore Centerline3 in (76.2 mm)
Bolt Center To Center Length7-1/2 in to 8-1/2 in (190.5 to 215.9 mm)
Number Of Bolt Holes For Fasteners2
Bearing Insert TypeBall
Centre Height Pillow Block3 in (76.2 mm)
Bore Shaft Size2-7/16 in (61.9 mm)
Housing Style2-Bolt Pillow Block

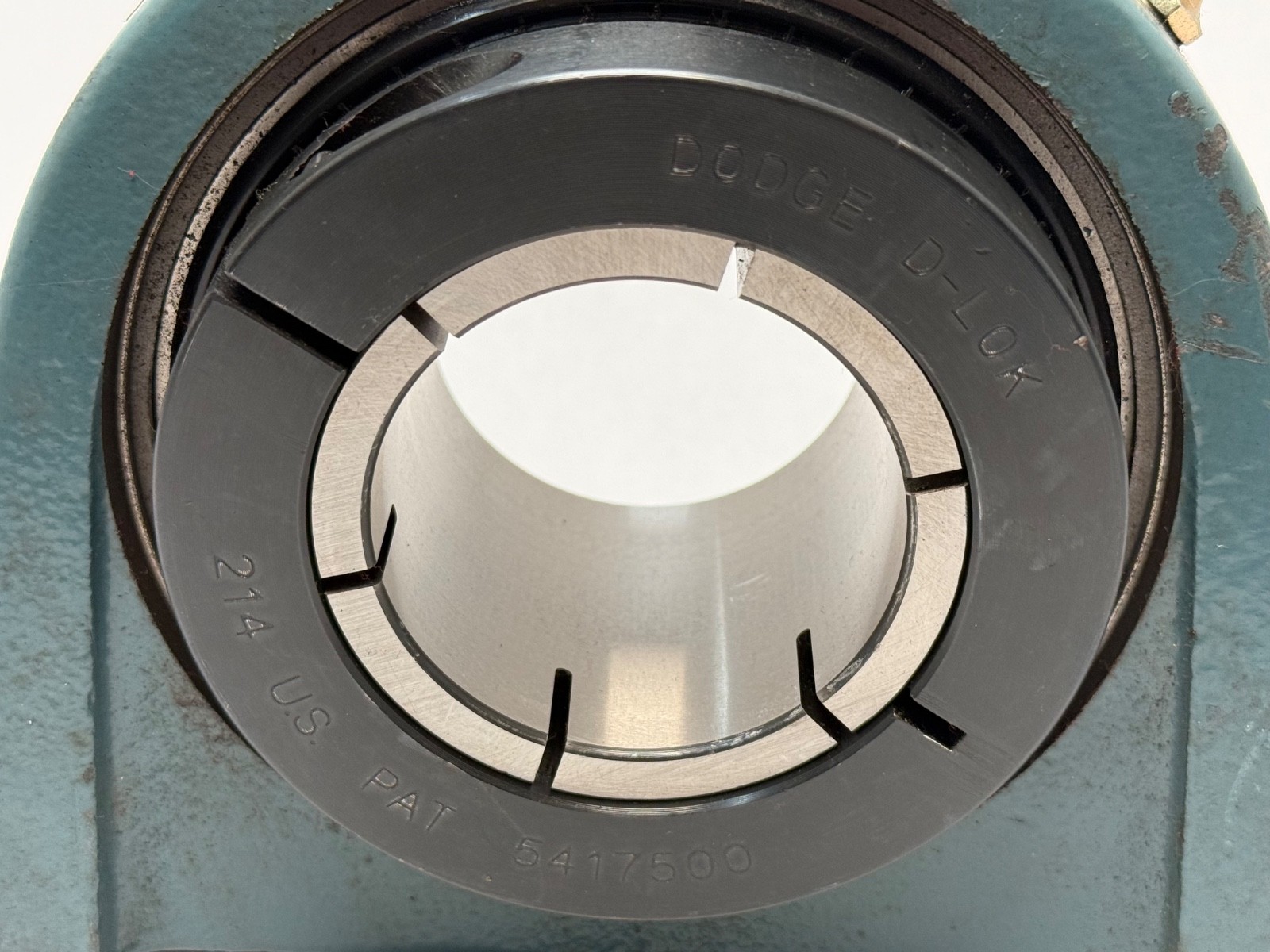

Locking MethodD-LOK concentric clamp collar
RelubricationYes

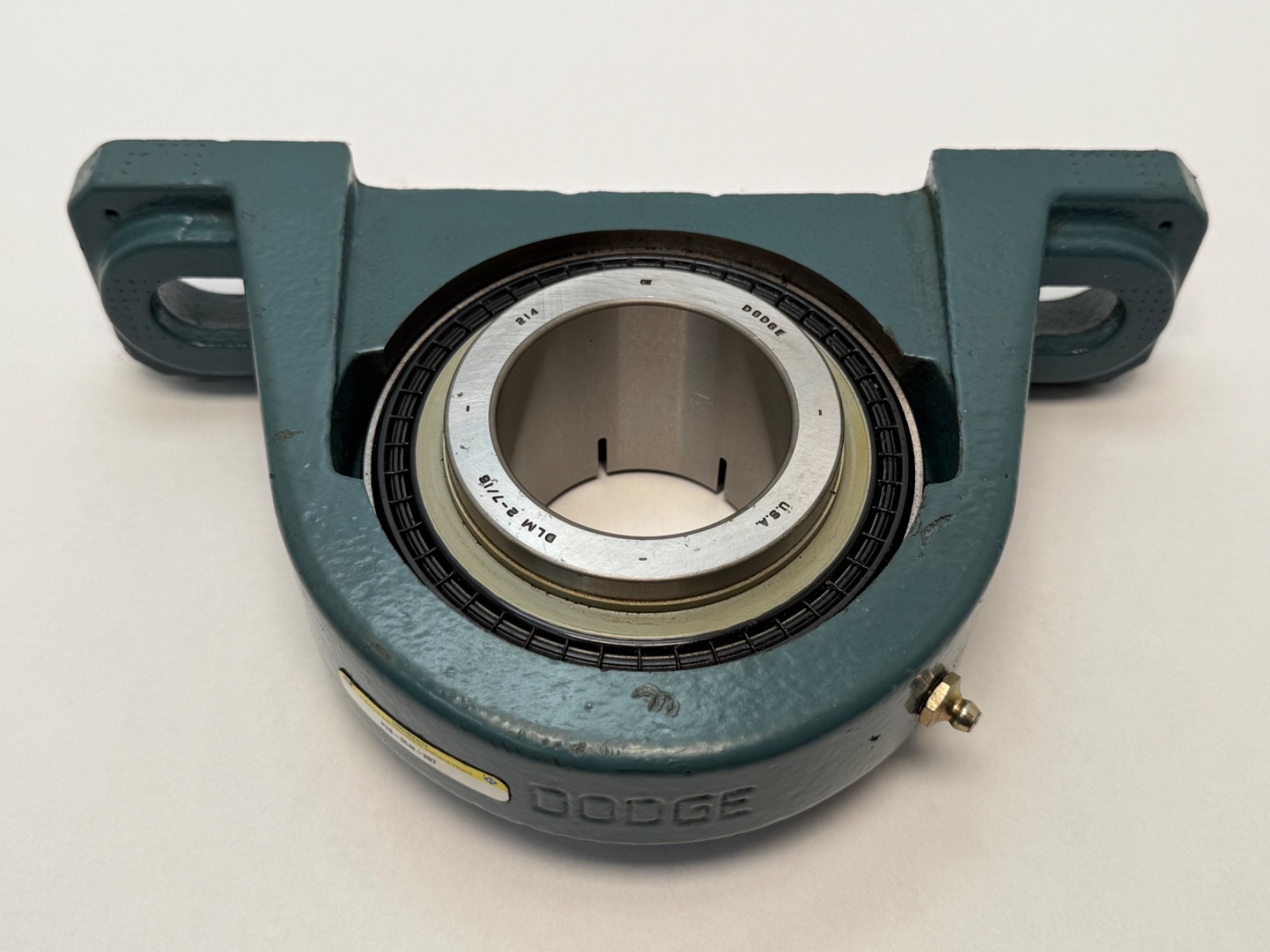

Replacement InsertDodge D-LOK medium-duty 214-series insert, 2-7/16 in
Mpn VariantsP2B-DLM-207; P2BDLM207; P2B DLM 207; 128833; DOD128833
Compatible With ReplacesDodge 128833
Additional AttributesDodge part 128833; insert series 214; overall length 10-3/4 in (273.1 mm); overall height 6.09 in (154.7 mm); overall width 2.38 in (60.5 mm); base width 2.69 in (68.3 mm)
Dynamic Load Rating62,250 N (13,995 lbf)
Static Load Rating43,760 N (9,838 lbf)
Bearing TypeBall
Limiting Speed3,000 rpm
Housing MaterialCast iron
Expansion TypeNon-expansion

Cross-References

Cross Reference 1Dodge P2B-DL-207 (128719) – normal-duty insert
Cross Reference 2Dodge P2B-SC-207 (123822) – set screw, not D-LOK
Seller Part Number: BC3#QTHHPV

Product Description

What this part is:

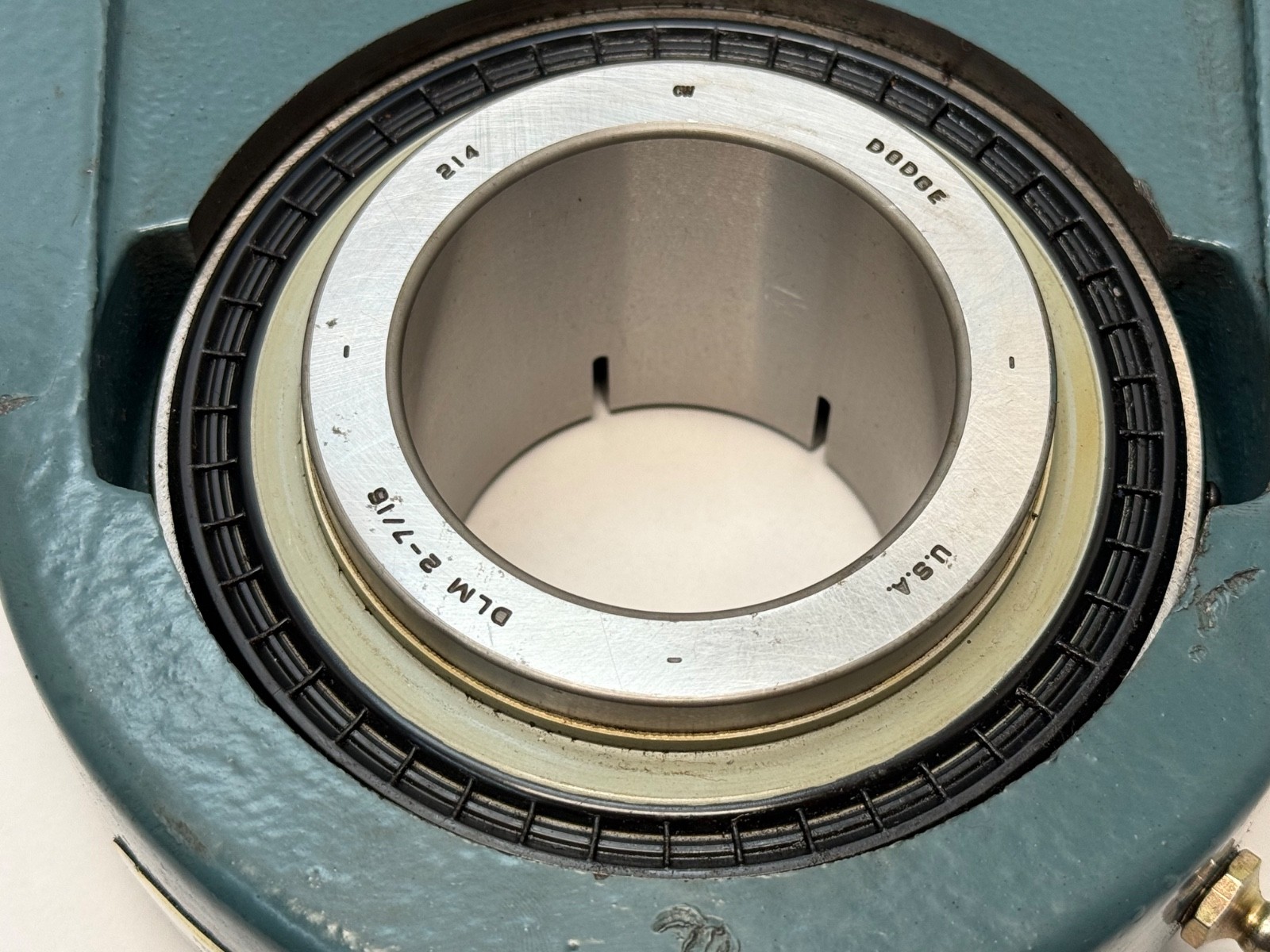

Dodge P2B-DLM-207, Dodge part number 128833: a medium-duty D-LOK two-bolt pillow block with a 214-series wide inner ring ball bearing insert. Bore / shaft size 2-7/16 in. Cast iron housing. Condition: new old stock, open box. One unit.

Decoding the designation:

P2B — two-bolt pillow block.

DLM — D-LOK concentric clamp collar, medium-duty insert.

207 — shaft size 2-7/16 in.

Specifications:

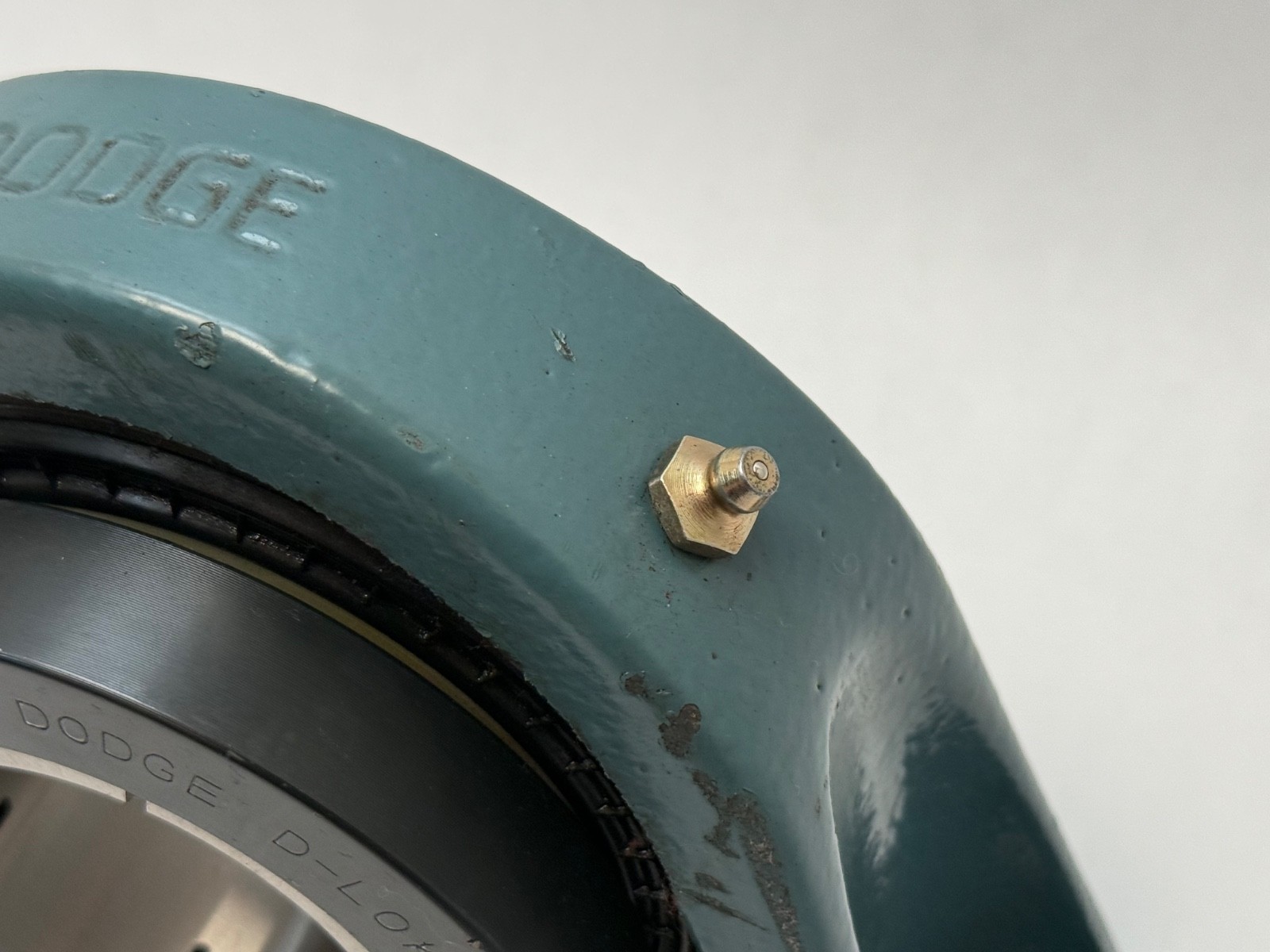

Bearing Type: Ball. Bore / Shaft Size: 2-7/16 in (61.9 mm). Housing Style: 2-bolt pillow block. Housing Material: cast iron. Locking Method: D-LOK concentric clamp collar. Seal Type: single lip contact seal. Expansion Type: non-expansion. Relubrication: yes, grease fitting. Dynamic Load Rating: 62,250 N (13,995 lbf). Static Load Rating: 43,760 N (9,838 lbf). Limiting Speed: 3,000 rpm. Insert Series: 214. Unit Quantity: 1 Pc.

Dimensions and mounting:

Centre height (pillow block): 3 in (76.2 mm). Bolt center to center length: 7-1/2 in to 8-1/2 in (190.5 to 215.9 mm), slotted. Number of bolt holes for fasteners: 2. Overall length: 10-3/4 in (273.1 mm). Overall height: 6.09 in (154.7 mm). Overall width: 2.38 in (60.5 mm). Base width: 2.69 in (68.3 mm).

Compatibility and replacement:

Dodge P2B-SC-207 (123822) is the set screw version of the same size. Dodge P2B-DL-207 (128719) has the same bore and housing with a D-LOK normal-duty insert.

Frequently asked questions:

What type of bearing is the Dodge P2B-DLM-207?

A two-bolt pillow block with a 214-series wide inner ring ball bearing insert, D-LOK concentric clamp collar, 2-7/16 in bore.

What is the Dodge part number?

Dodge part number 128833.

What are the load ratings and speed limit?

Dynamic load rating 62,250 N (13,995 lbf), static load rating 43,760 N (9,838 lbf), limiting speed 3,000 rpm.
