Dodge Type K two-bolt pillow block, 2-1/2 in bore, double-row tapered roller insert, expansion type, cast iron housing. Dodge P2B-K-208RE, 1 Pc.
List Price
$934.83
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-K-208RE |
| GTIN | 782475699155 |
| Model | P2B K 208RE / 023202 |
| ID | 2-1/2 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block |
| Base Number | P2B-K-208 |
| Industry Terms | Pillow block, two bolt pillow block, mounted bearing unit, tapered roller pillow block, expansion bearing, float bearing, conveyor head shaft bearing, Type K pillow block |
| Common Misspellings | P2B K208RE, P2BK-208RE, P2B-K208-RE, P2BK208R E, Dodge P2BK 208RE |
| Application Types | Conveyor head and tail shafts, bucket elevators, crushers and screens, kiln and dryer drives, heavy fans and blowers |
| Bolt Center To Center Length | 9-1/4 to 10-1/4 in (slotted) |
| Bearing Insert Type | Tapered Roller |
| Bore Shaft Size | 2-1/2 in |
| Housing Style | Two-bolt pillow block, cast iron |
| Mpn Variants | P2B-K-208RE, P2BK208RE, P2B K 208RE, P2B-K-208-RE, 023202, P2BK208-RE |
| Overall Length | 12 in |
| Bearing Type | Double-row tapered roller, double interlock (Dodge Type K) |
| Number Of Rows | 2 |
| Part Number | P2B-K-208RE |
| Mounting Arrangement | Two-bolt pillow block, expansion |

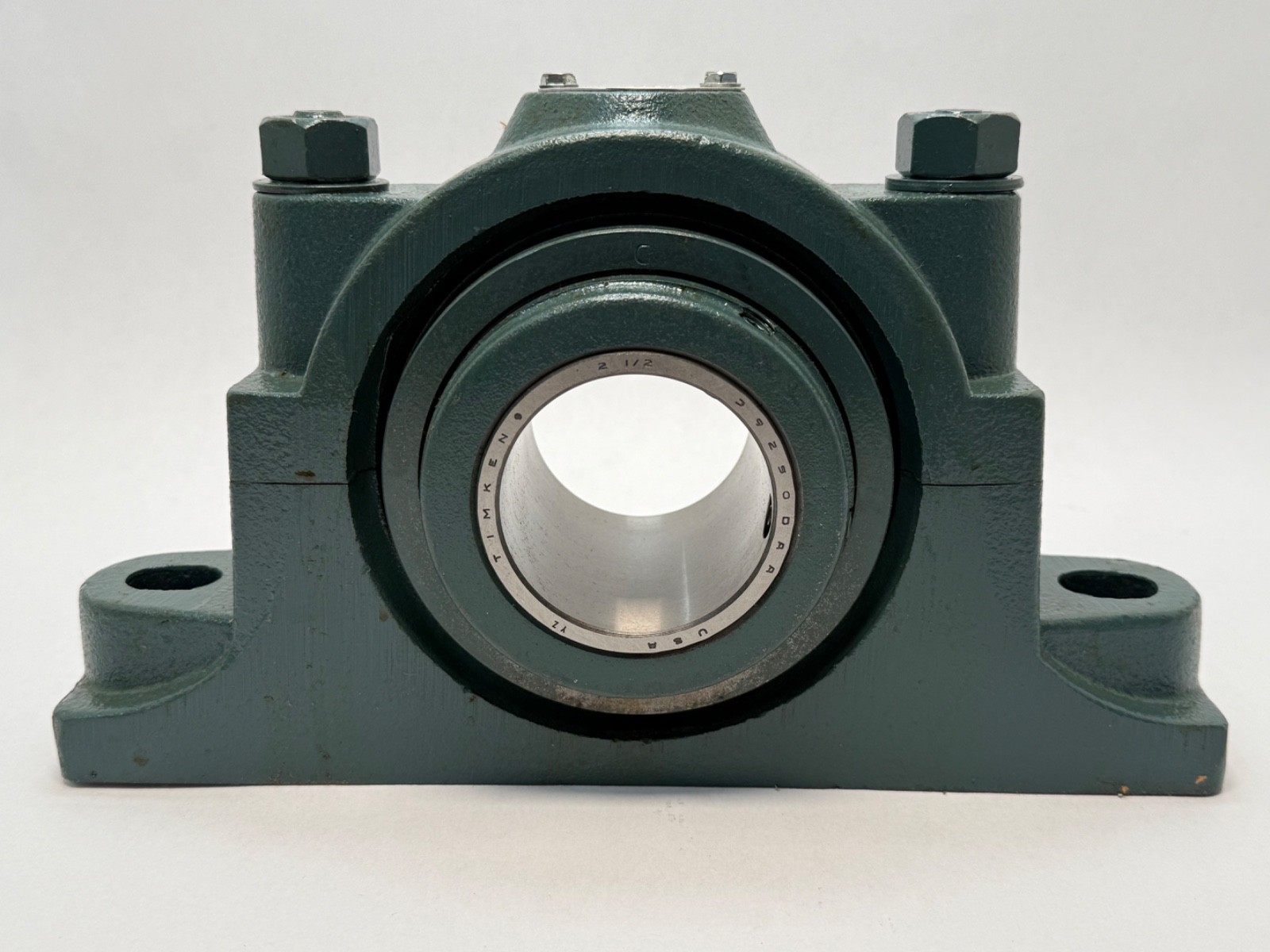

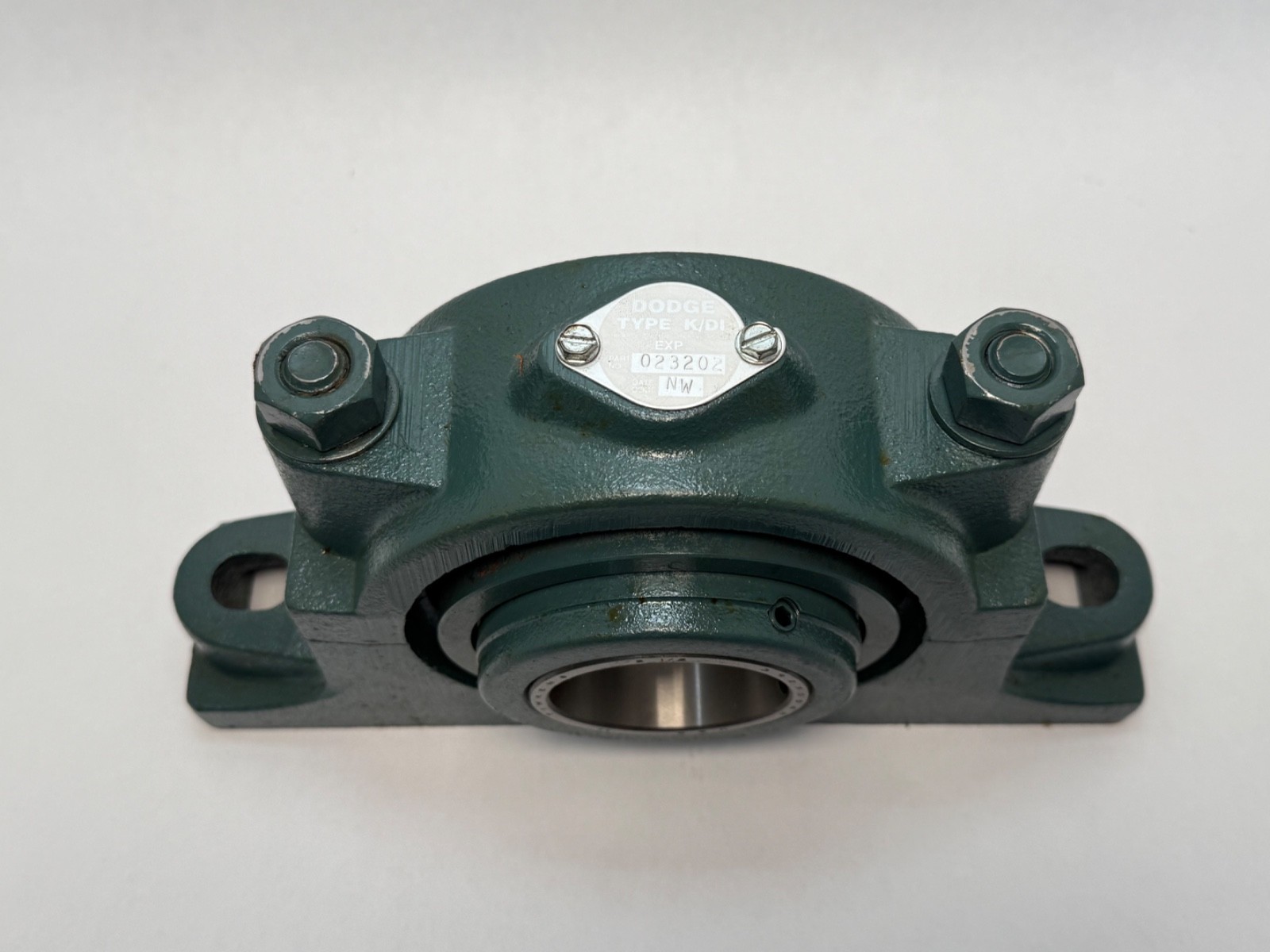

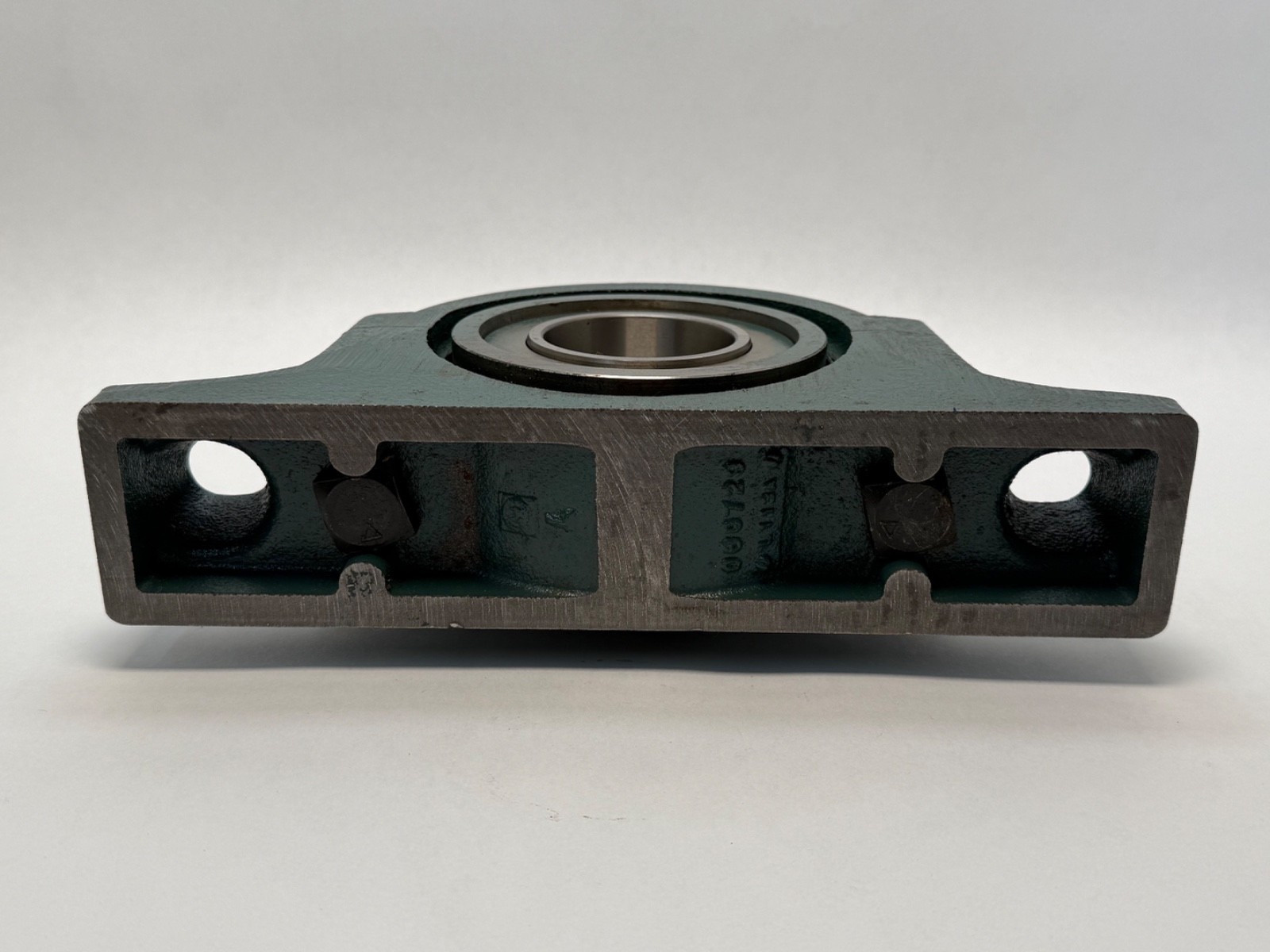

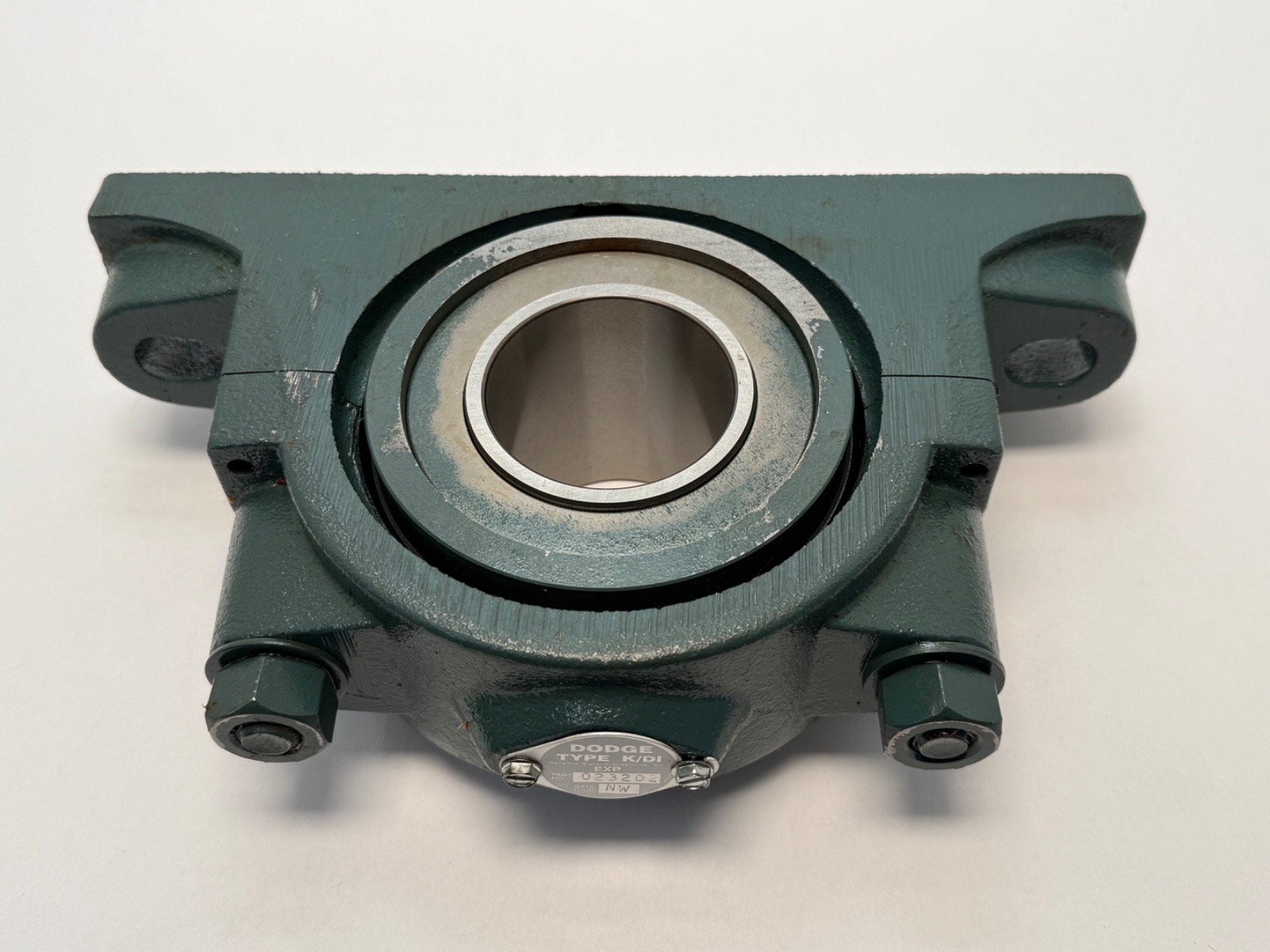

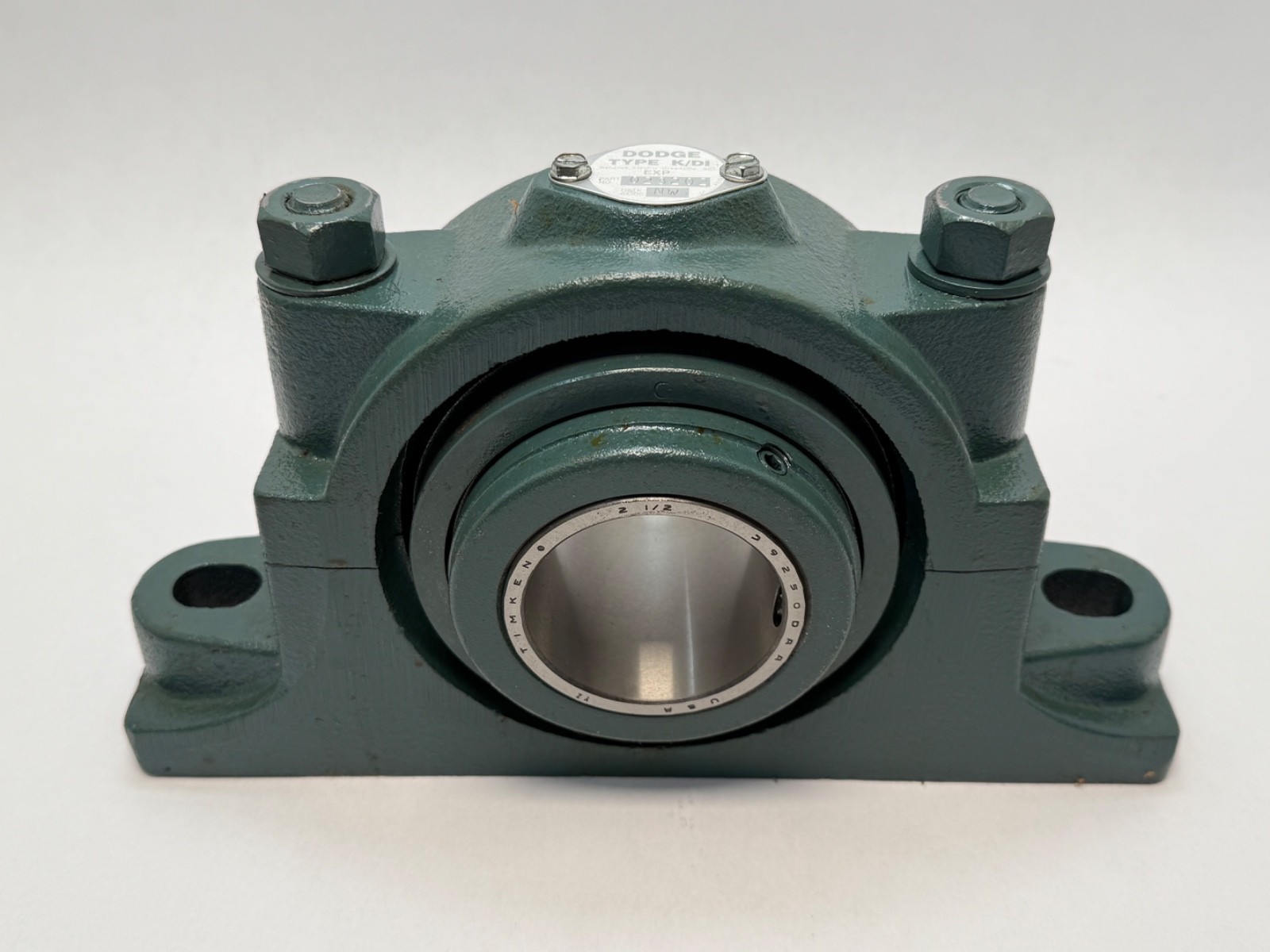

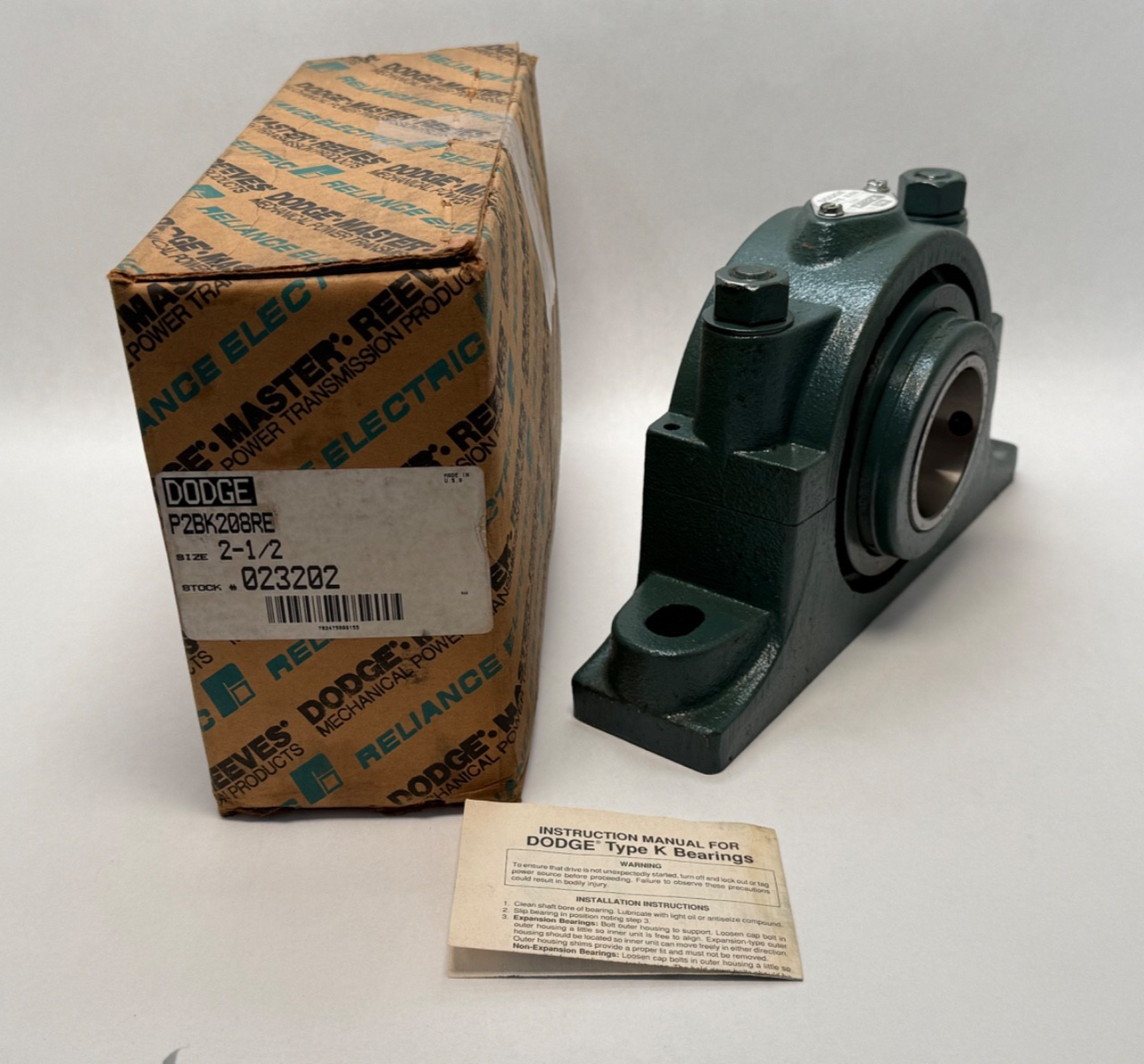

Dodge P2B-K-208RE Type K two-bolt pillow block bearing unit for a 2-1/2 inch shaft, with a double-interlock double-row tapered roller bearing insert, in the expansion configuration. Cast iron housing. Unit Quantity: 1 Pc, one complete pillow block unit with housing, bearing insert, seals and end caps. Dodge part code 023202. GTIN: 782475699155.
P2B — Dodge pillow block, two-bolt base mounting.
K — Type K, double-row tapered roller bearing insert, double interlock.
208 — 207 series housing, 2-1/2 inch bore.
RE — expansion type, with the bearing outer race free to slide axially in the housing.

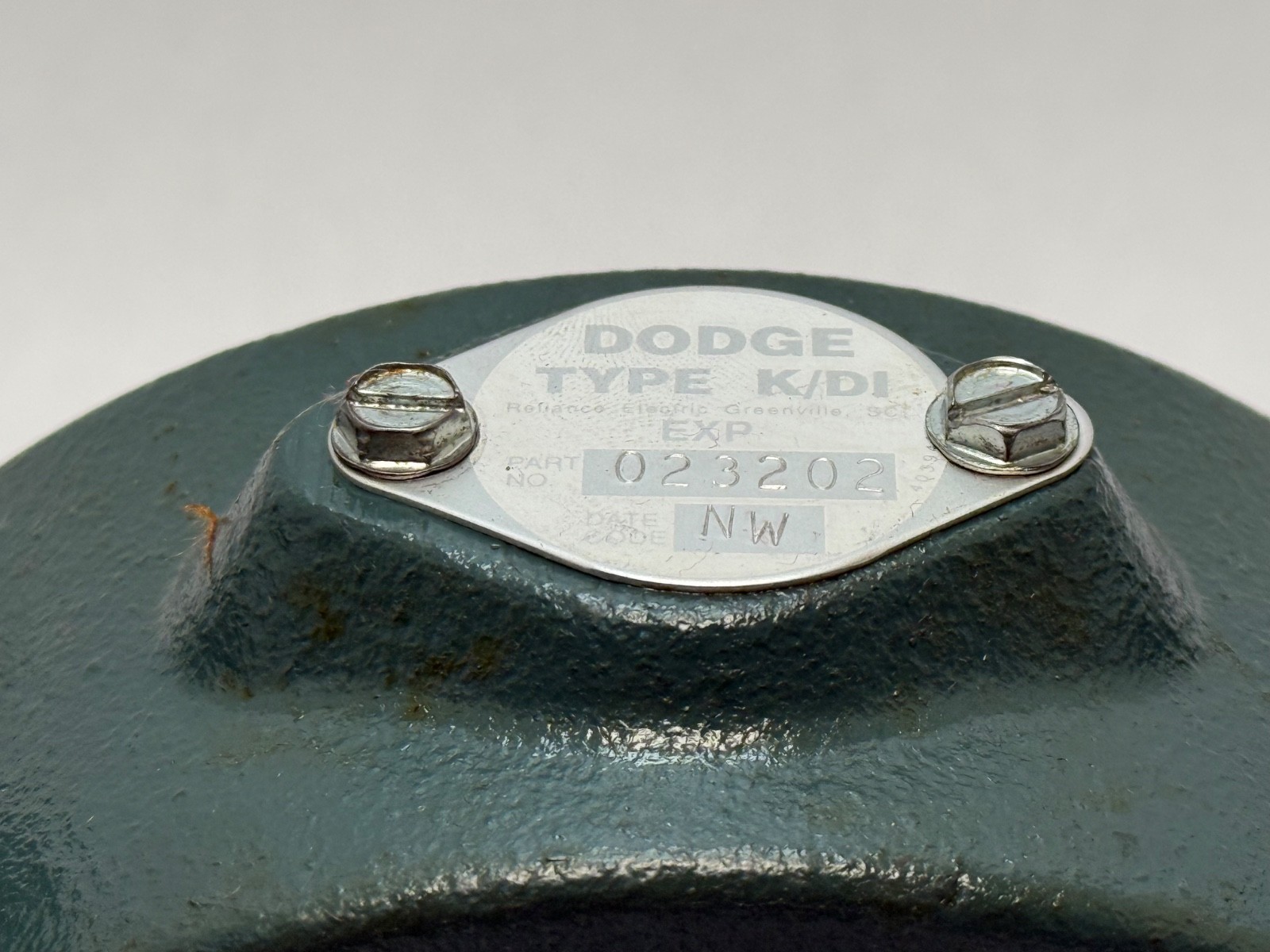

023202 — Dodge part code. Also written P2BK208RE and P2B K 208RE.
Housing Style: Two-bolt pillow block, cast iron. Bearing Type: Double-row tapered roller, double interlock (Dodge Type K). Shaft Size: 2-1/2 in. Series: 207 housing series. Expansion Type: Expansion (float). Number Of Rows: 2. Rolling Elements: Tapered Roller. Material: Cast iron housing.
Bolt Center To Center: 9-1/4 to 10-1/4 in (slotted holes). Base To Bore Centreline: 3-1/4 in. Overall Length: 12 in. Overall Height: 7.03 in.
Related Dodge designs on the same 2-1/2 in bore: P2B-K-208R is the non-expansion version of this Type K unit. P2B-S2-208RE has an S-2000 double-row spherical roller insert. P2B-IP-208RE has an Imperial spherical roller insert.
2-1/2 inch shaft, in a two-bolt cast iron pillow block housing.
RE is the expansion type: the bearing outer race slides axially in the housing.

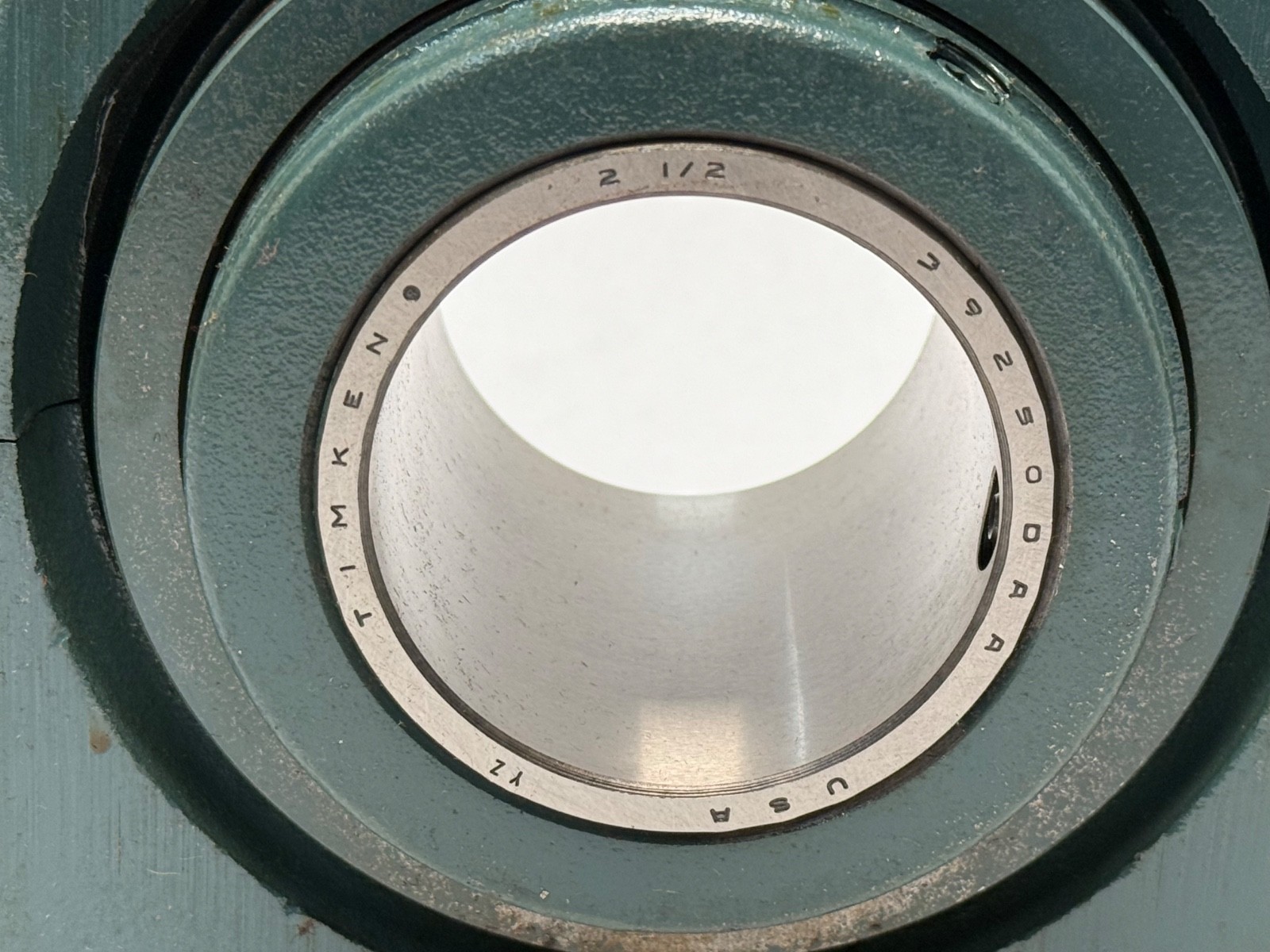

A Type K double-row tapered roller insert, double interlock.
