Availability:
1 in stock

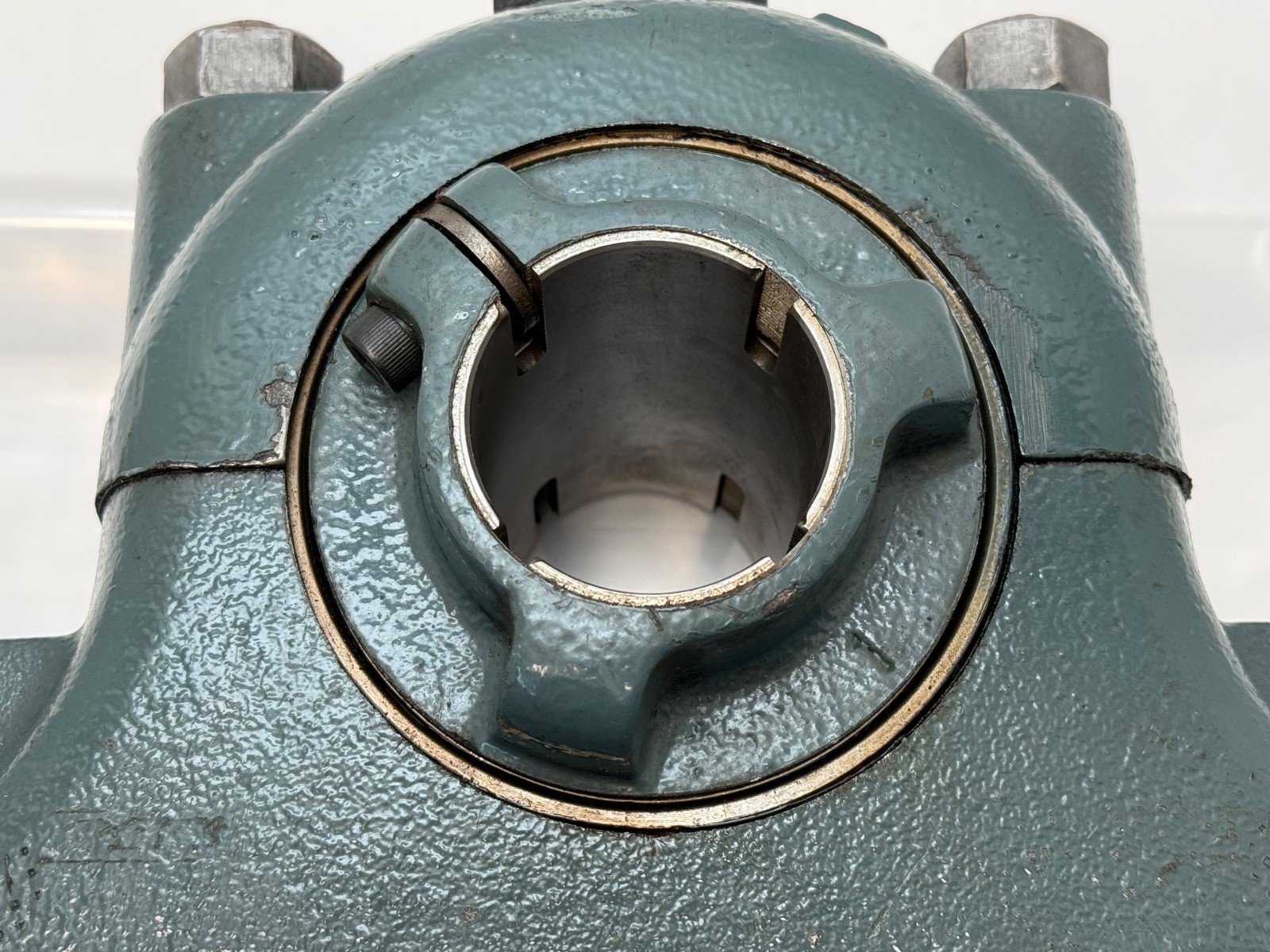

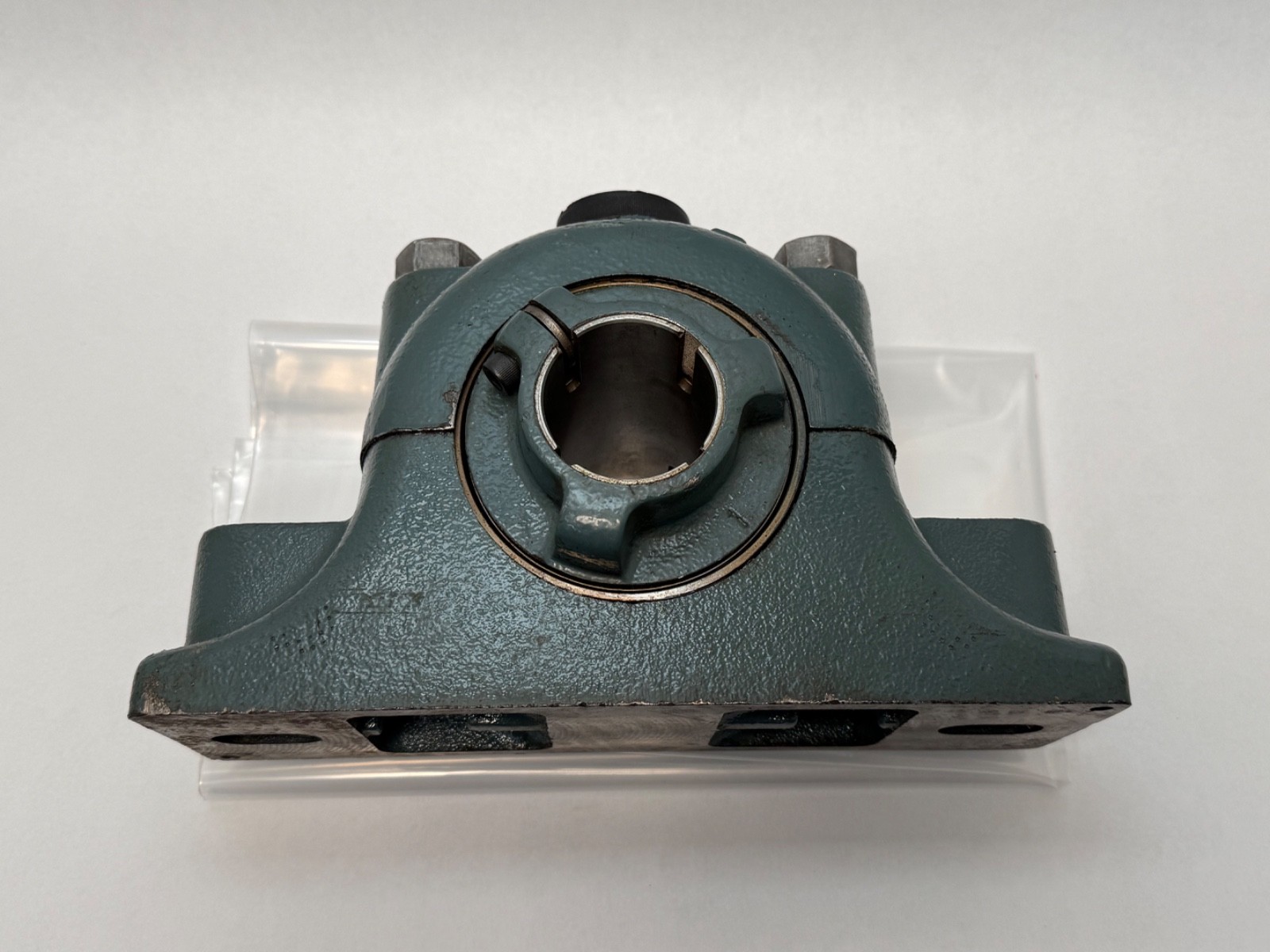

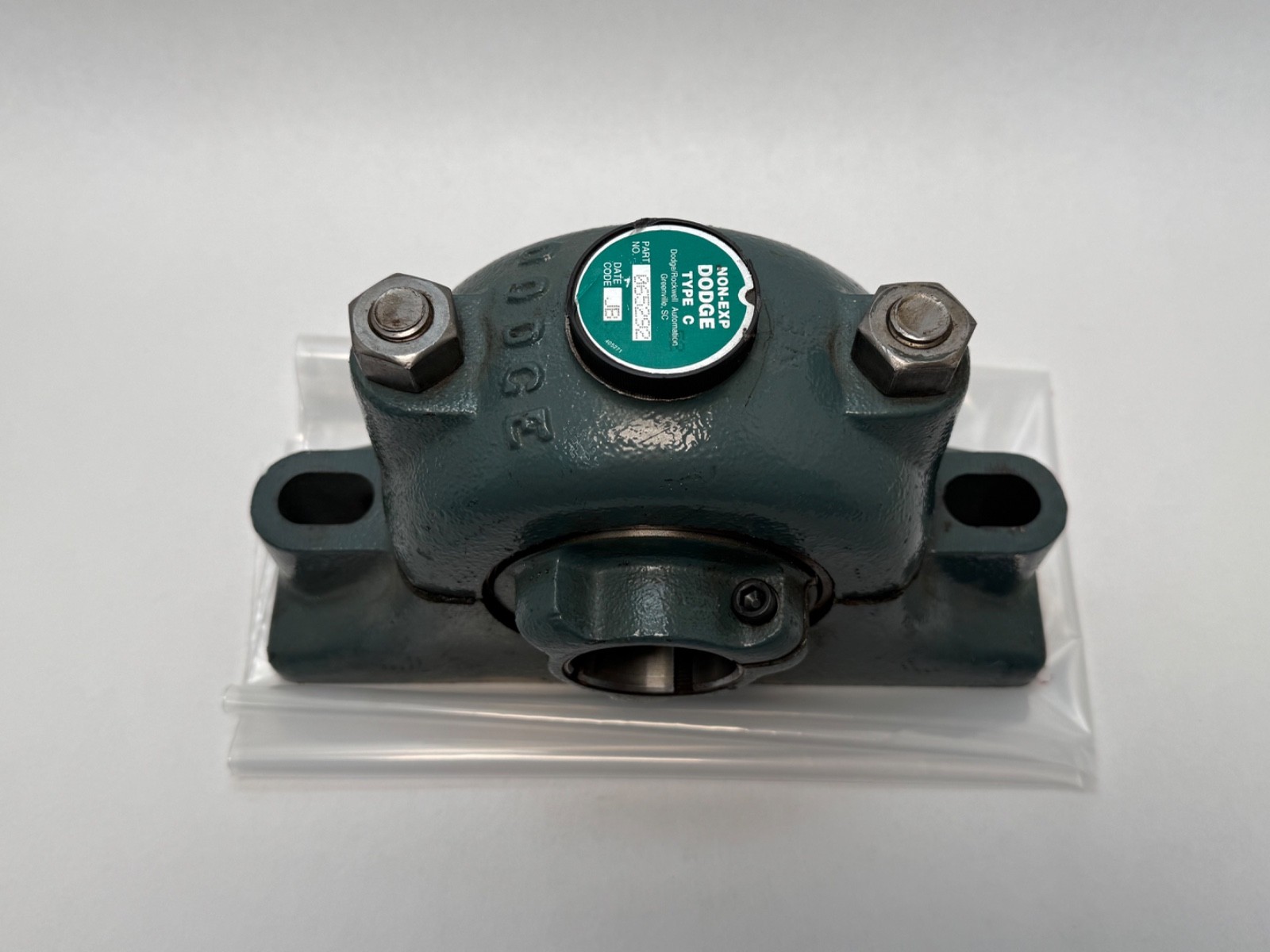

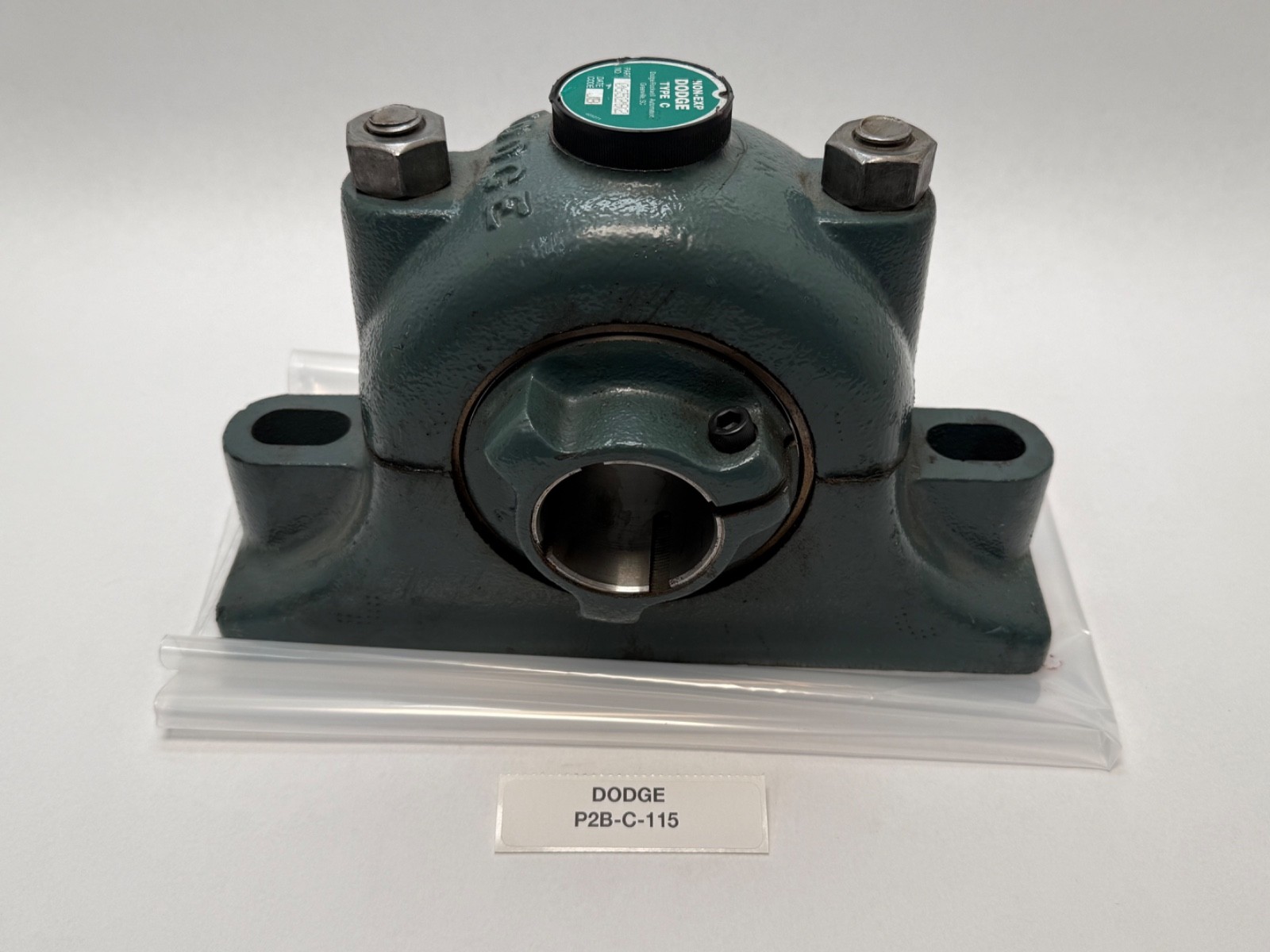

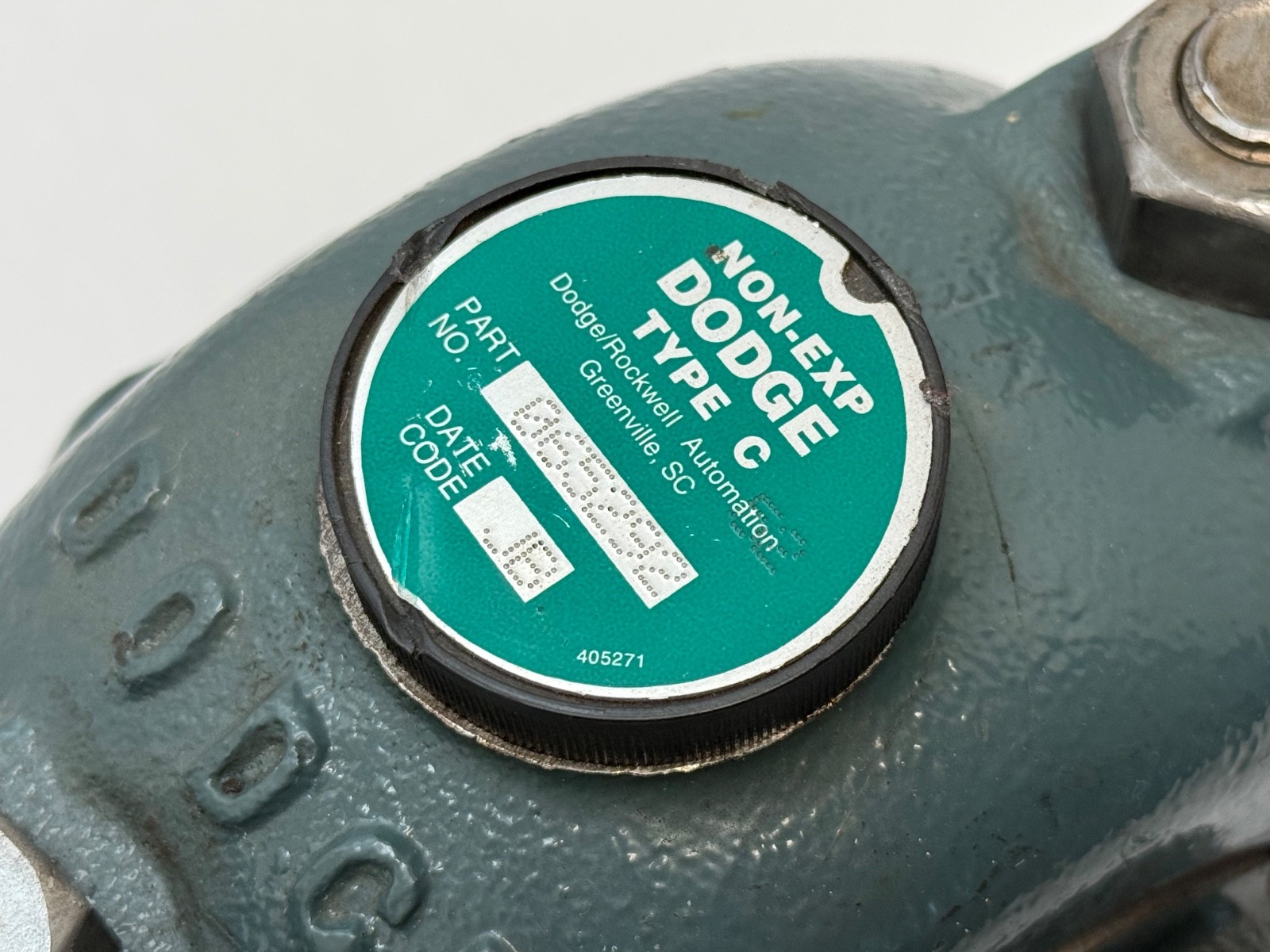

Tapered roller pillow block, 1-15/16 in bore, two-bolt split cast iron housing, clamp collar, labyrinth seals. Dodge Type C P2B-C-115, part 065292.
List Price
$496.03
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-C-115 |
| GTIN | 782475035434 |
| Model | P2BC115 / 065292 |
| ID | 1-15/16 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block Bearing |
| Bolt Center To Center | 8.50-9.00 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 8.50-9.00 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Tapered Roller |
| Centre Height Pillow Block | 3.2500 in |
| Centre Height | 3.2500 in |
| Housing Style | Two-Bolt Pillow Block, Split |
| Mpn Variants | P2B-C-115, P2BC115, P2B C 115, 065292 |
| Dynamic Load Rating | 8,630 lbf (38,390 N) |
| Static Load Rating | 55,200 lbf (245,540 N) |
| Series | Type C |
| Rolling Elements | Tapered Roller |
| Bearing Type | Tapered Roller Pillow Block Unit |
| Item Weight | 14.42 kg (31.8 lb) |
| Limiting Speed | 2,500 rpm |
| Lubricant | Grease (Mobilgrease XHP 222) |
| Locking Device | Clamp Collar |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion (Fixed) |
Dodge P2B-C-115 two-bolt pillow block with a Type C mounted tapered roller bearing, Dodge part number 065292. Bore Diameter: 1-15/16 in (1.9375 in). Bearing Type: Tapered roller. Housing Type: Two-bolt pillow block, split housing. Housing Material: Cast iron. Locking Device: Clamp collar. Expansion Type: Non-expansion (fixed).
P2B — Dodge two-bolt pillow block housing.
C — Dodge Type C mounted tapered roller bearing series.
115 — shaft size, 1-15/16 in: first digit whole inches, last two digits sixteenths.
Dynamic Load Rating: 8,630 lbf (38,390 N). Static Load Rating: 55,200 lbf (245,540 N). Maximum Speed: 2,500 rpm. The tapered roller bearing carries radial load with thrust in both directions. Seal Type: Labyrinth. Lubricant: Grease, factory fill Mobilgrease XHP 222. Greasable: Yes.

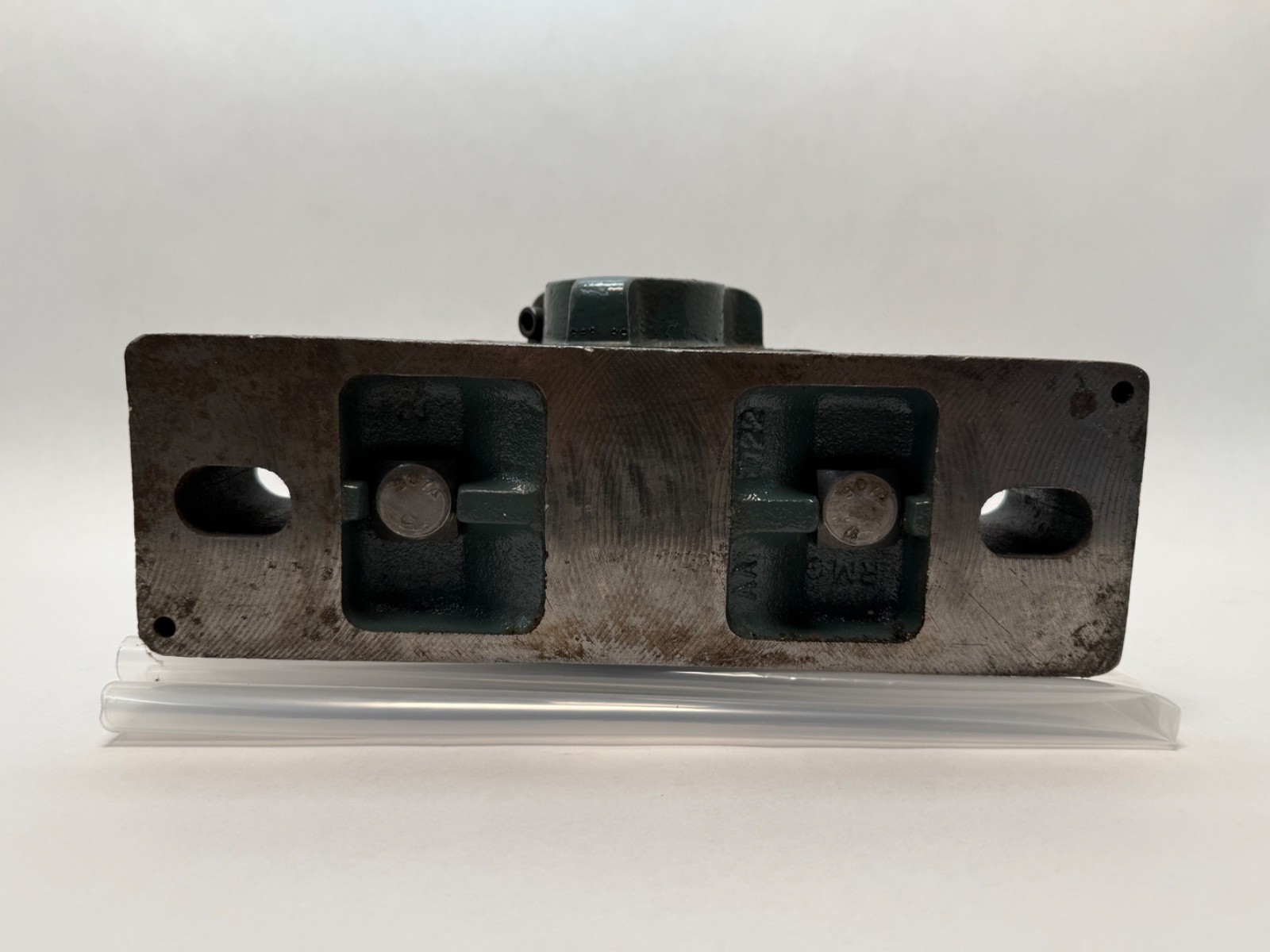

Centre Height: 3.2500 in base to bore centreline. Bolt Center To Center: 8.50 to 9.00 in slotted. Bolt Diameter: 0.625 in. Length Through Bore: 5.25 in. Item Weight: 14.42 kg (31.8 lb).
Dodge lists take-up frame HD-200 for this unit size, related parts HD-200X12-TUFR (089020) and HD-200X18-TUFR (089021).
