Availability:
3 in stock
Two-bolt low-backing cast iron pillow block for a 1-5/8 in shaft, narrow inner ring standard-duty ball insert, spring locking, self-aligning. 1 Pc.
List Price
$45.19
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MB |
|---|---|
| MPN | CL-25-1-5/8 |
| Model | 123858 / NPL26 / P2B-SCB-110 |
| ID | 1-5/8 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block Bearing |
| Base Number | CL-25-1-5/8 |
| Industry Terms | pillow block, plummer block, 2-bolt bearing unit, low base pillow block, mounted unit, spring locking bearing |
| Common Misspellings | MB CL25-1-5/8, CL-25-1 5/8, MB CL251-5/8, pillowblock, plumber block, CL-25-1-58 |
| Application Types | Conveyors, fans, material handling, agricultural equipment, general line shafting |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-5/8 in (41.28 mm) |
| Housing Style | Two-bolt pillow block, cast iron, low backing |
| Locking Method | Spring locking |
| Mpn Variants | CL-25-1-5/8, CL251-58, CL 25 1-5/8, CL-25-1.5/8, 123858 |
| Series | MB, CL housing, 25 insert series |
| Rolling Elements | Ball |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Locking Device | Spring Locking |
| Housing Material | Cast Iron |
| Part Number | 123858 |

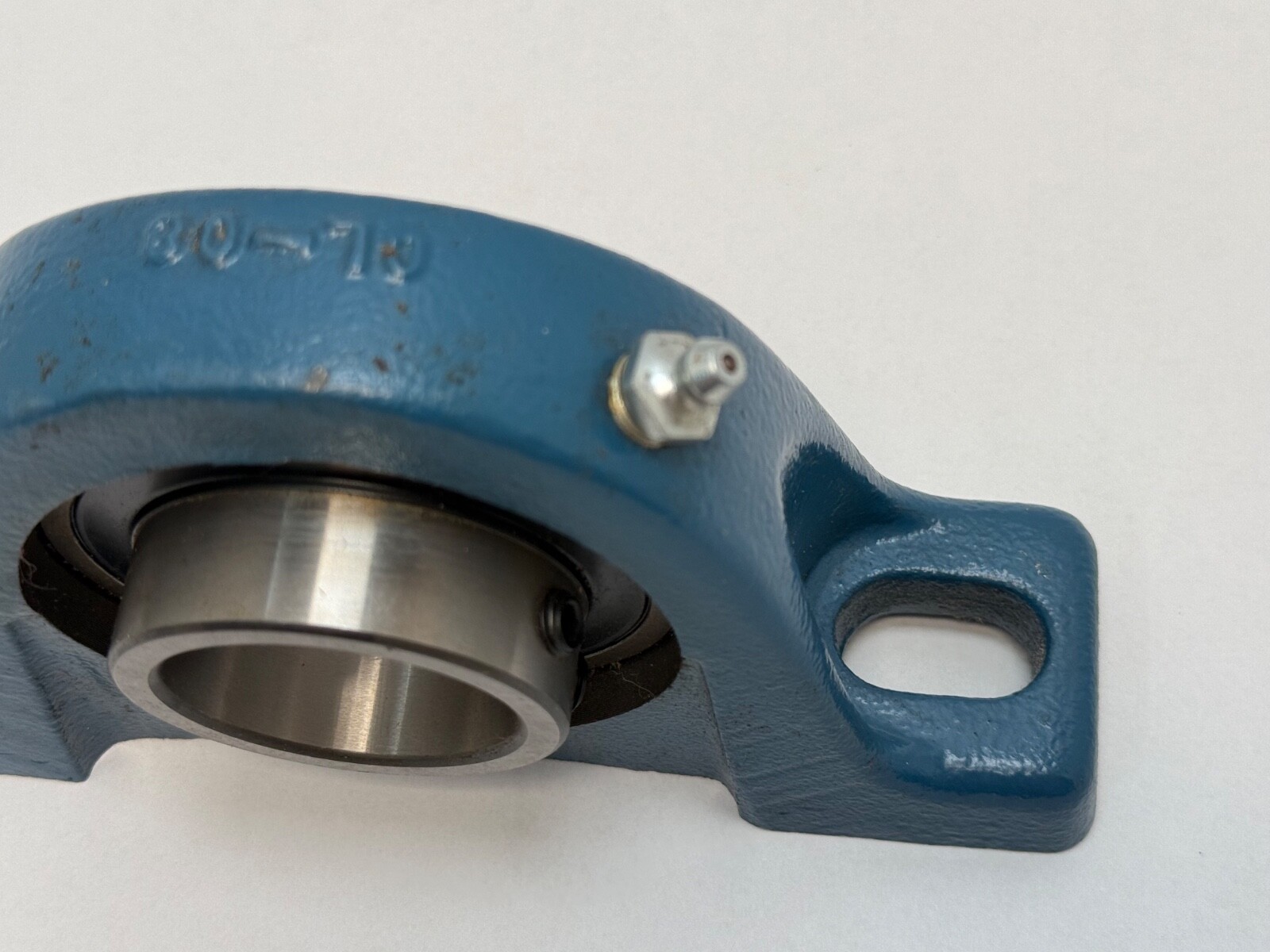

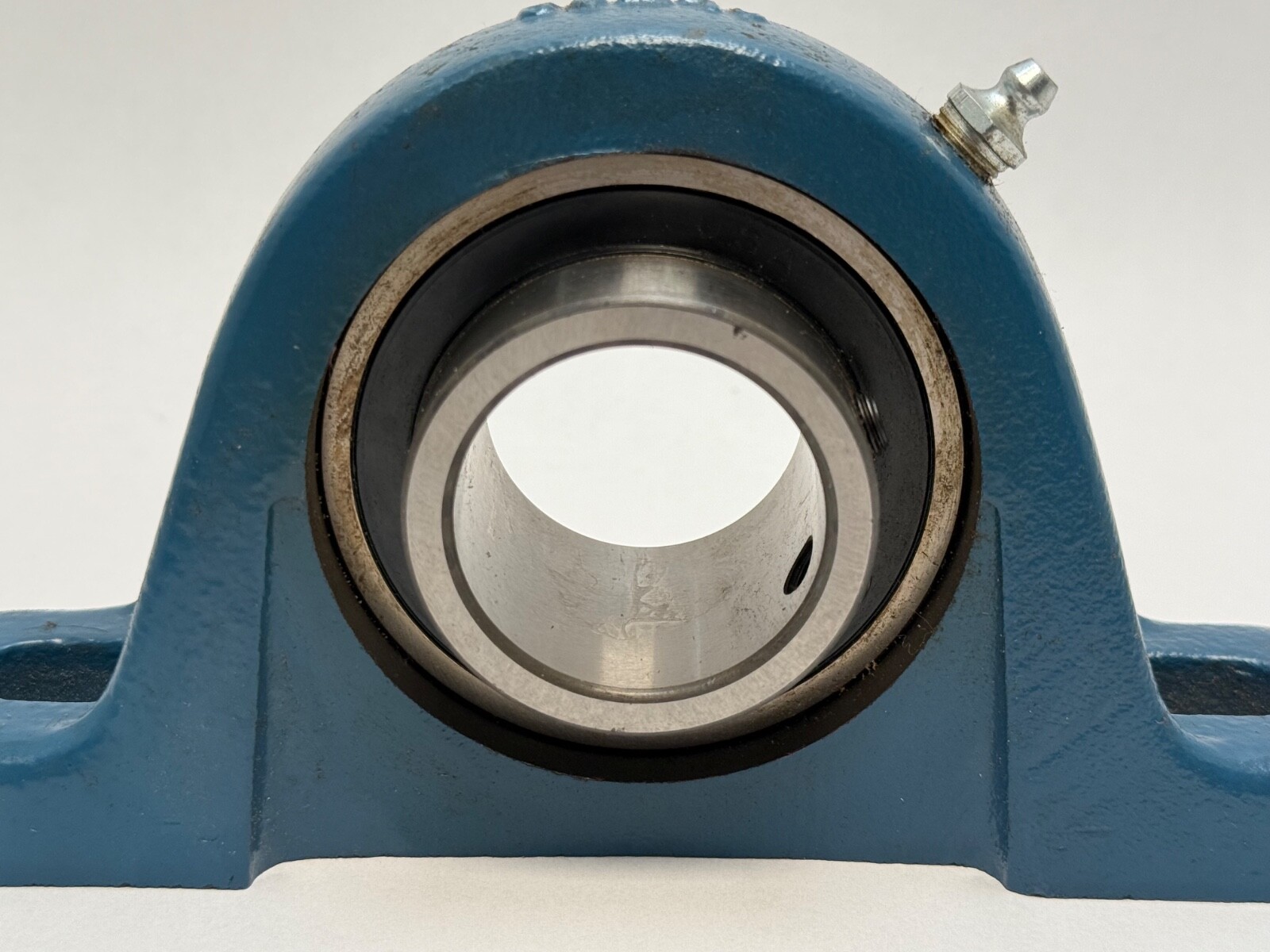

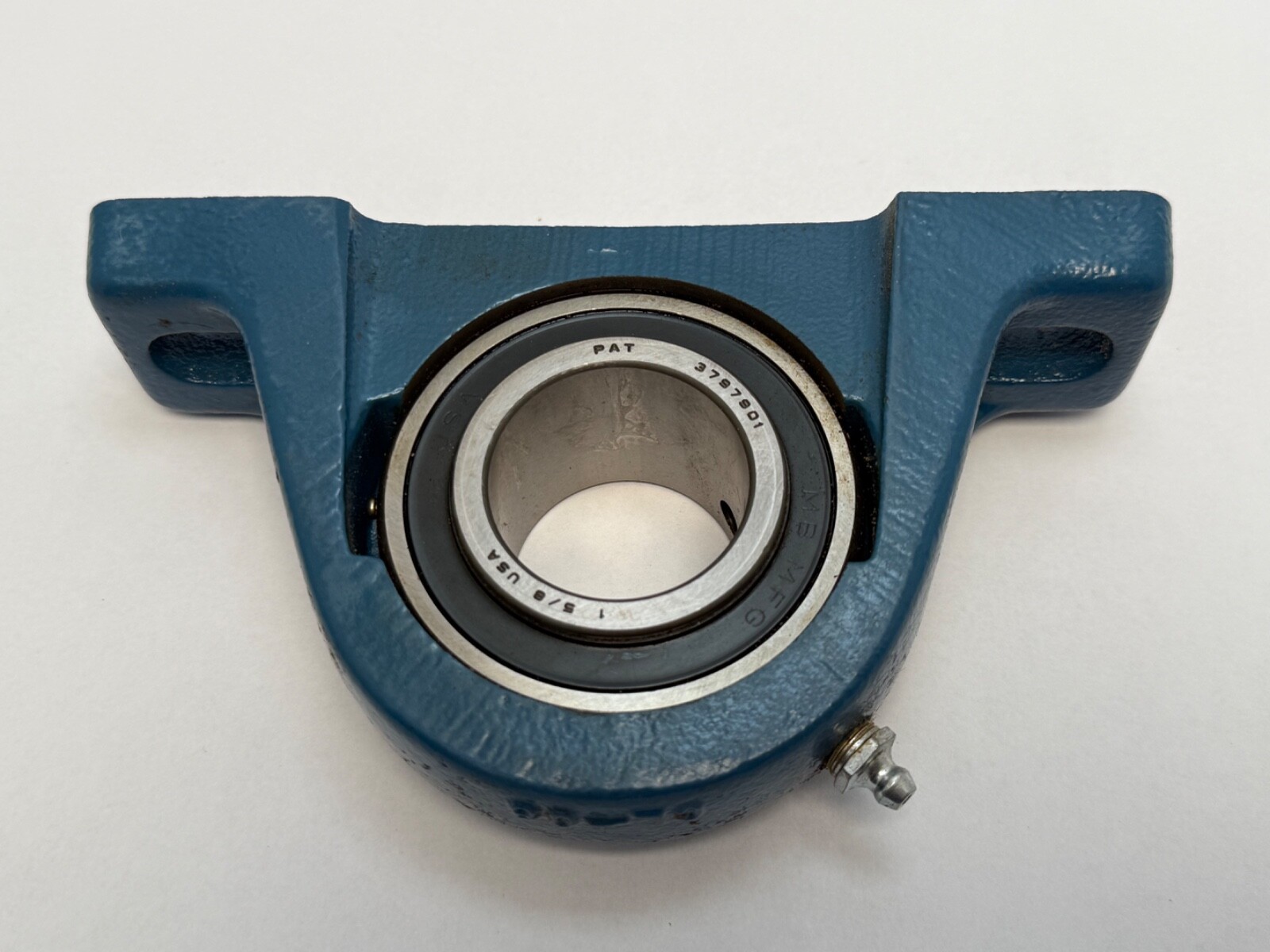

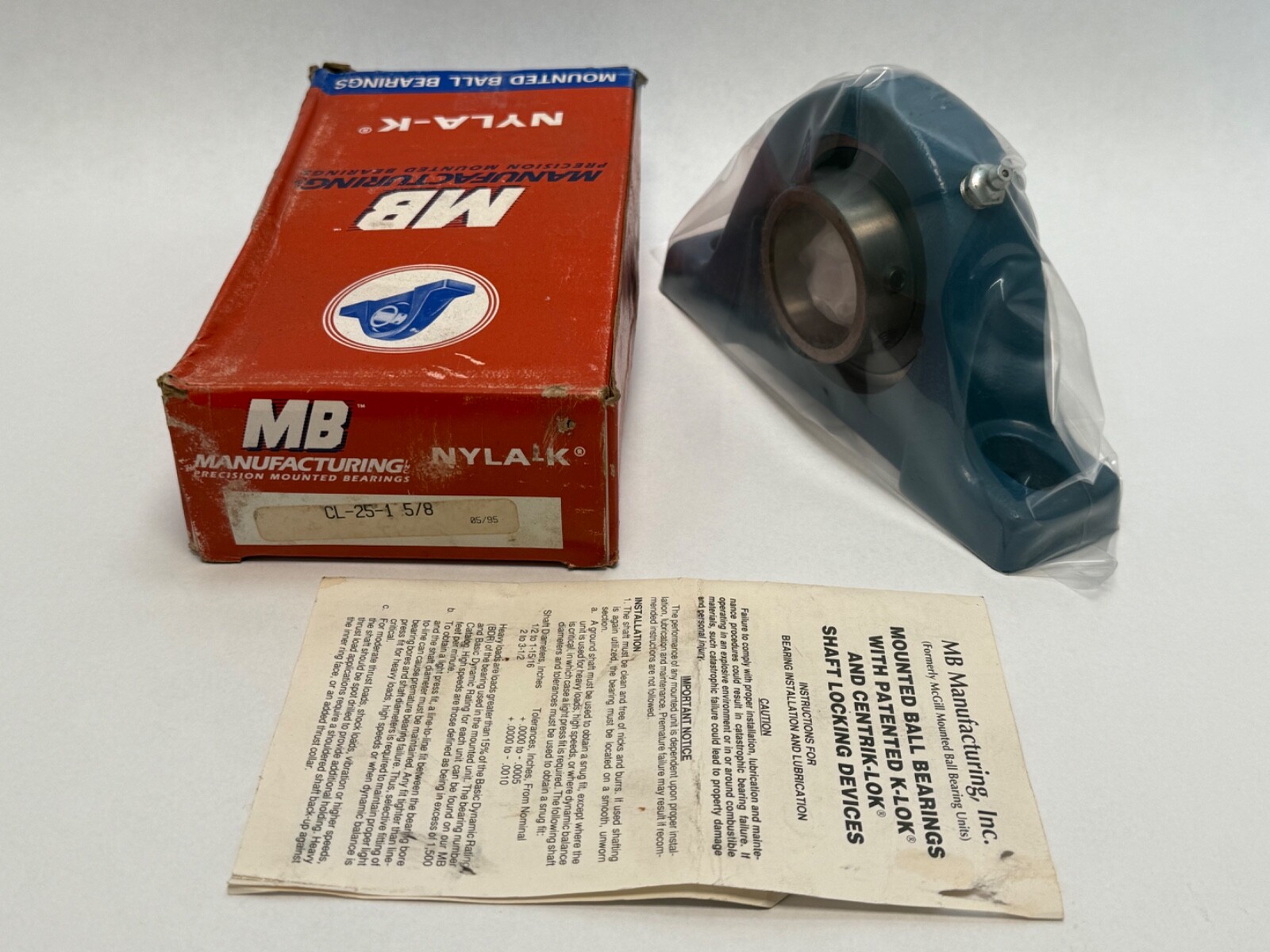

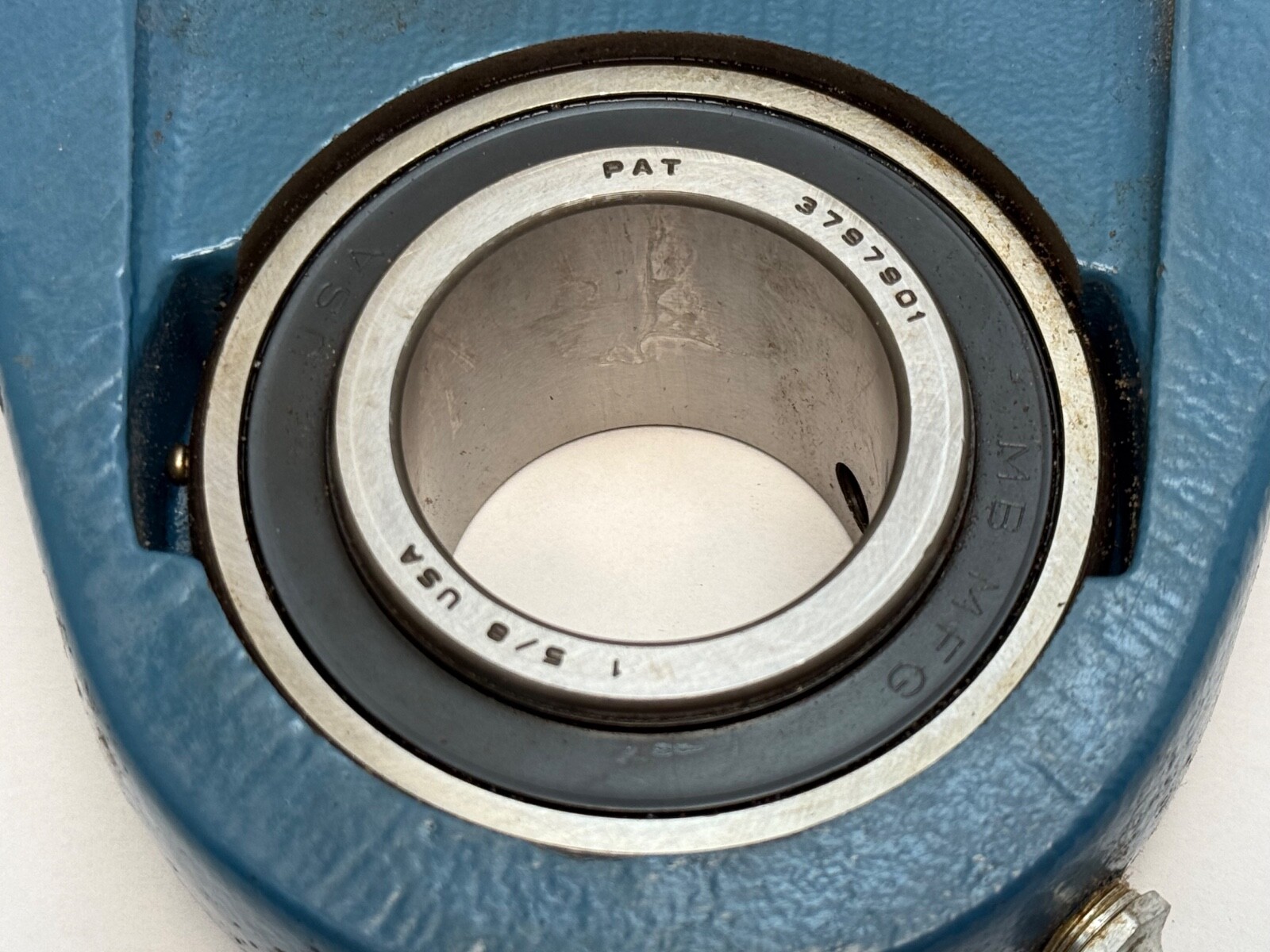

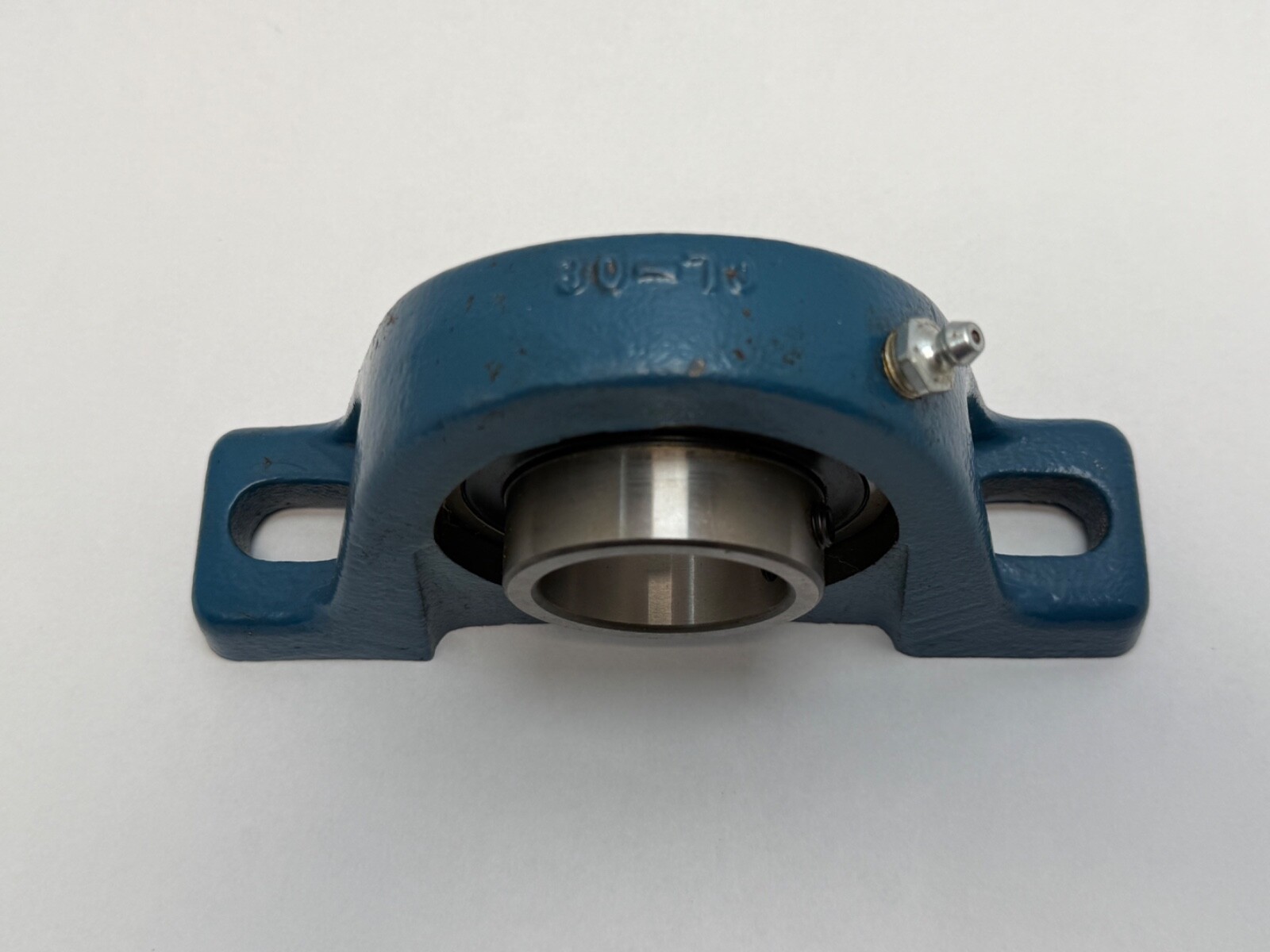

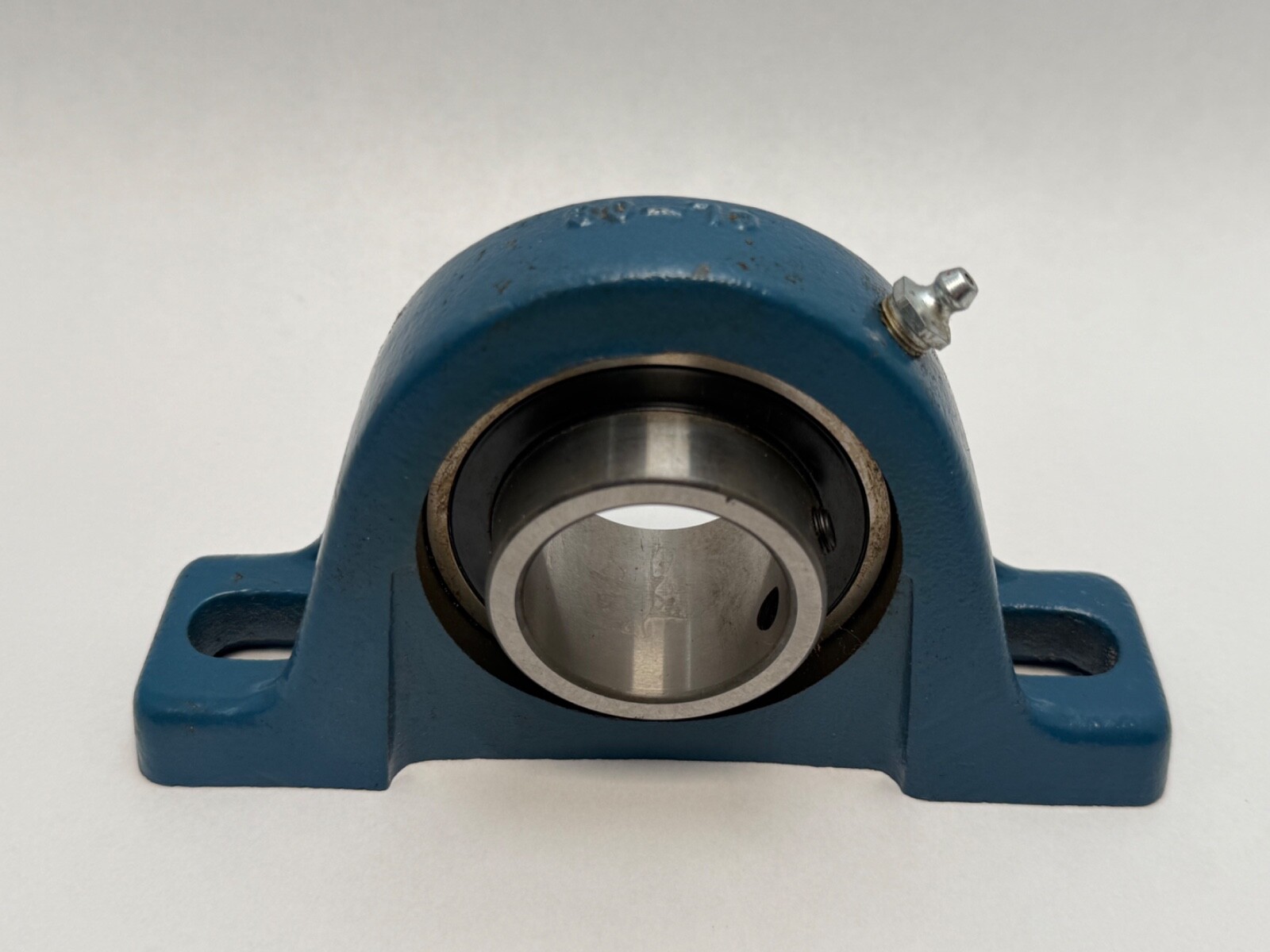

The MB CL-25-1-5/8 is a two-bolt, low-backing cast iron pillow block ball bearing unit for a 1-5/8 in (41.28 mm) shaft, MB part number 123858. The insert is a narrow inner ring, standard-duty ball bearing with a spherical outer race and spring locking. Sold as 1 piece.
CL — pillow block with the low backing dimension; the standard-backing pillow block is coded C.
25 — narrow inner ring, standard duty, spring locking.
1-5/8 — shaft diameter in inches.
Brand: MB. Manufacturer Part Number: CL-25-1-5/8. MB Part Number: 123858. Bearing Type: Mounted ball bearing unit. Bore / Shaft Size: 1-5/8 in (41.28 mm). Housing Style: Two-bolt pillow block, cast iron, low backing. Housing Material: Cast Iron. Bearing Insert Type: Ball. Rolling Elements: Ball. Number Of Rows: 1. Insert Outer Ring: Spherical. Locking Device: Spring Locking. Bearing Class: standard duty, narrow inner ring. Number Of Bolt Holes: 2. Design Units: Inch. Unit Quantity: 1 Pc.

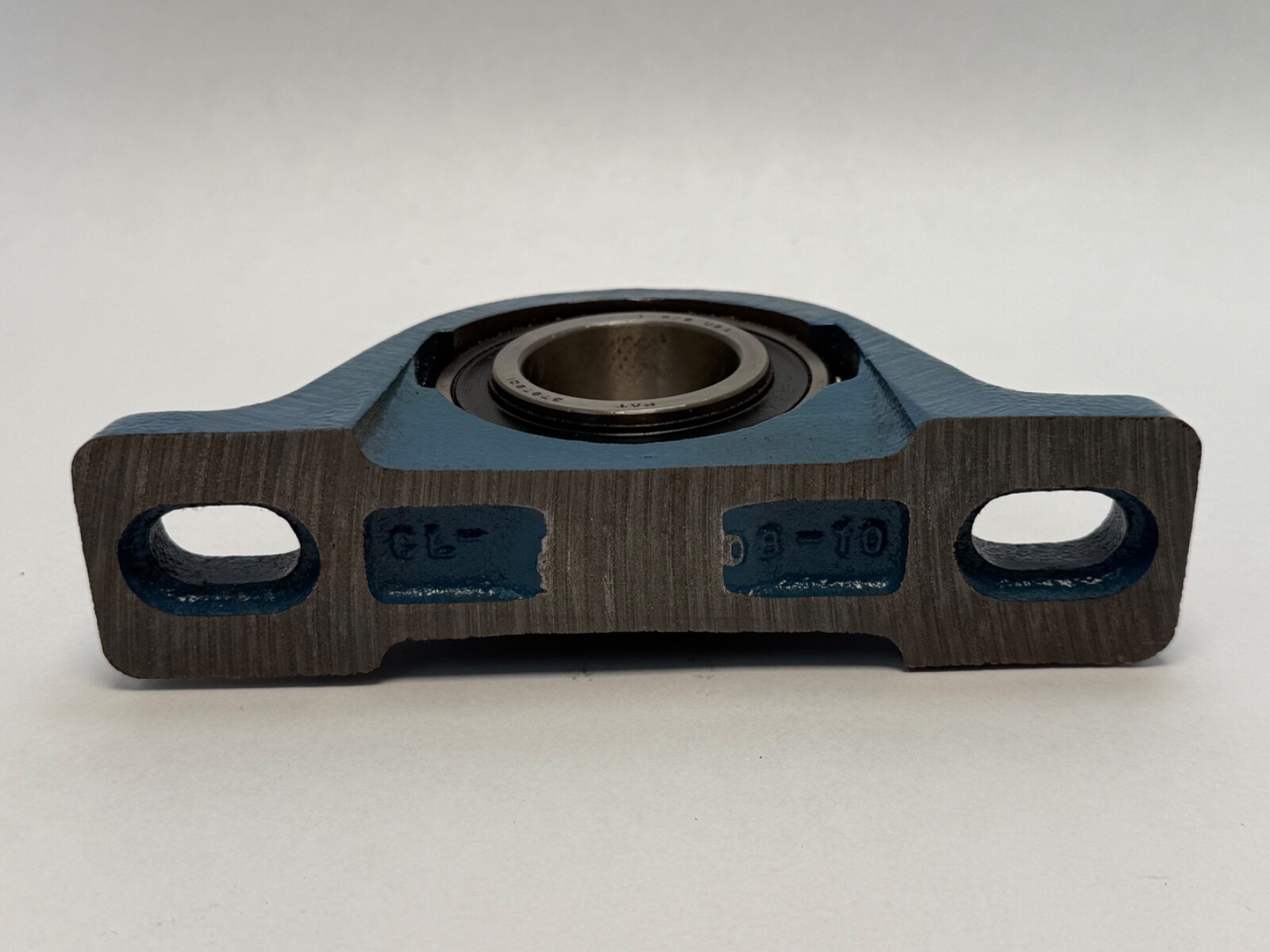

Mounting: base mounted through two bolt holes, shaft parallel to the mounting surface. Low backing places the shaft centre closer to the mounting surface than the standard-backing C-25-1-5/8. The spherical outer race seats in a matching housing bore, so the unit takes up angular error at installation. Spring locking retains the insert on the shaft through a spring arrangement, with no screws driven into the shaft surface.
Reference numbers for the same 1-5/8 in two-bolt pillow block position: NPL-26, Dodge P2B-SCB-110, MB 123858. Related builds: the standard-backing C-25-1-5/8, and a 35-series insert in the same housing, which is medium duty. Searchable variants: CL-25-1-5/8, CL251-58, CL 25 1-5/8, CL-25-1.5/8, 123858.
What shaft size does the CL-25-1-5/8 fit?1-5/8 in (41.28 mm).
What does CL mean in the MB designation?A pillow block with the low backing dimension; the standard-backing pillow block is coded C.
How is the insert locked to the shaft?Spring locking.
