Single direction thrust ball bearing, 25 x 58 x 29.808 mm, machined brass cage. Dynamic load rating 65,000 N, static 110,000 N, limiting speed 4,500 rpm.
List Price
$47.71
16 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 225147 M |
| Model | 225147-M |
| ID | 25 mm |
| OD | 58 mm |
| Width | 29.808 mm |
| Mpn Variants | 225147 M, 225147-M, 225147M |
|---|---|
| Precision Class | Normal |
| Dynamic Load Rating | 65,000 N |
| Static Load Rating | 110,000 N |
| Item Weight | 0.454 kg (1.00 lb) |
| Cage Material | Machined brass |
| Limiting Speed | 4,500 rpm |
| Snap Ring Included | No |
| Bearing Material | Bearing steel |
| Bearing Type | Grooved Thrust Bearing |
| Closure Type | Open |

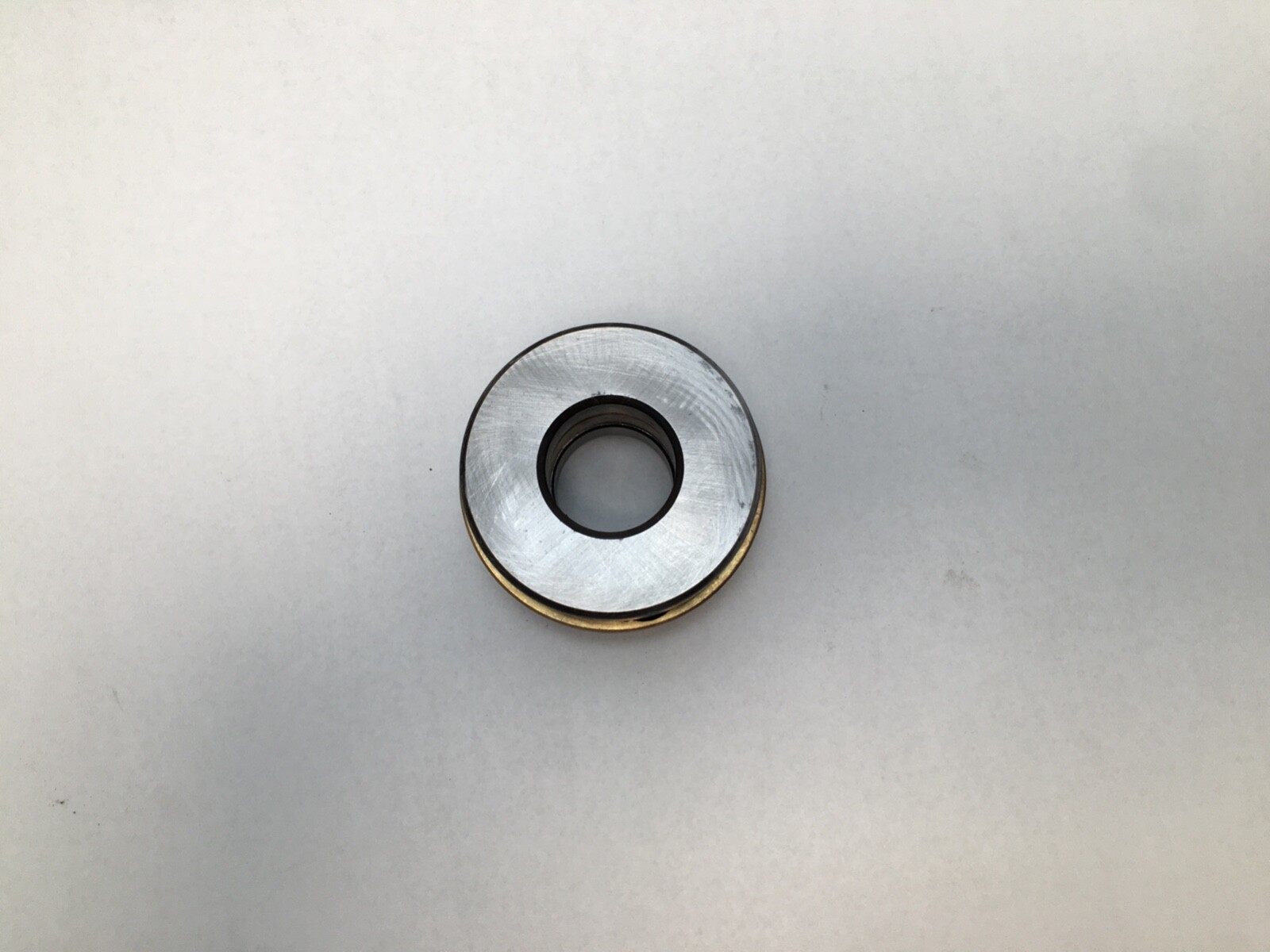

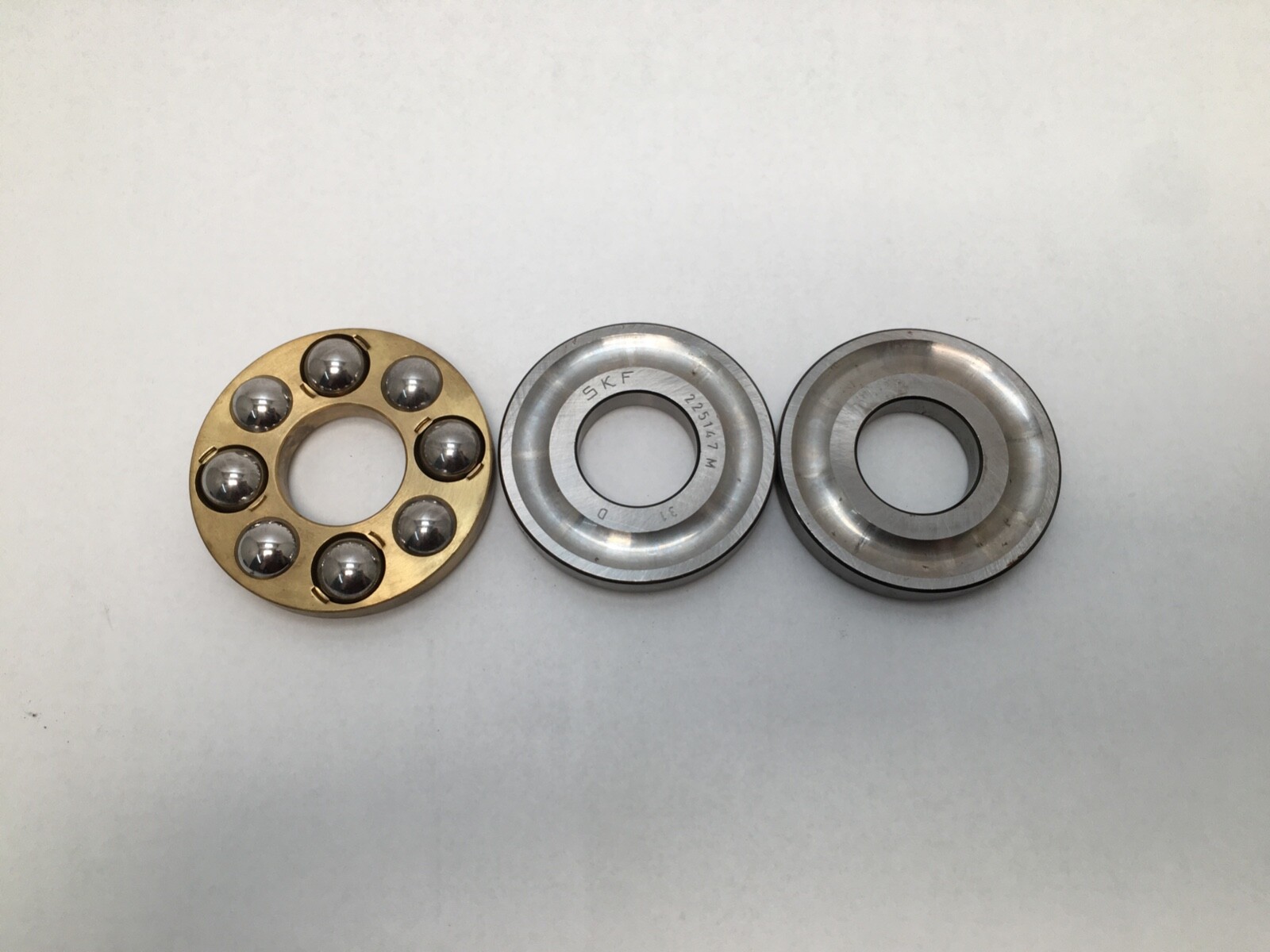

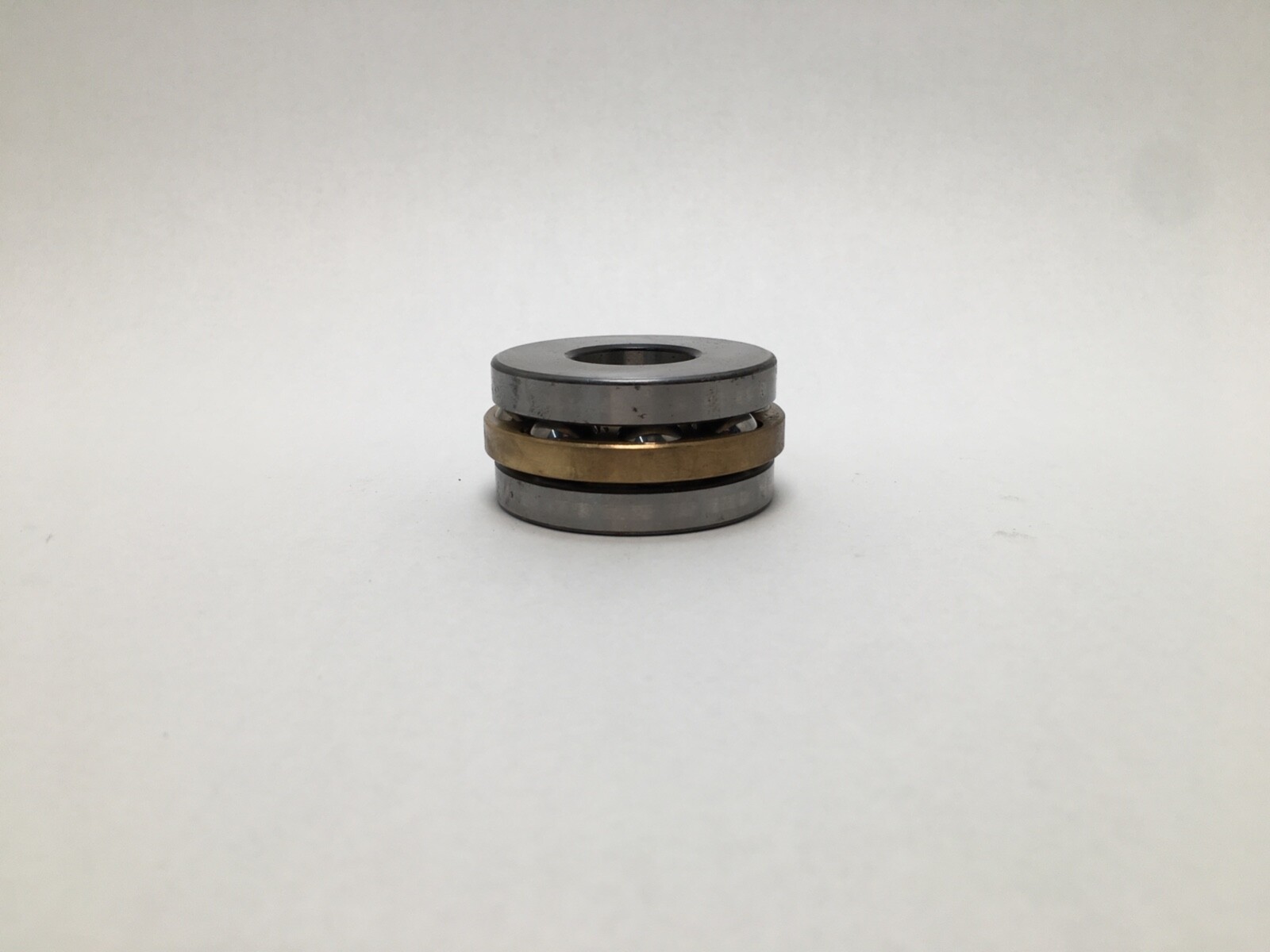

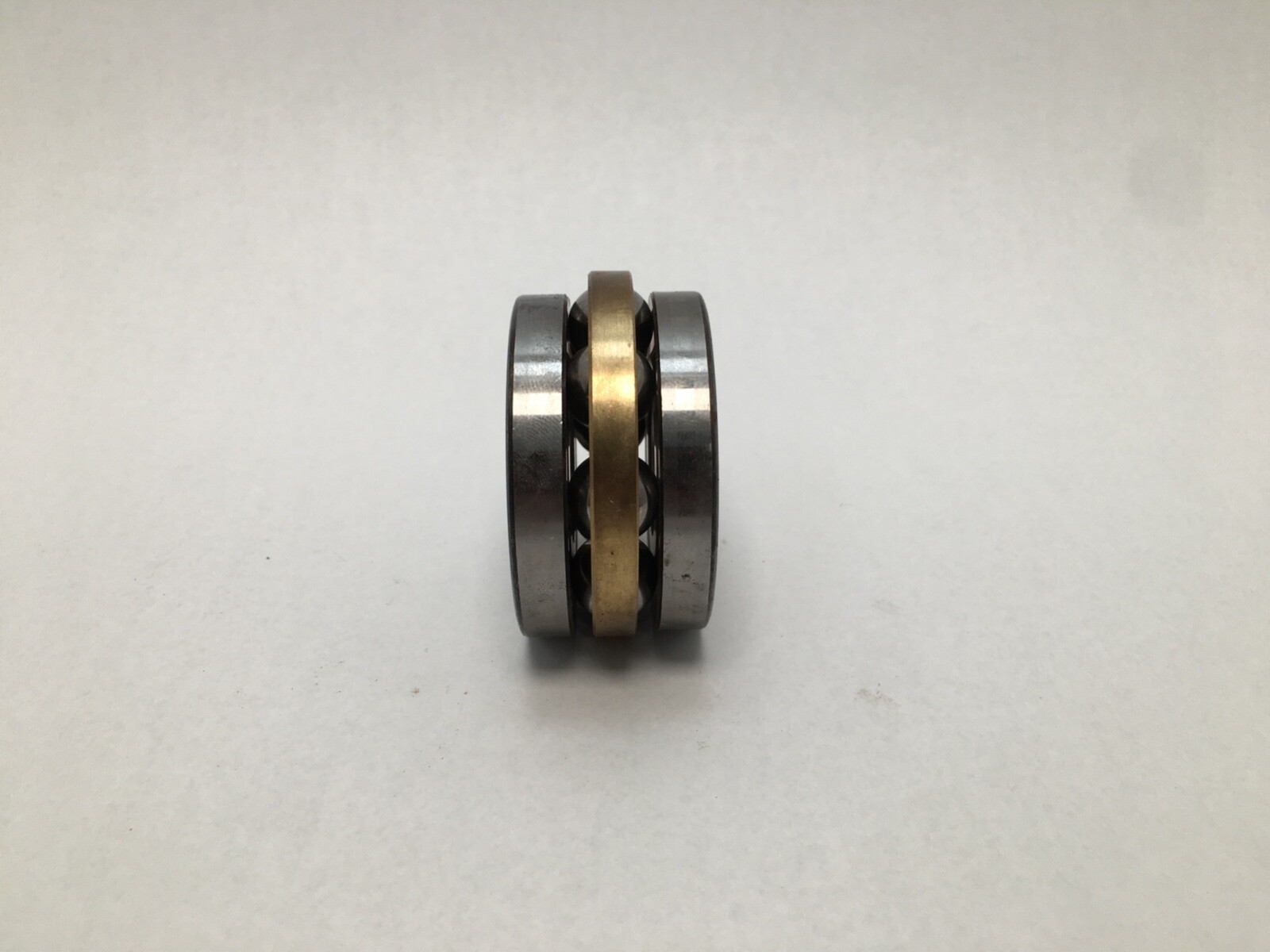

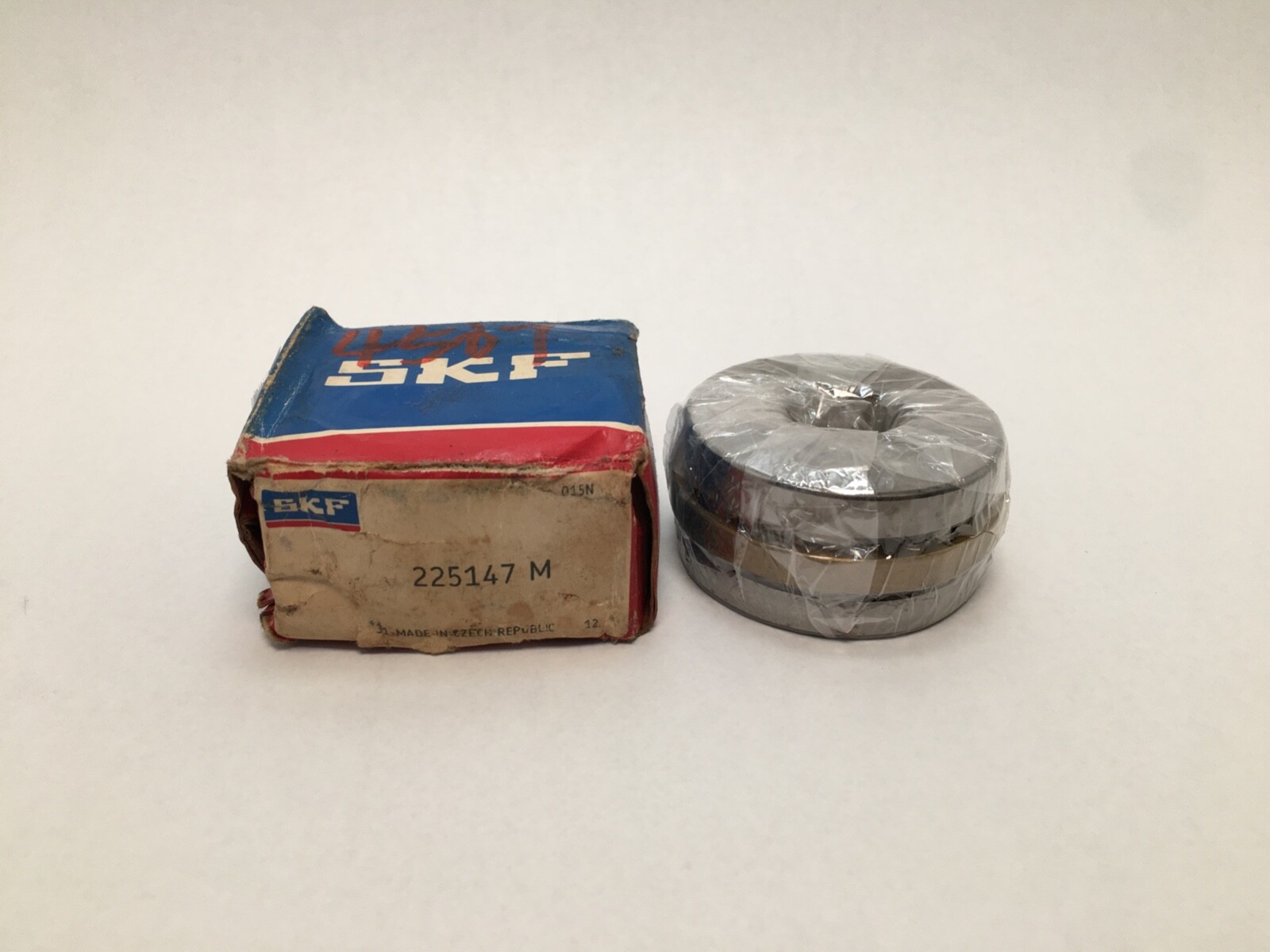

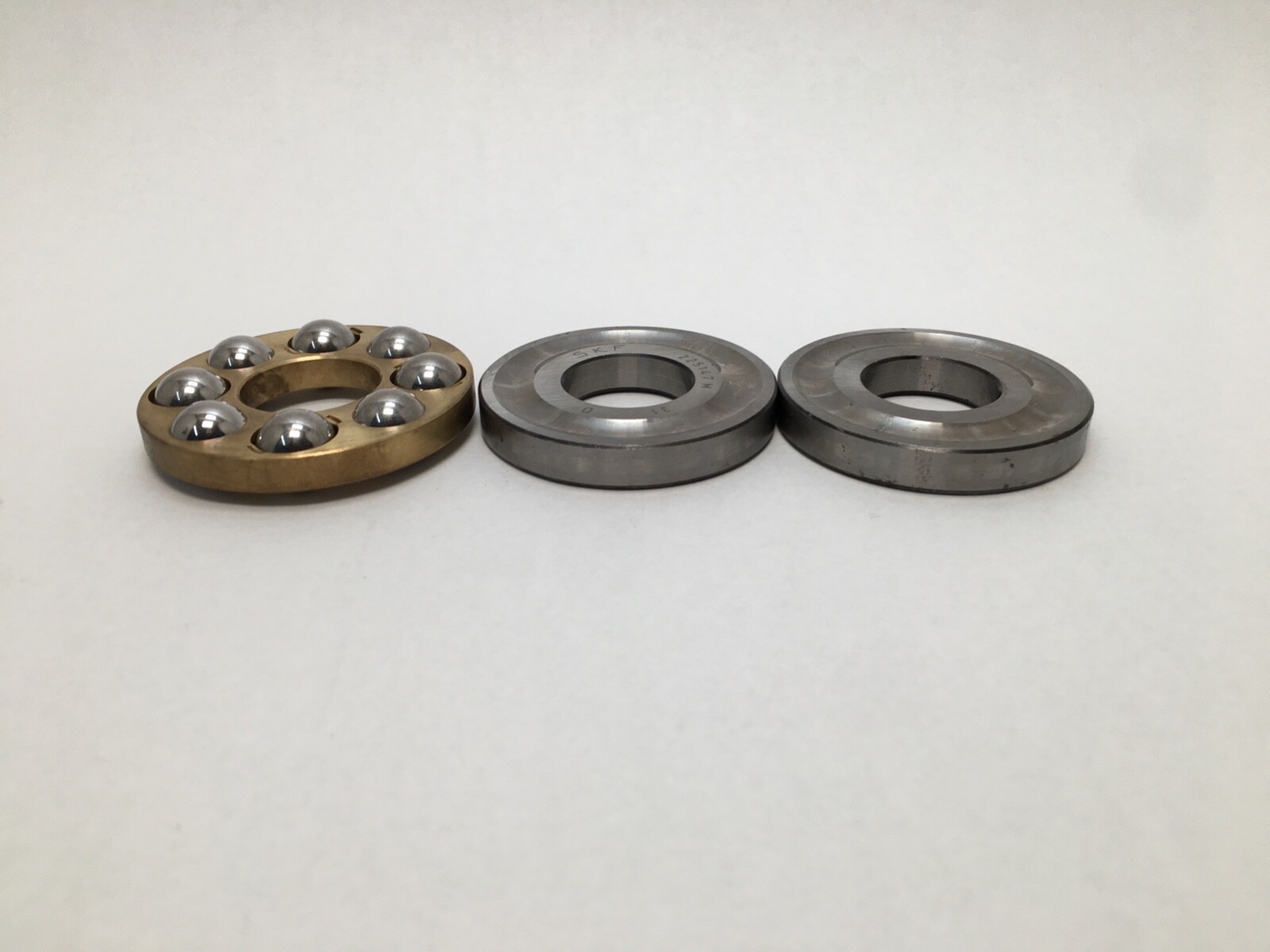

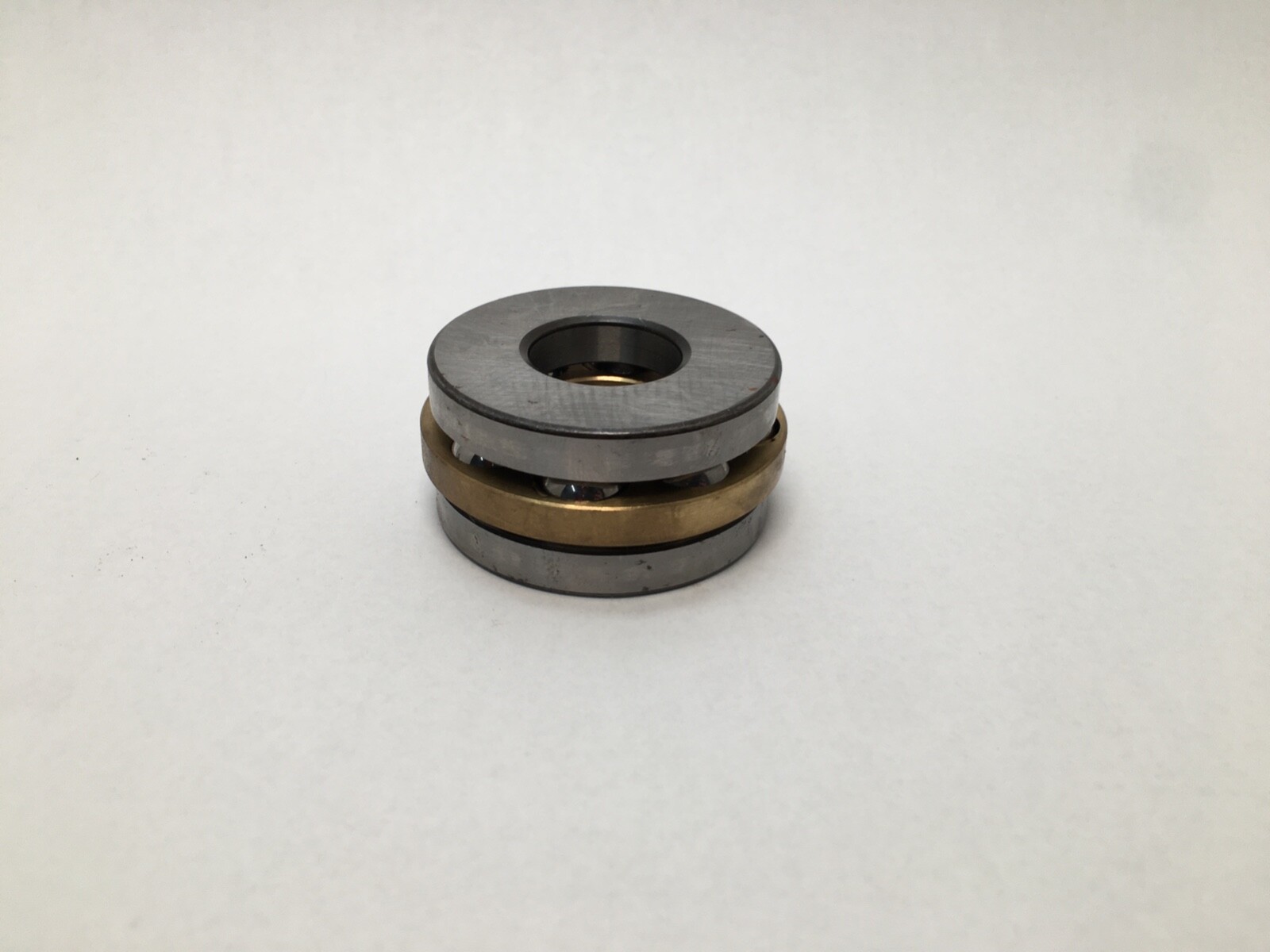

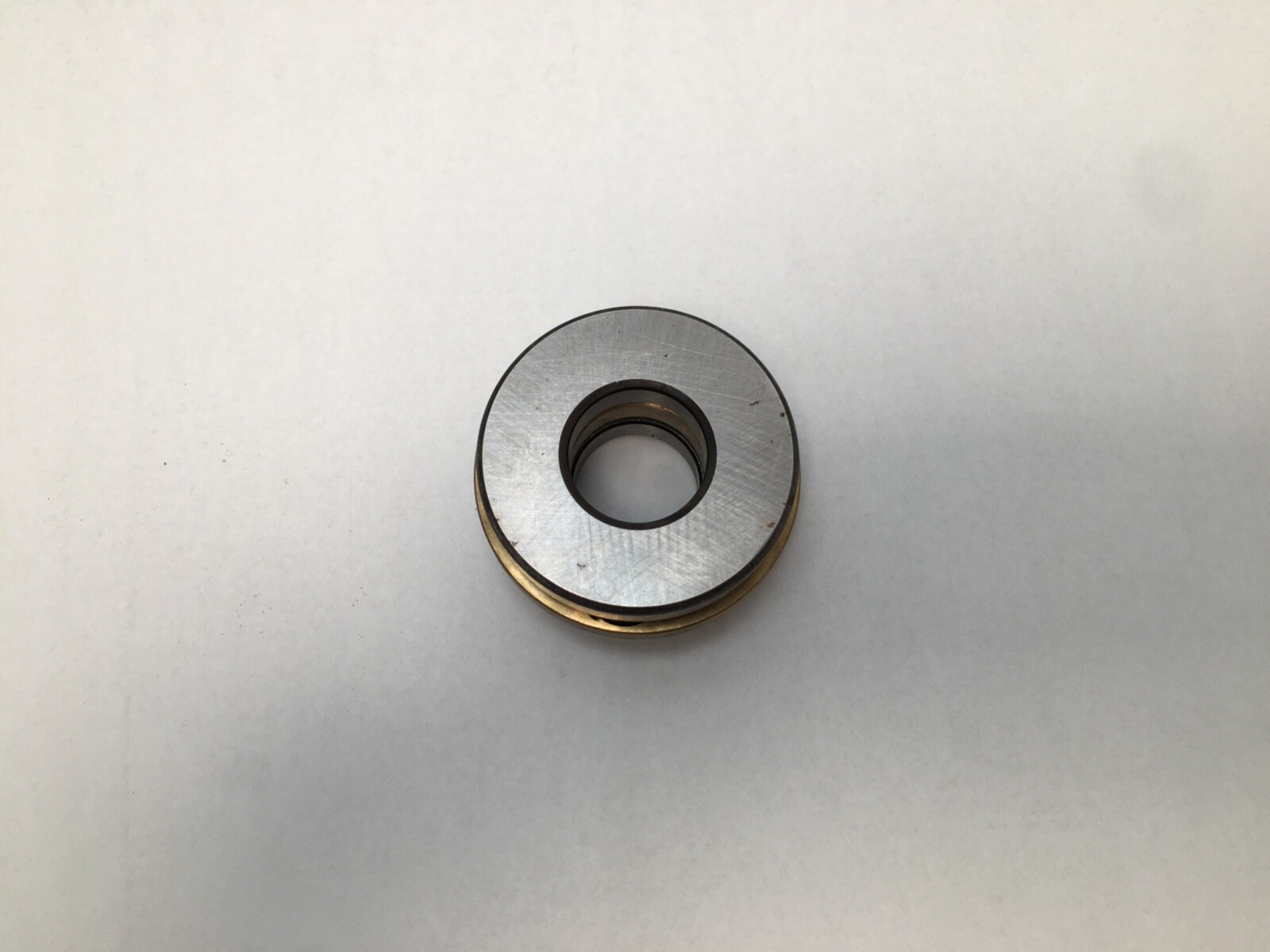

SKF 225147 M is a single direction thrust ball bearing with a machined brass cage, an SKF drawing-number size. It carries axial load in one direction. Shaft washer, housing washer and ball-and-cage assembly are separable. Unit Quantity: 1 Pc, complete bearing.

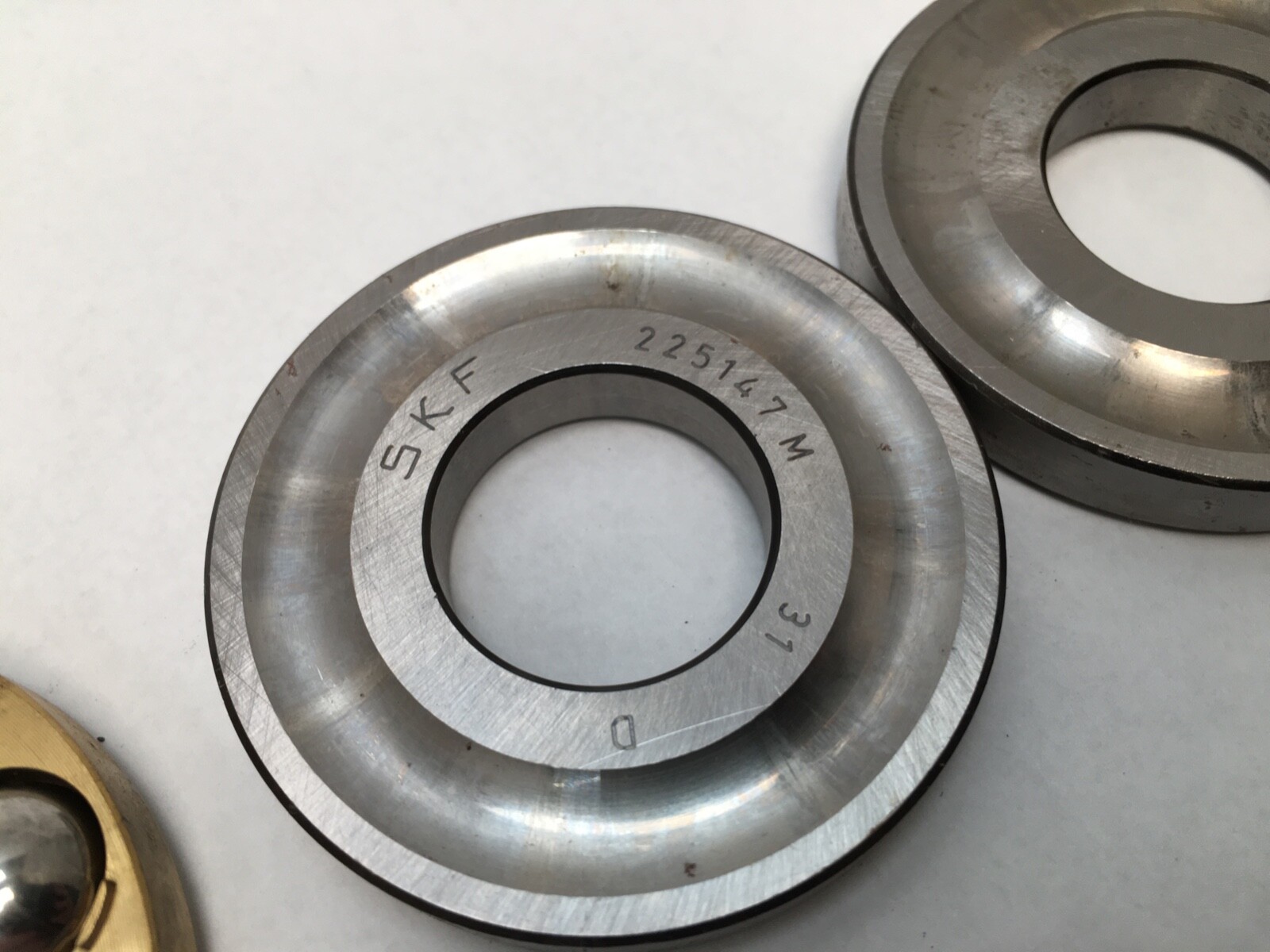

225147 — SKF drawing number for this thrust bearing size, 25 x 58 x 29.808 mm.
M — machined brass cage.
Dynamic Load Rating: 65,000 N. Static Load Rating: 110,000 N. Reference Speed: 3,200 rpm. Limiting Speed: 4,500 rpm. Axial Load Capability: Single-direction. Number Of Rows: 1. Tolerance Class: Normal. Cage Material: Machined brass. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 0.454 kg (1.00 lb). GTIN: 7316577007568.
Bore Diameter: 25 mm. Outside Diameter: 58 mm. Height: 29.808 mm. Housing Washer Type: Flat.
Bore diameter 25 mm, outside diameter 58 mm, height 29.808 mm.
M is the SKF suffix for a machined brass cage.
Dynamic load rating 65,000 N, static load rating 110,000 N, reference speed 3,200 rpm, limiting speed 4,500 rpm.
