Single-row imperial tapered roller bearing, matched cone and cup, 3.0000 in bore, 5.5150 in cup OD, K factor 1.44, 303,000 N dynamic radial rating.
List Price
$106.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 5760/5722 |
| Model | 5760 / 5722 |
| Bearing Type | Tapered Roller Bearing |
| ID | 3.0000 in |
| OD | 5.5150 in |
| Series | 5700 |
|---|---|
| Base Number | 5760/5722 |
| Industry Terms | tapered roller bearing; taper roller cone and cup; cone and race set; imperial taper bearing; wheel bearing set |
| Common Misspellings | 5760 5772; 5760/5772; 5706/5722; Timkin 5760/5722; 5760-5722A |
| Application Types | Wheel ends; pinion positions; gearboxes; industrial drives; agricultural and construction machinery |
| Bore Shaft Size | 3.0000 in (76.2 mm) |
| Mpn Variants | 5760/5722; 5760-5722; 5760 5722; 5760/5722 SET; 5760 |
| Compatible With Replaces | 5760 cone mates with 5722 cup only |
| Dynamic Axial Rating Ca90 | 12,300 lbf / 54,600 N |
| K Factor | 1.44 |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 5722 |
| Part Number | 5760/5722 |
| Cone Part Number | 5760 |

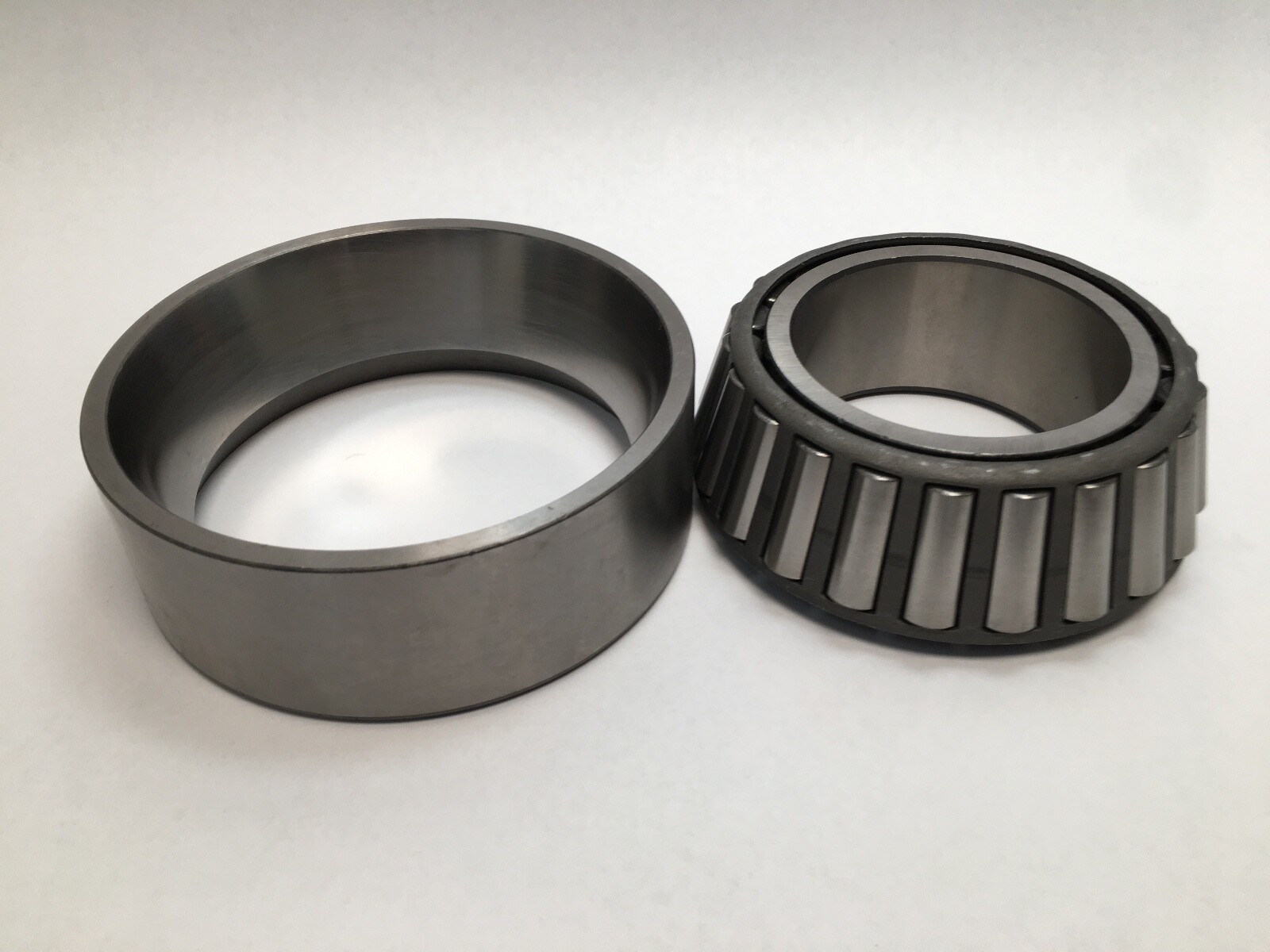

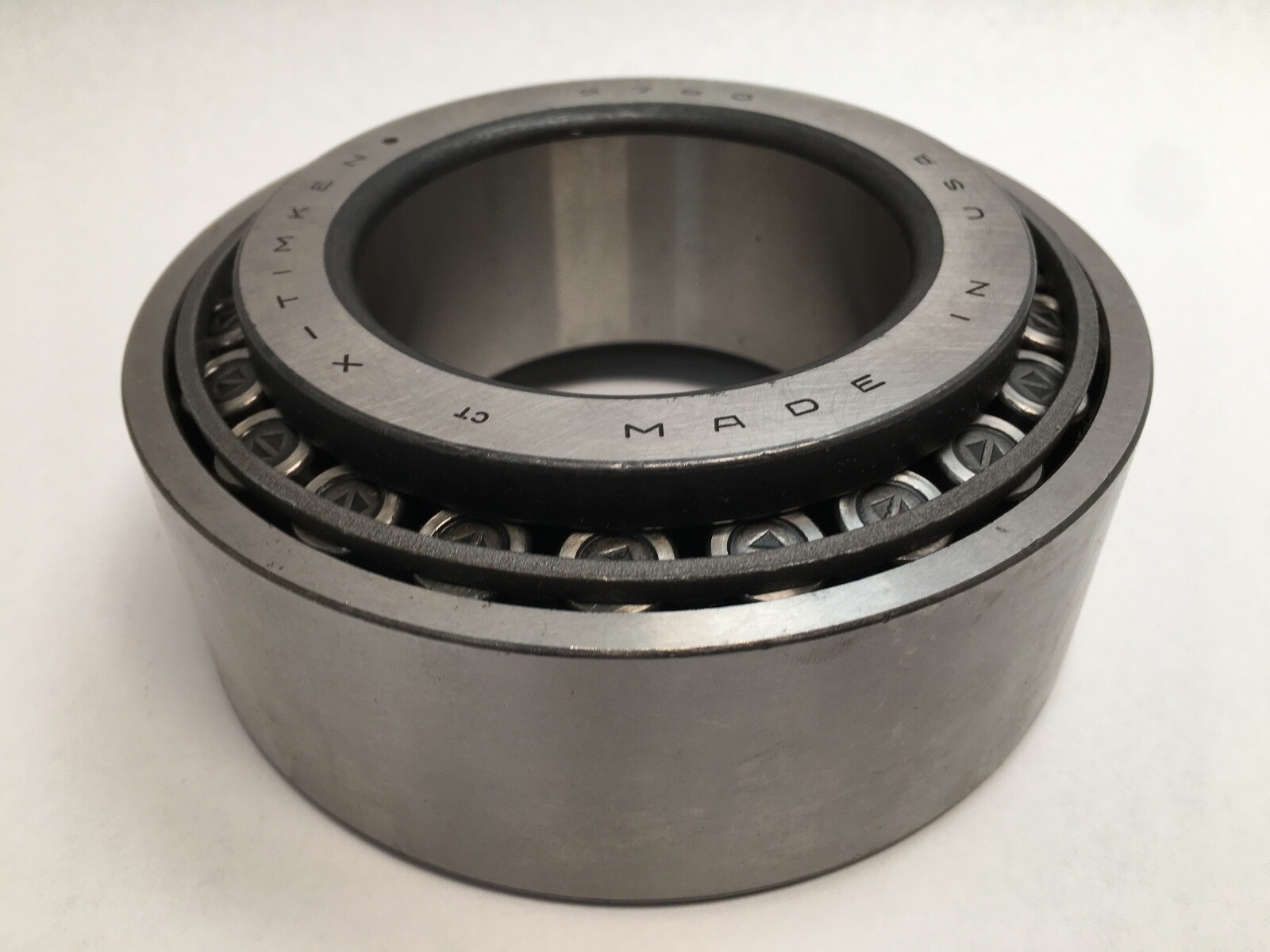

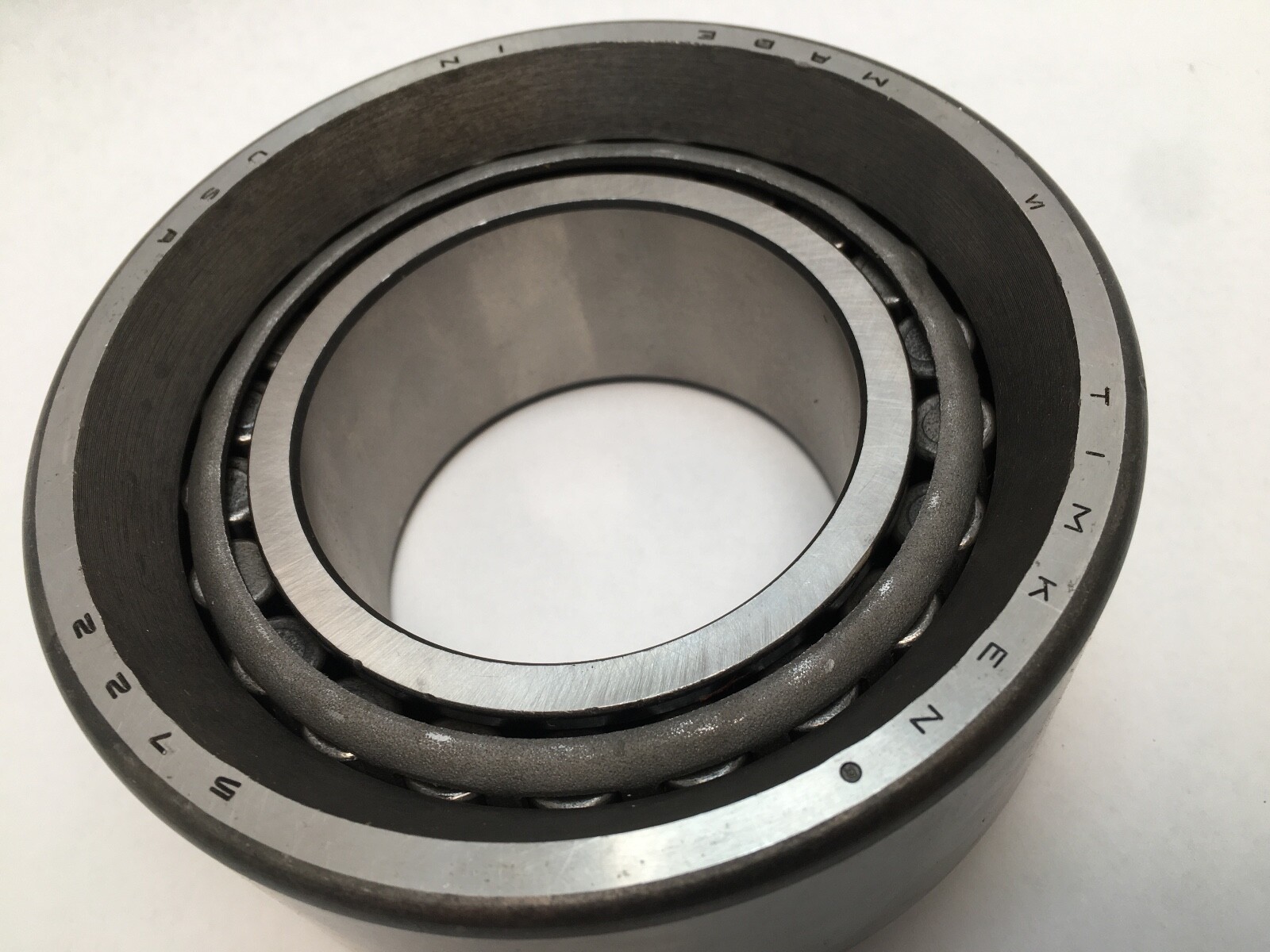

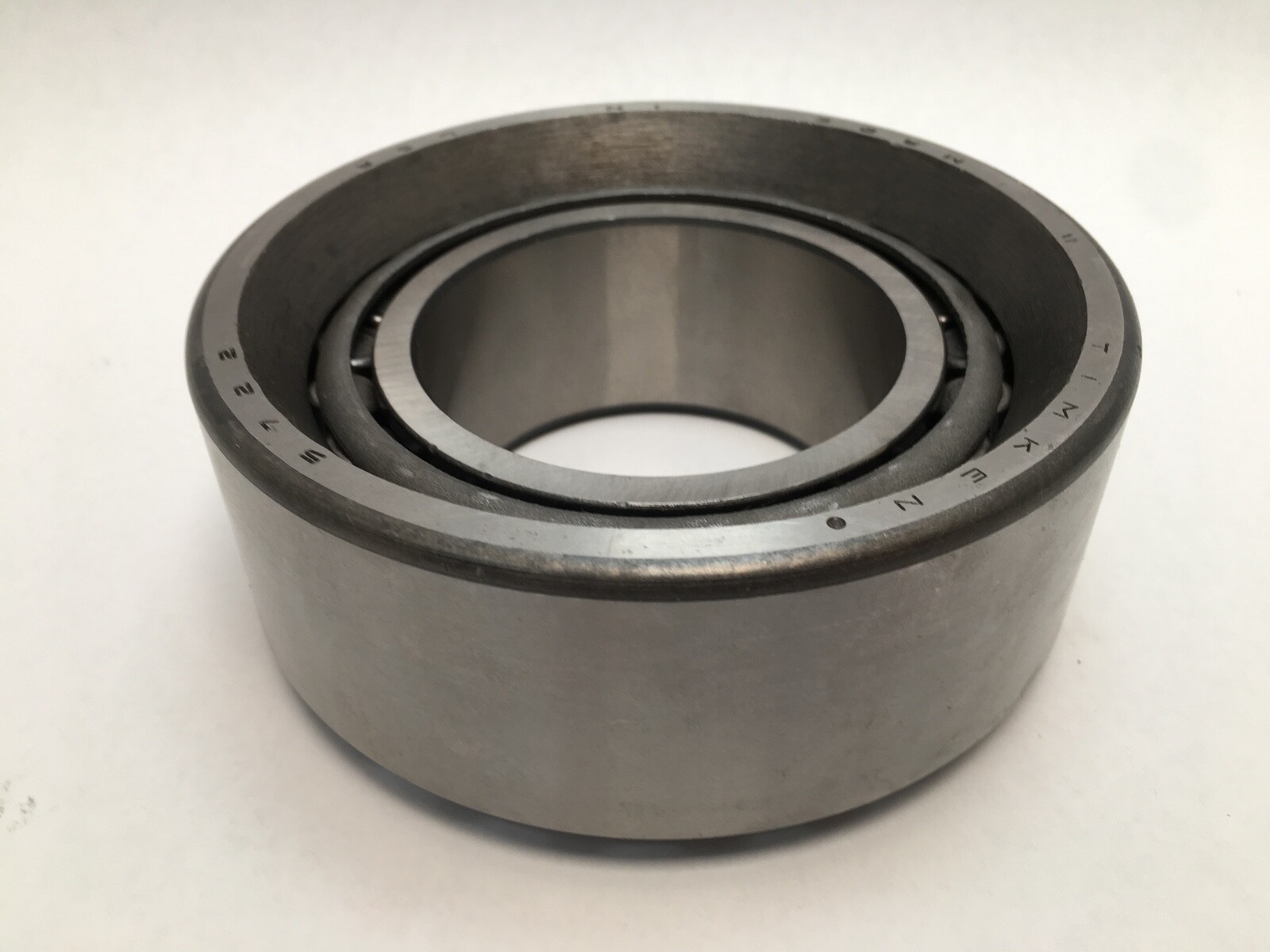

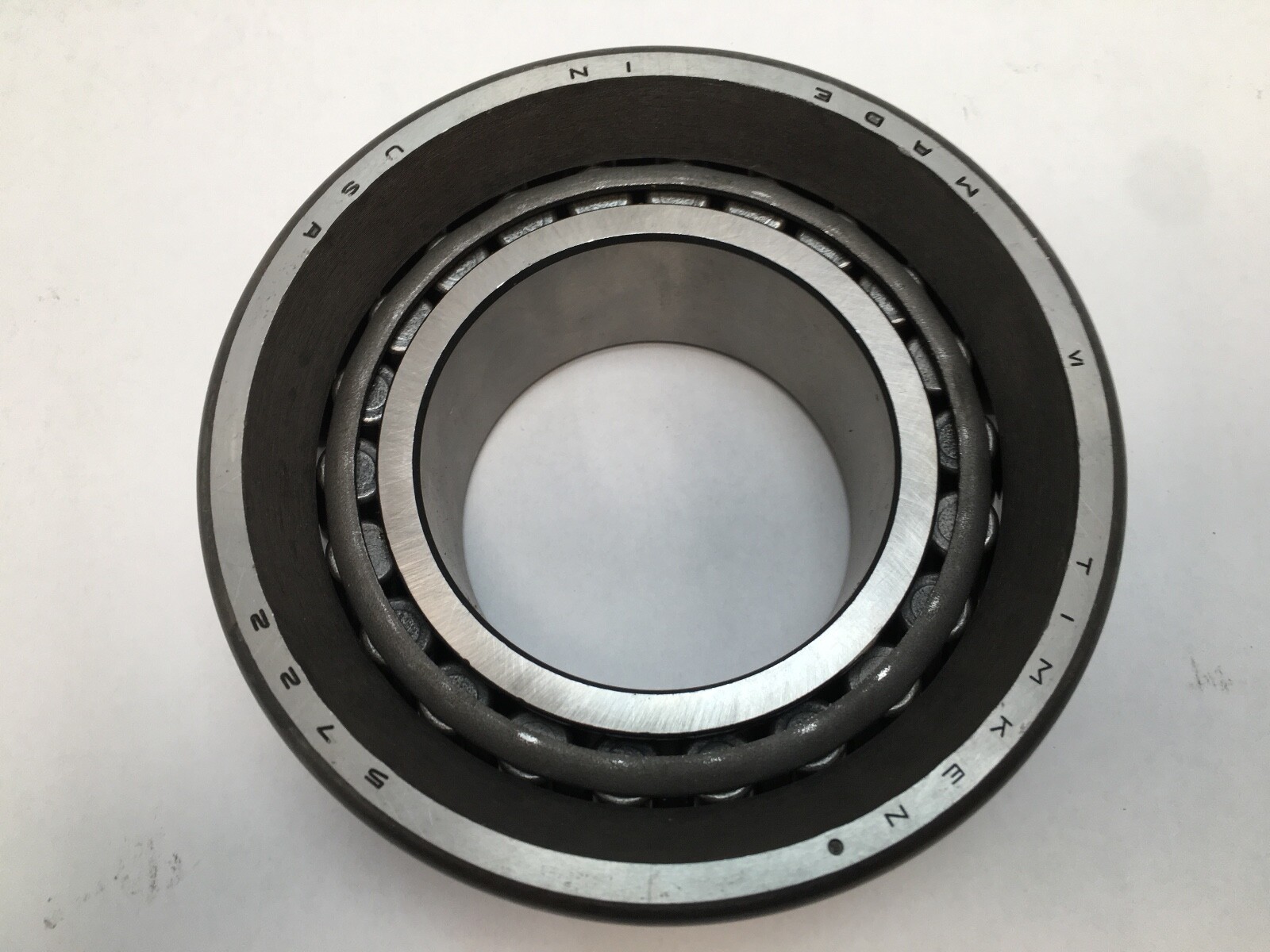

Timken 5760/5722 single-row tapered roller bearing supplied as a matched set: the 5760 cone, which is the inner ring with its rollers and cage, together with the 5722 cup, which is the outer ring. Unit Quantity: 1 Pc, comprising one cone and one cup. Bore Diameter: 3.0000 in (76.2 mm). Cup Outside Diameter: 5.5150 in.

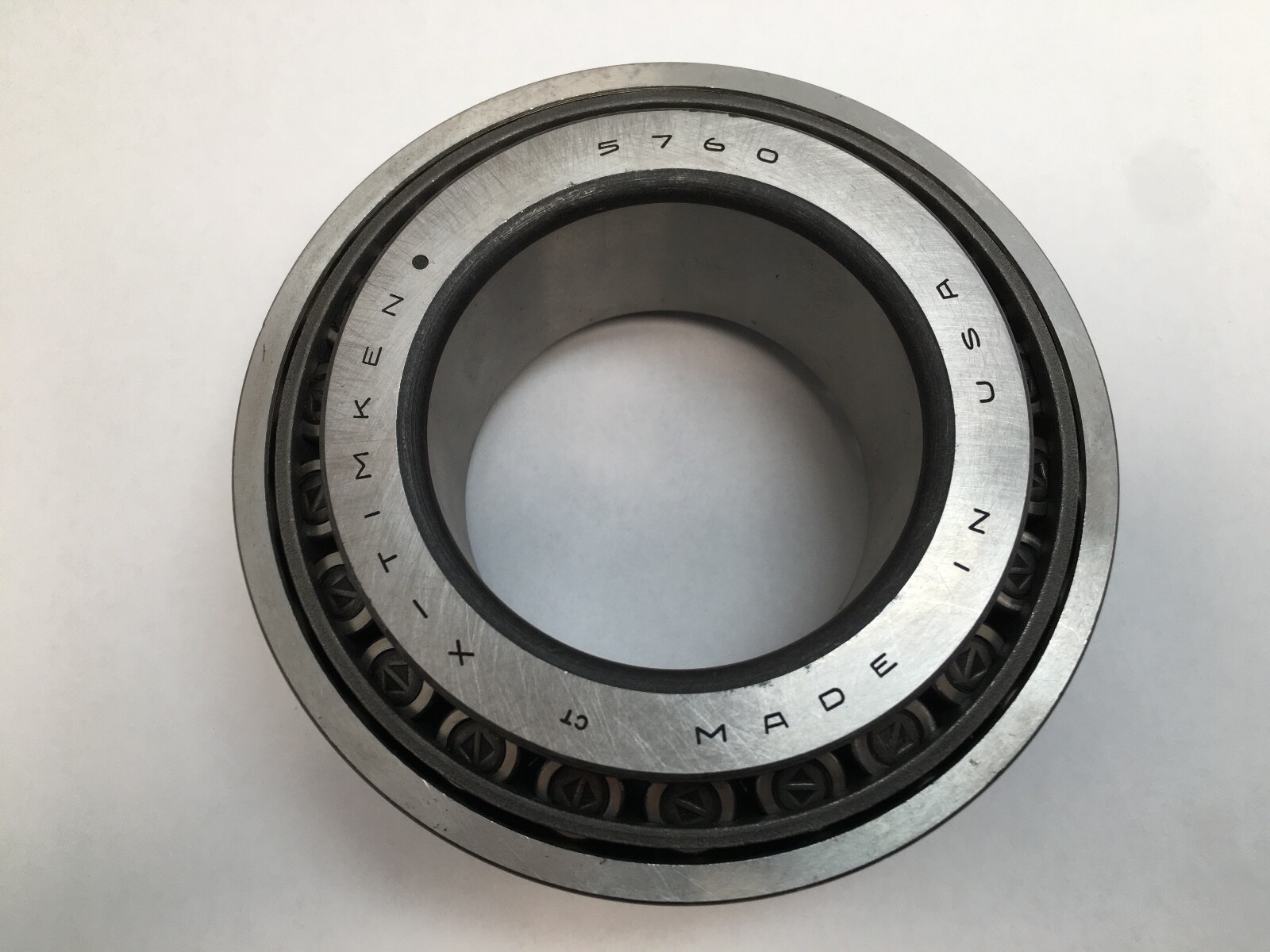

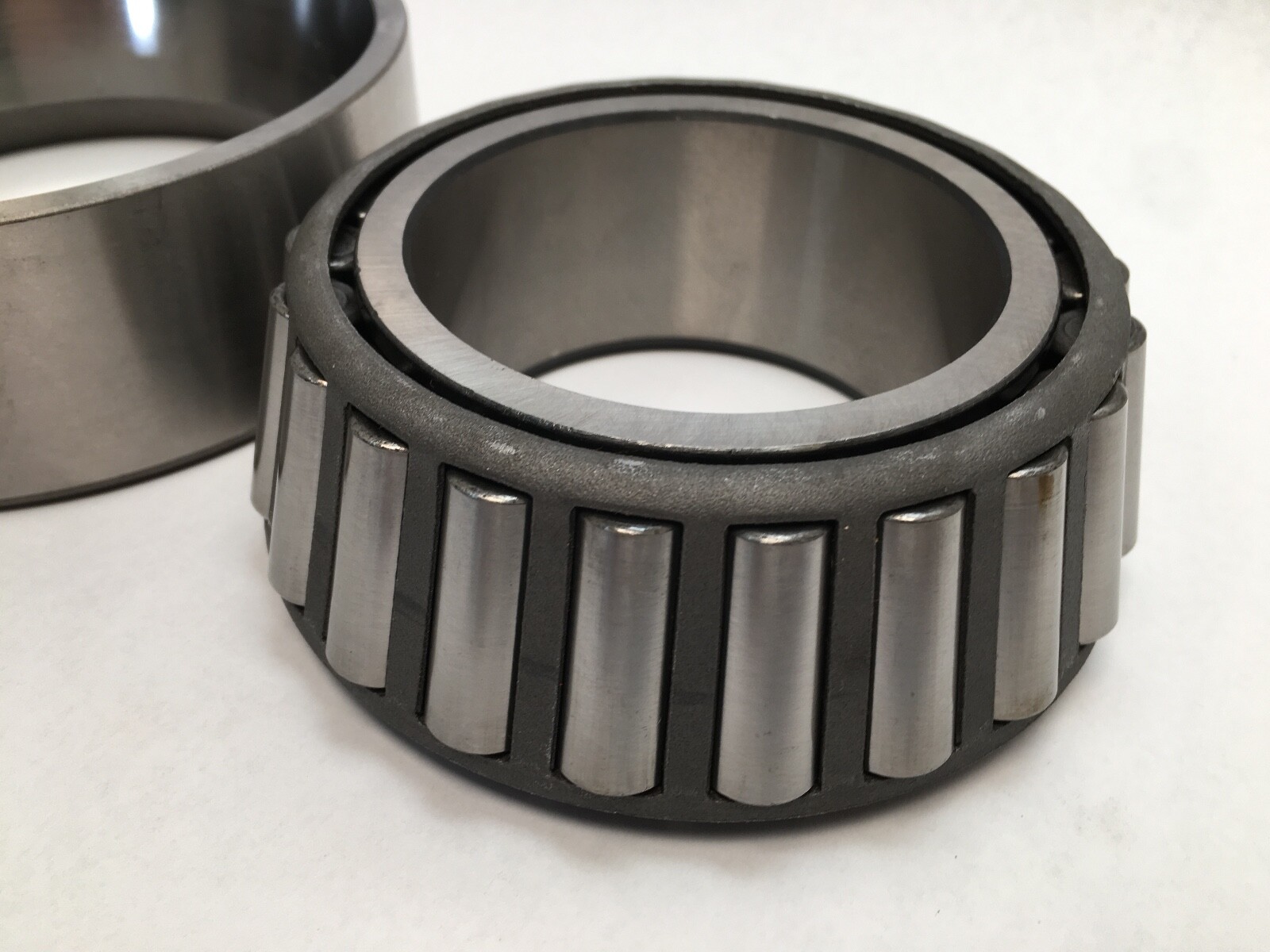

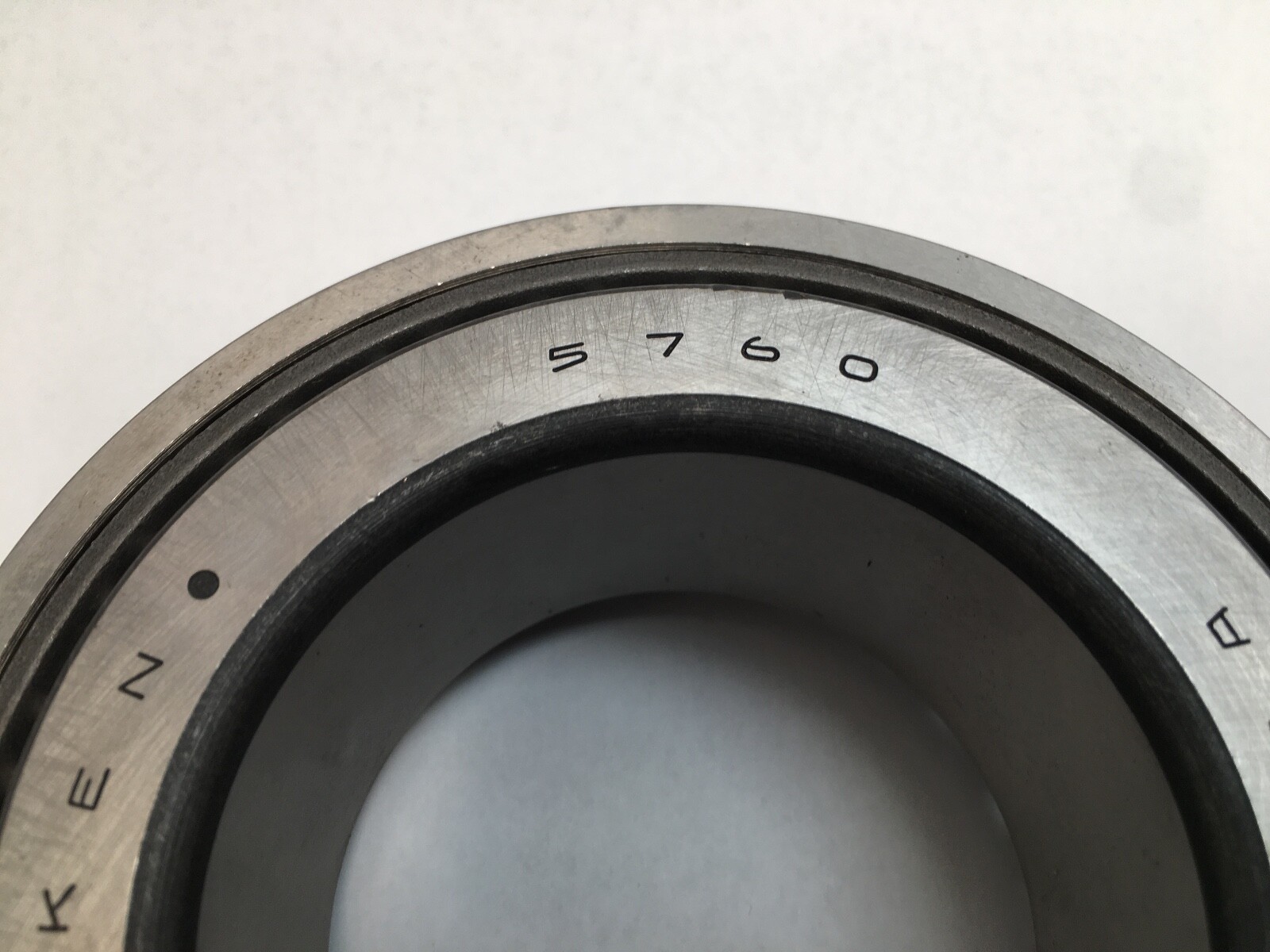

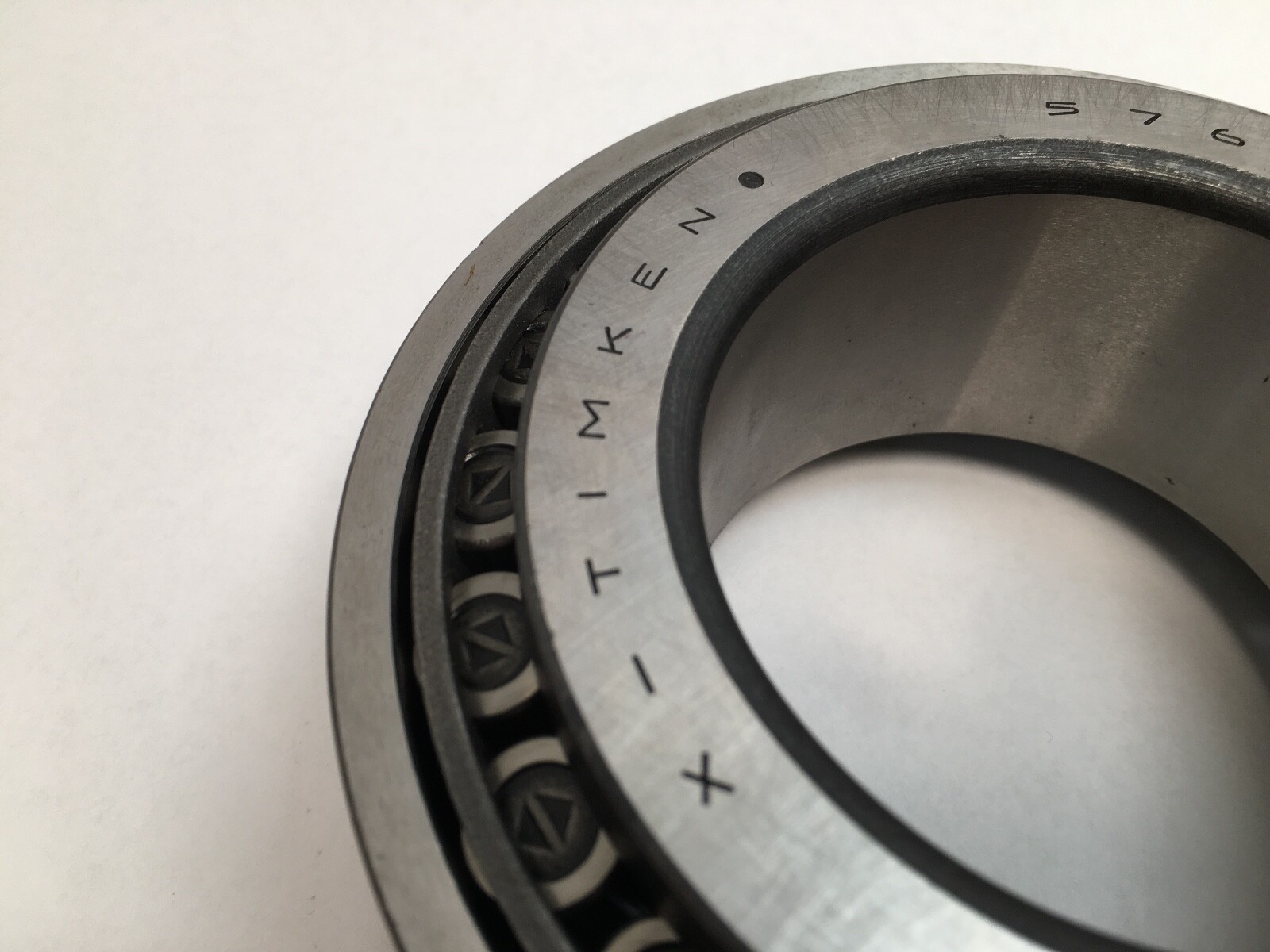

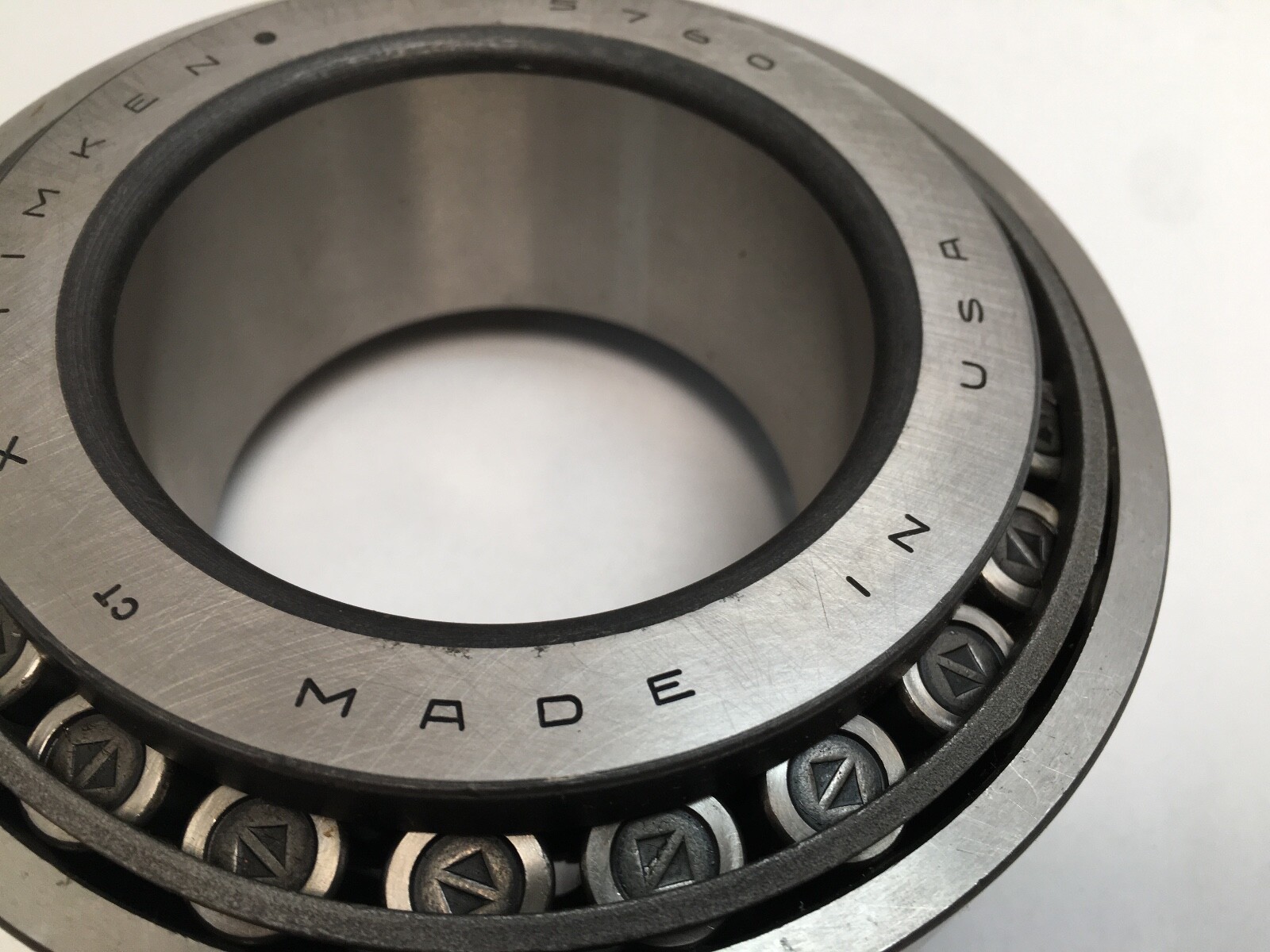

5760 — the cone, comprising inner ring, tapered rollers and cage as one assembly.

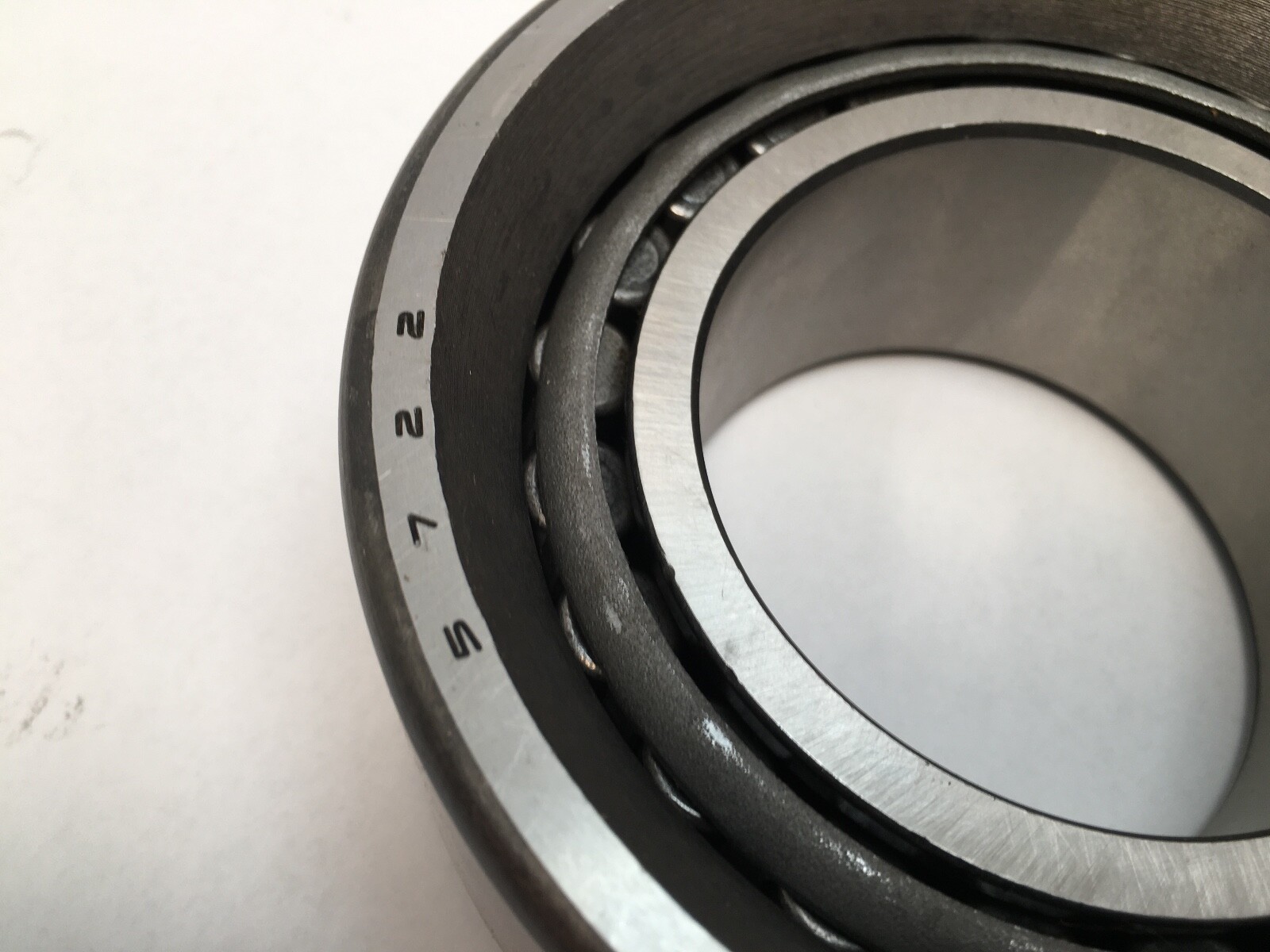

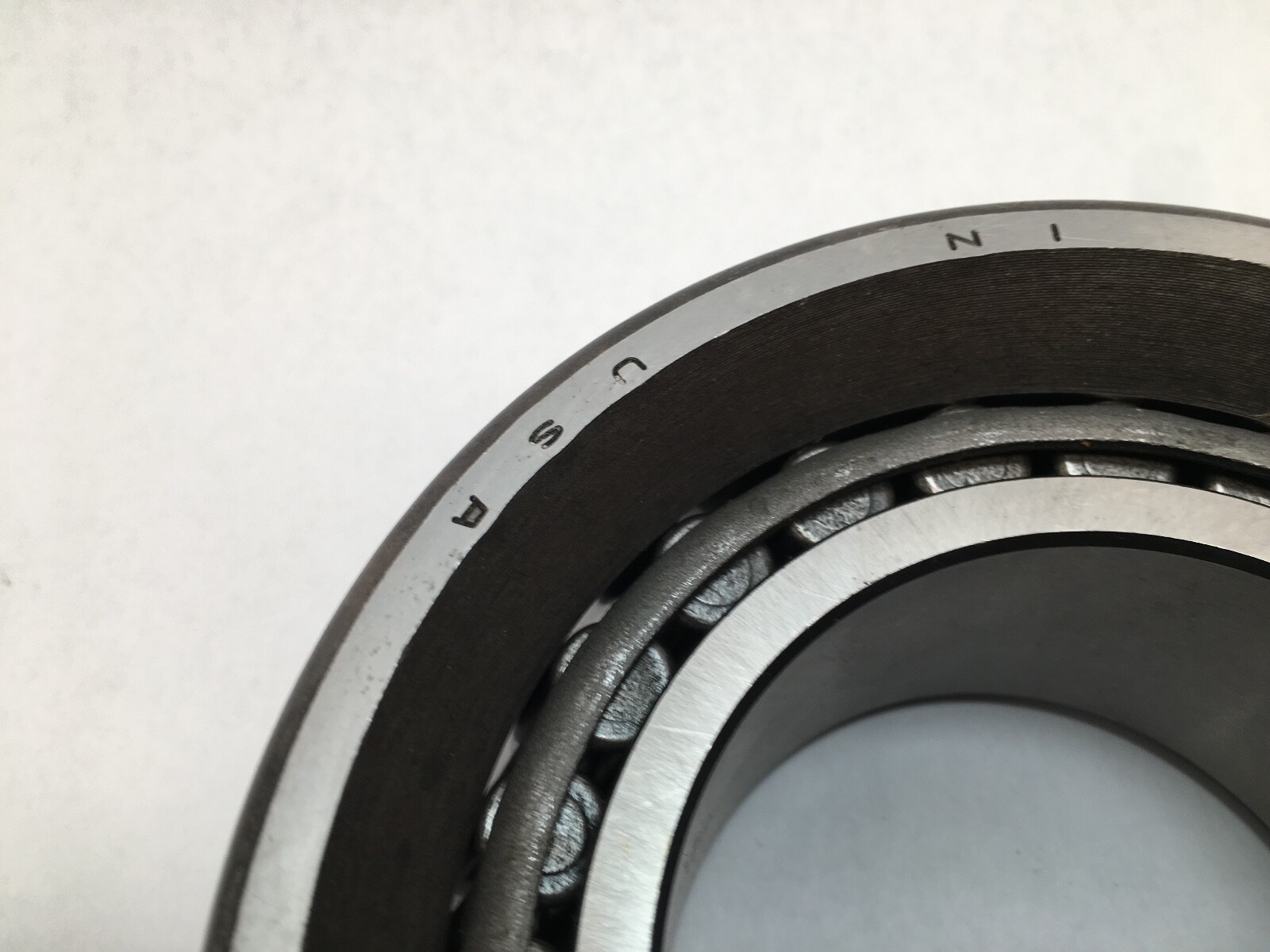

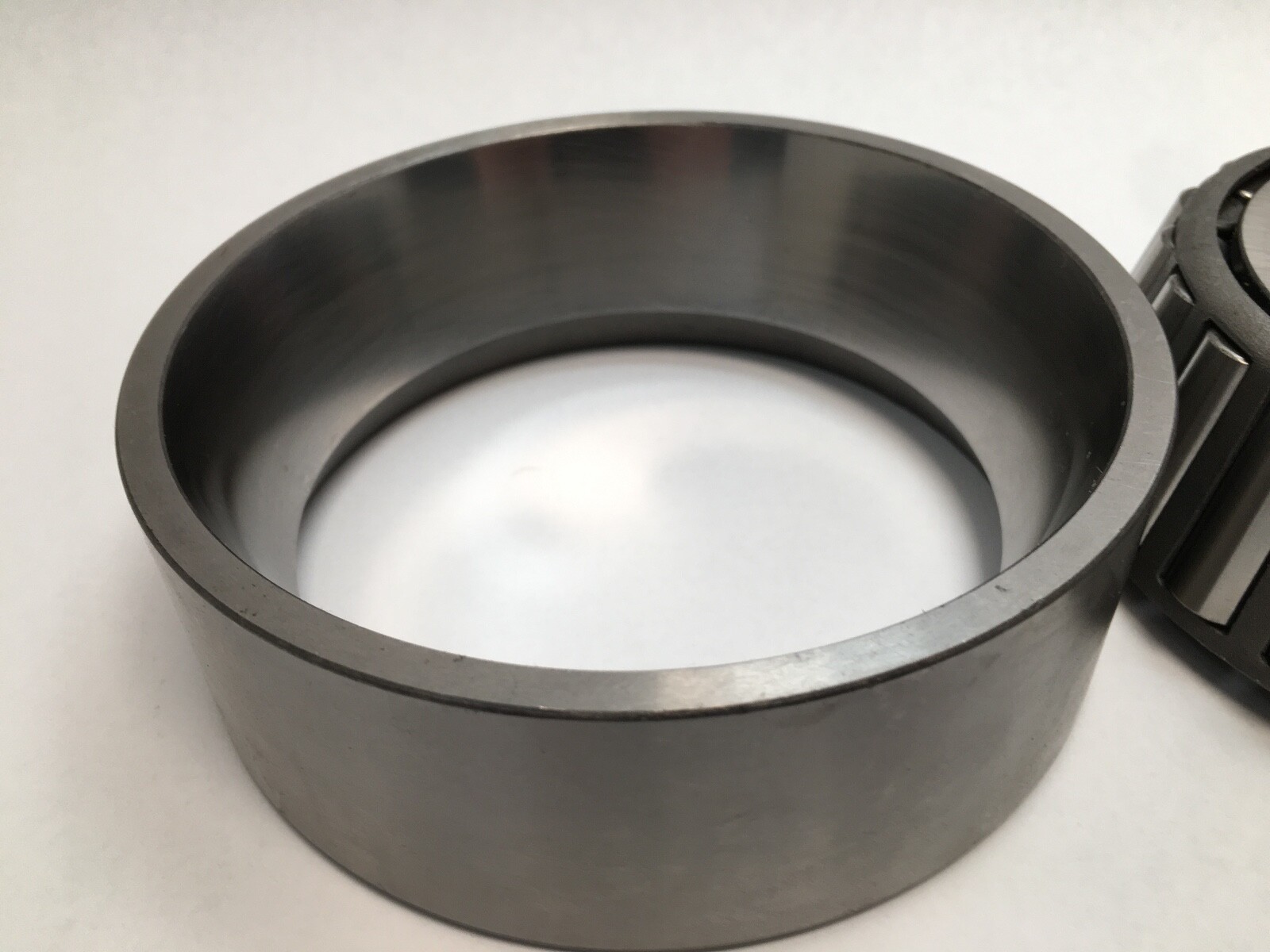

5722 — the cup, the outer ring with the matching raceway taper.
Cone Part Number: 5760. Cup Part Number: 5722. Bore Diameter: 3.0000 in / 76.2 mm. Cup Outside Diameter: 5.5150 in. Cone Inner Ring Width (B): 1.8150 in / 46.101 mm. Dynamic Radial Load Rating C1, 1 million revolutions, ISO method: 68,100 lbf / 303,000 N. Dynamic Radial Load Rating C90, 90 million revolutions, Timken method: 17,600 lbf / 78,500 N. Dynamic Axial Rating Ca90: 12,300 lbf / 54,600 N. Static Radial Load Rating C0: 85,400 lbf / 380,000 N. K Factor: 1.44. Cone Weight: 6 lb / 2.7 kg. Series: 5700 imperial series.
Effective Center Location: -0.46 in / -11.7 mm, inside the cone backface. Maximum Shaft Fillet Radius: 0.14 in / 3.560 mm. Shaft backing shoulder diameter, frontface (da): 3.46 in / 88 mm. Shaft backing shoulder diameter, backface (db): 3.7 in / 94 mm.
The 5760 cone mates with the 5722 cup. The 5760-3 cone is a separate part with Timken Class 3 tolerances.

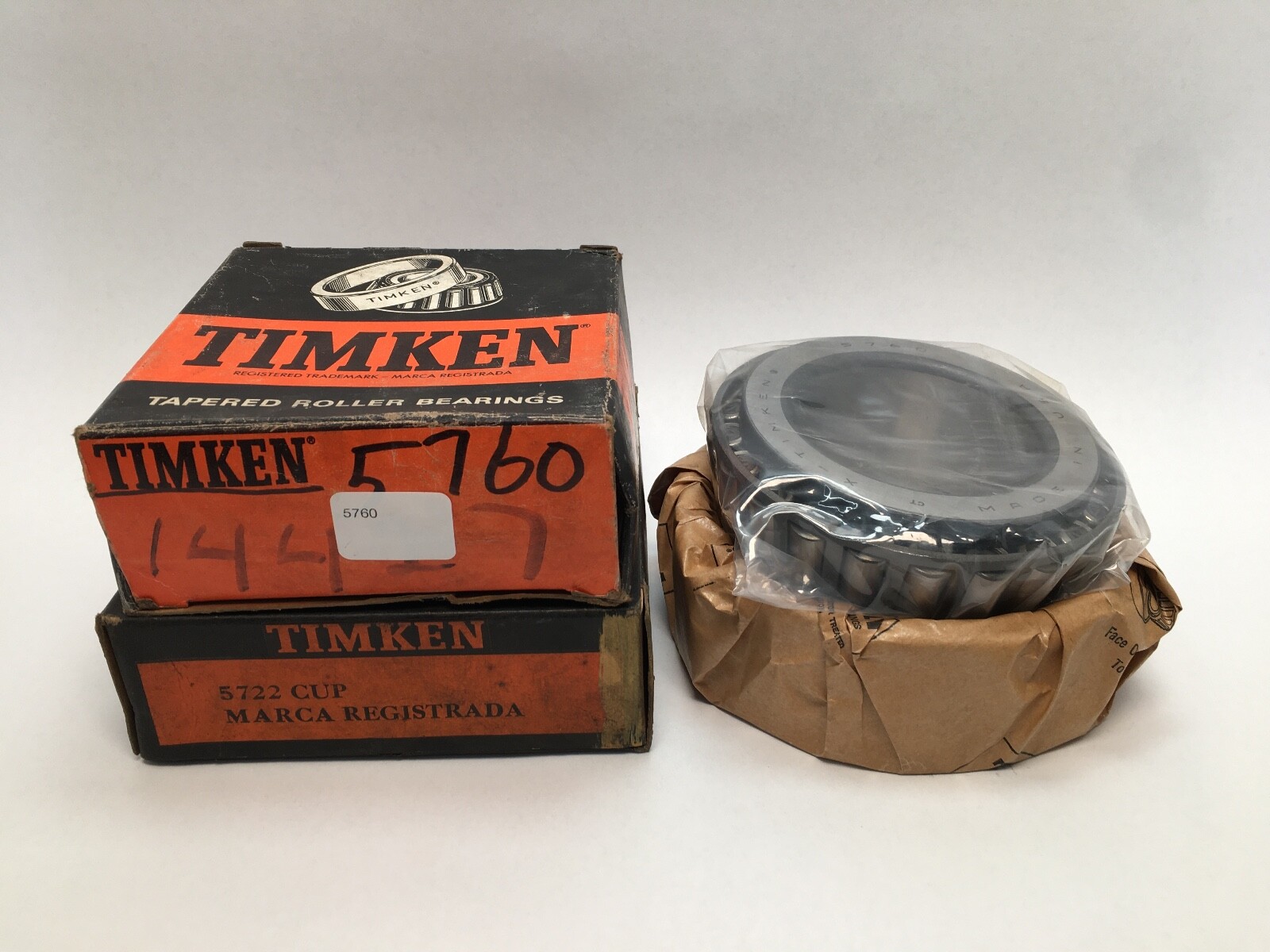

One 5760 cone and one 5722 cup.
Bore Diameter is 3.0000 in (76.2 mm) and Cup Outside Diameter is 5.5150 in.
C1 is 68,100 lbf / 303,000 N at one million revolutions.
