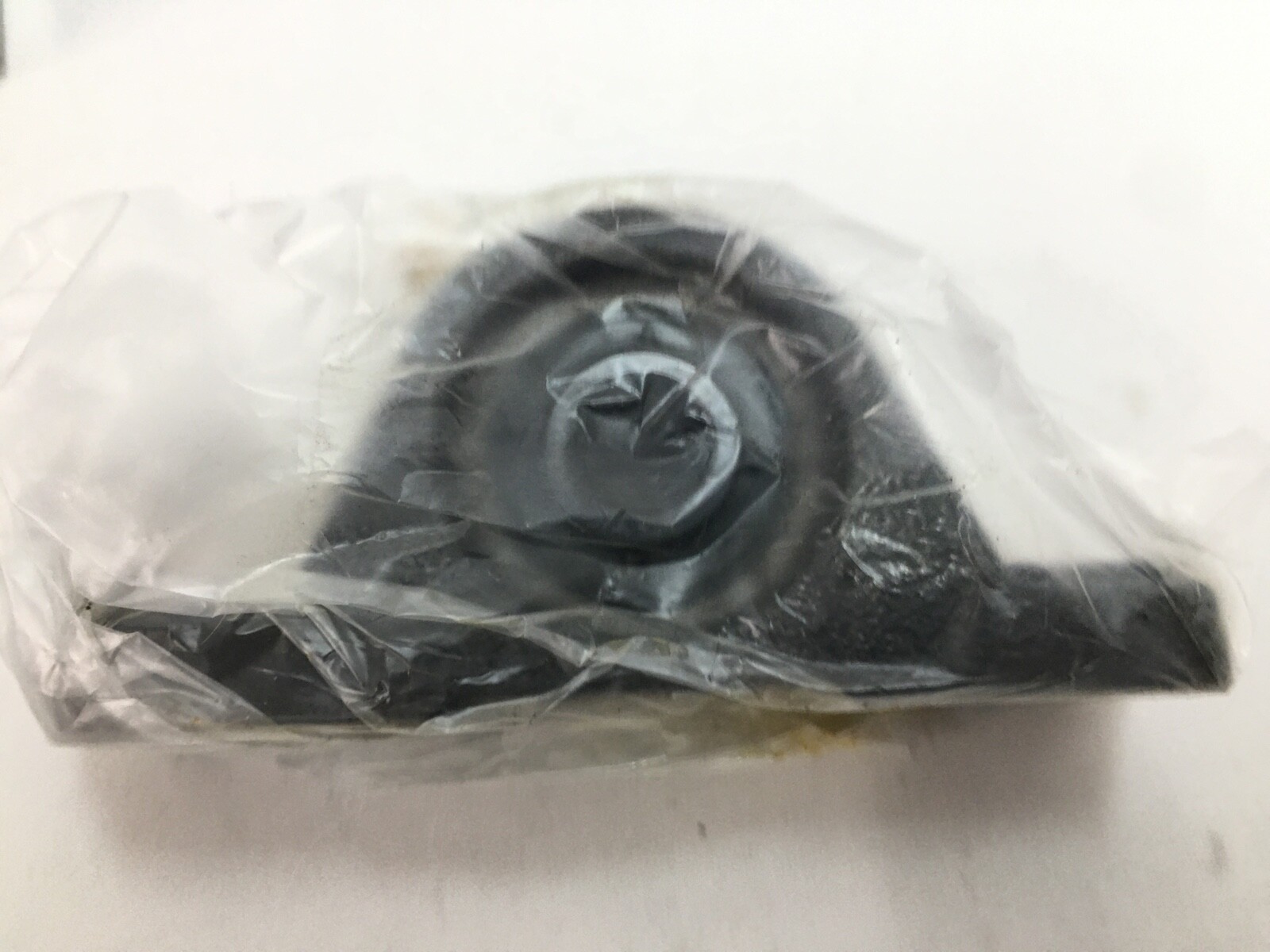

NTNUELP-5/82-Bolt Pillow Block Ball Bearing Unit, 5/8 in Bore, Eccentric Locking Collar, Contact Seals and Flingers

Product Description

What this part is:

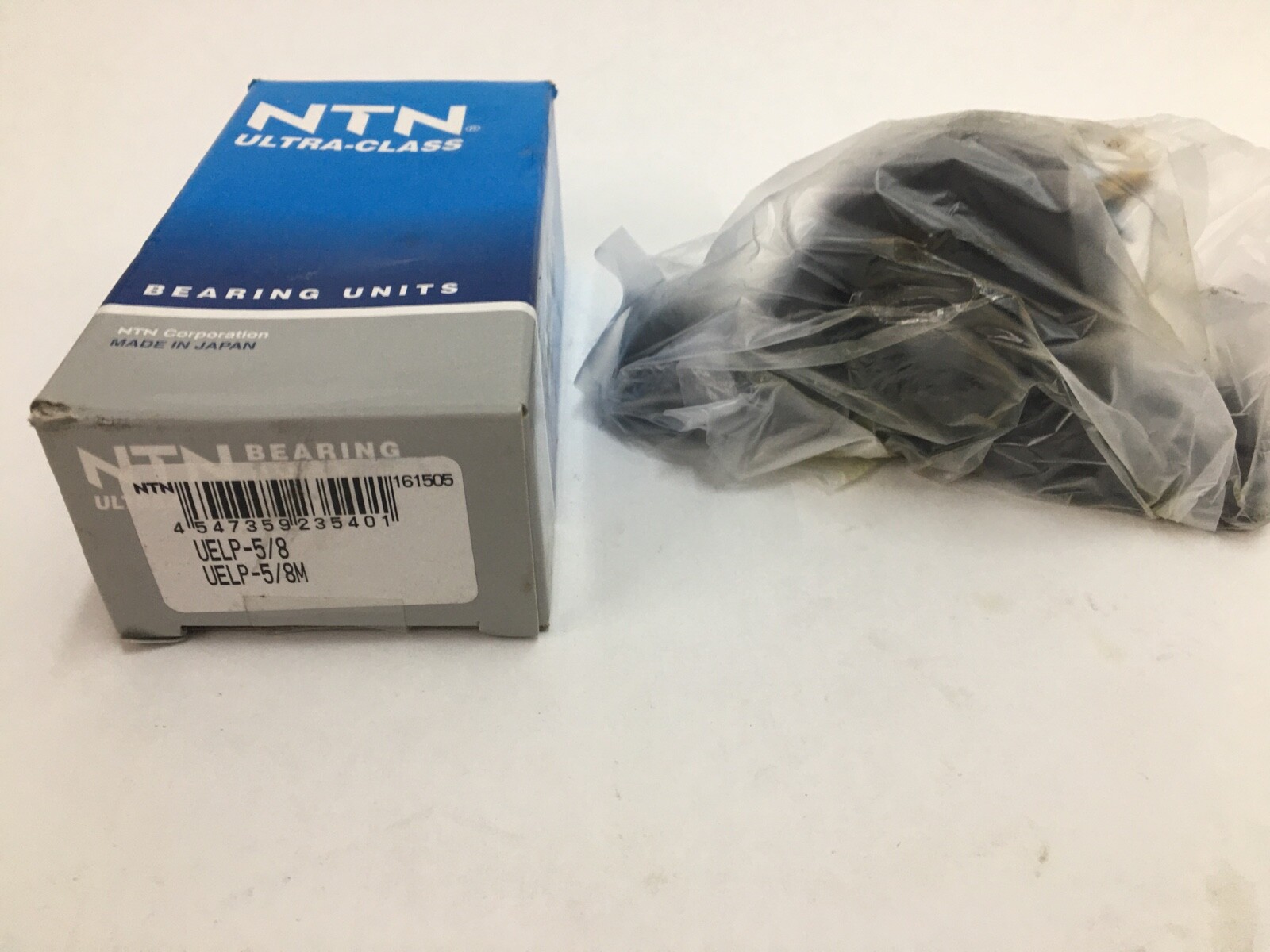

NTN UELP-5/8 Ultra-Class mounted ball bearing unit. Brand: NTN. Manufacturer Part Number: UELP5/8M. Base Number: UELP-5/8. Housing Style: two-bolt pillow block, cast iron, high base, 204-size Ultra-Class. Bore / Shaft Size: 5/8 in (15.88 mm). Bore Type: straight. Number of Rows: 1. Rolling Elements: balls. Insert Outer Ring: spherical. Locking Method: eccentric locking collar. Closure Type: nitrile rubber contact seal plus flinger, both sides. Housing Material: cast iron. Insert finish: black oxide. Expansion Type: non-expanding. Design Units: Inch. Unit Quantity: 1 Pc. Country of Origin: Japan.

Decoding the designation:

UEL — NTN wide inner ring insert with an eccentric locking collar and flinger.

P — pillow block, cast housing, high centre height; the low-base equivalent is PL.

5/8 — shaft diameter in inches.

M — black oxide finish.

No duty letter after UEL — standard duty; an X in that position denotes medium duty.

Specifications:

Dynamic Load Rating: 12.8 kN. Static Load Rating: 6.65 kN. Insert Width: 1.18 in. Item Weight: 1.50 lb. Lubricant: grease. Relubrication: through the outer ring. Operating Temperature Range: −40 to 250 °F (−40 to 120 °C). Precision Rating: ABEC 1 / P0. Internal Clearance: CN. Duty: light / standard. Harmonization Code: 8483.20.40.40.

Ultra-Class is NTN’s upgraded mounted-unit line. The flinger behind each contact seal throws water and dust clear before it reaches the seal lip, and the black oxide finish adds corrosion resistance on the insert rings. The eccentric collar locks by cam action in one direction of rotation and needs no shaft machining. The insert seats spherically in the housing, so the unit takes up moderate misalignment at installation.

Dimensions and mounting:

Bolt Centre To Centre (J): 3-3/4 in (95.25 mm). Overall Housing Length (L): 5 in (127 mm). Base To Shaft Centre Height (H): 1-5/16 in (33.34 mm). Overall Height (H2): 2-9/16 in (65.09 mm). Base Width (A): 1-1/2 in (38.1 mm). Number Of Bolt Holes: 2.

Compatibility and replacement:

Two-bolt pillow blocks at 5/8 in bore come from AMI (UELP201-10), Peer (UELP201-10), SealMaster (MP/NP), Link-Belt (P3U/PB), Dodge (P2B) and Browning (VF). Bolt centres and centre height differ between makers; this unit has 3-3/4 in bolt centres and 1-5/16 in centre height. NTN UELPL-5/8 is the same insert in a low-centre-height housing, and UCP-5/8 uses a setscrew insert in place of the collar, so both are related builds. Searchable variants: UELP-5/8, UELP5/8, UELP5/8M, UELP 5/8, UELP-5/8M, UELP-010.

Frequently asked questions:

What bolt spacing does the UELP-5/8 have?

3-3/4 in (95.25 mm) bolt centres, two bolt holes.

How does the UELP-5/8 lock to the shaft?

An eccentric locking collar on the wide inner ring insert.

What seals does the UELP-5/8 use?

Nitrile rubber contact seals with a flinger on each side.
