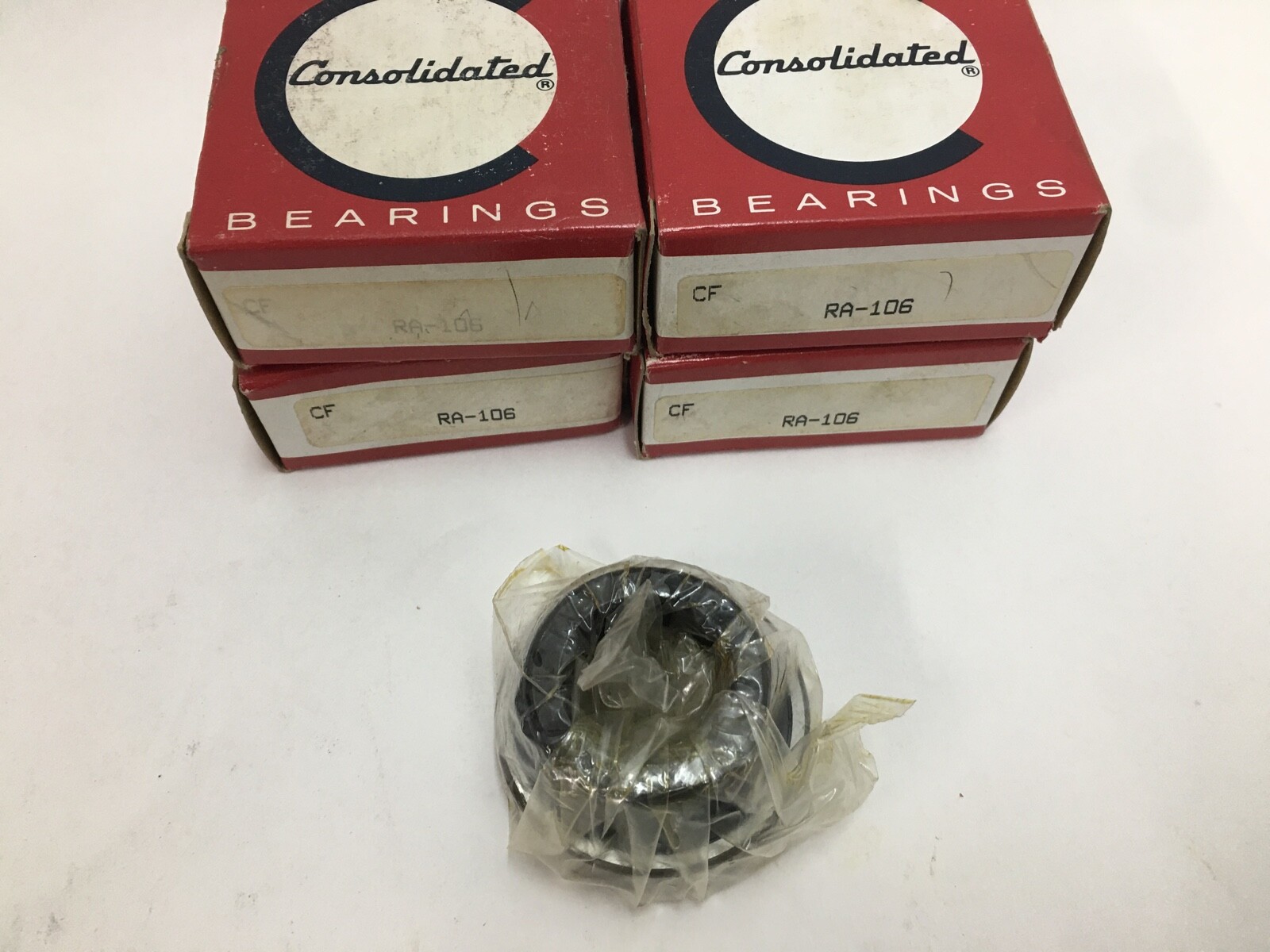

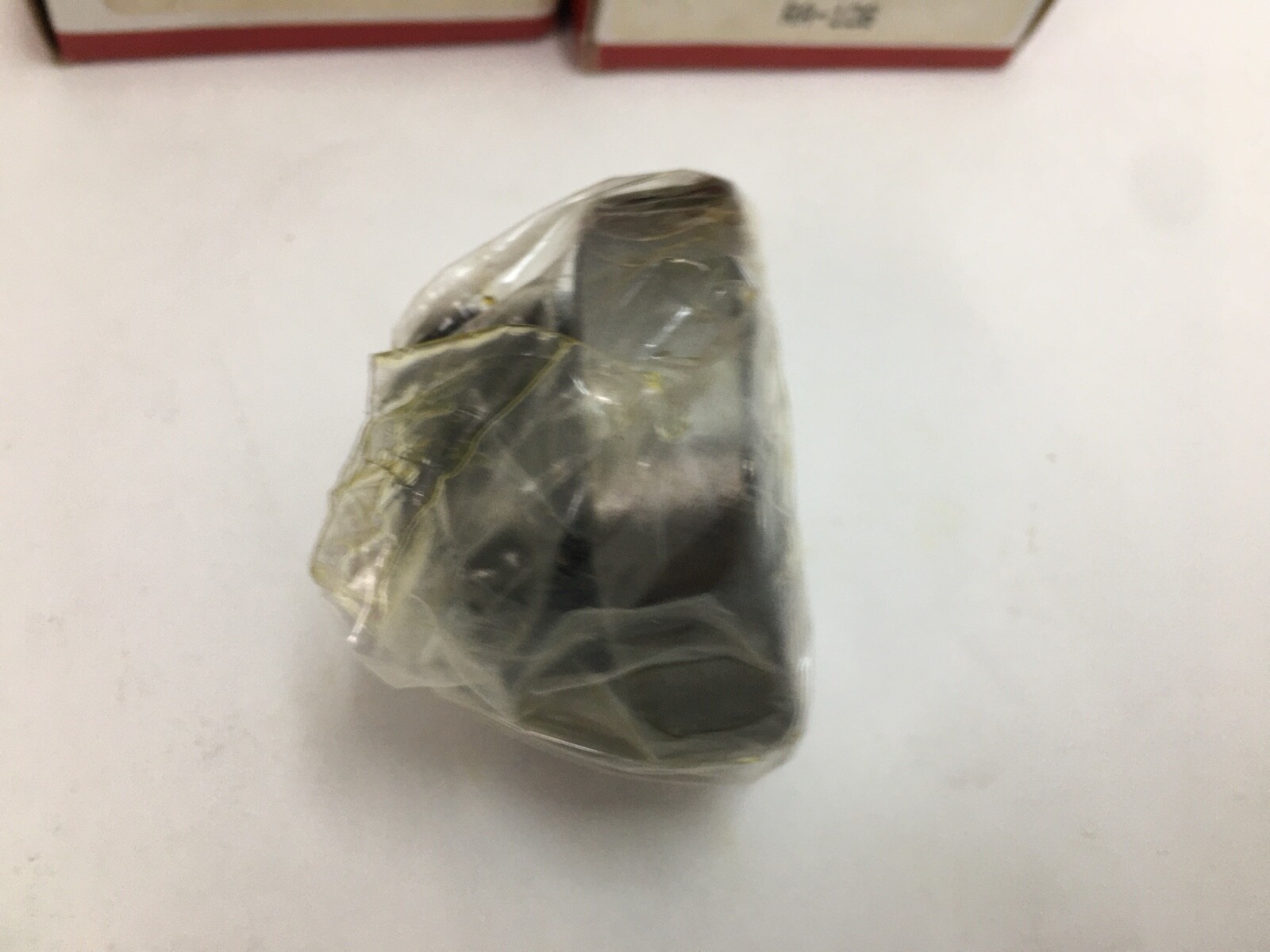

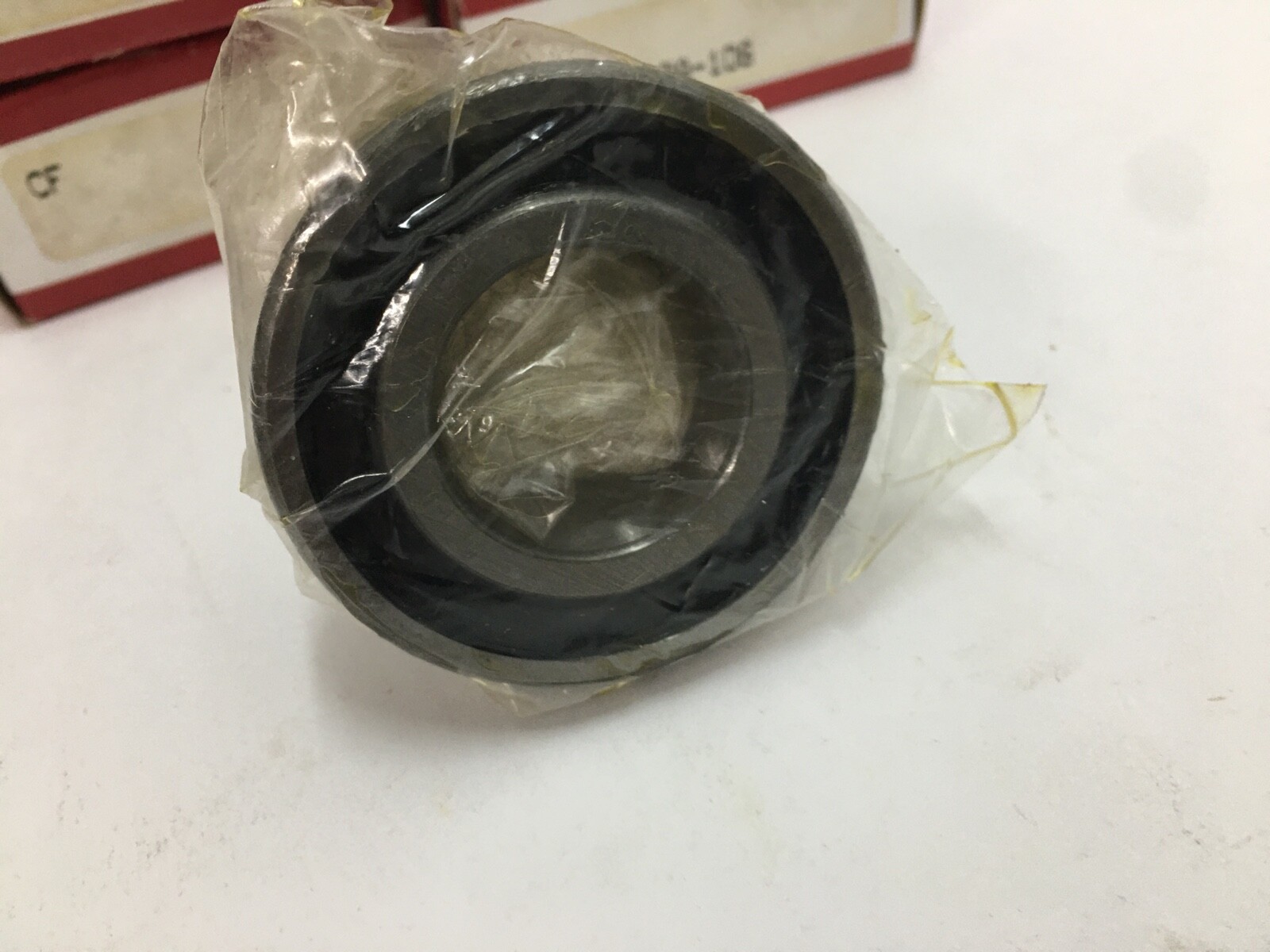

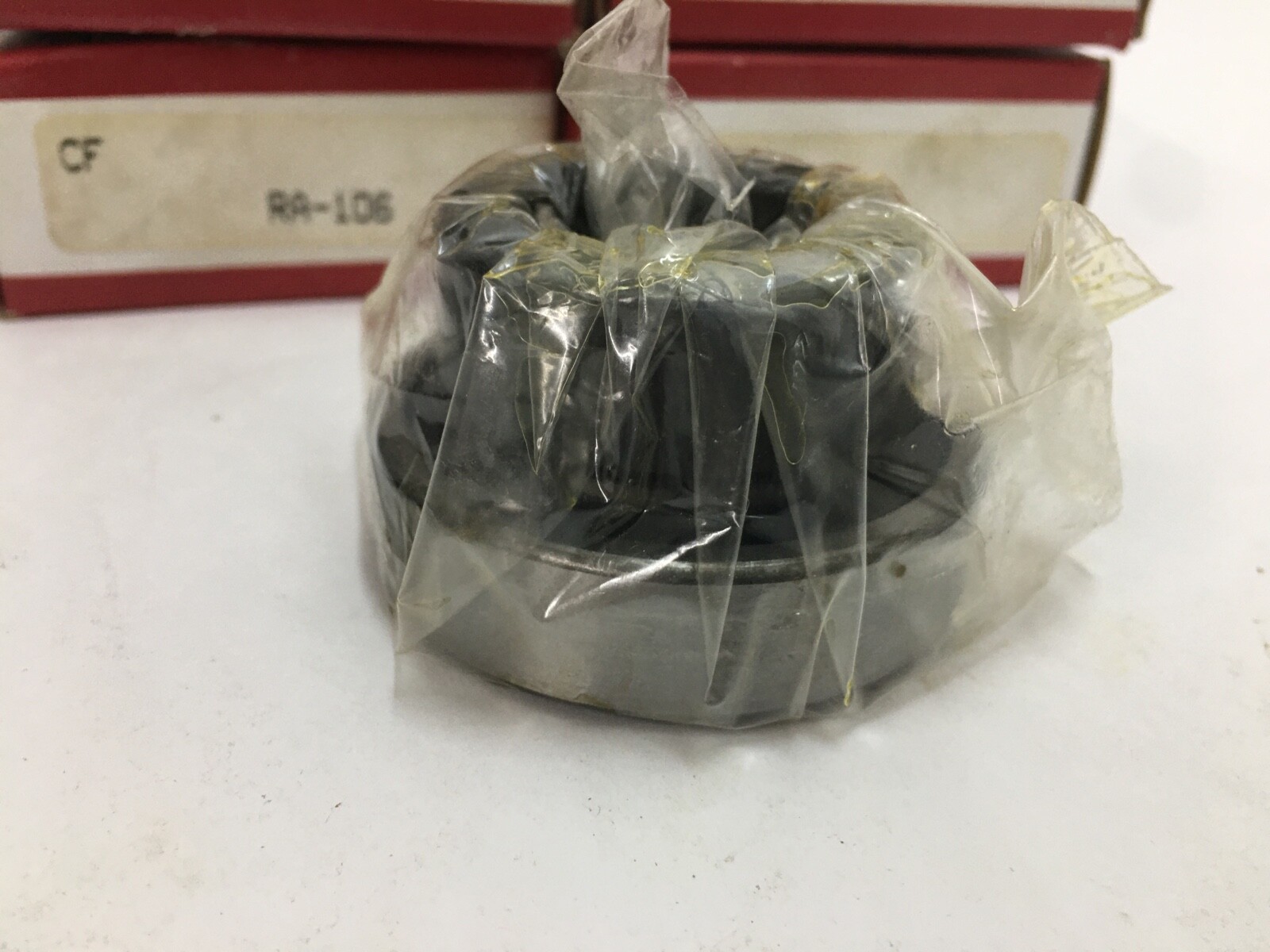

Insert ball bearing for a 1-3/8 in shaft, extended inner ring, spherical outer race, eccentric locking collar, rubber seals both sides. Set of 4 Pcs.
List Price
$37.40
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Insert Bearing - 1 in Bore, Wide Inner Ring, Eccentric Locking Collar, Spherical OD, Sealed$32.17
RHP 1020-20G Self-Lube Insert Bearing Set Screw 20x47x31 mm 1020 20G$14.02
Sealmaster SL-19 Insert Bearing SL19 SL-19 1-3/16" ID Cylindrical OD Morse NOS$17.81
RHP 1035-35G Self-Lube Insert Bearing Set Screw 35x72x42.9 mm 1035 35G$25.49| MFR / Brand | Consolidated |
|---|---|
| MPN | RA-106 |
| Model | RA106 |
| ID | 1.375 in |
| OD | 2.8346 in |
| Width | 1.000 in |
| Series | RA100 |
|---|---|
| Type | Insert Bearing |
| Lubricant | Grease |
| Material | Steel |
| Base Number | RA-106 |
| Industry Terms | bearing insert, insert bearing, cartridge bearing, wide inner ring bearing, eccentric collar insert, replacement insert, RA insert |
| Common Misspellings | Consolidated RA106, RA-1O6, CONS RA 106, Consolodated RA-106, RA-106 bearing insert 1 3/8 |
| Application Types | Conveyors, fans, washdown-adjacent lines, material handling, rebuilding mounted units |
| Bore Shaft Size | 1-3/8 in (1.375 in / 34.93 mm) |
| Housing Style | Insert for a housing with a spherical (crowned) seat |
| Locking Method | Eccentric locking collar |
| Mpn Variants | RA-106, RA106, RA 106, RA-106-1-3/8, CONS RA-106 |
| Rolling Elements | Ball |
| Bearing Type | Ball bearing insert (mounted unit component) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard |
| Locking Device | Eccentric Collar |
| Part Number | RA106 |
| Cross Reference 5 | Sealmaster ER-22 |
|---|
Consolidated RA-106 insert ball bearing from the RA100 series. Brand: Consolidated Bearings. Manufacturer Part Number: RA-106. Base Number: RA-106. Bearing Type: single-row insert ball bearing with an extended inner ring. Series: RA100. Bore / Shaft Size: 1-3/8 in (1.375 in / 34.93 mm). Outside Diameter: 2.8346 in. Overall Width: 1.000 in. Bore Type: straight. Outer race: spherical, self-aligning in a matching housing seat. Locking Method: eccentric locking collar. Closure Type: rubber contact seals, both sides. Number of Rows: 1. Rolling Elements: balls. Cage Type: ribbon. Cage Material: steel. Design Units: Inch. Unit Quantity: 4 Pcs.
Dynamic Load Rating: 25.5 kN (5 730 lbf). Static Load Rating: 15.3 kN (3 440 lbf). Limiting Speed: 4 000 rpm. Precision Rating: ABEC 1 / P0. Item Weight: 1.00 lb each. Lubricant: grease. Relubrication: yes. Operating temperature range: −20 °C to 100 °C.
RA: Consolidated insert ball bearing with an extended inner ring and eccentric locking collar. 1: shaft one inch or over. 06: the additional sixteenths, giving 1-3/8 in. Consolidated Bearings is a US importer brand whose RA series follows the common insert-bearing interchange.
Unit Quantity: 4 Pcs. Four inserts, each with its eccentric collar — enough for two two-bearing shafts. These rebuild existing mounted units with a sound housing: pillow blocks, two- or four-bolt flanges and take-up blocks with a spherical insert seat.
An eccentric collar grips by cam action and leaves the shaft unmarked, so plain cold-drawn shafting is acceptable and the insert can be repositioned. The collar is tightened with the direction of rotation, which makes it a unidirectional-drive fitting; setscrew inserts serve hard-reversing drives.
Rubber contact seals on both sides hold water and fine dust out more effectively than shields, at the cost of a little drag and a lower speed ceiling, which is why the limiting speed sits at 4 000 rpm. That suits washdown-adjacent and dirty conveyor work.
The spherical outer race seats in a crowned housing bore and lets the mounted unit align itself to the shaft.
Eccentric-collar inserts at 1-3/8 in bore include Fafnir RA106RR, Timken RA106RR, SKF YET 207-106, Link-Belt UG-222, SealMaster ER-22 and INA GRAE35-NPP-B. Insert outside diameter and overall width govern the housing fit rather than bore alone, so the housing seat decides a cross-brand substitution. A setscrew-locking insert of the same bore is a related build, and RA-103 (1-3/16 in) and RA-107 (1-7/16 in) are the adjacent sizes in the same series. Searchable variants of this number are RA-106, RA106, RA 106 and CONS RA-106.
