FAG7000-TG-P/4Angular Contact Ball Bearing — 10 mm ID, 26 mm OD, 8 mm Width, 15° Contact Angle, ABEC 7, Light Preload

Product Description

What this part is:

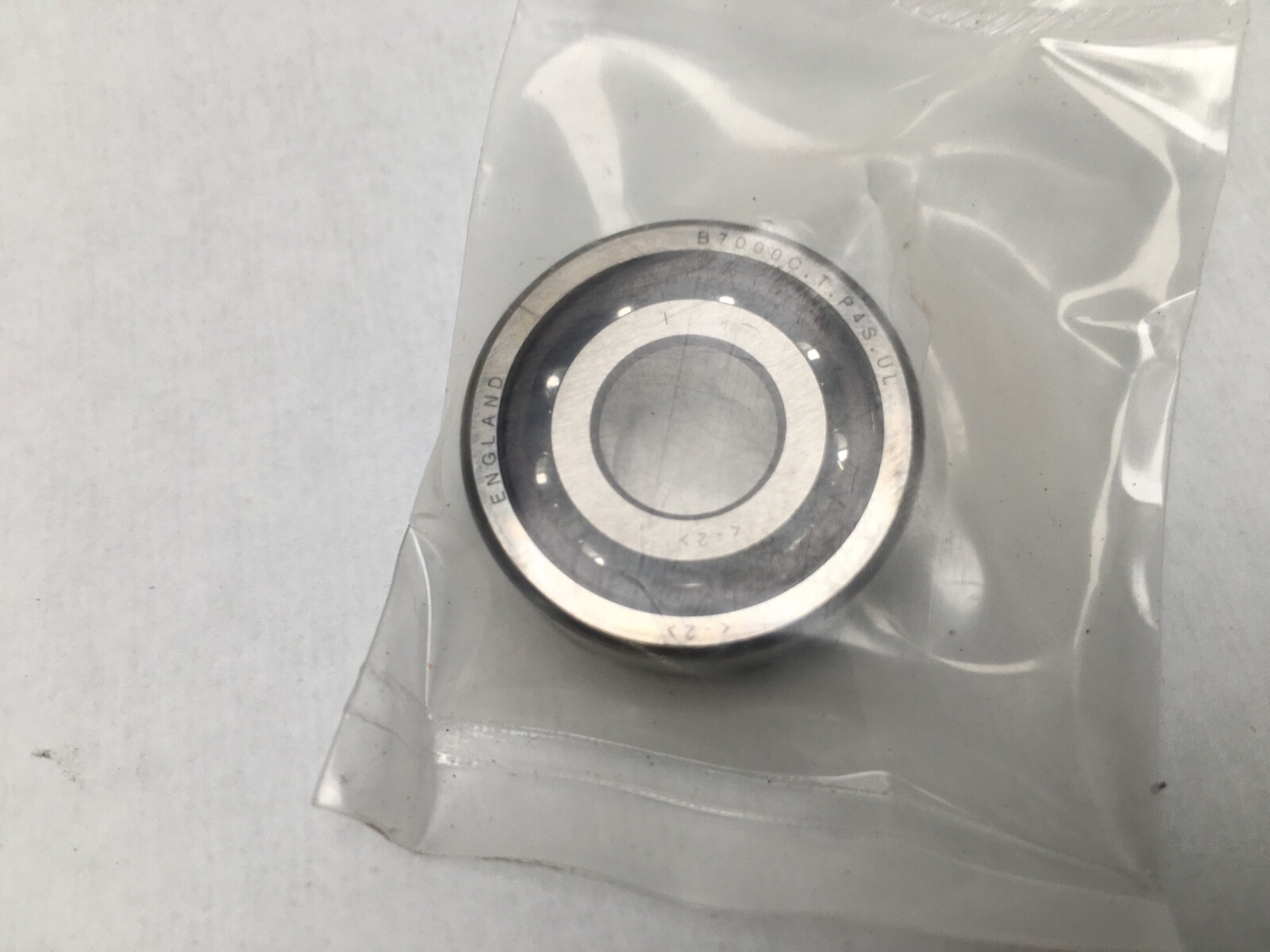

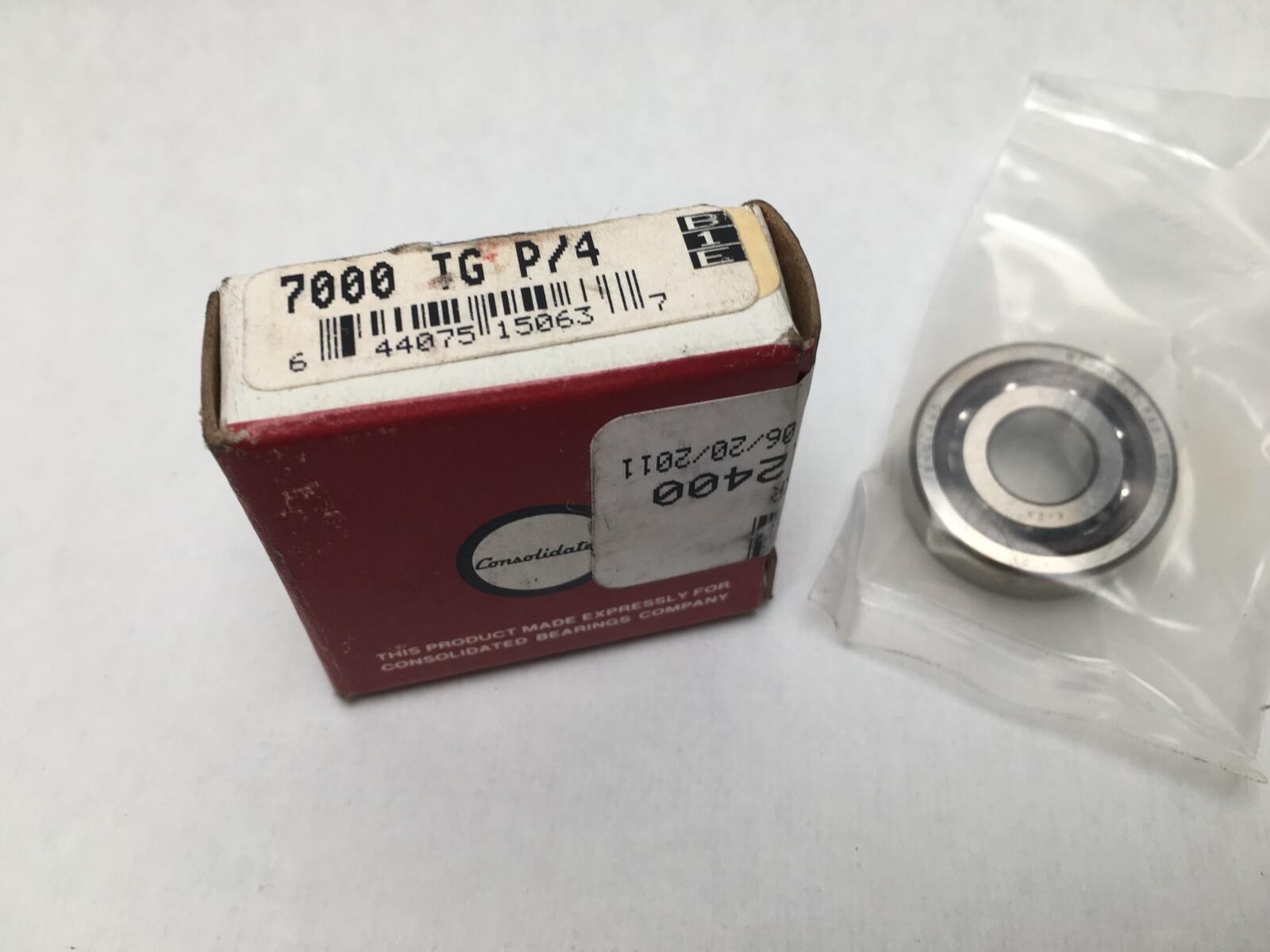

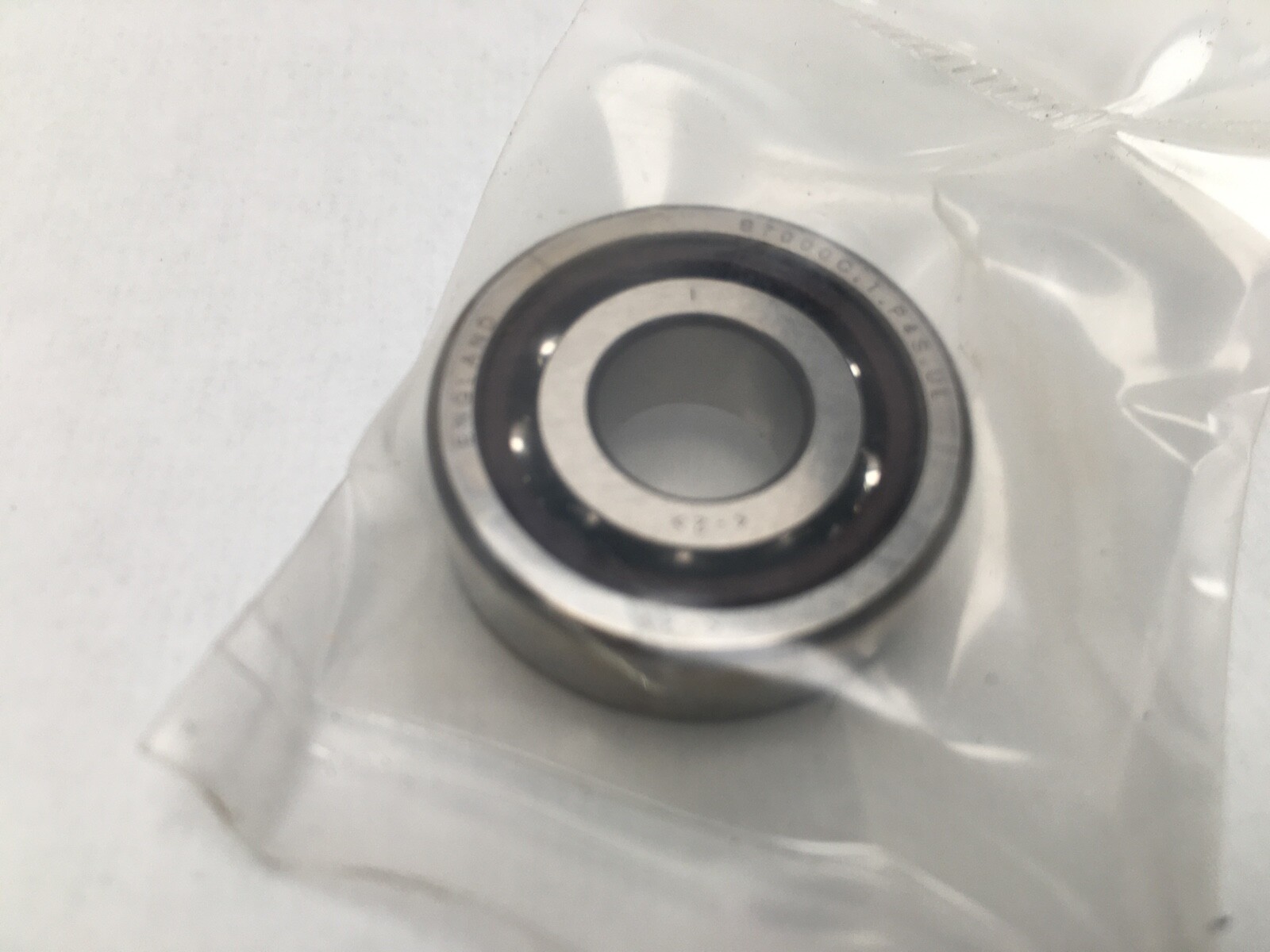

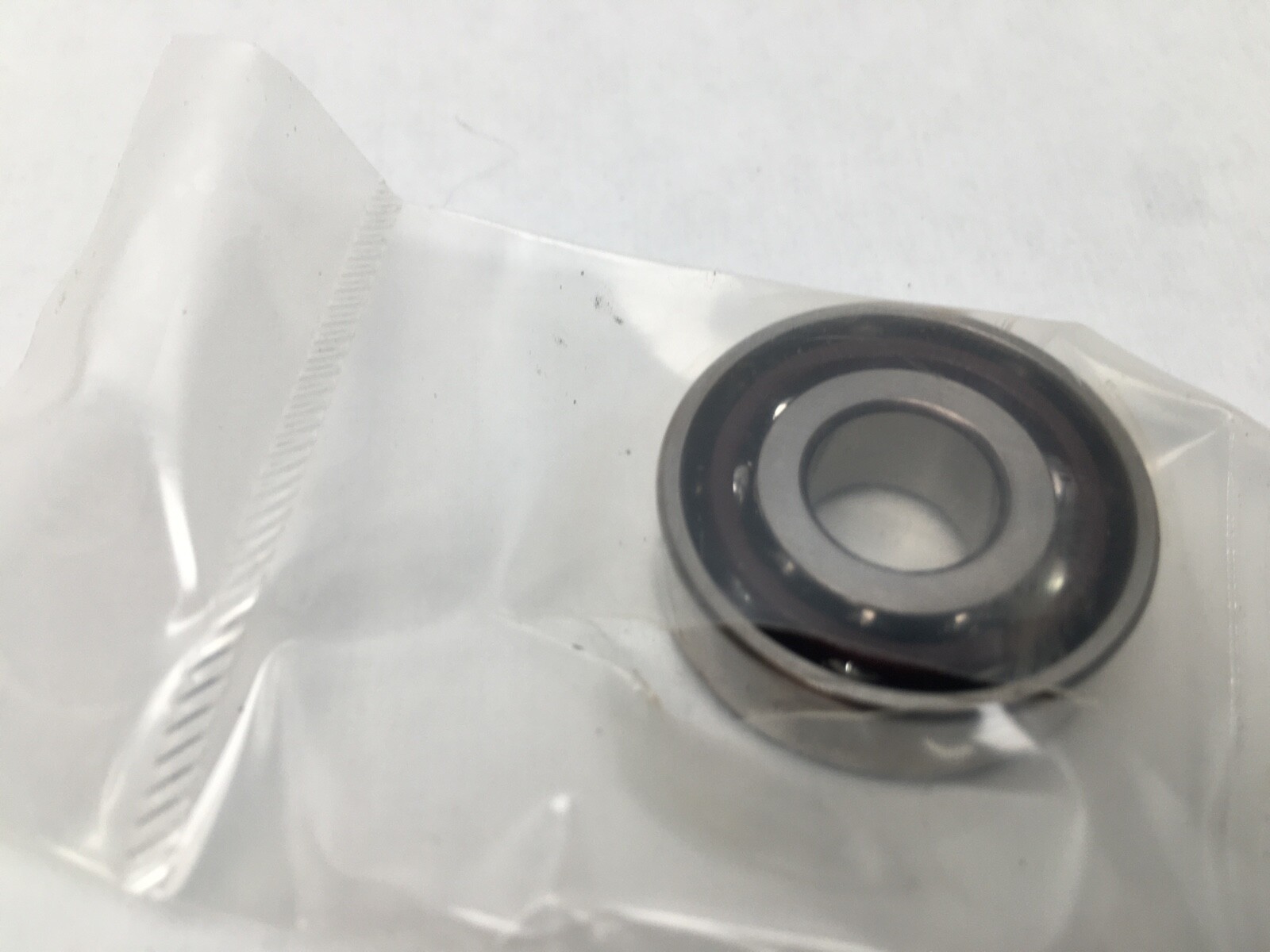

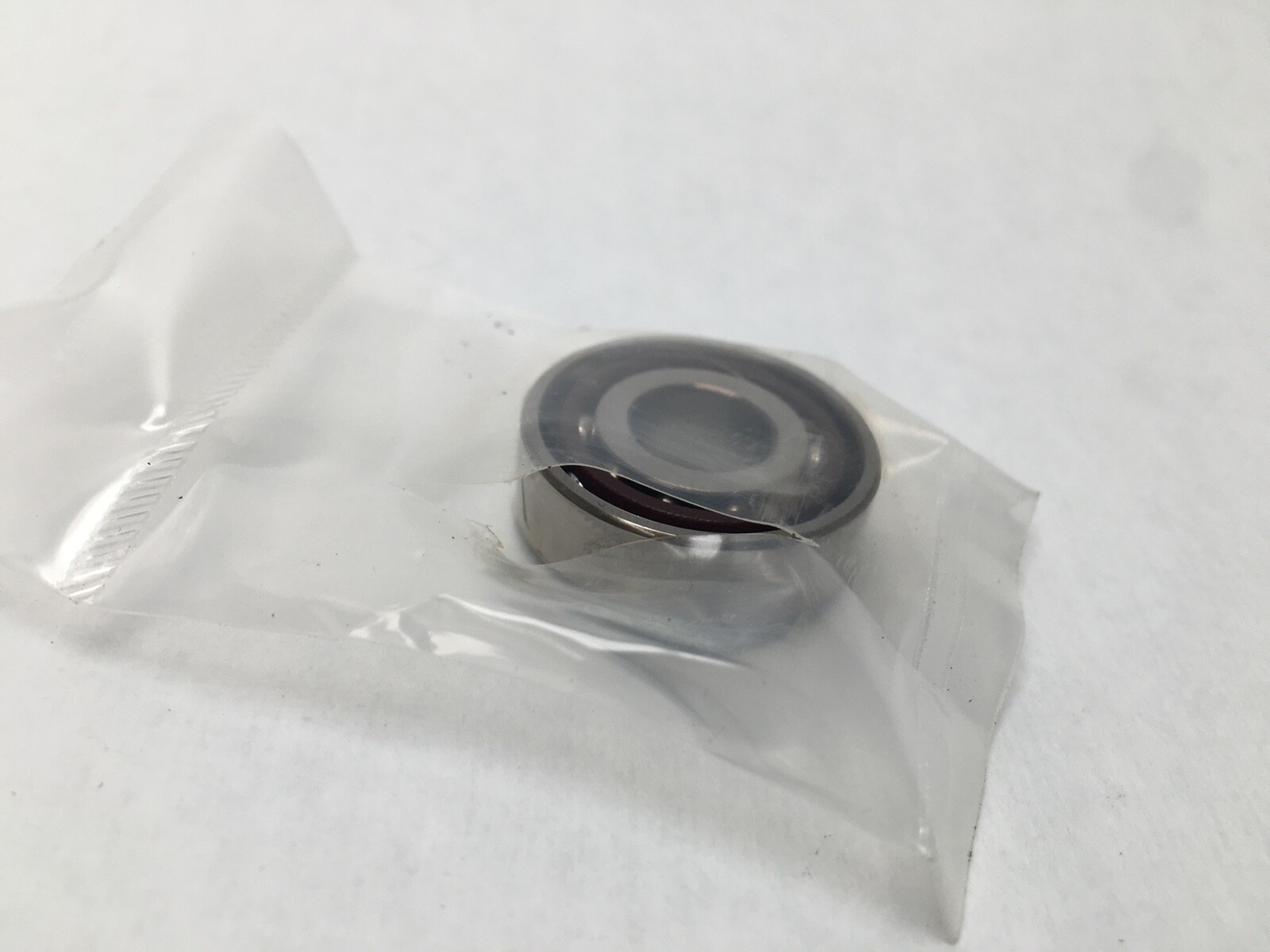

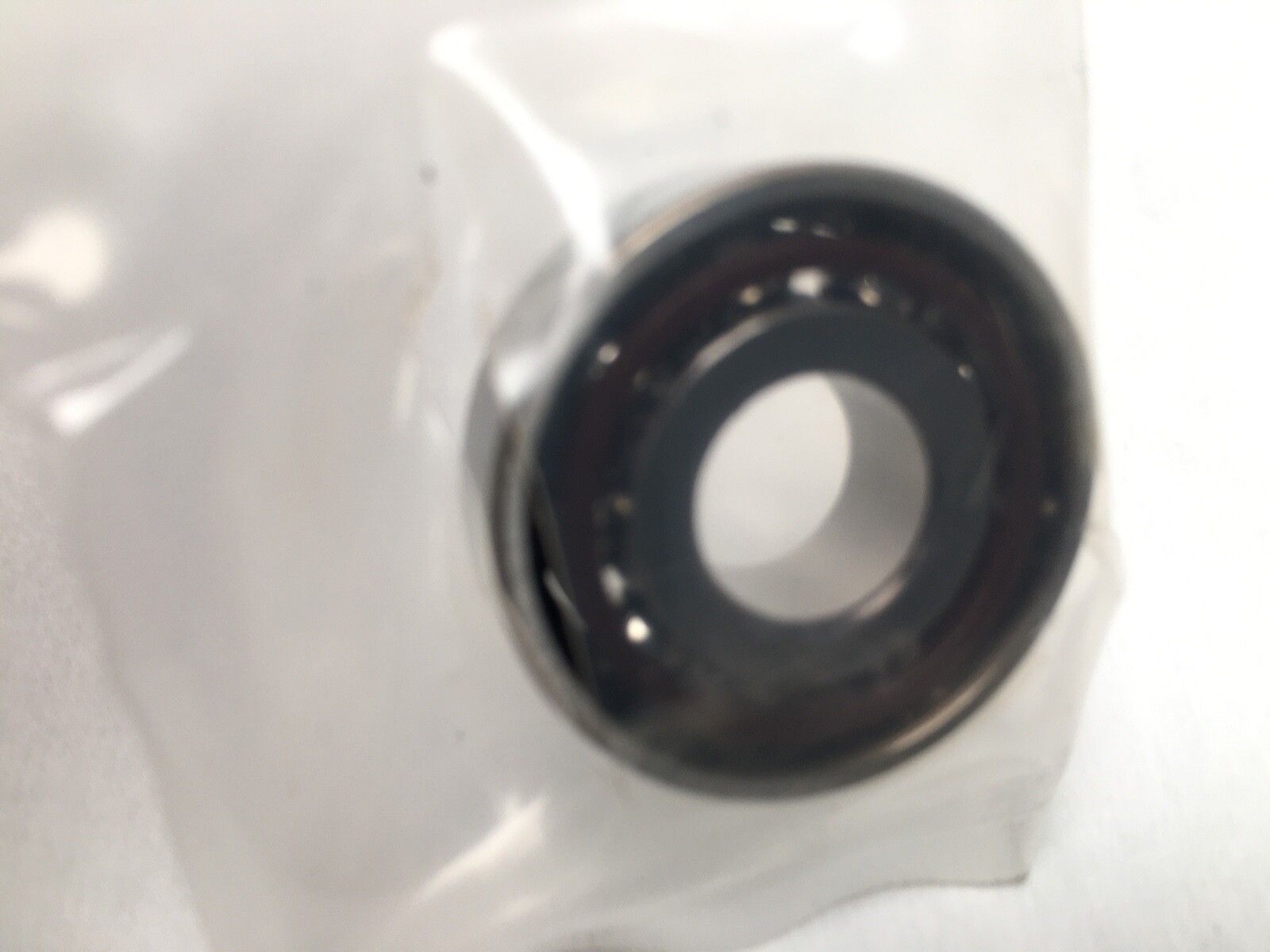

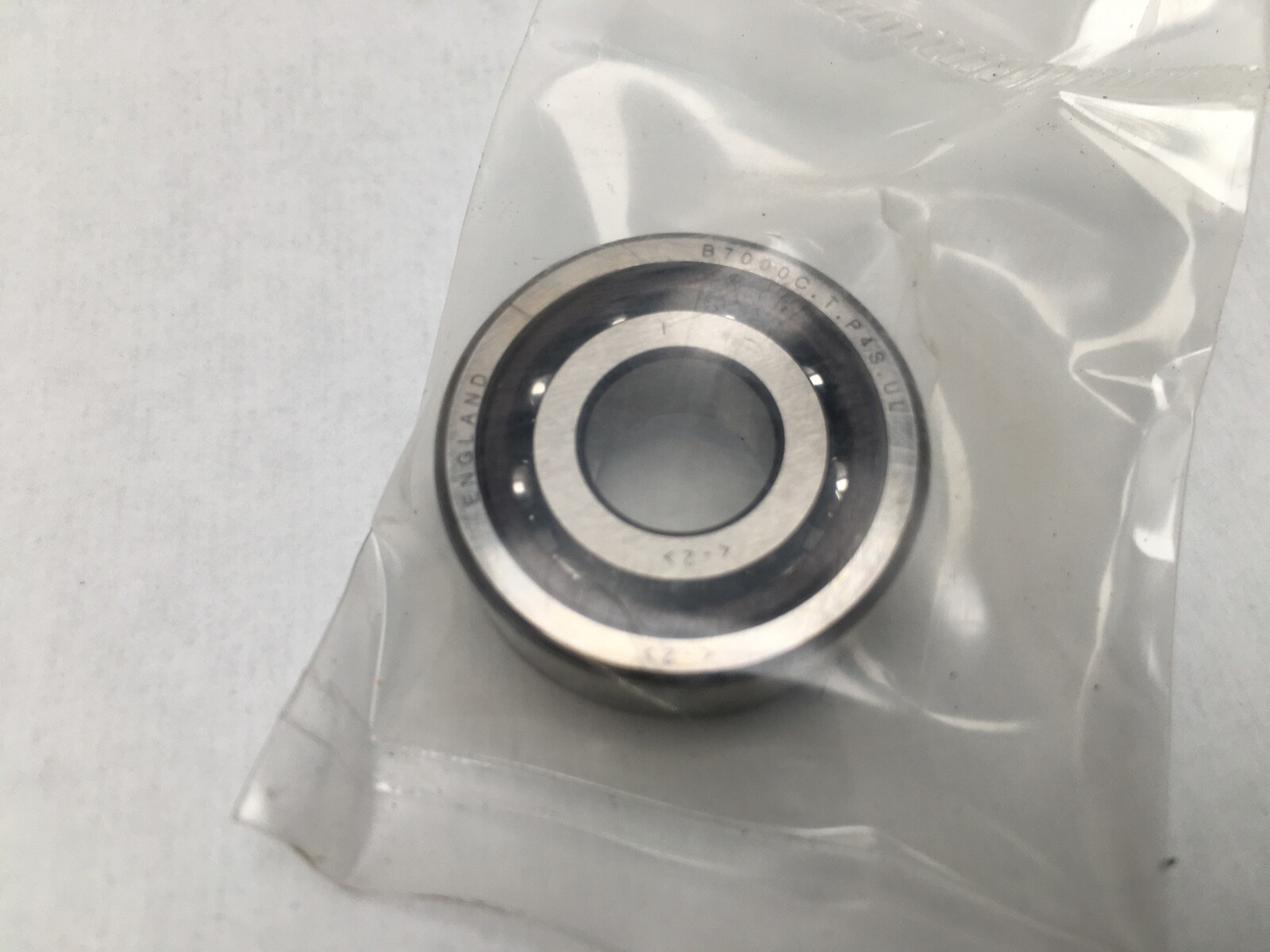

Consolidated (FAG designation) 7000-TG-P/4 single-row super-precision angular contact ball bearing, carton form B7000C.T.P4S.UL. Single universal bearing, open, straight bore. Unit Quantity: 1 Pc.

Decoding the designation:

7000 — ISO dimension series 10 angular contact (B70 range), bore code 00, 10 x 26 x 8 mm.

C — 15° contact angle.

TG / T — machined phenolic cage, outer-ring guided.

P/4, P4S — P4 dimensional tolerances, equivalent to ABEC 7; the S grade adds tighter running accuracy.

UL — universal design, light preload when mounted in any paired arrangement. Preload force: 18 N.

Specifications:

Bore Diameter: 10 mm. Outside Diameter: 26 mm. Overall Width: 8 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined. Precision Class: ABEC 7 / P4. Preload: Light (18 N). Closure Type: Open. Bore Type: Straight. Series: B70. Rolling Elements: Ball.

Dimensions and mounting:

Minimum Chamfer Dimension (r min): 0.3 mm. Maximum Fillet Radius (ra max): 0.3 mm. Shaft Shoulder Diameter (da): 14 mm. Housing Shoulder Diameter (Da): 22 mm. Pressure Centre Distance (a): 6.4 mm.

Compatibility and replacement:

Cross-references: SKF 7000 CD/P4ADGA, NSK 7000CTYNSULP4, NTN 7000UCG/GLP4, Timken Fafnir 2MM9100WI SUL, Koyo 7000C P4. MPN Variants: 7000-TG-P/4, 7000TGP4, 7000 TG P/4, B7000C.T.P4S.UL, B7000-C-T-P4S-UL, B7000C, Consolidated 7000TGP4.

Frequently asked questions:

What are the dimensions of the 7000-TG-P/4 bearing?

Bore Diameter: 10 mm. Outside Diameter: 26 mm. Overall Width: 8 mm.

What contact angle and preload does it have?

Contact Angle: 15° (the C in B7000C). Preload: Light, 18 N (UL universal design).

What precision class and cage does it have?

Precision Class: ABEC 7 / P4. Cage: machined phenolic, outer-ring guided.
