FAG7014TGP4Angular Contact Ball Bearing — 70 mm ID, 110 mm OD, 20 mm Width, 15° Contact Angle, ABEC 7, Light Preload

Product Description

What this part is:

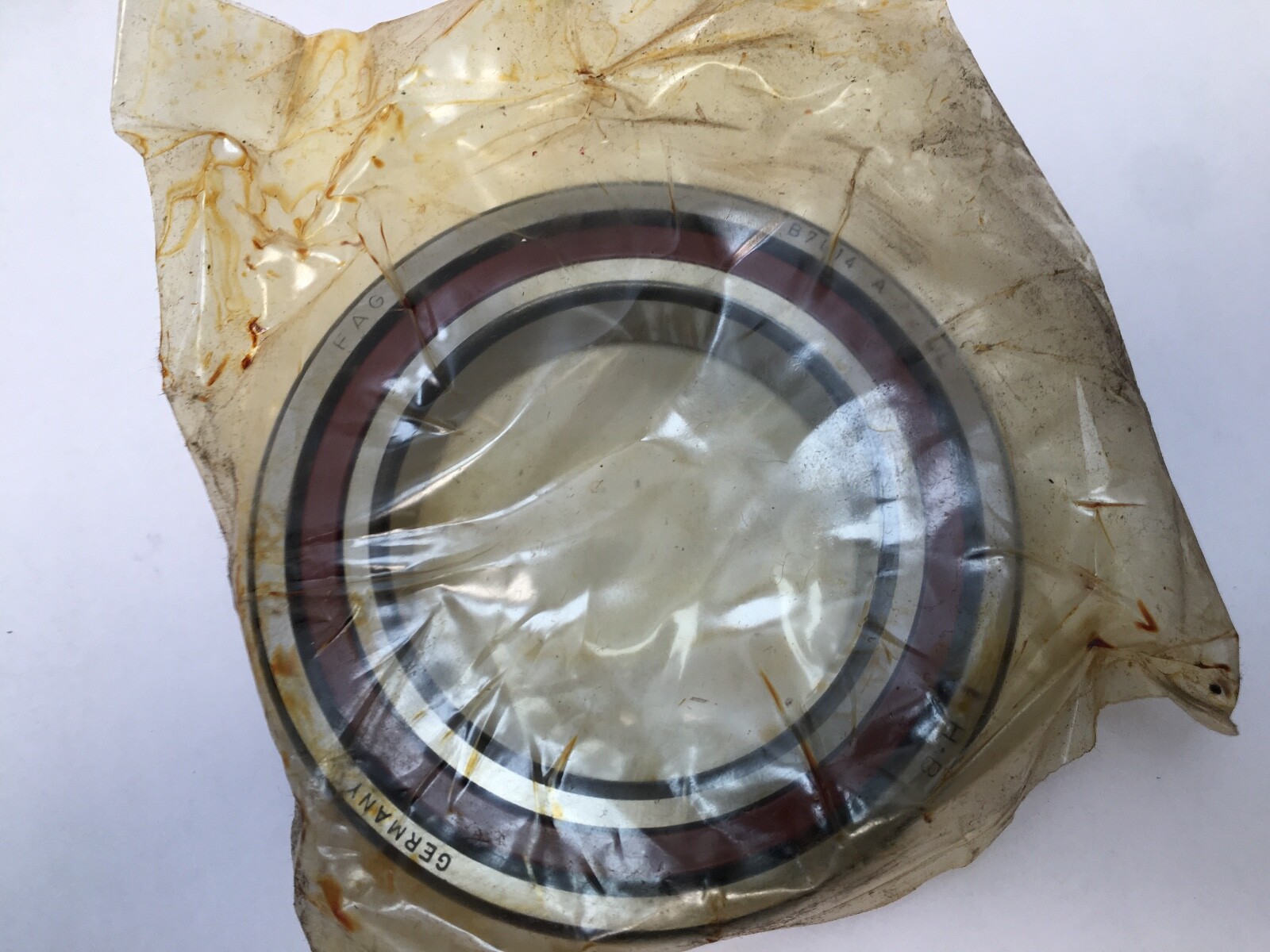

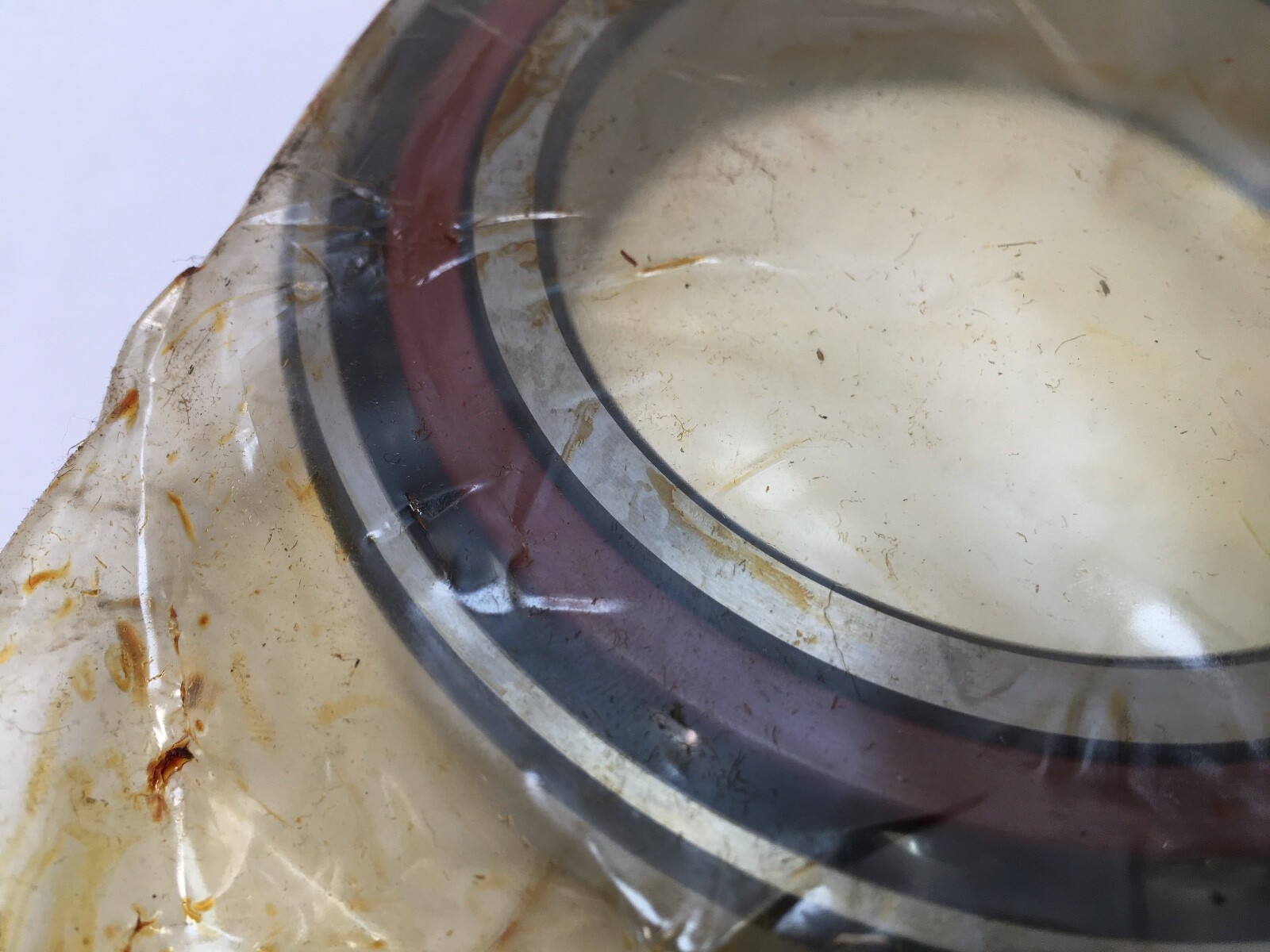

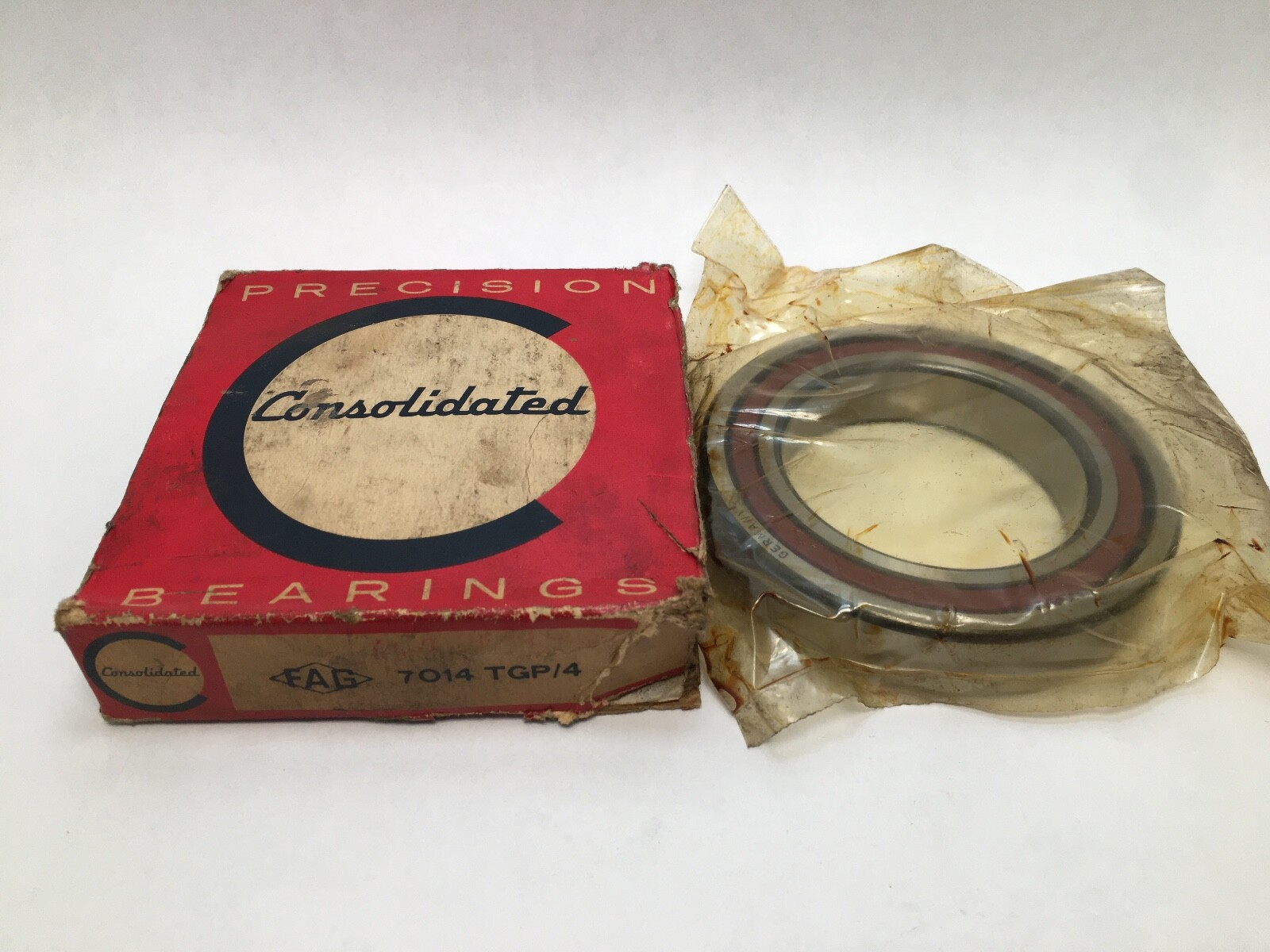

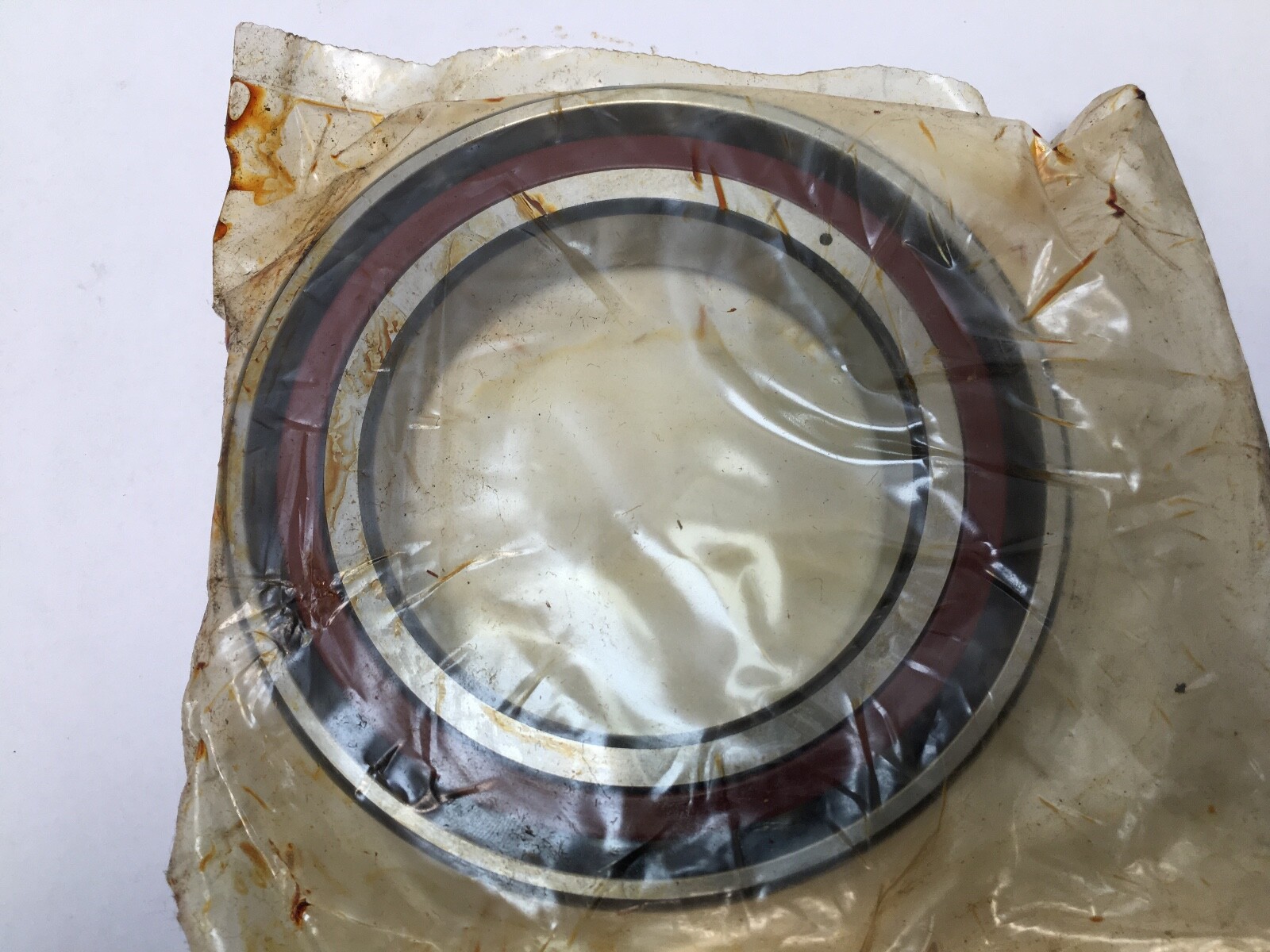

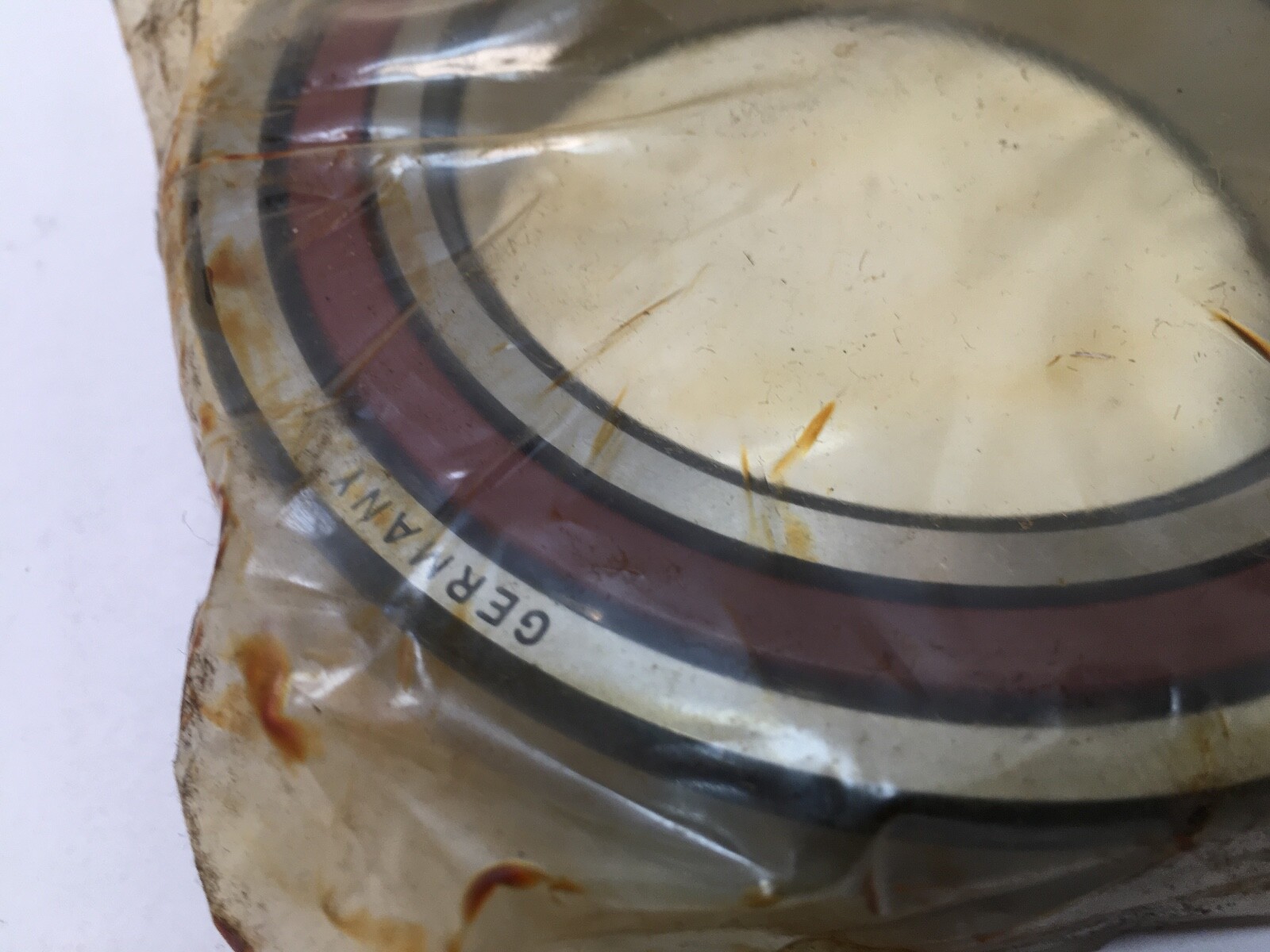

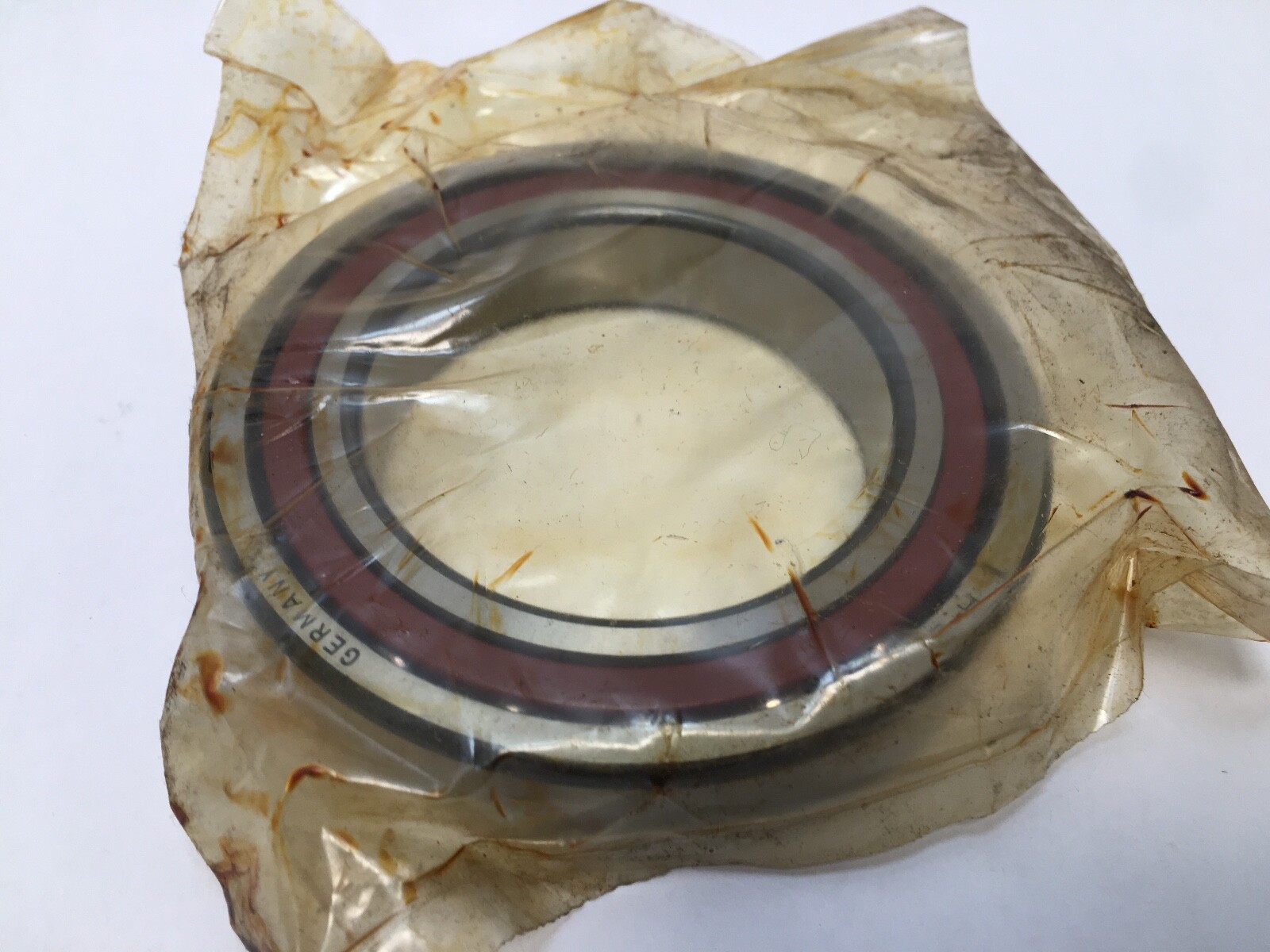

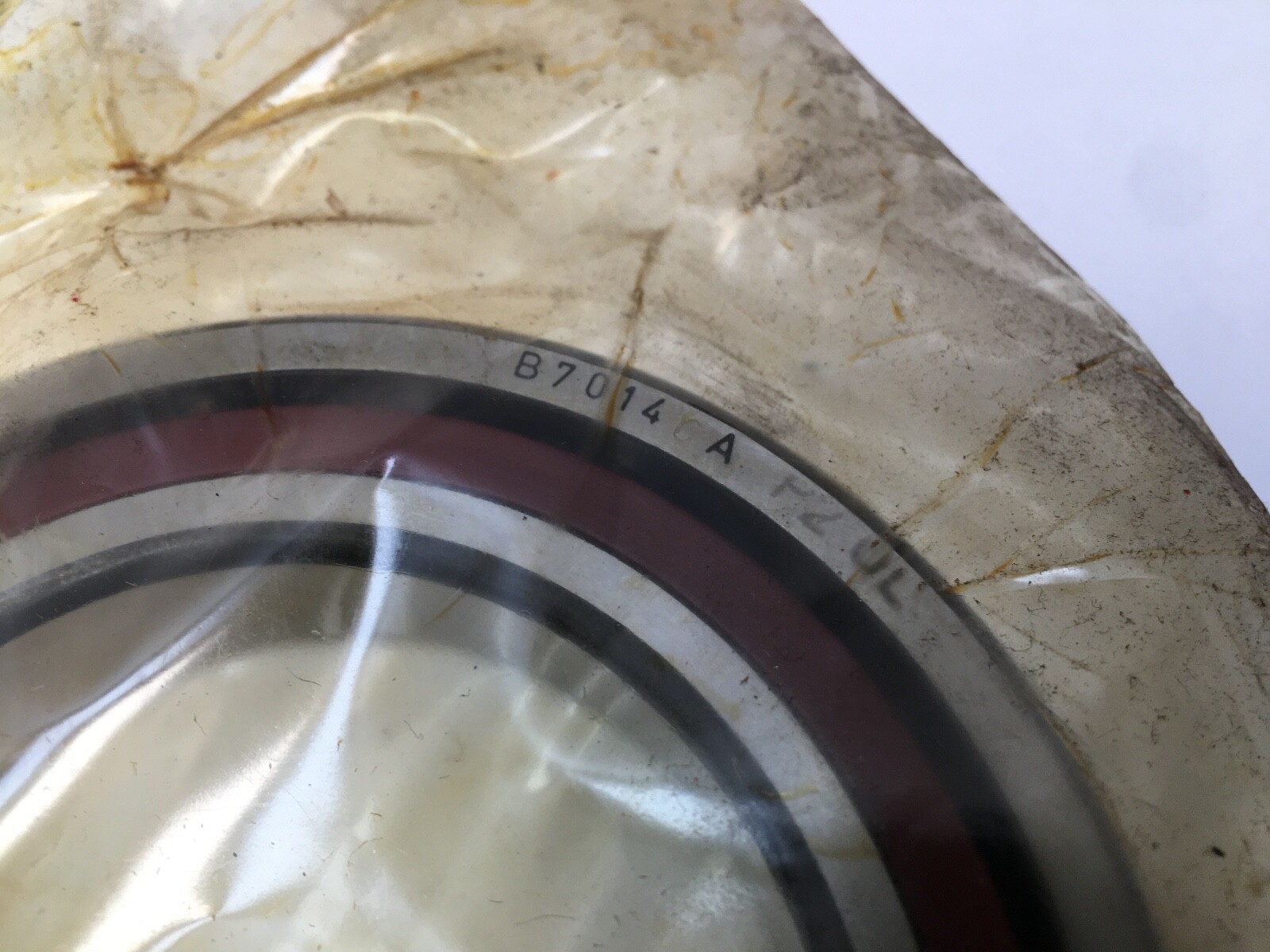

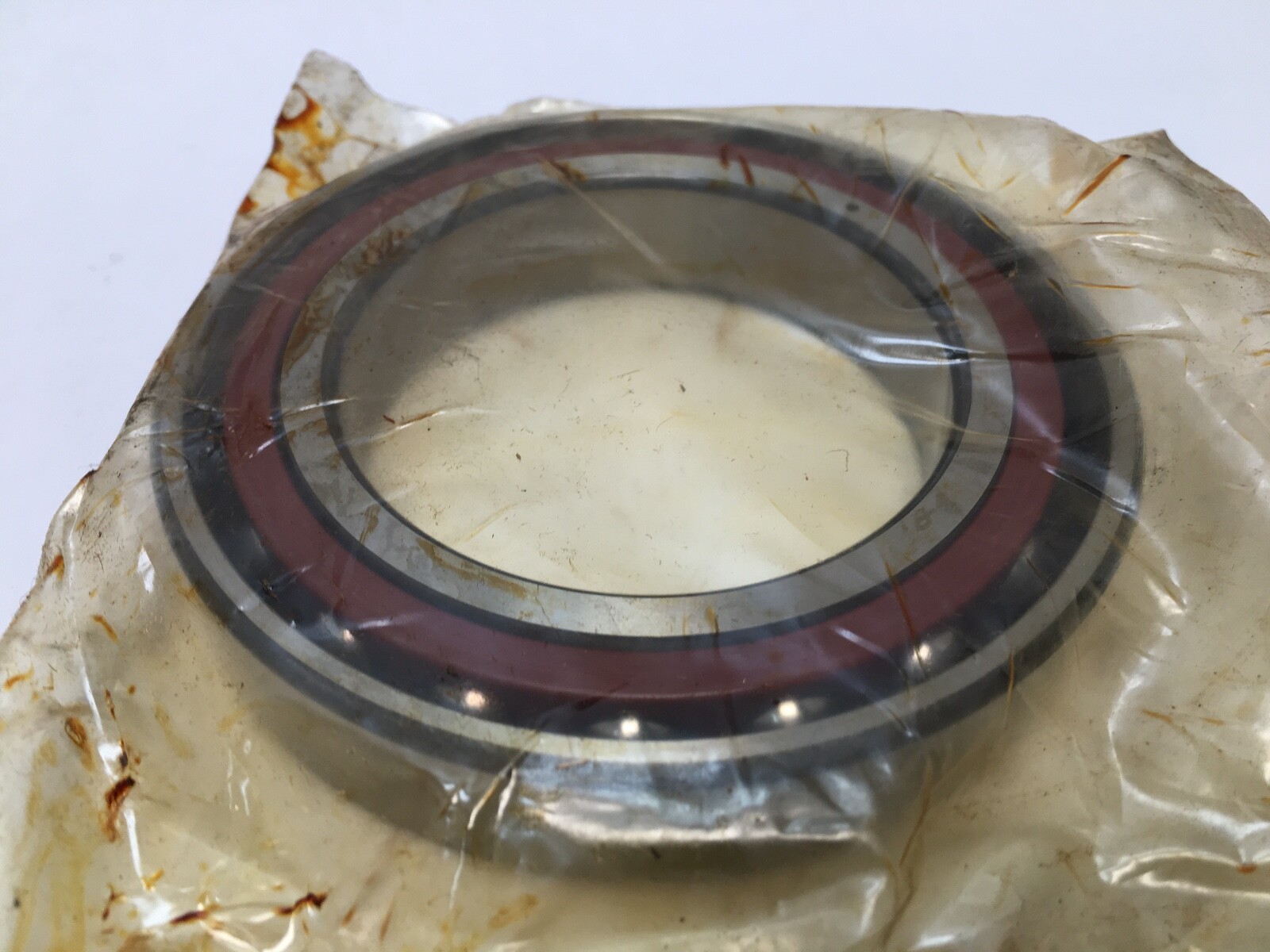

Consolidated (FAG designation) 7014TGP4 single-row super-precision angular contact ball bearing, carton form B-7014C-TPA-P4-UL. Current FAG form: B7014-C-T-P4S-UL. Bore Diameter: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined. Precision Class: ABEC 7 / P4. Preload: Light (276 N). Closure Type: Open. Bore Type: Straight. Series: B70.

Decoding the designation:

7014 — ISO dimension series 10 angular contact (B70 range), bore code 14, 70 x 110 x 20 mm.

C — 15° contact angle.

TG / TPA — machined fabric-base laminate phenolic cage, outer-ring guided.

P4 — ISO tolerance class P4, equivalent to ABEC 7.

UL — universal design, light preload when mounted in any paired arrangement. Preload force: 276 N.

What these specs mean in practice:

A 15° contact angle gives high radial stiffness and high speed capability with moderate axial capacity, the standard geometry for machine tool spindles. Universal flush-ground faces let the bearing pair back-to-back, face-to-face or in tandem with a defined light preload. The machined phenolic cage is light and runs with low friction at speed.

Mounting data:

Minimum Chamfer Dimension (r min): 1.1 mm. Maximum Fillet Radius (ra max): 1 mm. Shaft Shoulder Diameter (da): 77 mm. Housing Shoulder Diameter (Da): 102 mm. Pressure Centre Distance (a): 22.1 mm.

Quantity and configuration:

Unit Quantity: 1 Pc. Single universal bearing, open, straight bore.

Interchange guidance:

Same-envelope 15° ABEC 7 light-preload executions: SKF 7014 CD/P4ADGA, NSK 7014CTYNSULP4 (polyamide cage), NTN 7014UCG/GLP4, Timken Fafnir 2MM9114WI SUL, Koyo 7014C P4. Searchable forms: 7014TGP4, 7014-TG-P4, B-7014C-TPA-P4-UL, B7014CTPAP4UL, B7014-C-T-P4S-UL, 7014C, Consolidated 7014TGP4.
