Availability:
1 in stock

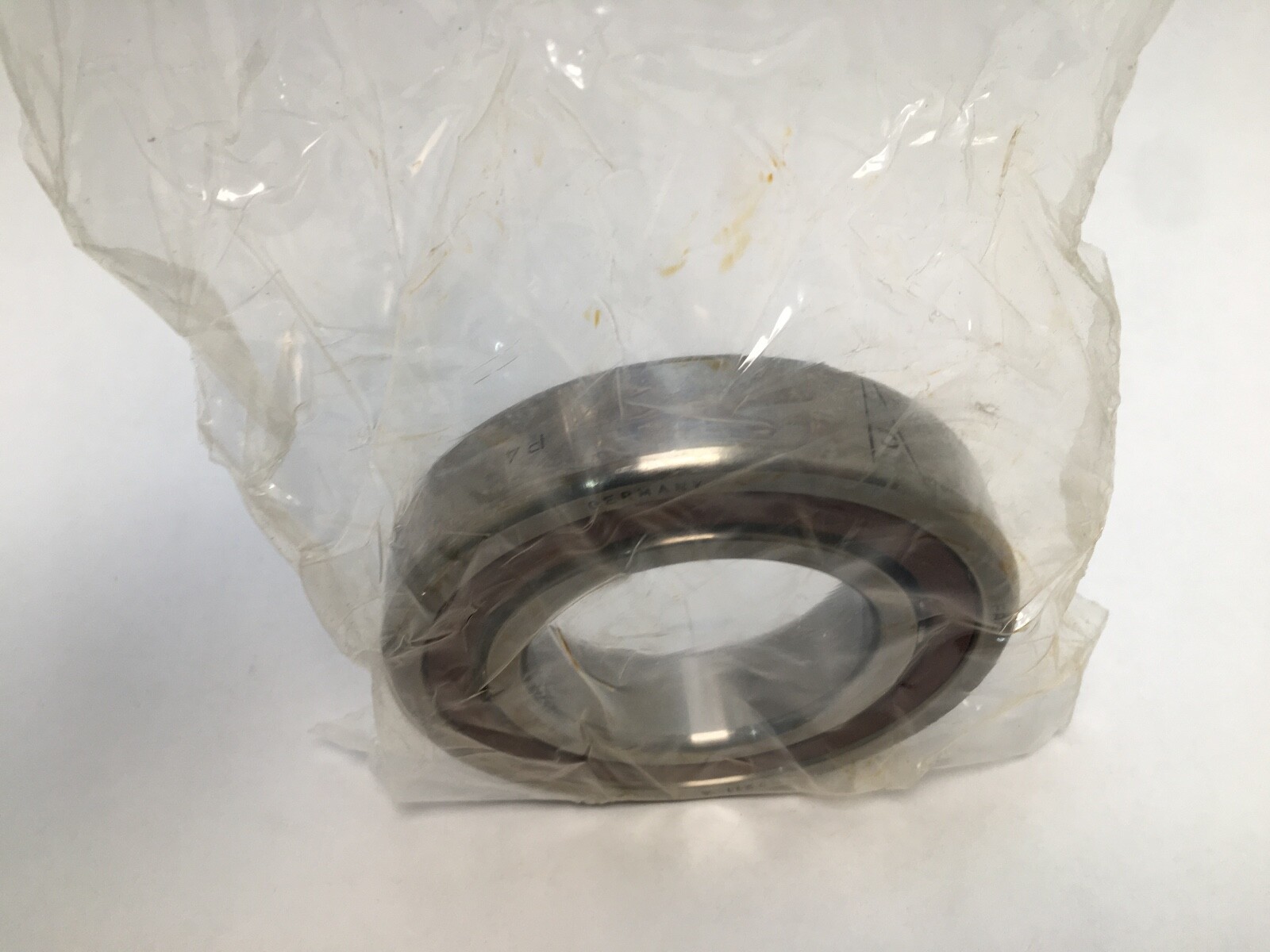

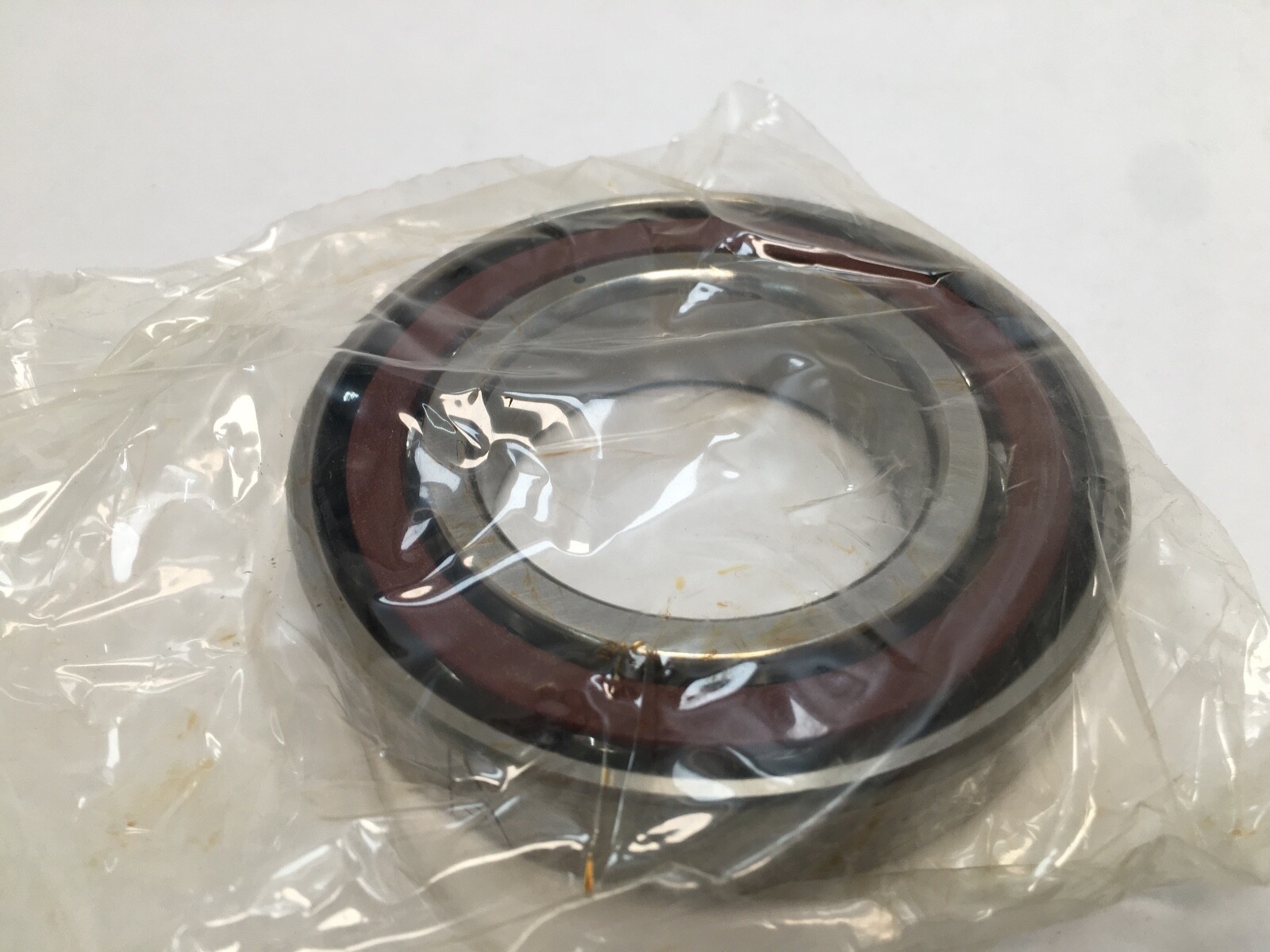

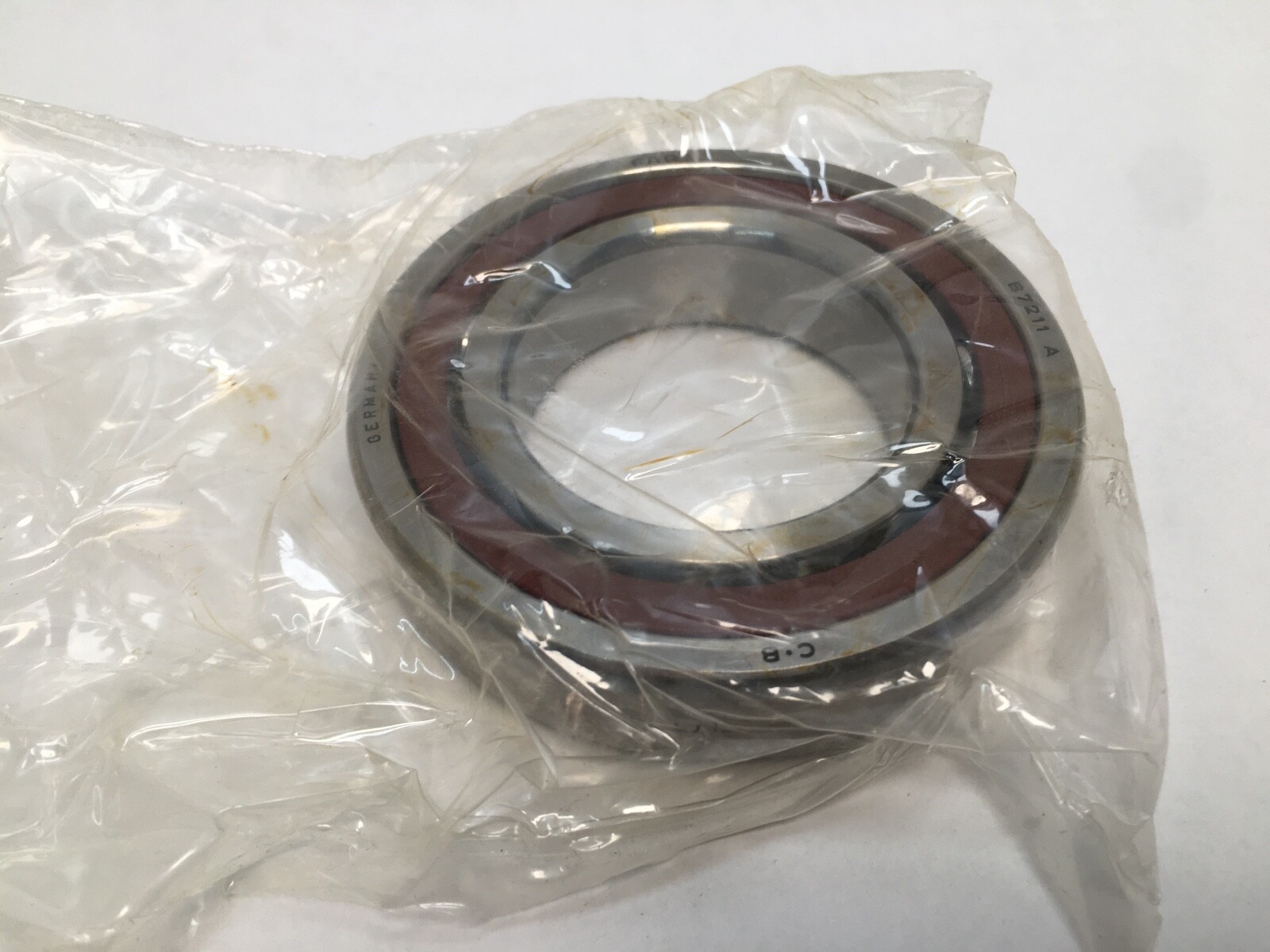

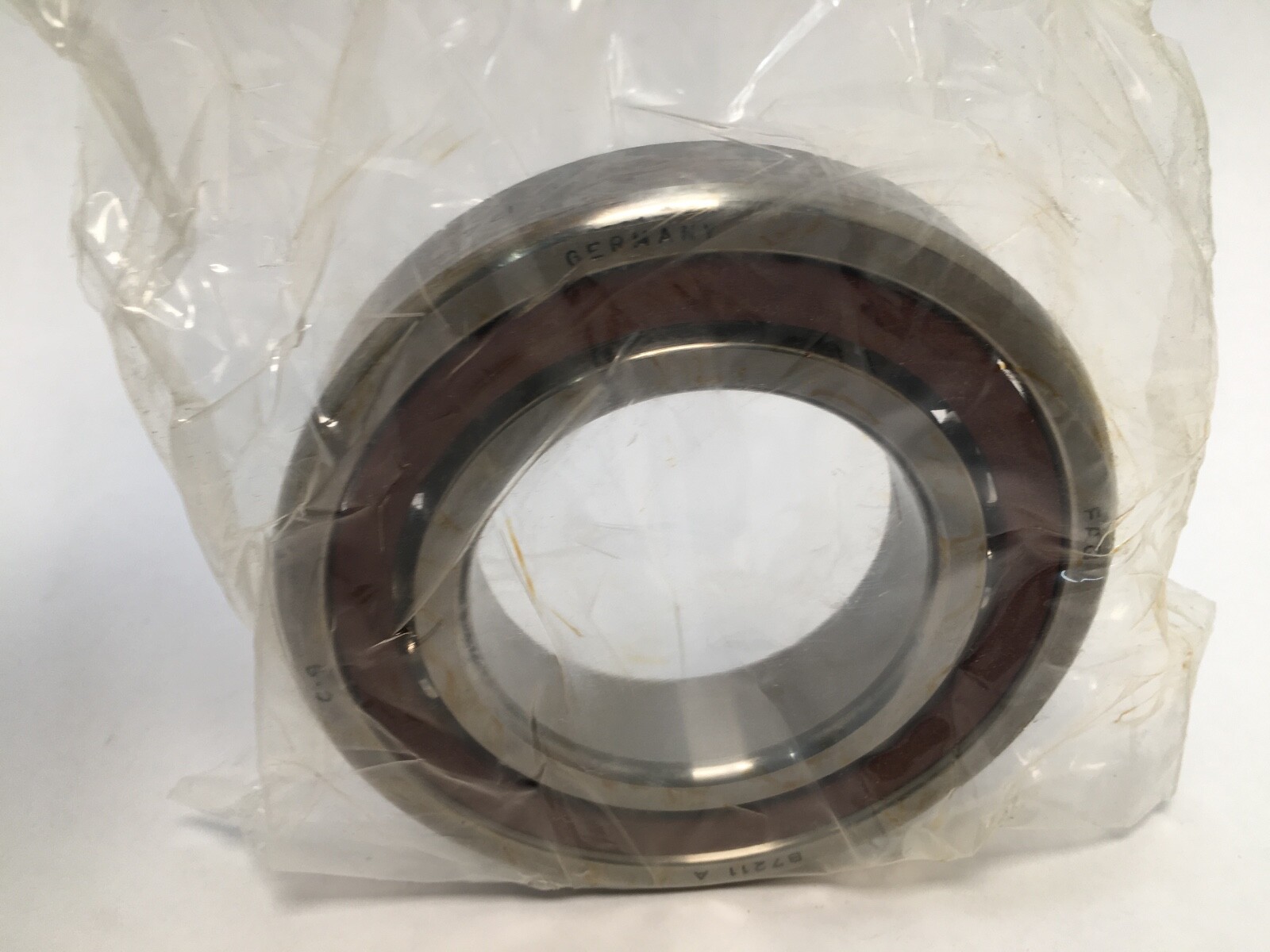

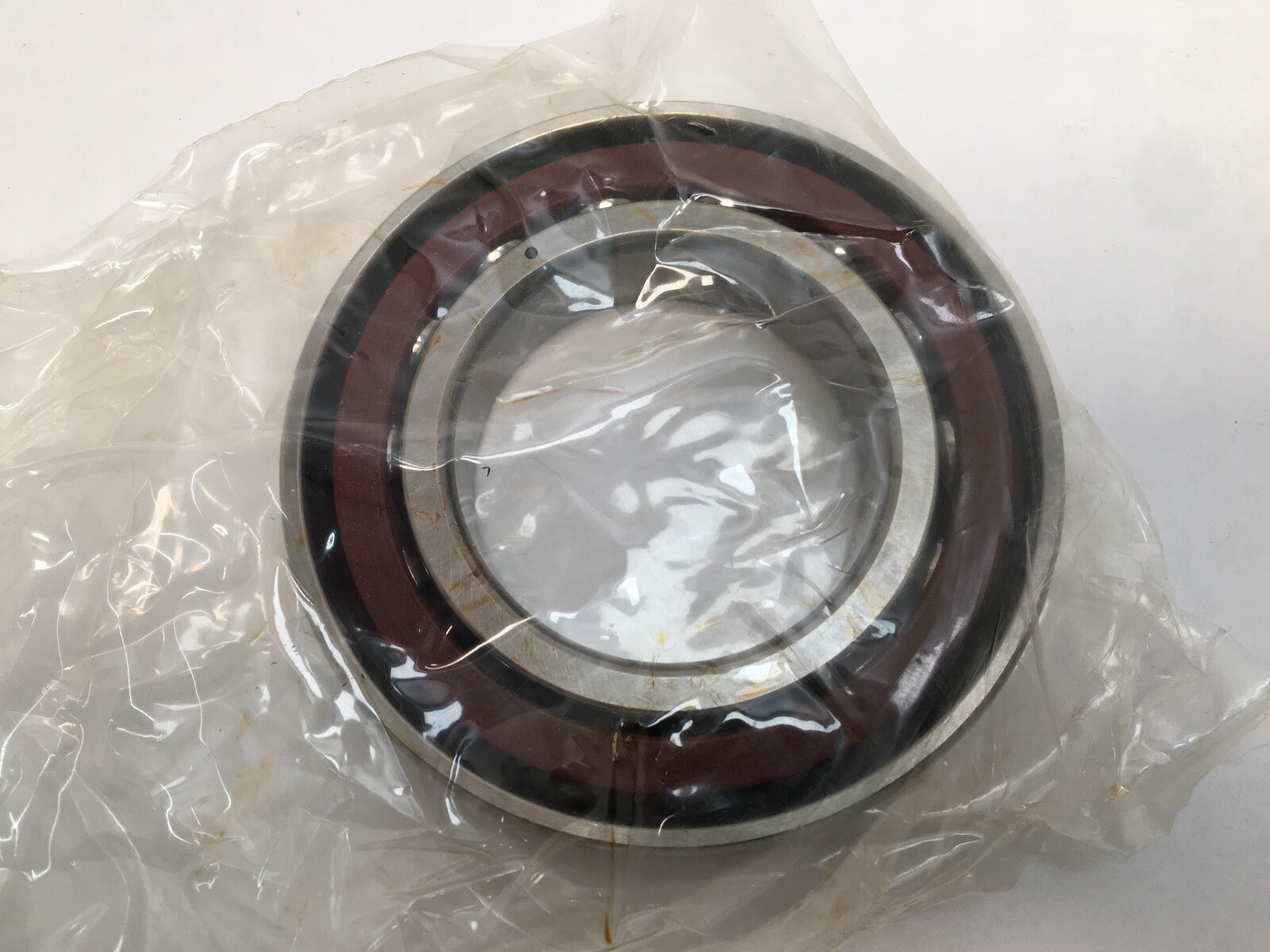

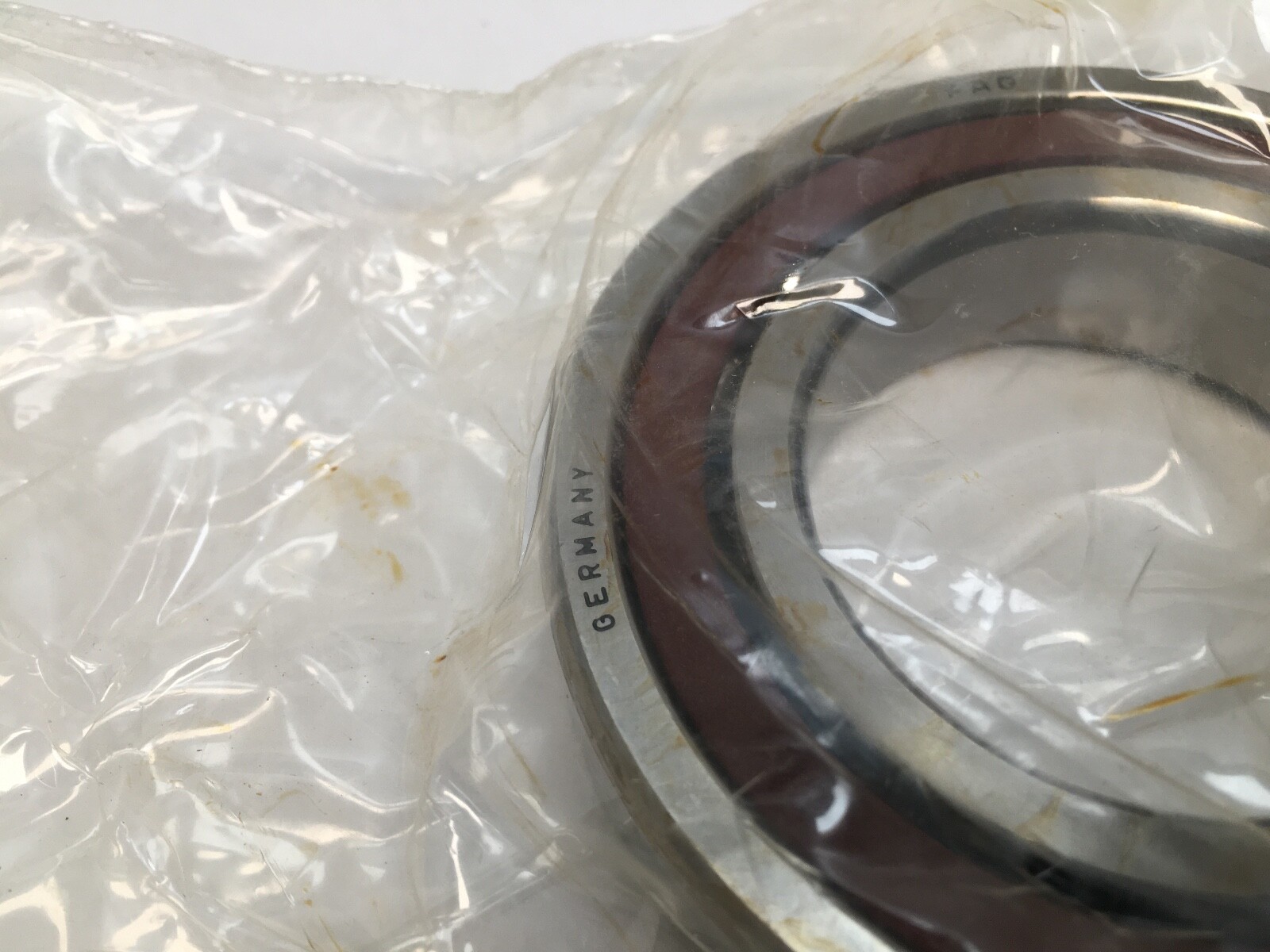

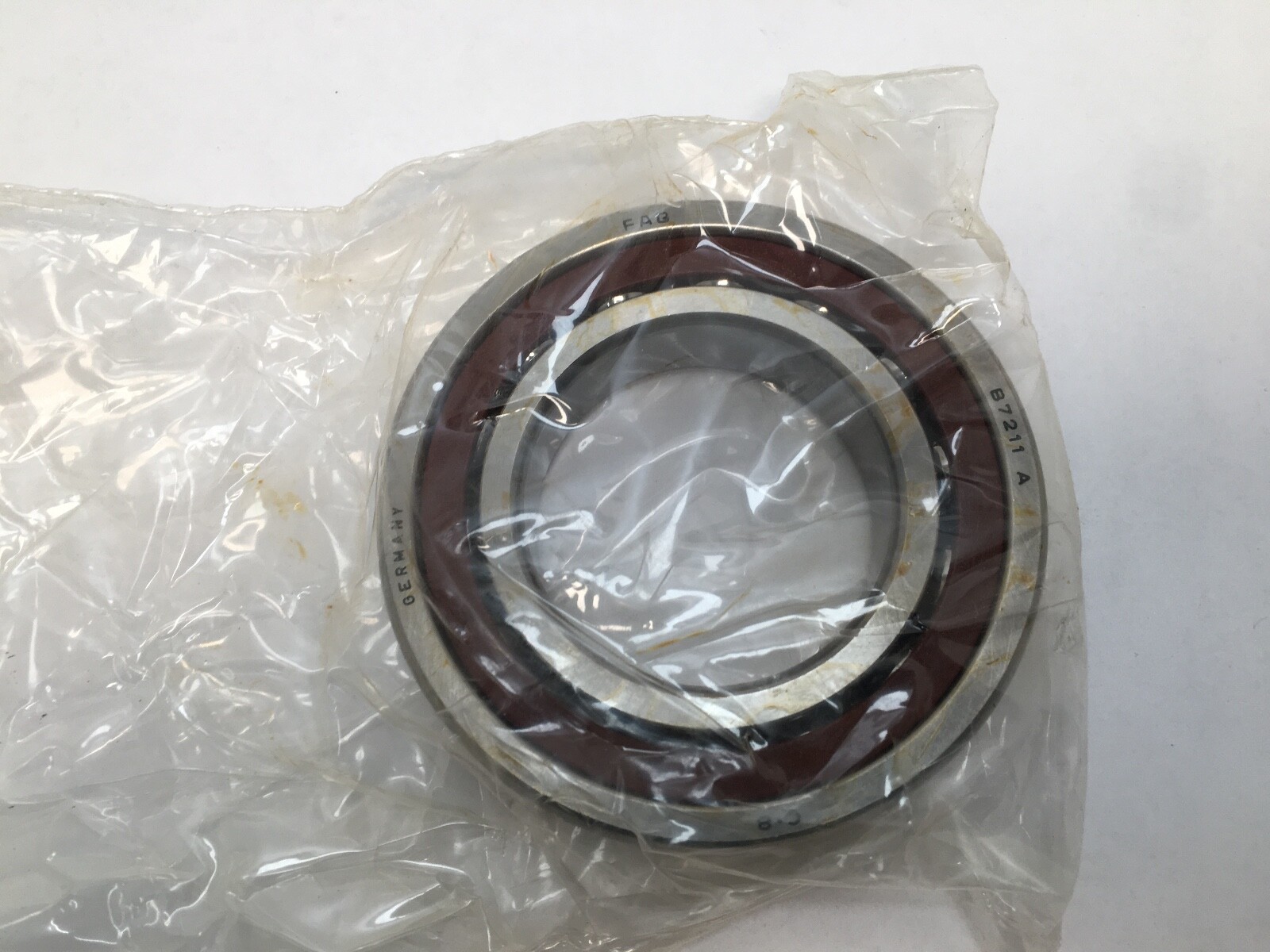

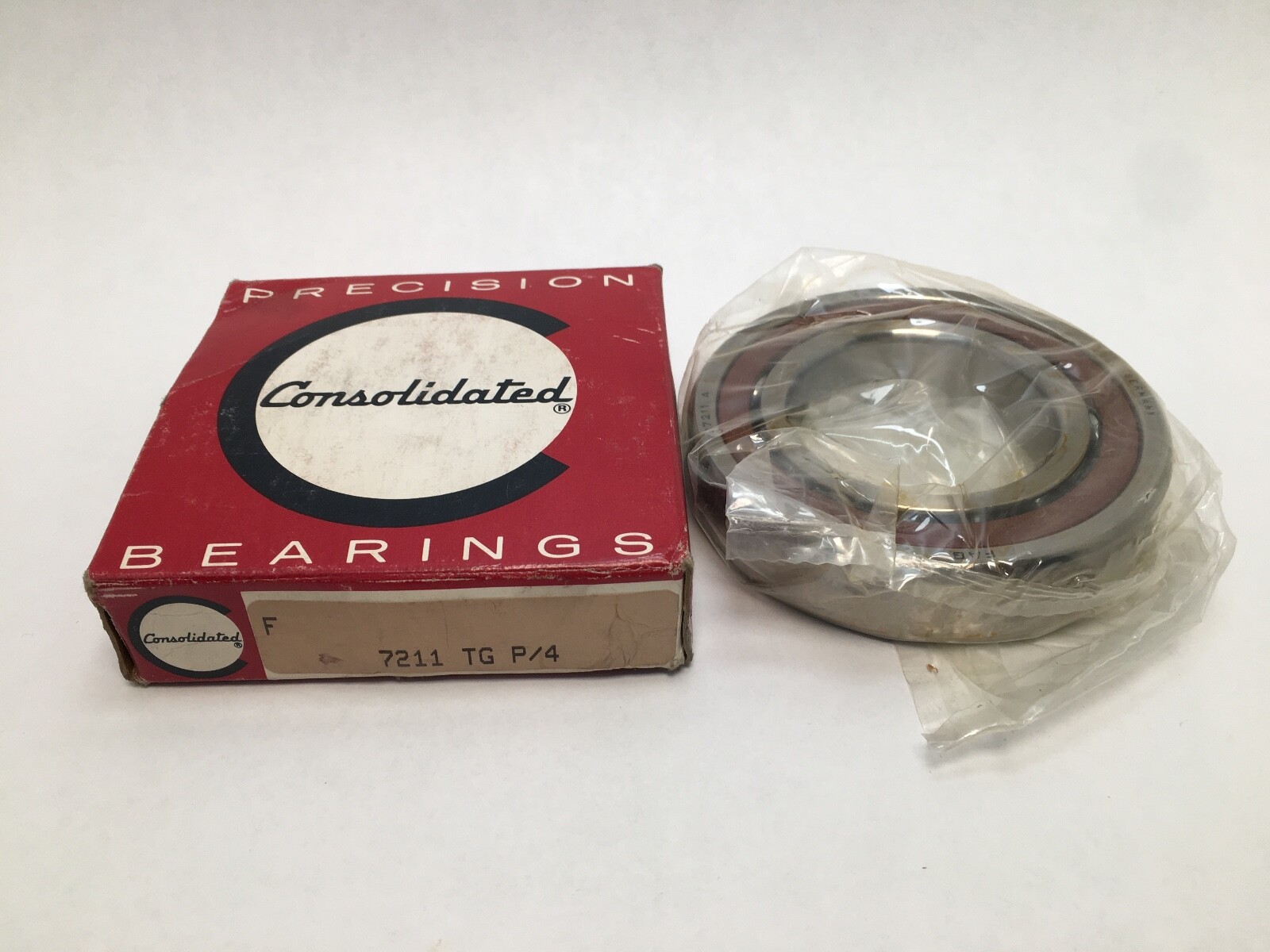

Angular contact spindle bearing, 55 mm bore x 100 mm OD x 21 mm width, 15° contact angle, ABEC 7 / P4S, light preload. Consolidated (FAG) B7211C.TPA.P4S.UL.
List Price
$137.64
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7211C.TPA.P4S.UL |
| Model | 2MM211 / 7211 CD/CT/CTY / B 7211C T PA P4 UL / 7211TGP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Mpn Variants | B7211C.TPA.P4S.UL, B-7211-C-TPA-P4-UL, 7211-TG, 7211TGP4, B7211-C-T-P4S-UL, Consolidated B7211C.TPA.P4S.UL |
|---|---|
| Precision Class | ABEC 7 / P4S |
| Cage Type | Machined, outer-ring land-riding |
| Series | 7200 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7211 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7211CTRSULP4 |
| Cross Reference 3 | Fafnir 2MM211WICRSUL |
| Cross Reference 4 | FAG B7211-C-T-P4S-UL |
Consolidated (FAG designation) B7211C.TPA.P4S.UL single-row super-precision angular contact spindle bearing in the ISO 7211 envelope, also marked 7211-TG. Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Width: 21 mm. Contact Angle: 15°.

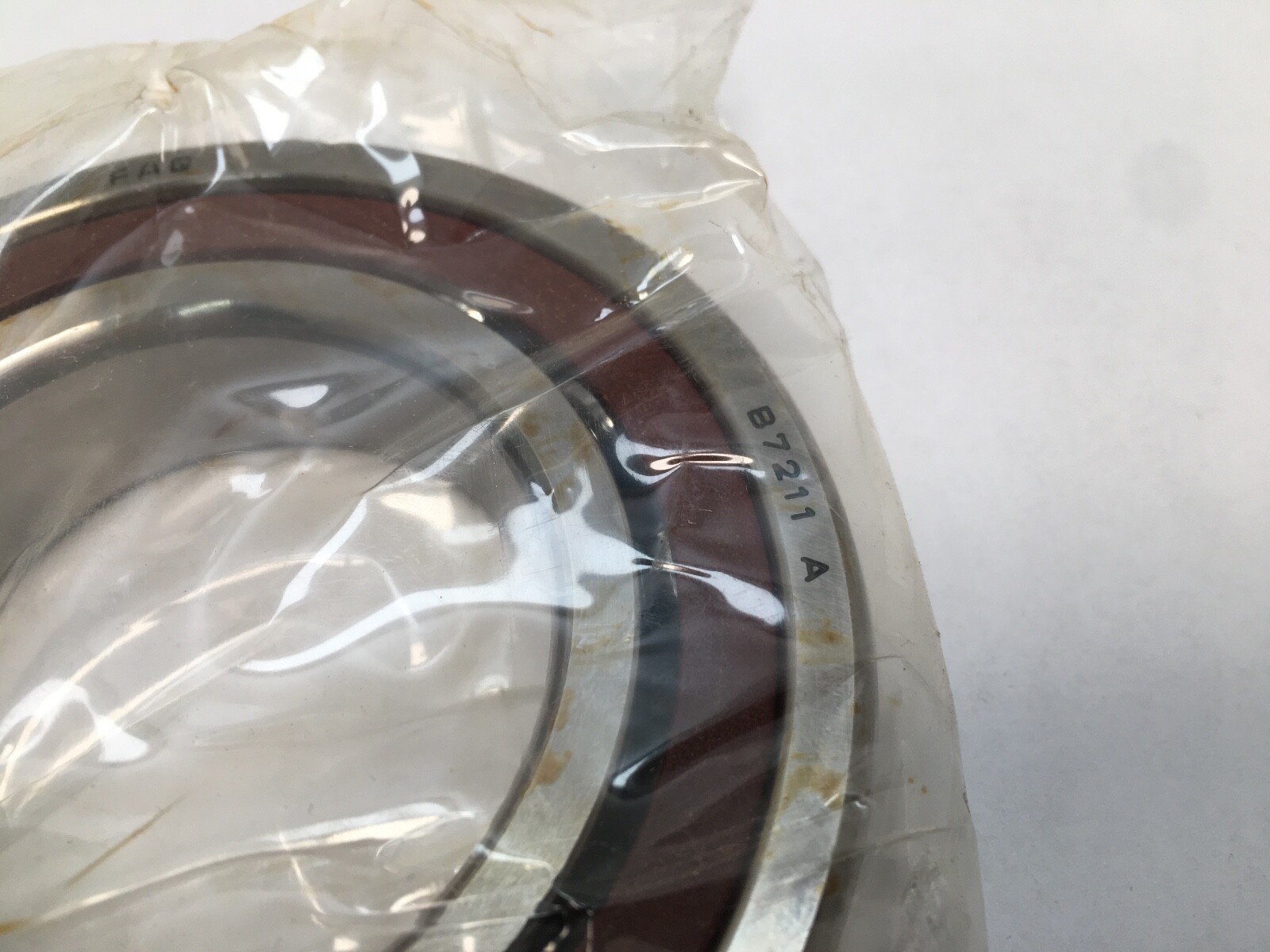

B7211 — FAG spindle bearing, 72 series, bore code 11 = 55 mm bore.
C — 15° contact angle.
TPA — phenolic laminate cage, outer-ring guided (TG on the older marking: machined phenolic, outer-ring land-riding).
P4S — FAG P4S precision, ABEC 7 / P4 dimensional class with tightened running accuracy.
UL — universal matching, light preload.
Contact Angle: 15°. Precision Class: ABEC 7 / P4S. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. The 15° angle favours speed and radial stiffness; universal light-preload faces allow back-to-back, face-to-face or tandem pairing with any other UL bearing of the same size.
Chamfer r min: 1.5 mm. Chamfer r1 min: 1.5 mm. Shaft abutment diameter da: 63 mm. Housing abutment diameter Da: 92 mm. Fillet radius ra max: 1.5 mm. Effective load centre a: 20.9 mm.
Unit Quantity: 1 Pc. Single universally matched bearing.
Cross-references in the same 55 x 100 x 21 mm envelope, 15°, P4, light preload: SKF 7211 CD/P4ADGA, NSK 7211CTRSULP4, Fafnir 2MM211WICRSUL, FAG B7211-C-T-P4S-UL. MPN Variants: B7211C.TPA.P4S.UL, B-7211-C-TPA-P4-UL, 7211-TG, 7211TGP4, B7211-C-T-P4S-UL, Consolidated B7211C.TPA.P4S.UL.
$111.47
35 in stock
