SealMasterMSFT-23CTwo-Bolt Flange Bearing Unit – 1-7/16 in Bore, Cast Iron, Medium Duty, Setscrew Collar, Non-Expansion

Condition: New – Open box
Condition Note: Made In USA, New, No Box

Availability:

1 in stock

Medium-duty two-bolt cast iron flange unit, 1-7/16 in bore. Setscrew locking collar, felt seals with flinger, 5-21/32 in bolt centres, regreasable.

List Price

$91.72

1 in stock

Availability

1 in stock

On the Shelf & Ready to Ship

Free Shipping

On all orders

Free Returns

No Risk, No Hassle

Also Available From:

Specifications

Key Specifications

MFR / BrandSealMaster
MPNMSFT-23C
GTIN662461020296
ModelMSFT 23 C
ID1.4375 in

Technical Specifications

SeriesMSFT
ConditionNew – Open box
TypeFlanged Mount Bearing
MaterialCast Iron
Base NumberMSFT-23
Industry Termstwo-bolt flange block, oval flange bearing, mounted ball bearing flange unit, Gold Line flange unit
Application TypesConveyors, fans, blowers, agricultural drives, general industrial shafting
Condition NoteMade In USA, New, No Box
Number Of Flanges2
Bolt Center To Center5.656 in
Number Of Bolt Holes2
Bolt Center To Center Length5-21/32 in (5.656 in / 143.7 mm)
Number Of Bolt Holes For Fasteners2
Bore Shaft Size1-7/16 in (1.4375 in / 36.51 mm)
Housing Style2-Bolt Oval Flange, cast iron
Locking MethodSetscrew locking collar
RelubricationRegreasable through the housing fitting
Mpn VariantsMSFT23C; MSFT 23 C; MSFT-23-C; MSFT-23
Overall Length6-3/4 in (171.5 mm)
Min Temp-20 °C
Cage TypeLand-riding retainer
Precision RatingABEC 1 / P0
Rolling ElementsBalls
Max Temp100 °C
Bearing TypeFlange Mount Ball Bearing Unit
Item Weight3.80 lb (1.72 kg)
Cage MaterialSteel
Number Of Rows1
Bore TypeStraight
LubricantSealmaster GoldPlex HP grease
Duty TypeMedium Duty
Locking DeviceSet Screw
Insert Outer RingSpherical
Relubrication FeatureYes
Harmonization Code8483.20.40
Mounting Arrangement2-Bolt Flange
Housing MaterialCast Iron
Expansion TypeNon-Expanding
Part NumberMSFT-23C

Cross-References

Cross Reference 1MSFT-23T (related locking variant, Skwezloc concentric collar)
Cross Reference 2SFT-23C (related duty grade, standard-duty housing, same bore)
Seller Part Number: BO1#EZ3H2Q

Product Description

What this part is

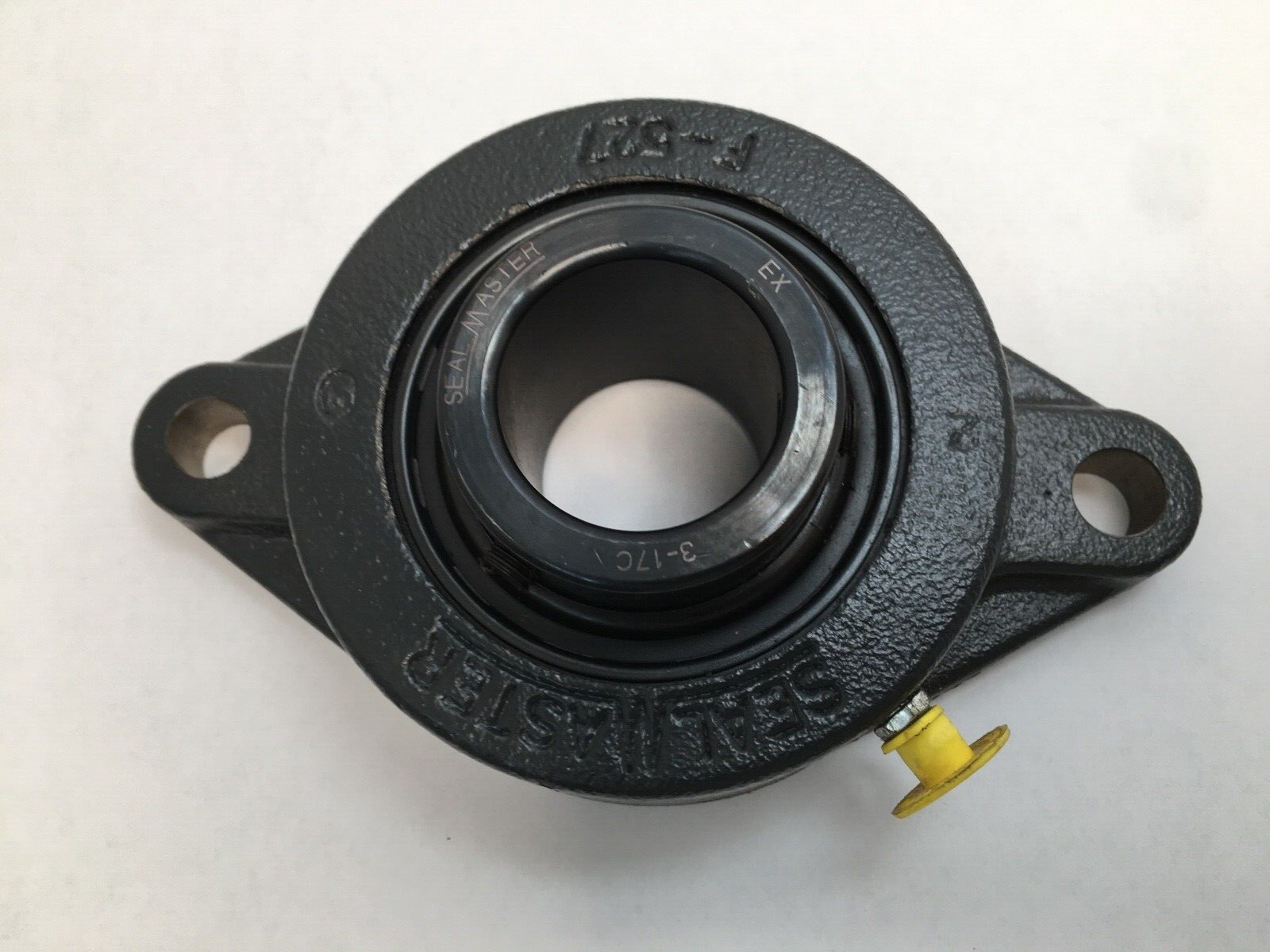

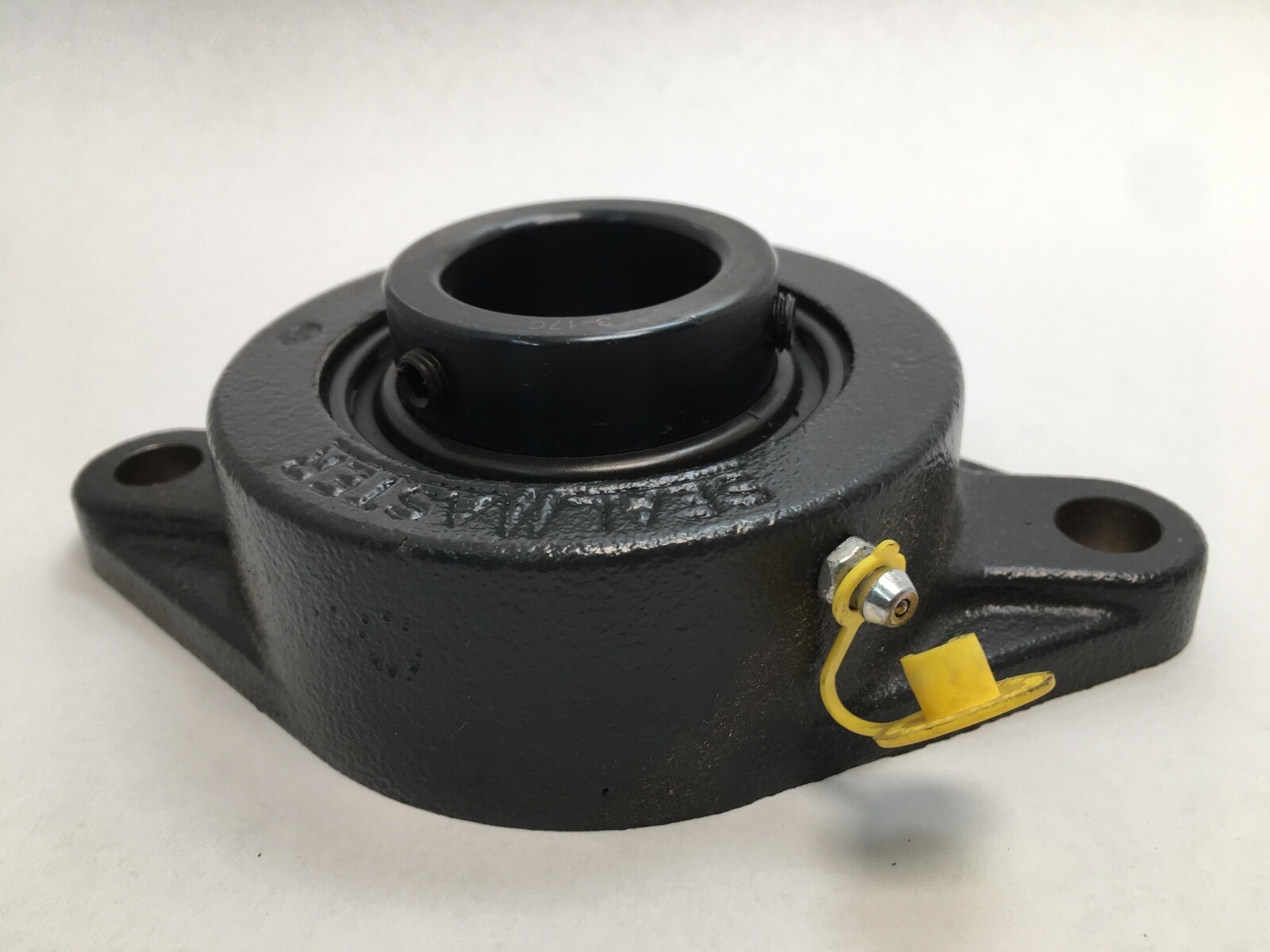

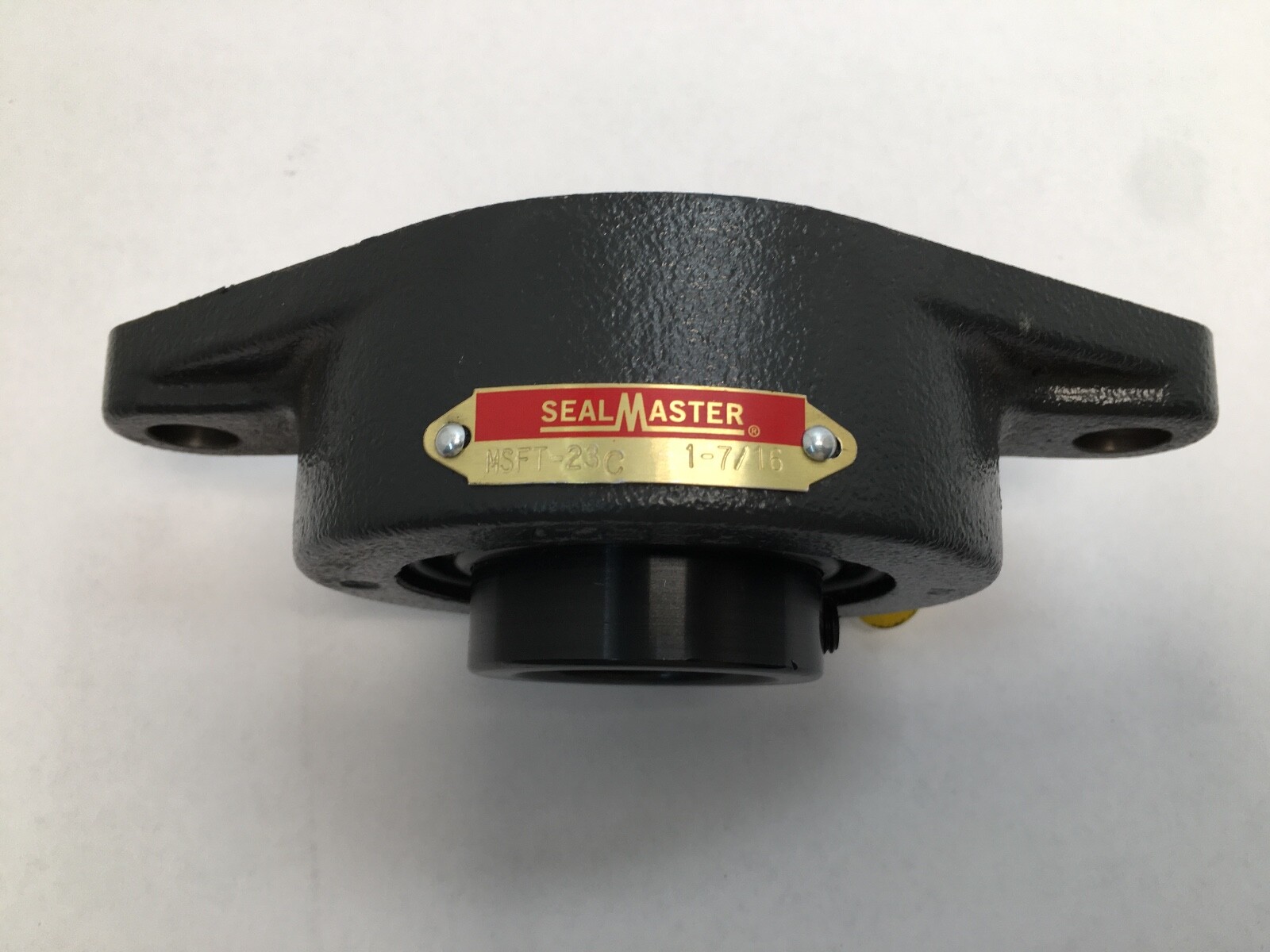

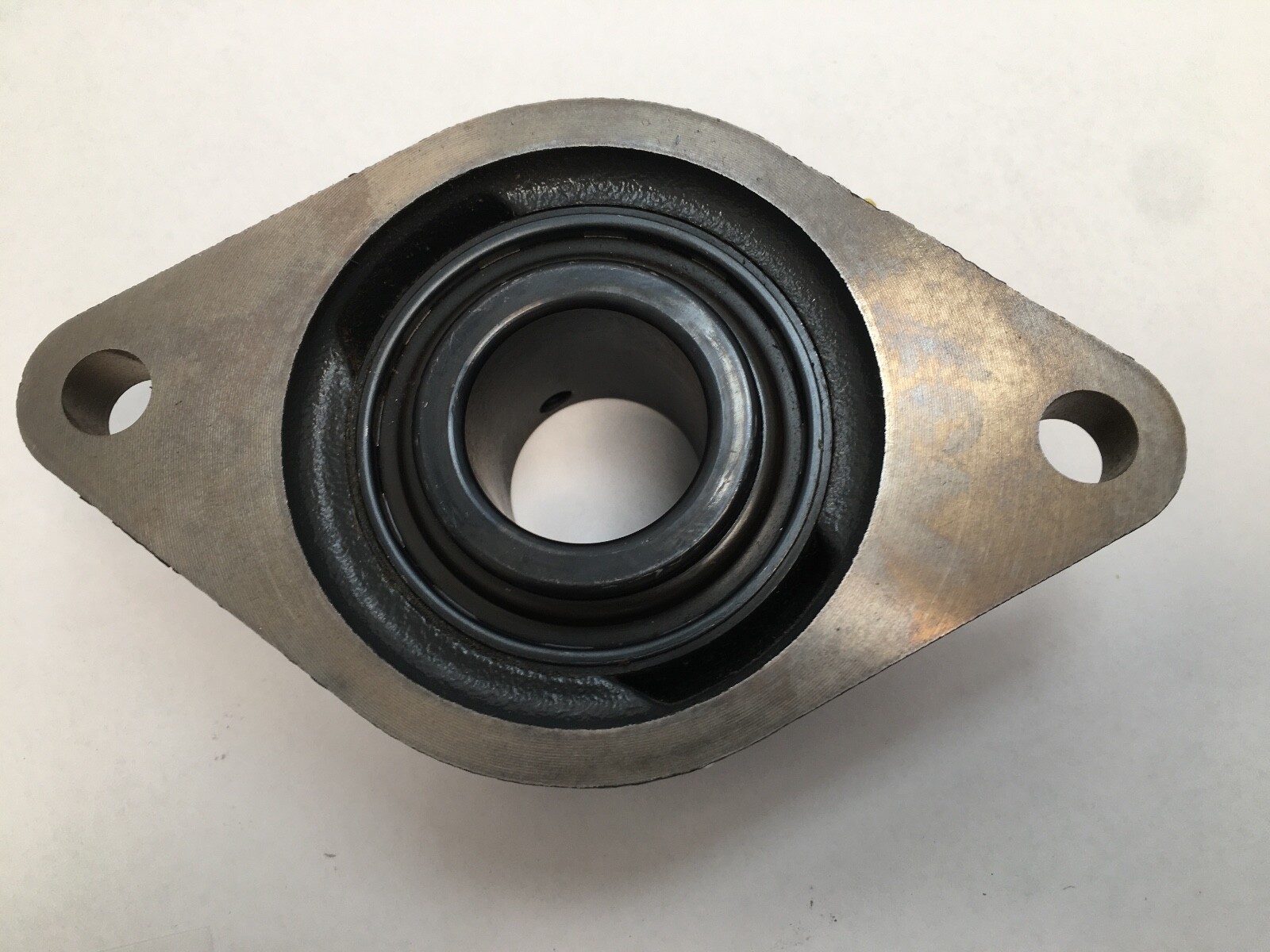

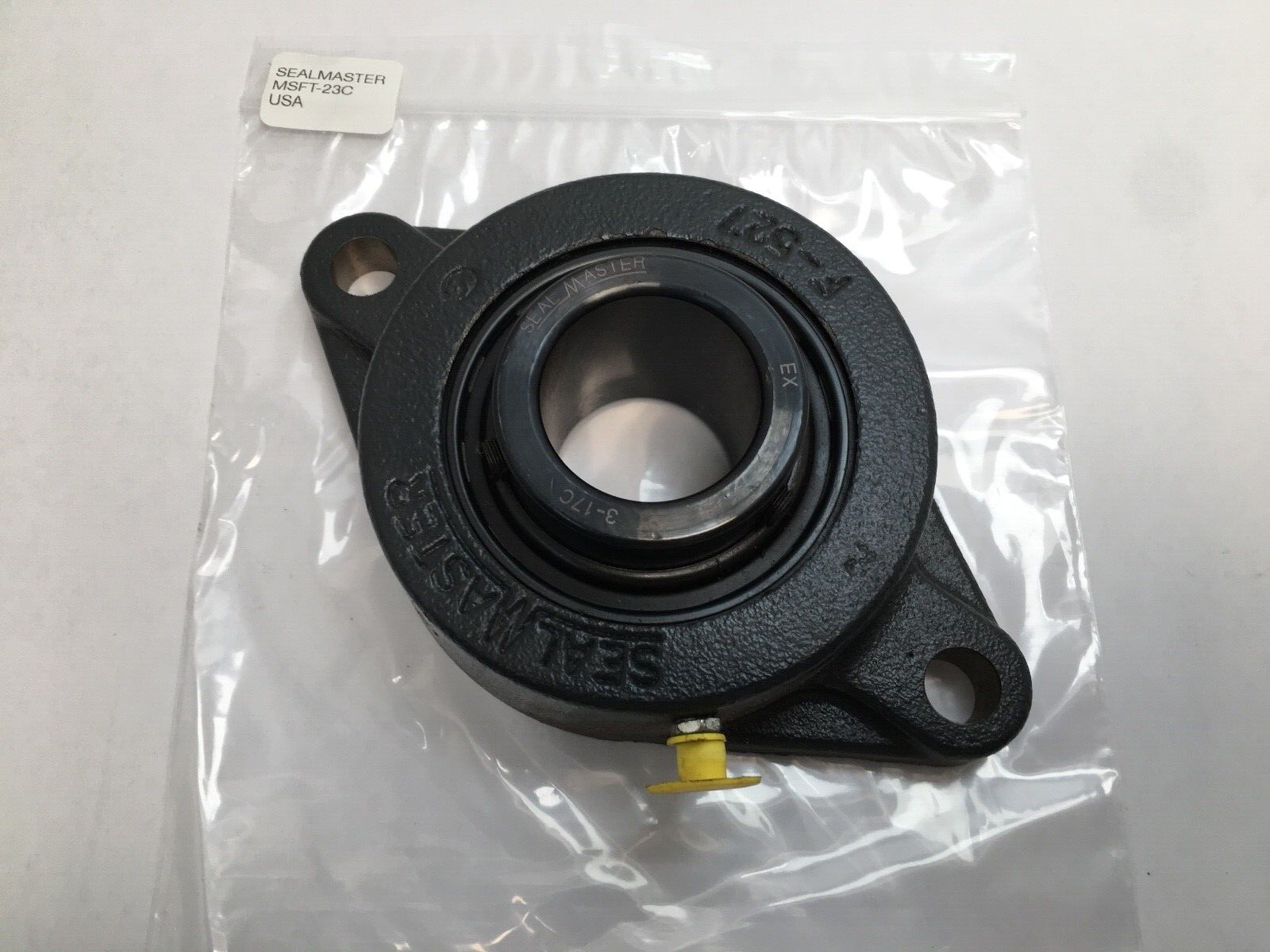

Sealmaster MSFT-23C two-bolt flange-mount ball bearing unit, Gold Line series. Bore: 1-7/16 in (1.4375 in), straight and round. Series: MSFT, medium duty. Housing: cast iron, two-bolt oval flange. Insert: wide outer race ball bearing with a spherical outside surface for self-alignment. Locking method: setscrew locking collar. Expansion type: non-expansion.

Decoding the designation

MSFT: medium-duty two-bolt flange unit. 23: 1-7/16 in bore. C: setscrew locking collar. Series: MSFT. Duty rating: medium.

Housing style and bolt pattern

Two-bolt oval cast iron flange. Bolt hole spacing width: 5-21/32 in (5.656 in). Overall length: 6-3/4 in. Flange height: 9/16 in. Weight: 3.80 lb.

What these specs mean in practice

The medium-duty MSFT housing carries a heavier section than the standard-duty SFT at the same bore, so it takes more shock load off a drive shaft in conveyor and fan service. The spherical insert outside surface takes up initial shaft misalignment on mounting. Setscrew locking is the quickest field fit on a commercial shaft and reverses out without a special tool.

Sealing and lubrication

Felt seal with flinger on both sides, which balances contaminant exclusion against grease retention and running friction. Regreasable through the housing fitting. Factory grease: Sealmaster GoldPlex HP. Insert construction: black oxide treated bearing steel with a land-riding metallic retainer and a lock pin and dimple system securing the outer race in the housing.

Quantity and configuration

One complete flange unit with insert and setscrew collar. Country of origin: United States. Harmonization code: 8483.20.40.

Interchange guidance

MSFT-23T is the same unit with a Skwezloc concentric locking collar — a related locking variant. SFT-23C is the standard-duty housing at the same bore — a related duty grade. Searchable forms: MSFT23C, MSFT 23 C, MSFT-23-C.
