SealMasterLP-16Pillow Block Bearing LP16 LP-16 1″ Shaft Light Duty Morse

Product Description

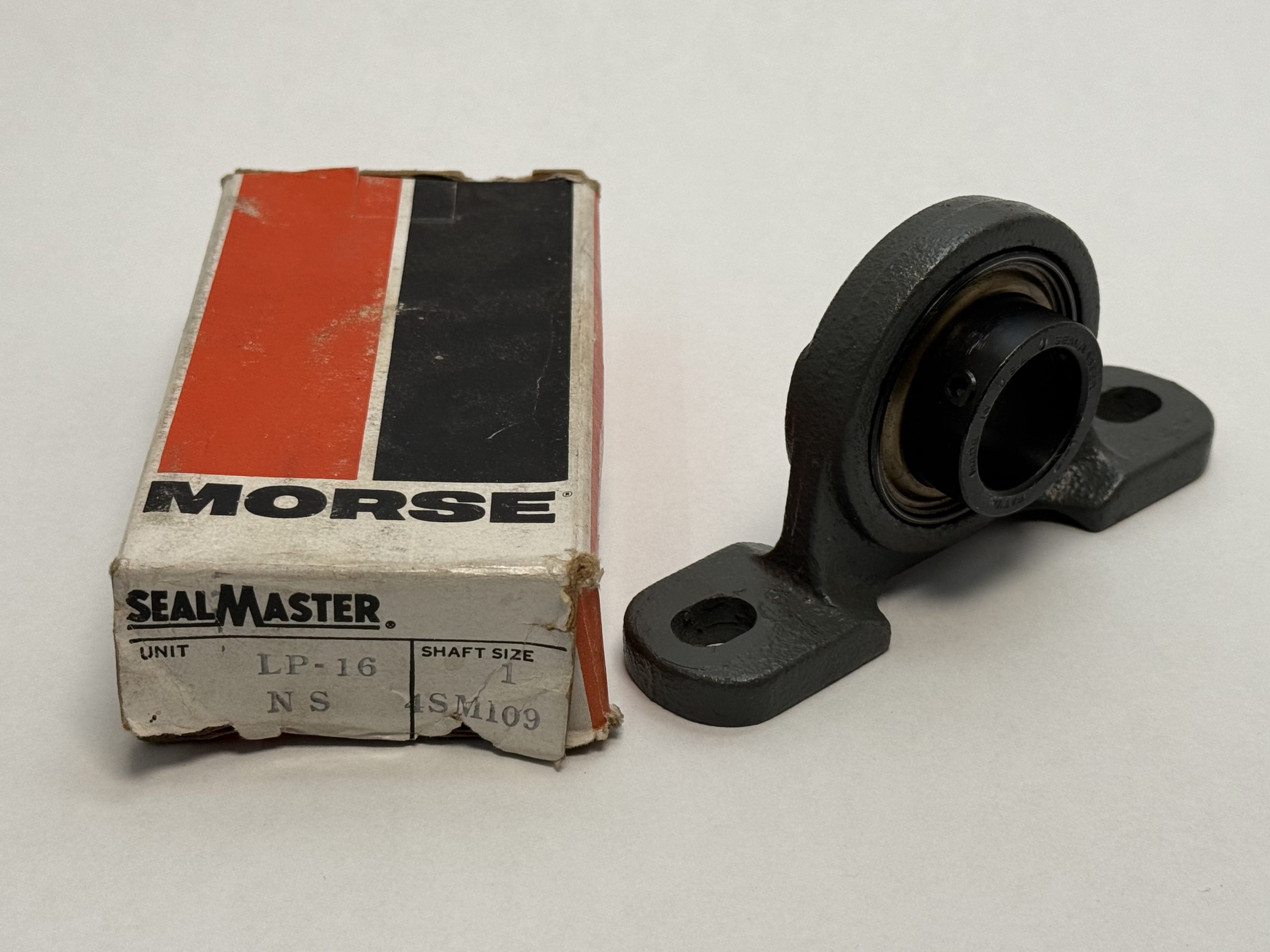

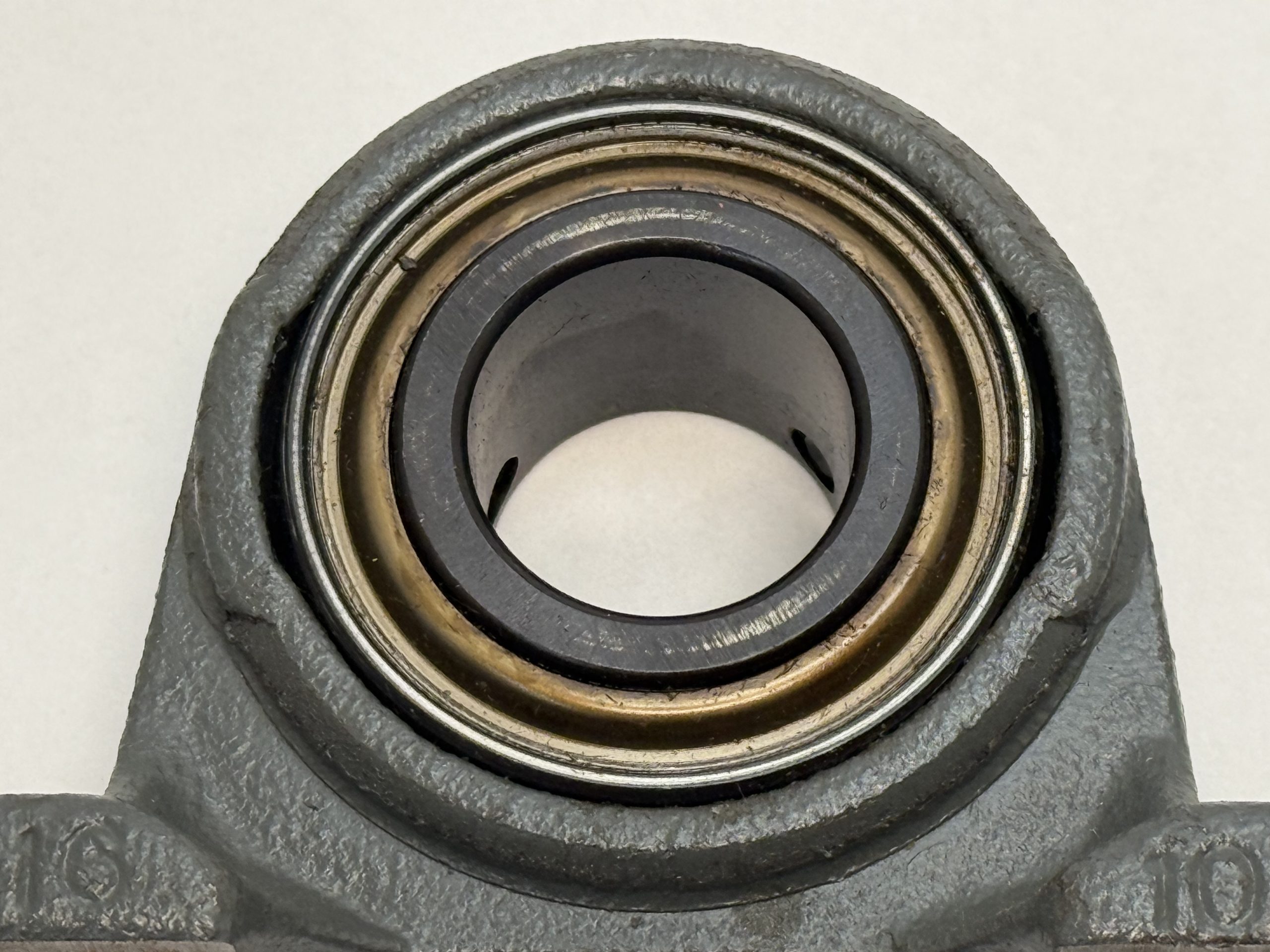

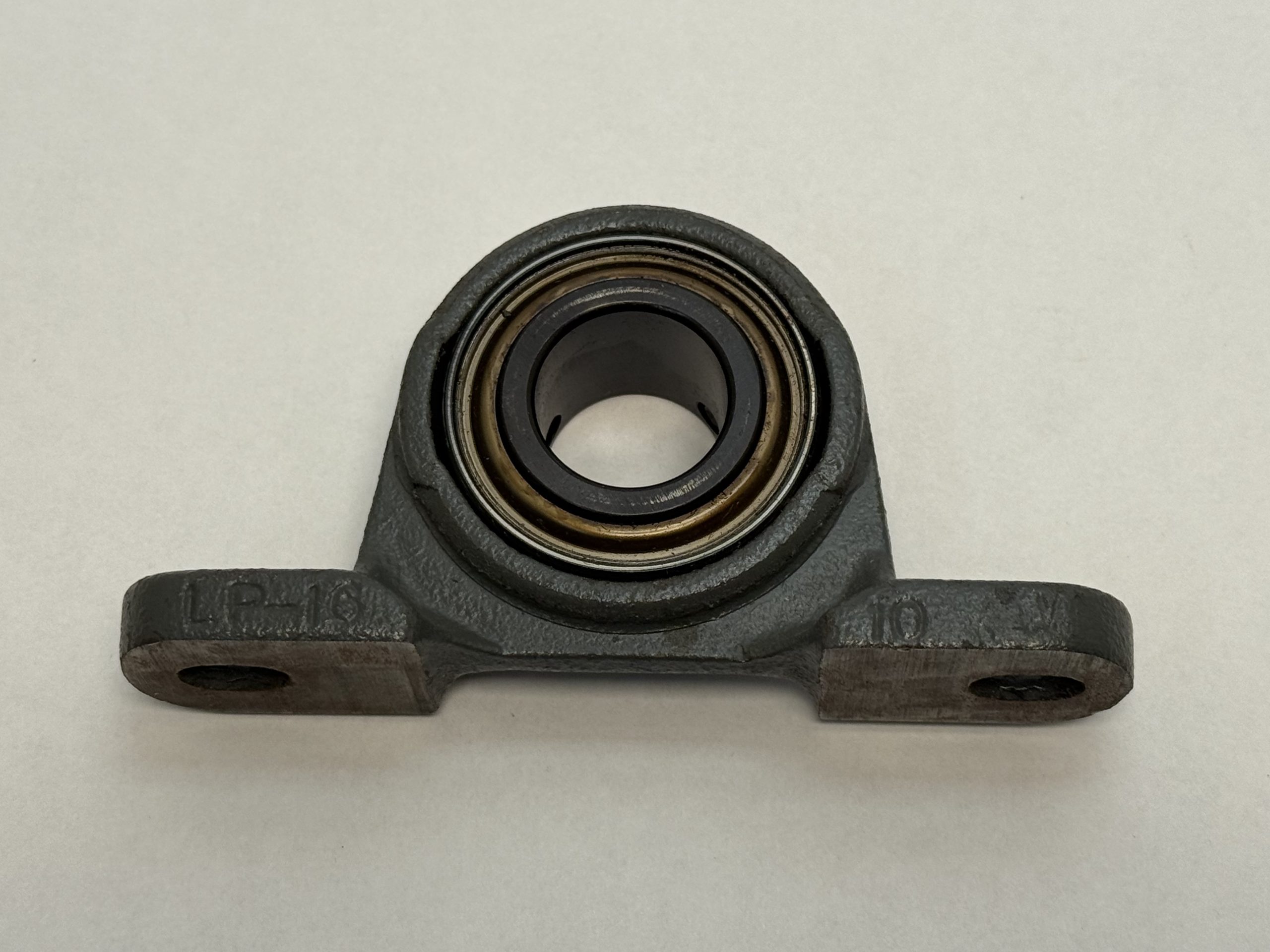

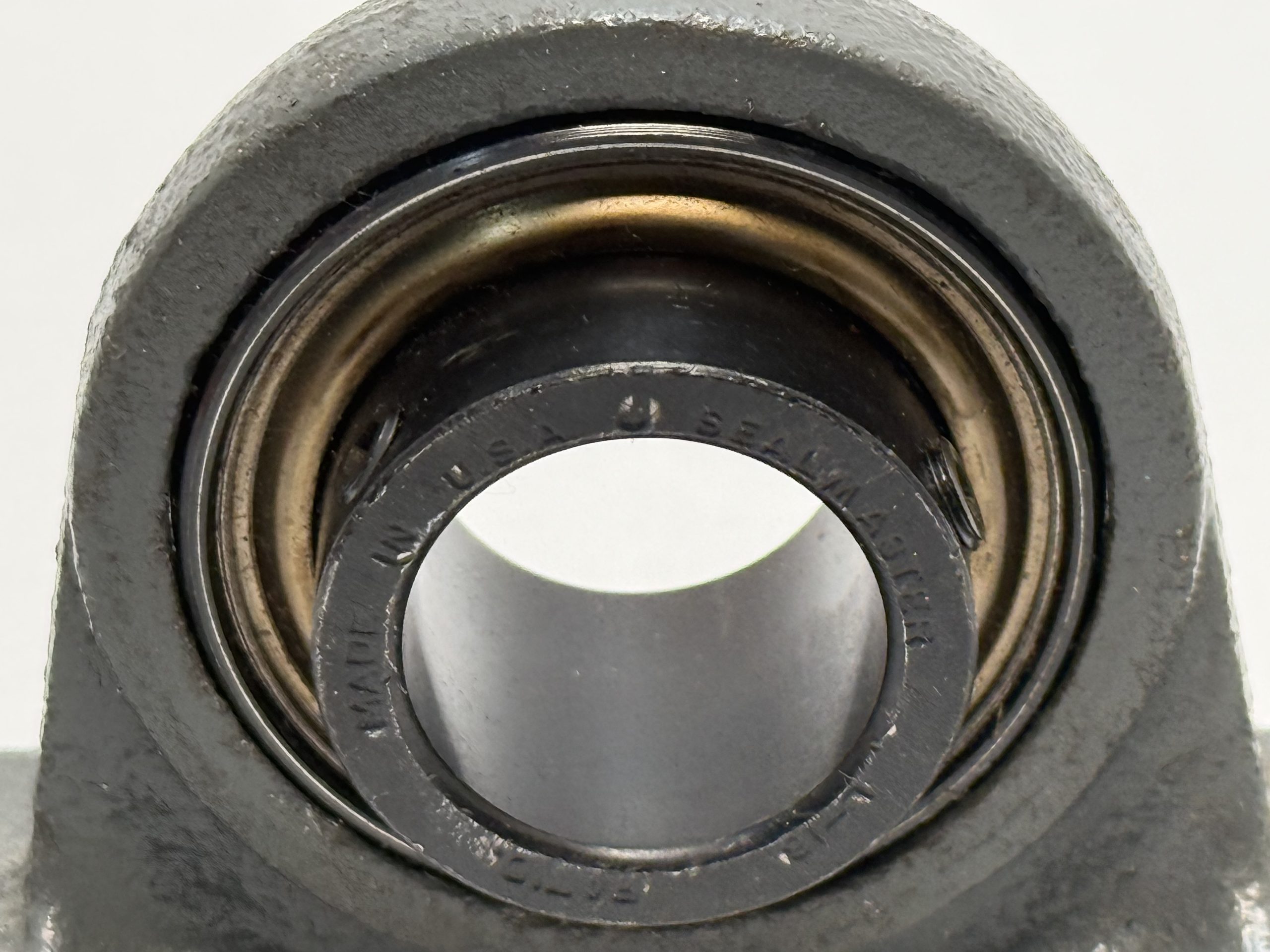

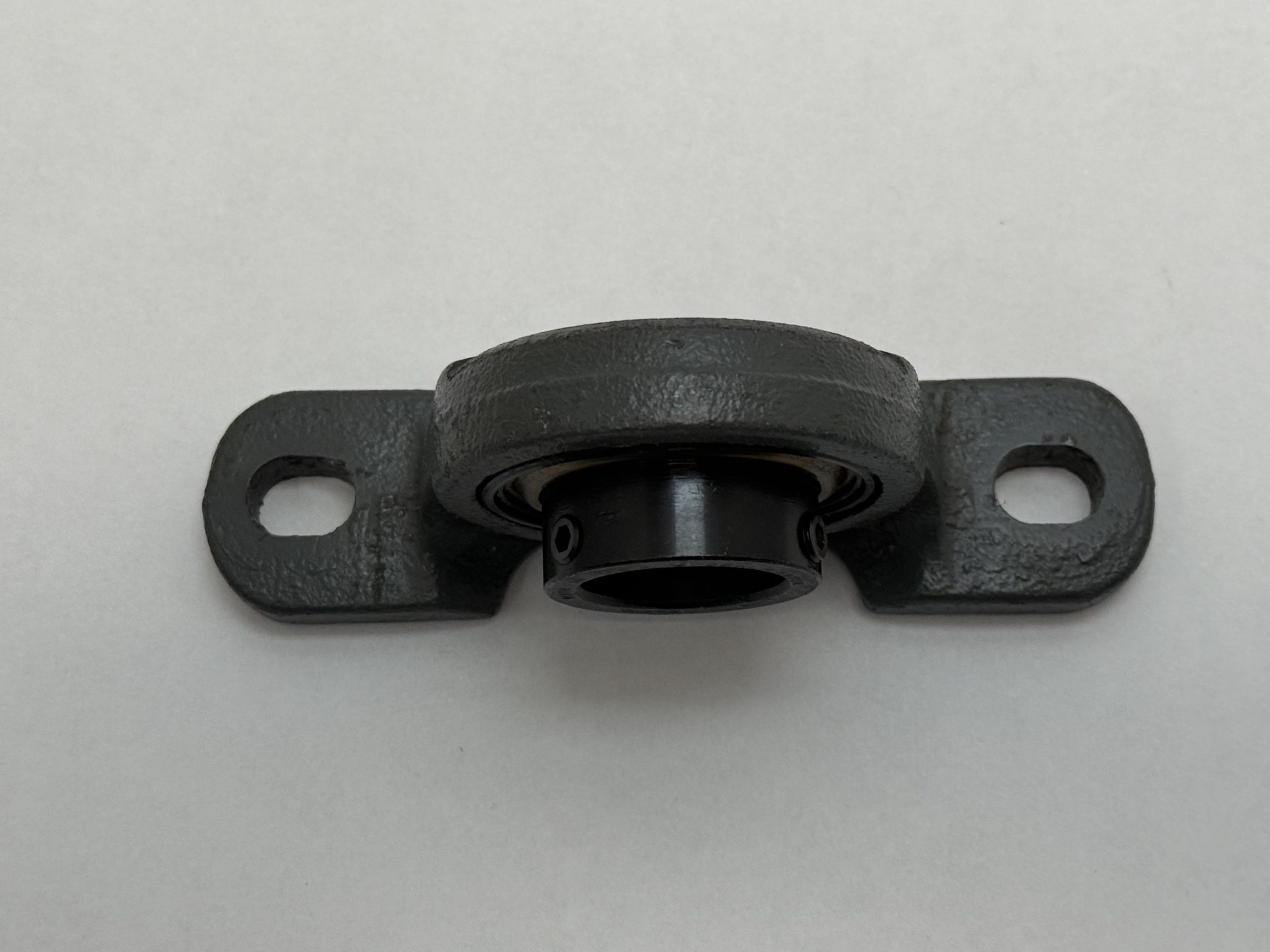

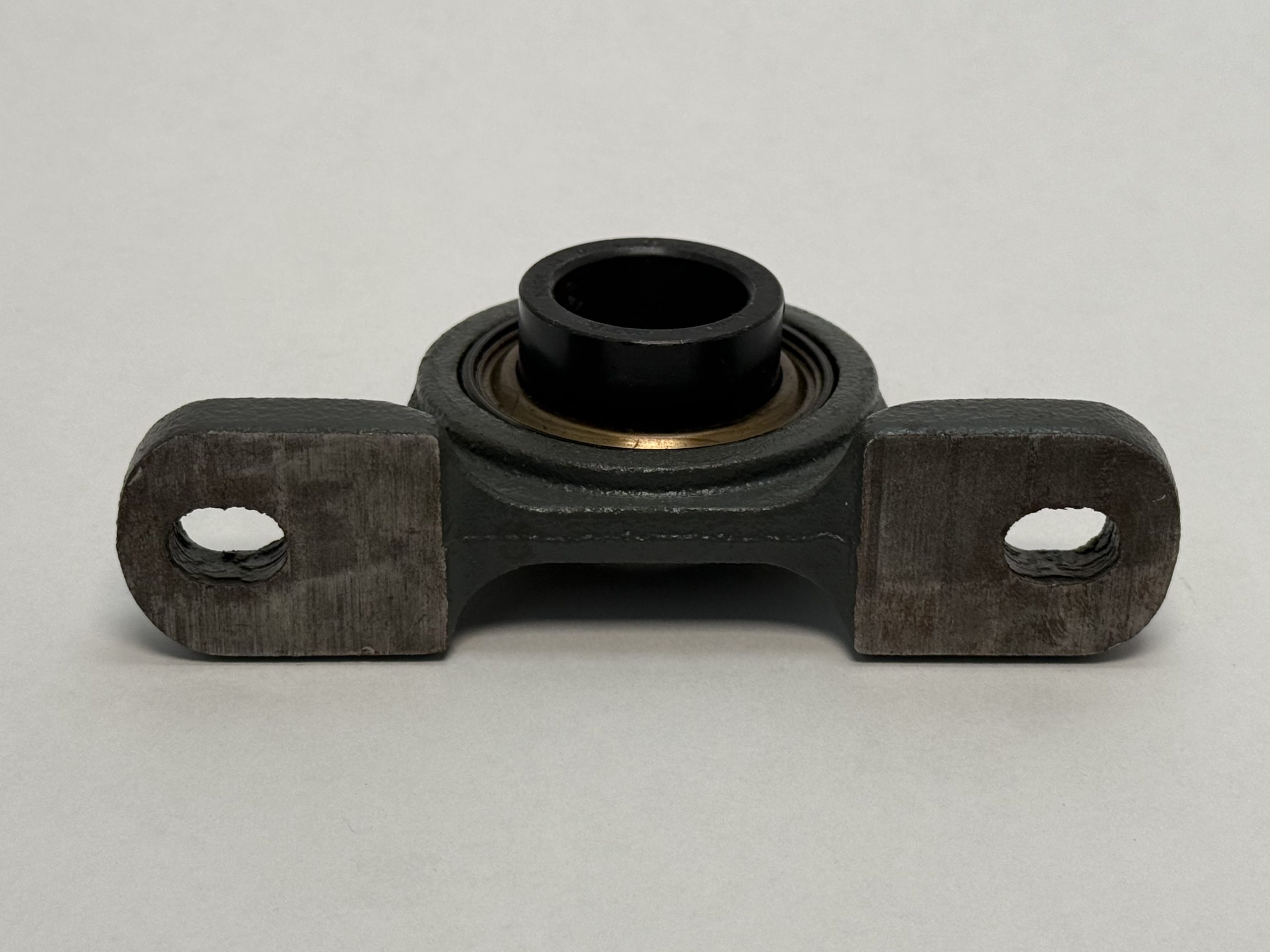

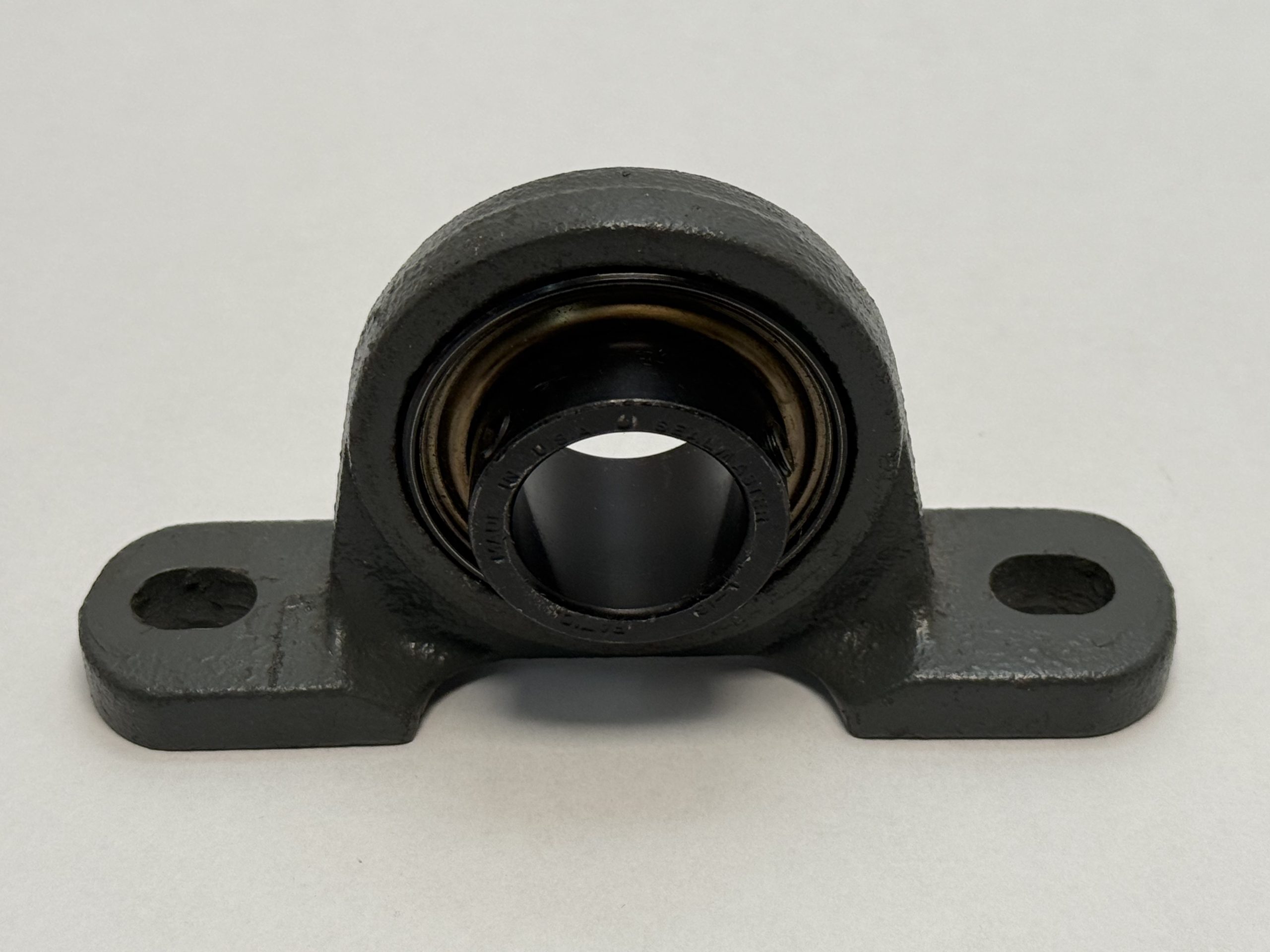

What this isOne (1) Sealmaster LP-16 pillow block bearing unit for a 1″ shaft. The LP series is the light duty line: a compact malleable iron two-bolt housing carrying a self-aligning, permanently sealed ball bearing insert. The insert swivels in the housing, so the unit seats and runs without binding when the shaft and the mounting surface are not perfectly square to each other — the usual case on light conveyors, fans, agricultural drives and OEM machinery. Locking to the shaft is by setscrew. Supplied as a complete unit, housing and bearing together.

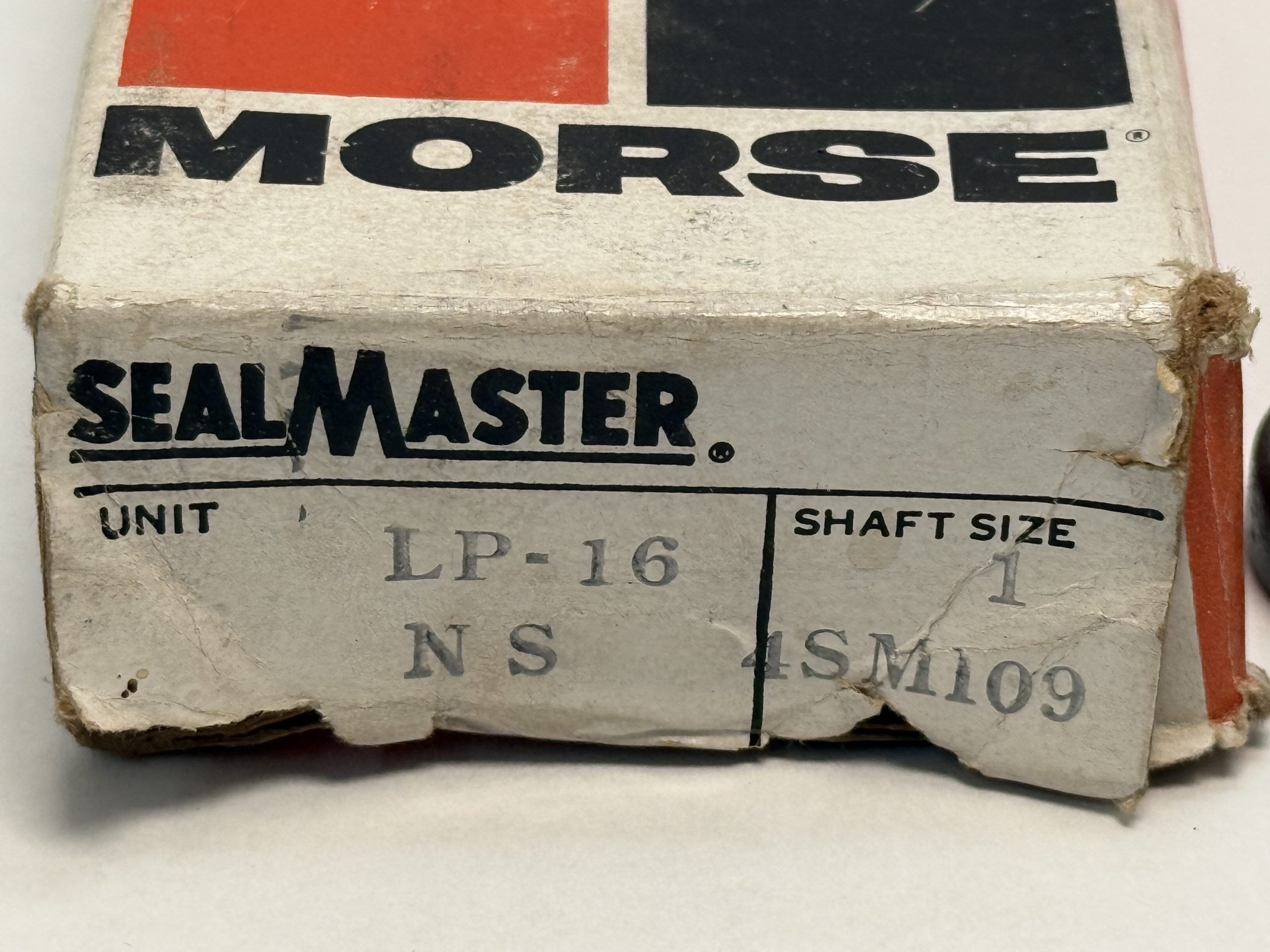

Vintage USA production from the Morse / Borg-Warner era of the Sealmaster line. The carton is printed MORSE • BORG-WARNER • SEALMASTER, lists the shaft size as 1″, and is marked LP-16 / NS / 4SM109.

How the part number breaks downLP — light duty pillow block, malleable iron housing, two bolt holes, with a self-aligning permanently sealed ball bearing insert.

16 — the shaft size in sixteenths of an inch: 16/16 = 1″.

Also sold and searched as LP16 and LP 16; the carton code on this unit is 4SM109. The NP and SP series are the standard and medium duty equivalents in the same bore.

Item SpecificationsBrand: Sealmaster (Morse / Borg-Warner era)Part number: LP-16Carton code: 4SM109Type: Two-bolt pillow block ball bearing unit, light dutyBore / shaft size: 1″Housing: Malleable ironInsert: Self-aligning, permanently sealed ball bearingLocking: SetscrewCountry of origin: USA
