SealMasterESF-32-AIFFour-Bolt Flange Mounted Ball Bearing — 2 in Bore, Expansion Type, Cast Iron Housing

Product Description

What this part is:

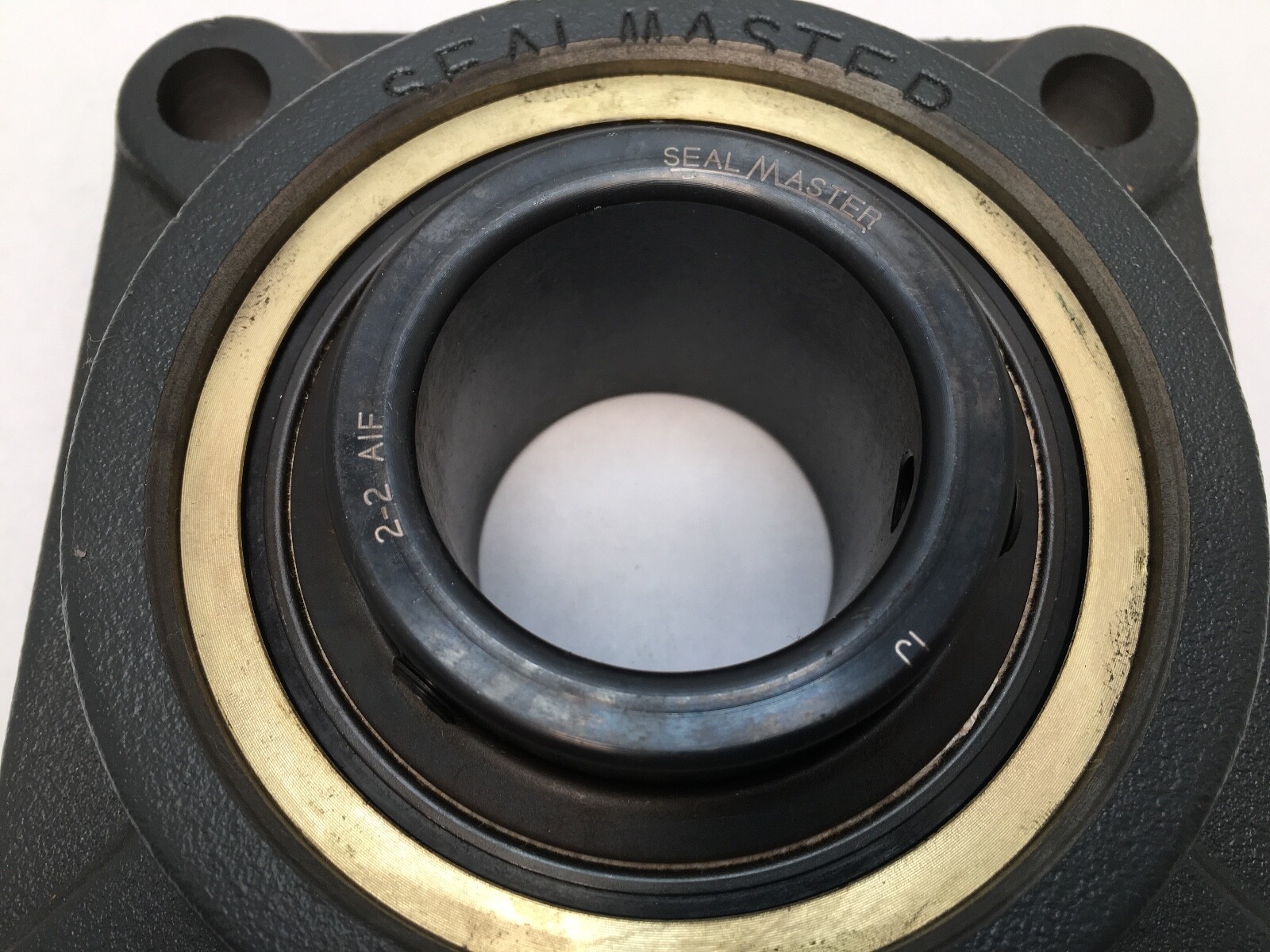

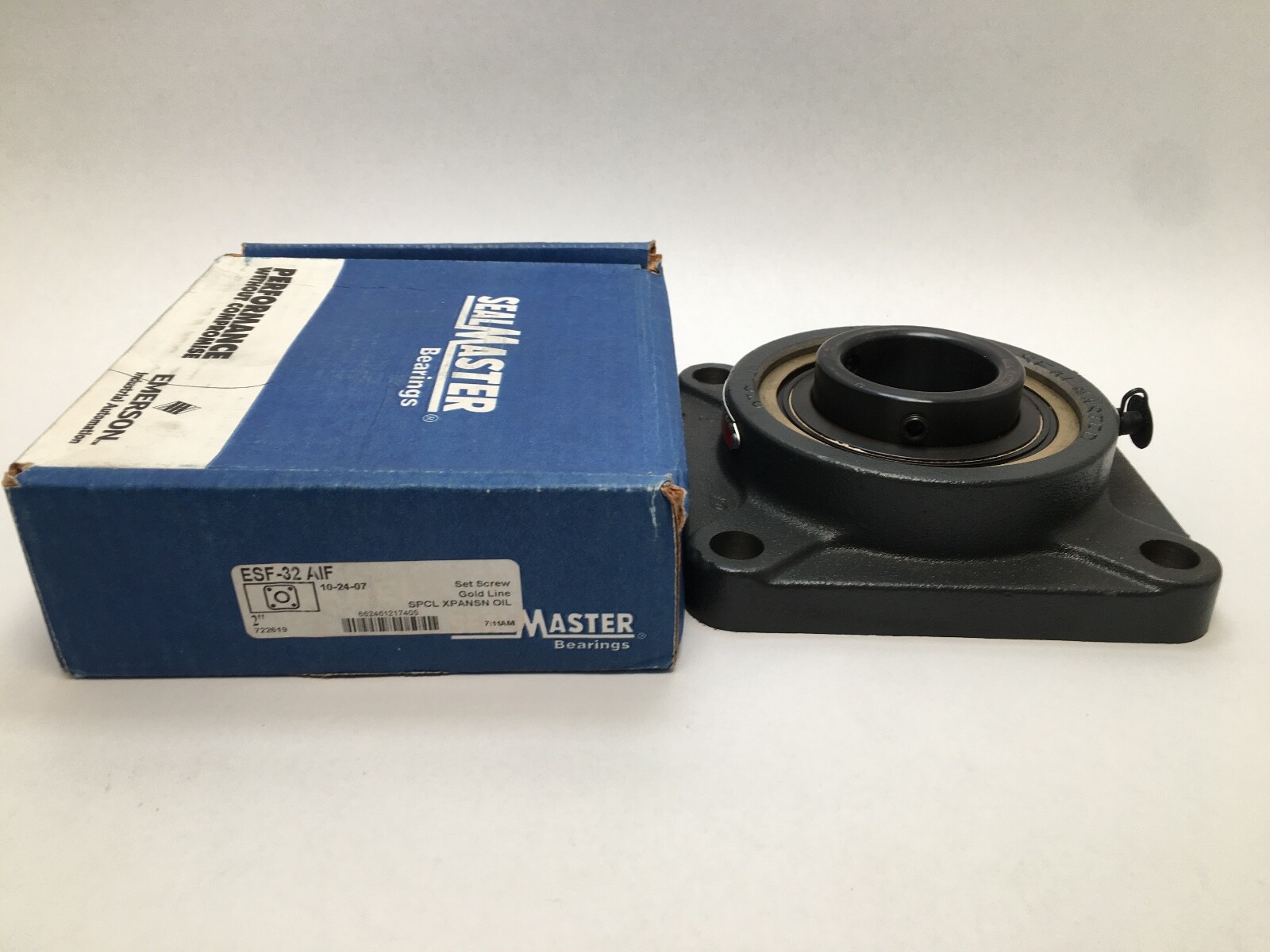

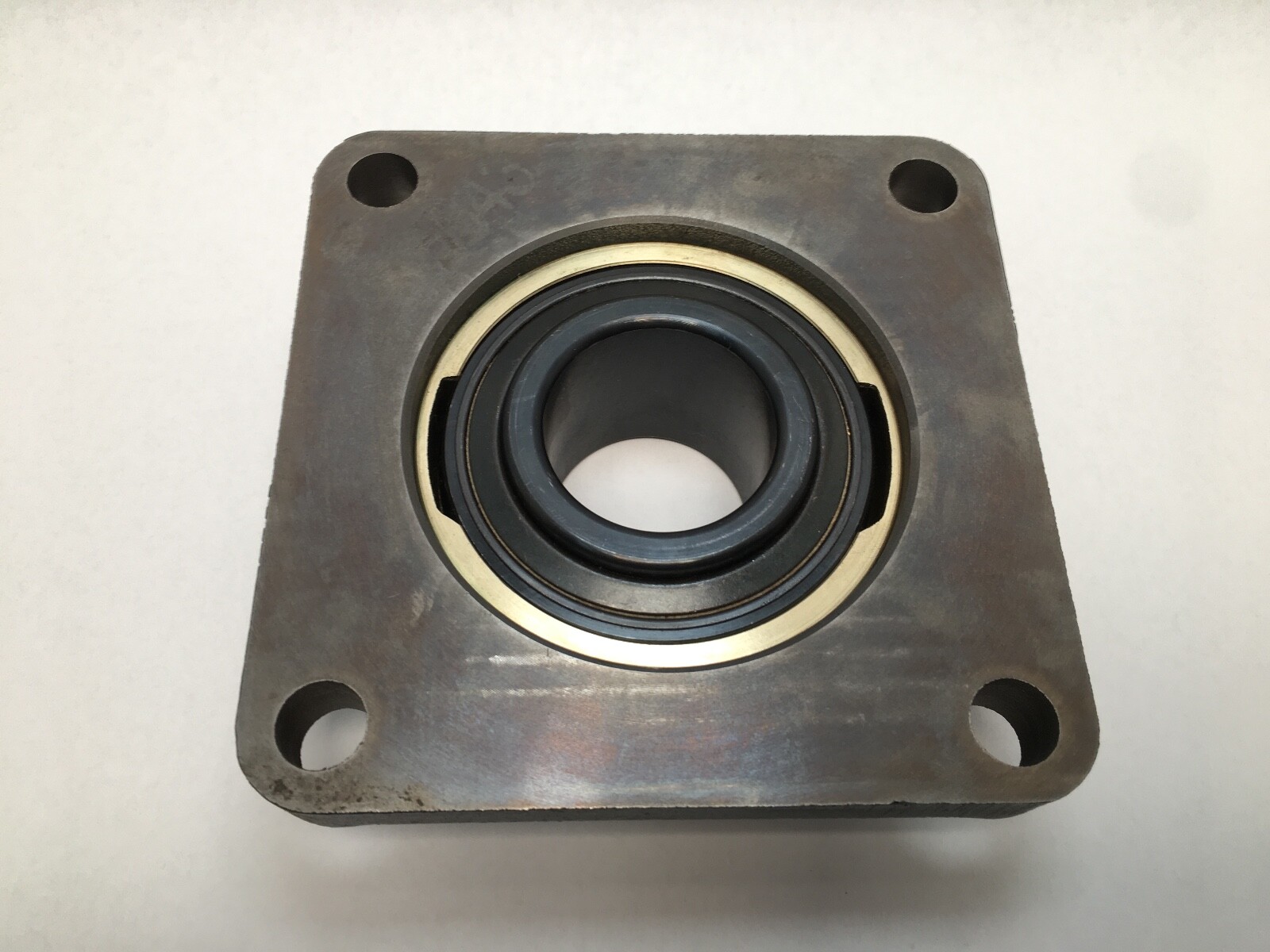

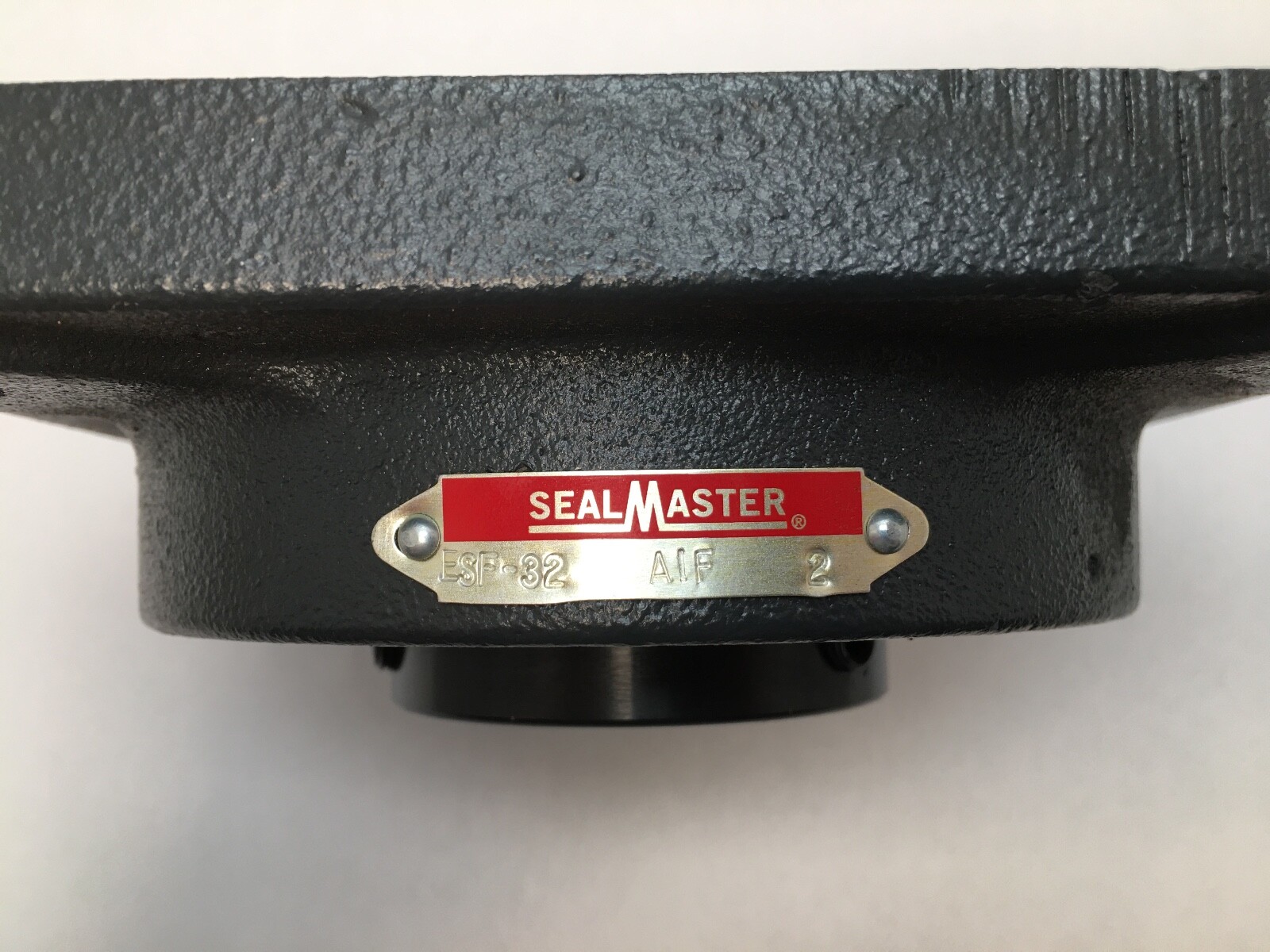

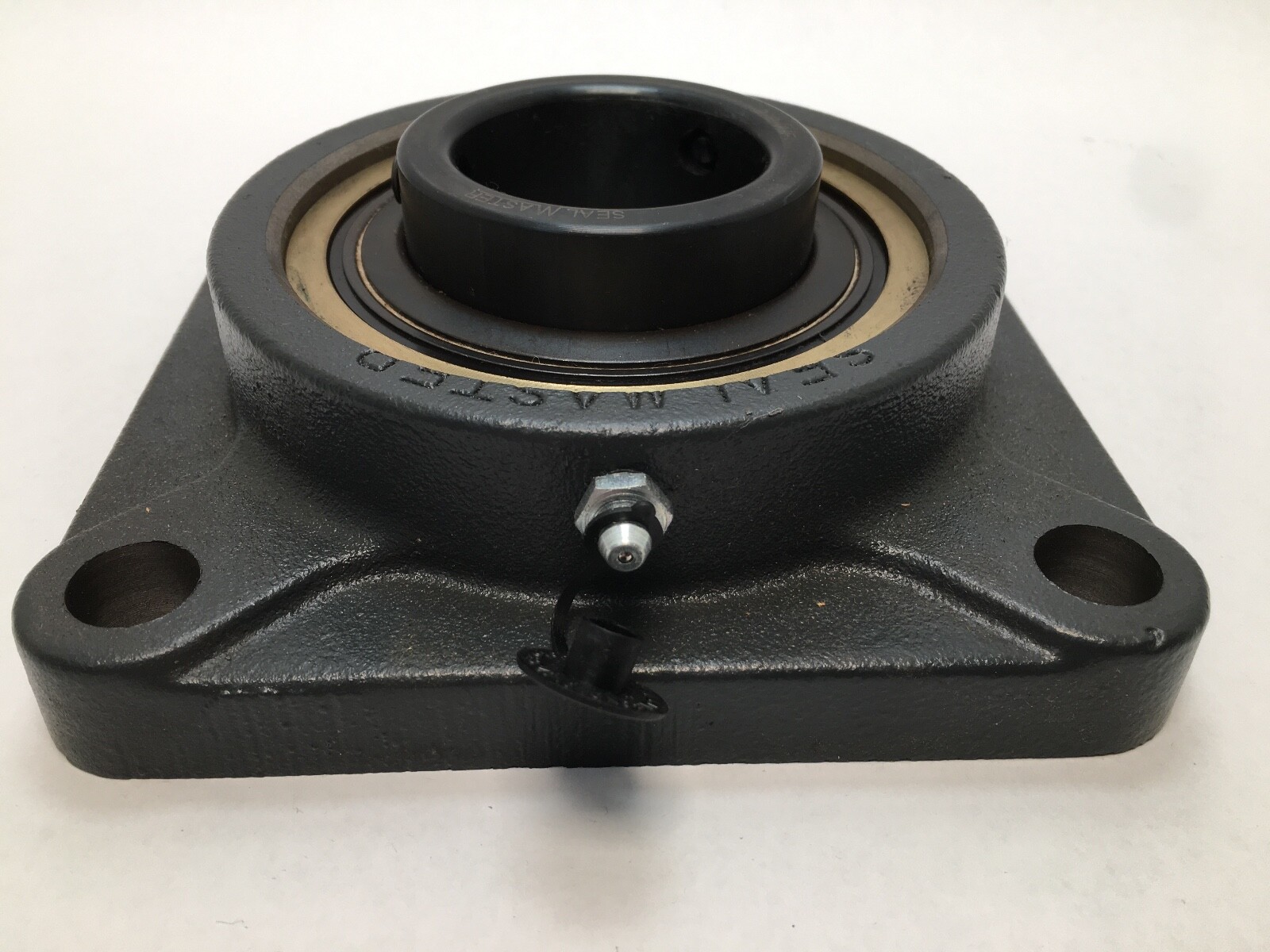

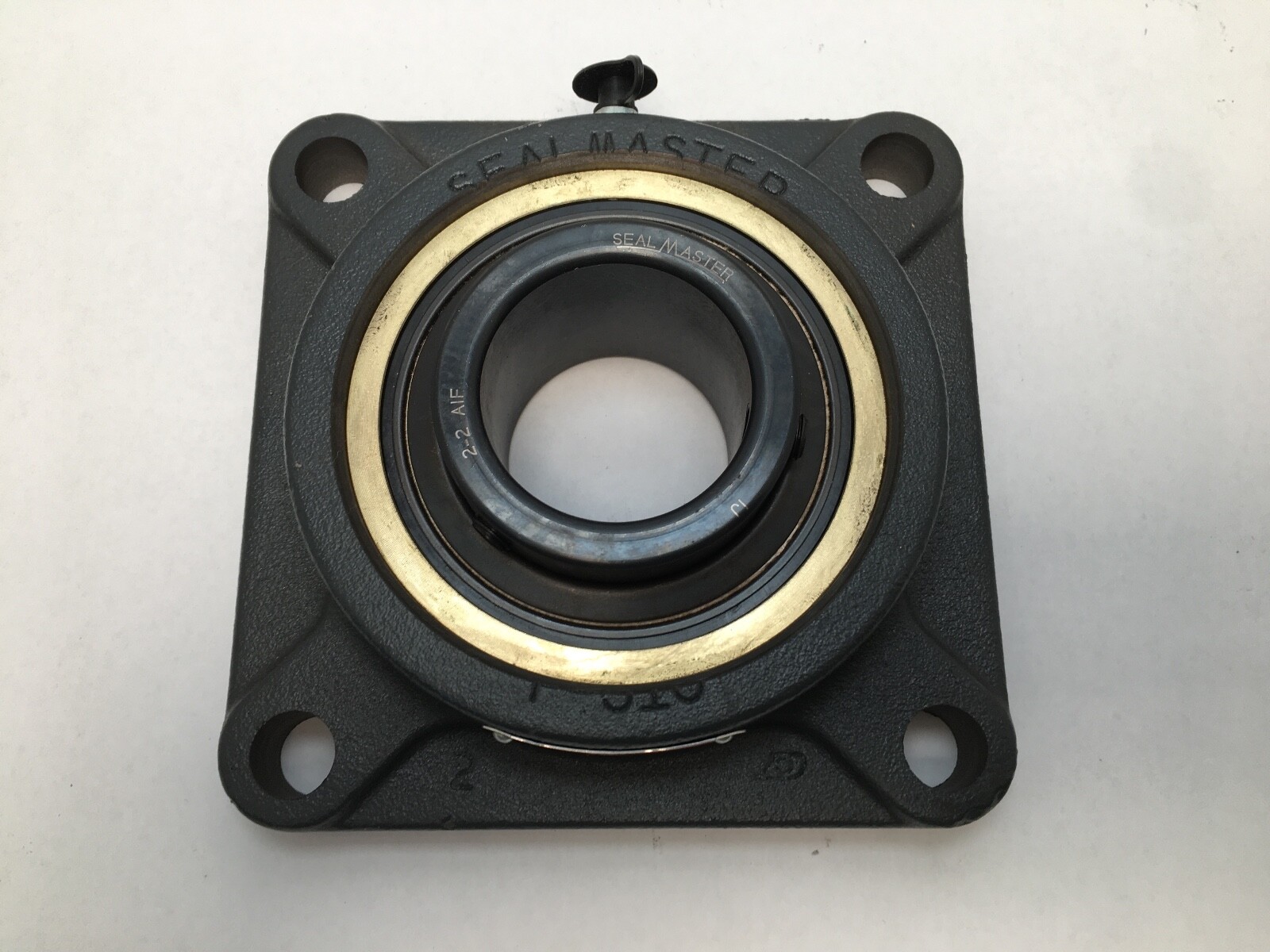

SealMaster ESF-32 AIF Gold Line mounted ball bearing in a four-bolt cast iron flange housing, expansion (floating) type, for a 2 in shaft. Complete flange unit with insert. Regal Rexnord Part Number: 722619. Unit Quantity: 1 Pc.

Decoding the designation:

E — expansion type: the insert floats axially in the housing.

SF — SealMaster four-bolt flange housing.

32 — shaft size in sixteenths of an inch: 32/16 = 2 in.

Specifications:

Bore Diameter: 2 in (50.8 mm). Housing Style: Four-bolt flange. Housing Material: Cast iron. Expansion Type: Expansion. Rolling Elements: Ball. Item Weight: 4.76 kg (10.50 lb). GTIN: 662461217405. Harmonization Code: 8483.20.4040. Unit Quantity: 1 Pc.

Dimensions and mounting:

Housing Style: Four-bolt flange. Housing Material: Cast iron. Bore Diameter: 2 in (50.8 mm).

Compatibility and replacement:

Regal Rexnord part 722619 is the SealMaster ESF-32 AIF. MPN variants: ESF-32 AIF, ESF-32-AIF, ESF32AIF, ESF32 AIF.

Frequently asked questions:

What shaft size does the SealMaster ESF-32 AIF fit?

2 in (50.8 mm). The 32 in the designation is the shaft size in sixteenths of an inch.

What is the Regal Rexnord part number for the ESF-32 AIF?

722619. The manufacturer lists GTIN 662461217405.

What housing does this unit have?

A four-bolt cast iron flange housing with an expansion (floating) ball bearing insert.
