SealMasterNP-9Two-Bolt Pillow Block Bearing Unit, 9/16″ Bore, Setscrew Locking, Non-Expansion, Cast Iron, Felt Seals

Name: SealMaster NP-9 Two-Bolt Pillow Block Bearing Unit, 9/16″ Bore, Setscrew Locking, Non-Expansion, Cast Iron, Felt Seals
Brand: SealMaster
SKU: AB6B5#J521SX
Price: 25.41 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

Categories: Bearings, Pillow Block Bearing

SealMaster NP-9 two-bolt cast iron pillow block for a 9/16 in shaft, 3-3/4 in bolt hole spacing, setscrew locking, felt seals, non-expansion.

Same day shipment

List Price

$25.41

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	SealMaster
MPN	NP-9
Model	NP 9/16
ID	9/16 in

Technical Specifications

Series	NP
Type	Pillow Block Bearing
Lubricant	Grease
Material	Cast Iron Housing, Bearing Steel Insert
Relubrication	Relubricatable via grease fitting
Base Number	NP-9
Industry Terms	pillow block, plummer block, 2-bolt mounted bearing, self-aligning ball bearing unit, conveyor bearing
Common Misspellings	Seal Master NP9, Sealmater NP-9, NP 9/16 pillowblock, pillow blck
Application Types	Conveyors, fans and blowers, agricultural equipment, material handling, light industrial shafting
Total Width	1-1/2 in (38.1 mm)
Overall Width	1-1/2 in (38.1 mm) base width
Bolt Center To Center	3-3/4 in (95.25 mm)
Number Of Bolt Holes	2
Bolt Center To Center Length	3-3/4 in (95.25 mm)
Number Of Bolt Holes For Fasteners	2
Centre Height Pillow Block	1-3/16 in (30.16 mm)
Centre Height	1-3/16 in (30.16 mm)
Bore Shaft Size	9/16 in
Housing Style	Pillow block, 2-bolt, cast iron
Locking Method	Setscrew (two, in extended inner ring)
Mpn Variants	NP-9, NP9, NP 9, NP-9/16, NP9/16
Arrangement Configuration	Complete unit: cast iron housing with insert, seals and setscrews
Closure Type	Felt seals, both faces
Rolling Elements	Ball
Bearing Type	Mounted ball bearing unit, wide inner ring insert, self-aligning
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Duty Type	Normal duty
Locking Device	Set Screw
Insert Outer Ring	Yes
Relubrication Feature	Relubricatable via grease fitting
Harmonization Code	8483.20.40
Housing Material	Cast Iron
Expansion Type	Non-expansion (locating)
Design Units	Inch
Bearing Material	52100 chrome steel insert races
Part Number	NP-9

Seller Part Number: AB6B5#J521SX

Product Description

What this part is:

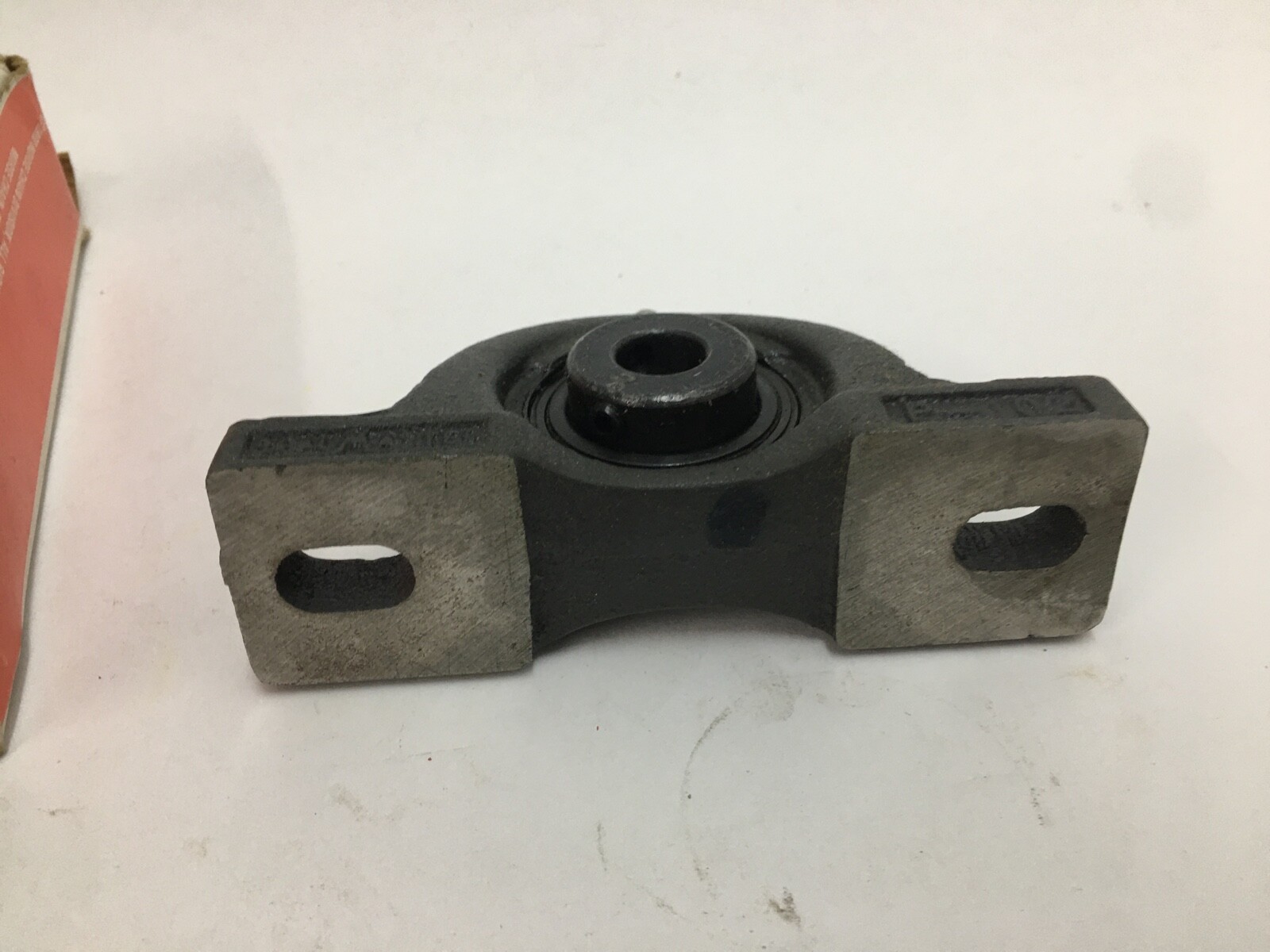

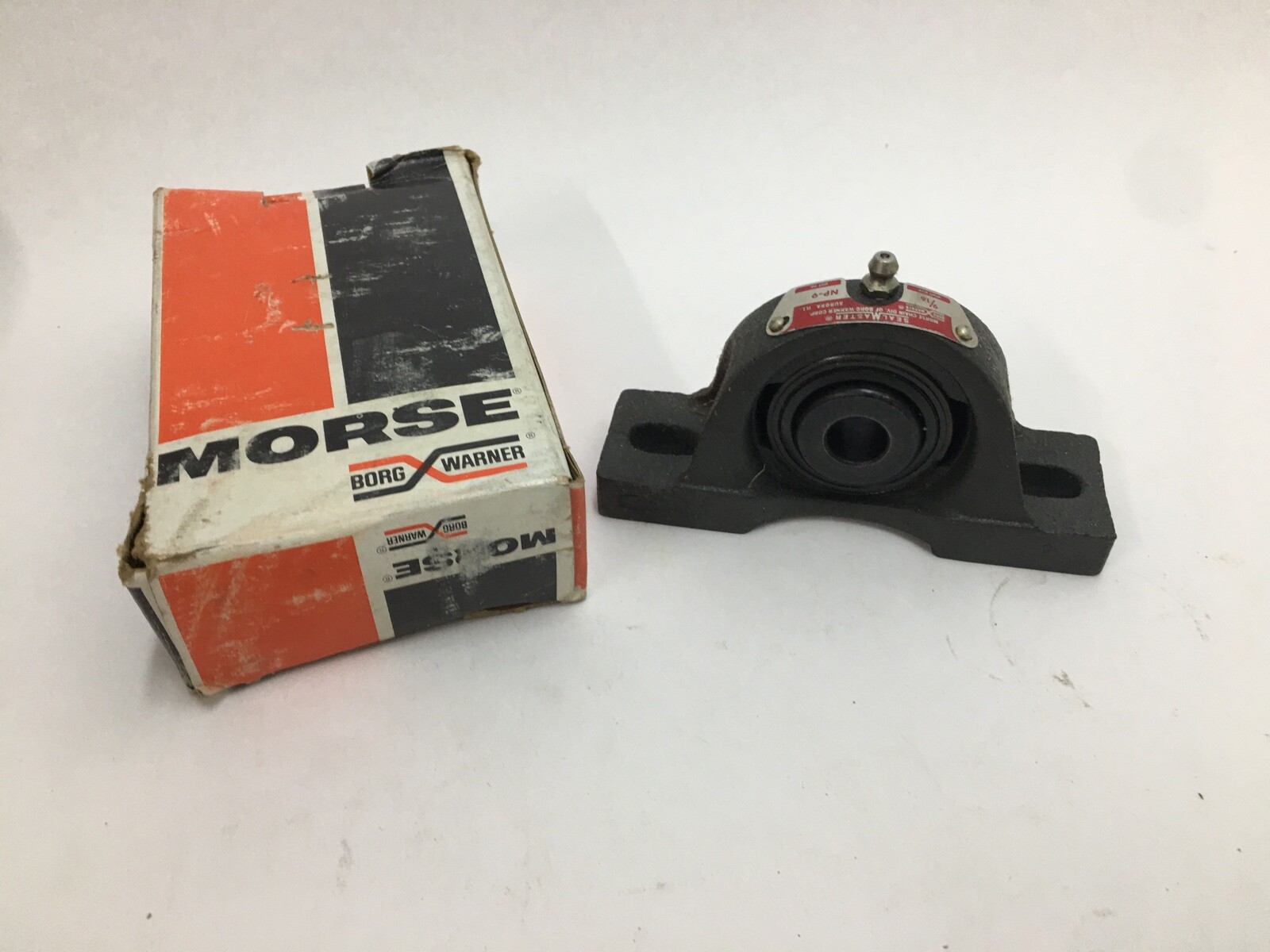

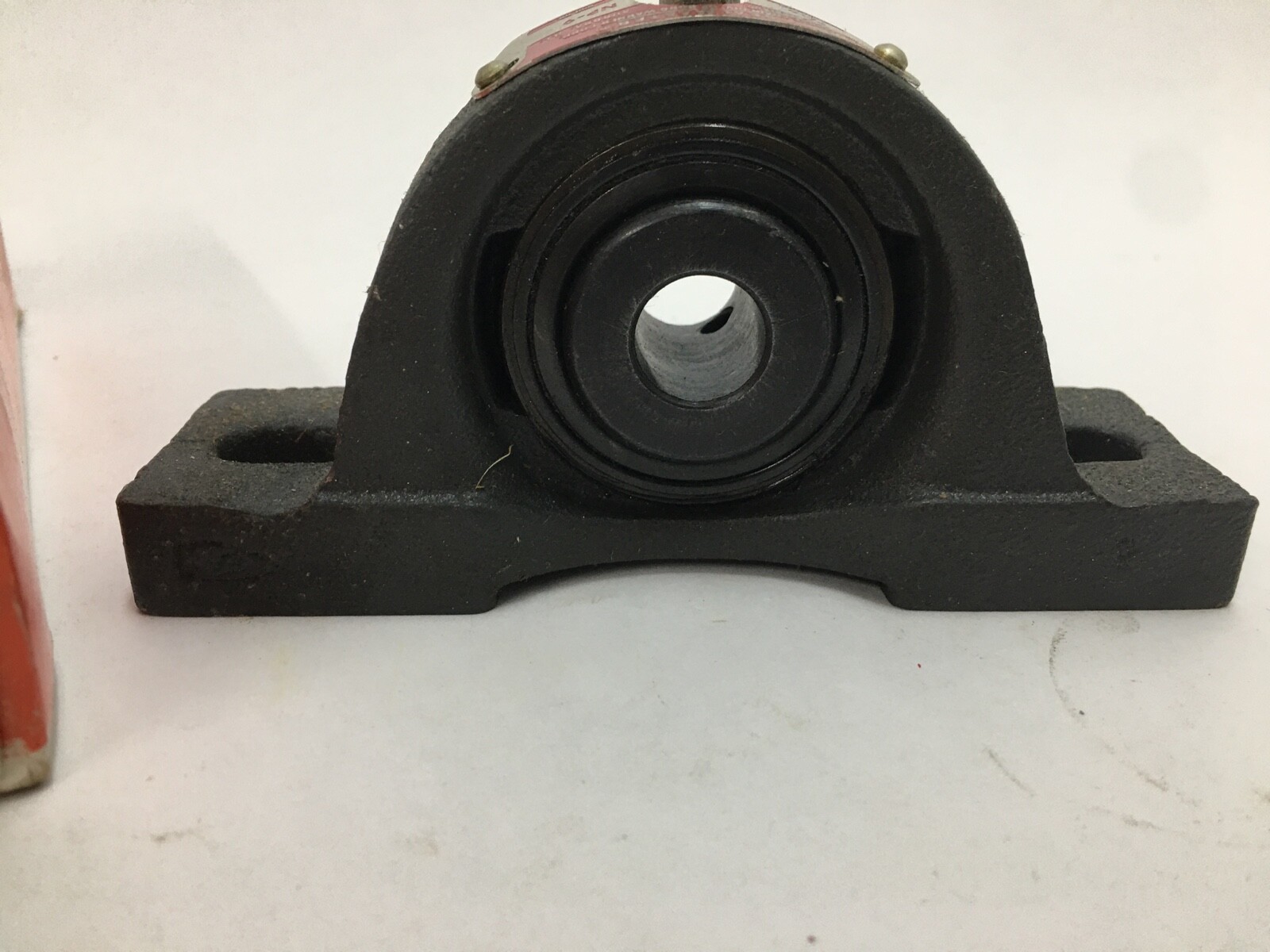

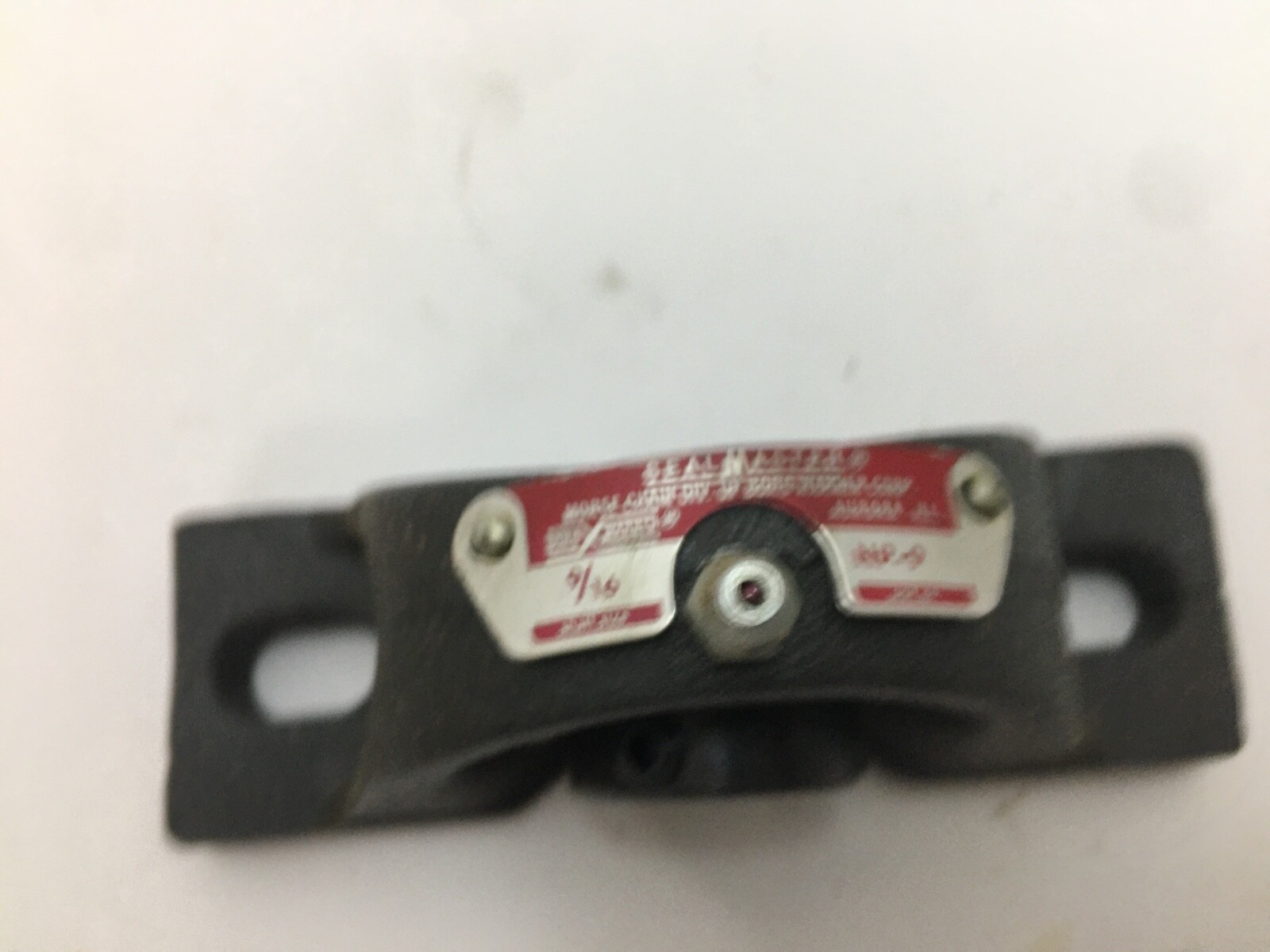

SealMaster NP-9 is a mounted ball bearing unit: a two-bolt cast iron pillow block from the normal-duty Gold Line NP series, with a wide-inner-ring ball bearing insert on a spherical outer race, self-aligning in a one-piece housing. Two setscrews in the extended inner ring lock it to a 9/16 in shaft. Complete unit: housing, insert, felt seals and setscrews. Unit Quantity: 1 Pc.

Decoding the designation:

NP — normal-duty two-bolt pillow block housing (SealMaster MP, NP and MRP are pillow blocks; SF, SFT and FB are flange styles).

9 — bore size in sixteenths of an inch, 9/16 in shaft.

Specifications:

Shaft Size: 9/16 in. Housing Style: Pillow block, 2-bolt. Housing Material: Cast Iron. Bearing Material: 52100 chrome steel insert races. Locking Method: Two setscrews in the extended inner ring. Closure Type: Felt seals, both faces. Relubrication: Relubricatable via grease fitting. Lubricant: Grease. Expansion Type: Non-expansion (locating). Duty Type: Normal duty. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bolt Hole Spacing, Center To Center: 3-3/4 in (95.25 mm). Bolt Size: 1/2 in. Base-To-Shaft Centre Height: 1-3/16 in (30.16 mm). Overall Length: 5 in. Overall Height: 2-7/16 in. Base Width: 1-1/2 in (38.1 mm). Number Of Bolt Holes: 2. The non-expansion insert is axially located in the housing, the locating end of a shaft.

Compatibility and replacement:

SealMaster NPL-9 is a related size with a different housing. Two-bolt pillow blocks of the same bore from other makers use different bolt centres and centre heights.
